OPERATION MANUAL
AND PARTS LIST
Series 682
Model # Voltage
D6821 120
D6822 230
D6823 100
LT682X1 • 8/8/08

2
Safety Information ..............................................................................................................................................3
Alert Boxes ..................................................................................................................................................3
Warnings......................................................................................................................................................3
Introduction..........................................................................................................................................................6
Installation ..........................................................................................................................................................7
Precautions Before Installation....................................................................................................................7
Unpacking....................................................................................................................................................8
System Location..........................................................................................................................................9
Mounting......................................................................................................................................................9
Tubing Adapter Installation ........................................................................................................................12
Utility Connections ....................................................................................................................................13
Membrane Installation/Replacement ........................................................................................................13
Prefilter Installation/Replacement..............................................................................................................15
Equipment Specifications..................................................................................................................................17
eedwater Requirements ..........................................................................................................................17
Product Water............................................................................................................................................17
Installation ................................................................................................................................................18
Electrical Requirements ............................................................................................................................18
Operation ..........................................................................................................................................................19
Controller and % Rejection Monitor ..................................................................................................................22
Controller ..................................................................................................................................................22
Storage Reservoir Control ........................................................................................................................23
% Rejection Monitor ..................................................................................................................................24
Error Indications ........................................................................................................................................25
Storage Reservoirs............................................................................................................................................26
Maintenance......................................................................................................................................................27
use Replacement ....................................................................................................................................27
Membrane Replacement ..........................................................................................................................27
Prefilter Replacement................................................................................................................................28
Motor Bearing Lubrication ........................................................................................................................28
Membrane Cleaning ..................................................................................................................................28
Membrane Cleaning Compound and Procedure Chart ............................................................................30
Resistivity Cell Cleaning............................................................................................................................30
Shutdown ..................................................................................................................................................31
Start-up Procedure After Shutdown ..........................................................................................................32
Troubleshooting ................................................................................................................................................33
Parts List ..........................................................................................................................................................34
Ordering Procedures ........................................................................................................................................36
Schematics........................................................................................................................................................37
Exploded View ..................................................................................................................................................40
Warranty ............................................................................................................................................................44
Table of Contents

3
Safety Information
Your Thermo Scientific Barnstead ULTROpure Reverse
Osmosis System has been designed with function, relia-
bility, and safety in mind. It is your responsibility to install
it in conformance with local electrical codes. or safe
operation, please pay attention to the alert signals
throughout the manual.
Warnings
Important
Water Purification technology employs one or more of
the following: Chemicals, electrical devices, mercury
vapor lamps, steam and heated vessels. Care should be
taken when installing, operating or servicing Barnstead
Products. Listed below are the specific safety notes per-
tinent to the Barnstead ULTROpure Reverse Osmosis
System.
To avoid electrical shock, always:
1. Ensure that the equipment is connected to
electrical service according to local and
national electrical codes. ailure to properly
connect may create a fire or shock hazard.
2. Do not mount the ULTROpure directly over
equipment that requires electrical service.
Routine maintenance of this unit may involve
water spillage and subsequent electrical
shock hazard if improperly located.
3. or continued protection against possible haz-
ard, replace fuses with same type and rating
of fuse.
4. Disconnect the ULTROpure and any equip-
ment serviced by the ULTROpure from the
power supply prior to maintenance and ser-
vicing.
To avoid personal Injury:
1. This device is to be used only with water
feeds and specified pretreatment chemicals
determined by a Barnstead water analysis.
Alert Signals
Warning
Warnings alert you to a possibility of
personal injury.
Caution
Cautions alert you to a possibility of
damage to the equipment.
Note
Notes alert you to pertinent facts and
conditions.

4
Sanitizing/cleaning agents must be used in com-
pliance with instructions in this manual. ailure
to comply with the above could result in explo-
sion and personal injury.
2. Avoid splashing disinfectant solution on clothing
or skin. Ensure all piping connections are tight
to avoid leakage of chemicals. Always depres-
surize chemical lines before disassembly.
Ensure adequate ventilation. ollow carefully the
manufacturerʼs safety instructions on labels of
chemical containers and material data sheets.
3. Make sure that the brackets are locked together
by the locating pins. ailure to properly engage
the brackets will create an unsafe installation
that may cause equipment damage or personal
injury.
4.Depressurize system prior to attempting to
remove canister.
5. Refer servicing to qualified personnel.
SAFETY INFORMATION

5
igure A: low Diagram

Introduction
It is your responsibility to read and understand the contents
of this manual prior to installation and use of this equip-
ment.
This manual contains the information you will need to
install, operate and maintain the ULTROpure Reverse
Osmosis Systems, Cat. Nos. D6821, D6822 & D6823.
Please take a few minutes to familiarize yourself with the
hardware before beginning installation.
Warning
This device is to be used only with
water feeds and specified pretreatment
chemicals determined by a H20 Select
water analysis. Sanitizing/cleaning
agents must be used in compliance
with instructions in this manual. ailure
to comply with the above could result
in explosion and personal injury.

7
Precautions Before Installation
It is the userʼs responsibility to assure that an adequate
water analysis has been performed to determine feedwa-
ter composition and pretreatment requirements before
operation of the ULTROpure. This is a condition of your
One Year Limited Warranty (see back cover). Operation
of the ULTROpure without prior determination of the
feedwater composition can destroy reverse osmosis
membranes.
We provide a free water analysis service called H20
Select and will make pretreatment recommendations
where necessary. If you did not have a water analysis
performed before the purchase of this equipment, you
will find a sampling kit with the ULTROpure. ollow the
instructions included with the kit and return the sample to
us.
Depending on the membrane selected for use in your
ULTROpure, certain conditions (refer to the Equipment
Specifications section on page 17.) must be established
and maintained before and during operation. The user
should pay particular attention to the requirements for
residual chlorine and pH specifications. In some installa-
tions, pH adjustment is required to prevent hard scale
formation on the membrane surface, or membrane hy-
drolysis. In these cases, the adjusted pH should be 6.25.
Routine use of the ULTROpure requires weekly monitor-
ing of pH and/or residual chlorine levels. This is due to
seasonal variations in water supplies and changes in
processing by local municipalities which can affect these
levels.
Residual chlorine and pH can be easily measured by
using inexpensive kits available from your laboratory
supply dealer. An Operating Record Log Sheet is provid-
ed on page 31 of this manual for recording these mea-
surements. You should make additional copies of the log
sheet for future use before entering any information.
Installation

8
Unpacking
1. Unpack the ULTROpure carefully and inspect for
shipping damage. Remove the tubing, power cord
and the angle iron wall bracket.
2. Remove the outer carton. (This carton surrounds
the unit.)
3. With two people, remove the ULTROpure by lifting.
4. Have a third person remove the Styrofoam packing
from the top and bottom of the unit.
5. Lay the unit on its back on a flat surface.
6. Remove the top cover by removing the two screws
on the right and left rear of the unit and pull
straight out.
7. Remove the front cover by unlatching the latches
on either side of the cover and pulling the cover
straight out.
8. Remove the hardware package, located in the
membrane cavity, that contains the following hard-
ware:
® Registered Trademark of DuPont.
INSTALLATION
Note
Extra fittings and parts are provided
for use in installation and routine main-
tenance procedures. Retain all fittings
and parts not used during installation
for future use.
ytitnauQ.oNgolataCnoitpircseD
11X385LFgL"01,retliF
243030TPN8/3xebut8/3retpada
170230TPN2/1xebut2/1retpadA
141540gulPrepmuJ
249270daPnoitalosI
187060nolfeT ediW"2/1,epaT
107206tikretaW
182XSGgnir-O
158230enarbmeM,pmalC
266201talf,rehsaW
The reverse osmosis membrane is not included with the
basic product. Wall bracket mounting fasteners are not
supplied with the ULTROpure.

9
System Location
The ULTROpure should be mounted at a height that
allows for convenient operation, viewing of the controls
and access to the front of the unit for routine service. A
6-inch minimum clearance is recommended below the
ULTROpure.
Proper ventilation of the ULTROpure requires at least 12
inches of free access to the right and top of the unit. Left
side clearance should accommodate the required plumb-
ing connections. Leave at least 16 inches in front of unit
for top cover and front cover removal.
Mounting
Mount the ULTROpure by the following steps:
A. Locate the angle iron wall bracket and use
this as a template for locating holes in the
wall. As a guide, the center line of the mount-
ing holes in the angle iron wall bracket should
be approximately 13 1/2 inches below eye
level.
B. Drill holes, sized to the selected fasteners, in
the wall.
C. Mount the angle iron wall bracket, making
sure that it is level prior to tightening the fas-
teners. The locating pins should be facing up.
D. Using the bottom edge of the angle iron wall
bracket included with the ULTROpure as a
guide, scribe a line on both sides of the brack-
et 13 1/8 inches above the wall bracket.
These lines will be used as reference points
to verify proper engagement of the two mating
brackets.
E. Install the rubber pads over the locating pins
on the angle iron wall bracket. The rubber
pads are in the plumbing hardware package.
Note
If you are installing additional
equipment with the ULTROpure, such
as a Barnstead NANOpure, refer to
the individual ownerʼs manual for
space requirements before installing
the ULTROpure System. If you are
using other storage reservoirs, refer to
page 26 for additional information.
Warning
Do not mount the ULTROpure directly
over equipment that requires electrical
service. Routine maintenance of this
unit may involve water spillage and
subsequent electrical shock hazard if
improperly located.
Caution
Do not connect unit to electrical service
until instructed to do so.
Note
The mounting holes in the angle iron
wall bracket are 16 inches on center,
per standard construction practices,
and will accommodate 3/8" fasteners.
Caution
Wall composition, condition and con-
struction, as well as fastener type must
be considered when mounting this unit.
The mounting surface and fasteners
selected must be capable of supporting
a minimum of 350 pounds. Inadequate
support and/or fastener may result in
damage to mounting surface and/or
equipment. If you are unsure of mount-
ing surface composition, condition and
construction or correct fasteners, con-
sult your building maintenance group or
contractor.
INSTALLATION

10
igure B: Assembly, Major Components
50
0
5
2
BARNSTEAD
0
02
0
0
10
Hardware Package
Reject Flow Meter
Membrane Pressure Gauge
Product Flow Meter
Recycle Valve
Reject Valve
RO Product Connection
RO Reject Connection
Prefilter Housing
Prefilter Outlet Pressure GaugePrefilter Inlet Pressure Gauge
Power Entry Module
(Remove before
installing
membrane.)
A
INSTALLATION

11
. Two people are needed to mount the
ULTROpure on the wall bracket. With one per-
son facing the right side or the unit and one
person facing the left side of the unit, each
person places one hand on the bottom edge
of the ULTROpure. Use the other hand to
steady the unit about halfway up the unit. Lift
and tilt the unit and place it over the angle
iron wall bracket so that the mating bracket is
above the locating pins. Press the unit toward
the wall and slowly slide it down the wall until
the two brackets lock together.
G. Ensure the brackets lock together. The line
scribed in step D should be equal with the top
of the ULTROpure. If this is not the case,
repeat step .
H. Install 1/4" fasteners to further secure the
ULTROpure on the wall. These fasteners are
to be installed in the upper cabinet. The holes
are located on the upper right-hand and left-
hand corners of the back panel. (Locations
indicated by point A on igure B, page 10.)
I. Refer to your storage reservoir ownerʼs manu-
al and mount the reservoir. Do not connect to
the ULTROpure at this time.
Warning
Make sure that the brackets are locked
together by the locating pins. ailure to
properly engage the brackets will cre-
ate an unsafe installation that may
cause equipment damage or personal
injury.
INSTALLATION

12
Tubing Adapter Installation
Making plumbing connections to the ULTROpure (see
“Utility Connections”) requires the use of tubing adapters.
Use the following procedure to assemble and connect the
tubing adapters.
A. Completely disassemble the fitting. Refer to
igure C below to familiarize yourself with the
names of the component parts.
B. Make sure the tubing is cut off reasonably
square and that no burrs or ridges are present.
C. Place the grab ring and backup ring in the hex
nut in the order and orientation shown in igure
C. Thread the nut onto the adapter. DO NOT
use the O-ring at this time.
D. Push the tubing through the hex nut until it bot-
toms out in the adapter.
E. Remove the adapter nut and tubing. Place the
O-ring over the tubing. Be careful not to push
the backup ring or grab ring further back on the
tubing when installing the O-ring.
. Install the hex nut on the adapter and hand
tighten.
Caution
Do not tighten tube adapter hex nut
with a wrench. Tight connections can
be easily made by hand.
igure C: Typical Polypropylene Tubing Adapter Installation
INSTALLATION

13
Utility Connections
A. 6 feet of 1/2" OD tubing is supplied along with
a 1/2" OD x 3/8" NPTM adapter. Wrap Teflon®
tape 1 1/2 to 2 times around this fitting and
install in your incoming feedwater line. Con-
nect the 1/2 OD tubing (refer to igure C:
Typical Polypropylene Tubing Adapter Installa-
tion) to this fitting and the fitting included on
the ULTROpure. It is recommended that a
customer supplied shutoff valve be installed
on the incoming water line.
B. Connect a sufficient length of 3/8" OD flexible
tubing to the fitting labeled “Reject” on the
right side of the ULTROpure. The unconnect-
ed end should be firmly fastened to an
atmospheric drain. DO NOT RESTRICT THIS
LINE IN ANY WAY.
C. Connect Product line to drain until you finish
flushing the membrane.
Membrane
Installation/Replacement
Installation of the Barnstead reverse osmosis membrane
in the ULTROpure requires the following tools: large slot
blade screwdriver and an open end 5/8" wrench. Install
the membrane by the following steps:
A. If not previously removed, remove top cover
by removing the two screws on the right and
left bottom back corner of the ULTROpure and
pull straight out.
B. Remove the lower cabinet by releasing the
two clamps on both sides of the ULTROpure
and pulling straight out.
Note
If you are replacing an installed mem-
brane, first remove the old membrane
and housing by reversing the following
installation procedure. (i.e. reversing
step L through step A).
INSTALLATION

14
C. Slip the membrane and housing assembly
through the large hole on the shelf on the left
side of the ULTROpure. This should be done
from underneath. Push the membrane and
housing back and rest on the shelf. The end of
the membrane with two connections must be on
the top and the single connection must be on
the bottom.
D. Turn the housing so that the large elbow is in
front, pointing toward the center of the unit. The
bottom connector should also be pointing to the
center of the unit.
E. Locate the hold down clamp (included in the
plumbing hardware package) and separate the
clamp by removing the nut and the bolt.
. While holding the membrane in place with one
hand, take one end of the hold down clamp and
place it into the slot located midway up the
membrane on the back wall. Repeat this with
the other end of the clamp directly on the oppo-
site side.
G. Secure the hold down clamp in place by replac-
ing the bolt. Place one of the two supplied
washers between the bolt head and the
clamp, and the other between the nut and
the clamp.
H. Tighten the clamp around the membrane snugly.
I. Remove the nut, grab ring, back up ring and o-
ring from the two fittings on the top and the one
on the bottom of the membrane. Leave the
adapters installed. (See igure C, page 12, for
part identification.)
Note
Ensure proper orientation of the mem-
brane fittings is maintained.
INSTALLATION

15
J. Locate the 1/2" OD tubing with the nut, grab
ring, back up ring and o-ring on the free end,
and attach it to the elbow on the top of the
membrane.
K. Connect the free end of the 3/8" OD tubing
located on the rear of the outlet cell well locat-
ed at the top of the unit to the 3/8" OD tubing
adapter located on the top center of the mem-
brane.
L. Connect the 1/2" OD tubing located on the
bottom of the unit to the 1/2" OD tubing
adapter located on the bottom of the
membrane.
M. Replace the cabinet and top cover.
Prefilter
Installation/Replacement
Prefilters
These devices are string-wound filters designed to pre-
vent large particulates from entering the ULTROpure
system.
Install the prefilter as follows:
1. Remove filter and adapters from package.
2. Open the access door by rotating the knob on
the front. Remove the canister from the head
by pressing the thumb lever and rotating the
ring 1/4 turn to the left.
3. Lubricate the o-rings on the adapters using
water, then install the adapters into the filter
by turning the adapter as you push it into the
filterʼs open end.
Note
This tubing is attached to the pump
outlet.
Caution
Do not tighten tube adapter hex nut
with a wrench. Tight connections can
be easily made by hand. However,
white tubing must be tightened 1/4 turn
with a wrench after hand-tightening to
prevent leakage.
Note
If you are replacing the prefilter, make
sure the ULTROpure is shut off and
the power disconnected. Allow the
Prefilter Inlet Pressure, Prefilter Outlet
Pressure and Membrane Pressure to
drop to “0” before attempting to
remove the prefilter.
Warning
Depressurize system prior to
attempting to remove canister.
INSTALLATION

16
4. Lubricate the o-ring on the head with water.
Install the filter onto the head, ensure that the
plugged end is down, with the open connector
pushed securely onto the head.
5. Lift the canister upward over the filter and tight-
en on the head 1/4 turn to the right.
Caution
Secure locking pin before operating;
locking pin must be fully released into
hole on head before the system is
operated. See igure D.

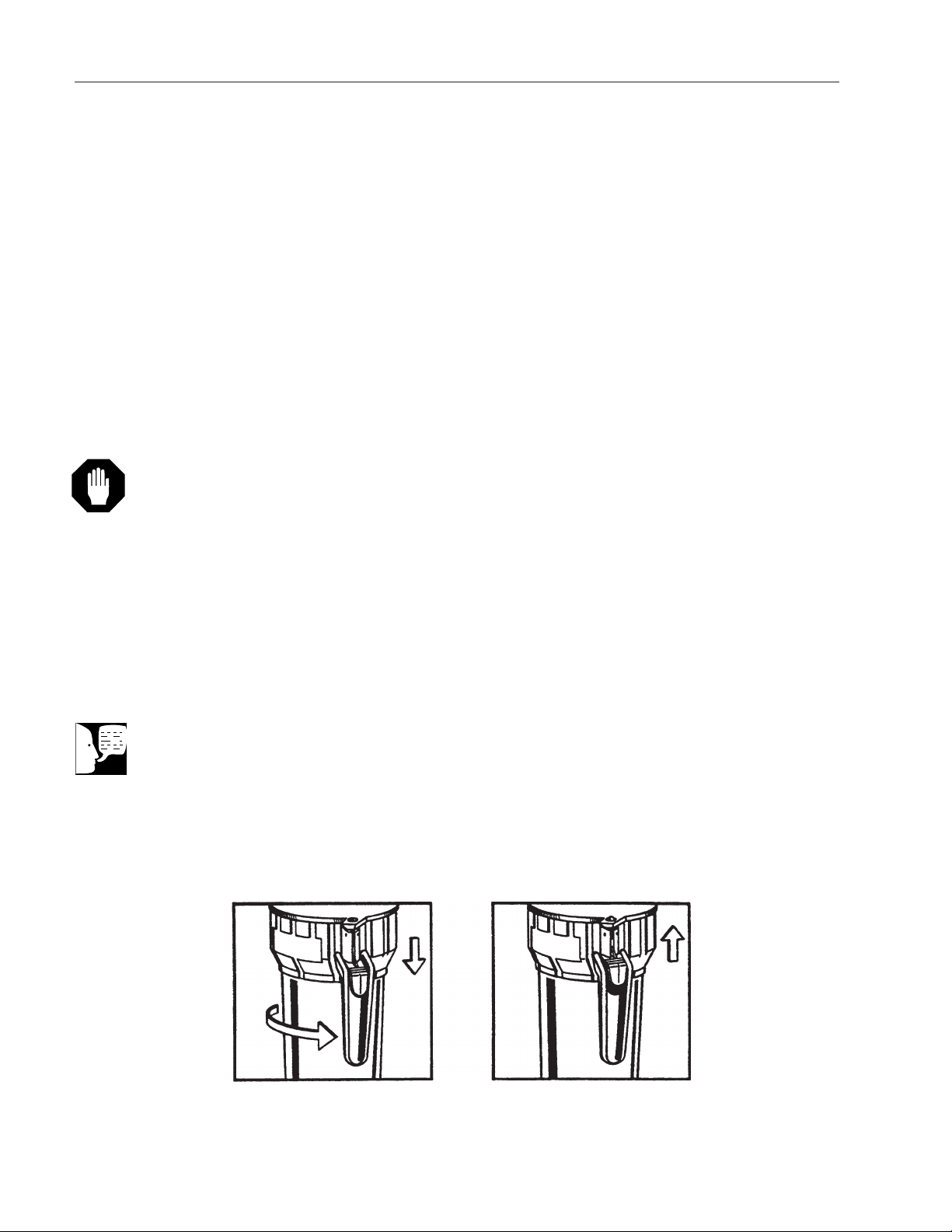

igure D: Canister locking pin position
Note
An extra head-to-canister O-ring is
supplied. This can be used as a
replacement if the O-ring has been
damaged or deformed in shipment.
INSTALLATION

17
Feedwater Requirements
Minimum Pressure @ 77 °F
w/new Prefilter 30 psig (2.11
kg/cm2)
Maximum Pressure 100 psig (7 kg/cm2)
Maximum Flowrate
D6828 membrane 9.8 lpm (2.6 gpm)
D6829 membrane 9.5 lpm (2.5 gpm)
D68210 membrane 13.3 lpm (3.5 gpm)
D68211 membrane 13.3 lpm (3.5 gpm)
Temperature Range ( 1 )
D6828 membrane 1.7-35°C (35-95° )
D6829 membrane 1.7-35°C (35-95° )
D68210 membrane 1.7-35°C (35-95° )
D68211 membrane 1.7-35°C (35-95° )
pH Range (1) (2)
D6828 membrane 4-8
D6829 membrane 4-8
D68210 membrane 4-11
D68211 membrane 4-11
Residual Chlorine
D6828 membrane 0.3-1.0 ppm
D6829 membrane 0.3-1.0 ppm
D68210 membrane zero
D68211 membrane zero
Turbidity < 1.0 NTU
Total Iron <0.5 mg/1 as e
Langlier Saturation
Index Negative
Silt Density Index <5%
Max. TDS @10% Recovery
D6828 membrane 910 ppm
D6829 membrane not recommended
D68210 membrane not recommended
D68211 membrane not recommended
Max. TDS @20% Recovery
D6828 membrane 820 ppm
D6829 membrane 832 ppm
D68210 membrane 816 ppm
D68211 membrane 816 ppm
Max. TDS @30% Recovery
D6828 membrane 731 ppm
D6829 membrane 749 ppm
D68210 membrane 724 ppm
D68211 membrane 724 ppm
Max. TDS @40% Recovery
D6828 membrane 643 ppm
D6829 membrane 667 ppm
D68210 membrane 634 ppm
D68211 membrane 634 ppm
Max. TDS @50% Recovery
D6828 membrane 557 ppm
D6829 membrane 591 ppm
D68210 membrane 545 ppm
D68211 membrane 545 ppm
Product Water
Flowrate (1)
D6828 membrane 58.4 Iph ±9 Iph (15.5 gph ±2.4gph)
D6829 membrane 110.4 Iph ±10 Iph (29.2 gph ±2.6 gph)
D68210 membrane 157.7 Iph ±24 Iph (41.6 gph ±6.4 gph)
D68211 membrane 78.9 Iph ±12 Iph (20.8 gph ±3.2 gph)
uality (1) NaCI System Rejection
@10% Recovery
D6828 membrane 51 ppm 94%
D6829 membrane NA
D68210 membrane NA
D68211 membrane NA
@20% Recovery
D6828 membrane 55 ppm 93%
D6829 membrane 86 ppm 89%
D68210 membrane 44 ppm 94%
D68211 membrane 44 ppm 94%
@30% Recovery
D6828 membrane 59 ppm 92%
D6829 membrane 93 ppm 88%
D68210 membrane 47 ppm 93%
D68211 membrane 47 ppm 93%
@40% Recovery
D6828 membrane 65 ppm 89%
D6829 membrane 101 ppm 84%
D68210 membrane 52 ppm 91%
D68211 membrane 52 ppm 91%
@50% Recovery
D6828 membrane 73 ppm 87%
D6829 membrane 114 ppm 80%
D68210 membrane 58 ppm 89%
D68211 membrane 58 ppm 89%
(1) Membrane performance is dependant on membrane condition, pressure, recovery,
water temperature and water composition. Listed membrane performance for a new
membrane is based on optimal operating conditions of 200 psig, 10% recovery, 25°C
(77° ) feedwater temperature and feedwater composition of 1000 ppm NaCl at a pH of
6.0-6.5.
(2) pH range is for membrane only. Minimum pH for the ULTROpure unit is 6.0.
Equipment Specifications

18
Installation
Overall Dimensions (W x D x H)
Wall Mounted Unit 22" x 14" x 39 3/8" (55.9 cm x 35.6 cm x 100 cm)
With Optional loor Mounting Stand 22" x 16" x 44 1/4" (55.9 cm x 40.6 cm x 112.4 cm)
Operating Weight lbs (kg) 125 (56.3)
Mounting Wall mount with bracket provided. loor mount with optional floor mounting
stand
Plumbing Connections
eedwater 1/2" OD tube
Product Water 3/8" OD tube—storage
Reject 3/8" OD tube
Electrical Requirements
Voltage and Frequency (nominal)
100 VAC, 50/60 Hz 85-110 VAC, 47-63 Hz, 1 phase, 15 amp
120 VAC, 60 Hz 98-127 VAC, 57-63 Hz, 1 phase, 15 amp
230 VAC, 50 Hz 196-253 VAC, 47-53 Hz, 1 phase, 8 amp
EUIPMENT SPECIFICATIONS

19
Initial startup of the Barnstead ULTROpure will require
the following customer-supplied items to set optimum op-
erating parameters:
pH meter or pH test kit.
Test kit for determining residual chlorine.
Refer to your water analysis printout and locate the rec-
ommended recovery rate for your unit. You will need to
set the ULTROpure valving for this specific recovery. If
you cannot find this analysis, DO NOT PROCEED UR-
THER. Refer to “Precautions Before Installation” in the
Installation section of this manual.
Set the ULTROpure recovery as follows:
A. Open the reject valve 3 full turns from the
closed position. This valve is located on the
top of the prefilter and is accessed by opening
the door in the front of the ULTROpure.
B. Open the customer supplied feedwater supply
shutoff valve. Check for leaks and correct, if
necessary.
C. Install the Storage Interlock Jumper plug, sup-
plied in the ULTROpure plumbing hardware
package, into the Storage Interlock on the
right side of the ULTROpure.
D. Connect the power cord to the power entry
module on the right hand side of the unit and
to an appropriate power supply.
E. Press the “Power” button on the ULTROpure
control panel.
. After the high pressure pump has started,
adjust the recycle valve until the membrane
pressure gauge is reading 150 psig.
G. Check for leaks and correct if necessary.
Operation
Caution
Never restrict the flow of product water
from the ULTROpure. Restricting prod-
uct will destroy the membrane.
Note
Be sure that both Reject and Product
lines are routed to drain.
Note
Each time the “Power” button is
pushed, built-in time delays allow the
feedwater to fill the system prior to
starting the high pressure pump.
Ignore the digital display readings on
the % Rejection Monitor as you per-
form the preceding step (Step E).
Descriptions and explanations of the
meter display start on page 20. It is
not necessary to understand the moni-
tor display at this time.

20
H. Allow the ULTROpure to operate for at least 30
minutes to purge air from the membrane.
I. After the 30-minute purge, turn the recycle valve
until the membrane pressure increases to 200
psig. Allow 5 to 10 minutes for the system to
stabilize. Readings on flow meters are taken at
the indented point of the flow indicator.
J. Note the reading on the Product low Meter.
Enter this flow rate in the Operating Record Log
Sheet under “Initial Start-up.”
K. Refer to Table 3 and find the multiplication factor
which corresponds to the recommended recov-
ery given on your H20 Select water analysis.
Multiply the product flow rate measured in Step
J by this factor to find the required “Reject” flow
rate.
Example:
• Measured product flow rate = 400 ml/min.
• Water analysis recommends 40% maximum re-
covery.
• Multiplication factor for 40% recovery is 1.5.
• 1.5 (400) = 600 ml/min. reject flow rate required.
L. Now note the reading on the Reject low Meter.
If this rate is higher than the one you calculated,
do the following:
• Too High—Open the recycle valve until the
membrane pressure gauge is reading 180 psig.
Then close the reject valve to restore pressure
to 200 psig.
Note
Initial startup may cause a shutdown
condition (because of low pressure)
until the system is purged. The elec-
tronics allow for a restart prior to shut-
down. When the ULTROpure senses a
low pressure situation, it will wait 30
seconds---, then attempt a restart. It
will shut down if the unit senses low
pressure the second time. Should a
shutdown condition occur while you
are performing this startup, shut the
ULTROpure off and restart. If the shut-
down condition continues after the
system has been purged 3 to 4 times,
check to be sure that there is ade-
quate feedwater pressure at the
ULTROpure feedwater inlet (Refer to
Technical Characteristics). If adequate
pressure is available, close the reject
valve 1/2 turn and restart the unit.
Note
Check to be sure that water is flowing
from both the reject and product lines.
This can be accomplished by observ-
ing the flow meters. If no water is com-
ing out of the reject line, open the
reject valve until water flows out.
Product water generally takes a few
minutes after startup to completely fill
the product line.
Note
The flow meter is read at the indented
portion of the flow indicator. Before
taking the following flow rate readings,
be sure that the membrane pressure
gauge is reading 200 psig. THIS IS
IMPORTANT.
Max. Recommended
% Recovery 10% 15% 20% 25% 30% 35% 40% 45% 50%
Multiplication actor 9.0 5.7 4.0 3.0 2.3 1.9 1.5 1.2 1.0
OPERATION
Table 3
