Rinnai Enduro SP200A User manual

This system shall be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3500
• All applicable local rules and regulations including local OH&S requirements
This system must be installed, commissioned and serviced by an Authorised Person.
NOT SUITABLE AS A POOL OR SPA HEATER
The solar hot and solar cold pipes between the solar storage tank and the
solar collectors must be suited to the high water temperatures and pressures
that may occur. As such, plastic pipe must not be used. Components used to
join pipes must use metallic materials to achieve sealing.
Issue
5
Installation Manual
Rinnai Split Solar Hot Water Systems -
Enduro SP200A and Excelsior EXT Collectors
AS/NZS 2712
Lic No.1849
SAI Global

Rinnai 2 Split Collector IM
This manual covers the installation of Enduro SP200A, Enduro XL SP250A and Excelsior EXT solar collectors as
part of complete solar hot water systems.
Full instructions on the installation of the complete system can be found in the “Operation / Installation Manual -
Rinnai Split Solar Hot Water Systems”.
All information and warnings in the “Operation / Installation Manual - Rinnai Split Solar Hot Water Systems” are
applicable to this installation.

Rinnai 3 Split Collector IM
Specications 4
Solar Collectors �������������������������������������������������������������������������������������������������������������������������������������������������� 4
InstallationInformation 5
Regulations and Occupation Health and Safety (OH&S) ���������������������������������������������������������������������������������� 5
Water Quality ������������������������������������������������������������������������������������������������������������������������������������������������������ 5
System Orientation and Inclination ��������������������������������������������������������������������������������������������������������������������� 5
Roof Mounting Options ��������������������������������������������������������������������������������������������������������������������������������������� 6
Water Pipes and Fittings ������������������������������������������������������������������������������������������������������������������������������������ 9
CollectorInstallation 11
Standard Installation ����������������������������������������������������������������������������������������������������������������������������������������� 11
1 Collector Installation Kit - R33202739 ���������������������������������������������������������������������������������������������������������� 14
2 Collectors Installation Kit - R33202740 �������������������������������������������������������������������������������������������������������� 16
3 Collectors Installation Kit - R33202741 �������������������������������������������������������������������������������������������������������� 18
ContactInformation 20
TABLE OF CONTENTS

Rinnai 4 Split Collector IM
SOLAR COLLECTORS
ENDURO
SP200A
EXCELSIOR
EXT
ENDURO XL
SP250A
Type Flat plate Flat plate Flat plate
Waterways Copper Copper Copper
Absorber Aluminium Copper Aluminium
Selective Surface High Performance Sputtered Titanium
Oxide High Performance
Maximum Operating Pressure 1000 kPa
Casing Material Aluminium
Overall Dimensions
(L x W x H) (mm) 1940 x 1025 x 70 1964 x 1047 x 81 1940 x 1270 x 70
Weight empty (kg). 33 35 39
Water volume (litres) 1.3 1.5 1.6
Number risers 8 10 10
Potential Solar Output at
PTR relief conditions (kW) 1.25 kW 1.25 kW 1.4 kW
Frost Protection
The Rinnai solar hot water warranty booklet species the locations and
conditions that apply for at plate collectors to be warranted against frost
damage.
In locations where the warranty booklet that frost valves must be used, they
must be tted for warranty to apply. Failure to t frost valves will void any
warranty against frost damage.
For full warranty terms, conditions and exclusions refer to the Rinnai
Warranty Booklet for solar hot water. The warranty booklet is available at
www.rinnai.com.au.
SPECIFICATIONS

INSTALLATION INFORMATION
Rinnai 5 Split Collector IM
REGULATIONS AND OCCUPATION HEALTH AND SAFETY (OH&S)
Installation and commissioning must be performed by authorised persons. Rinnai solar systems must be installed
in accordance with these instructions and all regulatory requirements which exist in your area including those in
relation to manual lifting, working at heights and on roofs. Applicable publications and regulations may include:
• AS/NZS 3500 National Plumbing and Drainage
• Building Codes of Australia
• Local Occupational Health and Safety (OH&S) regulations
WARNING
Solar collectors are heavy and bulky items and are usually positioned on the roofs of buildings. Each
Australian State and Territory has a principal Occupational Health and Safety (OH&S) Act which contains
requirements relating to the handling of large, bulky or awkward items and the prevention of falls from
elevated surfaces. Persons installing solar collectors must be aware of their responsibilities and be
adequatelytrainedandqualied,inaccordancewithlocalOH&Srequirements.
WATER QUALITY
The water quality of most public supplies is suitable for the water heating system. The water quality from bore wells
is generally unsuitable for the water heating system. Refer to separate ‘Warranty Terms and Conditions’ document
for water quality parameters and how they affect the warranty conditions. If in doubt about the water quality, have
it checked against the parameters listed in the warranty conditions. The system is not suitable as a pool or spa
heater.
SYSTEM ORIENTATION AND INCLINATION
The performance of any solar hot water system is determined by the way the system is installed.
For Australian installations, solar collectors should face the equator (True North) for optimum performance.
Installing solar collectors facing up to 45 degrees away from North (between North-East and North-West) will
reduceefciencybyapproximately5%.
For Australian installations the inclination of solar collectors should be the same as the latitude of the site for optimum
performance.Inclinationswithin20degreesofthelatitudeofthesitewillreduceefciencybyapproximately5%.
Most roofs in Australia have a slope of between 20° and 25° and provide an appropriately angled mounting surface.
Installersmustensuretheycomplywithrelevantlocalregulationsregardingsolarcollectorinclination
andorientation.
City Latitude City Latitude City Latitude
Adelaide 35°S Canberra 35°S Melbourne 38°S
Albany 35°S Darwin 12°S Perth 32°S
Alice Springs 24°S Dubbo 32°S Port Hedland 20°S
Brisbane 27°S Geraldton 28°S Rockhampton 24°S
Broken Hill 31°S Hobart 42°S Sydney 34°S
Cairns 17°S Mildura 34°S Townsville 19°S
Latitudes of Australian Cities

INSTALLATION INFORMATION
Rinnai 6 Split Collector IM
ROOF MOUNTING OPTIONS
Forroofswithaslopeof10°orlessaatroofframemustbeused.
Roof construction must be checked to ensure that the roof timbers are capable of supporting the additional load.
(Refer to AS 3500.4 Appendix H).
The roof mounting option must be appropriate for the wind loading that is likely in the installed location. See the
section 'Mounting Location Suitability' on page 7.
Forbuildingshigherthan10metresthespecicationsforsecuringsolarcollectorstothebuildingstructureneed
tobedeterminedonacasebycasebasisforeachbuildingbyapersonqualiedtodosoinaccordancewiththe
BuildingCodeofAustralia(BCA).Suchspecicationsrelatetothetypeoffastenings,thenumberoffasteningsand
their embedment into the building structure. They are determined from factors including the geographical location
and topography, the prevailing wind conditions, building dimensions, rooftop form and structural materials, and
the intended location of the solar panels relative to building internal, edge and corner zones. The BCA references
AS1170.2 “Structural Design Actions Part 2: Wind Actions”, AS3600 “Concrete Structures” and AS4100 “Steel
Structures”inrelationtothesespecications.
A solution may be provided using either kit DDHRKIT2 (2 collector) or DDHRKIT3 (3 collector), in accordance with
the instructions in the Rinnai document “High Rise Roof Mounting Frame Installation Instructions (Part Number
15401103)
StandardInstallation
Installation details are in the section 'Collector Installation' on page 11. This
type of installation is not suitable for use on roofs over 10 m high.
N
FlatRoofFrame
Foruseonaatrooforwheretheroofpitchistoolow.Thistypeofinstallationis
not suitable for use on roofs over 10 m high.
Additional information is provided in the roof frame manual provided with the frame.
N
ReversePitchFrame
ThesecompriseofaSplitSystematroofframeandaside/reversepitchkit.This
type of installation is not suitable for use on roofs over 10 m high.
They can be used when the collectors need to be installed in the reverse direction
to the direction the roof is facing. For example, installing on a South facing roof
enables the collectors to be oriented to the North.
Additional information is provided in the roof frame manual provided with the frame.
N
SidePitchFrame
ThesecompriseofaSplitSystematroofframeandaside/reversepitchkit.This
type of installation is not suitable for use on roofs over 10 m high.
They can be used when the collectors needs to be installed side on to the direction
the roof is facing. For example, installation on an East or West facing roof to
enables the collectors to be oriented to the North.
Additional information is provided in the roof frame manual provided with the frame.
N
CycloneFrame
Additional Information is provided in the cyclone frame manual provided with the
cyclone frame
N

INSTALLATION INFORMATION
Rinnai 7 Split Collector IM
Mounting Location Suitability
The following table indicates which installation locations are suitable for different roof mounting options for Rinnai
split solar hot water systems
Wind Region Region
A
Region
B
Region
C
Region
D
Roof Area
(see page "Roof Area"
on page 8 for
explanation)
Area
1
Area
2
Area
3
Area
1
Area
2
Area
3Area 1 Areas 2 & 3
Areas
1,2 & 3
1,2 or 3 collector(s) on
a pitched roof üüüüü
1 or 2 collector(s) on a
cyclone frame. üüüüü ü*
1,2 or 3 collector(s) on
aatroofframe ü ü ü
1 or 2 collector(s) on a
reverse pitch frame ü
1 or 2 collector(s) on a
side pitch frame. ü
* Enduro (SP200A) collectors only
Wind Region
Australia has been categorised into 4 wind regions. Each region has varying wind load parameters such as wind
speed and wind direction multipliers. The diagram below illustrates the region locations. For more information
onhowtoclassifysitespecicwindloadingparametersseeAS/NZS1170.2-WindActions,orconsultacertied
structural engineer.
20˚
25˚
25˚
30˚
27˚
30˚
50km
100km
150km
Region A
Region B
Region C
Region D
Region A Region B Region C Region D
Callytharra Springs
Gascoyne Junction
Green Head
Kununurra
Lord Howe Island
Morawa
Toowoomba
Wittanoom
Bourke
Adelaide River
Atherton
Biloela
Brisbane
Christmas Island
Collinsville
Corindi
Geraldton
Ivanhoe
Kyogle
Marble Bar
Mullewa
Norfolk Island
Torres Strait Islands
Wyndham
Borroloola
Broome
Bundaberg
Burketown
Cairns
Cocos Islands
Darwin
Derby
Karumba
Mackay
Mareeba
Millstream
Moreton
Nhulunbuy
Normanton
Rockhampton
Townsville
Carnarvon
Exmouth
Karratha
Onslow
Port Hedland
Indicative selection of towns in Regions A,B,C &D

INSTALLATION INFORMATION
Rinnai 8 Split Collector IM
Roof Area
AsperAS/NZS1170.2,domesticpitchedandatroofareasareclassiedintoworkingareas.Thediagrambelow
illustrate these areas.
Area 1
Area 2
Area 3
30° MAX
h= Average height
of building
D
A
B
A
A/2
A=minimumof0.2xB,0.2xDand1xh
Area 1 - Internal of roof.
Area 2 - Intermediate area, wind pressures increased
by 1.5 times.
Area 3 - Roof edge including corners, wind pressures
increased by 3 times. For installations in roof area
3, a minimum of 0.5m from the edge of the roof is
recommended.
Height limit for all installations is 10 metres.
Formoreinformationonhowtoclassifyspecicroof
area installations, or for building heights exceeding
10 metres seeAS/NZS1170.2 or consult a certied
structural engineer.
Some examples are shown below.
Example1
3.8 (h)
1.21 (A/2)
2.42 (A)
Area 3
12.1 (D)
20.3 (B)
1.21 (A/2)
2.42 (A)
Area 2
Area 1
Example2
12.1 (D)
20.3 (B)
3.8 (h)
2.42 (A)
1.21 (A/2)
Area 3
Area 2
Area 1
In both examples :
A = min of 0.2 x 20.3 = 4.06
0.2 x 12.1 = 2.42
1 x 3.8 = 3.8
èA = 2.42
A/2 = 1.21 m

INSTALLATION INFORMATION
Rinnai 9 Split Collector IM
WATER PIPES AND FITTINGS
WARNING
The solar hot and solar cold pipes between the solar storage tank and the solar collectors must be
suited to the high water temperatures and pressures that may occur. As such, plastic pipe must not
be used. Components used to join pipes must use metallic materials to achieve sealing. The collector
owandreturnpipesshouldbe15mmcoppertube.
Capillary silver solder is a suitable joining method.
All hot water pipework should be insulated with sealed polyethylene foamed or equivalent insulation to optimise
performance and energy efciency. Such insulation may also be mandatory under local regulations. Rinnai
recommend insulation to achieve an R value of 0.6 K.m2/W or higher depending on location. With the exception
ofsolarcollectorowandreturnpipes,waterpipesizingshouldbeperformedinaccordancewithAS/NZS3500.
Thesuggestedmaximumcombinedlengthofthesolarowandreturnlinesis40metres.Pleaserrefertothe
systemsinstallationmanualsuppliedwiththepumpkitforthemaximumpipelengthforthespecicpipekit.
AllexternalpipeworkMUSTbeinsulatedtopreventfrostdamage.AllttingsMUSTbeinsulatedtoprotectfrom
frost damage, with the exception of the air bleed valve. .

INSTALLATION INFORMATION
Rinnai 10 Split Collector IM
WARNING
When connecting collectors or copper pipe with compression unions, ensure that the compression
union is held at 2 points as shown in the diagram. One side should be held still while the other is
tightened. Not doing this can cause damage to the collector or leaks.
WARNING
When connecting the collectors with compression unions, ensure that the collectors are pushed
together so that the olive is sitting approximately 15mm from the end of the copper pipe. This ensures
thejoinwillsurvivetheexpansionandcontractionthatcanoccurduetotemperatureuctuations.
15 mm
Collector header pipework to be
pushed up hard against the nipple
This ensures the copper olive is
adequately pushed onto the the pipe.
Collector header pipes
Olive Nipple

COLLECTOR INSTALLATION
Rinnai 11 Split Collector IM
STANDARD INSTALLATION
WARNING
This type of installation is not suitable for use on roofs over 10 m high.
This type of installation is not suitable for use in cyclonic areas.

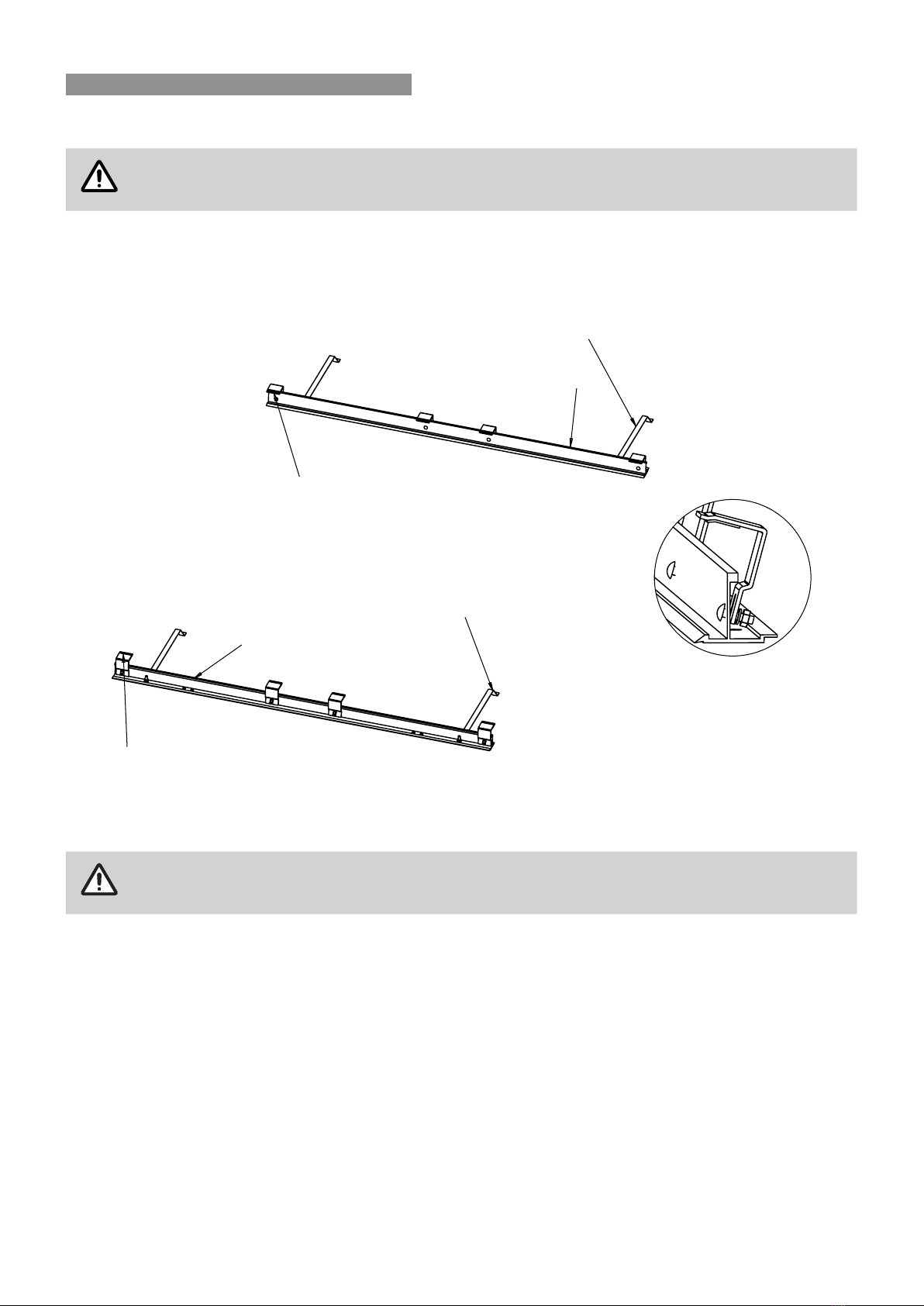

Collector Rail Pre Assembly
Assemble the collector rail components as shown. Only loosely attach the collector retainers to the rails.
Details of component quantities are shown in the tables on page 14 to 19.
MOUNTING RAIL
COLLECTOR SUPPORT STRAPS
COLLECTOR SUPPORT STRAPS
COLLECTOR RETAINERS
M6 BOLT, NUT &WASHER
COLLECTOR RETAINERS
M6 BOLT, NUT &WASHER
MOUNTING RAIL
WARNING
Please ensure the collector rails are positioned in the correct orienation against the collector.

COLLECTOR INSTALLATION
Rinnai 12 Split Collector IM

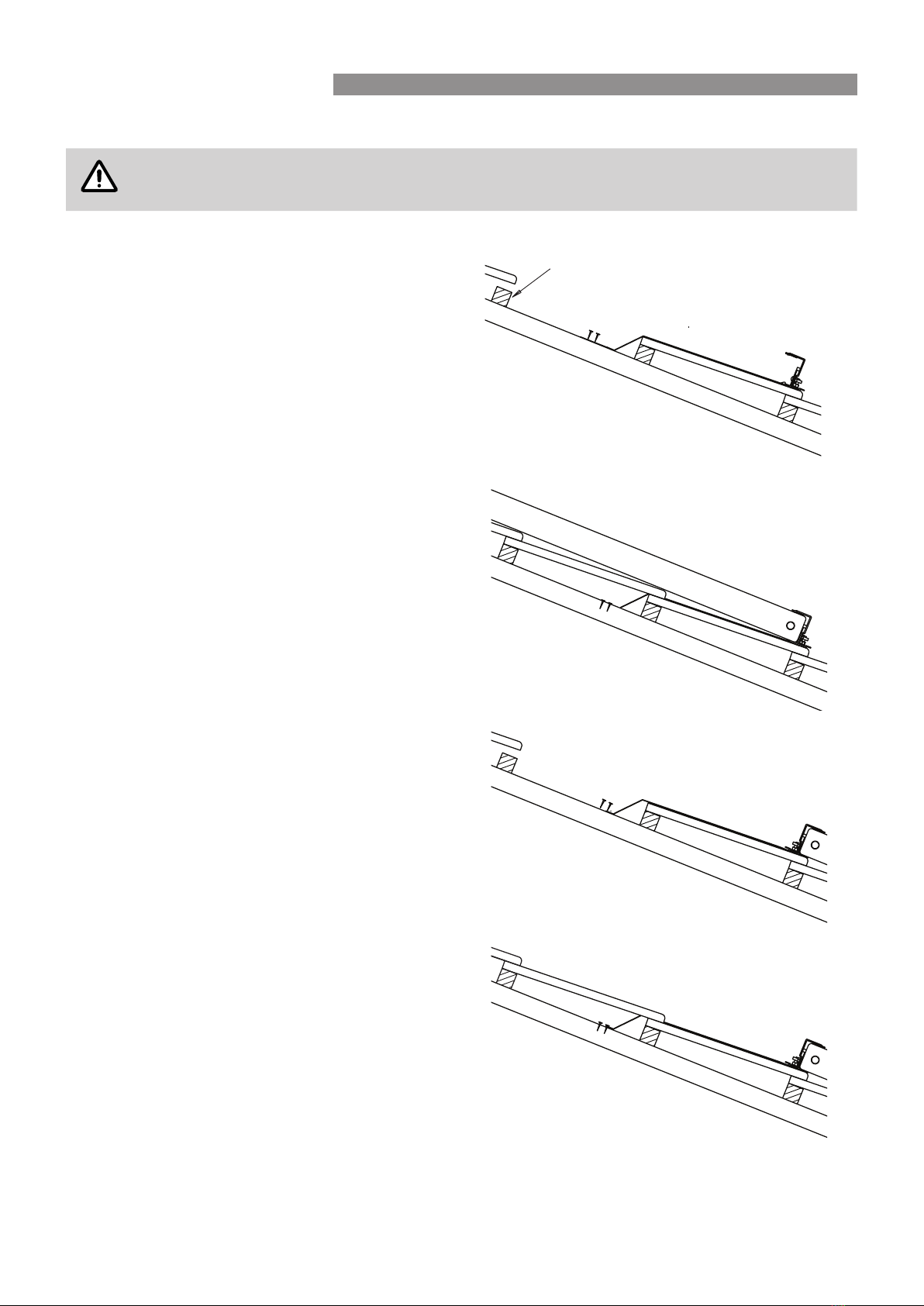

Fastening Collectors to a Tiled Roof
WARNING
This type of installation is not suitable for use on roofs over 10 m high.
This type of installation is not suitable for use in cyclonic areas.
Attach the collector mounting straps to the rafter or
truss under the tiles.
Nail strap to rafter
Tiles removed
Place the collector(s) onto the roof above the lower
rail. If more than one collector is being installed then
join them together using the compression ttings
supplied.
Push down on the collector retainers to clamp the
collector and tighten the nuts.
Position the upper collector rail above the collectors.
Push down on the retainers to clamp the collector and
tighten the nuts.
Attach the collector mounting straps to the rafter or
truss under the tiles.
Nail strap
to rafter
Tiles removed
Replace the tiles and ensure the collector is secure.

COLLECTOR INSTALLATION
Rinnai 13 Split Collector IM

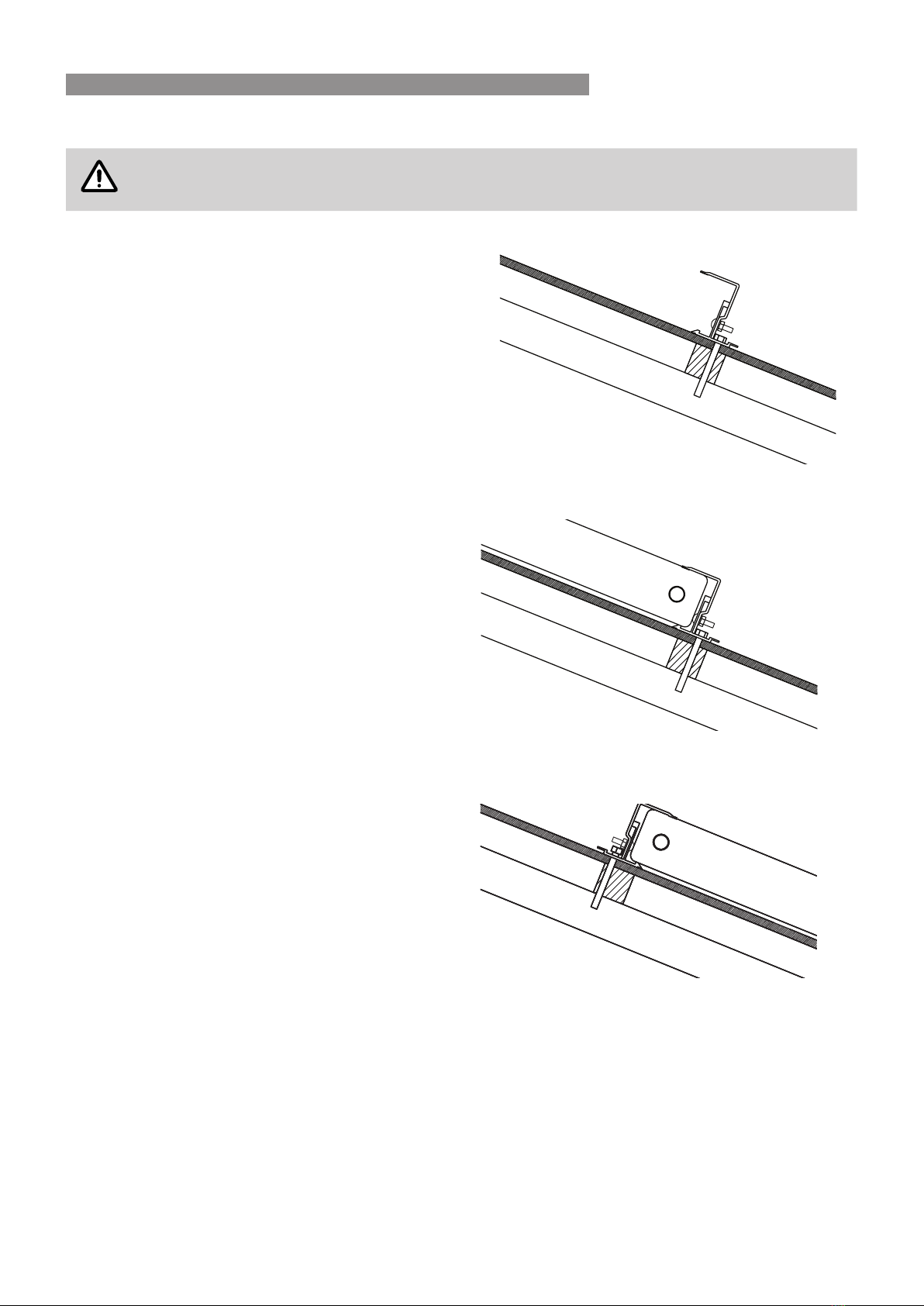

Fastening Collectors to a Metal Roof
WARNING
This type of installation is not suitable for use on roofs over 10 m high.
This type of installation is not suitable for use in cyclonic areas.
Position the lower collector mounting rail assembly so
that the rail is over the roof purlin.
Drill through the roof iron and purlin using the holes in
the rail as a guide. Apply some silicone sealant down
the holes to ensure no water leakage.
Bolt the rail to the roof purlin using a suitable fastener.
Position the collector(s) onto the roof above the lower
rail. If more than one collector is being installed, join
them together using the compression ttings supplied.
Push down on the collector retainers to clamp the
collector and tighten the nuts.
Place the upper collector mounting rail above the
collectors. Push down on the collector retainers to
clamp the collector and tighten the nuts.
Drill through the roof iron and purlin using the upper
mounting rail as a guide. Apply some silicone sealant
down the holes to ensure no water leakage and
secure with suitable fasteners.
Alternatively the rail can be attached to the roof using
the collector mounting straps.

COLLECTOR INSTALLATION
Rinnai 14 Split Collector IM

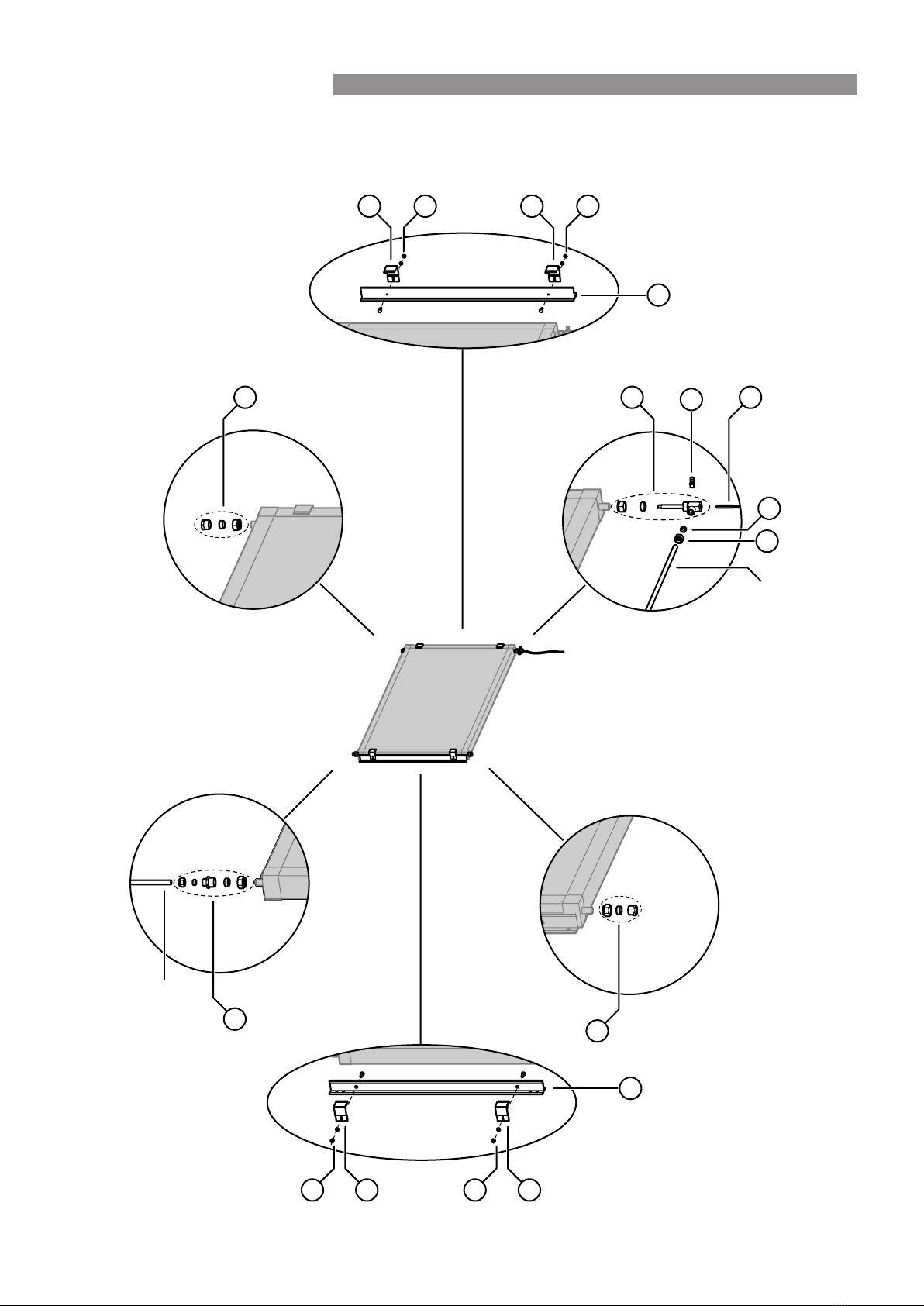

1 COLLECTOR INSTALLATION KIT - R33202739
7
12 86
12
11
9
10
23 23
2 3 2 3
1
1
installer
supplied
copper pipe
and insulation
(not shown)
installer
supplied
copper pipe
and insulation
(not shown)

COLLECTOR INSTALLATION
Rinnai 15 Split Collector IM

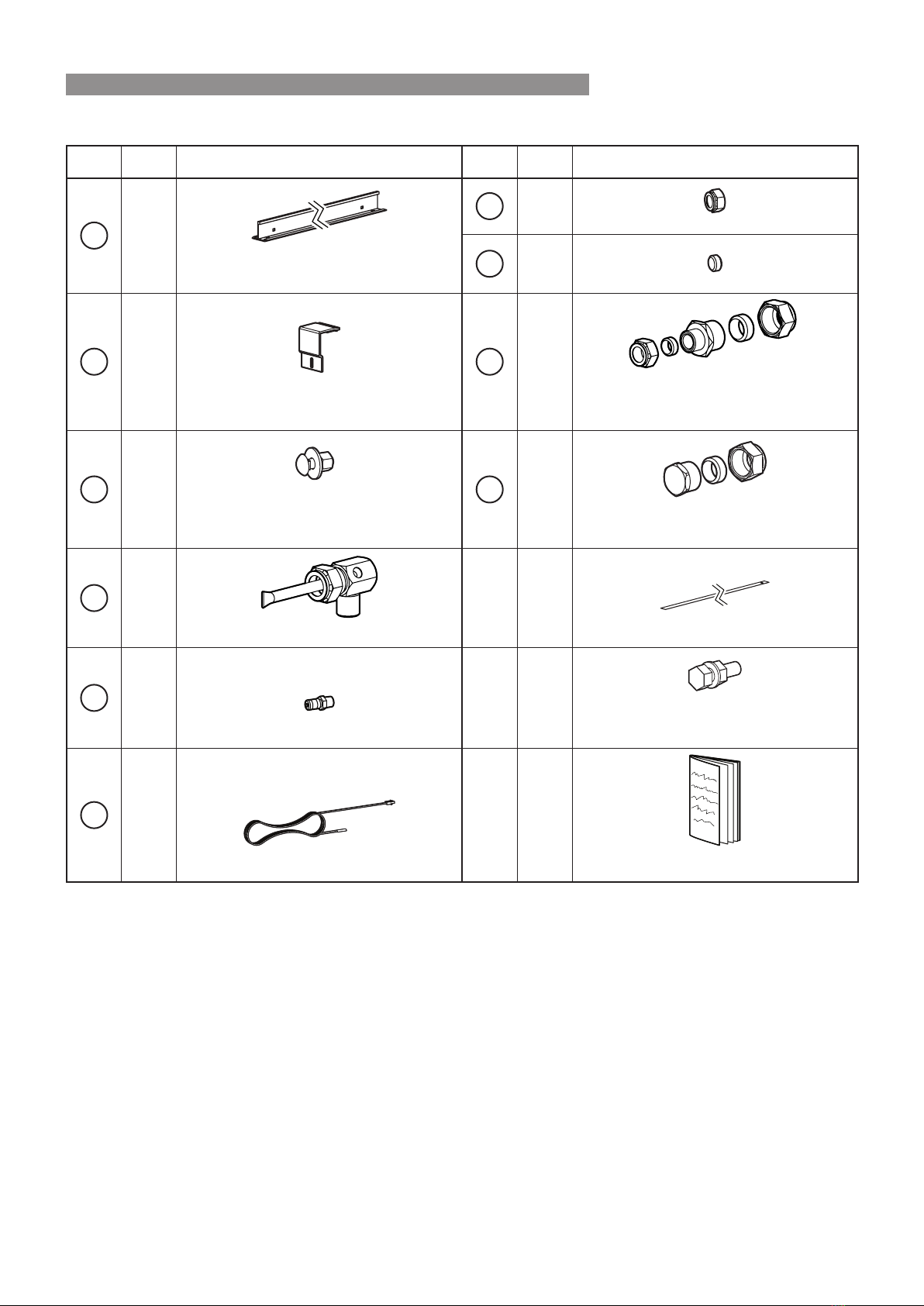

1 COLLECTOR INSTALLATION KIT - R33202739
Qty Item / Part Number Qty Item / Part Number
12
Mounting Rail Short 14201196
91
Compression Nut ½ 16801012
10 1
Compression Olive ½ 33001012
24
Collector Retainer 26601706
11 1
Compression Union ¾ - ½
(1 x Nipple G ¾ (compression) +
1 x ¾ compression nut and olive)
1 x ½ compression nut and olive) 32201711
34
Bolt 22601073
M6 Bolt, Washer & Nut Washer 17401073
(Used with collector retainers) Nut 16801007
12 2
Stop End
(1 x Plug G ¾ (Compression) +
1 x ¾ compression nut and olive) 28801025
61
Hot Sensor Sheath 10204714
-4
Collector Mounting Straps
2 Supplied with Collectors, 2 supplied in kit 12401012
71
Air Bleed Valve 11007701
- 4 M8 Bolt, Washer and Nut Bolt 22601052
(Used to fasten collector Washer 17401072
mounting straps to rail) Nut 16801062
81
Hot Sensor Lead (20m) 31002715
- 1
Solar Collector
Installation Booklet 15401017

COLLECTOR INSTALLATION
Rinnai 16 Split Collector IM
2 COLLECTORS INSTALLATION KIT - R33202740
7
45 86
11
10
9
4
1
1
installer
supplied
copper pipe
and insulation
(not shown)
installer
supplied
copper pipe
and insulation
(not shown)
23
23
23 23
125
12
3
223
332 2

COLLECTOR INSTALLATION
Rinnai 17 Split Collector IM
2 COLLECTORS INSTALLATION KIT - R33202740
Qty Item / Part Number Qty Item / Part Number
12
Mounting Rail Medium 14201197
91
Compression Nut ½ 16801012
28
Collector Retainer 26601706
10 1
Compression Olive ½ 33001012
38
Bolt 22601073
M6 Bolt, Washer & Nut Washer 17401073
(Used with collector retainers) Nut 16801007
11 1
Compression Union ¾ - ½
(1 x Nipple G ¾ (compression) +
1 x ¾ compression nut and olive)
1 x ½ compression nut and olive) 32201711
42
Compression Union ¾ - ¾
(1 x Nipple G ¾ (compression) +
2 x ¾ compression nut and olive) 32201709
12 2
Stop End
(1 x Plug G ¾ (Compression) +
1 x ¾ compression nut and olive) 28801025
52
Insulation and
Foil Tape 33202052*
-4
Collector Mounting Straps
* Supplied with Collectors 12401012
61
Hot Sensor Sheath 10204714
- 4
M8 Bolt, Washer and Nut Bolt 22601052
(Used to fasten collector Washer 17401072
mounting straps to rail) Nut 16801062
71
Air Bleed Valve 11007701
- 1
Solar Collector
Installation Booklet 15401017
81
Hot Sensor Lead (20m) 31002715
* part number 33202052 contains 2 pieces of insulation and 2 pieces of tape.

COLLECTOR INSTALLATION
Rinnai 18 Split Collector IM

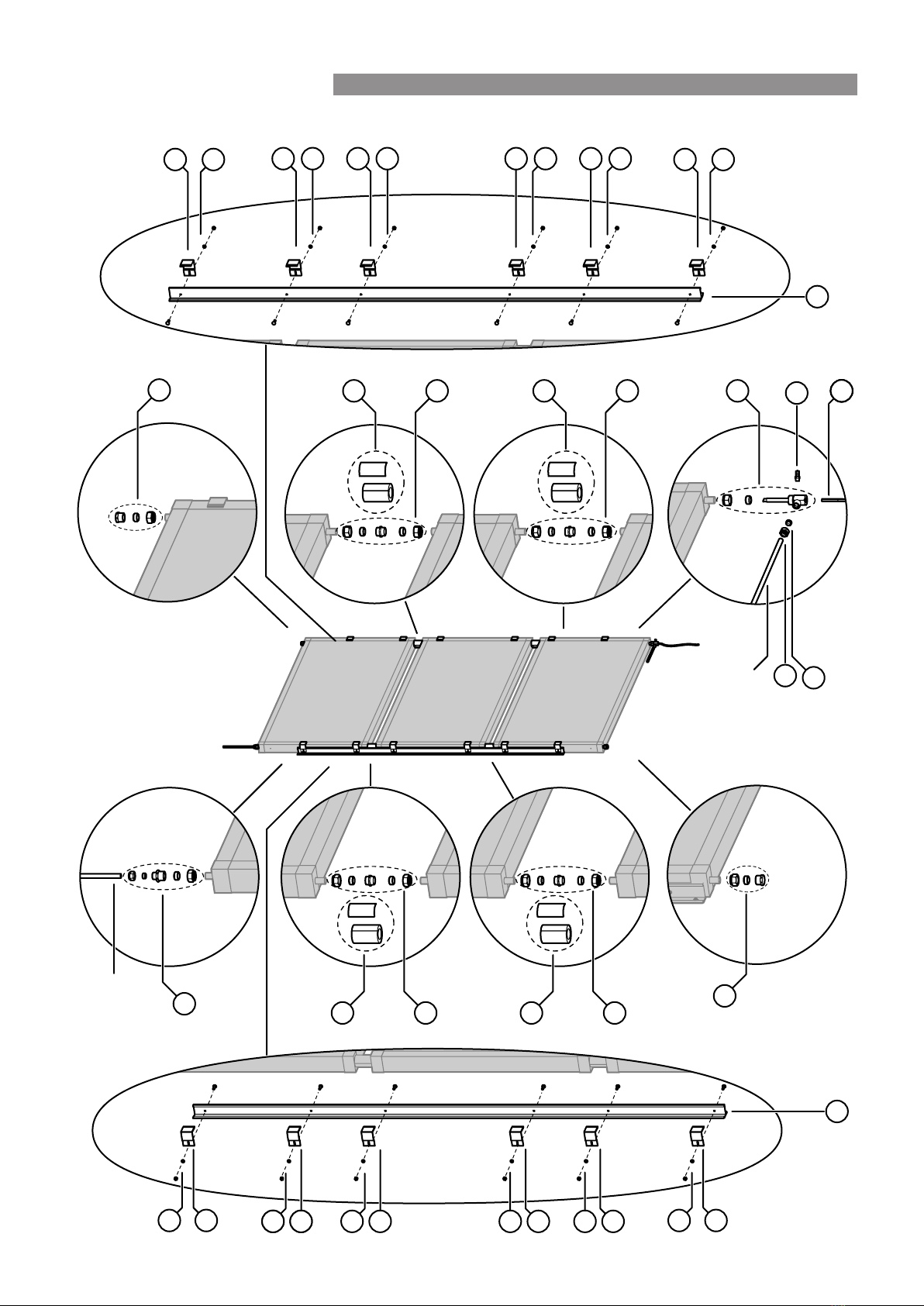

3 COLLECTORS INSTALLATION KIT - R33202741
7
45 88886
12
11
45
910
45 45
installer
supplied
copper pipe
and insulation
(not shown)
installer
supplied
copper pipe
and insulation
(not shown)
3
223
3233232 2
23
23 23
23 23 2323
1
1
12

COLLECTOR INSTALLATION
Rinnai 19 Split Collector IM
3 COLLECTORS INSTALLATION KIT - R33202741
Qty Item / Part Number Qty Item / Part Number
12
Mounting Rail Long 14201198
91
Compression Nut ½ 16801012
212
Collector Retainer 26601706
10 1
Compression Olive ½ 33001012
312
Bolt 22601073
M6 Bolt, Washer & Nut Washer 17401073
(Used with collector retainers) Nut 16801007
11 1
Compression Union ¾ - ½
(1 x Nipple G ¾ (compression) +
1 x ¾ compression nut and olive)
1 x ½ compression nut and olive) 32201711
44
Compression Union ¾ - ¾
(1 x Nipple G ¾ (compression) +
2 x ¾ compression nut and olive) 32201709
12 2
Stop End
(1 x Plug G ¾ (Compression) +
1 x ¾ compression nut and olive) 28801025
54
Insulation and
Foil Tape 33202053*
-4
Collector Mounting Straps
* Supplied with Collectors 12401012
61
Hot Sensor Sheath 10204714
- 4
M8 Bolt, Washer and Nut Bolt 22601052
(Used to fasten collector Washer 17401072
mounting straps to rail) Nut 16801062
71
Air Bleed Valve 11007701
- 1
Solar Collector
Installation Booklet 15401017
81
Hot Sensor Lead (20m) 31002715
* part number 33202053 contains 4 pieces of insulation and 4 pieces of tape.

15401017 20 Split Collector IM - Issue 5 - May 2016
CONTACT INFORMATION
Head Office
100 Atlantic Drive,
Keysborough, Victoria 3173
Tel: [phone]
Fax: [phone]
P.O. Box 460
Braeside, Victoria 3195
National Help Line
Tel: [phone]* Fax: [phone]*
*Cost of a local call higher from mobile or public phones.
Hot Water Service Line
Tel: [phone]
Australia Pty. Ltd. ABN 74 005 138 769
Internet: www.rinnai.com.au E-mail: [email protected]
Rinnai has a Service and Spare Parts network with personnel who are fully trained
and equipped to give the best service on your Rinnai appliance. If your appliance
requires service, please call our National Help Line. Rinnai recommends that this
appliance be serviced every 3 years.
