Jäger S33-M110.01 S26 User manual

Manual
S33-M110.01 S26
High Frequency Spindle
Manual tool change

Item no. 10501004, Revision 032 ( 40 )
Identification of HF spindle
Spindle type
Pmax S6-60% S1-100%
Item no. .... Serial no.
Rated rotation speed
Serial no.
Item no.
Power data
Spindle type
As we always ensure that our HF spindles are at the cutting edge of techno-
logical development, we reserve the right to make technical modifications
and variations from the exact design described in the manual.
The text in this manual has been compiled with the utmost care. However,
Nakanishi Jaeger GmbH cannot assume any legal responsibility or liability of
any kind for incorrect information and any consequences thereof.
Translations and reproductions – including of extracts – are prohibited with-
out the express written approval o Nakanishi Jaeger GmbH.

Item no. 10501004, Revision 03 3 ( 40 )
Contents:
Translation of the original manual
1 Preliminary information 4
1.1 Purpose of the manual ...................................................... 4
1.2 Explanation of symbols used .......................................... 4
2 Transport and packaging 5
2.1 Scope of supply of HF spindle ........................................ 5
2.1.1 Optional accessories............................................. 5
2.1.2 Documentation supplied.................................... 5
2.2 Packaging of HF spindle.................................................... 6
3 Designated use 6
3.1 Permissible types of machining ..................................... 6
3.2 Permissible materials ......................................................... 6
4 Safety instructions 7
4.1 Safe working.......................................................................... 8
4.2 Shutdown of HF spindle ................................................... 9
4.3 Installation and maintenance ......................................... 9
4.4 Modification and repair...................................................10
4.5 Improper operation..........................................................10
5 Technical description 10
5.1 Connections of HF spindle.............................................10
5.2 Electrical connection........................................................10
5.3 Cooling..................................................................................11
5.4 Sealing air.............................................................................11
6 Technical Specifications 12
6.1 Dimensions..........................................................................13
6.2 Motor data ...........................................................................14
6.2.1 Performance Diagram........................................15
6.2.2 Equivalent circuit diagram data .....................15
Leerzeile................................................................................16
6.3 Wiring diagram...................................................................18
6.4 Motor protection PTC 100°C..........................................19
6.5 Speed sensor (digital differential magneto resistor)
..................................................................................................20
6.6 Air-borne noise emissions..............................................21
7 Operating location 22
8 Installation 23
8.1 Torque support ..................................................................23
8.2 Installing the short taper ................................................23
8.3 Installing the HF spindle .................................................24
8.4 Setting concentricity........................................................25
8.4.1 Readjusting concentricity.................................26
8.5 Diameter of media supply line .....................................26
8.6 Compressed air...................................................................27
8.6.1 Air purity classes (ISO 8573-1).........................27
8.6.2 Setting the sealing air ........................................27
9 Commissioning 28
9.1 Running-in schedule ........................................................28
9.2 Daily start-up.......................................................................29
9.3 Shutdown signal................................................................29
9.4 Commissioning after storage........................................29
10 Tool change 30
10.1 Clockwise..............................................................................30
10.2 Manual tool change..........................................................30
10.2.1 Maximum tightening torques.........................31
11 Tools for high speed cutting 32
12 Maintenance 33
12.1 Ball bearings........................................................................33
12.2 Daily cleaning .....................................................................33
12.2.1 Before commencing work ................................33
12.2.2 With every tool change .....................................34
12.2.3 Every time the clamping device is changed
....................................................................................34
12.3 In the case of storage.......................................................34
12.4 Monthly maintenance .....................................................34
12.5 Long periods of storage..................................................34
12.6 Maximum storage time...................................................34
13 Dismantling 35
13.1 Disposal and environmental protection...................35
14 Service and repairs 36
14.1 Service partners .................................................................36
14.2 Malfunctions........................................................................37
15 Declaration of Incorporation 39

Preliminary information
Item no. 10501004, Revision 034 ( 40 )
1 Preliminary information
The high frequency spindle (HF spindle) is a high quality precision tool for
high speed machining.
1.1 Purpose of the manual
The manual is an important component of the HF spindle.
ÜStore the manual carefully.
ÜMake the manual available to all persons who work with the HF spindle.
ÜRead the documentation supplied in full.
ÜBefore carrying out any work, read the corresponding section of the man-
ual carefully again.
1.2 Explanation of symbols used
To enable quick classification of information, this manual uses visual aids in
the form of symbols and text markings.
Notes are marked with a signal word and a colored box:
DANGER
Dangerous situation!
Results in serious injury or death.
uMeasure to avert the danger.
WARNING
Dangerous situation!
May result in serious injury or death.
uMeasure to avert the danger.
CAUTION
Dangerous situation!
May result in minor to moderate injury.
uMeasure to avert the danger.
Note
May result in material damage. This warning symbol is not a warning for per-
sonal injury.
Tip
Tips indicate useful information for users.

Transport and packaging
Item no. 10501004, Revision 03 5 ( 40 )
2 Transport and packaging
Avoid strong vibrations or impacts during transportation, as these could dam-
age the ball bearings of the HF spindle.
ÜAny damage reduces the accuracy of the HF spindle.
ÜAny damage restricts the functionality of the HF spindle.
ÜAny damage shortens the service life of the HF spindle.
2.1 Scope of supply of HF spindle
The following parts are supplied with the HF spindle:
qHigh Frequency Spindle
qClamping nut
qHook wrench
qTransport packaging
ÜCheck the high frequency spindle for completeness upon delivery.
2.1.1 Optional accessories
Available on request:
qFrequency converter
qCollet
qFelt cleaning taper
qCollet grease
qMotor cable
qFurther accessories on request.
Only approved accessories have been tested for operational safety and func-
tionality.
ÜDo not use any other accessories – this may invalidate any warranty claims
and compensation claims for damages.
2.1.2 Documentation supplied
The documents listed below are supplied with the HF spindle:
qManual
qThe declaration of incorporation is part of the manual.
qInspection protocol
ÜCheck that the documentation supplied is complete when the spindle is
delivered. If necessary, request a new copy.

Designated use
Item no. 10501004, Revision 036 ( 40 )
2.2 Packaging of HF spindle
All transport packaging materials can be recycled in appropriate disposal facil-
ities.
3 Designated use
The HF spindle is an “incomplete machine” in accordance with the Machinery
Directive and cannot perform any function independently. The HF spindle can
only be operated in conjunction with a machine tool and a frequency con-
verter.
3.1 Permissible types of machining
The HF spindle has been developed only for the following types of machining.
qCutting
qDrilling
qEngraving
qGrinding
ÜContact Nakanishi Jaeger GmbH if other types of machining are required.
3.2 Permissible materials
The HF spindle has been developed only for the following materials.
qMetals (such as alloys, cast metals etc.)
qSintered materials
qPlastics
qWood
qGraphite
qStone (marble, etc.)
qPaper and cardboard
qCircuit boards
qGlass and ceramic
ÜContact Nakanishi Jaeger GmbH if other materials are to be machined.

Safety instructions
Item no. 10501004, Revision 03 7 ( 40 )
4 Safety instructions
The high frequency spindle is a state of the art product and is safe to operate.
However, the HF spindle may pose a risk in the following cases:
qIf it is installed by untrained personnel.
qIf it is used incorrectly.
qIf it is not used in accordance with its intended use.
The high frequency spindle may only be installed, commissioned, and main-
tained by specialist personnel.
Definition: Specialist personnel are persons who are familiar with the assem-
bly, installation, commissioning, and operation of the product and have the
relevant qualifications for their area of activity. The operator must closely con-
trol the responsibility, training, and monitoring of these personnel.
DANGER: Due to explosion.
HF spindles are not approved for use in areas at risk of explosion. Use in such
areas may result in explosions.
uDo not use the HF spindle in potentially explosive atmospheres.
DANGER: Due to flying parts.
The HF spindle operates at high speeds and may therefore be flung away by
these.
uOperate the HF spindle only if it is installed in the machine or system in a
fixed manner.
DANGER: Due to flying connection cables.
If the HF spindle is inserted into the main spindle of the machine tool:
uThe main spindle of the machine tool must be at a standstill.
Note: Adhere to the limit values.
uObserve the limit values specified in the technical data.
Note: Take account of the machine.
uObserve the manual of the machine in which the HF spindle is installed.
uObserve all safety instructions specified by the machine manufacturer.
uEnsure that the machine does not cause any hazards (e.g. uncontrolled
movements). Do not install the HF spindle in the machine until this has
been done.

Safety instructions
Item no. 10501004, Revision 038 ( 40 )
Note. Do not damage the HF spindle.
uAny damage reduces the accuracy of the HF spindle.
uAny damage restricts the functionality of the HF spindle.
uAny damage shortens the service life of the HF spindle.
4.1 Safe working
Observe all safety instructions set out in the manual, the applicable national
accident prevention regulations, and the valid company work, operation, and
safety guidelines.
DANGER: Due to flying parts.
Tools that are not clamped correctly will be flung away by the centrifugal
forces that occur during machining.
uUse the full clamping depth of the collet.
uClamp the tool securely.
DANGER: Due to flying parts.
If the wrong rotational direction is used, the clamping system releases and
the tool is flung away.
uIt is essential to adhere to the rotational direction of the HF spindle.
WARNING: Risk of injury due to flying parts.
The HF spindle operates at high speeds which may cause chips to fly out
with great force.
uNever remove the protective devices of the machine or system.
uAlways wear protective goggles during work.
Exampleofdesign: Inserting the
shank
Note: Ensure functionality.
uNever operate the HF spindle without a clamped tool shank.
If no tool shank is clamped:
qThe clamping system is damaged by the centrifugal forces.
qThe clamping system is shifted.
qThe balance of the HF spindle is affected.
qThe bearing is damaged.

Safety instructions
Item no. 10501004, Revision 03 9 ( 40 )
ÜTake the relevant measures to protect against splashes and spray accord-
ing to the type of machining, the type of material being machined, and the
type of tool selected.
ÄObserve the manual of the machine in which the HF spindle is installed.
ÜObtain the maximum circumferential speeds of the tools used from the
tool supplier.
Single-point tools are not suitable for high speed cutting.
If they are required for production reasons:
ÜOnly use a balanced tool.
ÄDIN ISO 1940
ÄBalance grade 2,5
The tool cutting diameter (X) must not be greater than the maximum
clamping range (Y).
ÜAlways clamp the tool so that it is as short as possible.
ÜKeep the dimension (Z) small.
Ä(Y) See section: Technical Specifications [}12].
4.2 Shutdown of HF spindle
The procedure for shutting down the high frequency spindle for installation
and maintenance work is as follows:
ÜCompletely disconnect the power supply.
ÜCompletely disconnect the media supply (air and liquid).
ÜMake sure that the shaft of the HF spindle has come to an absolute stand-
still.
If the HF spindle is being shut down to be cleaned:
ÜReconnect only the sealing air.
Tip: Forward the data to the controller.
uUse the option on the frequency converter of detecting the shutdown
signal from the shaft and forwarding this to the machine controller for
evaluation.
4.3 Installation and maintenance
ÜCarry out installation, cleaning, and maintenance work only after shutting
down the HF spindle and after the shaft has come to a standstill.
ÜInstall all safety and protective devices of the machine immediately after
completing work.

Technical description
Item no. 10501004, Revision 0310 ( 40 )
4.4 Modification and repair
Modifications or alterations to the HF spindle are only permitted after prior
consultation with Nakanishi Jaeger GmbH.
Only the service partners listed in the “Service and repair [}36]” section are
authorized to open and repair the HF spindle.
Only approved accessories have been tested for operational safety and func-
tionality.
4.5 Improper operation
The high frequency spindle is only safe to operate for its designated use.
ÜObserve the safety instructions in all sections of the manual to prevent
hazards to persons, the environment, the machine, or the HF spindle itself.
Failure to observe the safety instructions may invalidate any warranty claims
and compensation claims for damages.
5 Technical description

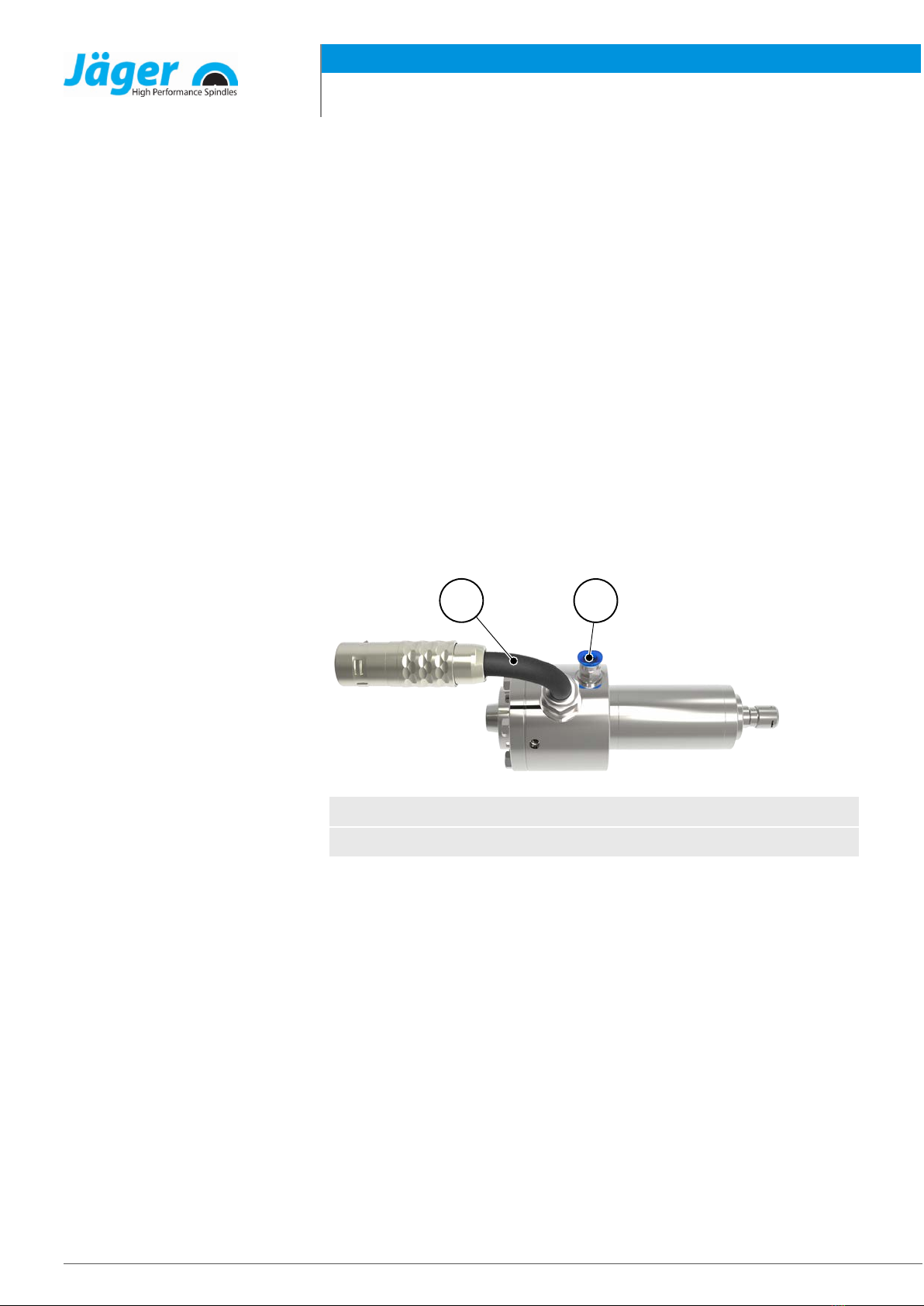

5.1 Connections of HF spindle
13
1Electrical connection
3Sealing air G 1/8"
5.2 Electrical connection
The HF spindle may only be operated with a frequency converter (FC).
ÜCheck whether the current, voltage, and frequency data of the HF spindle
match the raw data for the frequency converter.
ÜUse a motor supply line that is as short as possible.
ÜAdjust the speed of the HF spindle using the FC.
ÜRefer to the frequency converter manual for further information.

Technical description
Item no. 10501004, Revision 03 11 ( 40 )
The FC detects the following operating states of the HF spindle, depending on
the version:
qHF spindle rotating.
qHF spindle too hot.
qHF spindle at a standstill, etc.
The FC forwards the operating states of the HF spindle to the machine con-
troller.
Note: Protection by means of interrupting the electrical connection.
The HF spindle connection is equipped with a safety function.
If the machine's main spindle rotates in an uncontrolled manner:
qThe safety function interrupts the electrical connection of the HF spindle.
Damage to the HF spindle, machine, and controller is minimized.
5.3 Cooling
The HF spindle does not feature built-in cooling. However, this means that it
has a lower power than an HF spindle with cooling.
Note: Ensure functionality.
The HF spindle is cooled by the sealing air flowing through.
qAlways switch on the sealing air as soon as the machine enters operation.
qSealing air temperature: max. 25°C.
If this is not observed, the HF spindle will be damaged or destroyed.
Note: Extension of the service life through heat dissipation.
Heat is produced during operation of the HF spindle. The temperature of the
HF spindle should not exceed + 45° C as this shortens the service life of the
bearing.
uCheck the temperature of the HF spindle on the housing.
uDissipate the heat using the spindle holder.
5.4 Sealing air
For guidelines on air quality,
see "Air purity classes (ISO
8573-1) [}27]" section.
The sealing air prevents foreign bodies such as chips and liquids (e.g. emul-
sions) from entering the HF spindle.
ÜCheck that air escapes at the front between the housing and the rotating
parts of the HF spindle.

Technical Specifications
Item no. 10501004, Revision 0312 ( 40 )
6 Technical Specifications
Bearings Hybrid ball bearing (pcs) 2
Lifetime lubricated maintenance free
Power values
Compressed air cooled
Pmax./5s S6-60% S1-100%
Rated power 0,25 0,23 0,2 [kW]
Torque 0,039 0,037 0,033 [Nm]
Voltage 33 33 33 [V]
Current 8,2 7,7 6,9 [A]
Motor data Motor technology 3-phase asynchronous drive
(no brushes or sensors)
Frequency 1.667 Hz
Motor poles (pairs) 1
Rated rotation speed 100.000 rpm
Acceleration/braking value
Per second
10 000 rpm
(other values by consultation)
Characteristics Speed sensor Differential magneto resistor (TTL)
Number of signals = 6
Motor protection PTC 100°C
Housing Stainless steel
Housing diameter 33 mm
Mount
Adapter taper, NCT 32
Optional accessories
(BT30/40/50, SK30/40/50, CAT40/50, HSK-A63,
HSK-A100, PSC63/32/45)
Cooling Compressed air cooled
Heat dissipation Via the mount
Housing temperature < + 45° C
Ambient temperature + 10°C … + 45°C
Sealing air
Protection category
(sealing air turned on) IP54
Tool change Manual tool change
Collet type ER 8
Optional accessories
Clamping range up to 5 mm (13/64" )

Technical Specifications
Item no. 10501004, Revision 03 13 ( 40 )
Clockwise
Coupler plug 8-pin metal
Weight (without taper) ~ 1,3 kg
Inner taper run out < 1 µ

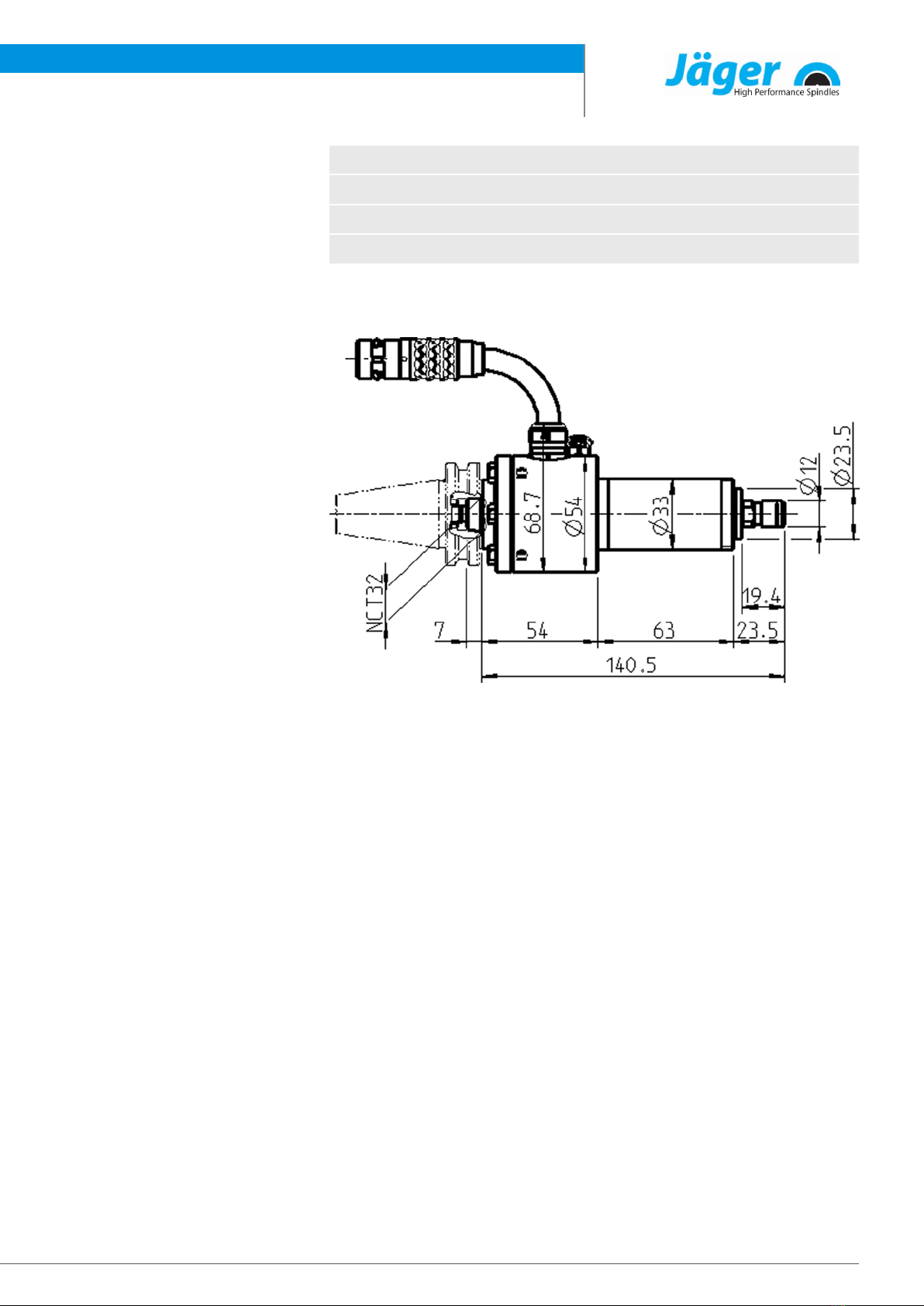

6.1 Dimensions

Technical Specifications
Item no. 10501004, Revision 0314 ( 40 )
6.2 Motor data
The power values (S1, S6, S2)
are valid for sinusoidal cur-
rents and voltages.
The power values of the HF
spindle are dependent on the
frequency converter used and
may vary from the indicated
values.
Spindle characteristic curve KL 1022
Motor technology AC Motor
Motor type ACM 26/15/30-2E
Rated power 0,2 kW
Rated rotation speed 100.000 rpm
Cooling Compressed air cooled
Motor protection PTC 100°C
Winding resistance 0,4 Ω
Power dissipation 76 W – max. (S1)
Measured values: S1-100%
Rated rotation speed 10 000 20 000 30 000 40 000 50 000 60 000 70 000 80 000 90 000 100 000 rpm
Speed 8 148 18 072 28 158 38 103 48 026 57 949 67 400 77 049 86 698 96 644 rpm
Frequency 167 333 500 667 833 1 000 1 167 1 333 1 500 1 667 Hz
Rated power 0,028 0,061 0,092 0,123 0,153 0,184 0,204 0,189 0,175 0,158 kW
Torque 0,033 0,032 0,031 0,031 0,031 0,030 0,029 0,024 0,019 0,016 Nm
Voltage 9 14 18 23 27 32 33 32 32 32 V
Current 6,9 6,9 6,9 6,9 6,9 6,9 6,6 6,3 6,0 5,6 A
cos φ 0,89 0,84 0,79 0,77 0,77 0,78 0,86 0,88 0,9 0,9
Measured values: S6-60%
Rated rotation speed 10 000 20 000 30 000 40 000 50 000 60 000 70 000 80 000 90 000 100 000 rpm
Speed 8 148 17 628 27 750 37 794 47 705 57 615 66 845 76 286 85 727 95 470 rpm
Frequency 167 333 500 667 833 1 000 1 167 1 333 1 500 1 667 Hz
Rated power 0,028 0,065 0,103 0,143 0,182 0,221 0,232 0,22 0,209 0,193 kW
Torque 0,033 0,035 0,035 0,036 0,036 0,037 0,033 0,028 0,023 0,019 Nm
Voltage 9 14 18 24 28 33 33 32 32 32 V
Current 6,9 7,7 7,7 7,7 7,7 7,7 7,5 7,4 7,2 6,8 A
cos φ 0,89 0,86 0,81 0,79 0,79 0,79 0,88 0,89 0,9 0,9
Measured values: S2-Pmax./5 s
Rated rotation speed 10 000 20 000 30 000 40 000 50 000 60 000 70 000 80 000 90 000 100 000 rpm
Speed 8 148 17 836 27 523 37 616 47 571 57 526 66 811 76 263 85 714 95 201 rpm
Frequency 167 333 500 667 833 1 000 1 167 1 333 1 500 1 667 Hz
Rated power 0,028 0,066 0,108 0,153 0,195 0,237 0,253 0,241 0,228 0,220 kW
Torque 0,033 0,035 0,038 0,039 0,039 0,039 0,036 0,030 0,026 0,022 Nm
Voltage 9 14 18 23 28 33 33 32 32 32 V
Current 6,9 8,2 8,2 8,2 8,2 8,2 8,1 8,1 8 8 A
cos φ 0,89 0,87 0,82 0,81 0,8 0,8 0,89 0,9 0,91 0,91

Technical Specifications
Item no. 10501004, Revision 03 15 ( 40 )
Note on operation with static frequency converters:
For operation with a frequency converter, the effective fundamental voltage
must correspond to the specified motor voltage.
The measured currents may be greater than the specified values due to the
harmonic content.
6.2.1 Performance Diagram
Note: Ensure functionality.
The HF spindle is cooled by the sealing air flowing through.
qAlways switch on the sealing air as soon as the machine enters operation.
qSealing air temperature: max. 25°C.
If this is not observed, the HF spindle will be damaged or destroyed.
6.2.2 Equivalent circuit diagram data
Note: Damage due to incorrect performance data.
The values of the parameters relate exclusively to the motor.
uHF spindle values: See tables S1-100%, S6-60% and S2-Pmax.

Technical Specifications
Item no. 10501004, Revision 0316 ( 40 )
Parameter*Meaning Value Unit
p0304 Rated voltage (phase-phase) 32 Vrms
p0305 Rated current 6,3 Arms
p0307 Rated power 0,188 kW
p0308 Rated power factor 0,74 cos φ
p0310 Rated frequency 1.000 Hz
p0311 Rated speed 57.949 rpm
--- Rated power loss 87 W
--- Rated rotation speed 100.000 rpm
p0312 Rated torque 0,031 Nm
p0314 Motor poles (pairs) 1 ---
p0320 Rated magnetization current 3,4 Arms
p0322 Maximum speed 100.000 rpm
p0326 Stalling torque correction factor 100 %
p0335 Cooling type Compressed air cooled
p0341 Moment of inertia 0,000004 kgm²
p0348 Field weakening operating speed VDC=600V 768.303 rpm
p0350 Stator resistance, cold (strand) 0,194 Ω
p0353 Series inductance (strand) 0 mH
p0354 Rotor resistance, cold 0,102 Ω
p0356 Stator stray inductance 0,054 mH
p0358 Rotor stray inductance 0,076 mH
p0360 Main inductance 0,748 mH
p0604 Motor temperature warning threshold 60 °C
p0605 Motor temperature fault threshold 100 °C
p0640 Current limit 7,8 Arms
p1800 Pulse frequency 16 kHz
--- DC link voltage 48 VDC
--- Series capacitance µF
--- Maximum voltage V
--- Idle reduction %
--- Stator stray reactance X1 0,34 Ω
--- Rotor stray reactance X2 0,476 Ω
--- Main field reactance Xh 4,702 Ω
(*) Parameters for Siemens SINAMICS 120

Technical Specifications
Item no. 10501004, Revision 03 17 ( 40 )
Parameter Meaning Value Unit
--- Desaturation speed ** 96.600 rpm
--- Main inductance at maximum speed ** 0,923 mH
--- Saturation factor ** 1,6 %
--- Tilting torque reduction factor ** 72,88 %
(**) Additional parameters Heidenhain

Technical Specifications
Item no. 10501004, Revision 0318 ( 40 )
6.3 Wiring diagram
Note: Do not change the ex-works configuration.
Any change may cause overvoltage on the electrical components (e.g. PTC,
differential magneto resistor).
1
Perschewski
05.10.15
1
29044070
g
f
e
d
c
b
a
456
13 2
a
b
c
d
e
f
g
Bl.
Übersetzungen, Vervielfältigungen und die Weitergabe an Dritte, auch nur auszugsweise,
ist ohne schriftliche Gehnehmigung der Fa. Alfred Jäger GmbH untersagt
Datum
Gepr.
Bearb.
Norm
Projekt Nr.:
Version Nr.:Zeichn.Nr.:
von
Blatt
DIN 81346Kabelanschlussplan Spindel_S26
1.0
4
3
2
1
7
8
6
5
Kabelstecker S26
male cable connector S26
.
.
.
.
.
.
.
.
.
DFP
U
V
W
PEgn,ge 0,75mm²
br 0,2mm²
bl 0,2mm²
sw 0,2mm²
rt 0,14mm²
bl 0,14mm²
gn 0,14mm²
ge 0,14mm²
Stator
PTC
Spindel
spindle
Motorkabel 4x0,75mm² 5x0,25mm²
motor cable 4x0,75mm² 5x0,25mm²
br 0,75mm²
bl 0,75mm²
sw 0,75mm²
PEgn,ge 0,75mm²
rt 0,25mm²
or 0,25mm²
gn 0,25mm²
sw 0,25mm²
ws 0,25mm²
PTC+ (rt)
PTC- (or)
DFP (ws)
DFP (gn)
U (br)
V (bl)
W (sw)
PE (gn-ge)

Technical Specifications
Item no. 10501004, Revision 03 19 ( 40 )
6.4 Motor protection PTC 100°C
PTC thermistor with protective insulation
Characteristic curves for rated response temperatures 90°C to 160°C in accor-
dance with DIN VDE V 0898-1-401.
Positive temperature coefficient
thermistor resistance (RPTC)
according to the positive
temperature coefficient thermistor
temperature (TPTC) (small-signal
resistance).
Technical Specifications
Type M135
Max. operating voltage (TA = 0 … 40°C) Vmax.30 V
Max. measuring voltage (TA – 25 K … TNAT + 15 K) VMeas, max 7.5 V
Nominal resistance (VPTC ≤ 2.5 V) RN ≤ 250 Ω
Insulation test voltage Vis 3 kV~
Response time ta< 2.5 s
Operating temperature range (V=0) Top -25/+180°C
Resistance values
TNAT ±ΔT R (TNAT – ΔT)
(VPTC ≤ 2.5 V)
R (TNAT – ΔT)
(VPTC ≤ 2.5 V)
R (TNAT + 15 K)
(VPTC ≤ 7.5 V)
R (TNAT + 23 K)
(VPTC ≤ 2.5 V)
100 ±5°C ≤ 550Ω ≥ 1330Ω ≥ 4kΩ ----

Technical Specifications
Item no. 10501004, Revision 0320 ( 40 )
6.5 Speed sensor (digital differential magneto resistor)
Trouble-free evaluation requires good wiring.
ÜUse twisted and shielded cables.
ÜConnect the HF spindle based on the connection example shown below.
DFP = digital differential magneto
resistor
S = signal
Note: Resistor (Rx).
If the resistor (Rx*) is already integrated in the evaluation unit (FC):
uOnly connect signal and ground.
Supply voltage (U) Rx (*) Signal (**)
+ 8 V 220 Ω 1000 mV
+ 8 V 450 Ω 2000 mV
+ 12 V 220 Ω 1000 mV
+ 12 V 680 Ω 3000 mV
+ 15 V 220 Ω 1000 mV
+ 15 V 680 Ω 3000 mV
+ 24 V 220 Ω 1000 mV
+ 24 V 680 Ω 3000 mV
*Unnecessary if a resistor is integrated in the evaluation unit (frequency converter, etc.).
**Values may differ by ±20% depending on the measuring method.
