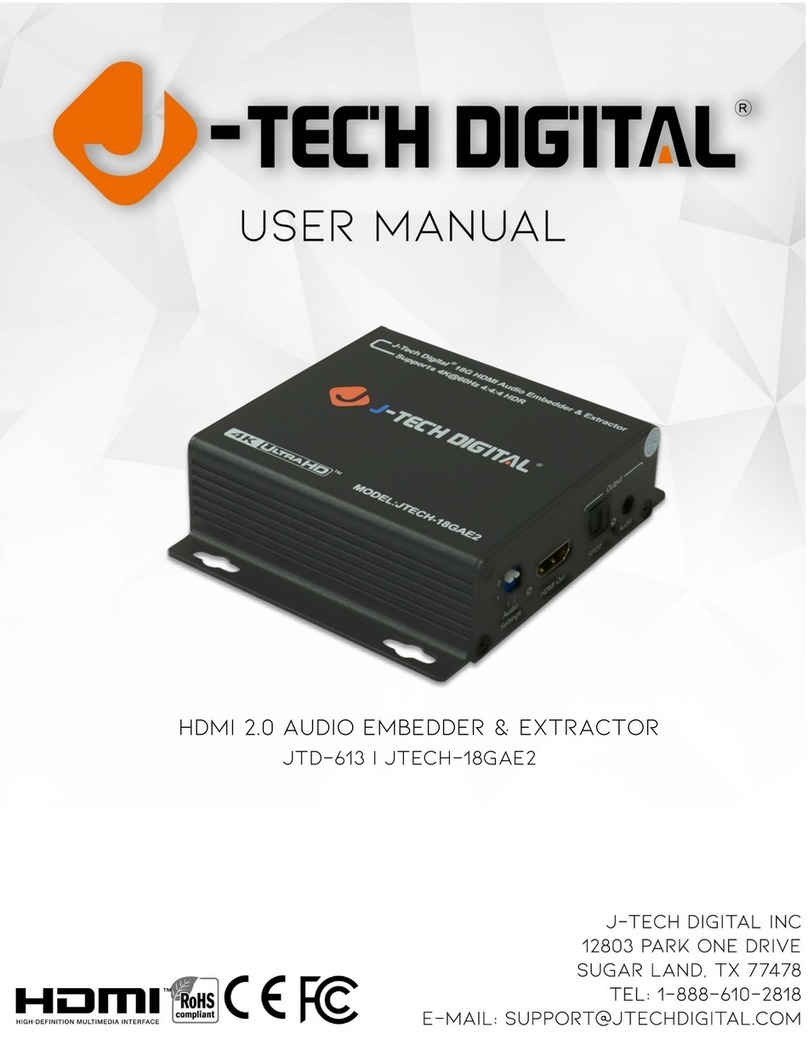

J-Tech Digital JTD-613 User manual

J-Tech Digital

J-Tech Digital JTD-613 User manual

J-Tech Digital JTD-643 User manual

J-Tech Digital

J-Tech Digital JTD-643 User manual

J-Tech Digital JTD-302 User manual

J-Tech Digital

J-Tech Digital JTD-302 User manual

Popular Scrubber manuals by other brands

Windsor Saber Cutter SC326 10052220 operating instructions

Windsor

Windsor Saber Cutter SC326 10052220 operating instructions

Powr-Flite PFX1380 SERIES Operators manual and parts lists

Powr-Flite

Powr-Flite PFX1380 SERIES Operators manual and parts lists

Olympus M200H operating manual

Olympus

Olympus M200H operating manual

Clarke BEXT 100H Operation?and safety

Clarke

Clarke BEXT 100H Operation?and safety

JOHNY VAC JVC70BCT user guide

JOHNY VAC

JOHNY VAC JVC70BCT user guide

RCm Elan Series Instruction and maintenance handbook

RCm

RCm Elan Series Instruction and maintenance handbook

Floorpul ruby 48 blt Use and maintenance

Floorpul

Floorpul ruby 48 blt Use and maintenance

Kärcher B 120 W quick start

Kärcher

Kärcher B 120 W quick start

Truvox Orbis MotorScrubber 20 user manual

Truvox

Truvox Orbis MotorScrubber 20 user manual

Numatic TTB 4045/100 Original instructions

Numatic

Numatic TTB 4045/100 Original instructions

U.S. Products PEX 500-C-TICK Information & operating instructions

U.S. Products

U.S. Products PEX 500-C-TICK Information & operating instructions

Mclennan C510 Operator's manual

Mclennan

Mclennan C510 Operator's manual

Columbus ARA 66 BM 100 operating manual

Columbus

Columbus ARA 66 BM 100 operating manual

Numatic TTV 678G / 300T Owner's instructions

Numatic

Numatic TTV 678G / 300T Owner's instructions

Onyx RX-34 Operator's manual

Onyx

Onyx RX-34 Operator's manual

REMS Twist instruction manual

REMS

REMS Twist instruction manual

Tennant 7200 Service manual

Tennant

Tennant 7200 Service manual

Clarke CA30 20B Service manual

Clarke

Clarke CA30 20B Service manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

JTD-152 | jtd4katsw
HDMI 4K Audio Extractor with hdmi-arc
User manual
e-mail: [email protected]
TEL: 1-888-610-2818
Sugar land, tx 77478
12803 park one drive
J-TECH DIGITAL INC
1
Thank you for purchasing the JTD4KATSW HDMI Audio Extractor. For optimum performance and
safety, please read these instructions carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
I. Introduction
The JTD4KATSW HDMI audio extractor allows you to extract the audio signal from an HDMI source
device or HDMI-ARC enabled TV and transmit it to a separate audio processing device like external
speakers, soundbars or wireless headphones.
II. Features
1. Supports resolutions up to 4K @ 30Hz
2. Supports HDMI-ARC Audio Extraction
3. Supported Digital Audio Formats:DTS-HD/Dolby-True HD /LPCM7.1/AC3/DTS/DSD
2
III. Packaging
1 x JTD4KATSW HDMI Extractor
1 x 5V1A DC Power adapter
1 x User Manual
IV. Specifications
Frequency Bandwidth 297 MHz | 10.2 Gbps
Input Port 1 x HDMI (Female Type-A)
Output Ports 1 x HDMI (Female Type-A) | 1 x Toslink | 1 x RCA
HDMI Audio Output PCM 2.0/5.1/7.1CH | Dolby 5.1 | DTS5.1 | Dolby TrueHD | DTS-HD
Power Supply 5VDC/1A (CE | FCC | UL Certified)
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (in) 2.36(W) X 2.76 (D) X 0.79 (H)
3
Weight 4.41 Oz
Operating Temperature 32˚F - 104˚F
Storage Temperature -4˚F - 140˚F
V. Operation Controls and Functions
1. HDMI OUT: Use this port to connect an HDMI cable from your extractor to your HDTV or
display.
2. SPDIF OUT: Use this port to connect an optical S/PDIF cable to an audio processing device.
4
3. R: Analog audio Right channel output (RED).
4. L: Analog audio Left channel output (WHITE).
5. DC 5V IN:Use this port to connect the provided power adapter.
6. POWER LED: LED illuminates when the device is connected to power supply.
7. EDID Switch: Use this switch to select 2.0CH | 5.1CH | or TV EDID modes. “TV” EDID mode
passes connected display’s audio EDID to the source device.
8. ARC KEY: Enables & disables HDMI-ARC function. Extractor will look for audio “returning”
from HDTV connected to “HDMI OUT” port and will extract via SPDIF OUT only.
9. ARC LED: LED illuminates when HDMI-ARC is enabled and dark when disabled.
10. HDMI IN:Use this port to connect an HDMI cable from the source device to the audio
extractor.
5
VI. Application Example | Extract audio from DVD/Blu-ray Player
6
VII. Application Example | Extract audio from HDMI-ARC TV
7
VIII. Warranty
If your product does not work properly because of a defect in materials or workmanship, J-Tech
Digital (referred to as "the warrantor") will, for the length of the period indicated as below, (Parts
(1) Year) which starts with the date of original purchase ("Limited Warranty period"), at its option
either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a
refurbished product. The decision to repair or replace will be made by the warrantor. During the
"Parts" warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warranty is extended only to the original purchaser and only covers
product purchased as new. A purchase receipt or other proof of original purchase date is required
for Limited Warranty service.
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit.
8
Extended Warranty
With the registration of supported J-Tech Digital products, you extend the current warranty by 6
months. This extension is added to the warranty that starts at the purchase date of the device
supported. Total product warranty with the extended period will equate to a total of 18 months of
warranty from the date of purchase.
For extended warranties to be accepted, all warranty extensions must be claimed within 30 days of
purchasing the eligible J-Tech Digital product. Extensions attempted to be claimed outside of the 30-
day window will not be accepted. Visit www.jtechdigital.com to register your extended warranty.
9
–
