Jøtul GI 450 DV Katahdin User manual

1
Installation and
Operation Instructions
Jøtul GI 450 DV Katahdin
Direct Vent Gas Fireplace Insert
– QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE
GAZ:
• Ne pas tenter d’allumer l’appareil.
• Ne touchez à aucum interrupteur. Ne pas
vous servir des téléphones se trouvant
dans le bâtiment où vous trouvez.
• Appelez immédiatement votre
fournisseur de gaz depuis un voisin. Suivez
les instructions du fournisseur.
• Si vou ne pouvez rejoindre le fournisseur
de gaz,appelez le service des incendies.
– L’installatione l’entretien doivent être
assurés par un installateur ou un service
d’entretien qualifié ou par le fournisseur
de gaz.
– Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de tout
autre appareil.
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call you gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instruction.
• If you cannot reach your gas supplier,
call the fire department.
– Installation and service must be
performed by a qualfied installer, service
agency or the gas supplier.
– In the Commonwealth of Massachusetts, a
carbon monoxide (CO) detector shall be
installed in the same room as the
appliance.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
AVERTISSEMENT: Assurez-vous de bien
suivreles instructions données dans cette
notice pour réduire auninimum le risque
d’incendie ou d’explosion ou pour éviter tout
dommage matériel, toute blessure ou la mort.
CAUTION:THESE INSTRUCTIONS MUST
REMAIN WITH THE HOMEOWNER.
ATTENTION : CES INSTRUCTIONS DOIVENT
DEMUERER AVEC LE PROPRIÉTERE D’UNE
MAISON.

2

3
THIS OWNER’S MANUAL PROVIDES
INFORMATION TO ENSURE SAFE INSTALLATION
AND EFFICIENT, DEPENDABLE OPERATION OF
YOUR FIREPLACE INSERT. PLEASE READ THESE
INSTRUCTIONS IN THEIR ENTIRETY AND MAKE
THEM AVAILABLE TO ANYONE USING OR
SERVICING THIS GAS INSERT.
Table of Contents:
Specifications ................................................................ 4
General Information .................................................... 5
Minimum Fireplace Dimensions .............................. 6
Installation Requirements ......................................... 6

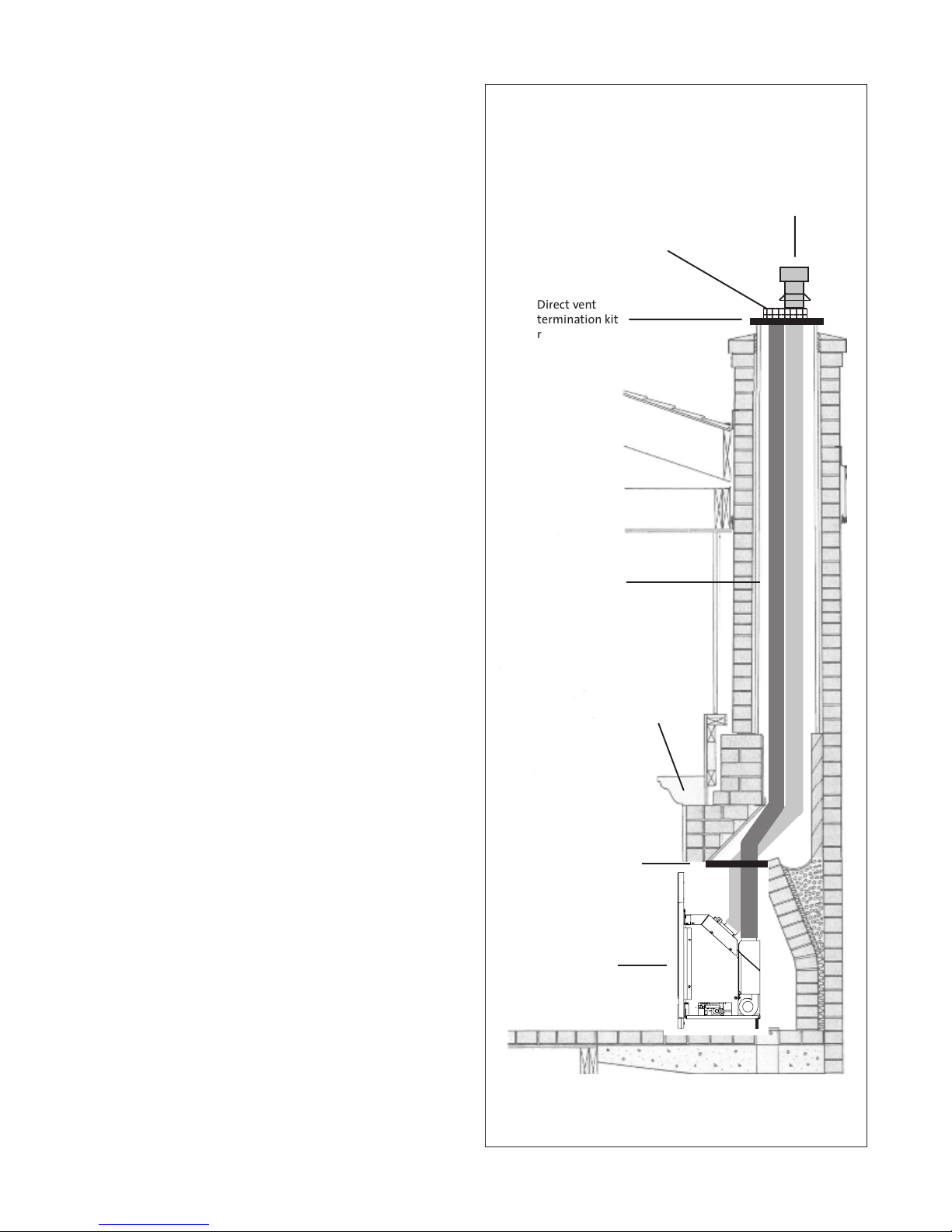

Masonry Fireplace Installation ................................. 8
Prefabricated (Factory-built) Installation ............... 9

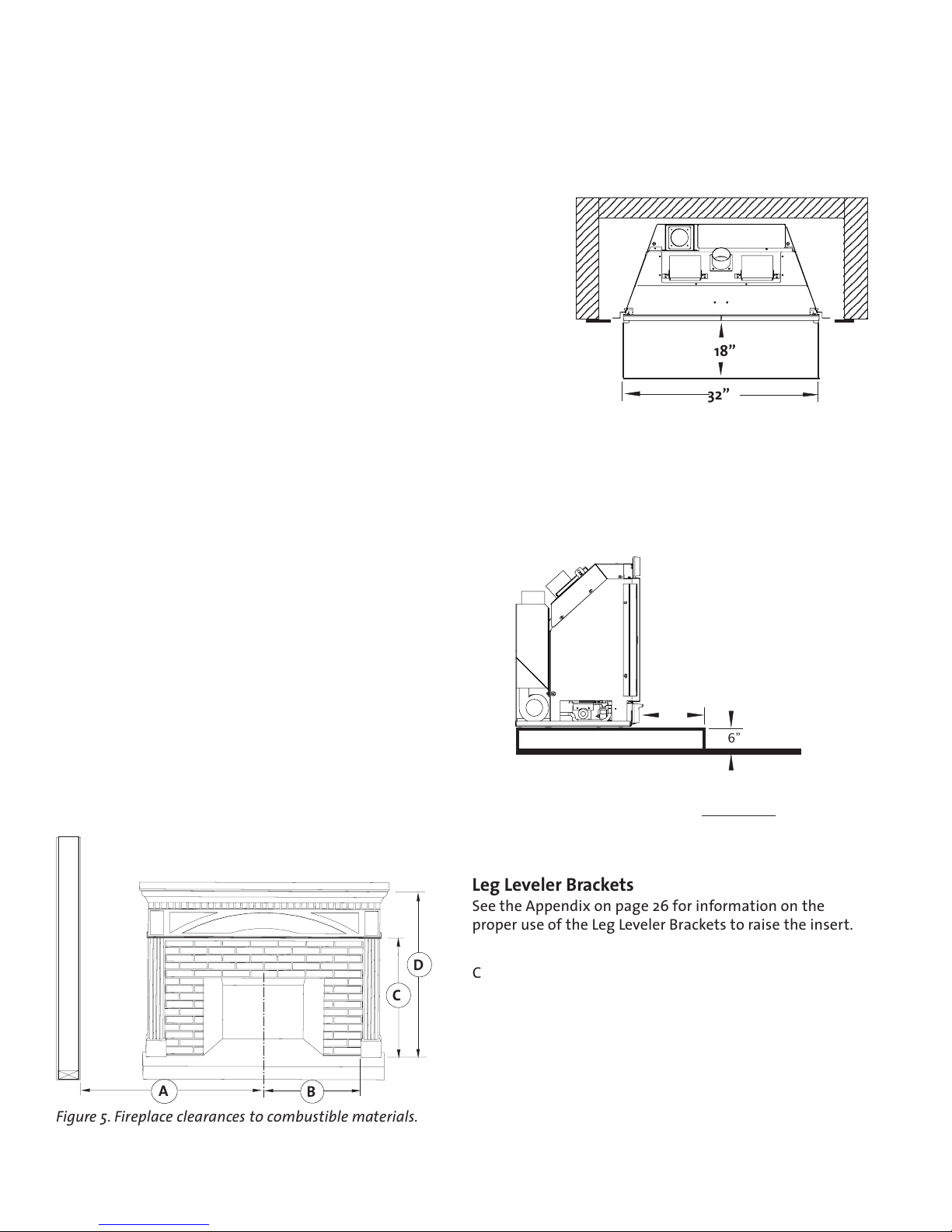

Clearance Requirements ........................................... 10
Hearth Requirements ................................................ 10

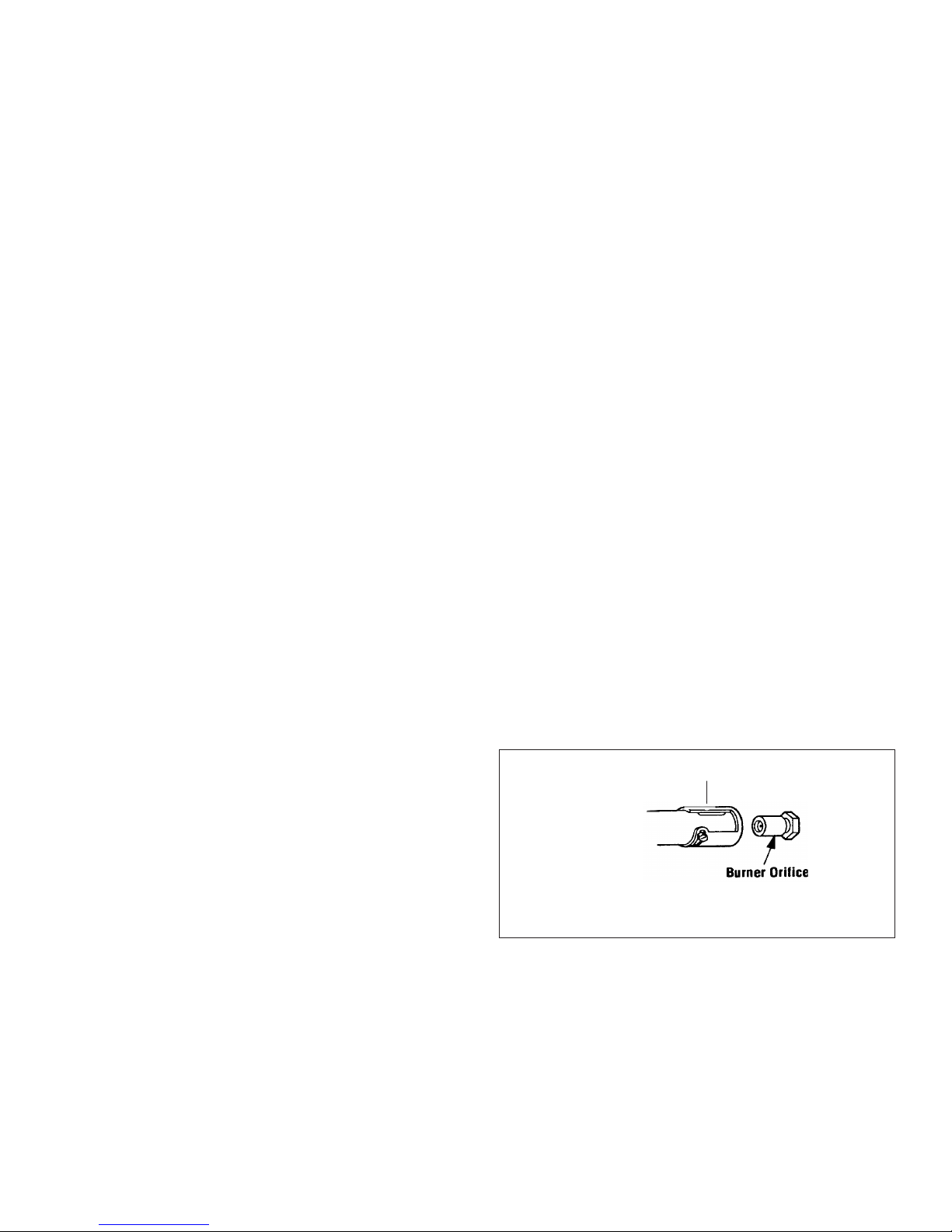

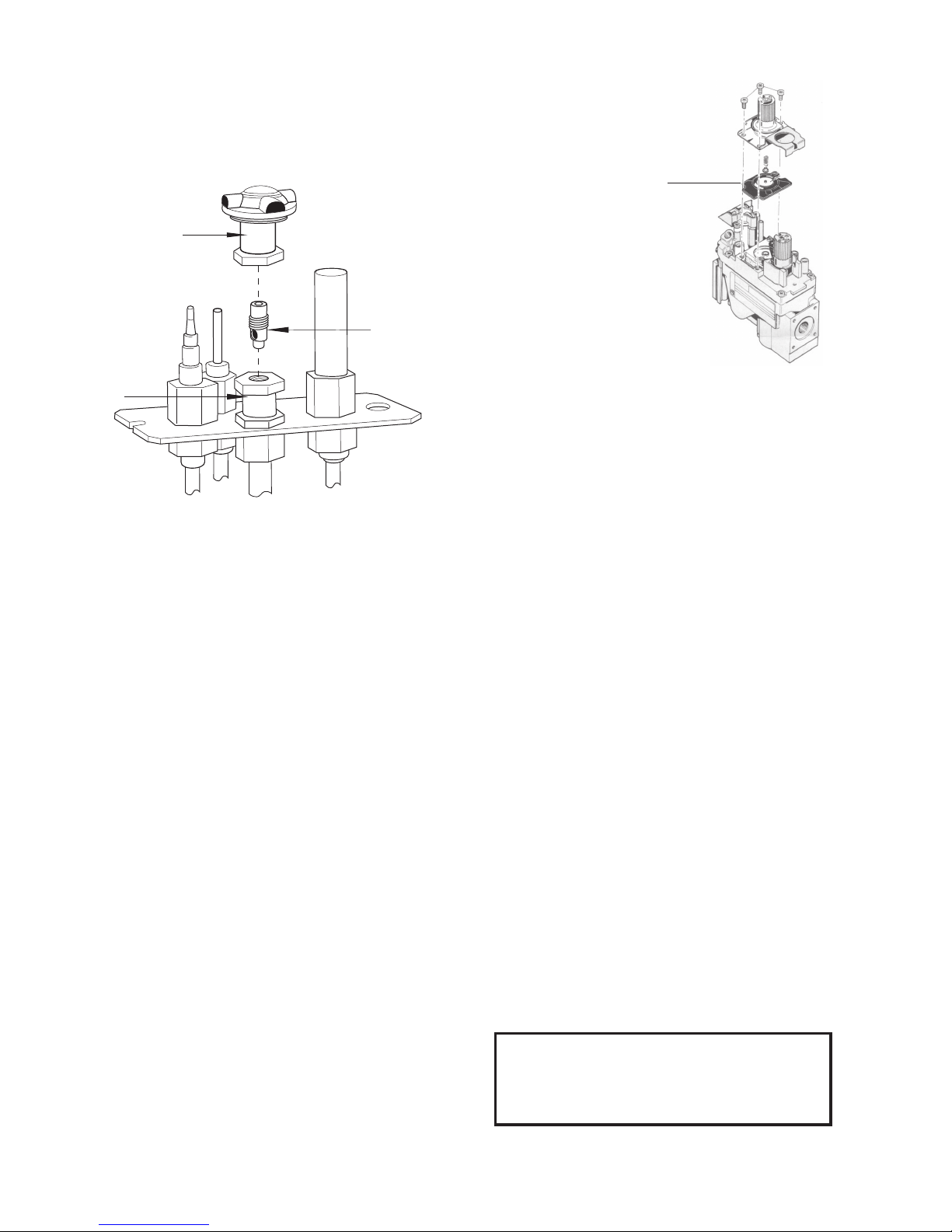

Gas Conversion..............................................................11

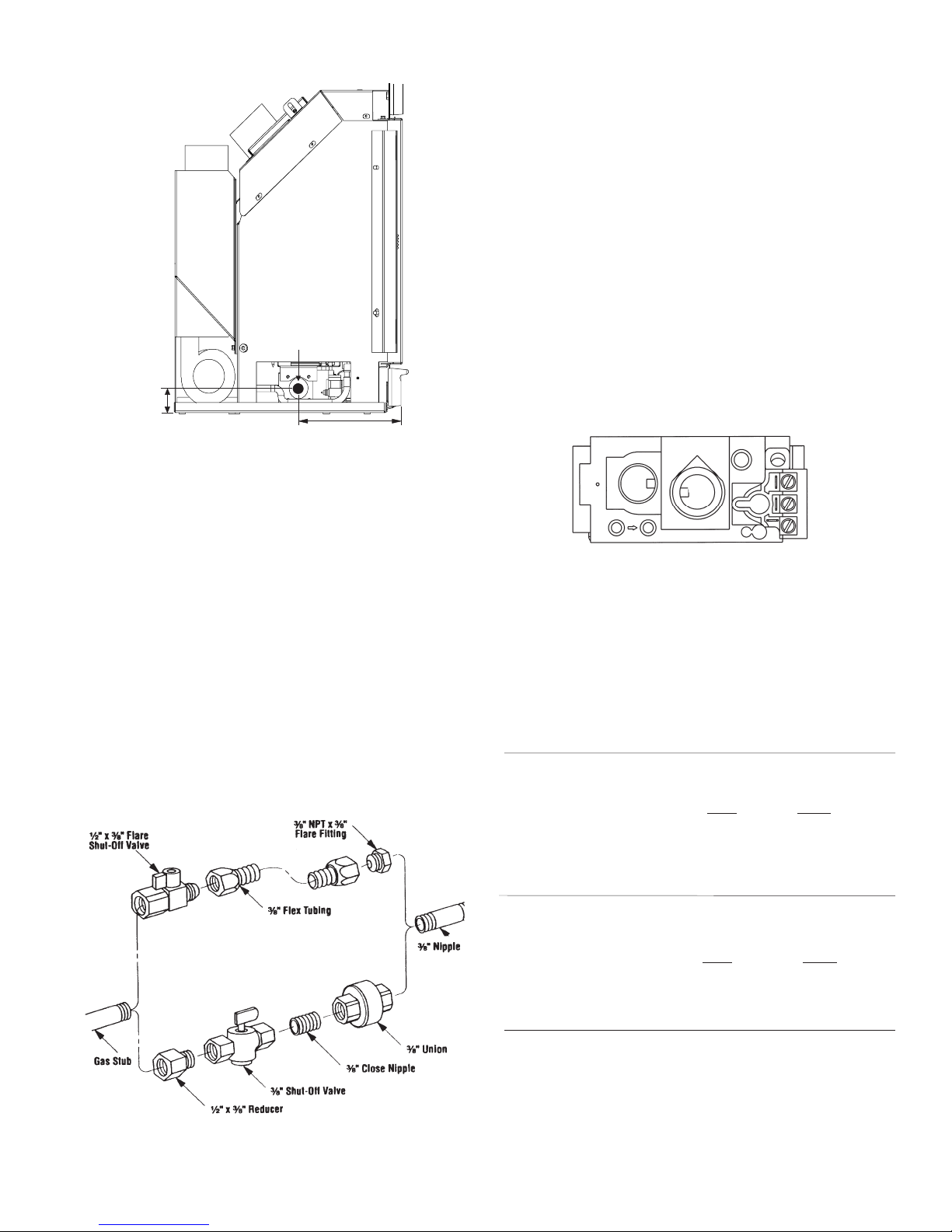

Gas Connection ............................................................ 12
Gas Pressure .................................................................. 13
High Altitude Adjustment ........................................14
Flame Adjustment....................................................... 15
Logset Installation ....................................................... 15
Blower Operation ....................................................... 16
Wall Thermostat .......................................................... 17
Remote Control ............................................................ 17
Surround Panel Installation ......................................18
Checking the System ................................................. 19
Fireplace Operation ....................................................20
Maintenance ................................................................20
Service Log ..................................................................... 21
Illustrated Parts Diagram ......................................... 22
Replacement Parts ..................................................... 23
Antique Brick Panel Kit.............................................. 24
Appendix / Leg Levelers ............................................ 26
Lighting Instructions ...................................
BACK COVER
Jøtul GI DV Katahdin
Direct Vent Gas Fireplace Insert
Manufactured and Distributed by:
Jøtul AS
Fredrikstad, Norway
Jøtul North America
Gorham, Maine 04038 U.S.A.
Test Standards
This appliance complies with U.S.
and Canadian National Safety
standards and is tested and listed
by Intertek Testing Services of
Middleton, Wisconsin to:
ANSI Z21.88-2005,
ANSI Z21.88a / CSA 2.33a - 2007,
CAN/CGA 2.17 -M91, and CSA P.4-01.2.
New York City Dept. of Buildings MEA No. 312-00-E
DO NOT ATTEMPT TO ALTER OR MODIFY THE
CONSTRUCTION OF THIS APPLIANCE OR ITS
COMPONENTS. ANY MODIFICATION OR
ALTERATION WILL VOID THE WARRANTY,
CERTIFICATION AND LISTING OF THIS
APPLIANCE.
THIS PRODUCT MUST BE INSTALLED
BY A LICENSED PLUMBER OR
GAS-FITTER WHEN INSTALLED IN THE
COMMONWEALTH OF MASSACHUSETTS.
450

4
GI 450 DV
Katahdin
Specifications
31 1/4”
MEASUREMENTS INCLUDE
THE FRONT GRILL ASSEMBLIES
AND ARE NOT TO SCALE.
6 1/4”
20 1/2”
32 9/32”
15 3/8”
31 1/4”
34 11/16”
20 13/16”
13 1/4”
29 1/4”
20 ”
15”
16 9/16”
14 5/8 ”
Suggested Tool List for
Installation and Maintenance
• External regulator (for LP only)
• Piping which complies with local code
• Manual shutoff valve
• Sediment trap
• Tee joint
• Pipe wrench
• Pipe sealant
• 10mm open end wrench
• 1/2”, 7/16” open end wrench
• Phillips head screwdriver
• Flat head screwdriver
• 1/4” nut driver
• Gloves
• Safety glasses
• Torx T20 screwdriver
• Leak test solution
15 3/8”
Input Rates
Natural gas
33,000 BTU/hr. maximum input
26,000 BTU/hr. minimum input
Propane
33,000 BTU/hr. maximum input
26,000 BTU/hr. minimum input
THIS APPLIANCE IS SHIPPED TO USE NANA
NANA
NATT
TT
TUU
UU
URR
RR
RALAL
ALAL
AL
GG
GG
GAA
AA
AS ONS ON
S ONS ON
S ONLL
LL
LYY
YY
Y. FOR USE WITH PROPANE , INSTALL
PROPANE CONVERSION KIT #154903,
INCLUDED WITH THIS APPLIANCE.

5
General Requirements
THIS HEATER MUST BE INSTALLED AND MAINTAINED BY
A QUALIFIED SERVICE AGENCY.
The installation and repair of this appliance must be
done by a qualified service person. Failure to properly
install and maintain this heater could result in an
unsafe or hazardous installation, which may result in a
fire, explosion, property damage, personal injury or loss
of life.
This appliance should be inspected before use and at
least annually. More frequent cleaning may be re-
quired due to excessive lint from carpeting, bedding
material, etc. It is imperative that control compart-
ments, burners and circulating air passageways of the
appliance be kept clean.
S’assurer que le bruleur et le compartiment des
commandes sont propres. Voir les instructions
d’installation et d’utilisation qui accompagnent
l’appareil.
The installation must conform to local codes. Your local
Jøtul dealer can assist you in determining what is
required in your area for a safe and legal installation.
Some areas require a permit to install a gas burning
appliance. Always consult your local building inspector
or authority having jurisdiction to determine what
regulations apply in your area.
Your local officials have final authority in determining if
a proposed installation is acceptable. Any requirement
that is requested by the local authority having jurisdic-
tion, that is not specifically addressed in THIS manual,
defaults to local code. In the absence of local codes, the
installation requirements must comply with the
current National codes. In the U.S., these requirements
are established in the National Fuel Code, ANSI
Z223.1.(NFPA 54). In Canada, the codes have been
established in CAN/CGA B149 Fuel Installation Code.
Installer l’appareil selon les codes ou reglements
locaux, ou, en l’absence de tels reglements, selon les
Codes d’installation CAN/CGA-B149.
DO NOT OPERATE THIS INSERT IF ANY PART HAS BEEN
UNDER WATER.
Immediately call a qualified service technician to
inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
Ne pas se servir de cet appareil s’il a ete’ plonge dans
l’eau, completement ou en partie. Appeler un
technicien qualifie pour inspecter l’appareil et
remplacer toute partie du syste’me de controle et toute
commande qui ont ete plonges dans l’eau.
Do not operate this appliance with the glass front
removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service
person. Only remove glass for routine service. Always
handle glass carefully.
Pour utilisation avec les portes en verre cerifiers aved
l’appareil seulemend ou Ne pas utiliser avec des portes
on verre.
Safety Notices
Your fireplace insert will reach high surface tempera-
tures during normal operation. Please note the follow-
ing safety considerations.
Due to the high operating temperatures this appli-
ance should be located out of traffic and away from
furniture and draperies.
Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
Young children should be supervised while they are
in the same room as the Katahdin gas insert.
Clothing or other flammable materials should not be
placed ON or NEAR the Katahdin gas insert.
Surveiller les enfants. Garder les vetements, les
meubles, l’essence ou autres liquides a vapeur
inflammables loin de l’appareil.
NEVER store or use gasoline or any other flammable
vapors or liquids in the vicinity of the Katahdin gas
insert.
Never burn any other materials in your Katahdin gas
insert, it is strictly designed for use with natural gas
or propane fuel ONLY.
Any safety screen, glass or guard removed for servic-
ing the appliance must be replaced prior to operating
the appliance.

6
Minimum Fireplace Requirements
This appliance has been specifically designed to be
installed into a solid fuel-burning prefabricated fire-
place OR a code-approved solid fuel-burning masonry
fireplace with a tile flue liner.
Minimum Fireplace Dimensions
A - Inside Height = 17” (431 mm )
B - Inside Width = 21” (533 mm)(at 15” of depth)
C - Inside Depth = 15”
D - Opening Height = 20”
E - Opening Width = 32 1/2”
Maximum Fireplace Opening
Standard Surround:
Will cover a maximum firmaximum fir
maximum firmaximum fir
maximum fireplaceplac
eplaceplac
eplace openinge opening
e openinge opening
e opening
22
22
27 17 1
7 17 1
7 1//
//
/2”2”
2”2”
2” high x 39”high x 39”
high x 39”high x 39”
high x 39” widewide
widewide
wide..
..
.
The overall Standard Surround dimensions are
28” high X 40” wide.
Standard Surround with 2” Riser Bar:
Will cover a maximum firmaximum fir
maximum firmaximum fir
maximum fireplaceplac
eplaceplac
eplace openinge opening
e openinge opening
e opening
29 129 1
29 129 1
29 1//
//
/2”2”
2”2”
2” high x 39”high x 39”
high x 39”high x 39”
high x 39” widewide
widewide
wide
The overall Standard Surround dimensions with
the Riser Bar are 30” high X 40” wide.
OptionalOptional
OptionalOptional
Optional WW
WW
Wide Surride Surr
ide Surride Surr
ide Surround (mustound (must
ound (mustound (must
ound (must be used with Stan-be used with Stan-
be used with Stan-be used with Stan-
be used with Stan-
dardar
dardar
dard Surrd Surr
d Surrd Surr
d Surroundound
oundound
ound):):
):):
):
Will cover a maximum firmaximum fir
maximum firmaximum fir
maximum fireplaceplac
eplaceplac
eplace openinge opening
e openinge opening
e opening
31 131 1
31 131 1
31 1//
//
/2”2”
2”2”
2” high X 4high X 4
high X 4high X 4
high X 47”7”
7”7”
7” widewide
widewide
wide..
..
.
The overall Wide Surround dimensions are
32” high X 47 5/8” wide.
NONO
NONO
NOTT
TT
TE:E:
E:E:
E: A pair oA pair o
A pair oA pair o
A pair of Lf L
f Lf L
f Leg Eeg E
eg Eeg E
eg Extensions is included withxtensions is included with
xtensions is included withxtensions is included with
xtensions is included with
thethe
thethe
the WW
WW
Wide Surride Surr
ide Surride Surr
ide Surround found f
ound found f
ound for installaor installa
or installaor installa
or installationstions
tionstions
tions thatha
thatha
thatt
tt
tincludeinclude
includeinclude
include
the 2”the 2”
the 2”the 2”
the 2” Riser BarRiser Bar
Riser BarRiser Bar
Riser Bar..
..
.
Do not modify or alter the construction of the gas
insert or any of its components to enable it to fit into a
fireplace. Any modification of the insert is potentially
Do not modify or alter the construction of the gas
insert or any of its components to enable it to fit into a
fireplace. Any modification of the insert is potentially
dangerous and will void the warranty, certifications
and approvals.
Installation Requirements
Prior to installation, the existing chimney exhaust
flue must be thoroughly cleaned and completely
inspected by a qualified chimney sweep or fireplace
service technician.
Do not install this appliance into a damaged
chimney, unless effective repairs can be made prior to
installation. If you are unsure of the condition of your
fireplace and chimney, contact a professional fireplace
service technician or your local Jøtul Authorized Dealer
to assist you in determining the condition of your
fireplace and chimney.
TT
TT
THH
HH
HIS APPLIANCIS APPLIANC
IS APPLIANCIS APPLIANC
IS APPLIANCE ME M
E ME M
E MUSUS
USUS
UST NOT NO
T NOT NO
T NOT BT B
T BT B
T BE CE C
E CE C
E CONON
ONON
ONNN
NN
NECEC
ECEC
ECTT
TT
TEDED
EDED
ED TT
TT
TOO
OO
O
A CA C
A CA C
A CHH
HH
HIMNIMN
IMNIMN
IMNEE
EE
EY OR FLY OR FL
Y OR FLY OR FL
Y OR FLUU
UU
UE SERE SER
E SERE SER
E SERVIVI
VIVI
VING ANNG AN
NG ANNG AN
NG ANY OY O
Y OY O
Y OTT
TT
THH
HH
HER APPLI-ER APPLI-
ER APPLI-ER APPLI-
ER APPLI-
ANCANC
ANCANC
ANCE OF ANE OF AN
E OF ANE OF AN
E OF ANY KIY KI
Y KIY KI
Y KINN
NN
NDD
DD
D..
..
.
All venting components must be installed in
accordance with the terms of their listing and
manufacturer’s instructions. Refer to the pipe
manufacturer’s instructions for proper pipe clearances.
This appliance is specifically designed to operate
using 3”Type B vent pipe components or a Listed
Flexible gas liner.
B
E
D
C
A
SEE PAGE 19 FOR SURROUND AND RISER BAR
INSTALLATION INSTRUCTIONS.
SEE THE APPENDIX ON PAGE 26 FOR DETAILS
CONCERNING USE OF THE LEG LEVELER BRACKETS
TO ADJUST THE HEIGHT OF THE UNIT.
Figure 1.

7
Vent Installation Procedure
The GI 450 DV Katahdin gas insert must be vented
through dual 3” flexible gas aluminum liners listed for
use with gas appliances.
This co-linear installation includes a pair of 3” flex
ducts that run from the insert up through the existing
chimney.
One duct is attached to the exhaust port on the
back of the unit and will carry the exhaust gases to
the outside of the house. This exhaust liner must run
the full length of the chimney and be directly con-
nected to the chimney termination cap. See figure 2.
The other 3” liner will be attached to the intake
port on the back of the unit and will provide fresh air
for combustion to the unit. This liner must extend a
minimum ominimum o
minimum ominimum o
minimum of 6’f 6’
f 6’f 6’
f 6’ off the back of the unit and extend
through the damper area of the fireplace and into the
tile liner of the chimney. This liner can also extend the
full length of the chimney and connect to the termina-
tion cap. See figures 2 and 4.
Vent Guidelines
• All vent components must be installed in accordance
with the terms of their listing and manufacturer’s
instructions.
• The minimum height of termination cap from the
top of the unit shall be no less than 10'10'
10'10'
10', and the
maximum height shall be no more than 35'35'
35'35'
35'. See
figures 2 and 4.
• Steep roofs, nearby trees, or predominantly windy
conditions can promote weak draft or occasional
downdrafts. In such cases, increasing the height of
the vent or installation of high wind termination
caps may alleviate the condition.
•HORHOR
HORHOR
HORIZIZ
IZIZ
IZONON
ONON
ONTT
TT
TAL RUAL RU
AL RUAL RU
AL RUNS arNS ar
NS arNS ar
NS are note not
e note not
e not permitted anpermitted an
permitted anpermitted an
permitted anywherywher
ywherywher
ywhere ine in
e ine in
e in
the vthe v
the vthe v
the venen
enen
enting sting s
ting sting s
ting syy
yy
ystem.stem.
stem.stem.
stem.
• Venting liners CANNOT be less than 3” in diameter or
greater than 3” in diameter.
• Any unused flue or masonry enclosure can be used as
a passageway for venting PROVIDED the flue is
relined using 3” Listed Flexible Gas Liner.
• The remaining space around the liner in a masonry
or zero-clearance flue CANNOT be used to vent any
other appliance.
• Listed Flexible Gas Liners may not be exposed to any
living space.
• Installation of any components not manufactured or
approved by Jøtul or failure to meet all clearance
requirements will void all warranties and could result in
property damage, bodily injury, or loss of life.
• Never modify any venting component, or use any
damaged venting product.
• THE GAS APPLIANCE AND VENT SYSTEM MUST BE
VENTED DIRECTLY TO THE OUTSIDE OF THE BUILD-
ING, AND NEVER ATTACHED TO A CHIMNEY SERVING
A SOLID FUEL OR GAS BURNING APPLIANCE.
• The minimum vent height above the roof or adjacent
walls is specified by building codes. A general guide
to follow is the Gas Vent Rule below.
VERVER
VERVER
VERY IMPY IMP
Y IMPY IMP
Y IMPOROR
OROR
ORTT
TT
TANAN
ANAN
ANTT
TT
T
If the intake flex
does notdoes not
does notdoes not
does not extend the full length
of the chimney and connect to the unit and the
termination cap - A META MET
A META MET
A METAL BAL B
AL BAL B
AL BLL
LL
LOO
OO
OCC
CC
CK OFF PLK OFF PL
K OFF PLK OFF PL
K OFF PLAA
AA
ATT
TT
TE ME M
E ME M
E MUSUS
USUS
USTT
TT
T
BB
BB
BE CE C
E CE C
E CONSONS
ONSONS
ONSTT
TT
TRUCRUC
RUCRUC
RUCTT
TT
TED ANED AN
ED ANED AN
ED AND ID I
D ID I
D INSNS
NSNS
NSTT
TT
TALLED ABALLED AB
ALLED ABALLED AB
ALLED ABOO
OO
OVEVE
VEVE
VE TT
TT
THH
HH
HEE
EE
E
UU
UU
UNN
NN
NII
II
IT BT B
T BT B
T BELEL
ELEL
ELOO
OO
OWW
WW
W TT
TT
THH
HH
HE ENE EN
E ENE EN
E END OFD OF
D OFD OF
D OF TT
TT
THH
HH
HE IE I
E IE I
E INN
NN
NTT
TT
TAKE DUCAKE DUC
AKE DUCAKE DUC
AKE DUCTT
TT
T
(normally at the damper area). See figure 2.
To avoid cross venting the insert, label the duct to
be used for the exhaust conduit at both the top and
bottom ends. This ensures that the exhaust duct will
be attached to the correct collar on the insert and on
the chimney termination kit.
CC
CC
CANADANAD
ANADANAD
ANADA NOA NO
A NOA NO
A NOTT
TT
TE:E:
E:E:
E: Both InBoth In
Both InBoth In
Both Intaktak
taktak
take and Ee and E
e and Ee and E
e and Exhaustxhaust
xhaustxhaust
xhaust ducduc
ducduc
ductsts
tsts
ts
mustmust
mustmust
must ee
ee
extendxtend
xtendxtend
xtend the full length othe full length o
the full length othe full length o
the full length off
ff
f the chimnethe chimne
the chimnethe chimne
the chimney and bey and be
y and bey and be
y and be
cc
cc
conneconnec
onneconnec
onnectedted
tedted
ted tt
tt
to botho both
o botho both
o both the unitthe unit
the unitthe unit
the unit andand
andand
and thethe
thethe
the terminatermina
terminatermina
terminationtion
tiontion
tion
kitkit
kitkit
kit..
..
.
VERY IMPORTANT NOTICE:
THE USE OF AN EXISTING CHIMNEY AS AN
AIR INTAKE IS NOT COVERED UNDER THE
ANSI Z21.88-1999-CSA 2.33-M99 TEST
METHODS AND RESULTING ITS/WHI
PRODUCT CERTIFICATION. THE CODE
AUTHORITY HAVING JURISDICTION MUST
BE CONSULTED PRIOR TO PROCEEDING
WITH THIS INSTALLATION METHOD.
GAS VENT RULE
Flat to 6/12 1’0” 0.3M
Over 7/12 to 9/12 2’0” 0.6M
Over 10/12 to 12/12 4’0” 1.2M
Over 13/12 to 16/12 6’0” 1.8M
Over 17/12 to 21/12 8’0” 2.4M
Minimum Height
From Roof
ROOF SLOPE

8
Venting through a Masonry Fireplace
1.1.
1.1.
1. Measure height of the chimney to fireplace opening.
Determine if both the intake and exhaust will be
extended to the top of the chimney. In CIn C
In CIn C
In Canada,anada,
anada,anada,
anada, bothboth
bothboth
both
liners mustliners must
liners mustliners must
liners must ee
ee
extendxtend
xtendxtend
xtend the full length othe full length o
the full length othe full length o
the full length off
ff
f the chimnethe chimne
the chimnethe chimne
the chimneyy
yy
y
and be cand be c
and be cand be c
and be conneconnec
onneconnec
onnectedted
tedted
ted tt
tt
to botho both
o botho both
o both the unitthe unit
the unitthe unit
the unit andand
andand
and thethe
thethe
the termi-termi-
termi-termi-
termi-
nana
nana
nation kittion kit
tion kittion kit
tion kit..
..
.
2.2.
2.2.
2. Cut the appropriate lengths of flex duct for both the
intake and exhaust. Label both ends of the Exhaust
duct.
3.3.
3.3.
3. Follow the manufacturer’s instructions to attach the
ends of the duct(s) to the chimney termination kit as
appropriate.
44
44
4..
..
. Drop the liners down the chimney from the top and
rest the termination kit atop the chimney.
55
55
5..
..
. Seal the chimney termination kit to the top of the
chimney flue with high temperature sealant.
6.6.
6.6.
6. Secure the appropriate direct vent cap to the termi-
nation kit.
77
77
7..
..
. Inside the fireplace, fully extend the duct and trim
any excess so that the ends hang approximately 15”
from the floor of the fireplace.
8.8.
8.8.
8. If the Intake duct is not attached to the chimney
termination kit:
A.A.
A.A.
A. Install a minimum 6 foot length flex duct for the
up the flue.
BB
BB
B..
..
. A METAL block-off plate must be constructed and
installed in the damper area to cc
cc
completely seal oompletely seal o
ompletely seal oompletely seal o
ompletely seal off
ff
fff
ff
f
the flue from the room. Cut holes in the plate for
both the Intake and Exhaust liners.
C.C.
C.C.
C. A direct vent cap is required to allow fresh air into
the chimney flue and ultimately into the intake duct
to the insert.
9.9.
9.9.
9. Compress the ducts so that they are hanging above
the height of the fireplace opening and are out of
the way.
1010
1010
10..
..
. Position the insert without surround panels half-
way inside the fireplace and attach duct you labelled
Exhaust to the Exhaust collar on the insert. Both
Intake and Exhaust collars are labelled.
11.11.
11.11.
11. Secure the ducts to the collars with sheet metal
screws or hose clamps. No silicone or sealant is
required.
12.12.
12.12.
12. Once the gas line is installed, carefully push the unit
inside the fireplace.
See page 13 for gas line gas line connection.
See page 19 for surround panel installation. WW
WW
Warning:arning:
arning:arning:
arning: FF
FF
Failurailur
ailurailur
ailuree
ee
e tt
tt
to positiono position
o positiono position
o position the parthe par
the parthe par
the parts in acts in ac
ts in acts in ac
ts in accc
cc
coror
oror
ordancdanc
dancdanc
dance withe with
e withe with
e with thisthis
thisthis
this
diagrdiagr
diagrdiagr
diagram or fam or f
am or fam or f
am or failurailur
ailurailur
ailuree
ee
e tt
tt
to use only paro use only par
o use only paro use only par
o use only parts specifically apprts specifically appr
ts specifically apprts specifically appr
ts specifically approo
oo
ovv
vv
ved withed with
ed withed with
ed with
this appliancthis applianc
this appliancthis applianc
this appliance mae ma
e mae ma
e may ry r
y ry r
y resultesult
esultesult
esult in prin pr
in prin pr
in properoper
operoper
operty damagty damag
ty damagty damag
ty damage or personale or personal
e or personale or personal
e or personal
injurinjur
injurinjur
injuryy
yy
y..
..
.
Fig. 2. Venting through fireplace chimney.
Required metal
block-off plate to
seal flue chamber if
intake flex does not
extend the full
length of the flue.
Maintain the proper
clearance to mantel
and trim
123456789
1
2345678
9
123456789
Direct vent
termination kit
required
GI 450 DV
KATAHDIN
GAS INSERT
Lined Masonry
Chimney Flue
Intake Air
Inlet
Listed Direct Vent
Termination Cap
Required

9
Prefabricated Fireplace Installation
A factory-built fireplace will require modification prior
to installation of the insert.
Modification
1. Remove any fuel grate and other components if
attached. On most models, the firegrate is attached
to the unit with brackets which can be cut or pried off.
2. Remove the damper assembly. This includes the
damper blade, handle and any linkage. Two 3” liners
must be able to pass through the damper area.
3. Remove any firescreen or door assembly. This is
usually accomplished with removal of a support rod
on the inside of the fireplace frame.
4. Remove the metal ashlip, if appropriate, to allow the
insert to sit flat within the fireplace. Be sure to
reinstall any screws removed.
IMPORTANT:
BEFORE STARTING THIS INSTALLATION, MAKE SURE THAT A
GAS LINE CAN BE INSTALLED OR IS INSTALLED TOTHE FIRE-
BOX. THIS SHOULD ONLY BE DONE BY A QUALIFIED OR
LICENSED PLUMBER OR GAS FITTER.
Installation
Follow the same installation procedural steps detailed
on the preceding page for masonry fireplaces.
Figure 3. Duct collar locations.
Exhaust
Collar
Air Inlet
Collar
Dual 3” Listed Liners
VERY IMPORTANT NOTICE:
THE USE OF AN EXISTING CHIMNEY AS AN
AIR INTAKE IS NOT COVERED UNDER THE
ANSI Z21.88-1999-CSA 2.33-M99 TEST
METHODS AND RESULTING ITS/WHI
PRODUCT CERTIFICATION. THE CODE
AUTHORITY HAVING JURISDICTION MUST
BE CONSULTED PRIOR TO PROCEEDING
WITH THIS INSTALLATION METHOD.
Figure 4. Venting through prefabricated
fireplace chimney.
Metal block off
plate must be
installed if the
intake duct
does not extend
to the chimney
termination.
1234
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1234
12345
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
12345
123456789012
1
2345678901
2
1
2345678901
2
123456789012
Intake air for
combustion
Intake flex must
extend minimum 6’
into the chimney pipe
GI 450 DV
KATAHDIN
1234567890123456789012
1
23456789012345678901
2
1
23456789012345678901
2
1234567890123456789012
Listed Direct Vent
Termination Cap
Required
Top sealing
anchor plate
required
Listed flexible
gas liners
Max. Height: 35 ft.
Min. Height: 10 ft.
Factory-built
chimney pipe
123456
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
123456
Maintain the proper
clearance to mantel
and trim
WW
WW
Warning:arning:
arning:arning:
arning:
FF
FF
Failurailur
ailurailur
ailuree
ee
e tt
tt
to positiono position
o positiono position
o position thethe
thethe
the
parpar
parpar
parts in acts in ac
ts in acts in ac
ts in accc
cc
coror
oror
ordancdanc
dancdanc
dance withe with
e withe with
e with
this diagrthis diagr
this diagrthis diagr
this diagram or fam or f
am or fam or f
am or failurailur
ailurailur
ailuree
ee
e
tt
tt
to use only paro use only par
o use only paro use only par
o use only partsts
tsts
ts
specifically apprspecifically appr
specifically apprspecifically appr
specifically approo
oo
ovv
vv
veded
eded
ed
withwith
withwith
with this appliancthis applianc
this appliancthis applianc
this appliance mae ma
e mae ma
e mayy
yy
y
rr
rr
resultesult
esultesult
esult in prin pr
in prin pr
in properoper
operoper
opertyty
tyty
ty
damage or personaldamage or personal
damage or personaldamage or personal
damage or personal
injurinjur
injurinjur
injuryy
yy
y..
..
.

10
Clearance Requirements
The following clearances and hearth specifications are
the minimum requirements for installing the GI 450
Katahdin Insert into a solid fuel-burning fireplace. See
figs. 5 through 8.
A combustible surface is anything that can burn (i.e.
sheet rock, wallpaper, wood, fabrics etc.). These surfaces
are not limited to those that are visible and also include
materials that are behind non-combustibles.
If you are not sure of the combustible nature of a
material, consult your local fire officials. Remember,
“Fire Resistant”materials are considered combustible;
they are difficult to ignite, but will burn. Also,“fire-
rated” sheet rock is considered cc
cc
combustibleombustible
ombustibleombustible
ombustible.
Always maintain the proper clearances to allow for
the proper flow of ventilation air around the insert.
Fireplace Clearances
MeasurMeasur
MeasurMeasur
Measure cleare clear
e cleare clear
e clearancanc
ancanc
ances fres fr
es fres fr
es fromom
omom
om the cthe c
the cthe c
the cenen
enen
enter and finishedter and finished
ter and finishedter and finished
ter and finished
floor ofloor o
floor ofloor o
floor off
ff
f the firthe fir
the firthe fir
the fireplaceplac
eplaceplac
eplace openinge opening
e openinge opening
e opening..
..
.
A = 40”A = 40”
A = 40”A = 40”
A = 40” (1016 mm)(1016 mm)
(1016 mm)(1016 mm)
(1016 mm) tt
tt
to a Sideo a Side
o a Sideo a Side
o a Side WW
WW
Wall,all,
all,all,
all, (any combustible
surface that extends more than 1 1/2” from the
fireplace face)
B = 22”B = 22”
B = 22”B = 22”
B = 22” (55(55
(55(55
(559mm)9mm)
9mm)9mm)
9mm) tt
tt
to Sideo Side
o Sideo Side
o Side TT
TT
Trimrim
rimrim
rim that extends 1 1/2” or less
from the fireplace face. If the side trim extends more
than 1 1/2” from the fireplace opening then SideSide
SideSide
Side WW
WW
Wallall
allall
all
clearclear
clearclear
clearancanc
ancanc
ancee
ee
e applies.
CC
CC
C = 36”36”
36”36”
36” (86(86
(86(86
(867mm)7mm)
7mm)7mm)
7mm) tt
tt
too
oo
o TT
TT
Topop
opop
op TT
TT
Trimrim
rimrim
rim that extends 1 1/2” or less
from the fireplace face.
D = 38”D = 38”
D = 38”D = 38”
D = 38” (915mm)(915mm)
(915mm)(915mm)
(915mm) tt
tt
to a Mano a Man
o a Mano a Man
o a Manteltel
teltel
tel that extends no more
than 14 1/2” from the fireplace face.
NOTE: MANTEL AND TOP TRIM CLEARANCES ARE
NOT AFFECTED BY THE USE OF THE 2” RISER BAR.
Hearth Requirements
Flush HearFlush Hear
Flush HearFlush Hear
Flush Hearth:th:
th:th:
th: requires a non-combustible hearth in front
of the fireplace that extends a minimum of 18” (457mm)
and is a minimum of 32” (813mm) wide.
RR
RR
Raised Hearaised Hear
aised Hearaised Hear
aised Hearth:th:
th:th:
th: A raised hearth that is at least 6” high
requires a non-combustible hearth in front of the fire-
place that extends a minimum of 12” (305mm) from the
fireplace face and is a minimum of 32”(813mm) wide.
Hearth must be minimum 6” high to
extend only 12”in front
12”
NONO
NONO
NOTT
TT
TE:E:
E:E:
E: USE OFUSE OF
USE OFUSE OF
USE OF TT
TT
THH
HH
HE 2”E 2”
E 2”E 2”
E 2” RR
RR
RISER BISER B
ISER BISER B
ISER BARAR
ARAR
AR DOES NODOES NO
DOES NODOES NO
DOES NOTT
TT
TEFFECEFFEC
EFFECEFFEC
EFFECTT
TT
T
TT
TT
THH
HH
HE HE H
E HE H
E HEE
EE
EARAR
ARAR
ARTT
TT
TH RH R
H RH R
H REQUEQU
EQUEQU
EQUII
II
IRR
RR
REMENEMEN
EMENEMEN
EMENTT
TT
TS LISS LIS
S LISS LIS
S LISTT
TT
TED ABED AB
ED ABED AB
ED ABOO
OO
OVE.VE.
VE.VE.
VE.
Figure 6. Flush
hearth dimensions
Figure 7. Raised
hearth dimensions
1234567890123456789012345678901
1
23456789012345678901234567890
1
1234567890123456789012345678901
1234
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1234
123
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
123
18”
32”
6”
Figure 5. Fireplace clearances to combustible materials.
B
A
C
D
Leg Leveler Brackets
See the Appendix on page 26 for information on the
proper use of the Leg Leveler Brackets to raise the insert.
ClearClear
ClearClear
Clearancanc
ancanc
ancee
ee
e tt
tt
to Co C
o Co C
o Combustiblesombustibles
ombustiblesombustibles
ombustibles
When raising the firebox up to 2”, mantel and hearth
clearance remain unchanged from those specified above.
Raising the firebox higher than 2” will require that the clear-
ance to mantel and trim be increased by 1”:
C = Hearth to Upper Trim - 37”
D = Hearth to Mantel - 39”

11
Gas Conversion
The GI 450 Katahdin gas insert is shipped from the
factory equipped to use NATURAL GAS. A conversion kit
is included with the insert for installation to permit use
of Propane fuel. The kit contains all the necessary
components needed to ensure safe operation, including
labeling that must be affixed to the insert.
WARNING:
THE CONVERSION KIT ISTO BE INSTALLED BY AN AUTHO-
RIZED JØTUL SERVICE TECHNICIAN IN ACCORDANCE WITH
THE MANUFACTURER’S INSTRUCTION AND ALL CODES
AND REQUIREMENTS OF THE AUTHORITY HAVING JURIS-
DICTION. FAILURETO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR PROPERTY DAM-
AGE. THE QUALIFIED AGENCY PERFORMING THIS WORK
ASSUMES RESPONSIBILITY FOR THIS CONVERSION.
IN CANADA:
THE CONVERSION SHALL BE CARRIED OUT IN ACCOR-
DANCE WITH THE REQUIREMENTS OF THE PROVINCIAL
AUTHORITIES HAVING JURISDICTION AND IN ACCOR-
DANCE WITH THE REQUIREMENTS OF THE CAN1-B149.1
AND .2 INSTALLATION CODE.
CET EQUIPEMENT DE CONVERSION SERA INSTALLE PAR
UNE AGENCE QUALIFIEE DE SERVICE CONFORMEMENT
AUX INSTRUCTIONS DU FABRICANT ET TOUTES EXIGENCES
ET CODES APPLICABLES DE L’AUTORISES AVOIR LA
JURIDICTION. SI L’INFORMATION DANS CETTE INSTRUC-
TION N’EST PAS SUIVIE EXACTEMENT, UN FEY, EXPLOSION
OU PRODUCTION DE PROTOXYDE DE CARBONE PEUT
RESULTER BLESSURE PERSONNELLE DE VIE. L’AGENCE
QUALIFIEE DE SERVICE EST ESPONSABLE DE L’INSTALLATION
N’EST PAS PROPRE ET COMPLETE JUSQU’A L’OPERATION DE
L’APPAREIL CONVERTI EST CHEQUE SUIVANT LES CRITERES
ETABLIS DANS LES INSTRUCTIONS DE PROPRIETAIRE
PROVISIONNEES AVEC L’EQUIPEMENT.
TT
TT
Tools Rools R
ools Rools R
ools Requirequir
equirequir
equired:ed:
ed:ed:
ed:
1/4” Nut driver, 7/16” and 1/2” open end wrench or deep
well socket, 4mm allen wrench,Torx t20 or slotted
screwdriver.
KitKit
KitKit
Kit CC
CC
Conon
onon
ontenten
tenten
tents:ts:
ts:ts:
ts:
1 regulator tower labeled for propane
3 regulator tower screws
1 burner orifice (#31 NG #51 LPG)
1 pilot orifice ( #30 for LPG, #51 for NG)
Label A - applied to the base of the insert.
Label B - to apply to the rating plate.
IMPIMP
IMPIMP
IMPOROR
OROR
ORTT
TT
TANAN
ANAN
ANTT
TT
T::
::
:
Be sure to unplug the blower before proceeding with
this conversion.The gas supply must be turned off and
disconnected from the valve.
Conversion instructions are also included with the
conversion kit.
Gas Conversion Procedure
1.1.
1.1.
1. Open the bottom grill assembly, release the two glass
clips of the underside of the firebox.
2.2.
2.2.
2. Swing the bottom of the glass panel out and lift
slightly. Remove the glass panel by lifting the glass
frame over the brackets at the upper grill assembly.
Note: it is NOT necessary to remove the Upper Grill
assembly.
3.3.
3.3.
3. Lift out the andirons and remove the log set using
care not to scratch or damage logs.
44
44
4..
..
. Remove burner tube: Lift the rear of the tube and
rotate slightly forward. Slide the tube to the right to
disengage it from the burner orifice.
55
55
5..
..
. Once free of the orifice, continue to rotate forward so
that screen and tube are easily removed. Lift out.
6.6.
6.6.
6. Change the main burner orifice. Using a ½” open
end wrench or deep well socket remove the burner
orifice and replace with the appropriate orifice,
supplied in the kit.
77
77
7..
..
. Adjust the air shutter on the burner tube to allow for
the proper mixing of air and gas. See Figure 8.
The correct settings: Natural - 1/4” open
Propane - 1/4” open
8. To change the pilot orifice: FROM WITHIN THE
FIREBOX, PULL THE PILOT HOOD OFF THE PILOT
ASSEMBLY. Using a 4mm allen wrench thread
out the pilot orifice (counter clockwise). Replace
with the appropriate orifice:
Tighten orifice into the base of the pilot assembly. Be
sure the orifice is threaded tightly into the base. See
fig. 9.
9. Replace pilot hood onto pilot assembly.
Burner Tube
Air Shutter
NOTE: AIR SHUTTER SHOULD NEVER BE
LESS THAN 1/8” OPEN.

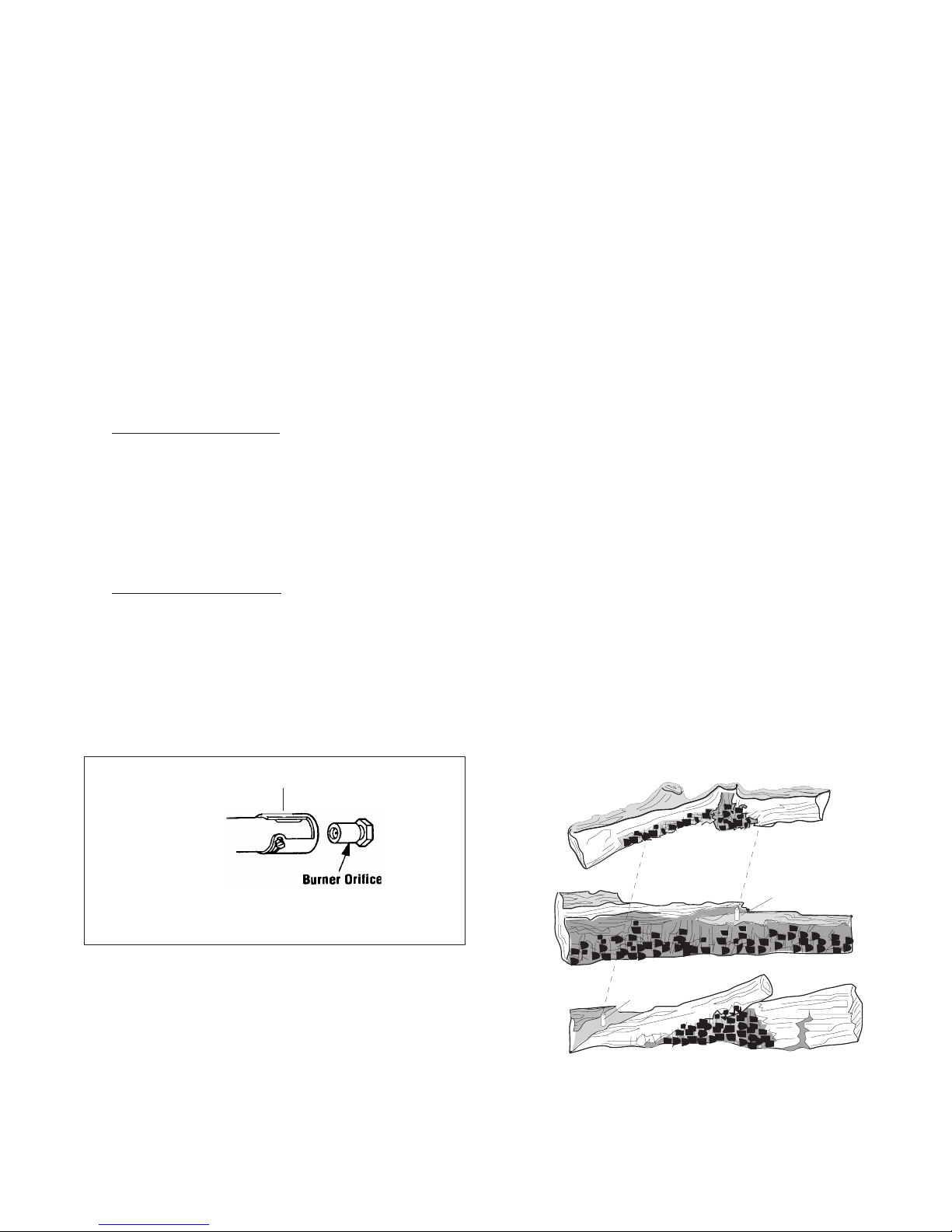

Figure 8.

12
10. Replace the burner tube, BE SURE TO SLIDE TUBE TO
THE LEFT COMPLETELY COVERING ORIFICE.
11. Open the bottom grill assembly to access the valve.
12. Change the variable regulator on the valve (Hi/Lo
knob). Using a Torx t-20 screwdriver or small flat
head screwdriver, remove the three specialty screws
from the front of the valve regulator. See fig. 10.
13. Remove the regulator tower and gasket.
BB
BB
BE SUE SU
E SUE SU
E SURR
RR
REE
EE
E TT
TT
TO RO R
O RO R
O REMEM
EMEM
EMOO
OO
OVEVE
VEVE
VE TT
TT
THH
HH
HE BE B
E BE B
E BLL
LL
LAA
AA
ACC
CC
CK RUK RU
K RUK RU
K RUBB
BB
BBB
BB
BER GER G
ER GER G
ER GAA
AA
ASKETSKET
SKETSKET
SKET
FRFR
FRFR
FROO
OO
OMM
MM
M TT
TT
THH
HH
HEE
EE
E VV
VV
VALAL
ALAL
ALVE.VE.
VE.VE.
VE. See fig. 10.
14. Install the new variable regulator tower with the
new rubber gasket. ThorThor
ThorThor
Thoroughlyoughly
oughlyoughly
oughly tighten new regula-
tor to valve body.
15. Install the identification labels to the insert so that
they can be seen by any person that may be servicing
the insert. APPLY LABEL B TO THE RATING PLATE IN
THE SPACEPROVIDED.
16. Reassemble the insert, apply gas to the system and
check for gas leaks including all insert lines before
and after the valve.
NN
NN
NEE
EE
EVER USE AN OPEN FLVER USE AN OPEN FL
VER USE AN OPEN FLVER USE AN OPEN FL
VER USE AN OPEN FLAA
AA
AMEME
MEME
ME TT
TT
TO CO C
O CO C
O CHH
HH
HECEC
ECEC
ECK FK F
K FK F
K FOR GOR G
OR GOR G
OR GAA
AA
ASS
SS
S
LELE
LELE
LEAKAK
AKAK
AKSS
SS
S..
..
.
IMPIMP
IMPIMP
IMPOROR
OROR
ORTT
TT
TANAN
ANAN
ANTT
TT
T
Correct gas pressure is essential for efficient and safe
operation of the Katahdin gas insert. It is important
that the correct gas pressure be established at the time
of the installation. For more details, see the Gas Pres-
sure section of this manual on page 14.
ALWAYS REFER TO THE LIGHTING INSTRUCTIONS ON THE
BACK COVER OF THIS MANUAL WHEN LIGHTING YOUR
KATAHDIN.
Gas Supply Connection
The gas supply line connection is made to the valve on
the left side of the unit facing the front. The gas supply
line should be a minimum of 3/8" in diameter, or the
appropriate size to provide sufficient gas pressure to the
valve regardless of the input setting.
See fig. 11 and 12.
For your convience the GI 450 DV Katahdin is
shipped with a short piece of 3/8” iron and a 24” length
of flexible gas line. Jotul recommends the use of the
flexible gas line for ease of installation and service.
However, for those areas where flexible gas lines are not
permitted use of the 3/8”iron is recommended. See fig.
12.
The use of Flexible Gas Appliance Connectors is
acceptable in many areas in the U.S., however, Canadian
methods vary depending on local code.
ALL INSTALLATIONS MUST COMPLY WITH LOCAL
CODE OR IN THE ABSENCE OF LOCAL CODE, MUST
COMPLY WITH THE MOST RECENT EDITION OF THE
NATIONAL FUEL GAS CODE ANSI Z223.1/NFPA 54 OR
CAN-B149.
All codes require:a gas shut-off valve (gas cock) .union,
to be installed in the supply line, and in the same room as
the appliance. This allows for the disconnection of the
insert for servicing and maintenance. See fig. 12.
T-handle gas cocks are required in
Massachusetts in compliance with
code 248CMR.
BE SURE TO REMOVE THE
BLACK RUBBER GASKET
FROM THE VALVE.
Figure 10.
Regulator Assembly.
Pilot Hood
Pilot
orifice
screws
into base
Figure 9. Pilot Assembly.
Pilot
Orifice

13
Secure all joints tightly using appropriate tools and
sealing compounds (for propane units, be sure to use
compounds that are propane resistant). Turn on gas
supply and test for gas leaks using a soapy water
solution. Never use an open flame to check for leaks.
LL
LL
Leakeak
eakeak
eak TT
TT
Test:est:
est:est:
est:
··
··
· Mix a 50-50 solution of water and dish soap.
··
··
· Light appliance - See lighting instructions on page 23
of this manual or on the rating plate.
··
··
· Brush or spray all joints and connections with the
soapy water solution.
··
··
· If bubbles appear at any connection or seam or a gas
odor is detected, immediately turn gas control knob
to the OFF position.
Tighten or reconnect the leaking joint and retest for any
gas leaks.
Gas Pressures
Correct gas pressure is essential for efficient and safe
operation of the Katahdin gas insert. It is important that
the correct pressure is established at the time of the
installation.
Proper gas pressure provides a consistent flow of
gas to the appliance and is instrumental in checking for
gas leaks.The gas control valve on the insert is equipped
with pressure test points for gauge connections. The
gauge connections are located on the front of the valve
under the On/Off/Pilot knob. See fig. 13.
II
II
IN / EN / E
N / EN / E
N / E for inletinlet
inletinlet
inlet or supply pressure (the amount of gas
coming to the valve.)
OUOU
OUOU
OUT / AT / A
T / AT / A
T / A for manifmanif
manifmanif
manifoldold
oldold
old pressure (the amount of gas that
is coming out of the valve to the burner.)
The appliance must be isolated from the gas supply
line by closing its individual manual gas shut-off valve
(gas cock) during any pressure testing of the gas supply
piping system that is equal to or exceeds pressures
of 1/2 psig (3.5kPa).
NECESSARY INLET GAS PRESSURES (inches
water column)
MIN MAX
NATURAL GAS 5.0 WC 13.5 WC
PROPANE 11.0 WC 13.5 WC
NECESSARY MANIFOLD PRESSURES
(inches water column)
MIN MAX
NATURAL GAS 2.2 WC 3.5 WC
PROPANE 6.5 WC 10.0 WC
ALWAYS TEST PRESSURE WITH VALVE CONTROL
KNOB SET ON HIGH.
Figure 12. Gas connection components.
GAS LINE
CONNECTION
Figure 11. Valve inlet centerline.
1 1/4”
7 3/16”
EA
Figure 13. Pressure test points.

14
SS
SS
Symptympt
ymptympt
ymptoms ooms o
oms ooms o
oms of incf inc
f incf inc
f incorrorr
orrorr
orrecec
ecec
ectt
tt
tgg
gg
gas pras pr
as pras pr
as pressuressur
essuressur
essure include:e include:
e include:e include:
e include:
InsufInsuf
InsufInsuf
Insufficienficien
ficienficien
ficientt
tt
tgg
gg
gas pras pr
as pras pr
as pressuressur
essuressur
essure:e:
e:e:
e:
• Small pilot flame which can result in insufficient
millivolts.
• Little variation in flame picture between HI and LO
settings.
• Insufficient gas to support more than one appliance
causing nuisance outages or gas surges.
EE
EE
Exx
xx
xcc
cc
cessivessiv
essivessiv
essive ge g
e ge g
e gas pras pr
as pras pr
as pressuressur
essuressur
essure:e:
e:e:
e:
• Permanent damage to valve causing complete
appliance shut down.
• Too large a pilot flame resulting in over heating of
the power generator causing shut down.
• Sooting due to impingement and/or incorrect fuel to
air mix.
High Altitude Adjustment
When installing GI 450 Katahdin insert at high altitude
(above 2000'), it is necessary to compensate for the
thinner air (less volume of air per cubic foot). Higher
altitudes affect the atmospheric pressure and heat
value of gaseous fuels.The lower oxygen content in the
air and the lower gas viscosity require the use of a
different orifice to achieve efficient, clean combustion
at the burner tube.
InIn
InIn
In the Uthe U
the Uthe U
the U.S.S
.S.S
.S..
..
.
THE DERATING KIT MUST BE INSTALLED BY AN AUTHO-
RIZED SERVICE TECHNICIAN IN ACCORDANCE WITH THE
MANUFACTURER’S INSTRUCTIONS AND ALL CODES AND
REQUIREMENTS OF THE AUTHORITY HAVING JURISDIC-
TION. THE INFORMATION STICKER MUST BE FILLED OUT
BY THE INSTALLER AND ADHERED TO THE APPLIANCE AT
THE TIME OF THE CONVERSION. THE QUALIFIED SERVICE
AGENCY PERFORMING THIS WORK ASSUMES RESPONSI-
BILITY FOR THIS DERATING.
In CIn C
In CIn C
In Canadaanada
anadaanada
anada
This unit has been tested for installation at high alti-
tudes in accordance with Canadian test standard CAN/
CGA-2.17.THE DERATING SHALL BE CARRIED OUT IN
ACCORDANCE WITH THE REQUIREMENTS OF THE
PROVINCIAL AUTHORITIES HAVING JURISDICTION AND
IN ACCORDANCE WITH THE REQUIREMENTS OF THE
CAN1-B-149.1 AND .2 INSTALLATION CODE.
HIGH ALTITUDE INSTALLATIONS:
2000 ft. to 4500 ft. installations (or 610m - 1370m)
See Table 1.
For high altitude installations consult the local gas
distributor or the authority having jurisdiction for
proper rating methods. If the installer must convert the
unit to adjust for varying altitudes, the information label
must be completed by the installer and affixed to the
appliance at the time of the conversion. See fig. 14.
Derating procedure
1.1.
1.1.
1. To derate this unit, install the appropriate orifice per
the High Altitude Chart.
2.2.
2.2.
2. Remove the two ¼” hex head screws that hold the
burner tube/log support to the bottom of the insert.
3.3.
3.3.
3. Remove the burner tube/log support to expose the
main burner orifice.
44
44
4..
..
. Remove the orifice and replace with the appropriate
one from the high altitude kit.
55
55
5..
..
. Be sure to attach the high altitude conversion sticker
provided with the kit to the rating plate on the
appliance. See figure 14.
6.6.
6.6.
6. It may be necessary to adjust the air shutter on the
burner tube. See the AIR SHUTTER/FLAME APPEAR-
ANCE section of this manual for more details.
Figure 14. High Altitude Conversion Notice Label
THIS APPLIANCE HAS BEEN CONVERTED FOR USE
AT AN ALTITUDE OF ______________________
Orifice Size: _______ Manifold Press: ________
Input, BTU/Hr: ________ Fuel Type: _________
Date of Conversion: ______ / _______ / ______
Table 1. High Altitude Orifice Chart.
GAS TYPE
NATURAL
GAS
PROPANE
#31
#51
#32
#52
0 - 2000’
(0 - 619m)
2001’- 4500’
(611 - 1170m)
0 - 2000’
(0 - 619m)
2001’- 4500’
(611 - 1170m)
JØTUL
PART NO.
ELEVATION
ORIFICE
SIZE
045026
045027
045024
045025
NATURAL
GAS
PROPANE

15
Flame Adjustment / Air Shutter
THE KATAHDIN GAS INSERT IS SHIPPED FROM THE
FACTORY EQUIPPED FOR USE WITH NATURAL GAS.
WHEN USING PROPANE, IT WILL BE NECESSARY TO
ADJUST THE AIR SHUTTER ON THE BURNER TUBE TO
ACHIEVE THE PROPER GAS TO AIR MIX. See fig. 15.
WARNING:
AIR SHUTTER ADJUSTMENTS SHOULD ONLY BE
PERFORMED BY A QUALIFIED PROFESSIONAL
SERVICE TECHNICIAN.
The air shutter adjustment can also help achieve
the desired flame appearance. Generally, flame appear-
ance is a matter of preference, however most consum-
ers enjoy the warm, yellowish flame.
ClosingClosing
ClosingClosing
Closing the Air Shutterthe Air Shutter
the Air Shutterthe Air Shutter
the Air Shutter - Insufficient combustion
air will result in very long yellow flames that can
promote soot. Sooting produces black deposits on the
logs, on the inside walls of the appliance, and poten-
tially on the exterior termination cap.
Sooting is caused by incomplete combustion in the
flames and lack of combustion air entering the air
shutter opening.
OpeningOpening
OpeningOpening
Opening the air shutterthe air shutter
the air shutterthe air shutter
the air shutter - will generate a flame
that is blue and transparent, or an “anemic” flame. This
flame is generally more efficient, but not very attrac-
tive.
Jøtul recommends the following settings for the
Katahdin gas insert:
PrPr
PrPr
Propane:opane:
opane:opane:
opane: 11
11
1//
//
/4”4”
4”4”
4” openopen
openopen
open
NaNa
NaNa
Naturtur
turtur
tural Gas:al Gas:
al Gas:al Gas:
al Gas: 11
11
1//
//
/4”4”
4”4”
4” openopen
openopen
open
REMEMBER: Run the insert for a minimum of 15 to
20 minutes for an accurate representation of the flame
appearance.This should be done before and between
any air shutter adjustments.
TT
TT
To adjusto adjust
o adjusto adjust
o adjust the air shutterthe air shutter
the air shutterthe air shutter
the air shutter
1. Remove the burner tube and using a phillips head
screwdriver loosen the screw at the air shutter and
adjust accordingly.
2. Be sure to retighten the screw that holds the air
shutter setting.
3. Reassemble the insert including glass assembly.
Allow insert to burn 30 minutes on the HIGH setting,
observing the flame continuously.
4. If the flame appears weak, slow, or sooty, repeat the
process described above until the flame is as desired.
Installing the Log Set
NONO
NONO
NOTT
TT
TE:E:
E:E:
E: InstallInstall
InstallInstall
Install the optional Anthe optional An
the optional Anthe optional An
the optional Antique Brick Ptique Brick P
tique Brick Ptique Brick P
tique Brick Panelsanels
anelsanels
anels
befbef
befbef
beforor
oror
ore installinge installing
e installinge installing
e installing the Lthe L
the Lthe L
the Log Setog Set
og Setog Set
og Set..
..
.
The Katahdin is equipped with a three piece log set
packaged in bubble wrap inside the firebox. The log set
must be removed from the packaging and arranged in
the unit prior to start up of the gas insert. Protect your
hands by wearing gloves to prevent skin irritation from
the ceramic fibers.
1. Unwrap each log and set on floor near unit.
2. Lift out andiron.
3. Place rear log over the rear log pins in the rear of the
firebox. The rear log should be installed with the
tapered end of the log on the right.
Figure 16. Log identification.
Burner Tube
Air Shutter
NOTE: AIR SHUTTER SHOULD NEVER BE
LESS THAN 1/8” OPEN.
Figure 15.
Cross-over Log
Pin
Rear Log
Pin
Front Log

16
HI LO MAN
OFF
AUTO
BLOWER
Blower Operation
The GI 450 DV Katahdin is equipped with a 125 cfm heat-
activated blower. A ten foot power cord is installed in
the rear of the valve compartment under the firebox.
Open the Lower Grill and fully unwrap the power
cord. The cord can exit either the right or left side of the
insert. Be surBe sur
Be surBe sur
Be suree
ee
e tt
tt
to pull all slack outo pull all slack out
o pull all slack outo pull all slack out
o pull all slack out oo
oo
off
ff
f the pothe po
the pothe po
the poww
ww
wer cer c
er cer c
er coror
oror
ordd
dd
d
tt
tt
to pro pr
o pro pr
o pree
ee
evv
vv
venen
enen
entt
tt
tcc
cc
conon
onon
ontactac
tactac
tactt
tt
twithwith
withwith
with the bottthe bott
the bottthe bott
the bottom oom o
om oom o
om off
ff
f the firthe fir
the firthe fir
the fireboebo
eboebo
eboxx
xx
x..
..
.
The is equipped with a three-prong (grounding)
plug for protection against shock hazard and should be
plugged directly into a properly grounded three-prong
receptacle. DO NODO NO
DO NODO NO
DO NOT CUT CU
T CUT CU
T CUT OR RT OR R
T OR RT OR R
T OR REMEM
EMEM
EMOO
OO
OVEVE
VEVE
VE TT
TT
THH
HH
HE GRE GR
E GRE GR
E GROUOU
OUOU
OUNN
NN
ND-D-
D-D-
D-
II
II
ING PRNG PR
NG PRNG PR
NG PRONG FRONG FR
ONG FRONG FR
ONG FROO
OO
OMM
MM
M TT
TT
THH
HH
HE PLE PL
E PLE PL
E PLUG.UG.
UG.UG.
UG.
The blower must be electrically grounded in accor-
dance with local codes or, in the absence of local codes,
with the current NFPA 70- National Electrical Code or
CSA C22.1-Canadian Code.
The blower is controlled by a heat activated switch
(snapstat) that will function only if the blower control
switch is in the AUTO setting. Once the firebox heats
after the burner has been operating for a short time, the
blower will start on either the HI or LOW speed. In AUTO
mode, the blower will continue to operate after the
burner is turned off, until the snapstat cools. See fig. 18.
If blower operation is not desired, place the control
switch in the OFF position to bypass the snapstat
function.
NOTE:
ALWAYS UNPLUG THE BLOWER WHEN
SERVICING THE APPLIANCE.

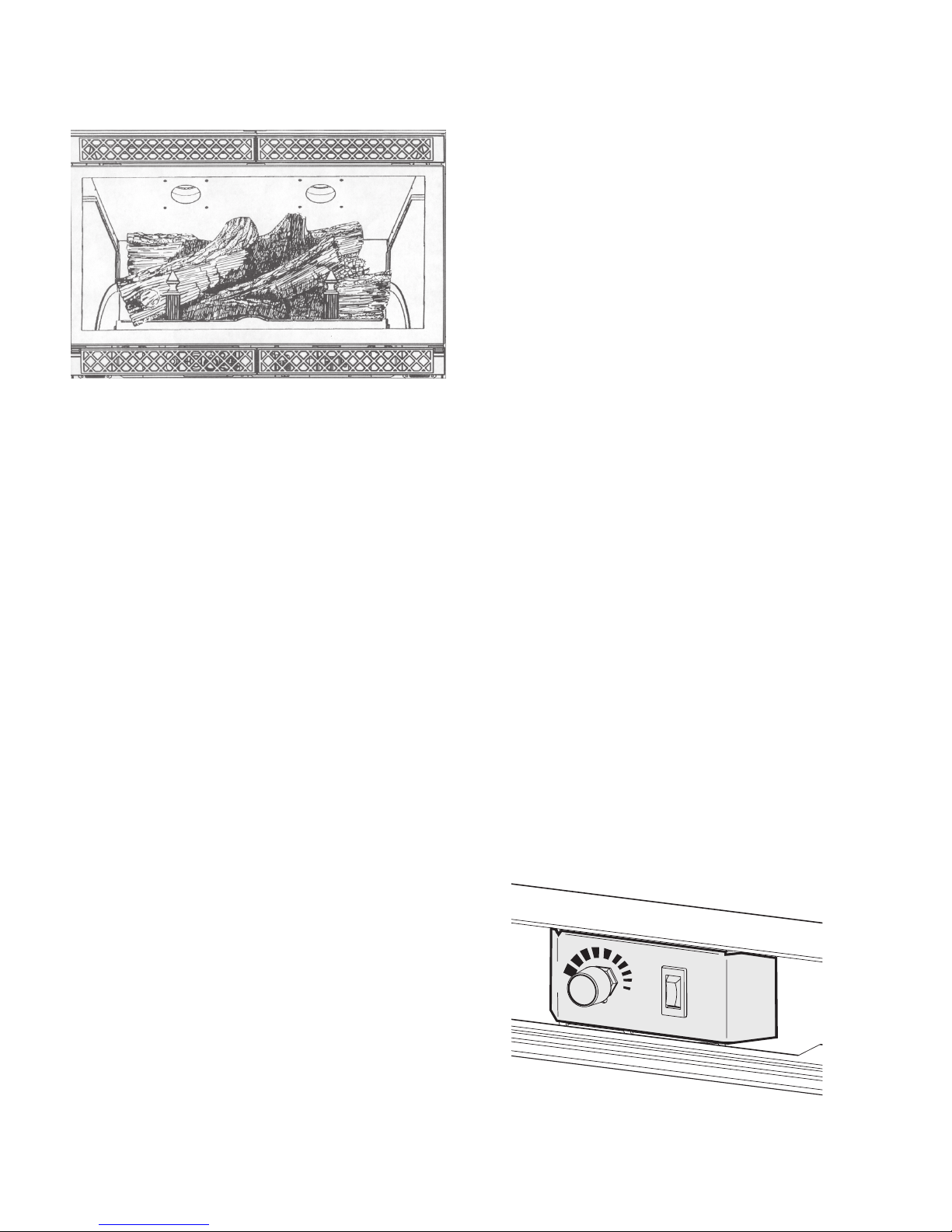

Figure 18. Blower Controls
Figure 17. Completed log set assembly.
4. Place the front log on the single log pin so that the left
end of the log rests on the log support and the and-
iron holder- directly above the air shutter.
5. Place the cross-over log on the two remaining pins-
top right to the rear log, bottom left on the front log.
See fig. 17.
6. Install the embers: the insert is shipped with a pack-
age of ember stones. Spread them evenly across the
burner tube screen. It is best to equally space these
embers for optimum flame appearance. NOTE:YOU
DO NOT NEED TO USE ALL OF THE EMBER STONES.
7. Replace the andiron set, center in the firebox over the
andiron support.
THE CERAMIC FIBER LOGS AND EMBER STONES CAN
IRRITATE YOUR SKIN. IF THIS HAPPENS, GENTLY WASH
HANDS WITH WARM, SOAPY WATER.

17
Wall Thermostat
Use only a 75a 75
a 75a 75
a 750 milliv0 milliv
0 milliv0 milliv
0 millivoltolt
oltolt
olt DCDC
DCDC
DC twtw
twtw
two-wiro-wir
o-wiro-wir
o-wire cire cir
e cire cir
e circuitcuit
cuitcuit
cuit
thermostathermosta
thermostathermosta
thermostatt
tt
t. The thermostat should be placed in the
same room as the heater, typically 5’off the floor. Avoid
drafty areas or any area that may affect the accuracy of
the thermostat.
The thermostat should be connected to the
Katahdin using a minimum of 16 gauge wire with a
maximum length of 35 feet of wire.
Connect the two thermostat wire leads to the two
lower terminals on the terminal block located to the
right of the ON/OFF/TSTAT switch. Do not overtighten
the connections. IT IS NOT NECESSARY TO DISCONNECT
ANY OTHER WIRES. See Figure 20.
For the thermostat to function, the ON/OFF/T-STAT
switch must be in the T-STAT position, and the pilot light
must be running, as it is the power source for the
thermostat.
At the thermostat, the two wires should be con-
nected to the two connections screws on the thermo-
stat base plate per the manufacturer’s instructions.
Optional Remote Control
#129706
CAUTION:
LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN
SERVICING THE CONTROLS. WIRING ERRORS CAN CAUSE
IMPROPER AND DANGEROUS OPERATION. ALWAYS VERIFY
PROPER OPERATION AFTER SERVICING THE APPLIANCE.
ATTENTION:
AU MOMENT DE L’ENTRETIENDES COMMANDES,
ETIQUETEZTOUS LES FILS AVANT LE DEBRANCHEMENT.
DES ERREURS DE CABLAGE PEUVENT ENTRAIUN FONC-
TIONNEMENT INADEQUAT ET DAGEREUX.
The optional Jøtul remote can be installed on the
Katahdin gas insert. Using the wires supplied with
the remote, it is best to wire the remote directly to
the gas control valve of the insert.
Connect one receiver lead to the terminal la-
belled TH. Connect the other receiver lead to the
terminal labeled TH/TP. DO NOT DISCONNECT ANY
OTHER WIRES FROM THE VALVE, AND DO NOT OVER
TIGHTEN TERMINAL SCREWS.
Jøtul rJøtul r
Jøtul rJøtul r
Jøtul recec
ecec
ecommendsommends
ommendsommends
ommends the use othe use o
the use othe use o
the use off
ff
f the optionalthe optional
the optionalthe optional
the optional
RR
RR
Remote Remote R
emote Remote R
emote Recec
ecec
eceiveiv
eiveiv
eiver Heaer Hea
er Heaer Hea
er Heatt
tt
tShield (# 129Shield (# 129
Shield (# 129Shield (# 129
Shield (# 12977
77
708)08)
08)08)
08) to protect
the receiver under the firebox. The best location for
the receiver is just below the air intake port toward
the back of the unit.

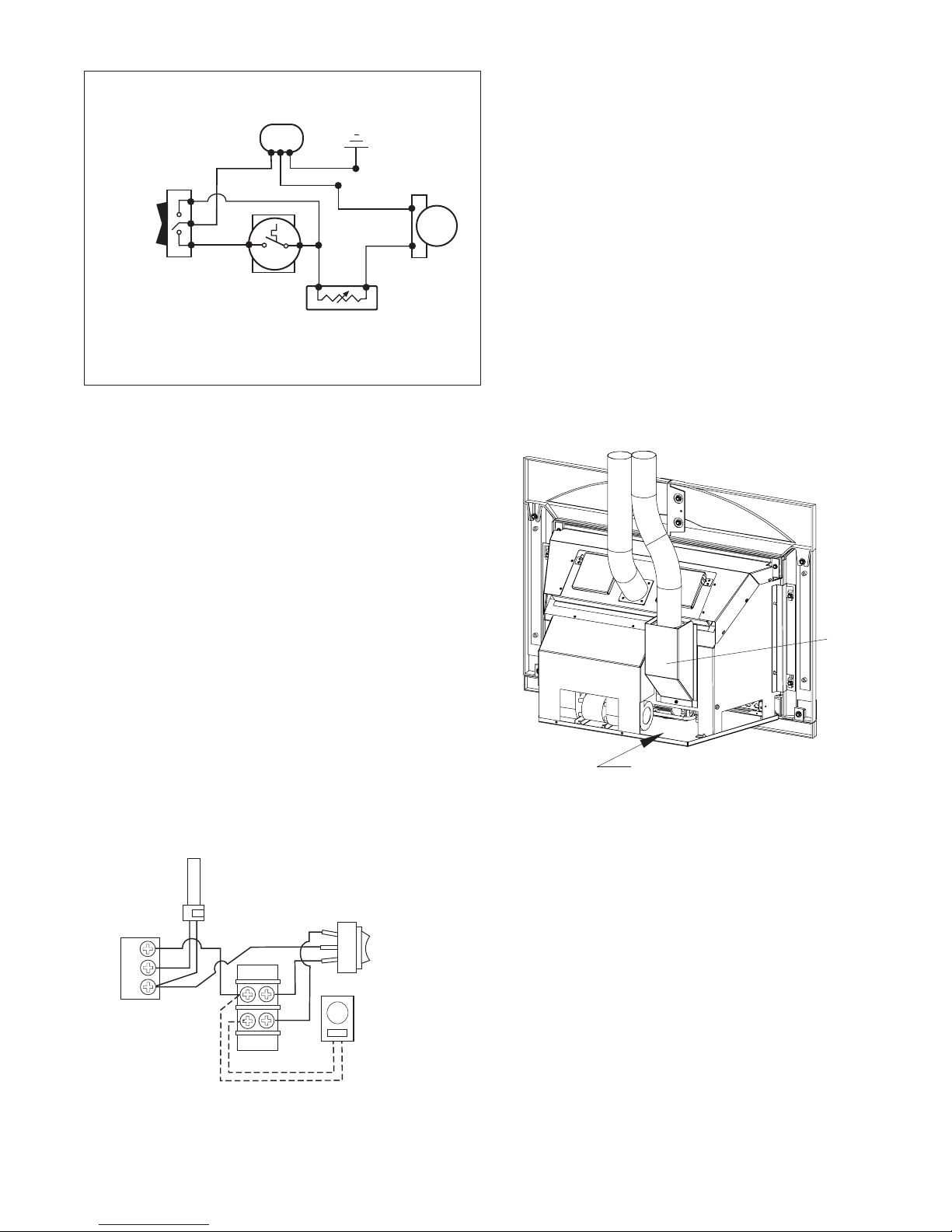

Figure 19. Blower Wiring Diagram - GI 450 Katahdin
Figure 20. Wiring diagram / GI450 DV Katahdin
Place Receiver Here
Figure 21. Remote Receiver position.
TERMINAL
BLOCK
VALVE
THERMOPILE
OPTIONAL
THERMOSTAT
or
REMOTE
CONTROL
TH
TP
TH
TP
ROCKER
SWITCH
ON
OFF
STAT
Air
Intake
Port
MANUAL
OFF
AUTO
SNAPSTAT
GN
BLOWER
POWER
SUPPLY
RHEOSTAT
SWITCH
BK
GY
BK
BK
BU BK
BK
WH

18
Surround Panel Installation
Complete the venting and gas line installation before
installation of the surround and riser bar.
All Surround Panel fasteners are already installed in
the appropriate locations. Simply remove and use them
to attach the panels together in the same locations. A
10 mm wrench will be required.
RR
RR
RISER BISER B
ISER BISER B
ISER BAR:AR:
AR:AR:
AR: The 2” riser bar is used in conjunction with
the standard surround, and is only needed in the event
that the fireplace opening is between 27 1/2” and 29 1/
2” high. The riser bar can be used in any installation if
desired. See fig. 22.
Start with the insert slightly pulled out of the fireplace.
1. If the riser bar is to be used the insert must be lifted
2” off the floor of the fireplace to allow for the riser
bar to fill the space below the bottom grill assembly.
Exception: in raise fireplace installations the riser bar
may extend toward the hearth. See fig. 22.
2. This can be done through the use of the four leveling
legs that are included with the unit. One leveling leg
is threaded through the floor in each corner of the
fireplace.
3. Any other non-combustible material can be used to
lift the unit the necessary 2” for the riser bar.
NOTE: DUE TO THE WEIGHT OF THE SURROUND AND
RISER BAR IT MAY BE NECESSARY TO UTILIZE THE
SS
SS
STT
TT
TABAB
ABAB
ABII
II
ILIZER BLIZER B
LIZER BLIZER B
LIZER BARAR
ARAR
AR THAT IS SHIPPED WITH THE UNIT.
THIS STABILIZER ATTACHES TO THE OUTSIDE OF THE
FIREBOX AND WILL BRACE THE UNIT AGAINST THE
FIREPLACE LINTEL PREVENTING THE UNIT FROM
LEANING FORWARD. See figs. 22 and 22A.
4. Lay the four surround panels on the floor backside
up. Using two bolts and washers attach the right
and left upper sections (breastplates) together. See
fig. 23.
5. Attach the left and right leg sections to the breast-
plate assembly using a bolt and washer on each side.
See fig. 24.
6. Four mounting tabs are attached to the back of the
surround panels at the factory. Be sure all four tabs
are in place and secure. See fig. 25.
7. Stand the assembled surround up and gently lift to
the unit. Align the mounting holes on the sides of
the insert with the mounting tabs on the surround.
See fig. 25.
Figure 22A. Mount
the stabilizer bar
using the two
6mm nuts
installed on the
top of the unit.
Stabilizer
Bracket 6 mm nuts
Figure 24.
Attach Breastplates to Legs
Figure 23
Use set screw to adjust alignment
Figure 23. Attach Surround Breastplates
2” Riser
Bar
Bottom Grill
Assembly
Stabilizer
Bracket for use
with raised
fireplaces
Mounting bolts
for stabilizer
bracket
Figure 22. Installing the Stabilizer Bar.
1234
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1
23
4
1234
12345
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
1
234
5
12345
123456
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
1
2345
6
123456
Fireplace
Lintel
Raised Fireplace

19
3. BURNER ADJUSTMENT: The burner is equipped with a
variable gas control valve. This valve provides easy
adjustment of the flame height appearance and heat
output. To adjust the flame between the HI and LO
setting, rotate the HI/LO knob, located in the center
of the valve face. Flame height will adjust approxi-
mately 1.0” to 1.5” between the HI and LO settings.
NO SMOKE OR SOOT SHOULD BE PRESENT. CHECK LOG
PLACEMENT IF ANY SOOT OR SMOKE IS APPARENT. IF
SOOT OR SMOKE PERSIST, THE AIR SHUTTER MAY
REQUIRE ADJUSTMENT.
CAUTION:
DO NOT ATTEMPT TO ALTER THE FLAME APPEARANCE BY
POSITIONING THE GAS VALVE IN ANY OTHER POSITION
OTHER THAN THE FULL “ON”POSITION.
Checking the System
1. PURGING THE GAS LINE: When lighting the appliance
for the first time it will take a few moments to clear
the gas line of air. Once this purge is complete, the
appliance will operate as described in the lighting
instructions located on the insert’s rating plate and
back cover of this manual. All subsequent lightings
of the insert will not require such purging of the gas
line.
2. PILOT FLAME: The pilot flame should be steady, not
lifting or floating. The flame should be blue in color
around the pilot hood,,
,,
, with traces of yellow toward
the outer edges. It is imperative that the pilot flame
engulf the top 3/8” of the thermopile (power genera-
tor) and the top 1/8”of the quick drop out thermo-
couple. The pilot flame should project out of the
pilot hood 1” at all three ports. See Figure 28.
8. Slide the surround down into the mounting holes.
Be sure all four mounting tabs engage securely with
the adjacent bracket holes. See fig. 26.
9. Secure the two sections of the riser bar together
with a washer and bolt and slide the assembled
riser bar under the bottom grill assembly on the
unit. Attach the Riser Bar to each leg panel with a
bolt and washer as shown in fig. 25.
Note: the riser bar is not used for support of the
insert- if more space is needed for the riser bar, raise
the unit using the front levelling legs. See figure 27.
10. Gently and slowly push the unit and surround back
into the fireplace. This is best done by pushing the
front outside edges of the glass frame. RR
RR
Remindereminder
emindereminder
eminder:
Be sure to inspect the gas line and blower cord to
make sure they are not crushed when the unit is in
its final location.

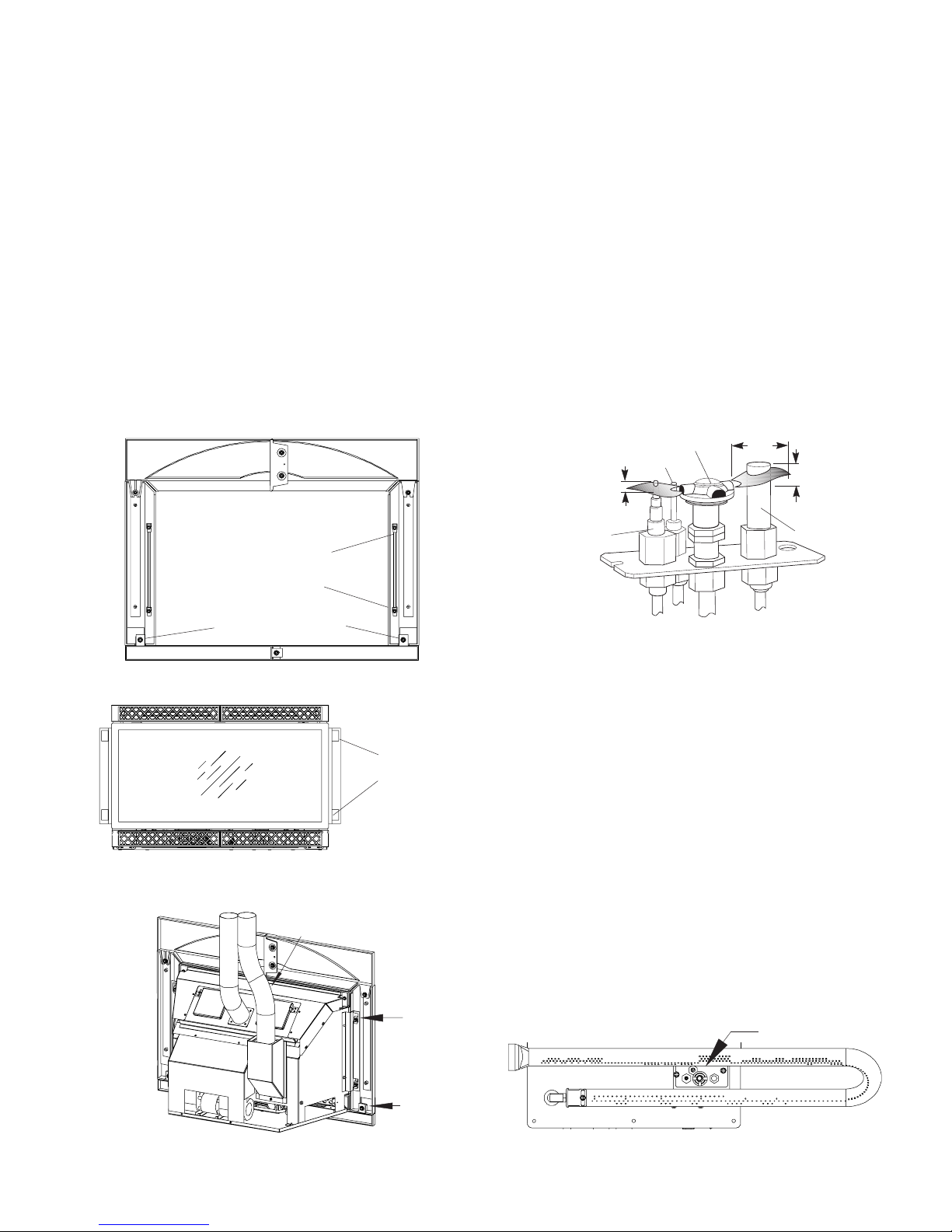

Figure 27. Riser Bar installation.
Riser Bar
attaches to
leg sections of
the surround
Mounting
Tabs
Stabilizer Bar attaches
to top of unit
Figure 25. Surround mounting tab locations.
Mounting Tabs
point downward
1
(25mm) 3/8
(8mm)
Min.
1/8
(3mm)
Min.
Thermocouple
Ignitor
Thermopile
Pilot Hood
Figure 28. Correct Pilot flame appearance.
Pilot assembly
Figure 29. Pilot assembly location.
Riser Bar Attachment
Engage tabs
with these
holes in the
brackets
Figure 26. Surround engagement with firebox.
Leg
Panel
Leg
Panel

20
Fireplace Operation
1. This appliance is equipped with an On/Off/T-stat
rocker switch to control burner functions. Use the T-
stat position for use with an optional wall-mounted
thermostat. Separate switches are provided for the
multifunction forced air blower kit.
2. When lit for the first time, the Katahdin will emit an
odor for several hours. This odor is the burn-off by-
products of external paints and lubricants used in
the manufacturing process. Open a nearby window
to provide fresh air and alleviate this temporary
condition.
3. Condensation may occur on the glass upon each
lighting of the appliance. This “fog” will disappear as
the appliance temperature increases.
4. Keep the controls and the area under the appliance
free of debris; vacuum this area frequently. Always
keep the appliance area clear and free from combus-
tible materials, gasoline and other flammable liquids.
ALWAYS be sure the insert is cold and NO hot embers
or sparks are present before using a vacuum cleaner.
5. Remember, this appliance has a continuous burning
pilot flame. Exercise caution when using products
with combustible vapors.
6. CAUTION: DO NOT OPERATE THIS APPLIANCE WITH
THE GLASS REMOVED, CRACKED OR BROKEN.
REPLACEMENT OF THE GLASS SHOULD BE DONE BY A
LICENSED OR QUALIFIED SERVICE PERSON. USE ONLY
REPLACEMENT GLASS PROVIDED BY YOUR AUTHO-
RIZED JØTUL DEALER. NEVER USE ANY SUBSTITUTE
MATERIALS.
WARNING:
OBSERVE CAUTION NEAR THE GLASS. THE GLASS PANEL
MAY SHATTER UNEXPECTEDLY IF STRUCK WITH AN
OBJECT. ALWAYS HANDLE THE GLASS PANEL WITH CARE.
7. Clean the glass only when necessary. Wipe surface
with a clean, dampened, soft cloth. Follow with a dry,
soft towel as desired. Take care not to scratch the
glass surface.
WARNING:
DO NOT USE ABRASIVE CLEANERS ON THE GLASS. NEVER
CLEAN THE GLASS WHEN IT IS HOT.
Maintenance
The Katahdin gas insert and its venting system should
be inspected before use and at least annually by a
qualified service technician.
IMPORTANT:
ALWAYS TURN OFF THE GAS SUPPLY TO THE INSERT AND
UNPLUG THE FORCED AIR BLOWER BEFORE ANY
SERVICE WORK IS PERFORMED ON THE INSERT.
General cleaning: The firebox should be vacuumed out
annually to remove any surface build up. Be sure to
vacuum or wipe off the pilot assembly and burner
orifice and burner tube. Also, when vacuuming the
log set, be sure to handle it carefully as it is very
fragile.
Gasket inspection: It is important that the glass gasket
be inspected at least annually. Examine the rope
gasket for signs of deterioration and make sure the
gasket has a positive seal. This is important to
prevent combustion gases from escaping into the
room. Replace the gasket if necessary, refer to the
replacement parts list on page 23.
To remove the glass panel or glass gasket:
1. Open the bottom grill assembly.
2. Release the glass clips on either side of the bottom of
the firebox.
3. Swing the bottom of the glass frame out and lift
slightly.
4. Remove the glass panel by lifting the glass frame over
the brackets at the upper grill assembly. NOTE: IT IS
NOT NECESSARY TO REMOVE THE UPPER GRILL
ASSEMBLY.
5. Lay the assembly on a flat surface and lift the metal
tabs that secure the glass panel to the frame.
6. Install the new glass panel and gasket in the glass
frame and secure with metal tabs. Do not over
tighten tabs as this could break the glass.
ALWAYS USE JØTUL AUTHORIZED PARTS. NEVER
SUBSTITUTE ANY OTHER PARTS.
Figure 30. Normal flame pattern.
