Jøtul GF 100 DV II Nordic QT User manual

1
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Installation
and
Operation
Instructions
Jøtul GF 100 DV II
Nordic QT
Jøtul GF 200 DV II
Lillehammer
IF THE INFORMATION IN THESE INSTRUCTIONS
ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE VICIN-
ITY OF THIS OR ANY OTHER APPLIANCE.
INSTALLATION:
INSTALLATION AND SERVICE MUST BE PER-
FORMED BY A QUALIFIED INSTALLER, SERVICE
AGENCY OR LICENSED GAS SUPPLIER.
WHAT TO DO IF YOU SMELL GAS:
• DO NOT TRY TO LIGHT ANY APPLIANCE.
• DO NOT TOUCH ANY ELECTRICAL SWITCHES.
• DO NOT USE THE PHONE IN YOUR BUILDING.
IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A
NEIGHBOR’S PHONE.
• FOLLOW YOUR GAS SUPPLIER’S INSTRUCTIONS.
• IF YOU CANNOT REACH YOUR GAS SUPPLIER,
CALL THE FIRE DEPARTMENT.
WARNING:
THIS PRODUCT MUST BE INSTALLED BY A
LICENSED PLUMBER OR GAS-FITTER WHEN
INSTALLED IN THE COMMONWEALTH OF
MASSACHUSETTS.
A CARBON MONOXIDE (CO) DETECTOR SHALL
BE INSTALLED IN THE SAME ROOM AS THE
APPLIANCE.
AVERTISSEMENT:
ASSUREZ-VOUS DE BIEN SUIVRE LES INSTRUC-
TIONS DANS CETTE NOTICE POUR REDUIRE AU
MINIMUM LE RISQUE D’INCENDIE OU POUR EVITER
TOUT DOMMAGE MATERIEL, TOUTE BLESSURE OU
MORTALIT’E.
NE PAS ENTREPOSER NI UTILISER D’ESSENCE NI
OU LIQUIDES INFLAMMABLES DANS LE VOISINAGE
DE CET APPAREIL OU DE TOUT AUTRE APPAREIL.
L’INSTALLATION LE SERVICE DOIVENT ETRE
EXECUTES PAR UN INSTALLATEUR QUALIFIE,
AGENCE DE SERVICE OU LE FOURNISSEUR DE
GAZ.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ.
• NE PAS TENTER D’ALLUMER L’APPAREIL
• NE TOUCHEZ A AUCUM NTERRUPTEUR.
• NE PAS VOUS SERVIR DES TELEPHONES SE
TROUVANT DANS LE BATIMENT OU VOUS VOUS
TROUVEZ.
• APPELEZ IMMEDIATEMENT VOTRE FOURNISSEUR
DE GAZ CHEZ UN VOISIN. SUIVEZ LES INSTRUC-
TIONS DU FOURNISSEUR.
• SI VOUS NE POUVEZ REJOINDRE LE
FOURNISSEUR DE GAZ, APPELEZ LE SERVICE DES
INCENDIES.

2
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Welcome to Jøtul...
Congratulations on the purchase of your new
Jøtul gas heater.
We at Jøtul are glad you’ve made the decision to
warm your hearth with a Jøtul product. Your new
stove exemplifies over 150 years experience as the
world’s largest manufacturer of solid fuel burning
appliances. We’ve been making fine quality cast
iron wood and coal stoves and fireplaces
continuously since 1853.
Great things come in small packages: both the
Nordic QT and Lillehammer stoves combine
advanced gas technology with the warm,
traditional elements of cast iron.With proper use
and care, your Jøtul stove will provide you with
many years of safe, dependable and satisfying
service.
Both of these stoves are direct vented gas heaters
designed and approved for installation into a
variety of configurations where close clearance to
combustible material is required. Please take a
few minutes to familiarize yourself with this
manual and the features of your new Jøtul stove.

3
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Table of Contents
Specifications, GF 100 DV II .................. 4
Specifications, GF 200 DV II .................. 5
General Information ............................... 6
Service Tools .............................................. 6
Safety Information .................................. 7
Installation Requirements
Location ................................................. 7
Hearth Protection .............................. 7
Clearances ........................................... 8
Mantel & Trim ..................................... 8
Alcove..................................................... 8
Vent Requirements
Adding Restriction.............................. 9
Vertical Termination ........................ 10
Horizontal Termination................... 12
Vent Terminal Clearances ............... 14
Mobile Home Installation ................... 15
Fuel Conversion ...................................... 15
Gas Connection ...................................... 17
Gas Pressure............................................ 18
High Altitude Adjustment .................. 18
Air Shutter Adjustment ....................... 19
Wall Thermostat .................................... 20
Remote Control ...................................... 20
Log Set Installation ............................... 20
System Check.......................................... 21
Operation ................................................. 22
Maintenance........................................... 22
Glass Replacement ............................ 22
Optional Blower ..................................... 24
Illustrated Parts Breakdown ........ 26, 27
Replacement Parts List .................. 28, 29
Addendum - Brick Panel Kit ................ 30
Lighting Instructions ............ Back Cover
Jøtul GF 100 DV II Nordic QT
and
Jøtul GF 200 DV II Lillehammer
Direct Vent Gas Heaters
Manufactured and Distributed by:
Jøtul A.S.A.
Fredrikstad, Norway
Jøtul North America
Gorham, Maine
Test Standards
This appliance complies with National
Safety standards and is tested and listed by
Intertek Testing Services of Middleton,
Wisconsin to
ANSI Z21.88-2002•CSA 2.33-M02 and
CSA P.4.-01.2 for Canada.
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE OR
ITS COMPONENTS. ANY MODIFICATION OR
ALTERATION WILL VOID THE WARRANTY,
CERTIFICATION AND LISTING OF THIS
APPLIANCE.
THIS PRODUCT MUST BE
INSTALLED BY A LICENSED
PLUMBER OR GAS-FITTER WHEN
INSTALLED IN THE COMMON-
WEALTH OF MASSACHUSETTS.
MEA No. 369-04-E
We recommend that our gas
products be installed and
serviced by professionals who
are certified in the U.S. by the
National Fireplace Institute®
(NFI) as NFI Gas Specialists.

4
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Jøtul GF 100 DV II Nordic QT
Specifications
Input Rates
Natural Gas
17,000 BTU/hr. maximum input
9,900 BTU/hr. minimum input
Propane
16,000 BTU/hr. maximum input
8,700 BTU/hr. minimum input
Inlet Pressure: MIN MAX
Natural Gas: 5.0 WC (1.24 kPa) 7.0 WC (1.74 kPa)
Propane: 12.0 WC (2.98 kPa) 14.6 WC (3.63 kPa)
Manifold Pressure: MIN MAX
Natural Gas: 1.2 WC (0.29 kPa) 3.8 WC (0.94 kPa)
Propane: 2.9 WC (0.72 kPa) 11.0 WC (2.74 kPa)
Piezo Ignitor / Standing Pilot
Weight: 150 lbs.
GF 100 DV II Miscellaneous Kit Contents
• Fuel Conversion Kit - LP................................ 155628
• Rear Air Intake Restrictor Plate, Black -22111092
or Jøtul Iron - 22111085
• Side Air Intake Restrictor Plates, (2) .... 22099192
or Jøtul Iron - 22099185
* Decorative Wall Shield, Black ................ 22092692
or Jøtul Iron..... 22092692
GF 100 DV II Accessories
• Blower Kit......................................................... 155631
• Antique Brick Kit ............................................ 155815
• Fuel Conversion Kit - NG.............................. 155629
• Wall Thermostat ............................................ 750003
• Remote Control .............................................. 129706
• Mobile Home Floor Bracket Kit ................. 154342
The Jøtul GF 100 DV II Nordic QT is a Direct Vent
gas heater designed as a sealed combustion, air
circulating gas appliance for residential applications.
This appliance is approved for installation using
6 5/8" X 4" vent pipe from the following manufacturers:
Simpson Dura-Vent GS
Security Vent, Ltd.
Amerivent Inc.
Selkirk Metalbestos
The Jøtul GF 100 DV II Nordic QT gas stove is
designed to burn NATURAL GAS or PROPANE only. It
is shipped from the factory equipped to burn Natural
Gas. If use with Propane is desired, the stove must
first be converted for use with that gas. Use the LP
Fuel Conversion Kit 155628 included with this stove
See page 14 for instructions.

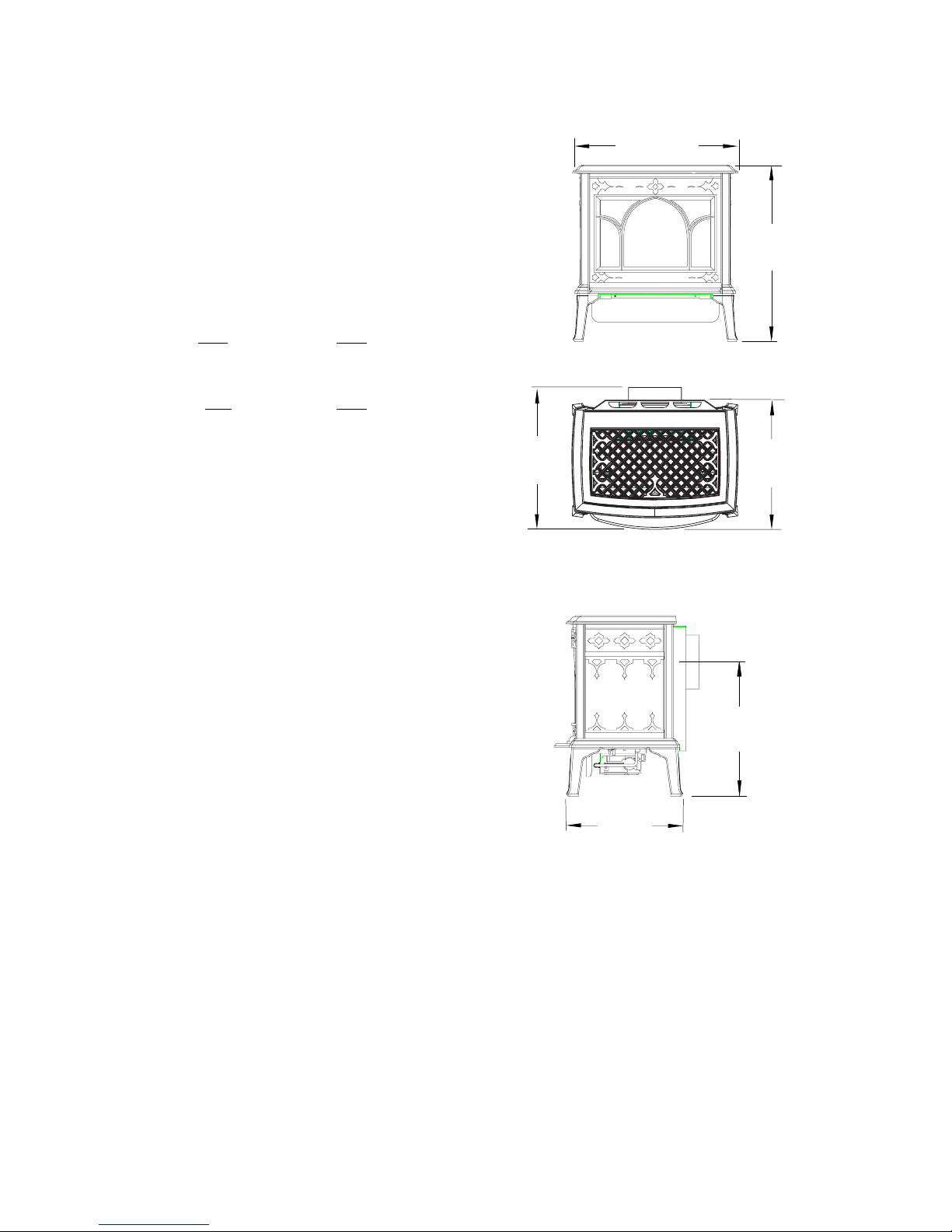

18 1/4”
464
mm
16 3/4 ”
425 mm
16 3/4”
425 mm
Flue Collar
Centerline
14”
356 mm
20 5/8”
524 mm
22 1/4”
565 mm
Leg To
Leg

5
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Jøtul GF 200 DV II Lillehammer
Specifications
GF 200 DV II Accessories
• Fuel Conversion Kit - NG ..................................................... 155627
• High Altitude Adjustment Kit - NG ................................ 155808
• High Altitude Adjustment Kit - LP ................................. 155809
• Blower Kit ................................................................................ 155631
• Antique Brick Kit ................................................................... 155815
• Wall Thermostat .................................................................... 750003
• Remote Control ...................................................................... 129706
• Mobile Home Floor Bracket Kit .... GF 200 DV II (6”) / 154923
............................................................. for Long Legs (8”) / 750304
....................................................................... for Plinth Kit / 154342
• Long Leg Kits ............................................. Matte Black / 154929
.......................................................................... Blue Black / 154930
..................................................................... Forest Green / 154931
.................................................................................. Ivory / 154932
............................................................................. Jøtul Iron / 155366
• Plinth Kits .................................................. Matte Black / 350081
.......................................................................... Blue Black / 350082
.................................................................................... Ivory / 350083
.................................................................. Forest Green / 350084
............................................................................. Jøtul Iron / 350085
Input Rates
Natural Gas
20,000 BTU/hr. maximum input
11,400 BTU/hr. minimum input
Propane
18,000 BTU/hr. maximum input
8,450 BTU/hr. minimum input
Inlet Pressure: MIN MAX
Natural Gas: 5.0 WC (1.24 kPa) 7.0 WC (1.74 kPa)
Propane: 12.0 WC (2.98 kPa) 14.6 WC (3.63 kPa)
Manifold Pressure: MIN MAX
Natural Gas: 1.2 WC (0.29 kPa) 3.8 WC (0.94 kPa)
Propane: 2.9 WC (0.72 kPa) 11.0 WC (2.74 kPa)
Piezo Ignitor / Standing Pilot
Weight: 180 lbs.
The Jøtul GF 200 DV II Lillihammer is a Direct
Vent gas heater designed as a sealed combustion, air
circulating gas appliance for residential applications.
This appliance is approved for installation using
6 5/8" X 4" vent pipe from the following manufacturers:
Simpson Dura-Vent GS
Security Vent, Ltd.
Amerivent Inc.
Selkirk Metalbestos
The Jøtul GF 200 DV II Lillehammer gas stove is
designed to burn NATURAL GAS or PROPANE only.
It is shipped from the factory equipped to burn
Natural Gas. If use with Propane is desired, the stove
must first be converted for use with that gas. Use
the LP Fuel Conversion Kit 155626 included with this
stove See page 14 for instructions.
GF 200 DV II Miscellaneous Kit Contents
• Fuel Conversion Kit - LP................................ 155626
• Rear Air Intake Restrictor Plate, Black -22111092
or Jøtul Iron - 22111085
• Side Air Intake Restrictor Plates, (2) .... 22099192
or Jøtul Iron - 22099185
* Decorative Wall Shield, Black ................ 22092692
or Jøtul Iron..... 22092692
18 ”
457 mm
21 1/8”
537 mm As shipped
with 6”
(152 mm)
Legs
Height Dimensions with Optional Legs
Plinth Kit - subtract I” (25 mm)
Long Legs - add 2 1/4” (57 mm)
24 3/4”
630 mm
22 3/4”
560 mm
24 3/4”
630 mm
13”
330 mm
Leg To
Leg
18 1/2”
470 mm 17 1/4”
438 mm

6
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
General Information
THIS HEATER MUST BE INSTALLED AND MAINTAINED
BY A QUALIFIED SERVICE AGENCY.
The installation and repair of this appliance must be
done by a qualified service person. Failure to properly
install and maintain this heater could result in an
unsafe or hazardous installation, which may result in a
fire, explosion, property damage, personal injury or loss
of life.
This appliance should be inspected before use and at
least annually. More frequent cleaning may be
required due to excessive lint from carpeting, bedding
material, etc. It is imperative that control compart-
ments, burners, and circulating air passageways of the
appliance be kept clean.
THIS APPLIANCE MUST NOT BE CONNECTED TO A
CHIMNEY OR FLUE SERVING ANY OTHER APPLIANCE.
The installation must conform to local codes. Your
local Jøtul dealer can assist you in determining what
is required in your area for a safe and legal installa-
tion. Some areas require a permit to install a gas
burning appliance. Always consult your local building
inspector, or authority having jurisdiction, to deter-
mine what regulations apply in your area.
NOTE: Your local officials have final authority in
determining if a proposed installation is acceptable.
Any requirement that is requested by the local
authority having jurisdiction, that is not specifically
addressed in THIS manual, defaults to local code. In
the absence of local codes, the installation require-
ments must comply with the current National codes.
In the U.S., these requirements are established in the
National Fuel Code, ANSI Z223.1.(NFPA 54). In Canada,
the codes have been established in CAN/CGA B149
Fuel Installation Code.
Installer l’appareil selon les codes ou reglements
locaux, ou, en l’absence de tels reglements, selon les
Codes d’installation CAN/CGA-B149.
DO NOT OPERATE THIS STOVE IF ANY PART HAS BEEN
UNDER WATER. Call a qualified service technician to
inspect the heater and to replace any part of the
control system and any gas control which may have
been under water.
Ne pas se servir de cet appareil s’il a ete’ plonge dans
l’eau, completement ou en partie. Appeler un
technicien qualifie pour inspecter l’appareil et
remplacer toute partie du syste’me de controle et
toute commande qui ont ete plonges dans l’eau.
Stove Setup
Inspect the stove for damage and contact your dealer
immediately if any is found. Check contents of the
Miscellaneous Kit against the lists on p. 4-5. Complete
the installation steps in the following order:
1. Remove the Top Plate.
Simply lift it from the stove body.
2. GF 100 DV II ONLY : Remove the Front Plate.
Slide it straight up to disengage it from the Side
Plates.
3. GF 200 DV II ONLY: Open the Front Doors.
Cut the two cable ties that secure the doors closed.
4. Remove the Glass Panel.
Open the two trunk latches at the top of the
firebox to disengage the Glass Panel Frame. Lift
the frame up and out of its channel. Set it aside,
out of the way, on a soft surface.
5. Install Optional Blower if appropriate.
6. Install Vent System / Air Restriction as appropriate.
7. Install Fuel Conversion / High Altitude Adjust-
ment if necessary.
8. Plumb gas line to the stove. Leak Test.
9. Install optional Brick Panels.
10. Install Log Set and Ember Stones.
11. Replace Glass Panel. Test Burner and adjust air
shutter if necessary.
12. Replace Front Panel and Top Plate.
13. Install optional Remote Control or Thermostat.
Suggested Tools for
Installation and Service
• External regulator (for Propane only)
• Piping which complies with local code
• Manual shut-off valve (T-Handle in Massachusetts)
• Sediment trap - if required by code
• Tee joint
• Pipe wrench
• Pipe sealant
• 10 mm open end wrench
• 1/2”, 7/16” open end wrench or deep socket
• Phillips head screwdriver
• Flat head screwdriver
• 1/4” nut driver
• 4 mm allen wrench
• Gloves
• Safety glasses
• Torx T20 screwdriver
• Leak test solution
• Reciprocating Saw
• Power Drill

7
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Location
In selecting a location for the stove, consider the
following points:
1) Heat distribution
2) Vent termination requirements
3) Gas supply line routing
4) Traffic areas, furniture, draperies, etc.
The stove may be located on or near conven-
tional construction materials, however, proper
clearance to combustibles must be maintained in
order to provide adequate air circulation around the
appliance. Also, it is important to provide adequate
access around the stove for servicing and proper
operation.
The clearance and hearth specifications listed in
this manual are the minimum requirements for
combustible material. A combustible material is
anything that can burn (i.e. sheet rock, wall paper,
wood, fabrics etc.). These surfaces are not limited to
those that are visible and also include materials that
may be located behind non-combustibles.
If you are not sure of the combustible nature of a
material, consult your local fire officials. Remember,
“Fire Resistant” materials are considered combus-
tible: they are difficult to ignite, but will burn. Also,
“fire-rated” sheet rock is considered combustible.
Hearth Requirements
The GF 100 DV II and GF 200 DV II should not be
installed directly on carpeting, vinyl, linoleum or
Pergo®.
If the appliance will be installed on any combus-
tible material OTHER THAN WOOD, a floor pad must
be installed that is either metal or wood, or a listed
hearth pad. This floor protection must extend the
full width and depth of the appliance. It is not
necessary to remove carpeting, vinyl or linoleum
from underneath the floor protection. See fig. 1.
Safety Information
Your stove will reach high surface temperatures
during normal operation. Please note the following
cautionary information.
Due to the high operating temperatures, this
appliance should be located out of traffic areas
and away from furniture and draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burns and/or clothing
ignition.
Young children should be supervised while they
are in the same room as the gas stove.
Clothing or other flammable materials should
not be placed ON or NEAR the stove. Surveiller
les enfants. Garder les vetements, les meubles,
l’essence ou autres liquides a vapeur
inflammables loin de l’appareil.
NEVER store or use gasoline or any other flam-
mable vapors or liquids in the vicinity of the
stove.
Never burn any other materials in your gas
stove, it is strictly designed for use with natural
gas or propane fuel ONLY.
·Any safety screen, glass or guard removed for
servicing the appliance must be replaced prior
to operating the appliance.
Glass Front
Do not operate the this appliance if the glass panel has
been removed, cracked, or broken. Replacement of the
glass should be done by a licensed or qualified service
person. Only remove glass for routine service. Always
handle glass carefully.
Figure 1. Suggested hearth dimensions shown are
slightly larger than the minimum requirement.
24”
(609 mm)
18”
(457 mm)

8
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Stove and Vent Clearance
Requirements
Minimum Clearances from the Stove to Combustibles:
Measured from the stove top plate. See figs. 2-4.
For Both Stoves
Rear: 0” (0 mm)
Ceiling: 42” (1066 mm)
Corner: 2” (50 mm)
Sides: 3” (76 mm)
Minimum Clearances between Vent Pipe and
Combustible Materials:
Horizontal Run:
Off the top of the pipe 2” (50 mm)
Off the sides and bottom 1” (25 mm)
Vertical Run:
All sides 1” (25 mm)
Figure 3. Mantel Clearances - stove flush with fireplace face.
Figure 4. Mantel Clearances - stove set back into fireplace,
6 1/2” maximum.
Figure 2. Alcove Installation Clearances.
CLEARANCE TO REAR WALL = ZERO (0”)
GF 100 DV
or
GF 200 DV
Max. Depth
24”
(610mm)
Alcove Installation
Maximum Alcove Depth: 24” (610 mm)
Minimum Alcove Width: 34” (864 mm)
Minimum Ceiling Height
from stove top: 42” (1066 mm)
Min. 34”
(864 mm)
Plinth Kit: 23 3/4 in. (603 mm)
Long Legs: 27 in. (686 mm)
GF 100 DV II GF 200 DV II
Nordic QT Lillehammer
A49 in. (1245 mm) 51 1/2 in. (1308 mm)
B47 1/2 in. (1206 mm) 50 in. (1270 mm)
C46 in. (1168 mm) 48 1/2 in. (1232 mm)
D44 1/2 in. (1130 mm) 47 in. (1194 mm)
E43 in. (1092 mm) 45 1/2 in. (1156 mm)
F17 3/4 in. (451 mm) 17 3/4 in. (451 mm)
G22 1/4 in. (565 mm) 24 3/4 in. (629 mm)
Plinth Kit: 23 3/4 in. (603 mm)
Long Legs: 27 in. (686 mm)
GF 100 DV II GF 200 DV II
Nordic QT Lillehammer
A50 in. (1270 mm) 52 1/2 in. (1333 mm)
B48 1/2 in. (1232 mm) 51 in. (1295 mm)
C47 in. (1194 mm) 49 1/2 in. (1257 mm)
D45 1/2 in. (1156 mm) 48 in. (1219 mm)
E44 in. (1118 mm) 46 1/2 in. (1181 mm)
F4 1/4 in. (108 mm) 4 1/4 in. (108 mm)
G22 1/4 in. (565 mm) 24 3/4 in. (629 mm)
11.5
9.5
7.5
5.5
Max. Mantel
Depth
Min. Mantel
Depth
Max. T p Trim
Depth = 1
3.5
ACE
BD
F
G
11.5
9.5
7.5
5.5
Max. Mantel
Depth
Min. Mantel
Depth
Max. T p Trim
Depth = 1
3.5
ACE
BD
F
G
Max.
6 1/2

9
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
SEALANT
Venting Requirements
Both stoves may be installed with a vertical or horizontal
termination and must conform to the configuration
requirements described in this section. Vent components
from the manufacturers listed below are approved for use:
•Simpson Dura-Vent GS
• Selkirk Metalbestos
• Security Vent Ltd.
• Amerivent Corporation
Use parts of one manufacturer only - DO NOT MIX VENT
COMPONENTS FROM DIFFERENT MANUFACTURERS IN
THE SAME SYSTEM.
Installation of any components not manufactured or
approved by Jøtul or failure to meet all clearance require-
ments will void all warranties and could result in prop-
erty damage, bodily injury, or serious fire.
The approved vent configurations described in this
manual are derived from extensive testing under con-
trolled laboratory conditions. Gas appliance performance
can be negatively affected by variables present in the
installation environment, i.e: atmospheric pressure,
strong prevailing winds, adjacent structures and trees,
snow accumulation, etc. These conditions should be
taken into consideration by the installer and stove owner
when planning the vent system design.
IMPORTANT
• JOINT SEALING REQUIREMENT: APPLY A 1/8” BEAD OF
HIGH-TEMPERATURE SEALANT (SUCH AS MIL-PAC®) TO
THE MALE SECTION OF THE INNER
VENT PIPE. THE CEMENT
SHOULD FORM A SEAL
BETWEEN THE INNER AND
OUTER PIPES.
• NEVER MODIFY ANY
VENTING COMPONENT, OR
USE ANY DAMAGED
VENTING PRODUCT.
• THE GAS APPLIANCE AND
VENT SYSTEM MUST BE
VENTED DIRECTLY TO THE
OUTSIDE OF THE BUILDING
AND NEVER ATTACHED TO
A CHIMNEY SERVING A SOLID FUEL OR GAS BURNING
APPLIANCE. EACH DIRECT VENT GAS APPLIANCE MUST
HAVE ITS OWN SEPARATE VENT SYSTEM. COMMON
VENT SYSTEMS ARE PROHIBITED.
• IF VENTING SYSTEM IS DISASSEMBLED FOR ANY
REASON, REINSTALL PER THE INSTRUCTIONS PROVIDED
FOR THE INITIAL INSTALLATION.
Intake Air Restriction
You may need to restrict air intake to the burner, depend-
ing on the stove vent configuration. Two Side Restrictor
Plates and one Rear Restrictor Plate are included in the
Miscellaneous Kit for this purpose. Use the following
guidelines to determine the proper restriction, if any, for
your installation.
Horizontal Termination
No air restriction should be necessary. Do not install the
restrictor plates.
Vertical Termination
1. For Any Vertically Terminated Stove - Fig. 5.
Remove the Recirculator Plate from the back of the
Burner Skirt. It is secured by a single sheet metal screw.
2. Optional Restriction - Fig. 6.
A) Termination less than 8 ft. high:
Install Rear Restrictor Plate. Engage the plate with the
two pins on the back of the Burner Skirt.
B) Termination 8 - 15 ft. high:
Install the Side Restrictor Plates, in addition to the Rear
Restrictor Plate. The plates are interchangeable.
Engage each plate with the pin on either side of the
Burner Skirt.
Figure 6. Installing the Air Intake Restrictor Plates.
Figure 5. Remove Recirculator Plate.
Recirculator Plate
Rear Restrictor Plate
Side Restrictor Plates

10
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Vertical Vent Termination
The Jøtul GF 100 DV II and Jøtul GF 200 DV II are ap-
proved for vertical venting through a ceiling or to a roof
termination following these guidelines:
The termination should fall within the shaded area of
the grid depicted in fig.7 below.
Maximum Vertical must not exceed 15 ft. (4.57 m)
measured from the top of the stove.
In no case shall any discharge opening on the termi-
nation cap be less than 18” (457 mm) horizontally
from the roof surface. See fig. 8.
In addition the 90° elbow attached to the stove, a
vertical vent run may utilize one 90° or two 45°
elbows. Whenever possible use 45° elbows instead of
a 90° elbow as they are less restrictive to exhaust gas
and intake air flow.
Steep roofs, nearby trees, and predominantly windy
conditions can contribute to poor draft and/or
promote down-draft occurrences. Increasing the
height of the vent may alleviate these conditions.
Use approved vent manufacturer’s Wall Straps to
support an offset pipe run at three feet intervals to
avoid excessive stress on the offsets.
A firestop is required at every floor. Firestops are
available from all vent manufacturers. The opening
should be framed to 10" X 10" inside dimension.
Always maintain a minimum 1" clearance from all
sides of the vertical vent system.
Remove the Recirculator Plate from the back of the
Burner Skirt as shown in fig. 5. Determine which Air
Intake Restrictor plates should be used by following
the guidelines on page 9.
• ANY VENTING WITH A VERTICAL RISE MUST
TERMINATE (END) WITHIN THE SHADED AREA.
• MAXIMUM ELBOWS:TWO 90° OR ONE 90°
AND TWO 45°.
• ALWAYS MAINTAIN THE PROPER CLEARANCES
TO COMBUSTIBLES.
Figure 7. Vent Termination Diagram - any termination
must fall within the shaded area dimensions.
Horizontal Overhang
Vertical Wall
Termination
Cap
18.
min.
Lowest Discharge
Opening
18 min.
18.
min.
Figure 8. Minimum vertical termination height and roof
clearance.
15 Ft.
(457.2 cm)
5 Ft.
(152.4 cm)
10 Ft.
(305 cm)
4 Ft.
(121.9 cm)
VERTICAL RUN
HORIZONTAL RUN

11
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Co-linear Vent Installation
This appliance may be vented through a masonry or
Class A prefabricated chimney using a Co-linear Flexible
Vent system approved for use with a solid-fuel burning
fireplace. When installed in the manner described below,
this system can improve the performance of the appli-
ance in cold climate situations, as well as simplify the
vent installation. See fig. 9.
These installation requirements must be followed:
1. Prior to the installation the chimney flue must be
thoroughly cleaned and inspected by a qualified
chimney service person.
2. In a masonry chimney, a fireclay liner must be present
the entire length of the chimney.
3. Prefabricated chimneys must be UL 103 or ULC S-629
listed and have a minimum INSIDE diameter of 6
inches, (150 mm).
4. No appliance can be installed into a chimney flue
serving any other appliance of any kind.
5. THE AIR INTAKE FLEX PIPE MUST EXTEND BEYOND THE
DAMPER AREA OF THE FIREPLACE. If the intake flex
duct does not extend the full length of the chimney
and connect to both the unit and the termination
cap, A METAL BLOCK OFF PLATE MUST BE CON-
STRUCTED AND INSTALLED ABOVE THE UNIT PRIOR TO
THE END OF THE INTAKE FLEX AND MUST COM-
PLETELY SEAL THE CHIMNEY FLUE FROM THE ROOM.
Consult with the local code authority having juris-
diction before proceeding with this type of installation.
Refer to the vent manufacturer’s instructions for
specific installation requirements.
WARNING: FAILURE TO POSITION THE PARTS AND
STOVE IN ACCORDANCE WITH THESE DIAGRAMS OR
FAILURE TO USE ONLY PARTS SPECIFICALLY APPROVED
FOR USE WITH THIS APPLIANCE, MAY RESULT IN PROP-
ERTY DAMAGE OR PERSONAL INJURY. BE SURE TO
MAINTAIN THE PROPER CLEARANCES TO COMBUSTIBLES
AS DEFINED IN THIS MANUAL AND IN THE INSTRUC-
TIONS PROVIDED WITH EACH VENT COMPONENT.

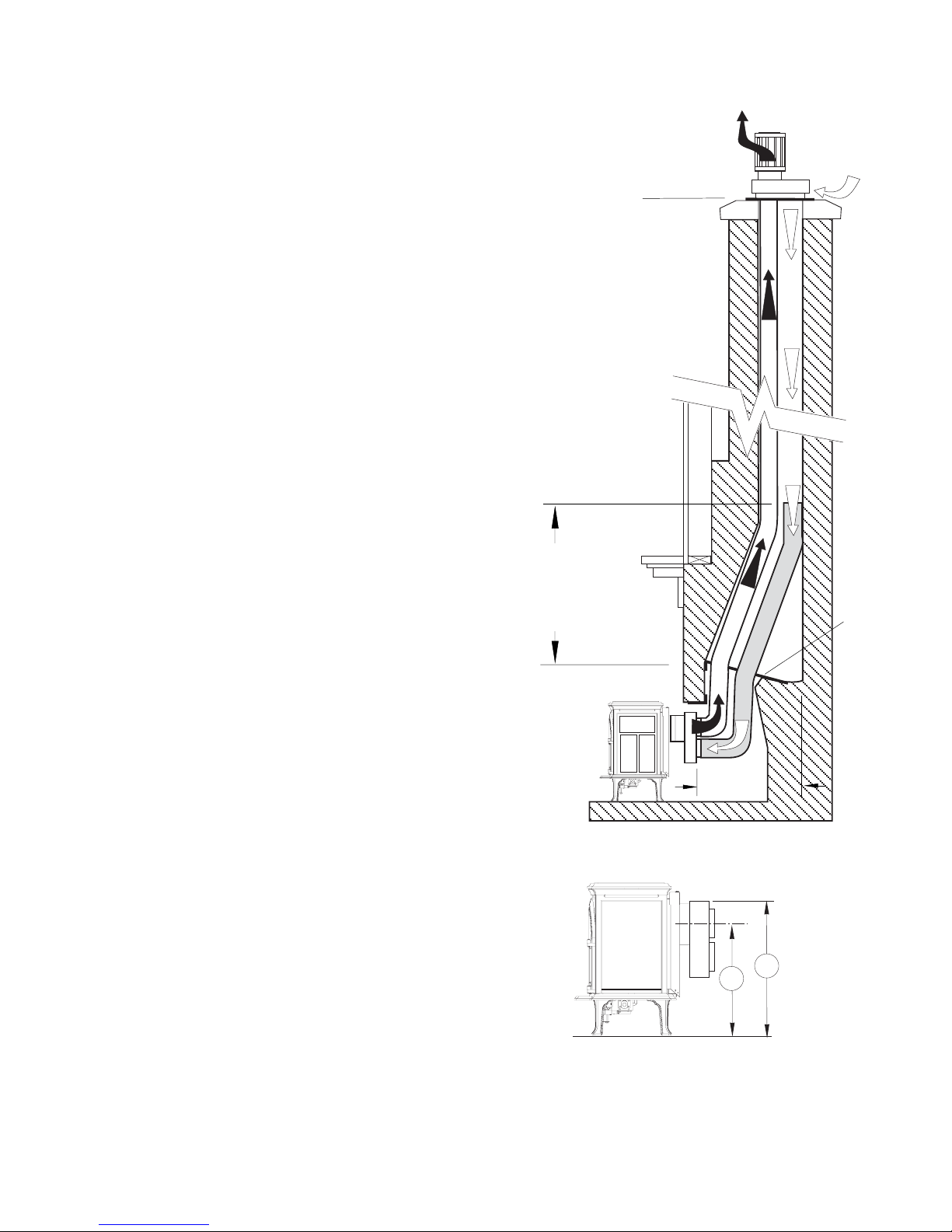

Figure 9.
Co-linear Adaptor installed through a masonry chimney.
Figure 10. Simpson Dura-Vent #923GCL Co-linear Adaptor.
GF 100 DV II: A : 16 3/4” B : 20 3/4”
GF 200 DV II: A : 18” B : 22”
Add 2 1/4” with Long Legs.
Subtract 1” with Plinth
Venting Through a Fireplace
A
B
Intake Air
Exhaust Gas
High Wind
Cap
Max.
Co-linear
Height 15 ft.
(10.66 m)
Min.
Co-linear
Height 8
ft.
(2.44 m)
Air Intake Flex
pipe must
extend above
the damper. Sealed
Damper
Max.
Offset 24”
(609 mm)

12
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Figure 12. Corner Installation, Horizontal Termination
directly off rear. Maximum Horizontal run is 2 ft.
(610 mm).
Horizontal Vent Termination
Wall Cut-out Opening: A minimum 10" X 10"
(250 mm x 250 mm) square hole is required for proper
pipe clearances through a combustible wall. Use one of
the approved vent manufacturers’ WALL THIMBLE for
the wall penetration.
DO NOT FILL AIR SPACE WITH ANY TYPE OF INSULATION.
The minimum horizontal run made directly off the
rear of the stove into a standard horizontal cap shall be
no less than a 6” (152 mm) vent section. See fig. 11.
The maximum horizontal run made directly off the
rear of the stove into a standard horizontal termina-
tion must not exceed 4 ft. (1219 mm) See fig. 11.
Corner Installation: Max. Horizontal Run is 2 ft. (610 mm).
See Fig. 12.
A horizontal termination must fall within the shaded
area illustrated in fig. 7, Vent Termination Diagram.
The horizontal termination cap must maintain a 3"
clearance to any overhead combustible projections
2 1/2" or less. It must also maintain 12" clearance
from projections exceeding 2 1/2". See fig. 14.
Any horizontal run of vent must be level or have a
1/4" rise for every foot of run toward the termination
cap. NEVER ALLOW THE VENTING TO RUN DOWN-
WARD FROM STOVE TO TERMINATION; DOWNWARD
VENT RUNS TRAP HEAT AND CAUSE HIGH TEMPERA-
TURES TO DEVELOP WITHIN THE VENT THAT COULD
START A FIRE.
Install a Vinyl Siding Standoff between the vent
termination and an exterior wall covered by vinyl
siding material to prevent potential heat damage to
the siding.
Do not recess the termination cap into a wall or
siding.
Figure 11. Min. / Max. Horizontal Run
Min. 6 in.
Max. 48 in.
H riz ntal Run
Zer
Clearance
t Rear
Dec rative
Wall Shield
Standard
H riz ntal
Terminati n
Min. 2
51 mm
Min. 2
51 mm
45°
Elb w
Min. 6 (152 mm)
Max. 24 (610 mm)
See N te F
Fig. 17
Wall Thimble
and Trim C llar
Standard
H riz ntal
Terminati n
Cap

13
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Wall Shield Installation
The decorative Wall Shield, included in the Miscellaneous
Hardware bag, is used to obscure the vent hole in the
wall in installations vented directly off the rear of the
stove. Follow this procedure:
1. Remove the top two 1/4” hex head screws from the
rear shroud of the stove.
2. Align the holes in the wall shield with the holes in the
rear shroud.
3. Secure the wall shield to the stove with the two 1/4”
hex head screws. See fig. 16.
Figure 15. Termination Clearance to overhangs
Figure 15.
Wall Shield installation.
3
76 mm
12 
305
mm
2 1/2
64 mm
Figure 13. Horizontal Termination with Vertical Rise.
Wall Thimble
and Trim C llar
Max. 4 ft.
H riz ntal
Run
Max. Tw
90° Elb ws
or One 90°
and Tw
45° Elb ws
Max. 15 ft.
Vertical Vent
Run

14
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer

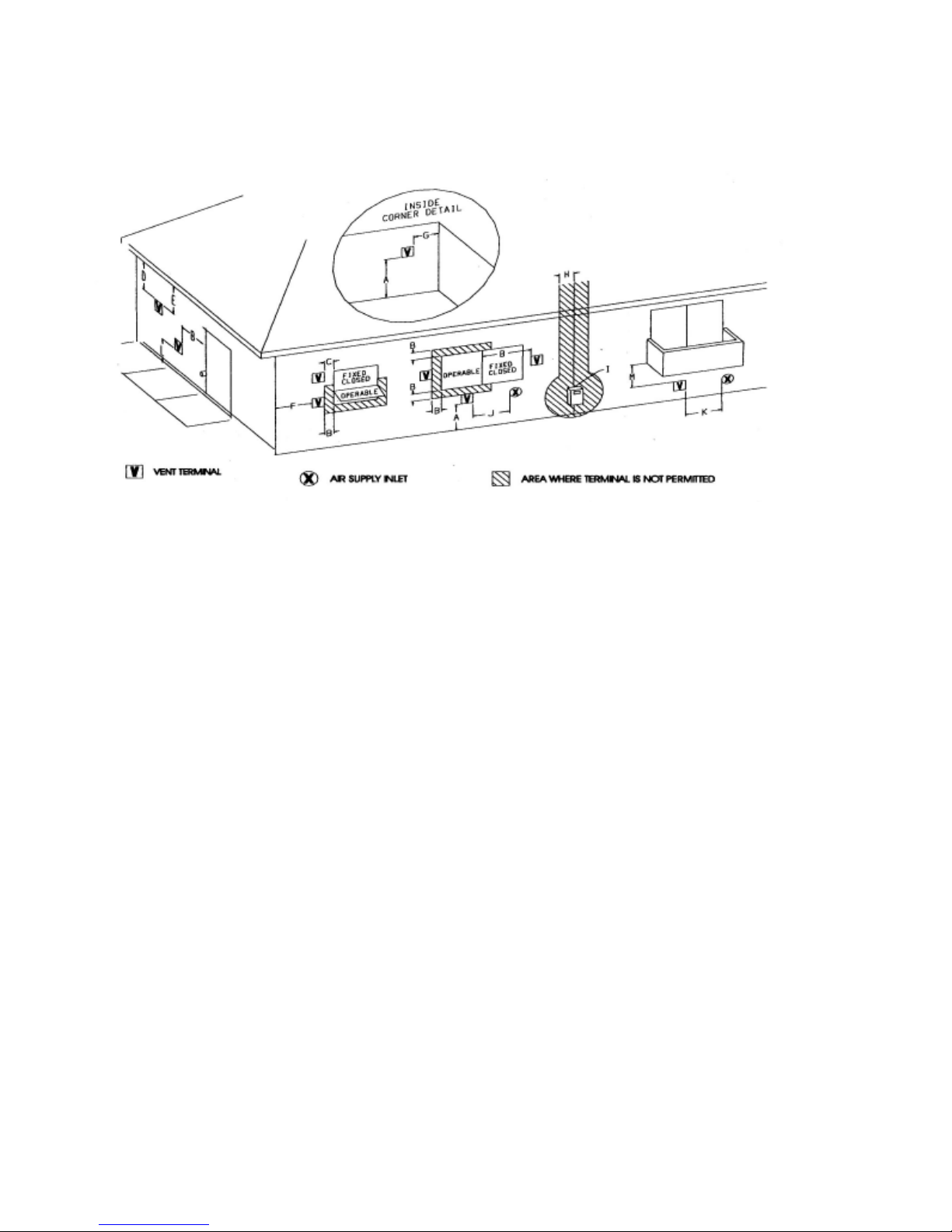

Figure 17. Vent Terminal Clearances - National Fuel Gas Code.
Horizontal Termination Clearance
A= Clearance above grade, veranda, porch , deck, or
balcony : 12 inches (30 cm) minimum.
B= Clearance to window or door that may be opened:
**Min. 9 inches, U.S. / *12 inches (30 cm) CAN.
We recommend 12in. minimum to prevent condensa-
tion on the window.
C= Clearance to permanently closed window:
**Min. 9 inches, U.S. / *12 inches (30 cm) CAN
We recommend 12 in. minimum to prevent condensa-
tion on the window.
D= Vertical clearance to ventilated soffit located above
the terminal within a horizontal distance of 2 feet (60 cm)
from the centerline of the terminal: 18 inches
(46 cm) minimum.
E = Clearance to unventilated soffit: 12 inches (46 cm)
minimum.
F = Clearance to outside corner: **Min. 9 inches, U.S. / *12
inches (30 cm) CAN. We strongly recommend 12 inches,
particularly where windy conditions pevail.
G = Clearance to inside corner: ** Min. 6 inches, U.S. / *12
inches (30 cm) CAN. We strongly recommend 12 inches,
particularly where windy conditions pevail.
H = *Not to be installed within 15 feet (4.5 m) above a
meter/regulator assembly within 3 feet (90 cm)
horizontally from the center-line of the regulator.
* In accordance with CSA B149.1 Installation Codes.
** In accordance with the current ANSI Z223.1/NFFPA 54,
National Fuel Gas Code. Note: Local Codes and Regulations may
require different clearances.
1A vent shall not terminate directly above a sidewalk or driveway
which is located between two single family dwellings and serves
both dwellings.
2Only permitted if veranda, porch, deck, or balcony, is fully open
on a minimum of two sides beneath the floor.*
I= Clearance to service regulator vent outlet:
3 feet (91 cm) minimum.
J = Clearance to nonmechanical air supply inlet to building or
the combustion air inlet to any other appliance:
12 inches (30 cm) minimum.
K = Clearance to a mechanical air supply inlet:
**Min. 3 feet (91 cm) above if within 10 feet horizontally,
U.S. / *6 feet (1.83 m) minimum / CAN
L = 1Clearance above paved sidewalk or a paved driveway
located on public property: 7 feet (2.1 m) min.
M= Clearance under veranda, porch, deck, or balcony:
12 inches (30 cm) minimum. 2

15
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Tools required:
• 1/2” open ended wrench or deep-well socket, Torx T20
or slotted screwdriver, 4 mm allen wrench.
Conversion Kit Contents:
• 1, regulator tower labeled for propane
• 3, regulator tower screws
• 1, burner orifice (GF 100: #48 for NG, #56 for LP)
(GF 200: #46 for NG, 1.20 mm for LP)
• 1, pilot orifice (#51 for NG, #30 for LP)
• Label A - to be completed and applied to
the back of the stove
• Label B - apply to the stove’s Rating Plate
• Small valve label - apply to valve body
Conversion instructions are also shipped in the stove
with the conversion kit.
Mobile Home Installation
These appliances can be installed for use in a mobile
home in the U.S. and Canada provided:
1. The stove is secured to the floor of the mobile home.
Use the Jøtul Floor Bracket Kit appropriate for your
stove’s leg; see the Accessories listing on p. 29.
2. Provision must be made to secure an electrical ground
between the stove and the mobile home chassis.
3. The stove is installed in accordance with Title 24 CFR,
Part 3280- Manufactured Home Construction and
Safety Standard, in the U.S. In Canada, comply with
CSA Z240.4, Gas Equipped Recreational Vehicles and
Mobile Housing.
4. Always contact your local officials about installation
restrictions and requirements in your area.
THIS APPLIANCE MAY BE INSTALLED AS AN
OEM INSTALLATION IN A MANUFACTURED
(MOBILE) HOME AND MUST BE INSTALLED IN
ACCORDANCE WITH THE MANUFACTURER’S
INSTRUCTIONS AND THE MANUFACTURED
HOME CONSTRUCTION AND SAFETY STAN-
DARD, TITLE 24 CFR, PART 3280. THIS APPLI-
ANCE IS ONLY FOR USE WITH THE TYPE OF
GAS THAT IS INDICATED ON THE STOVE’S
RATING PLATE. A GAS CONVERSION KIT IS
PROVIDED WITH THE NORDIC QT DIRECT
VENT GAS STOVE.
THIS APPLIANCE MAY BE INSTALLED IN AN
AFTERMARKET PERMANENTLY LOCATED,
MANUFACTURED (MOBILE) HOME, WHERE
NOT PROHIBITED BY LOCAL CODES.
CET APPAREIL PEUT ETRE INSTALLE DANS
UN MAISON PREFABRIQUEE (MOBILE) DEJA
INSTALLEE A DEMEURE SI LES REGLEMENTS
LOCAUX LE PERMETTENT. CET APPAREIL
DOIT ETRE UTILISE UNIQUEMENT AVEC LES
TYPES DE GAS INDIQUES SUR LA PLAQUE
SIGNALETIQUE. NE PAS L’UTILISER AVEC
D’AUTRES GAS SAUF SI UN KITDE CONVER-
SION CERTIFIE EST INSTALLE.
Fuel Conversion
Your gas stove is shipped from the factory equipped to
burn NATURAL GAS only. If PROPANE gas is to be used as
fuel, the appliance must first be converted for use with
propane.
GF100 DV II Nordic QT: Use Propane Conversion Kit
155628, supplied with the appliance.
GF200 DV II Lillehammer: Use Propane Conversion Kit
155626, supplied with the appliance.
WARNING:
THE CONVERSION KIT IS TO BE
INSTALLED BY AN AUTHORIZED JØTUL
SERVICE TECHNICIAN IN ACCORDANCE
WITH THE MANUFACTURER’S
INSTRUCTION AND ALL CODES AND
REQUIREMENTS OF THE AUTHORITY
HAVING JURISDICTION. FAILURE TO
FOLLOW THESE INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE. THE QUALIFIED
AGENCY PERFORMING THIS WORK
ASSUMES RESPONSIBILITY FOR THIS
CONVERSION.
IN CANADA:
THE CONVERSION SHALL BE CARRIED
OUT IN ACCORDANCE WITH THE RE-
QUIREMENTS OF THE PROVINCIAL AU-
THORITIES HAVING JURISDICTION AND
IN ACCORDANCE WITH THE REQUIRE-
MENTS OF THE CAN1-B149.1 AND .2
INSTALLATION CODE.

16
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Gas Conversion Procedure
1. Turn off gas supply to stove.
2. Remove the stove Top Plate (3).
3. GF 100 DV II Only: Remove the front plate from the
stove. Pull the casting straight up and out away from
the side panels. Pull the panel upward with one hand
while the other pushes against the top of the firebox.
4. Release the trunk latches at the top of the firebox.
Carefully lift the glass frame up and out.
5. Remove the Log Set using care not to scratch or
damage logs.
6. Remove the burner skirt. Using one hand, lift from
under the rear lip and let the skirt rotate vertically.
Then rotate counterclockwise to clear the firebox
opening as shown in fig. 18.
7. Change the Main Burner Orifice. Fig. 19. Using a ½”
open ended wrench or deep-well socket remove the
burner orifice and replace with the appropriate orifice
supplied in the kit.
GF 100 DV II - #48 for NG #56 for LP
GF 200 DV II - #46 for NG 1.20 mm for LP
8 CHANGE THE PILOT ORIFICE: From within the firebox,
remove the Pilot Head by pulling it straight up from
the pilot base. See fig. 20.
Using the 4 mm allen wrench that is included with
the conversion kit, unscrew the pilot orifice (counter-
clockwise). Replace with the appropriate orifice:
#51 for natural gas
#30 for propane gas
9. Tighten orifice into the base of the pilot assembly. To
prevent bypass leaks, be sure the orifice is secured
tightly and flush with the base. Replace pilot head by
pushing it down onto the pilot base. See fig. 20.
10. Replace the Variable Regulator. Using a Torx T-20
screwdriver, remove the three specialty screws from
the front of the valve regulator. See fig. 21.
11. Remove the Regulator Tower, Gasket, white plastic
disk, and Spring. Discard these parts.
12. Install the new variable regulator tower being sure that the
gasket is properly positioned and tighten screws securely.
13. Install the identification labels to the stove so that they can
be seen by any person that may be servicing the stove.
Label A: apply to back of stove.
Label B: apply to stove’s rating plate.
Small valve Label: apply to valve.
14. Reassemble the stove. CAUTION: Correct Burner
position is critical to proper function. Be certain that
the burner plate is properly engaged with the pins on
the firebox walls. The pins fit into the adjacent
notches on the sides of the burner plate. See figure 22.
15. Apply gas to the system and check for leaks using a
soapy water solution or electronic gas detector.
NEVER USE AN OPEN FLAME TO CHECK FOR GAS LEAKS.
Correct gas pressure is essential for efficient and safe
operation of this appliance. Correct gas pressure
must be established at the time of installation.
NOTE: Minimum LP Inlet pressure is 12.0 w.c.
For more details, see the Gas Pressure section of this
manual (page 17).
ALWAYS REFER TO THE LIGHTING INSTRUCTIONS ON
THE INSIDE BACK COVER OF THIS MANUAL WHEN
LIGHTING THE STOVE.
16. Adjust the Air Shutter: Locate and loosen the wing-
nut that secures the Air Shutter. See fig. 26. It is
under the stove, in the center toward the rear. Push
the shutter stem back to restrict air and forward to
increase air to the burner. You will need to experi-
ment to find the best setting for your particular
installation. The shutter is set at the halfway posi-
tion at the factory.
Be sure to tighten the wingnut on the Air Shutter
stem snugly after any adjustment. This ensures that
the burner remains locked in place.

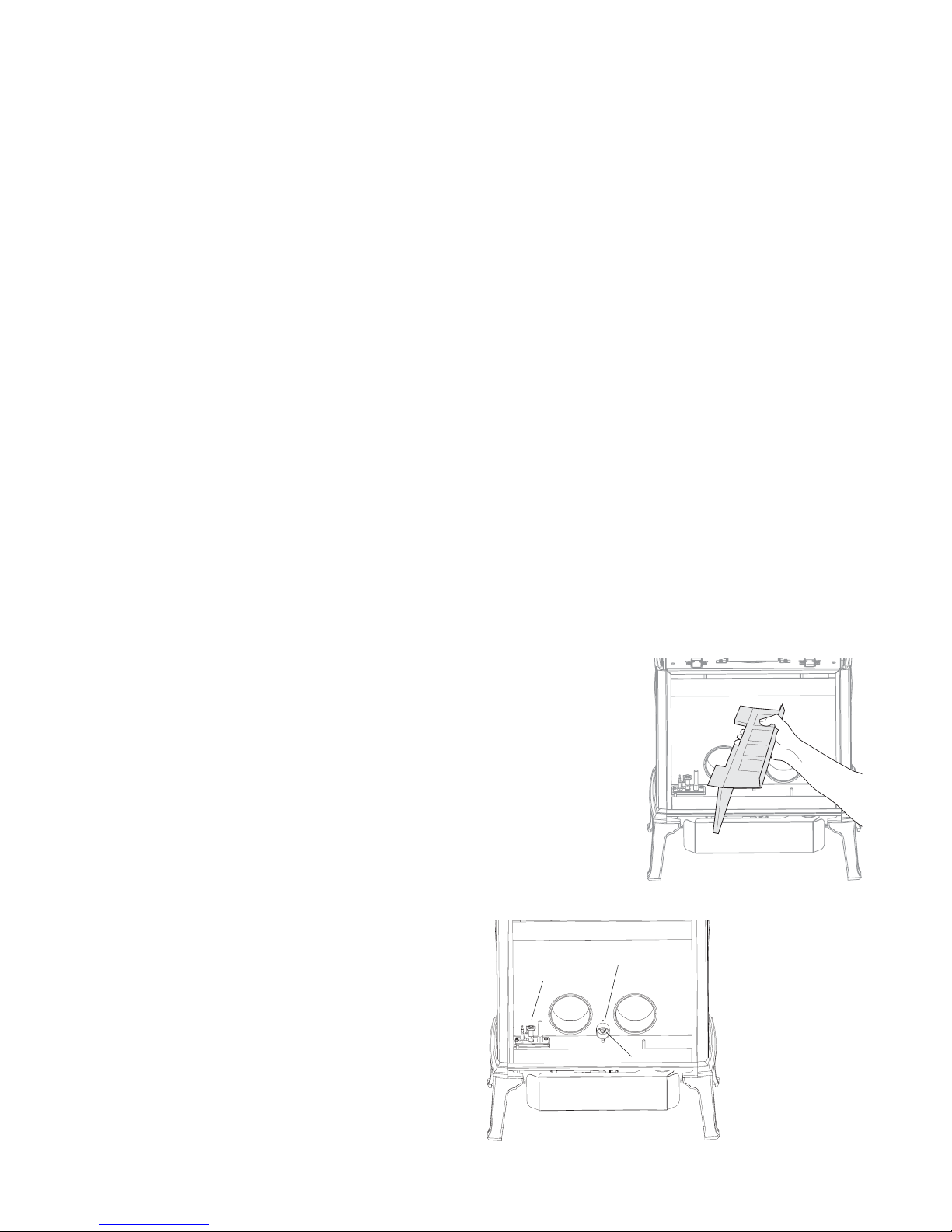

Figure 18.
Remove the Burner
Skirt from the stove.
Figure 19.
Burner orifice
and pilot
assembly
locations.
Orifice
Air Shutter
Pilot
Assembly

17
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Gas Supply Connection
NOTE: If the optional Blower will be installed, use a 90°
Elbow off the valve to create adequate clearance for the
main gas line.
The gas supply line connection is made to the valve just
inside the left rear leg. The gas supply line should be 3/8"
npt with a 1/2" diameter supply, or the appropriate size
to provide sufficient gas pressure to the valve regardless
of the input setting.
The use of a Flexible Gas Appliance Connector is
acceptable in many areas in the U.S. However, Canadian
methods vary depending on local code.
ALL INSTALLATIONS MUST COMPLY WITH LOCAL
CODE OR IN THE ABSENCE OF LOCAL CODE, MUST
COMPLY WITH THE MOST RECENT EDITION OF THE
NATIONAL FUEL GAS CODE ANSI Z223.1/NFPA 54 OR
CAN-B149.
All codes require a gas shut-off valve (gas cock) and
union, to be installed in the supply line, and in the same
room as the appliance. This allows for the disconnection
of the stove for servicing and maintenance. See fig. 23.
Figure 23.
Supply
valve
coupling.
Leak test:
1. Mix a 50-50 solution of water and dish soap.
2. Light appliance- see lighting instructions on the inside
back cover of this manual or on the stove’s rating plate.
3. Brush or spray all joints and connections with the soapy
water solution.
4. If bubbles appear at any connection or seam or a gas
odor is detected, immediately turn gas control knob to
the OFF position.
5. Tighten or reconnect the leaking joint and retest for any
gas leaks.
Orifice
Pilot Base
Pilot Head

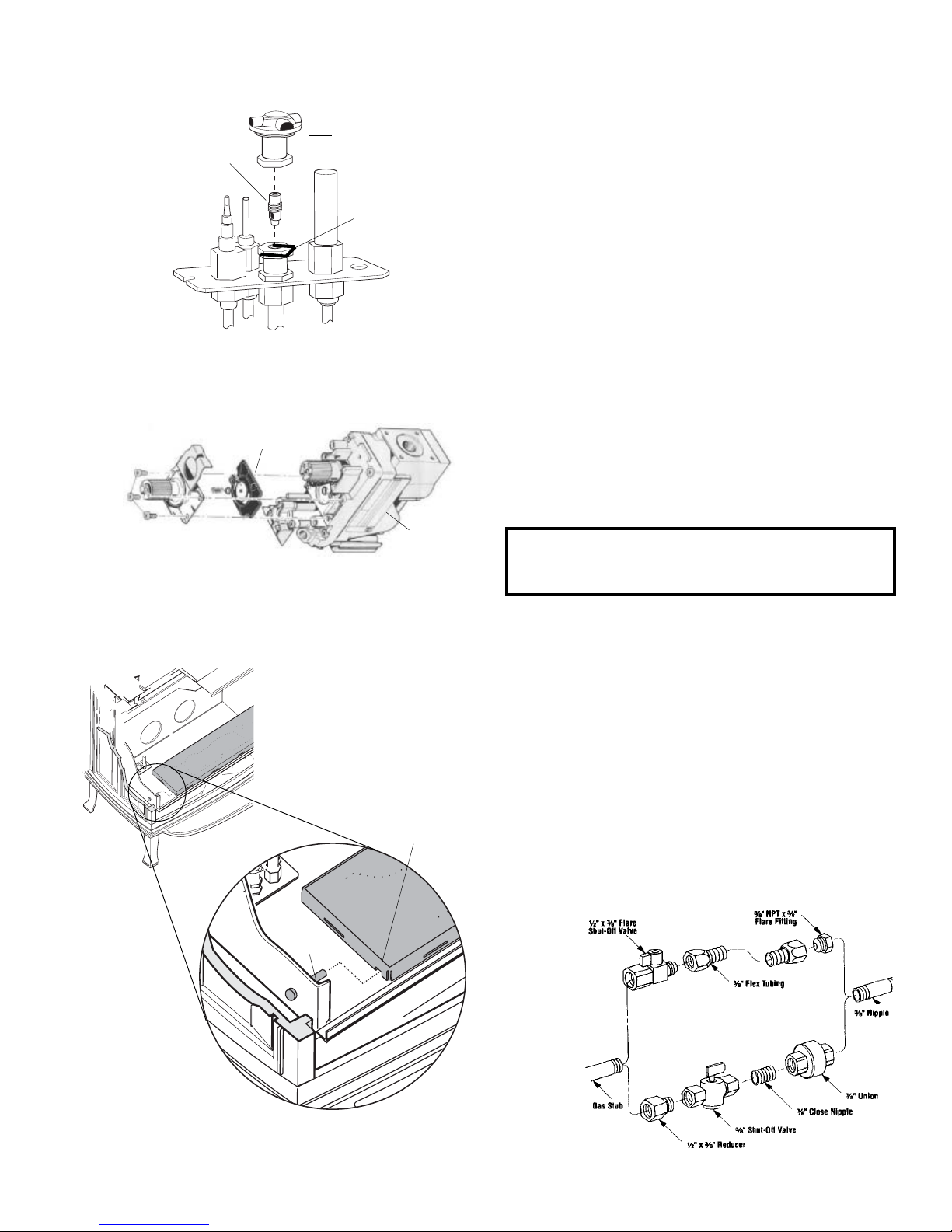

Figure 20.
Pilot orifice removal and replacement.
A T-HANDLE GAS COCK IS REQUIRED IN
MASSACHUSETTS TO COMPLY WITH CODE
248CMR.
Secure all joints tightly using appropriate tools and
sealing compounds. For propane units be sure to use
compounds that are propane resistant. Turn on gas
supply and test for gas leaks using a soapy water solution.
Never use an open flame to check for leaks.
Figure 22.
Burner plate engagement.
Burner
Notch
Pin
Figure 21. Regulator Assembly.
Retainer
Clip
Regulator
Tower
Gasket
Apply
small
label
Mounting
Screws

18
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Gas Pressure
Correct gas pressure is essential for efficient and safe
operation. It is important that the correct pressure is
established at the time of the installation. Proper gas
pressure provides a consistent flow of gas to the appli-
ance and is instrumental in checking for gas leaks.

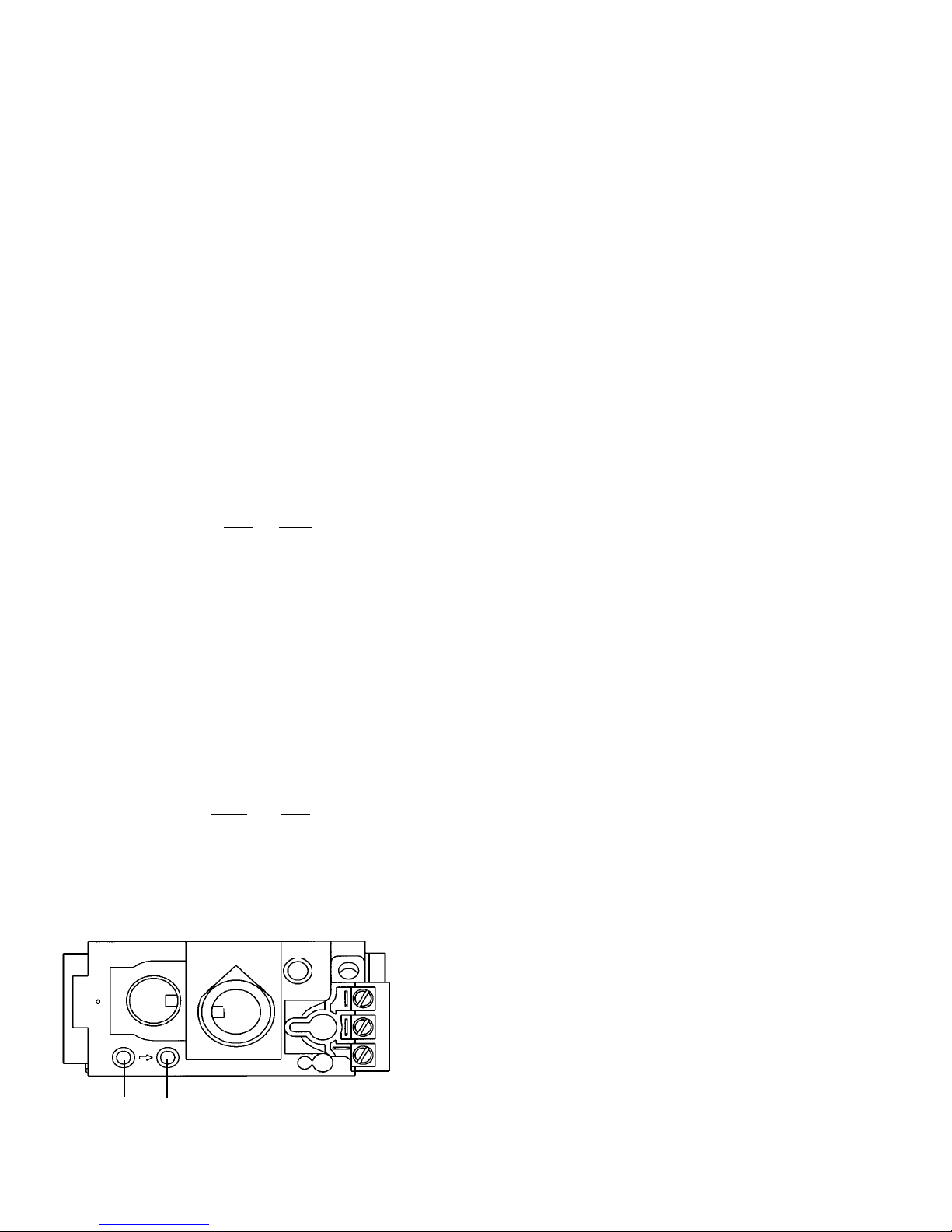

Pressure Test: Attach a manometer to the appropri-
ate test point on the valve. See fig. 24. The gauge connec-
tions are located on the front of the valve under the On/
Off/Pilot- knob. Gauge connections are identified by:
E - for Inlet or Supply Pressure (the amount of gas
coming to the valve.)
A - for Manifold Pressure (the amount of gas that is
coming out of the valve to the burner.)
ALWAYS TEST PRESSURES WITH VALVE CONTROL KNOB
SET ON HIGH.
High Altitude Adjustment
The decreased atmospheric pressure of higher altitudes
affects heat value of gaseous fuels. Most gas suppliers
derate the gas intended for use at elevations above 2000
feet. Check with your gas supplier before performing
derate adjustment to the burner.
The GF 100 DV II Nordic QT does not require adjustment
for elevations up to 4500 ft. DO NOT DERATE.
The GF 200 DV II Lillehammer may be adjusted for
altitude over 2000 ft. (610 - 1371 m). Check with your
gas supplier and, if necessary, install High Altitude
Adjustment Kit 155808 for Natural Gas, or Kit 155809
for Propane.
See the chart below for appropriate orifice sizes and
part numbers.
IN THE U.S:
THE DERATING KIT MUST BE INSTALLED BY AN
AUTHORIZED SERVICE TECHNICIAN IN ACCOR-
DANCE WITH THE MANUFACTURER’S INSTRUC-
TIONS AND ALL CODES AND REQUIREMENTS
OF THE AUTHORITY HAVING JURISDICTION.
THE INFORMATION LABEL MUST BE FILLED
OUT BY THE INSTALLER AND APPLIED TO THE
APPLIANCE AT THE TIME OF THE CONVERSION.
THE QUALIFIED SERVICE AGENCY PERFORM-
ING THIS WORK ASSUMES RESPONSIBILITY
FOR THIS DERATING.
IN CANADA,
THIS UNIT HAS BEEN TESTED FOR INSTALLA-
TION AT HIGH ALTITUDES IN ACCORDANCE
WITH CANADIAN TEST STANDARD CAN/CGA-
2.17.
THE DERATING SHALL BE CARRIED OUT IN
ACCORDANCE WITH THE REQUIREMENTS OF
THE PROVINCIAL AUTHORITIES HAVING
JURISDICTION AND IN ACCORDANCE WITH
THE REQUIREMENTS OF THE CAN1-B-149.1
AND .2 INSTALLATION CODE.
For high altitude installations, consult your local gas
distributor or the authority having jurisdiction for proper
rating methods. If the appliance is converted for high
altitude, the Conversion Label, supplied with the kit,
must be filled out by the installer and applied to the
appliance at the time of the conversion. See fig. 25.
NECESSARY INLET GAS PRESSURES
(inches water column)
MIN MAX
NATURAL GAS 5.0 7.0
PROPANE 12.0 14.5
The appliance and its appliance main gas valve must
be disconnected from the gas supply piping system
during any pressure testing on that system at test
pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply
line by closing its individual manual gas shut-off valve
(gas cock) during any pressure testing of the gas supply
piping system that is equal to or less than pressures of
1/2 psig (3.5 kPa).
MANIFOLD PRESSURES
(inches water column)
MIN MAX
NATURAL GAS 1.2 3.8
PROPANE 2.9 11.0
EA
Figure 24. Pressure test points.

19
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Flame Appearance -
Air Shutter Adjustment
WARNING: AIR SHUTTER ADJUSTMENTS SHOULD ONLY BE
PERFORMED BY A QUALIFIED PROFESSIONAL SERVICE
TECHNICIAN.
The air shutter setting at the burner orifice can be
adjusted to achieve the desired flame appearance. The
shutter is set in the mid-range at the factory, however,
you will want to adjust it if a fuel conversion kit has been
installed or if the flame pattern is not as desired. The
adjustment stem is located under the firebox, directly
behind the gas control valve. Generally, flame appearance
is a matter of preference, however most people enjoy a
warm yellowish flame.
Too much air - the appliance will generate a flame
that is blue and transparent, or an “anemic” flame.
Not enough air - the burner will generate very long
yellow flames resulting in soot. Sooting produces black
deposits on the logs, on the inside walls of the appliance,
and potentially on the exterior termination cap.
Sooting is caused by incomplete combustion in the
flames and lack of combustion air entering the air shutter
opening. Open the shutter setting to allow more air.
To adjust the air shutter:
1. Locate and loosen the adjustment stem wingnut
protruding from the bottom of the firebox, directly
behind the gas valve. See fig. 26.
2. Push the stem back to decrease air, or pull it forward to
increase air. Make adjustments in small increments
(1/8”) and allow the burner to “ settle in” for a few
minutes before making another one. Small shutter
adjustments can produce dramatic changes to flame
characteristics.
4. Re-tighten the wing nut when the desired flame
appearance has been achieved.
Cl se
Open
Figure 26.
Air Shutter adjustment
Derating Procedure:
1. To derate this unit, install the appropriate orifice per
the High Altitude chart.
2. Remove the Burner Skirt and Burner Plate to expose
the main burner orifice.
3. Using a 1/2” open ended wrench or a deep-well
socket remove the burner orifice.
4. Replace with the appropriate orifice from the high
altitude kit.
5. Be sure to apply the high altitude conversion label
provided to the rating plate on the appliance.
THIS STOVE HAS BEEN CONVERTED FOR USE AT AN
ALTITUDE OF: ________________
Orifice Size: ____________ Manifold Press. _____
Input Btu/Hr. ___________ Fuel Type __________
Date of Conversion ___________
Figure 25. This label must be filled out and applied to the
appliance by the installer.
High Altitude Orifice Chart
GF 200 DV II Only
Elevation Fuel Part No.
0 - 2000 ft. Natural Gas #46 220975
(0 - 610 m) Propane 1.20 mm 221185
2001 - 4500 ft. Natural Gas #47 220976
(611 - 1370 m) Propane #56 129466
Orifice
Size

20
GF 100 DV II Nordic QT
GF 200 DV II Lillehammer
Optional Wall Thermostat or
Remote Control
Use only a 750 millivolt DC two-wire circuit thermostat
with this appliance. The thermostat should be placed in
the same room as the heater, typically 5 feet off the
floor. Avoid drafty areas or any area that may affect the
accuracy of the thermostat.
The thermostat should be connected to the Nordic
QT using a minimum of 16 gauge wire with a maximum
length of 35 feet of wire.
Connect the two thermostat wire leads to the two
lower terminals on the terminal block located directly
to the right of the valve. Do not overtighten the con-
nections. IT IS NOT NECESSARY TO DISCONNECT ANY
OTHER WIRES. See Fig. 27.
For thermostatic operation, the On/Off/T-Stat
switch on the back of the stove must be in the T-stat
position, and the pilot light must be running, as it is the
power source for the thermostat.
At the thermostat, the two wires should be con-
nected to the two connection screws on the thermostat
base plate per the manufacturer’s instructions.
Remote Control
When using a remote, the remote receiver should be
wired to the terminal block the same way the thermo-
stat would be. See the instructions above.
Follow the operating instructions included with the
Remote Control unit.
CAUTION:
LABEL ALL WIRES PRIOR TO DISCONNECTION
WHEN SERVICING THE CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER OR DANGEROUS
OPERATION. ALWAYS VERIFY PROPER OPERA-
TION AFTER SERVICING THE APPLIANCE.
Log Set Installation
NOTE: Install the optional Brick Kit, if appropriate, before
installing the Log Set. See page 30.
The Log Set and Ember Stones are packaged in foam
inside the firebox. These must be installed in the firebox
prior to burner operation. Wear gloves to prevent skin
irritation from the ceramic fibers.
Position the Rear Log assembly as shown in fig 28,
engaging the pins on the burner skirt with the adjacent
holes in the underside of the log.
Locate the Middle Log as shown in fig. 29.
Also included is a bag of ember stones that simulate
glowing coals when the burner is operating. These
should be spread thinly over the burner plate.
NOTE: Keep the ember stones 1/4” away from the
edge of the Burner Skirt. All the embers do not have to
be used.

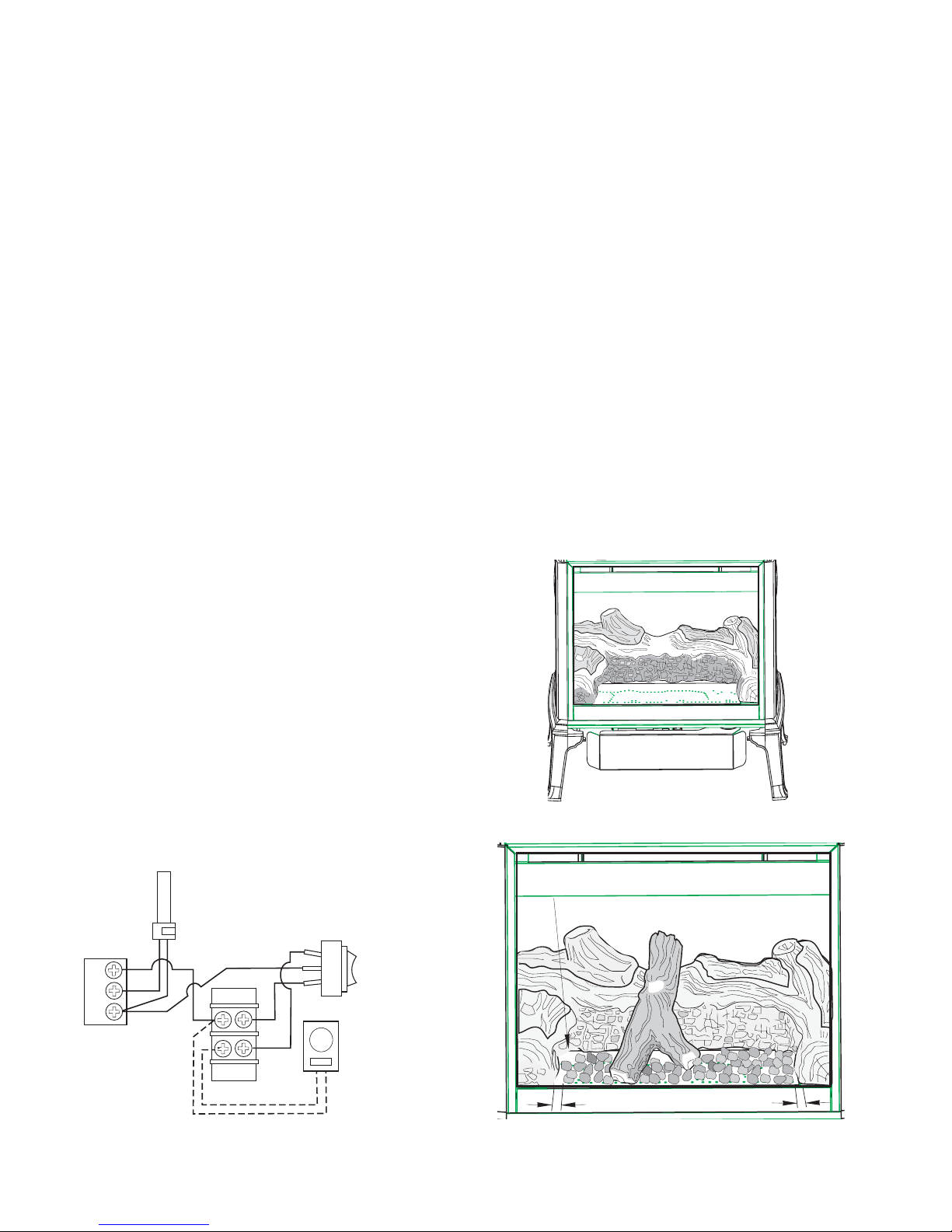

Figure 27. Accessory wiring diagram.
Figure 28. Install Rear Log.
TERMINAL
BLOCK
VALVE
THERMOPILE
OPTIONAL
THERMOSTAT
or
REMOTE
CONTROL
TH
TP
TH
TP
ROCKER
SWITCH
ON
OFF
STAT
Figure 29. Middle Log and ember stones in place.
1/4
6 mm
1/4
6 mm
Pil t
Assembly
