JabloCom EYE-02 User manual

JR_EYE-02.ENG.MAN.Manual.19.C-2A - 1 -


 Security Camera
EYE-02
User‘s Guide


JR_EYE-02.ENG.MAN.Manual.19.C-2A - 2 -


Camera EYE-02:
Package content:
II.
B
A
12
4
3
EYE-02 camera
1
Camera lens
2
PIR motion sensor
3
Green light
4
Red light
5
Infra red illumination
6
GSM Antenna
7
Power button
8
AC adaptor socket
9
USB connector
10
Battery cover
Battery
Instalation CD
Remote control
6
8
9
7
10
5
Screwdriver
User manual
AC adapter
Wall mounting screws
Connecting cable
USB cable

JR_EYE-02.ENG.MAN.Manual.19.C-2A - 3 -



__________________________________________________________________________________________________________
Considerable effort has been made to ensure that this manual is free of inaccuracies and omissions. However, as we are constantly
improving our products, if you need exact specification, please contact JABLOCOM.


EYE-02 is a security and monitoring camera that communicates wirelessly via the GSM network.
EYE-02 integrates the following built-in detectors that allows to detect an intruder:
 Detects movement by sensitive detection of human body temperature
 Recognizes the specific sound of breaking window glass
 Recognizes any unwanted change in the camera‘s position and angle
 Detects changes in a scene by taking snapshots regularly and comparing them
• EYE-02 is simple to install and configure (suitable for DIY installations).
• EYE-02 sends an alarm record using MMS, e-mail, SMS or voice call. Copies of pictures and videos can be stored on
the memory card or can be stored at a web server. Alarm Receiving Centers are also supported.
• EYE-02 allows 24 hour monitoring via its night view mode.
• EYE-02 is compatible with a wide range of external wireless devices (refer to the table on the inside back cover of
this manual).

Please refer to the picture A on the inside front cover of this manual.

Camera lens

GSM antenna

PIR motion sensor

Power button

Green light (LED)

AC adaptor socket

Red light (LED)

USB connector

Infra red illumination (LEDs)

Battery cover

Please refer to the EYE-02 camera picture D on the back cover of this manual.
 
 
1.1 Basic Features .....................................................................3
1.2 EYE-02 Camera Description ...............................................3
1.3 EYE-02 Camera Internal Parts ............................................3
 
2.1 Package Contents ...............................................................4
2.2 Installation ..........................................................................4
 
3.1 Working Modes ...................................................................5
3.2 Remote Control ...................................................................5
3.3 CONFIG Mode .....................................................................6
3.4 Profiles .................................................................................7
3.5 Detectors .............................................................................8
3.6 Reports & Contacts.............................................................8
3.7 SECURITY SETTINGS ..........................................................10
 
4.1 Set-Up and Configuration via PC ......................................10
4.2 SMS Commands ................................................................11
4.3 Event Reports ....................................................................12
4.4 Video Record Setting ........................................................13
4.5 GSM Network Setting ......................................................14
 
5.1 Call Control ........................................................................15
5.2 Night View .........................................................................15
5.3 Monitoring .......................................................................15
5.4 Switching OFF and ON ......................................................15
5.5 Battery ...............................................................................16
5.6 Micro SD card ....................................................................16
5.7 Reset to Factory Defaults .................................................16
5.8 External Wireless Devices ................................................17
5.9 Outdoor Installation .........................................................17
 
 
 
8.1 Battery Information ..........................................................19
8.2 Warranty ...........................................................................20
8.3 Safety Instructions ............................................................21
8.4 Disposal Information ........................................................22

JR_EYE-02.ENG.MAN.Manual.19.C-2A - 4 -



Before installing the camera, ensure you have a SIM card provided by your GSM operator with an activate
EDGE/GPRS internet connection and MMS service.
Some SIM cards are protected by PIN code. It is necessary to disable the PIN code protection of the SIM card.
To do this, insert the SIM into your mobile phone and disable the PIN security code. If this is not observed,
the EYE-02 camera may not operate correctly.

Unpack the camera and check the package contents. Please refer to the picture B on inside front cover of this manual.
1 EYE-02 camera 6 Screwdriver
2 Battery 7 Wall mounting screws
3 Remote control 8 User manual
4 Installation CD 9 AC adapter
5 USB cable 10 Connecting cable
Use only batteries, chargers and accessories approved by JABLOCOM for use with this particular model. The
use of any unapproved device may invalidate any approval or warranty, and may be dangerous.

For an extended graphic version of the installation procedure, see the Quick Guide manual.
Before inserting SIM card into camera make sure that:
- PIN protection is disabled
- MMS service is enabled
- Internet data access is enabled
• Insert SIM card and battery into camera
  
• Install the camera to the selected position

  
• Connect camera to power source

JR_EYE-02.ENG.MAN.Manual.19.C-2A - 5 -


 

• Enroll your mobile phone and remote control to the camera

  


The EYE-02 camera has three main working modes: ,  and .
Mode Description Button on
the Remote Control
SLEEP
SLEEP mode is a stand-by mode of the camera. The camera doesn’t detect
any movement in the targeted area and the major detectors are disabled.
The only active detectors are those that protect camera itself against an
unwanted manipulation by an intruder.
WATCH In WATCH mode camera guards fully the targeted area, all detectors are
active.
CONFIG CONFIG mode allows user to change camera settings and switch the camera
to other special modes (ENROLL, TEST, USB). and
together
The chosen camera mode is terminated by switching to a different camera mode.

The package contains a wireless remote control (RC-86 type), which
can be used to switch between camera modes.
Changing a mode by using the remote control is signaled both by
the LED lights on the camera front panel, and by an acoustic signal.
Meaning of the LEDs and acoustic signals is as follows:


JR_EYE-02.ENG.MAN.Manual.19.C-2A - 6 -









  
 Lights are Off. 
 Green light is permanently On. 
 Red and Green lights blink slowly
together. 
 Red and Green lights swap blinks
slowly. 
 Red light is permanently On1.
1
The progress of the camera startup and shutdown and also the USB mode is indicated by fast green light flashing.
Entering USB mode is signalized by four long beeps.
Incorect operation with remote control is indicated by 4 short beeps.

CONFIG mode allows the user to change camera’s settings.
To enter the CONFIG mode by the remote control, press
CONFIG mode allows the user to change camera’s settings.
and buttons simultaneously – red and green LED lights
on the front panel will start to blink slowly at once.
From the CONFIG mode is possible to switch to other special modes (ENROLL, TEST, REPORT, USB).
  

In the ENROLL mode, the camera allows to enroll new external wireless
devices such as remote controls, detectors, sirens, etc. Also a new contact
– phone number can be enrolled in this mode by just a simple call to the
camera. ENROLL mode is terminated automatically after one new items has
been enrolled.

TEST mode is a special mode for tes ng func onality of all detectors without
causing number of unwanted alarm reports. Camera beeps and blinks a er
ac va on of any sensor.

In the REPORT mode, the camera sends a special report to all contacts (call,
MMS etc.) according to the camera settings.
Example of an SMS from the camera: Camera EYE-02 reports: User originated
camera test External wireless device RC-80(1), Time:13/11/2008 11:33:49.
press and buttons
simultaneously for about
4 sec

In this special mode camera behaves as a standard USB flash disk. It allows to
access files on the SD memory card without installation of a special camera
driver to PC.
Press power button in
CONFIG mode for 3 seconds
(until camera makes 4-beeps)
To protect the camera’s safety, special modes will be closed automatically after a 5 minutes timeout and the
camera returns to CONFIG mode.
1 The Red light disappears when the fault has been resolved or user has switched mode.

JR_EYE-02.ENG.MAN.Manual.19.C-2A - 7 -



The EYE-02 camera allows fast and simple setting of all necessary detector parameters by selecting one of the pre-
defined PROFILEs. These profiles are suitable for most camera applications. If necessary, the profile may be further
adjusted by the user.
�
HOME profile has been designed for camera installation inside a building
(house, flat, office). During the WATCH mode, there are no movements of
people, no wind drafts, no significant temperature changes, or loud noises
etc. expected.
The TILT detector is active also in the SLEEP mode to protect the camera
against an unwanted manipulation.
�
OUTDOOR profile fits best camera installation outside your home.
The camera significantly reduces its detectors’ sensitivity in the OUTDOOR
profie as there are many possible sources that could cause a false alarm
triggering (sunshine, animals, street noise, wind, etc.).
For outdoor installation see chapter 5.9.
�
This profile is suitable for installation inside your garage. It is similar to
the HOME profile. Additionally, the GARAGE profile provides a 30-second
entrance delay. It allows you to open the garage or home entrance door first
and switch the camera to the SLEEP mode during this delay.
�
Profile CARE has been especially designed for monitoring small children and
elderly or disabled people.
The camera used in the CARE profile allows
the user to leave its home, stay in a short distance
away from the home and watch its sleeping baby or ill
grandmother etc. at the same time.The camera is activated
by any movement or by a PANIC alarm
(triggered by a personal wrist button)
The internal acoustic camera signals are disabled in the CARE profile. Also the TILT detector is blocked to allow
the camera manipulation.
�
The most powerful profile is SHOP. In this profile, all detectors are active,
including the permanent process of “Motion in Picture” detection. This profile
offers the highest quality of permanent monitoring; consequently it is the
highest energy consumption profile.
This profile perfectly fits places requiring a whole day monitoring and a full
protection during the night time, such as shops, office corridors and reception
areas, etc.
The default profile is HOME. For switching the profile used SMS command PROFILE (For details see chapter 4.2). You can
switch mode and make some additional sensor customization also in JabloTool software.

JR_EYE-02.ENG.MAN.Manual.19.C-2A - 8 -



The EYE-02 camera integrates a wide range of detectors. This sophisticated solution of combining various types of
detectors enables the user to protect the desired area from a wide range of threats. This chapter briefly describes
individual detector principles necessary for a correct setting of detection.
�
PIR detector (Passive InfraRed sensor) or a Human Body Detector is the most common type of professional
security systems detectors. PIR can detect even very small changes of temperature differences in front of the
camera.
�
The key principle of this detector is derived from a professional surveillance camera system. It analyzes the scene and
detects any change in the picture permanently.
A sophisticated digital algorithm provides an excellent resistance to false alarms caused by non-essential changes in
pictures (getting dark, switching on the street lamps, etc).
The user can simply mask-out (hide) a part of a picture in order not to detect changes in this part (mask of the street
traffic, etc.) and set the sensitivity according to the size and speed of change in the picture.
As the DSP method is energy demanding, MIP is usually activated after some alert from the PIR detector.
�
Glass-break detector uses a digital signal analysis from the microphone and is able to detect a characteristic sound of the
window breaking up to 9 meters away.
The Door-Opening-Detection is a special type of the detection that uses the acoustic signal filtering. It allows detection of
the infrasonic wave (pressure wave) caused by a door or window opening.
GBS sensor can be used for indoor installations only.
�
Built-in tilt and vibration detector can detect a tampering or an unwanted manipulation of the camera.
Example: Stealing the camera body or changing camera position.
As vibration detectors are very sensitive, it should not be used for outdoor installation to prevent the false
alarms caused by the wind gusts. The vibration detector sensitivity reduction may be necessary also for
indoor installation with usual vibrations in some cases.
The detectors are optimized for application in rooms with a maximum distance up-to 10 meters.
�
Each detector can be configured to 3 sensitivity levels and 3 levels of analysis.
Higher sensitivity settings mean that detector si activated more easily.
Example: Smaller movement or smaller vibration will be interpreted as activation.
Higher analysis level means that for activation more analysis has to be made before it is rated as activation.
Example: The movement or sound have to last longer or object (person) has to cross more detection zones etc..

The EYE-02 camera can report events to mobile phones (via voice call , text message , MMS ) or to e-mail
addresses. Up to 10 different phone numbers and 10 e-mail addresses can be saved to the camera list.
�
Each stored contact can have its own report level set. Three levels (Normal,
Extended, All Details) indicate how many events are
reported to the contact.
The extended level of reporting is assigned only to the first enrolled contact,
all additional contacts get normal level.
REPORT LEVELS ALARMS TROUBLES STATUS
CHANGES
NORMAL _ _
EXTENDED _
ALL DETAILS
�
By default settings, camera sends alarm report as MMS and makes a call to all enrolled contacts. All other reports come
as SMS to the user.

JR_EYE-02.ENG.MAN.Manual.19.C-2A - 9 -


[phone]
From:
[phone]
----------
X i m u r a c e r u m
terunterem co
in tuitatus is?
terunterem co
in tuitatus is?
Ximuracerum terunterem co in
tuitatus is? terunterem co in
tuitatus is?
From:
[phone]
---------
http ://ARC
From:
[phone]
ARC e-mail
Call
SMS
SMS
MMS
Security agency ARC
database
http://ARC...
From: eye-02@...
To: Mr.James
Subject: Alarm
---------------------
Attachments: Video.avi
X i m u r a c e r u m
terunterem co
in tuitatus is?
[phone]
�
To add a new contact by calling, you can call the EYE-02 camera directly from a new phone number while the camera is in
the ENROLL mode.
New contacts may also be added via an SMS command (see chapter 4.2, CONFIG commands).
The most comfortable way of editing contacts is JabloTool software. You may simply edit the numbers or e-mail adresses
and completely customise what events will be reported at which reporting level.

Consider also the possibility connecting the EYE-02 to the security agency Automatic Receiving Centre (ARC, see
section 5.3). If you are not going to use ARC, think about whom should be sent the alarm information. In case
remote location it is useful to add someone who is at camera‘s place (neighbours, etc.).
If there are no phones saved in the contact list (after installing a new EYE-02 camera or after using the factory reset
function), the camera switches automatically to ENROLL mode (after power on) and waits for an incoming call.
Camera sends e-mails with the reply address [e-mail] . Please check your e-mail client SPAM
filter to accept e-mails from this address.

JR_EYE-02.ENG.MAN.Manual.19.C-2A - 10 -



Camera is not protected by any password in the factory settings.
Without setting a password the camera processes incomming SMS messages or receives calls only from phone numbers
stored in Contacts. It is possible to setup two passwords. For password setting or changing use JabloTool or configuration
SMS commands (chapter 4.2).
�
This password protects any access to your camera (SMS, JabloTool).
If it is used, camera process SMS messages that begins with the password from any phone number.
�
This password protects camera configuration. (The contacts are not part of configuration.)
Password can contain 4-31 characters, allowed symbols are 0..9, a..z, A..Z. Password is not case sensitive.
Protect your camera by setting the Remote Access Password.



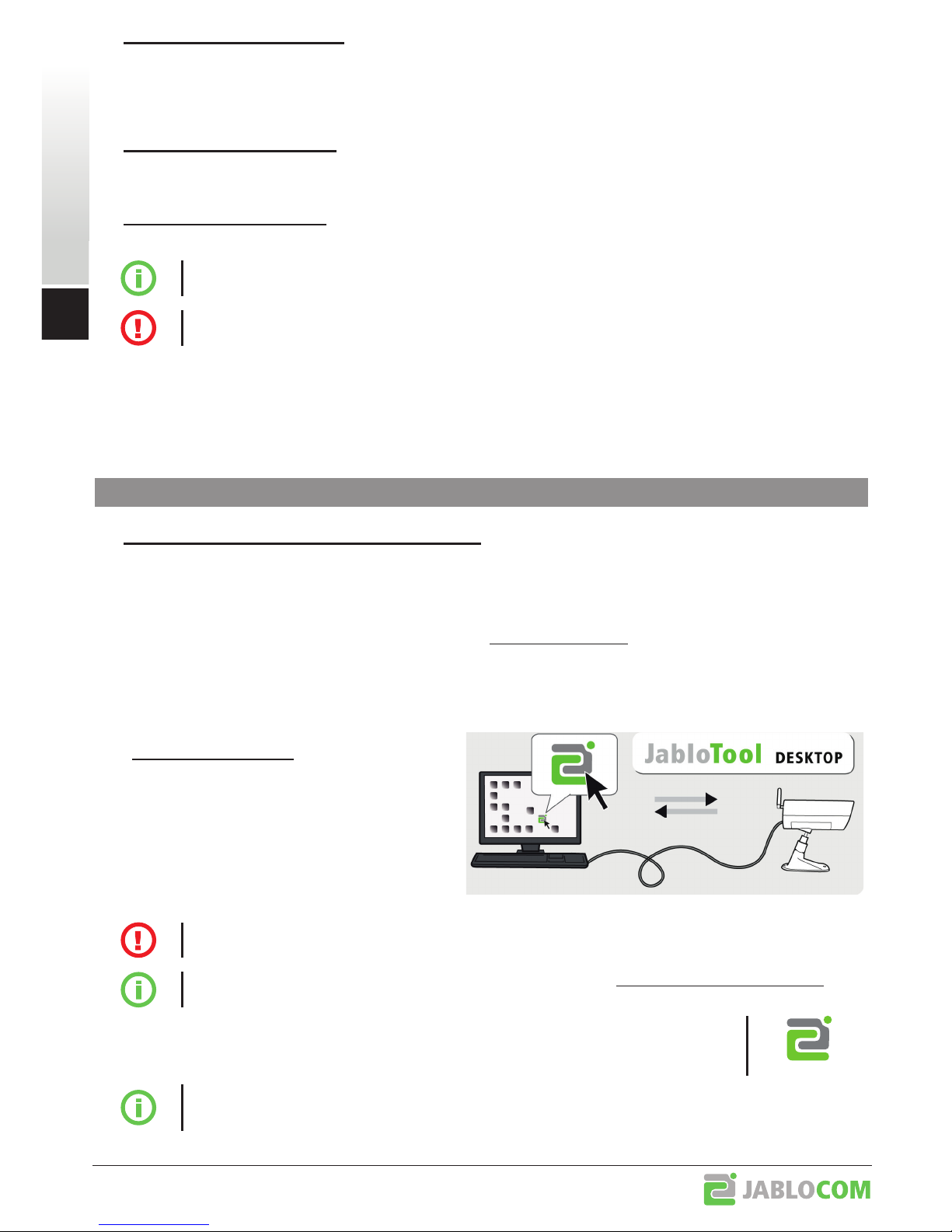

The most convenient way to set-up the EYE-02 camera and configure its parameters is by using PC and the JabloTool
software.
JabloTool
 is available as a software on the installation CD included in the camera package.
JabloTool
 works remotely with the camera from www.jablotool.com .
Function of both JabloTool versions are the same, the only difference is in the method of connection to the camera
-
 requires a connection to the internet and establishes a cable-free connection with the camera,
 interconnects the camera with the PC by a USB cable. The advantage of the USB connection is a
faster data transfer from the camera.
�
Load the installation CD to your computer, start the
 and follow the program instructions.


Do not connect the EYE-02 camera to the USB on your computer until you have finished installing the
JabloTool software from the CD!
The latest version of the installation software can be downloaded from www.jablotool.com/download.

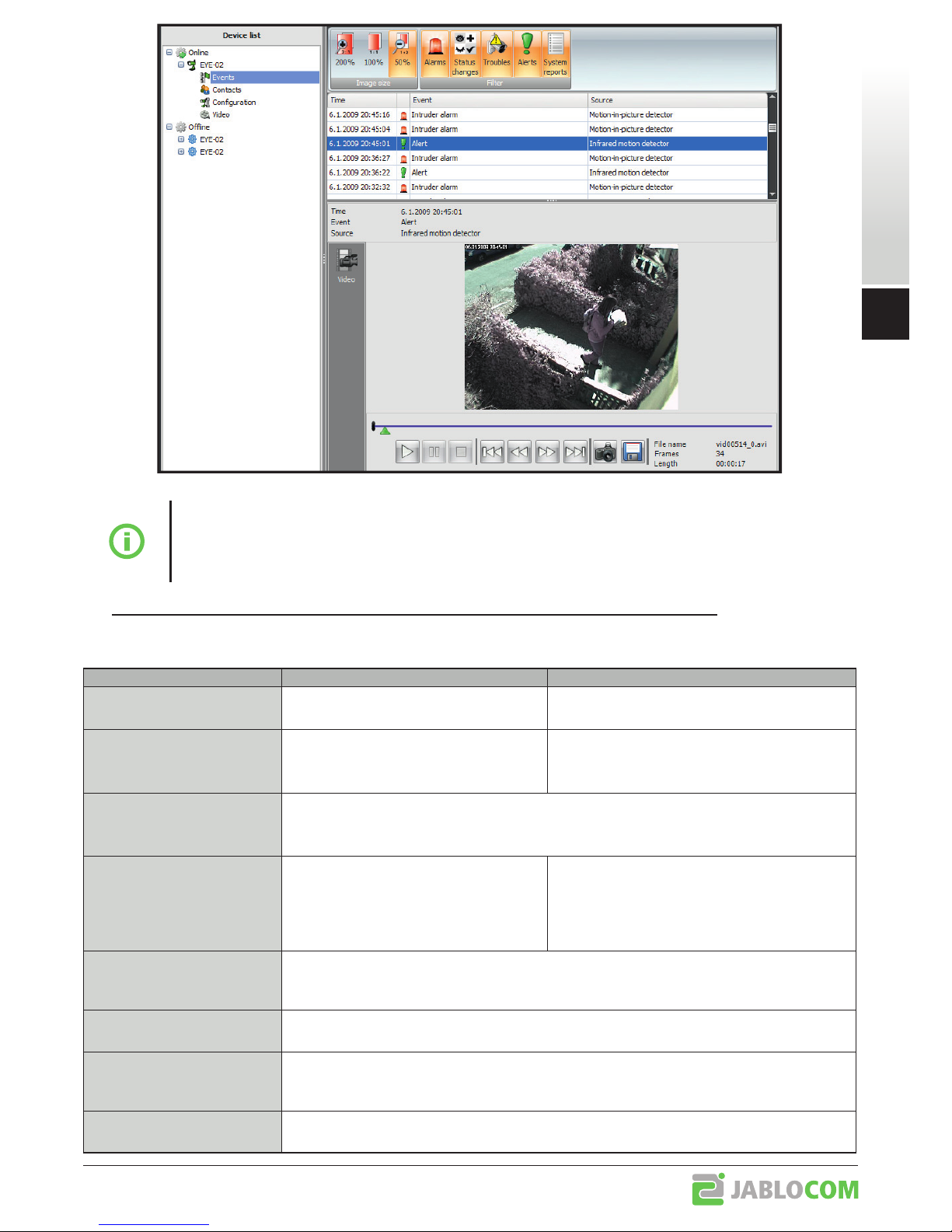

Turn the camera On and connect it to the computer by the USB cable. Wait until the operating
system recognizes the camera. Click on the JabloTool icon on the desktop than to load the program
and follow instructions on the screen. JabloTool
The maximum length of a USB cable is usually 5 meters. If your EYE-02 camera is too far, you may need to
remove it temporarily from its location or bring your PC nearer.
