TP-83N Wireless programmable indoor thermostat 1 / 2 MKL51905
TP-83N Wireless programmable indoor thermostat
The TP-83N is a wireless programmable indoor thermostat with a weekly heating
schedule. It can regulate the economical or comfort temperature inside residential
buildings. It offers a few programmable modes. Every mode regulates pre-set
temperatures (Comfort,Economy,Holiday, Party).Thethermostat is able to measure
the thermal inertia inside the premises and adjust the weekly schedule for the
requestedtemperaturetobe reached at thepre-set time.
Figure 1: 1- knob (encoder) combined with button; 2- tab
Thermostat installation
The product can only be used in an indoor environment. Install the thermostat 1.5
m above the floor in a place where there is good natural air circulation. Don´t install
the thermostat where the measuring can be influenced by drafts, sunlight, heaters or
any other effects. Avoid mounting the thermostat on metal objects or metal bases
whichblockradiocommunication.
1. By pressing the tab (by screwdriver for instance) release the front part of the
thermostat.
2. Installtherear partof the thermostat atthechosenplace (tabdown).
3. Insertthebatteries, the polarityismarkedon the plastic.
4. Putback thefrontthermostatpart and close it.
Enrolling the thermostat
Install and connect the receiving unit to the heating appliance. If the receiver has
been bought independently, you have to enroll the thermostat to it first. Open the
enrollment mode on the receiver (see its manual) and insert the batteries into the
thermostat or press and hold the knob for 5s. In both cases the thermostat will send
anenrollmentsignal.
Symbols on the LCD: Figure 2: 1 –Symbols for
comfort and economical
temperatures; 2 –The days of
the week; 3 –Locking the
thermostat; 4 –Alarm
temperature –limits / loss of
communication; 5 –Heating
ON / OFF; 6 –Holiday; 7 –Party;
8 –Heating times; 9 –Symbols
for showing temperature time and
texts; 10 –Low battery
Settings and programming
Do the complete settings using the knob –encoder. By pressing the knob 2 sec
enter the programmingmode.
Generalrulesforprogramming:
1. Flashing of any icon on the LCD allows changing the option(s) or choosing a
nextitem.
2. Perform choosing or changing by turning the knob (turning the knob is possible
fromleft torightandviceversa).
3. Confirmtheselectionorchangebybrieflypressingthe knob.
4. When the value of an item has been changed, then after this briefly press the
knob and the changes are saved. Then the thermostat goes to the next item in
theprogrammingmenu.
5. After the setting / change of the chosen items, select the parameter „OK“, in the
menu. By short pressing the system returns back to the previous menu (up to
themainmenu).
6. If there is no manipulation of the knob for 30 sec, it returns you back to the
previousmenuautomatically.
The basic menu has 7 groups of settings.
MAnManual mode
LOcLocking the thermostat
OFFSwitching off the thermostat
SEt1 Temperature, date and time settings
SEt2 Weekly schedule setting
SEt3 Service menu
OK Saving the parameters and leaving the service menu
1. MAn –manual mode
The temperature is set manually regardless of the weekly
schedule and is kept. Enter the menu and press the knob on
the item Man, the option ON (switched on) appears. By
turning the knob select the requested state and confirm by
pressing. The temperatures tLo and tHi determine the regulation range pre-
programmed in the service menu SE t3, in which you can select the temperature by
turning the knob. Choose the requested temperature. If the chosen temperature is
lower than the required temperature, the thermostat shows the symbol (▲) on its
LCD display. By entering the menu Man and confirming the option OFF , manual
modeisterminated.
2. LOc –Locking the thermostat
To protect the thermostat against unwantedmanipulation you
can lock the thermostat. Enter the menu and press the knob
on the item LOc, the options ON/OFF appear. By turning the
knob select the requested state and confirm by pressing.
Choosing ON enables the function Lock, and blocks thermostat control. To unlock
the thermostat choose the option OFF. Locking the thermostat is indicated on the
LCDbythe symbol.
3. OFF –Switching off the thermostat
The thermostat can be switched off by the option OFF. Enter
the menu and press the knob on the item OFF, the options
ON/OFF appear. By turning the knob select the requested
state and confirm by pressing. Choosing ON enables the
function OFF, and switches off the thermostat. This is indicated on the LCD by the
text OFF. Although the thermostat has been switched off, it still measures and
detects the antifreeze temperature (see SE t3, Stby). To unlock the thermostat enter
themenu and choose the option OFF. When the knob is pressed the thermostat will
be unlocked.
4. Set1 - Temperature, date and time settings
In the Set1 menu the comfort temperature( ), the economy
temperature ( ), the temperature for Holidaymode( ), and
the data and time can be preset. Enter the menu Set1, and
on the LCD the symbol of the economy temperature starts
flashing. By turning the knob select the requested item ( , or ), by pressing the
knob the symbols for temperature start flashing and again by turning the knob set the
required temperature and by repeatedly pressing the knob confirm this setting. The
last item serves for setting thecurrent time. It indicates using flashing symbols of the
days of the week. By pressing you enter the current time setting. It starts with the
year. Pressing gets it flashing, and by turning the knob set the year, by pressing
again it saves the setting and then you continue the same way in setting the current
month, day, hour and minute. Then by pressing the knob after the minute setting the
values aresaved andthe thermostat is back in the menu Set1. Select the item OK to
leavethis menu.
5. SEt2 –Weekly schedule setting
The heating program for switching the comfort and the economy temperatures can
be set for every single day independently (Mo - Monday, Tu - Tuesday, We -
Wednesday, Th - Thursday, Fr - Friday, Sa - Saturday, Su - Sunday) or it can be split
into working days and the weekend. Thereis onemore option - thesame settings for
alldays with no difference.
Enter themenu Set2, and by turning theknob selectthe combinationofdays which
is required. Confirm by briefly pressing the knob.
It enters the programming of heating time periods when the thermostat switches
betweenthedaytemperatureandthenighttemperature.
Programming always starts at 00 hrs. By turning the knob
clockwise, you can move through the time line. Press the knob
at the point from which you want to start with the heating to the
comfort temperature. The symbol changes to the . Now by
turning the knob clockwise the points appear which represent
the hours for which heating is performed to the economy
temperature. By turning the knob anti-clockwise the points are
erased. Pressing the knob more switches the economy
temperature to the comfort temperature. By repeating this
procedure the comfort and economy temperatures can be set
for a selected day (or for a group of a few days). After the
programming of thewhole dayhasbeenfinished,the thermostat
shows you OK. When the knob is pressed, all settings are
saved.

TP-83N Wireless programmable indoor thermostat 2 / 2 MKL51905

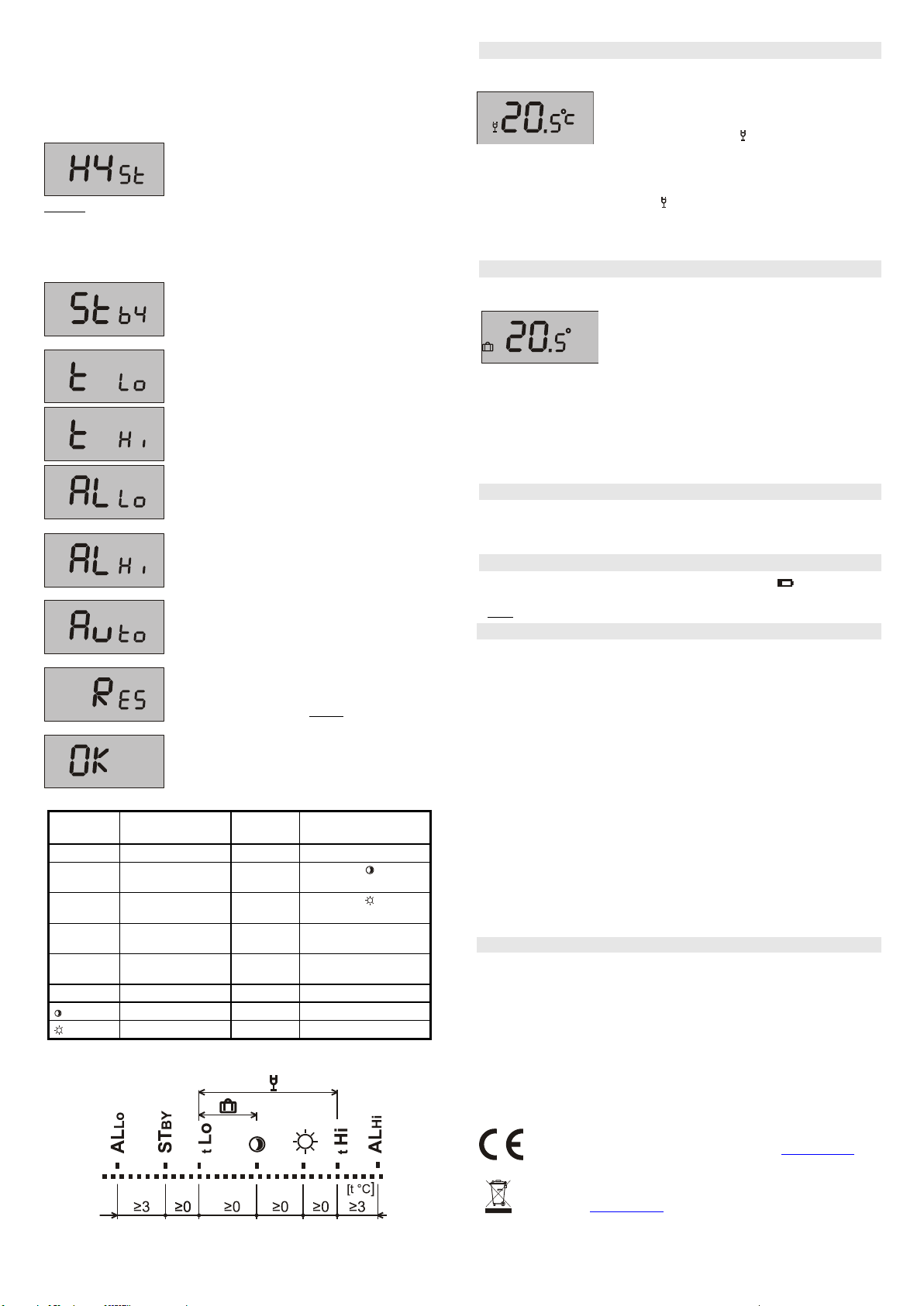

6. SEt3 –Service menu
The service parameters can be pre-programmed here. In normal mode it is not
necessary to change those parameters. The Service menu includes 9 items. Open
by scrolling the knob to the requested item and by pressing the knob to enter the
programming mode. Select the value again by scrolling the knob. Confirm it by
pressing theknobandit returns youback to theservicemenu.
HYst is an item, where you can program the range of the
switching thresholds around the requested temperature
(hysteresis). The range can be set with a 0.1°C step from
0.1°Cto1°C.(Defaultsetting 0.2°C)
Example: With a set accuracy of ±0.5˚C a temperature of 24°C will be kept this way, at
23.5°C it starts heating and at 24.5°C it stops heating. In real conditions regulation could
have a much bigger temperature scatter because of the thermal inertia in the heated
premises.
Warning: An over-narrow pre-programmed hysteresis range could perform
on/off switching of the heating veryoften.
The item Stby sets the temperature which will be kept in
the case of switching off the thermostat (item OFF).
TheStby temperature is always at least 3°C higher than
ALLo.The value oftheStbytemperature doesnot have to
beset higherthanthet Lo temperature.
The t Lo item is the lower limit to which the economical
temperate can beset.
The t Hi item is the upper limit to which the comfort
temperaturecanbeset.
AL Lo is the lower critical temperature. When the
temperature drops under the pre-set value, the thermostat
sends an alarm report to the receiver and this state is
indicated by a permanently lit (!) symbol. TheALLo
temperatureisalways atleast3°Clowerthan tLo.
AL Hi is the upper critical temperature. When the
temperature increases above the pre-set value, the
thermostat sends an alarm report to the receiver and this
state is indicated by a permanently lit (!) symbol. The ALHi
temperatureis always at least3°C higher than tHi.
By this item you can turn the adaptive pre-heating On or
Off according to theheating systeminertia. Whenenabled,
the thermostat starts measuring the time after which it has
reached the requested comfort temperature and according
tothistimeitstarts futurepre-heating.
For a resetto factorydefault settings the RES item isused.
After you enter the menu and press the knob on the RES
item ON/OFF appears. By scrolling the knob select ON,
and press the knob. Then a RESET will be done. When
the resetis finished,a20°Ctemperatureis pre-set.
Bypressing the knob when the thermostat shows you OK
you leave the service menu and return to the basic
thermostatmenu.
Range of temperatures settings.
Settings
item
Range
Factory
settings
Description
HYst
0.1°Cto1°C
0.2°C
Hysteresis
t Lo
+6°C to+40°C*
6°C
Lower limitof
temperature
tHi
+6°C to+40°C*
40°C
Upperlimitof
temperature
AL Lo
–9°Cto+20°C
3°C
Low temperaturealarm
report
AL Hi
+30°Cto+70°C
60°C
High temperaturealarm
report
Auto
On/OFF
On
Adaptivemode
+6°C to +40°C
18°C
Economicaltemperature
+6°C to+40°C
21°C
Comforttemperature
* The ranges of t Lo and t Hi can´t overlap each other.
Party mode
The thermostat can allowa special Party mode. In this modethe thermostat keeps
the temperature for a pre-defined time. You can only enter the party mode from the
weekly program (not from the manual mode). When that
defined time expires the thermostat goes back to the
weeklyprogram.
By turning the knob the ( ) symbol appears. Then by
pressing the knob enter the Party mode settings. The first
value is time (hrs) after which the thermostat returns to the weekly program. Choose
this value by turning the knob and by pressing to confirm it. Then select the
temperature which the thermostat will keep by turning the knob, confirm by pressing.
The Party mode is indicated by the ( ) symbol of a glass on the thermostat LCD
display. The temperature can bepre-set inthe tLo –tHirange.
If you want to leave the party mode earlier than the pre-defined time, by turning the
knobselecttheweeklyprogramandconfirmbypressing.
Holiday mode
Because of saving costs when nobody is in the building, it is not necessary to keep
the pre-defined temperature in the service menu (a holiday typically) the thermostat
can be switched to the Holiday mode. The thermostat
keeps the temperature pre-set in the Set1 menu. You
can enter the holiday mode only from the weekly
program(not from the manual mode).
You can enter the Holiday mode only from the weekly
program (not from the manual mode) by turning the knob until the suit case symbol
appears. By pressing enter the settings. The LCD display shows a flashing value of
days for which the economical temperature has to be kept. By turning theknob, pre-
set the number of requested days and then press the knob to confirm it. The time
countdown starts from the moment of setting. Subtraction is done every day at
midnight. When Holiday mode expires the thermostat returns to the weekly program.
Note:Theday when the settings were doneisalsosubtracted.
Showing the pre-set temperature
The thermostat always shows the current room temperature in the normal mode.
Briefly pressing the knob will showthe temperature which has been set for this time.
Thepre-set temperatureflashes3s thenit showsthecurrent temperature again.
Replacing the batteries
When the thermostat starts to indicate the Low Batt symbol ( ) or stops working
completely,replacethebatteriesfornewones.ALowbatteryreportissenttothereceiver.
Note:We stronglyrecommendonly using alkaline batteries, typeAA 1.5V.
Integration into the OASiS system
The thermostat can be enrolled to a control panel as a detector. If the temperature
decreasesbelowALLo a panic alarm willbetriggered =frostthreat(heatingfailure).
If the temperature exceeds AL Hi thenafire alarm will betriggered.
An AC-82 receiving unit (AC-82) has two output relays (X and Y). Thermostats can be
enrolledseparatelytoeachrelayinordertocontrol two independent heating circuits.
To operate a heating system the OASIS control panel can also be enrolled (sequence
299) to the same relay of the receiving unit (AC-82) as the thermostat is enrolled to. A
thermostat enrolled to the Xrelay can be operated via the PGX programmable output,
and a thermostat enrolled to the Yrelay operated via PGY. If the programmable output of
the control panel is switchedon, the thermostat maintains the programmed temperature.
If the control panel´s output is switched off the thermostat only triggers heating if the
temperature drops belowStby.
To operate the heating, RC-80 or RC-88 remotecontrols can also be enrolled to receiving
unit (AC-82). The heating can be switched on by remote controls to heat th the desired
temperature and also switched off where it only heats when the temperature is below
Stby.
To disable heating when windows are open JA-81MorJA-82Mdetectors canalsobe
enrolledtothe same relayasthe thermostat is enrolled to.Ifthe windows are closed it heats
to thedesired temperature and if windows are open it heats only when the temperature is
belowStby.
Up to 8 thermostats can be enrolled to a single relay. If at least on the thermostat
transmitsaheat command thenthe relaywill beswitchedon.
Technical specifications
Power: 2x AA 1.5 V alkaline batteries
Lifetime of batteries: typically 1 year
Regulation range: +6°C to +40 ˚C
Temperature regulation sensitivity: adjustable: ± 0.1- 1 ˚C
Alarm when temperature drops below ALLo: -9 to +20°C
Alarm when temperature exceeds ALHi: +30°C to +70°C
Communication band: 868.5 MHz, OASIS protocol
RF range: up to 100 m (open area)
Operational temperature: -10°C to + 70°C (no condensation)
Dimensions: 66 x 90 x 22 mm
Complies with ETSI EN 300220, EN50130-4,
EN55022, and EN 60950-1
Can be operated according to ERC REC 70-03
JABLOTRON ALARMS a.s. hereby declares that the TP-83N module is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
The original of the conformity assessment can be found at www.jablotron.com -
Technical Support section
Note: Although this product does not contain any harmful materials we suggest you
return the product to the dealer or directly to the producer after use. For more detailed
information visit www.jablotron.com.
