Jacobsen 88006 Sand Scorpion User manual

Parts & Maintenance
Manual
Part No. 3007812-Rev B
GB
Sand Scorpion™
88006, 2WD Electric Sand Scorpion

Copyright 1999 Textron Inc. “All rights reserved, including the
right to reproduce this material or portions thereof in any form.”
To Order Parts
1. Write your full name and complete address on the
order.
2. Explain where and how to make shipment.
3. Give product number, name and serial number that is
stamped on the name plate or serial plate located on
the left rear frame of your product.
4. Order by the quantity desired, the part number, and
description of the part as given in the parts list.
5. Send or bring the order to an authorized Textron Turf
Care And Specialty Products Dealer.
6. Inspect all shipments on receipt. If any parts are
damaged or missing, file a claim with the carrier
before accepting.
7. Do not return material without a letter of explanation,
listing the parts being returned. Transportation
charges must be prepaid.
Use of other than Textron Turf Care And Specialty Products
authorized parts and accessories will void the warranty.
Table of Contents
1 Safety
1.1 Operating Safety............................................... 4
1.2 Important Safety Notes .....................................5
2 Specifications
2.1 Product Identification ........................................ 6
2.2 Tractor ..............................................................6
2.3 Electrical System & Batteries ............................6
2.4 Weights and Dimensions ..................................6
2.5 Torque Requirements .......................................7
2.6 Accessories ......................................................7
2.7 Support Literature .............................................7
3 Adjustments
3.1 General ............................................................. 8
3.1 Parking/Service Brake ......................................8
3.2 Brake Switch .....................................................9
3.3 Forward/Reverse Switch ...................................9
3.5 Torque Specification .......................................10
4 Batteries
4.1 Safety.............................................................. 11
4.2 General ...........................................................11
4.3 Maintenance ...................................................12
4.4 Electrolyte level and water ..............................12
4.7 Cleaning Batteries ..........................................13
4.9 Battery Installation ..........................................14
4.11 Battery Charging .............................................14
4.12 Troubleshooting ..............................................15
4.13 Hydrometer .....................................................15
4.15 Prolonged Storage ..........................................17
4.17 Charger Installation .........................................17
4.18 Replacing Battery Tray ...................................18
5 Maintenance
5.1 General .......................................................... 19
5.2 Maintenance and Lubrication Schedule ......... 19
5.3 Tires ............................................................... 20
5.4 Care & Cleaning ............................................. 20
5.5 Electrical System ............................................ 20
5.6 Storage ........................................................... 21
6 Troubleshooting
6.1 Traction Control System (TCS) ...................... 22
7 Lubrication
7.1 General .......................................................... 24
7.2 Rear Axle ....................................................... 24
8PartsCatalog
8.1 Table Of Contents .......................................... 25

3
Suggested Stocking Guide
To Keep your Equipment fully operational and productive, Textron Turf Care And Specialty Products suggests you
maintain a stock of the more commonly used maintenance items. We have included part numbers for additional
support materials and training aids.
To order any of the following material:
1. Write your full name and complete address on your
order form.
2. Explain where and how to make shipment:
 UPS  Regular Mail
 Overnight  2nd Day
3. Order by the quantity desired, the part number, and
the description of the part.
4. Send or bring the order to your authorized Textron
Turf Care and Specialty Products Dealer.
How To Use This Manual
Abbreviations
N/S - Not serviced seperately, can only be obtained by ordering main component or kit.
AR -Variable quantity or measurement is required to obtain correct adjustment.
Symbols such as
 , next to the item number, indicate that a note exists which contain additional information
important in ordering that part.
Bulleted Items
Bulleted items indicate component parts that are included as part of an assembly or another component. These parts
can be ordered separetely or as part of the main component.
Item Part No. Qty Description Serial Numbers/Notes
 1 123456 1 Mount, Valve Indicates a piece part
2 789012 1 Valve, Lift Includes Items 2 and 3
3 345678 1 • Handle Serviced part included with Item 2
4 N/S 1 • Seal Kit Non serviced part included with Item 2
5 901234 1 Screw, 1/4-20 x 2” Hex Head
Service Parts
Service Support Material
Qty. Part No. Description Qty. Part No. Description
3007341 Fuse, 20 Amp 363642 Fuse, 10 Amp
558015 Ignition Key Switch 5002575 Head Light Bulb
Qty. Part No. Description
3007811 Safety & Operation Manual
3007812 Parts & Maintenance
5002908 Video, Operator Training
Qty. Description
Service Manual

1SAFETY
4
1SAFETY
1.1 OPERATING SAFETY ______________________________________________________
1. Safety is dependent upon the awareness, concern
and prudence of those who operate or service the
equipment. Never allow minors to operate any
equipment.
2. It is your responsibility to read this manual and all
publications associated with this equipment (Safety
and Operation Manual, engine manual, accessories
and attachments). If the operator can not read
English it is the owner’s responsibility to explain the
material contained in this manual to them.
3. Learn the proper use of the machine, the location
and purpose of all the controls and gauges before
you operate the equipment. Working with unfamiliar
equipment can lead to accidents.
4. Never allow anyone to operate or service the
machine or its attachments without proper training
and instructions; or while under the influence of
alcohol or drugs.
5. Wear all the necessary protective clothing and
personal safety devices to protect your head, eyes,
ears hands and feet. Operate the machine only in
daylight or in good artificial light.
6. Inspect the area where the equipment will be used.
Pick up all the debris you can find before operating.
Beware of overhead obstructions (low tree limbs,
electrical wires, etc.) and also underground
obstacles (sprinklers, pipes, tree roots, etc.) Enter a
new area cautiously. Stay alert for hidden hazards.
7. Never direct discharge of material toward
bystanders, nor allow anyone near the machine
while in operation. The owner/operator can prevent
and is responsible for injuries inflicted to
themselves, to bystanders and damage to property.
8. Never operate equipment that is not in perfect
working order or is without decals, guards, shields,
discharge deflectors or other protective devices
securely fastened in place.
9. Never disconnect or bypass any switch.
10. Engage parking brake before starting unit. Start the
unit only when sitting in operator’s seat, never while
standing beside the unit.
11. Equipment must comply with the latest federal,
state, and local requirements when driven or
transported on public roads.
12. Operate the machine up and down the face of the
slopes (vertically), not across the face (horizontally).
13. To prevent tipping or loss of control, do not start or
stop suddenly; reduce speed when making sharp
turns. Use caution when changing direction on
slopes.
14. Always use the seat belt when operating tractors
equipped with a ROPS.
Never use a seat belt when operating tractors
without a ROPS.
15. Keep legs, arms and body inside the seating
compartment while the vehicle is in motion.
This machine is to be operated and maintained as specified in this manual and is intended for the professional
maintenance of specialized turf grasses. It is not intended for use on rough terrain or long grasses.
WARNING
EQUIPMENT OPERATED IMPROPERLY OR BY UNTRAINED PERSONNEL CAN BE DANGEROUS.
Familiarize yourself with the location and proper use of all controls. Inexperienced operator’s should receive
instruction from someone familiar with the equipment before being allowed to operate the machine.
!

SAFETY 1
5
1.2 IMPORTANT SAFETY NOTES ________________________________________________
This safety alert symbol is used to alert you to potential hazards.
DANGER - Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.
WARNING - Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious
injury.
CAUTION - Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury
and property damage. It may also be used to alert against unsafe practices.
For pictoral clarity, some illustrations in this manual may show shields, guards or plates open or removed. Under no
circumstances should this equipment be operated without these devices securely fastened in plac
e
By following all instructions in this manual, you will prolong the life of your machine and maintain its maximum
efficiency. Adjustments and maintenance should always be performed by a qualified technician.
If additional information or service is needed, contact your Authorized Textron Turf Care And Specialty Products Dealer
who is kept informed of the latest methods to service this equipment and can provide prompt and efficient service. Use
of other than original or authorized Textron Turf Care And Specialty Products parts and Accessories will void
the warranty.
WARNING
The operator back-up system on this tractor prevents the tractor from starting
unless the brake lever is engaged and traction pedal is in neutral. The system
will stop the unit if the operator leaves the seat without engaging the parking
brake.
NEVER operate tractor unless the operator back-up system is working.
!
!
WARNING
1. Before leaving the operator’s position for any reason:
a. Return traction pedal to neutral.
b. Lower all implements to the ground.
c. Engage parking brake.
d. Stop unit and remove the ignition key.
2. Keep hands, feet, and clothing away from moving parts. Wait for all
movement to stop before you clean, adjust or service the machine.
3. Keep the area of operation clear of all bystanders and pets.
4. Never carry passengers, unless a seat is provided for them.
5. Never operate mowing equipment without the discharge deflector
securely fastened in place.
!

2 SPECIFICATIONS
6
2 SPECIFICATIONS
2.1 PRODUCT IDENTIFICATION _________________________________________________
88006............................ Sand ScorpionTM Electric
Includes seat and battery tray.
Does not include batteries.
Serial Number ..............An identification plate, listing the
serial number, is attached to the
frame of the tractor.
Always provide the serial number of the unit when
ordering replacement parts or requesting service
information
2.2 TRACTOR ________________________________________________________________
Tires.............................. 2-ply pneumatic tubeless
Tire Pressure................ 10-12 psi (69 - 83 kPa)
Wheels.......................... 22 x 11 x 10
Service Brakes ............. Automotive type drum
Parking Brakes ............. Attached to service brake
linkage, pedal mounted lock
Frame ............................Welded steel construction
High Speed....................0 to 10 mph (0 to 6 kph)
Low Speed ....................0 to 4 mph (0 to 2.5 kph)
Reverse Speed..............0 to 4 mph (0 to 2.5 kph)
Traction Drive ................2.0 hp, 48V electric motor, solid
state controller
2.3 ELECTRICAL SYSTEM & BATTERIES _________________________________________
For optimum range and performance use batteries that
equal or exceed the Amp/hr rating listed.
System Voltage............. 48 Volt DC
Batteries ...................... Six, 8 volt, deep cycle
Recommended Battery Sizes:
(USE ONLY 8 VOLT BATTERIES)
2.4 WEIGHTS AND DIMENSIONS ________________________________________________
Dimensions:
Inches (mm)
Length - Tractor only ........................................63 (1600)
Height - Top of Steering Wheel .......................52 (1320)
Wheel Base ..................................................42.5 (1080)
Width - (across wheels) ...................................58 (1473)
Tread Width .....................................................48 (1219)
Rake Width
Maximum ......................................................78 (1981)
Minimum .......................................................74 (1880)
Turning Radius
To Centerline of Tractor ................................30 (762)
Weight:
Lbs. (kg)
Working weight - less rake .......................... 1030 (470)
with T875 batteries
Battery tray and Batteries.............................. 410 (186)
with T875 batteries
Rake Attachment............................................. 75 (34)
Product EEC Sound
Power
Sound Pressure
Level Operator
Ear
Vibration m/s2
Arms Body
88006 <70 dB(A) <90 dB(A) 0.7 0.4
TR001
88006 1601
Length
in. (mm)
Width
in.
(mm)
Height
in. (mm)
Trojan
P/N
Weight
lbs. (kg)
Rating
Amp/Hr Volts Qty
Req’d
10-3/8
(264)
7-1/8
(181)
11-13/16
(284)
T-875 62 165 8 6

SPECIFICATIONS 2
7
2.5 TORQUE REQUIREMENTS___________________________________________________
Standard Jacobsen torque specifications for Grade 5
coarse hardware.
Size (Inches) Torque (Ft/Lb) Torque (Nm)
1/4 9.5 - 10.8 12.9 - 14.7
5/16 19.5 - 21.7 26.5 - 29.4
3/8 35 - 40 47.2 - 54
1/2 80 - 95 108 - 128
5/8 160 - 185 216 - 249
2.6 ACCESSORIES ____________________________________________________________
Contact your Jacobsen Dealer for a complete listing of accessories and attachments.
Battery Tray .................. ............................... 88017
(Includes lifting sling and wiring)
Rake.............................. ............................... 88014
Air Blow Gun ................. ............................... JAC5098
Touch-up Paint (12 oz. spray) ....................... 554598
2.7 SUPPORT LITERATURE ____________________________________________________
Contact your Jacobsen Dealer for a complete listing of literature.
Operator’s Manual
Parts Catalog

3 ADJUSTMENTS
8
3 ADJUSTMENTS
3.1 GENERAL________________________________________________________________
1. Adjustments and maintenance should always be
performed by a qualified technician. If proper
adjustment cannot be made, contact an authorized
Textron Turf Care And Specialty Products Dealer.
2. Replace, do not adjust, worn or damaged
components.
3. Long hair, jewelry or loose fitting clothing may get
tangled in moving parts.
4. Do not change governor settings or overspeed the
engine.
3.1 PARKING/SERVICE BRAKE _________________________________________________
Inspect brakes linings:
whenever wheels are pulled,
if tractor creeps on hills with parking brake applied,
there is a noticeable increase in stopping distance.
The brakes used on this tractor are self-adjusting. To
adjust, apply brakes while operating in reverse. If brakes
linings look good but brakes cannot be self-adjusted, it
may be necessary to adjust brake cable. If linings or
brake drums appear worn, they should be replaced by an
experienced service technician.

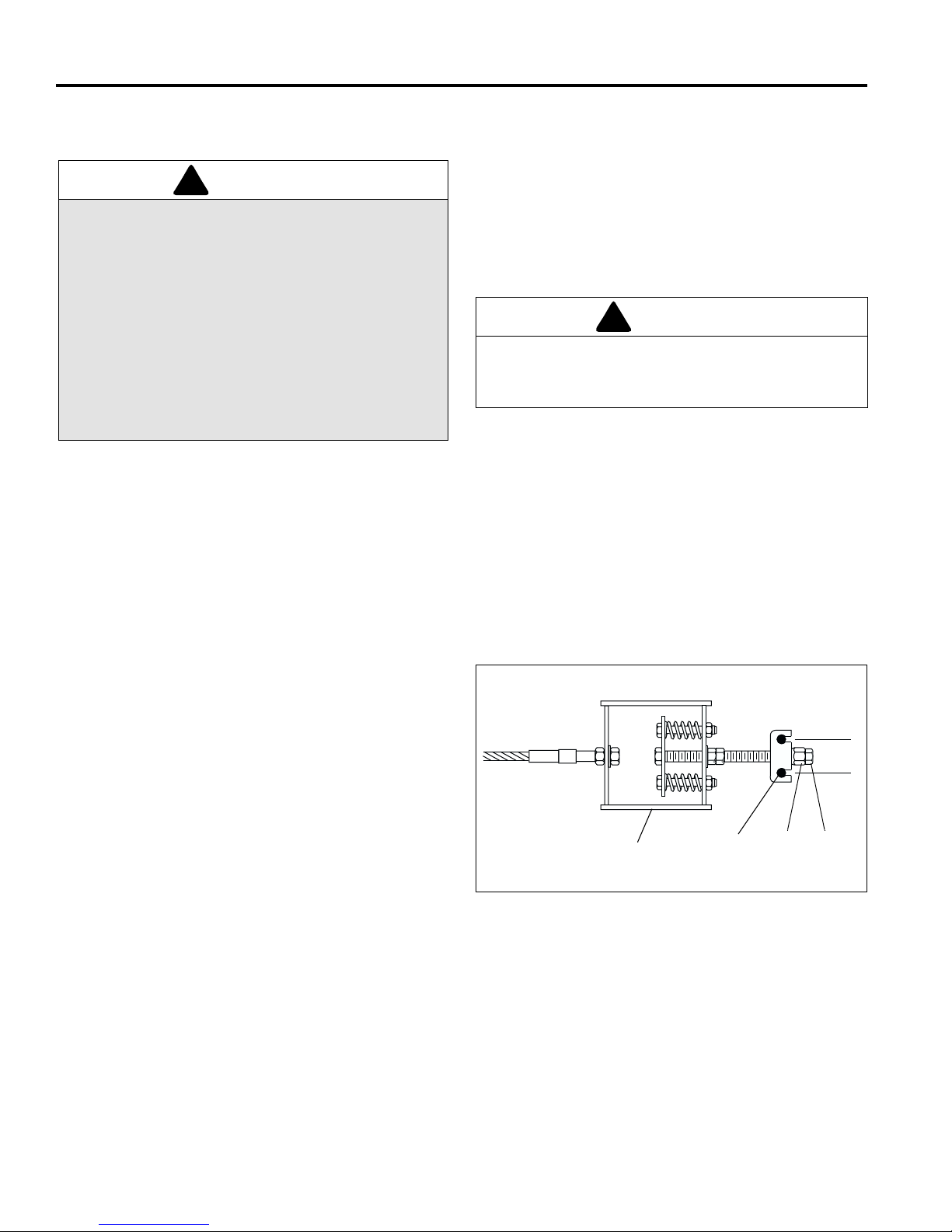

To adjust brake cable:
1. Raise tractor and support axle using jack stands or
blocks so that back wheels are slightly raised off the
ground. Block front wheel to make sure unit can’t roll.
2. Raise hood and remove battery tray to access brake
pull assembly (A).
3. Back off jam nut (B).
4. With the brake pedal all the way up (disengaged)
turn in adjusting nut (C) and spin wheels slowly by
hand until you feel brakes engage and wheels begin
to bind.
5. Back off adjuster nut slightly until wheels again turn
freely.
6. Tighten jam nut to lock adjustment in place.
7. Check that plugs (D) are in place in slotted holes on
equalizer bracket.
Before returning unit to operation, drive tractor in a flat,
open area and check operation of brakes to make sure
they are operating correctly. Check parking brake to
make sure it engages properly and prevents the tractor
from rolling downhill.
Figure 3B
WARNING
To prevent injury, lower implements to the ground,
disengage all drives, engage parking brake, turn off
power, remove key from switch and disconnect power
connector before making any adjustments or
performing maintenance.
Make sure the tractor is parked on a solid and level
surface. Never work on a tractor that is supported
only by the jack. Always use jack stands.
If only the front or rear of the tractor is raised, place
chocks in front of and behind the wheels that are not
raised.
!
CAUTION
Be careful to prevent entrapment of the hands and
fingers between moving and fixed components of the
machine.
!
AB
CD
TR013

ADJUSTMENTS 3
9

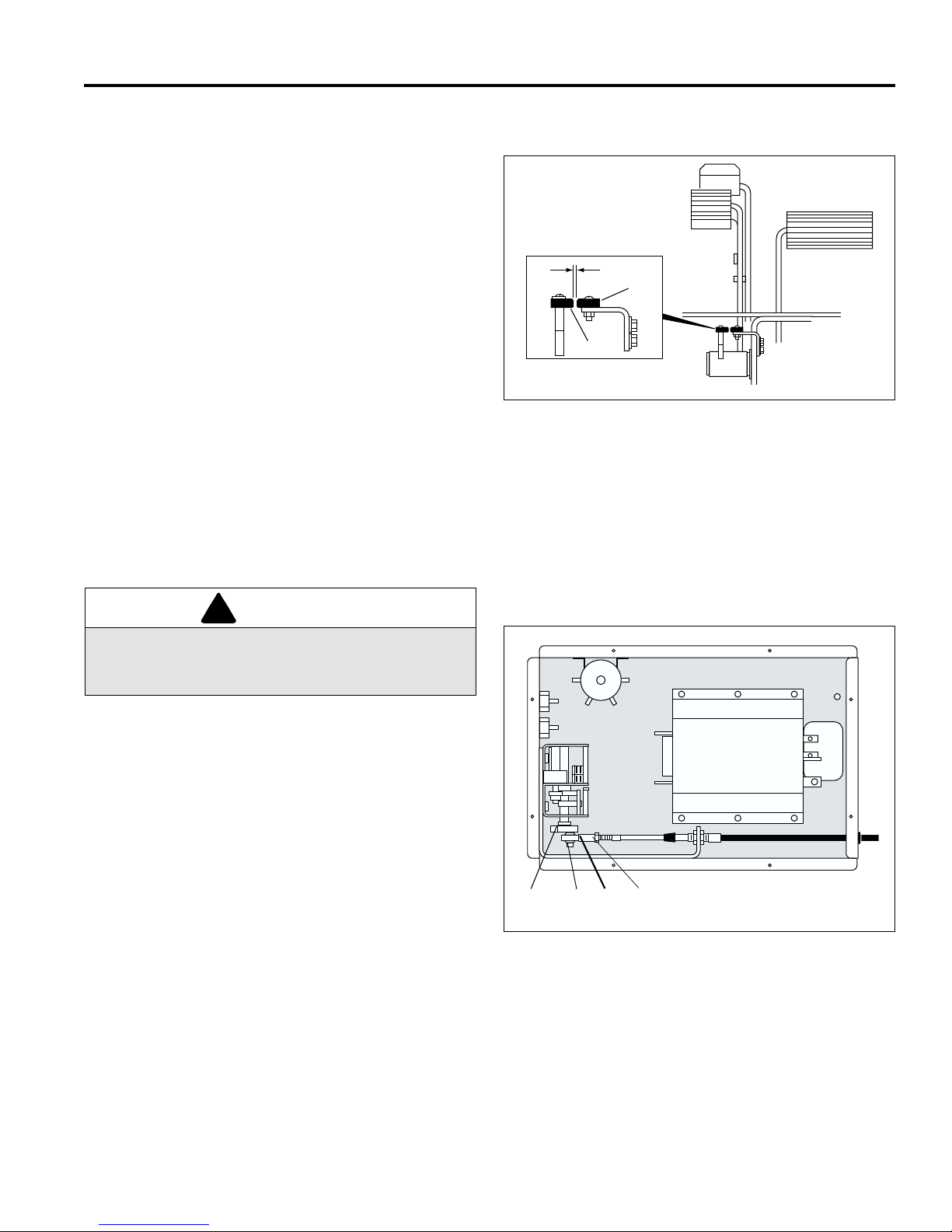

3.2 BRAKE SWITCH ___________________________________________________________
The brake pedal is equipped with a proximity switch. This
switch closes when the brake is engaged. If the operator
leaves the seat without engaging the brake the switch
remains open and will automatically shut the power off.
The switch consists of two pieces, a stationary sensor (J)
and a magnet (K) that pivots with the brake pedal. A
faulty or loose switch can prevent the unit from starting.
For correct operation, adjust air gap (I) between magnet
and sensor to 1/16” - 3/32” (1.5 - 2 mm).
Figure 3C
3.3 FORWARD/REVERSE SWITCH _______________________________________________
(neutral adjustment)
If error codes “-02”or“-03” occur repeatedly the forward/
reverse switch for the traction controller could be out of
adjustment.
To adjust forward/reverse switch:
1. Lift hood and remove top cover from electrical box.
2. Operate forward/reverse pedals and check that
cable linkage is operating smoothly. If cable is
binding, or linkage is bent or damaged, contact an
authorized Jacobsen Dealer for repairs.
3. Remove screw (E) holding cable end to forward/
reverse switch lever.
4. Back off nut (F) which secures rod end (H) to cable.
5. With the cable disconnected, the switch lever (G)
should return to its neutral position. Adjust rod end
on cable so it aligns directly with hole in lever.
Note:
If the alignment appears correct but the error
code continues to occur, the forward/reverse switch
may be faulty. Contact an authorized Jacobsen
Dealer for repairs.
6. Tighten jam nut to secure adjustment and reconnect
rod end to switch lever.
7. Start tractor and check that unit starts and operates
correctly.
Figure 3D
I
K
J
TR022
WARNING
Turn power off, remove key and disconnect the
battery connector before inspecting or working on or
near the electrical system.
!
EFGH
TR014

3 ADJUSTMENTS
10
3.5 TORQUE SPECIFICATION___________________________________________________
Textron Turf Care And Specialty Products uses Grade 5 bolts as standard, unless otherwise noted.
CAUTION
All torque values included in these charts are approximate and are for reference only. Use of these torque values is
at your sole risk. Textron Turf Care And Specialty Products is not responsible for any loss, claim, or damage arising
from the use of these charts. Extreme caution should always be used when using any torque value.
AMERICAN NATIONAL STANDARD FASTENERS
SIZE UNITS GRADE 5 GRADE 8
#6-32 in-lbs (Nm) 20 (2.3) –
#8-32 in-lbs (Nm) 24 (2.7) 30 (3.4)
#10-24 in-lbs (Nm) 35 (4.0) 45 (5.1)
#10-32 in-lbs (Nm) 40 (4.5) 50 (5.7)
#12-24 in-lbs (Nm) 50 (5.7) 65 (7.3)
1/4-20 in-lbs (Nm) 95 (10.7) 125 (14.1)
1/4-28 in-lbs (Nm) 95 (10.7) 150 (17.0)
5/16-18 in-lbs (Nm) 200 (22.6) 270 (30.5)
5/16-24 in-lbs (Nm) 240 (27.1) 300 (33.9)
3/8-16 ft-lbs (Nm) 30 (40.7) 40 (54.2)
3/8-24 ft-lbs (Nm) 35 (47.5) 45 (61.0)
7/16-14 ft-lbs (Nm) 50 (67.8) 65 (88.1)
7/16-20 ft-lbs (Nm) 55 (74.6) 70 (94.9)
1/2-13 ft-lbs (Nm) 75 (101.7) 100 (135.6)
1/2-20 ft-lbs (Nm) 85 (115.3) 110 (149.2)
9/16-12 ft-lbs (Nm) 105 (142.4) 135 (183.1)
9/16-18 ft-lbs (Nm) 115 (155.9) 150 (203.4)
5/8-11 ft-lbs (Nm) 150 (203.4) 195 (264.4)
5/8-18 ft-lbs (Nm) 160 (217.0) 210 (284.8)
3/4-10 ft-lbs (Nm) 170 (230.5) 220 (298.3)
3/4-16 ft-lbs (Nm) 175 (237.3) 225 (305.1)
7/8-14 ft-lbs (Nm) 300 (406.8) 400 (542.4)
AMERICAN NATIONAL STANDARD FASTENERS
SIZE UNITS GRADE 5 GRADE 8
METRIC FASTENERS
SIZE UNITS
Non Critical
Fasteners into
Aluminum
M4 Nm (in-lbs) 1.2 (11) 1.7 (15) 2.9 (26) 4.1 (36) 5.0 (44) 2.0 (18)
M5 Nm (in-lbs) 2.5 (22) 3.2 (28) 5.8 (51) 8.1 (72) 9.7 (86) 4.0 (35)
M6 Nm (in-lbs) 4.3 (38) 5.7 (50) 9.9 (88) 14.0 (124) 16.5 (146) 6.8 (60)
M8 Nm (in-lbs) 10.5 (93) 13.6 (120) 24.4 (216) 33.9 (300) 40.7 (360) 17.0 (150)
M10 Nm (ft-lbs) 21.7 (16) 27.1 (20) 47.5 (35) 66.4 (49) 81.4 (60) 33.9 (25)
M12 Nm (ft-lbs) 36.6 (27) 47.5 (35) 82.7 (61) 116.6 (86) 139.7 (103) 61.0 (45)
M14 Nm (ft-lbs) 58.3 (43) 76.4 (55) 131.5 (97) 184.4 (136) 219.7 (162) 94.9 (70)
4.8 5.8 8.8 10.9 12.9

BATTERIES 4
11
4 BATTERI ES
4.1 SAFETY__________________________________________________________________
Batteries contain dilute sulfuric acid which can result in severe burns.
Hydrogen gas is formed within a battery during the charging cycle. Hydrogen in concentrations of 4% and higher are
explosive and can be ignited by open flame or an electrical spark. A battery explosion will cause sulfuric acid and
battery components to be thrown over a large area with considerable force.
Always observe the following warnings when working on or near batteries:
4.2 GENERAL ________________________________________________________________
Temperature is important when conducting tests on a
battery and test results must be corrected to compensate
for temperature differences.
As a battery ages, it still performs adequately except that
its capacity is diminished. Capacity describes the time
that a battery can continue to provide its design amperes
from a full charge.
The batteries most commonly used in golf and utility
vehicles are lead acid.
A battery has a maximum life, therefore good
maintenance is designed to maximize the available life
and reduce the factors that can reduce the life of the
battery.
WARNING
The electrolyte in a storage battery
is a dilute acid which can cause
severe burns to the skin and eyes.
Treat all electrolyte spills to the body
and eyes with extended flushing
with clear water. Contact a physician
immediately. Always wear a safety
shield or approved safety goggles when adding water
or charging batteries.
Hydrogen is explosive in concentrations as low as 4%
and is generated in the charging cycle of electric
vehicles. Because it is lighter than air, it will collect in
the ceiling of buildings necessitating proper
ventilation. Air exchanges of 5 changes per hour is
considered the minimum requirement.
Never smoke around batteries.
Never charge batteries in an area that has open flame
or electrical equipment that could cause an electrical
arc.
Be sure that the key switch is off and all electrical
accessories are turned off before starting work on
vehicle.
Remove all jewelry (watches, ring etc.)
!
TR016
WARNING
Wrap wrenches with vinyl tape to
prevent the possibility of a dropped
wrench from ‘shorting out’a battery,
which could result in an explosion and
severe personal injury.
Use care not to tip batteries when
removing or installing them; spilled
electrolyte can cause burns and damage.
Electrolyte spills should be neutralized with a solution
of 1/4 cup (59.1ml) of sodium bicarbonate (baking
soda) dissolved in 1-1/2 gallons (5.7 liters) of water
and flushed with water.
Overfilling a battery could result in electrolyte being
expelled from the battery during the charging cycle.
Electrolyte may cause personal injury, damage to the
vehicle or damage to the storage facility.
Overfilling the batteries will void the vehicle and
battery warranties.
Never disconnect a circuit under load at a battery
terminal.
Wear appropriate protective clothing when working
with batteries. Electrolyte can cause severe burns to
the eyes, skin and clothing.
Batteries are heavy. Use proper lifting techniques
when moving them. Always lift the battery with a
commercially available battery lifting device
!
TR017

4 BATTERIES
12
4.3 MAINTENANCE ___________________________________________________________
Tool List
Insulated wrench, 9/16”
Insulated wrench, 1/2”
Battery carrier
Hydrometer
Before charging batteries
Inspect the connector housing of the battery charger and
vehicle connector housing for dirt or debris.
Charge the batteries daily after use.
Monthly
1. Inspect all wiring for frayed wire, loose connections,
corrosion or deterioration of insulation.
2. Check that the electrolyte level is correct and add
suitable water as required.
3. Clean the batteries and cable terminals.
4.4 ELECTROLYTE LEVEL AND WATER__________________________________________
The correct level of the electrolyte is at least 1/2”(13
mm) above the plates in each cell.
A battery being charged will ‘gas’, with the majority of the
gassing taking place at the end of the charging cycle.
This gas is hydrogen which is lighter than air. Water and
sulfuric acid droplets will be carried out of the battery
vents by the hydrogen gas; however, this loss is minimal.
If the battery electrolyte level is too high, the electrolyte
will block the vent tube and the gas will force it out of the
vent tube and battery cap. The water will evaporate but
the sulfuric acid will remain where it can damage vehicle
components. Sulfuric acid loss will weaken the
concentration of acid within the electrolyte and reduce
the life of the battery.
This level will leave approximately 1/4”-3/8”(6 - 10 mm)
of space between the electrolyte and the vent tube. The
electrolyte level is important since any portion of the
plates exposed to air will be ruined beyond repair. Of
equal importance is too much water which will result in
electrolyte being forced out of the battery due to gassing
and the increase in volume of the electrolyte that results
from the charging cycle.
Over the life of the battery, a considerable amount of
water is consumed. It is important the water used be pure
and free of contaminants that could reduce the life of the
battery by reducing the chemical reaction. The water
must be distilled or purified by an efficient filtration
system. Water that is not distilled should be analyzed and
if required, filtration installed to permit the water to meet
the requirements of the water purity table.
Figure 4E
WARNING
Never attach a battery charger to a vehicle that is to
be unattended. A charger failure could cause damage
to the vehicle batteries and result in extreme
overheating.
!
WARNING
Battery posts, terminals and related accessories
contain lead and lead compounds, chemicals known
to the State of California to cause cancer and
reproductive harm. Wash your hands after
handling.
!
CAUTION
Do not overfill batteries
!

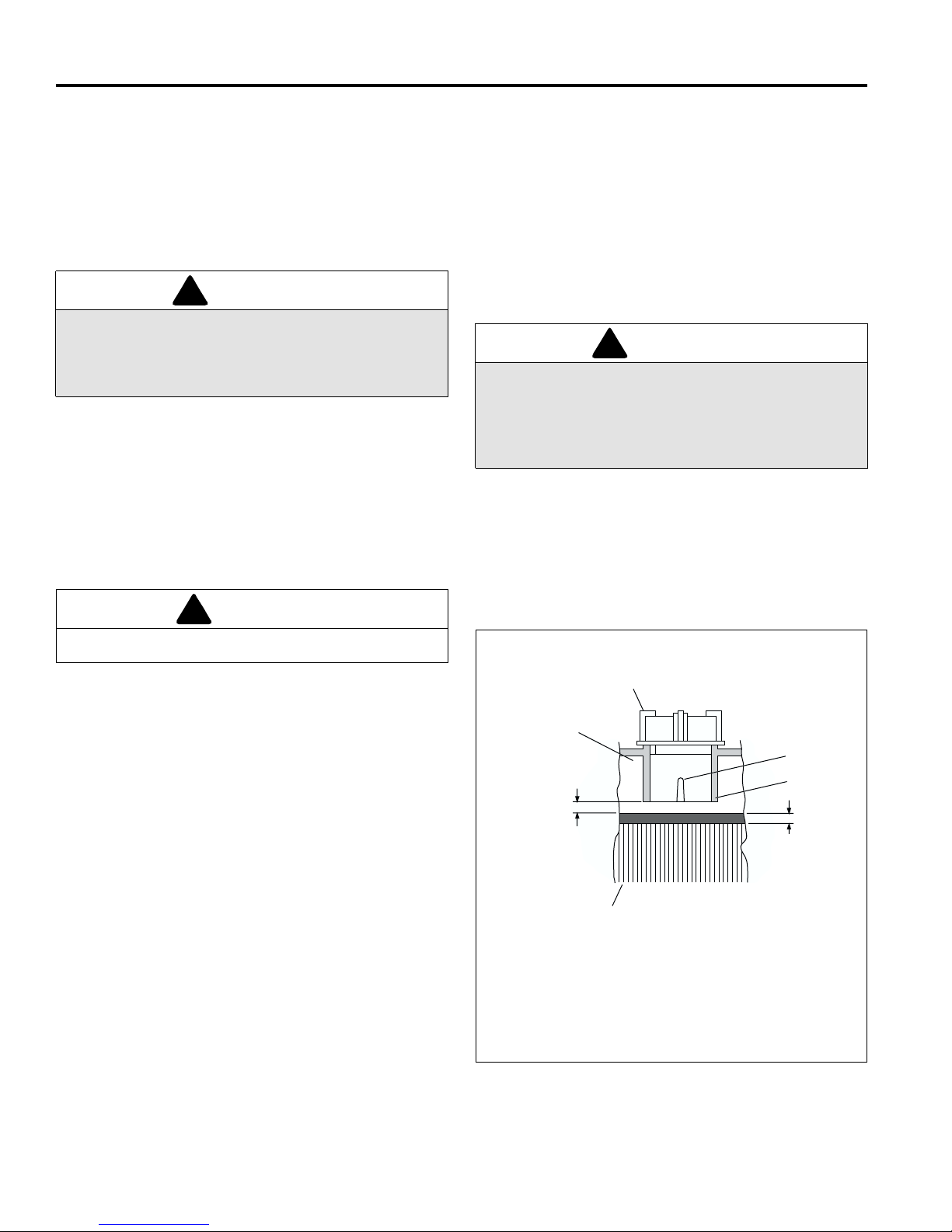

EXPANSION
SPACE
VENT CAP
1/4”-3/8”
(6 - 10 mm 1/2”
(13 MM)
GAS
VENT
ELECTROLYTE LEVEL SHOULD BE AT
LEAST 1/2”(13 MM) ABOVE THE PLATES
AND 1/4”-3/8”(6 - 10 MM) BELOW VENT
VENT
PLATES
TR06

BATTERIES 4
13
Water Purity Table
Even if the water is colorless, odorless, tasteless and fit
for drinking, the water should be analyzed to see that it
does not exceed the impurity levels specified in the table
above.

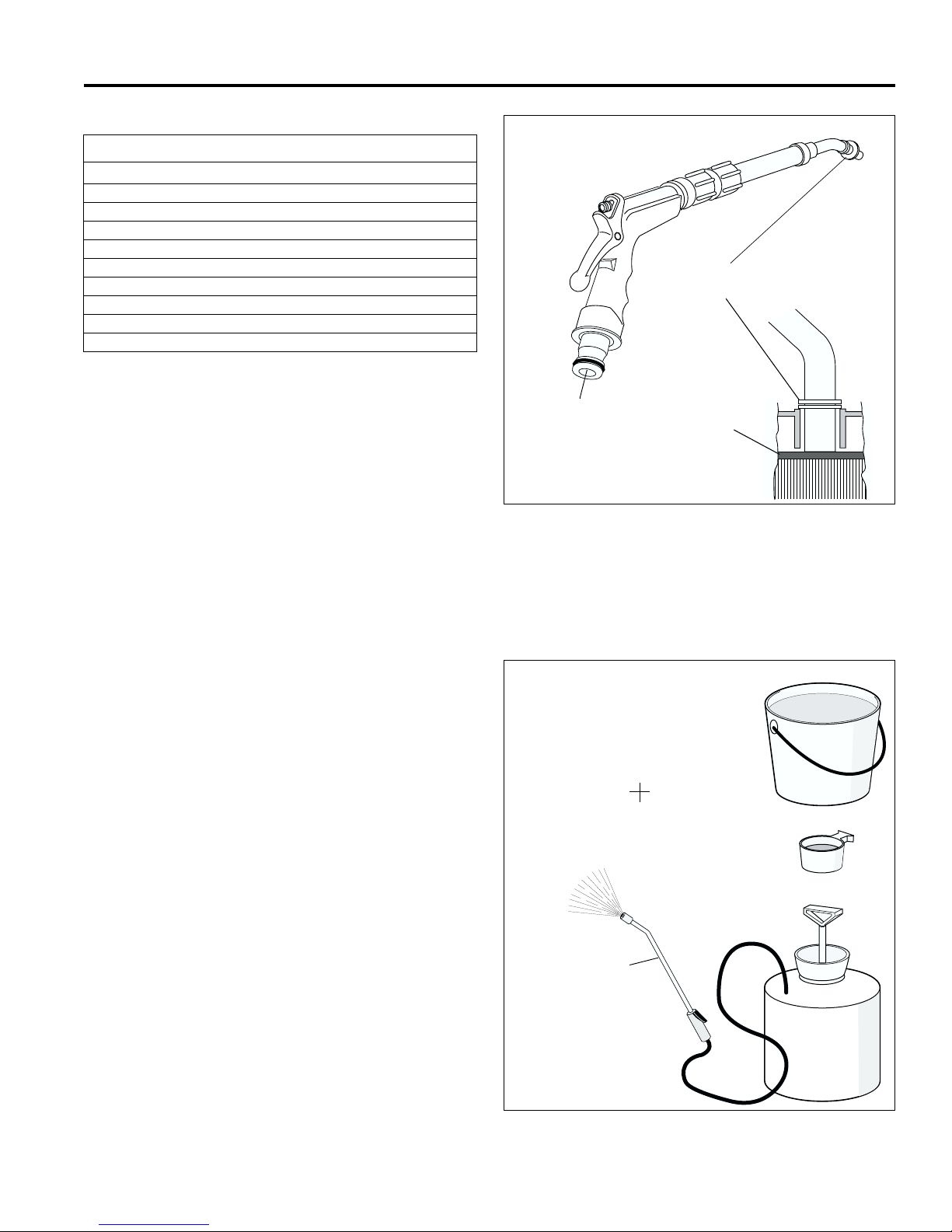

Automatic watering devices such as the one shown can
be used with an approved water source. These watering
devices are fast and accurate to use and maintain the
correct electrolyte level within the battery cells. Figure 4F
4.7 CLEANING BATTERIES_____________________________________________________
When cleaning the batteries, do not use a water hose
without first spraying with a solution of sodium
bicarbonate (baking soda) and water to neutralize any
acid deposits.
Use of a water hose without first neutralizing any acid,
will move acid from the top of the batteries to another
area of the vehicle or storage facility where it will attack
the metal structure or the concrete/asphalt floor. After
hosing down the batteries, a residue will be left on the
batteries which is conductive and will contribute to the
discharge of the batteries.
The correct cleaning technique is to spray the top and
sides of the batteries with a solution of sodium
bicarbonate (baking soda) and water. This solution is
best applied with a garden type sprayer equipped with a
non metallic spray wand. The solution should consist of
1/4 cup (59.1 ml) of sodium bicarbonate (baking soda)
mixed with 1-1/2 gallons (5.7 l) of clear water. In addition
to the batteries, special attention should be paid to
metallic components adjacent to the batteries which
should also be sprayed with the sodium bicarbonate
(baking soda) solution.
Allow the solution to sit for at least three minutes; use a
soft bristle brush or cloth to wipe the tops of the batteries
in order to remove any residue that could cause the self
discharge of the battery. Rinse the entire area with low
pressure clear water. Cleaning should take place once a
month or more often under extreme conditions.
Figure 4H
Impurity Parts per million
Color Clear
Suspended Trace
Total Solids 100
Calcium & Magnesium Oxides 40
Iron 5
Ammonia 8
Organic & Volatile Matter 50
Nitrites 5
Nitrates 10
Chloride 5
VALVE CONSISTENTLY FILLS TO
A PREDETERMINED LEVEL.
ELECTROLYTE
LEVEL
SINGLE BATTERY CELL
PURE
WATER
TR007
1-1/2 GALLONS
CLEAR WATER
1/4 CUP SODIUM
BICARBONATE
(BAKING SODA)
2 GAL. GARDEN SPRAYER
(1 1/2 GAL. OF WATER)
NON-METAL
WAND
TR008
KEEP BATTERY CAPS ON TO
AVOID CONTAMINATING INSIDE
OF BATTERY.

4 BATTERIES
14
4.9 BATTERY INSTALLATION __________________________________________________
If the batteries have been cleaned and any acid in the
battery rack area neutralized, no corrosion to the battery
racks or surrounding area should be present. Any
corrosion found should be immediately removed with a
putty knife and a wire brush. The area should be washed
with a solution of sodium bicarbonate (baking soda) and
water and thoroughly dried before priming and painting
with a corrosion resistant paint.
The batteries should be placed into the battery racks and
the battery hold downs (Views A & B) tightened snugly
to prevent movement, but not tight enough to cause
distortion of the battery cases.
Inspect all wires and terminals. Clean any corrosion from
the battery terminals or the wire terminals with a solution
of sodium bicarbonate (baking soda) and brush clean if
required.
Use care to connect the battery wires as shown in
Figure 4J and tighten the battery post hardware securely.
Protect the battery terminals and battery wire terminals
with a commercially available protective coating.
Refer to Section 2.3 for battery specifications.
Figure 4J
4.11 BATTERY CHARGING______________________________________________________
The battery charger is designed to fully charge the
battery set. If the batteries are severely deep cycled,
some automatic battery chargers contain an electronic
module that may not activate and the battery charger will
not function. Automatic chargers will determine the
correct duration of charge to the battery set and will shut
off when the battery set is fully charged. Always refer to
the instructions of the specific charger used.
Before charging, the following should be observed:
The electrolyte level in all cells must be at the
recommended level and cover the plates.
The charging must take place in an area that is well
ventilated and capable of removing the hydrogen gas that
is generated by the charging process. A minimum of five
air exchanges per hour is recommended.
The charging connector components are in good
condition and free from dirt or debris.
The charger connector is fully inserted into the vehicle
receptacle.
The charger connector/cord set is protected from
damage and is located in an area to prevent injury that
may result from personnel running over or tripping over
the cord set.
The charger is automatically turned off during the
connect/disconnect cycle and therefore no electrical arc
is generated at the DC plug/receptacle contacts.
AC Voltage
Battery charger output is directly related to the input
voltage. If multiple vehicles are receiving an incomplete
charge in a normally adequate time period, low AC
voltage could be the cause and the power company
should be consulted.
WARNING
Aerosol containers of battery terminal protecting must
be used with extreme care. Insulate the metal
container to prevent the metal can from contacting
battery terminals which could result in an explosion.
!
300 A
FUSE
FRONT
RED
TR009
A
B
BLACK
CAUTION
Do not overfill batteries
!

BATTERIES 4
15
4.12 TROUBLESHOOTING_______________________________________________________
In general, troubleshooting will be done for two distinct
reasons. First, a battery that performs poorly and outside
of the manufacturers specification should be identified in
order to replace it under the terms of the manufacturer’s
warranty. Different manufacturers have different
requirements. Consult with the battery manufacturer for
specific requirements.
The second reason is to determine why the tractor does
not perform adequately. Performance problems may
result in a tractor that runs slowly or in a tractor that is
unable to operate as long as it previously did.
A new battery must
mature before it will develop its
maximum capacity. Maturing may take up to 100 charge/
discharge cycles. The older a battery gets, the lower the
capacity. The only way to determine the capacity of a
battery is to perform a load test using a discharged
machine.
A cost effective way to identify a poorly performing
battery is to use a hydrometer to identify a battery in a set
with a lower than normal specific gravity. Once the
particular cell or cells that are the problem are identified,
the suspect battery can be removed and replaced. At this
point there is nothing that can be done to salvage the
battery; however, the individual battery should be
replaced with one of the same brand, type and
approximate age that is known to be good.
4.13 HYDROMETER ____________________________________________________________
Hydrometers are used to test the state of charge of a
battery cell. This is performed by measuring the density
of the electrolyte, which is accomplished by measuring
the specific gravity of the electrolyte. The greater the
concentration of sulfuric acid, the more dense the
electrolyte becomes. The higher the density, the higher
the state of charge.
Specific gravity is the measurement of a liquid that is
compared to a baseline. The baseline is water which is
assigned a base number of 1.000.
The concentration of sulfuric acid to water in a new
battery is 1.280 which means that the electrolyte weighs
1.280 times the weight of the same volume of water.
A
fully charged battery will test at 1.275 - 1.280 while a
discharged battery will read in the 1.140 range.
Note:
Do not perform a hydrometer test on a battery that
has just been watered. The battery must go through at
least one charge and discharge cycle in order to permit
the water to adequately mix with the electrolyte.
The temperature of the electrolyte is important since the
hydrometer reading must be corrected to 80°F(26.7°C).
High quality hydrometers are equipped with an internal
thermometer that will measure the temperature of the
electrolyte and will include a conversion scale to correct
the float reading. It is important to recognize that the
electrolyte temperature is significantly different from the
ambient temperature if the vehicle has been operated.
Using a Hydrometer (Figure 4N)
1. Draw electrolyte into the hydrometer several times to
permit the thermometer to adjust to the electrolyte
temperature and note the reading. Examine the color
of the electrolyte. A brown or gray coloration indi-
cates a problem with the battery and is a sign that the
battery is nearing the end of its life.
2. Draw the minimum quantity of electrolyte into the
hydrometer to permit the float (B) to float freely
without contacting the top or bottom of the cylinder
(E).
3. Hold the hydrometer in a vertical position at eye
level and note the reading where the electrolyte
meets the scale on the float.
4. Add or subtract four points (.004) to the reading for
every 10°F(6°C) above or below 80°F(27°C).
See Examples 1 and 2. Adjust the reading to
conform with the electrolyte temperature.
5. E.g. If the reading indicates a specific gravity of
1.250 and the electrolyte temperature is 90°F(32°
C), add four points to the 1.250 which gives a
corrected reading of 1.254. Similarly if the
temperature was 70°F(21°C), subtract four points
from the 1.250 to give a corrected reading of 1.246.
WARNING
Never insert a metal thermometer into a battery. Use a
hydrometer with a built in thermometer that is
designed for testing batteries.
!

4 BATTERIES
16
6. Test each cell and note the readings (corrected to
80°For27°C). A variation of fifty points between
any two cell readings (example 1.250 - 1.200)
indicates a problem with the low reading cell(s).
7. As a battery ages the specific gravity of the
electrolyte will decrease at full charge. This is not a
reason to replace the battery, providing all cells are
within fifty points of each other.
8. Since the hydrometer test is in response to a vehicle
exhibiting a performance problem, the vehicle
should be recharged and the test repeated. If the
results indicate a weak cell, the battery or batteries
should be removed and replace with one of the
same brand, type and approximate age that is
knowntobegood.
Temperature Correction for Hydrometer Readings

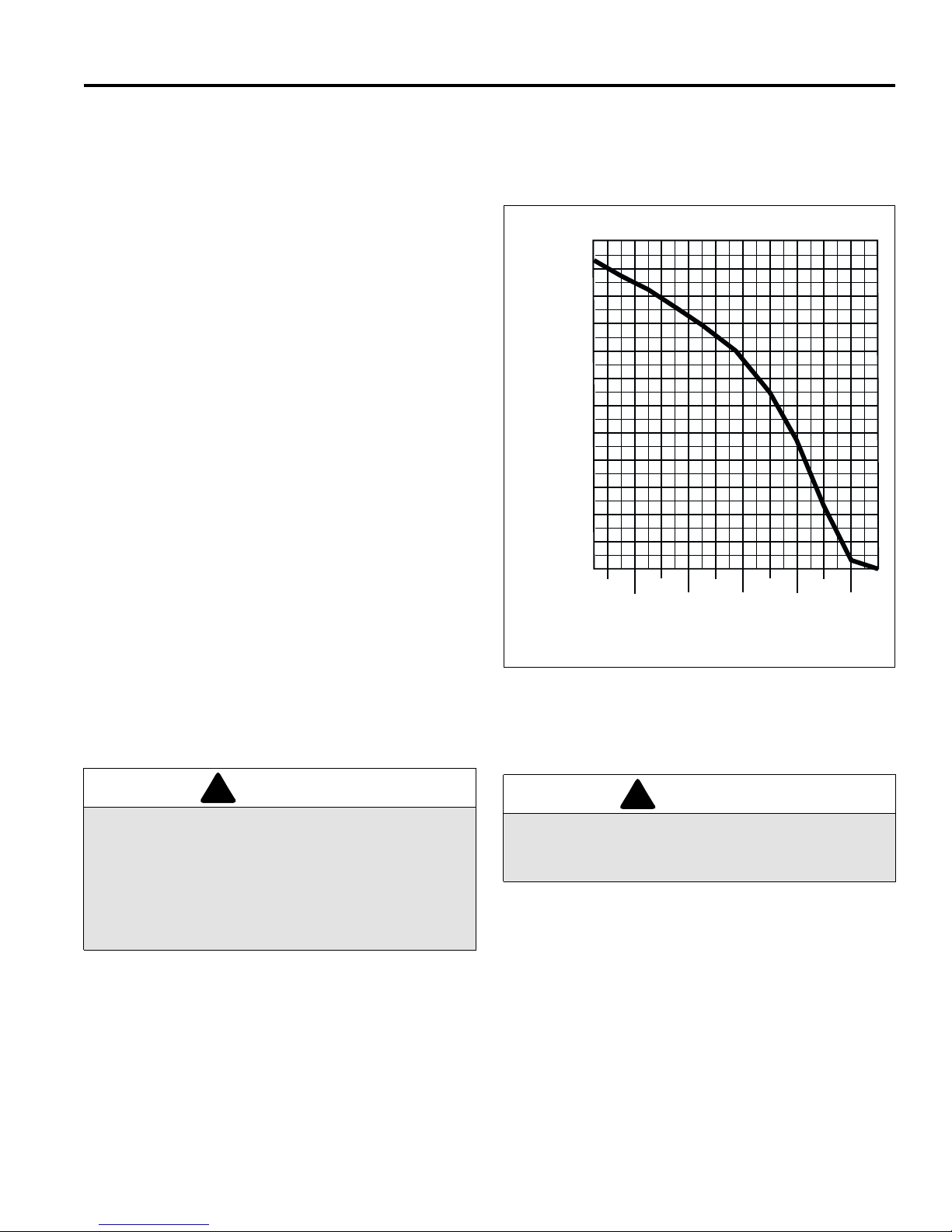

Figure 4N
32
28
24
20
16
12
8
4
0
4
8
12
16
20
24
28
32
36
32
28
24
20
16
12
8
4
0
4
8
12
16
20
24
28
32
36
1100
1125
1150
1200
1225
1250
1275
1300
1100
1125
1150
1200
1225
1250
1275
1300
1175
160 71.1 +32
150 65.6 +28
140 60.0 +24
130 54.4 +20
120 48,9 +16
110 43.3 +12
100 37.8 +8
90 32.2 +4
80 26.7 0
70 21.1 –4
60 15.6 –8
50 10 –12
40 4.4 –16
30 –1.1 –20
20 –6.7 –24
10 –12.1 –28
° F° C
ADD TO FLOAT
READING
SUBTRACT
FROM FLOAT
READING
A
B
C
D
EXAMPLE 1
Temperature above 80°F(26.7°C)
Hydrometer reading 1.240
Electrolyte temperature 110°F(43.3°C)
110°F-80°F=30°F, 3 x .004 = .012
1.240 + .012 = 1.252
corrected specific gravity reading
EXAMPLE 2
Temperature below 80°F (26.7°C)
Hydrometer reading 1.270
Electrolyte temperature 30°F(43.3°C)
80°F-30°F=50°F, 5 x .004 = .020
1.270 - .020 = 1.250
corrected specific gravity reading
E
TR010

BATTERIES 4
17
4.15 PROLONGED STORAGE ____________________________________________________
During periods of storage, the batteries will need
attention to keep them maintained and prevent
discharge.
In high temperatures the chemical reaction is faster, while
low temperatures cause the chemical reaction to slow
down. A vehicle that is stored at 90°F(32°C) will
lose.002 of specific gravity each day. If a fully charged
battery has a specific gravity of 1.275, and the battery is
allowed to sit unused, it will become partially discharged.
When it reaches 1.240 which it will do in less than twenty
days, it should be recharged.
If a battery is left in a discharged state, sulfation takes
place on and within the plates. This condition is not
reversible and will cause permanent damage to the
battery. In order to prevent damage, the battery should be
recharged. A hydrometer can be used to determine the
specific gravity and therefore the state of charge of a
battery.
In winter conditions, the battery must be fully charged to
prevent the possibility of freezing. A fully charged battery
will not freeze in the most severe of winter climates.
Although the chemical reaction is slowed in cold
temperatures, the battery must be stored fully charged,
and disconnected from any circuit that could discharge
the battery. Disconnect the charging plug from the vehicle
receptacle. The batteries must be cleaned and all
deposits neutralized and removed from the battery case
to prevent self discharge. The batteries should be tested
or recharged at thirty day intervals.
Figure 4P
4.17 CHARGER INSTALLATION __________________________________________________
Install all chargers in accordance with the manufacturers
instructions.
If the charger is operated in an outdoor location, rain
and sun protection must be provided.
In portable applications, the charging (DC) cord is
equipped with a polarized connector which fits into a
matching receptacle on the vehicle.
The power (AC) cord is equipped with an appropriate
plug. If the charger is equipped with a grounding plug,
do not attempt to defeat its functionality.
Note:
If your vehicle is to be charged with a non-
standard charger, refer to the instructions supplied with
the charger.
+15 -9.4
+5 -15
-5 -20.6
-15 -26.1
-25 -31.7
-35 -37.2
-45 -42.8
-55 -48.3
-65 -54
-75 -59.5
-85 -65
-95 -70.6
1.100 1.140 1.180 1.220 1.260 1.300
1.120 1.160 1.200 1.240 1.280
F C
SPECIFIC GRAVITY
ELECTROLYTE FREEZING POINT
E
L
E
C
T
R
O
L
Y
T
E
T
E
M
P
E
R
A
T
U
R
E
TR011
WARNING
Portable chargers should be mounted on a platform
above the ground, or in such a manner as to permit
the maximum air flow underneath and around the
charger. If the charger is mounted such that sufficient
air flow is prevented from entering the louvers,
overheating may result which could cause serious
damage to the charger and potential for fire
!WARNING
An ungrounded electrical device may become a
physical hazard that could result in an electrical shock
or electrocution
!

4 BATTERIES
18
4.18 REPLACING BATTERY TRAY________________________________________________
The battery tray is designed to be easily lifted out and
replaced. This allows the tractor to quickly return to
service should the batteries become discharged or fail.
Replacement battery trays are available as an accessory
and include a lifting yoke. See Section 2.6
Use a suitable lifting device with enough weight bearing
capacity to lift the combined weight of the tray and
batteries. See Section 2.3.
To remove battery tray:
1. Park tractor on a solid, level area.
2. Set parking brake and remove key from switch.
3. Disconnect battery connector, tilt steering wheel all
the way up and open hood.
4. Pull lock pins (D) from rear corners of tray.
5. Attach lifting yoke as shown .
Important: The two matching lifting straps (C) must
be attached to the two lifting points at the rear of the
battery tray as shown.
6. Attach lifting device to central lifting eye (A) on yoke.
Lift slowly until tray clears tractor.
7. Reverse procedure to install tray. Be sure tray is
completely seated on frame and lock pins (D) are
installed.
Refer to Section 2.3 for battery specifications.
Figure 4S
WARNING
When replacing battery tray use the lifting yoke
supplied with tray. This yoke is specifically designed to
safely attach to and lift the battery tray.
Never lift an unbalanced tray, where one or more
batteries have been removed. The battery weight
must be distributed evenly to prevent the tray from
tipping.
!
A
B
C
D
TR012

MAINTENANCE 5
19
5 MAINTENANCE
5.1 GENERAL ________________________________________________________________
1. Adjustment and maintenance should always be
performed by a qualified technician. If proper
adjustments cannot be made, contact an Authorized
Textron Turf Care And Specialty Products Dealer.
2. Inspect the equipment on a regular basis, establish a
maintenance schedule and keep detailed records.
a. Keep the equipment clean.
b. Keep all moving parts properly adjusted and lubri-
cated.
c. Replace worn or damaged parts before operating
the machine.
d. Keep all fluids at their proper levels.
e. Keep shields in place and all hardware securely fas-
tened.
f. Keep tires properly inflated.
3. Long hair, jewelry or loose fitting clothing may get
tangled in moving parts.
4. Use the illustrations in the Parts Catalog as reference
for the disassembly and reassembly of components.
5. Recycle or dispose of all hazardous materials
(batteries, fuel, lubricants, anti-freeze, etc.) according
to local, state or federal regulations.
Figure 5A
5.2 MAINTENANCE AND LUBRICATION SCHEDULE ________________________________
A - Add or Adjust C - Clean I - Inspect L- Lubricate R - Replace
IPack bearings with NLGI Grade 2 (Service Class GB)
II Manual grease gun with NLGI Grade 2 (Service Class LB).
III SAE 30W Heavy Duty Engine Oil
IV Light lubricant
WARNING
To prevent injury, lower implements to the ground,
disengage all drives, engage parking brake, turn off
power, remove key from switch and disconnect power
connector before making any adjustments or
performing maintenance.
Make sure the tractor is parked on a solid and level
surface. Never work on a tractor that is supported only by
the jack. Always use jack stands.
!
Recommended Inspection and Lubrication Intervals
Every
8
Hours
Every
25
Hours
Every
50
Hours
Every
100
Hours
Every
250
Hours
Every
500
Hours
Yearly S ee
Section
Lubricant
Type
Batteries I C-I 4.4, 4.7
Parking Brakes I-A A 3.1
Grease Fittings L 7.1 II
Steering Chain I-L 7.1 IV
Tires I-A 5.3
Wheel Bearings A-L I
Rear Axle I7.2 III

5 MAINTENANCE
20
5.3 TIRES ___________________________________________________________________
Keep tires properly inflated to prolong tire life and
maintain proper traction. Check inflation pressure while
the tires are cool. Inspect tread wear. Check tire pressure
with an accurate, low pressure tire gauge.
Keep inflation pressure between 10-12 psi - (69-83 kPa)
Mounting Wheels
1. Remove dirt, grease and oil from bolt threads. Do not
lubricate threads.
2. Position wheel on hub and inspect to insure full
contact between the mounting surface (seat pads) of
wheel and mounting surface of hub or brake drum.
3. Start all wheel bolts but do not tighten.
4. Finger tighten top nut, then rotate wheel so that the
opposite nut is at the top and finger tighten. Finger
tighten remaining nuts in (criss-cross) order; always
tighten nuts in top position. Finish mounting wheel by
tightening nuts with torque wrench to 65-85 ft. lbs.
(88-115 Nm).
5.4 CARE & CLEANING________________________________________________________
1. Clean the tractor and implements after each use.
Keep the equipment clean.
2. Clean all plastic or rubber trim with a mild soap
solution or use commercially available vinyl/rubber
cleaners.
3. Repair damaged metal surfaces and use Jacobsen
touch-up paint. Wax the vehicle for maximum paint
protection.
5.5 ELECTRICAL SYSTEM _____________________________________________________
1. Check the operator back-up system and fuses regu-
larly.
2. If the operator back-up does not function properly or
the problem cannot be corrected, contact an
Authorized Jacobsen Distributor.
3. Make certain all terminals and connections are kept
clean and properly secured.
4. Keep the wire harness and all individual wires away
from moving parts to prevent any type of damage.
5. Charge and check batteries daily. See Unit 5 for
battery maintenance
WARNING
Make sure the tractor is parked on a solid and level
surface. Never work on a tractor that is supported
only by the jack. Always use jack stands.
If only the front or rear of the tractor is raised, place
chocks in front of and behind the wheels that are not
raised.
! !
CAUTION: Unless you have the proper train-
ing, tools and experience, DO NOT attempt to
mount a tire on a rim. Improper mounting can pro-
duce an explosion which may result in serious
injury.
!
CAUTION: Do not use high pressure spray or
steam. Never spray water directly on the
control panel or directly at electrical
components, bearing housings and seals. Use
compressed air to remove sand and dirt from
these areas.
!
WARNING
Always turn power off, remove key and disconnect
battery connector before inspecting or working on the
electrical system.
NEVER operate equipment with the operator back-up
system disconnected or malfunctioning.
! !
