capella® 60 corner whirlpool bath and soaking bath with integral skirt
to the Italians, “la capella”—the chapel—is a sacred place. step into our capella®whirlpool, and you’ll understand.
The Capella’s®unique corner configuration
allows for roomy relaxation.
whirlpool bath features:
• 4 fully adjustable TheraPro™ jets
• 3 directionally adjustable AccuPro™ jets
• Electronic on/off control
• Patented fixed air flow system
• Sculpted armrest and contoured backrest
• Built-in tile flange and integral skirt with access
panels on skirted models
• Drain included on whirlpool baths
capella®60 whirlpool bath
(with integral skirt)
model number: K372
exterior dimensions:
60" long x 60" wide x 20½" high
interior dimensions:
50" long x 34" wide(mid) x 18" wide(end)
# of Jets/type of Jets:
4 TheraPro™ Jets,
3 AccuPro™ Foot Jets,
operating gallons:
60 gallons
capella®60 soaking bath
(with integral skirt)
model number: K374
exterior dimensions:
60" long x 60" wide x 20 ½" high
interior dimensions:
50" long x 34" wide (mid)

Capella® 60 Corner Whirlpool Bath w/Integral Skirt
Model: K372
Capella® 60 Corner Bath with Integral Skirt
Model: K374
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.
Ordering Information
Product Code:
K372 Capella® 60 Corner Whirlpool
Bath w/ Integral Skirt
RightHand
K374 Capella® 60 Corner Bath w/
Integral Skirt
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
AccuPro™ Jet Trim Kit #D095
AccuPro™ Jet Trim Kit #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifications
Dimensions
60” L x 60” L x 20-1/2” H
(1524 mm) L x (1524 mm) L x (521 mm) H
Drain/Overflow
A: 18” (457 mm) B: 12-1/8” (308 mm)
Cutout
NA
Total Weight
K372: 880 lb (399 kg) / 35 lb/sq. ft. (172 kg/m2)
K374: 855 lb (388 kg) / 34 lb/sq. ft. (167 kg/m2)
Operating Gallonage
60 U.S. Gal. (227 Liters),
Max. 90 U.S. Gal. (341 Liters)
Product Weight
K372: 130 lb (59 kg)
K374: 105 lb (48 kg)
Skirt Mounting
Integral
Electrical Specifications Model K372 only
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
Heater
Not available
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"*
33-1/2"
Motor
90˚ 90˚
90˚
12" H x 18" L
Service Access
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
1"
H

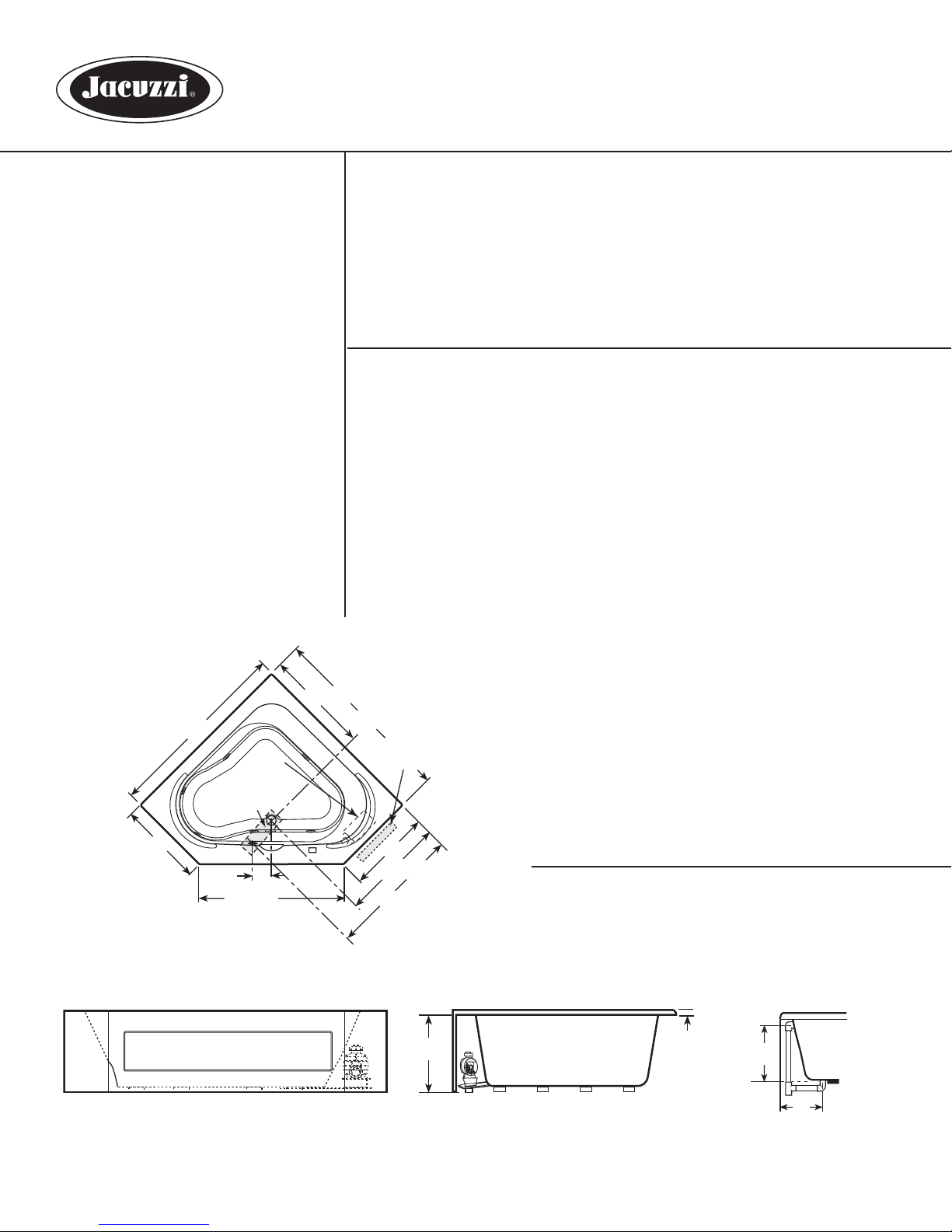

FRONT VIEW SIDE VIEW
#FQ88 06/07
Product Shown: Capella® 60 Corner Whirlpool Bath with Integral Skirt Model: K372
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
DRAIN/OVERFLOW
A
B
