Jade TITAN J JSB-36 Operating and safety instructions

WWW.JADERANGE.COM JADE RANGE, LLC., A MIDDLEBY COMPANY • 2650 Orbiter Street • Brea, CA 92821 • PHONE: [phone] FAX: [phone]
Note: In line with their policy to continually improve products, Jade reserves the right to change materials and specifications without notice. printed in usa
SALAMANDER BROILER
TITAN SALAMANDER BROILER
MODEL NO. DESCRIPTION
o
jsb-36 36" salamander only
o jsb-36wm 36" salamander for wall mount
o jsb-36rmt 36" salamander for range mount titan
o jsb-36rms 36" salamander for range mount supreme
STANDARD FEATURES
• Stainless steel front, sides, bottom and top
• 14 gauge stainless steel construction
• 35,000 BTU/hr. ceramic tile infrared burner
• Counter balance mechanism
• Four locking cook positions
• Large 12" x 26-1/2" lift-out chrome plated broiler grid
• Grid carriage glides on roller bearing
• Grease deflector guides grease into pans at bottom of broiler
• 3/4" gas pressure regulator
• Wall mounting bracket (JSB-36WM only)
• Stainless steel riser (JSB-36RMT and JSB-36RMS only)
• Stainless steel top
AVAILABLE OPTIONS
oStainless steel outer back panel for range mount unit
oInterconnect gas line (for single gas connection when
mounting Salamander on range)
oCustom stainless steel interior
oCountertop legs (available upon special request)
form #jt0542 ©2008 jade range, llc
JSB-36
TM
TITAN™
JSB-36RM shown with JTRHE-3-3

WWW.JADERANGE.COM JADE RANGE, LLC., A MIDDLEBY COMPANY • 2650 Orbiter Street • Brea, CA 92821 • PHONE: [phone] FAX: [phone]
Note: In line with their policy to continually improve products, Jade reserves the right to change materials and specifications without notice. printed in usa
SALAMANDER BROILER
TITAN SALAMANDER BROILER
form #jt0542 ©2008 jade range, llc
TM
TITAN™

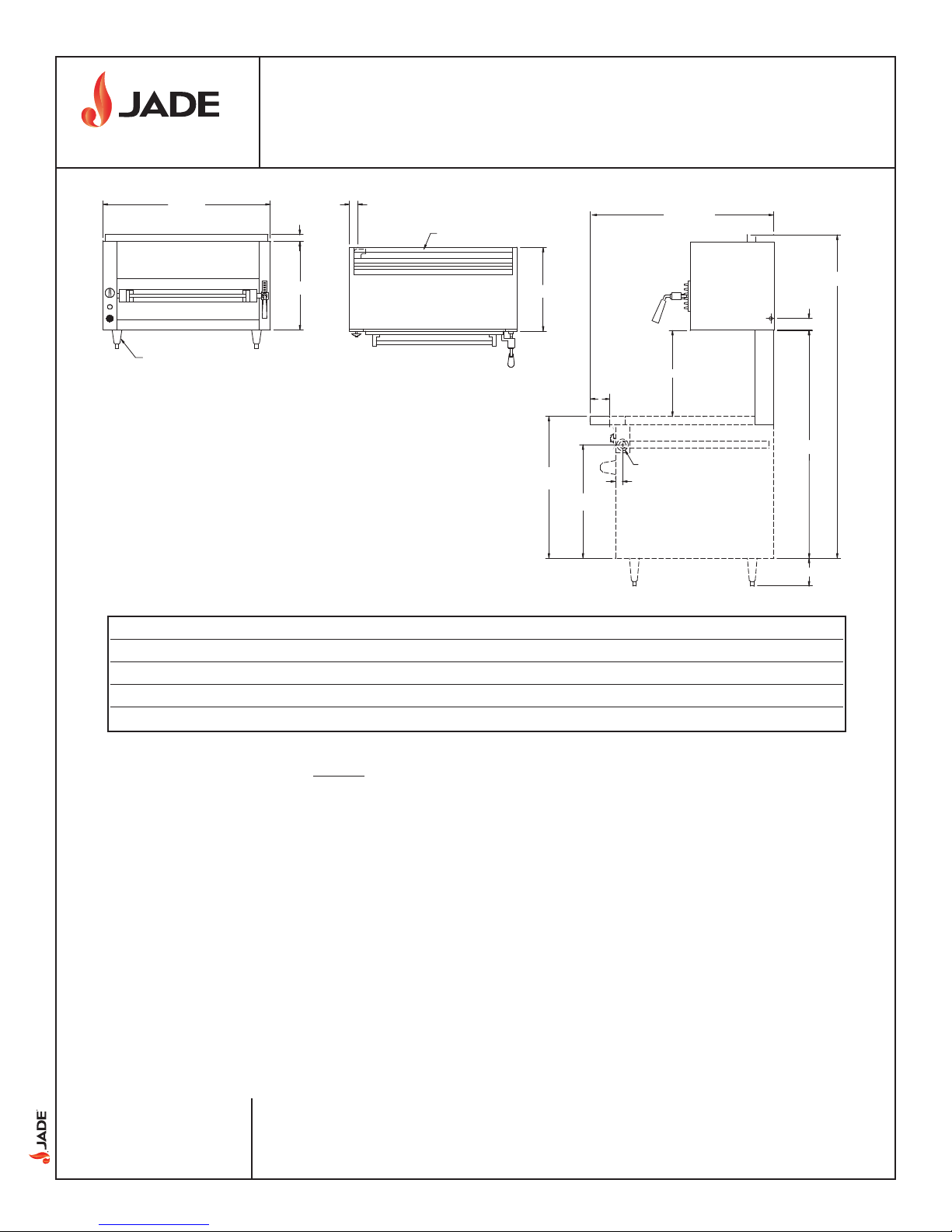

model btus width depth height appx. shp. wt.
jsb-36 35,000 36" 18" 20-1/2" 240 lbs.
jsb-36wm 35,000 36" 18" 20-1/2" 240 lbs.
jsb-36rmt 35,000 36" 18" see drawing 310 lbs.
jsb-36rms 35,000 36" 18" see drawing 310 lbs.
NOTE: SPECIFY TYPE OF GAS WHEN ORDERING.
UTILITY INFORMATION:
• Ranges are supplied with 1-1/4" front manifold connection
and a 1" or 3/4" capped rear manifold connection. For rear
manifold connection, remove cap. Ranges are supplied
with 3/4" gas pressure regulator. For 1-1/4" or 1" gas
pressure regulator, see accessories. (Specify required
front manifold cap and cover when ordering.)
• Required operating pressure:
Natural Gas 5" W.C. minimum
Propane Gas 10" W.C. minimum
14" W.C. maximum
Note: This unit must be connected with the gas appliance
regulator supplied.
DESCRIPTION:
Gas infrared broiler. To be model #JSB
manufactured by Jade Range. Unit to be the following:
freestanding, WM for wall mount and RM for range mount.
To have stainless steel top, front, sides and bottom, (and
riser on RM). Heavy gauge chrome plated cooking grid to
measure 12" x 26-1/2" multi-action positioning handle
mounted to carriage. Carriage to have roller bearings and
four locking positions. Provide deflector to guide grease into
bottom drip pan. To have 35,000 BTU/hr. infrared burner.
Provide gas pressure regulator for use with natural or
propane.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.
1 1/4" [32] MANIFOLD
4" LEGS (JSB-36CM)
OPTIONAL
WALL BRACKET
3/4" GAS MANIFOLD
C
LMANIFOLD
6" [152]
1 1/2" [38]
2 1/2" [64]
19" [483]
69 1/2" [1765]
49" [1244]
18" [457]
36" [914] 1 3/4" [44]
30 1/2" [775]
38" [965]
18 1/2" [470]
24 3/8" [619]
1 1/2" [38]
REAR GAS CONNECTION
6" [152]
