Nieco N824 User manual

AUTOMATIC
FOOD SERVICE
EQUIPMENT
AUTOMATIC GAS BROILER
MODELS N824 & N850
OWNERS MANUAL
IMPORTANT: RETAIN THIS MANUAL IN A SAFE PLACE
FOR FUTURE REFERENCE.
Broiler area must be kept free of combustible materials, and the flow of combustion and ventilation air
must not be obstructed. Operating personnel must not perform any maintenance or repair functions.
Contact your Nieco Authorized Dealer.
In a prominent location, post instructions to be followed in the event the user smells gas.This informa-
tion shall be obtained by consulting your local gas supplier.
FORYOUR SAFETY:
Do not store or use gasoline or other flammable vapors or liquids in
the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, maintenance
can cause property damage, injury, or death. Read the installation,
operating and maintenance instructions thoroughly before installing
or servicing this equipment.

2
TABLE OF CONTENTS
A. General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
A.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
A.2 Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
A.3 Service/Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
A.4 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B. Machine Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
B.1 Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
B.2 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
B.3 Leveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
B.4 Hood Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
B.5 Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
B.6 Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
B.7 Flexible Gas Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

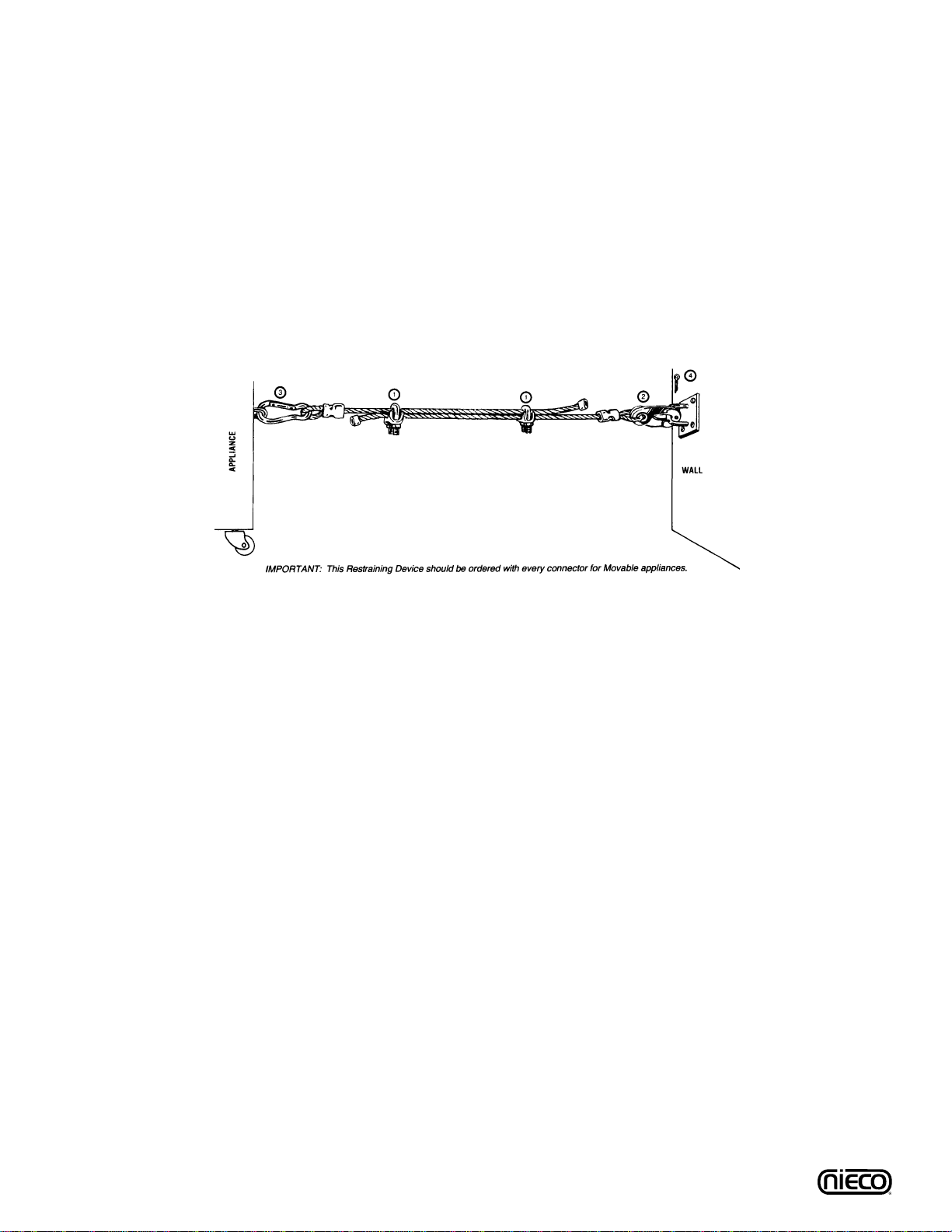

B.8 Restraining Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
B.9 Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
B.10Pre-Operation Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
C. Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
D. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
D.1 Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
D.2 Step-by-Step Lighting Procedure . . . . . . . . . . . . . . . . . . . . . . . . .12
D.3 Shutdown Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
D.4 Control Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
E. Cleaning and Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
F. Broil Chain Tension & Link Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .29
G. Bun Platen Adjustment & Teflon Sheet Removal . . . . . . . . . . . . . . . . . .30
H. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
I. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Nieco Corporation - Model N824/850G

3
A. GENERAL INFORMATION
A.1 Description
The Nieco®Model N824 & N850 automatic broiler, utilizes high release convec-
tion burners, a new, simplified ignition system, easy cleaning and state-of-the-art
digital controls to help eliminate broiling problems and provide the operator with
even greater control over the broiling environment.The N824 & N850 are flow-
through and equipped with a bun grill.
This manual provides the safety, installation and operating procedures for the
Nieco Automatic Broiler Models N824 & N850.We recommend that all informa-
tion contained in this manual be read prior to installing and operating the broiler.
A.2 Warranty Information
If the unit arrives damaged, contact the carrier immediately and file a damage
claim with them. Save all packing materials when filing a claim. Freight damage
claims are the responsibility of the purchaser and ARE NOT covered under war-
ranty.
The warranty does not extend to:
•Damages caused in shipment or damage as a result of improper use.
•Installation of electrical service.
•Normal maintenance as outlined in this manual.
•Malfunction resulting from improper maintenance not in accordance with the steps contained in
this manual and any applicable training.
•Damage caused by abuse or careless handling outside of the normal operating procedures
contained in this manual.
•Damage from moisture into electrical components.
•Damage from tampering with or removal of any safety device.
IMPORTANT!
Keep these instructions for future reference. If the unit changes ownership,
be sure this manual accompanies the equipment.
IMPORTANT
The Nieco Corporation reserves the right to change specifications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Nieco Corporation - Model N824/850G

4
A.3 Service/Technical Assistance
If you experience any problems with the installation or operation of your broiler, contact your local
Authorized Nieco Distributor.
Fill in the information bellow and have it handy when calling your authorized service agency for assistance.
The serial number is on the broiler rating plate on the side of the unit.
Purchased from:
Date of Purchase:
Model No.:
Serial No.:
For the name of your local Authorized Nieco Distributor, please call [phone].
Use only genuine Nieco replacement parts in your broiler. Use of replacement parts other than those sup-
plied by Authorized Nieco Distributors and Service Agencies will void the warranty and may significantly
alter the performance of your broiler. Your local Authorized Nieco Distributor and Service Agent has been
factory trained and has a complete supply of parts for your Nieco Automatic Broiler.
You may contact the factory direct at [phone] if you have trouble locating your local Nieco
Distributor.
A.4 Important Safety Information
Throughout this manual, you will find the following safety words and symbols that signify important safety
issues with regards to operating or maintaining the equipment:
WARNING
GENERAL WARNING. Indicates
information important to the proper
operation of the equipment. Failure
to observe may result in damage to
the equipment and/or severe bodily
injury or death.
WARNING
ELECTRICAL WARNING. Indicates
information relating to possible
shock hazard. Failure to observe
may result in damage to the equip-
ment and/or severe bodily injury or
death.
CAUTION
GENERAL CAUTION. Indicates
information important to the proper
operation of the equipment. Failure
to observe may result in damage to
the equipment.
WARNING
HOT SURFACE WARNING. Indicates
information important to the han-
dling of equipment and parts.
Failure to observe caution could
result in personal injury.
Nieco Corporation - Model N824/850G

5
A.4 Important Safety Information (Cont.)
In addition to the warnings and cautions in this manual, use the following guidelines for safe operation of
your Nieco Automatic Broiler:
•Read and follow all instructions before using this equipment.
•Install or locate broiler only for its intended use as described in this manual.
•Do not operate this equipment if it has a damaged cord or plug, if it is not working properly or if it
has been otherwise damaged.
•This equipment should only be serviced by authorized personnel. Contact your local Nieco
Distributor for adjustment or repair.
•Use only genuine Nieco replacement parts for your broiler. Failure to do so will void the warranty
and may significantly alter the performance of your broiler.
The following warnings and cautions appear throughout the manual and should be carefully
observed:
• Turn the broiler off, close the main gas valve, and disconnect the plug before
performing any service, maintenance or cleaning on the broiler.
• Always allow the broiler to fully cool before performing any service, maintenance or
cleaning. Failure to wait for the broiler to cool fully may result in personal injury.
• The procedures in this manual may include reference to the use of chemical products.The
Nieco Corporation does not endorse the use of any particular cleaning/degreasing agent.
Use only those chemicals that are approved for use in your kitchen.
• The broiler should be grounded according to local electrical codes to prevent the
possibility of electrical shock. It requires a grounded receptacle with separate electrical
lines, protected by fuses or circuit breakers of the proper rating.
• All electrical connections must be in accordance with local electrical codes and any other
applicable codes.
• The use of adequate ventilation (as rated in this manual) with this broiler is mandatory.
Failure to adequately ventilate this unit and provide safe operating distances (as specified
in this manual) is a fire safety hazard. Follow the instructions for emergency broiler
shutdown in the event of an emergency.
• No attempt should be made to operate this appliance in the event of a power failure.
WARNING ELECTRICAL SHOCK HAZARD. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR DEATH:
_Electrical ground is required on this appliance.
_Check with a qualified electrician if you are in doubt as to whether the appliance is properly
grounded.
_Do not use water on or near the control box located on the underside of the broiler for risk
of serious injury or death due to electrical shock.
WARNING, HIGH TEMPERATURES WITH HOT SURFACES. FAILURETO FOLLOW THESE PROCE-
DURES COULD RESULT IN SERIOUS INJURY:
_Do not attempt to clean, disassemble or perform maintenance on this broiler until it is fully
cooled as per the instructions contained in this manual.
Nieco Corporation - Model N824/850G

6Nieco Corporation - Model N824/850G
B. INSTALLATION
B.1 Pre-Installation
Uncrate the broiler and inspect for shipping damage. Remove the tape securing the machine parts, and
install the parts in their proper location. If there are obvious or concealed damages to any part of the
broiler, please contact your freight carrier. The factory warranty does not cover freight damage.
B.2 Mounting
B.2.1 Remove all parts from the broiler.
B.2.2 Lift broiler onto stand (IF SUPPLIED). NOTE: The feed end (front) of the broiler and the
open side of the stand should face the same direction.
B.2.3 Use the supplied nuts and bolts to bolt the frame of the broiler to the stand.
B..2.4 Follow the steps outlined in the manual to reassemble the broiler.
B.3 Leveling
The grease drain system is based on a gravity-flow design. Therefore, it is extremely important to level
the broiler during installation.
B.4 Hood Requirements
This appliance must be installed under a ventilation hood of adequate size and the following minimum
capacity:
Model SCFM
N824/850 800
Do not obstruct the flow of combustion and ventilation air. An adequate air supply must be available for
safe and proper operation.
B.5 Clearance
For proper installation the minimum required clearance from combustible construction and walls is 12”
(305 mm) from all sides of the broilers.The minimum required clearance from non-combustible construc-
tion and walls is 0”(0 mm) from all sides of the broiler. Keep appliance area free from combustibles.
Check with local authorities (building and fire) for standards and requirements for wall and floor con-
struction to comply with your local codes.
REQUIRED for
installation near
combustible walls
and construction
REQUIRED for installa-
tion near non-com-
bustible walls and
construction
RECOMMENDED by
Nieco for proper disas-
sembly and service
Back of broiler
Sides of broiler
Front of broiler
(Feed end)
CAUTION
SEVERE FIRE HAZARD. Follow local fire and building codes for non-combustible construc-
tion. Failure to do so could result in a fire hazard. If unsure of your construction, follow mini-
mum clearances for combustible construction.
REQUIRED AND RECOMMENDED CLEARANCES
12”(305 mm) 12”(305 mm)
12”(305 mm)
24”(610 mm)
0”(0 mm)
0”(0 mm)
0”(0 mm)
12”(305 mm)
12”(305 mm)

7
B.6 Gas Connection- 3/4”N.P.T.
At rated input the gas supply should deliver a minimum pressure of at least 15 mbar (5" water column)
at the broiler connection for natural gas. Incoming gas supply pressure must not exceed 50 mbar (14"
water column).
Note: The installation of this appliance must conform with local codes, or in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1, Natural Gas Installation Code, CAN/CGA-B149.1 includ-
ing:
1. The appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of
1/2 psi (3.45 kPa).
2. The appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psi (3.45 kPa).
By public initiative, the State of California has adopted legislation (Proposition 65) which requires
manufacturers of many types of products, including gas appliances, to warn consumers of their
products that contain chemicals or produce substances listed by the State of California to either
cause cancer, birth defects or other reproductive harm.
Nieco Corporation - Model N824/850G
WARNING
If not installed, operated and maintained in accordance with the manufacturers instructions, this
product could expose you to substances in fuel or from fuel combustion which can cause cancer,
birth defects or other reproductive harm.
For safety in the kitchen area, and to insure maximum service life, it is vitally important to correctly install
connectors.The connector shall comply with the Standard for Connectors for Moveable Gas Appliances,
ANSI Z21.69 or CAN/CGA-6.16 and a quick disconnect device that complies with the Standard for Quick-
Disconnect Devices for use with gas fuel, ANSI Z21.41 or CAN1-6.9
In order to avoid sharp kinks or excessive bends that could have a damaging effect on the connector, it
may be necessary to attach pipe elbows in order to bring the connector into its proper plane. For easy
movement of the appliance, the connector should be installed with a "lazy" loop for minimum tension.
Note: Gas appliances should be disconnected prior to maximum movement. (Minimal movement is
possible to connect hose.)

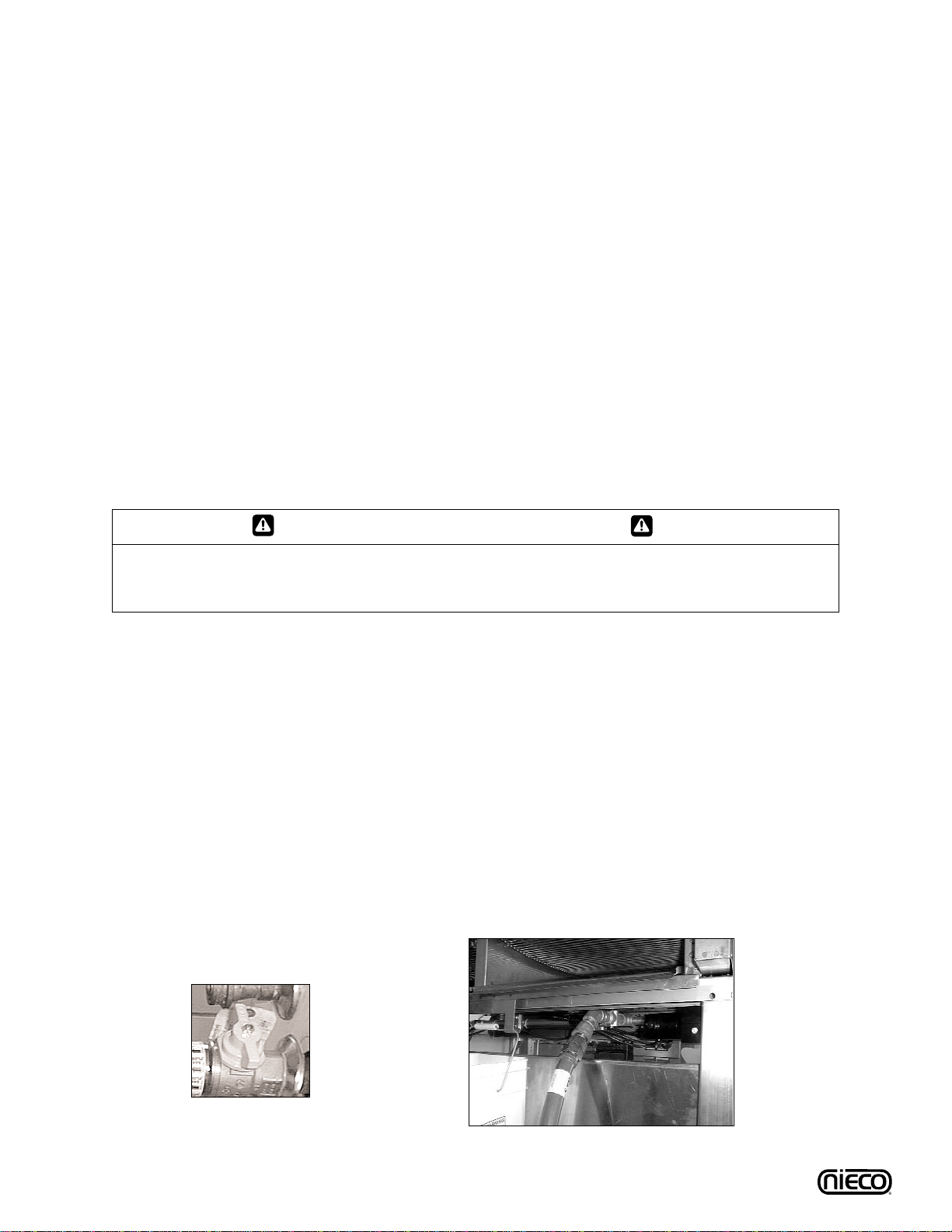

B.7 Installing Gas Appliance Connectors and Flexible Gas Lines Correctly
N824/850 Equipment Side Gas
Connection
N824/850
Manual
Gas Valve

8Nieco Corporation - Model N824/850G
B.9 Electrical Connection
Power requirements are stated on the unit nameplate and must be connected accordingly.This appli-
ance, when installed must be electrically grounded in accordance with local codes, or in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA
C22.2, as applicable. Before starting broiler, tighten all electrical connections in control box. An electrical
wiring diagram can be found inside the control box.
Note: Disconnect power before servicing.
B.10 Pre-Operation Check
Be sure that all parts are installed in the proper location:
❏ Ventilation is turned on
❏ Broiler is plugged in
❏ Gas line is connected
B.8 Restraining Device Installation and Use
This high strength restrainer is to be used with all moveable (castered) appliances. It fully complies with
American Gas Association requirements. References: Z21.69, Z83.11, and Z21.41 with current revisions.
Installation is quick and positive. In Canada, device is in accordance with CAN 1-6.9-M70 Quick
Disconnect Devices for use with gas fuel, and CAN 1-6.10-88 metal connectors for gas appliances.
Correct length for any appliance is simply a matter of loosening two adjuster clips (1) and re-tightening.
(3" to 6" shorter than appliance connector is desired length.)
Restrainer is made of heavy duty steel cable, with a strong scissor hood (2) at one end, and an equally
strong spring hook (3) at the other. Cotter pin (4) is supplied to secure the installation. For proper attach-
ment to the broiler, use the supplied hardware to attach the device to the holes in the shear plate of the
broiler stand.
NOTE: If disconnection of the restraint is necessary, reconnect the restraint after the appliance
has been returned to its originally installed position.

C.TROUBLESHOOTING
9
Always verify that the broiler is properly assembled, the hood is on, gas valve open and broiler is plugged in.
PROBLEM PROBABLE CAUSES SOLUTION
Nieco Corporation - Model N824/850G
Pilot Burners won't light.
Pilot flame weak or yellow.
Main Burners won't light, or they go
out during operation.
Burner appears dim (cooler).
Burners backfire or sputter.
Conveyor belts won't advance.
Conveyor belt speeds are erratic.
Broiled product over or under
cooked.
Product sticks to belt.
1. Pilot Burner dirty, or orifice plugged.
2. Electric power not on, or machine not
plugged in.
3. Gas not hooked up or on.
1. Dirty pilot or orifice.
2. Pilot tubing plugged or pinched off.
3. Incoming gas pressure too low.
1. Pilot flame too small.
2. Air draft blowing pilot flame out.
3. Electrical supply interruption.
4. Flame Sensor.
1. Burner orifices dirty.
2. Gas pressure too low.
3. Gas line partially blocked.
4. Pressure regulator defective.
5. Burners not installed properly.
6. Main gas valve partially closed.
1. Gas pressure too high.
2. Burners have gotten wet.
1. Machine not plugged in.
2. Wall circuit breaker off.
3. Belt speed control faulty.
4. Motor speed control not set properly.
6. Drive chain broken.
7. Gear motor defective.
8. Loose or broken wire.
9. Motor unplugged.
10. Drive sprocket loose.
1. Drive chain binding.
2. Gear motor defective.
3. Loose drive sprockets.
1. Wrong conveyor belt speed.
2. Product temperature not consistent.
1. Stripper blades not adjusted properly.
2. Product under broiled.
3. Product too lean.
4. Product too thin.
5. Burners not hot enough.
6. Heat reflectors not installed, or
installed improperly.
8. Patty belt too tight.
9.Warped links in the patty belt.
1. Clean pilot burner, replace orifice.
2. Plug in/turn on.
3. Check Gas Supply
1. Clean or replace.
2. Check line. Pilot tubing can be
removed with a wrench.
3. Adjust pressure regulator.
1. Replace pilot orifice. See Above.
2. Check for drafts.
3. Secure power supply.
4. Clean or replace.
1. Clean or replace.
2. Adjust pressure regulator.
3. Check line and clear.
4. Replace.
5. Remove and install properly.
6. Open fully so that handle is in line
with the valve.
1. Adjust pressure regulator.
2. Dry thoroughly, replace gasket.
1. Plug in.
2.Turn on.
3. Replace.
4. Reset cook time.
6. Replace or repair.
7. Replace.
8.Tighten or replace.
9. Plug in.
10.Tighten sprocket set screw.
1. Adjust tension of chain.
2. Replace.
3.Tighten set screws.
1. Reset cook time.
2. Be sure refrigerators and freezers
are working and that product tem-
perature is consistent.
1. Adjust.
2. Slow belt speed.
3. Check meat for consistency.
4.Try thicker patties.
5. Check burners, see above.
6. Be sure all reflectors are installed
properly.
8. Loosen tension.
9. Replace warped links.

10 Nieco Corporation - Model N824/850G
PROBLEM PROBABLE CAUSES SOLUTION
Bun Platen won’t heat.
Bun platen gets warm but not hot..
Bun platen gets too hot.
Broiler status (temperature) control
reads ‘Opn’
1. Wall circuit breaker off.
2. Main power switch off.
3. Defective thermostat.
4. Defective platen contactor.
5. Loose or broken wire.
6. Machine not plugged in.
7. Thermostat turned off.
8. Inadequate voltage.
1. Thermostat setting too low.
2. Thermostat defective.
3. Platen defective.
4. Power cord not fully plugged in.
1. Thermostat setting too high.
2. Sensing bulb not fully inserted into
platen.
3. Thermostat defective.
1. Temperature probe.
1. Turn on.
2. Turn on.
3. Replace.
4. Replace.
5. Tighten or repair.
6. Plug in.
7. Turn on.
8. Check power supply.
1. Increase setting.
2. Replace.
3. Replace.
4. Plug in and twist.
1. Decrease setting.
2. Insert bulb fully into platen. Bulb is
located on the control box side of
the platen.
3. Replace.
1. Replace.

11
D. OPERATION
D.1 Controls and Indicators
Nieco Corporation - Model N824/850G
CAUTION
LOW TEMPERATURE WARNING: If the
Lo-Temp indicator light light comes
on during operation, stop cooking
immediately.This light indicates your
broiler has gone below 100°F of the
set point and may no longer be prop-
erly cooking the product.
CONTROL BOX FRONT CONTROL BOX BACK
1
2
3 4
5
1. Belt Speed Control
NOTE: Model N850
has two (2)
2. Broiler Status
(Temperature) Control
3. On/Off Indicator Light
4. Lo-Temp Indicator Light
5. Main On/Off Power
Switch
6. Bun Platen Thermostat
7. Belt Reverse Button
NOTE: Model N850
has (2) two
3. On/Off Indicator Light
4. Lo-Temp Indicator Light
5. Main On/Off Power
Switch
6
7
8

12
D.2 Lighting Procedures
1. Broiler is
centered under
hood and
plugged in
2. Gas valve is
open when
handle is in line
(parallel to) the
pipe
3. Turn ventilation
system on
1Turn the MAIN POWER SWITCH (a) on.The N850
is equipped with automatic ignition.
2After ignition; check GAS PRESSURE GAUGE (a)
reading. Gauge should read 5”. If not, follow ignition
troubleshooting tips of this manual.Verify that all
burners - upper and lower - have lit.
NOTE: If the automatic ignition fails to light after 3
attempts, you will need to cycle the power switch off
then on to reset.
a
WARNING
THE VENTILATION SYSTEM MUST
BE ON AT ALL TIMES DURING
BROILER OPERATION. OPERATING
BROILER WITHOUT PROPER
VENTILATION IS A SEVERE FIRE
HAZARD.
AUTOMATIC IGNITION
PRE-LIGHTING PREPARATION
a
Nieco Corporation - Model N824/850G
MANUAL IGNITION
1Position a lighter or match as shown (a) under the
first pilot Turn on MAIN ON/OFF SWITCH.Verify
that all burners have lit. a
LIGHTER/MATCH
2After ignition; check GAS PRESSURE GAUGE (a)
reading. Gauge should read 5”. If not, follow ignition
troubleshooting tips of this manual.Verify that all
burners - upper and lower - have lit.
a

13
1. Allow the broiler
to run free of
any product for
10 minutes.
This will burn
the chain clean.
2. Turn off the
Main Power
Switch (a).
3. Wait for 30
minutes for the
broiler to cool.
D.3 Shutdown Procedures
2. Close the MAIN
GAS VALVE (b)
Valve is closed
when it is perpen-
dicular to pipe
a
PLANNED SHUTDOWN
WARNING
Always leave the ventilation hood
on while the broiler is cooling.
Failure to do so is both a fire risk
and could result in damage to the
broiler.
EMERGENCY SHUTDOWN
1. Turn off the
MAIN POWER
SWITCH (a) ab
Your Nieco Automatic Broiler is designed to automatically stop gas flow to the broiler in the event of
power failure, gas pressure loss or any other related incident. No attempt to operate this appliance
should be made in the event of a power failure.
CAUTION
In a prominent location, post
instructions to be followed in the
event the user smells gas.This
information shall be obtained by
consulting your local gas supplier.
CAUTION
FORYOUR SAFETY: Do not store
or use gasoline or other flammable
vapors or liquids in the vicinity of
this or any other appliance.
Nieco Corporation - Model N824/850G
CAUTION
FORYOUR SAFETY: In the event of
a prolonged power failure, no
attempt should be made to operate
this appliance.
CAUTION
Allow the broiler to fully cool
BEFORE beginning disassembly
and cleaning. Failure to do so
could result in serious injury.

14 Nieco Corporation - Model N824/850G
D.4 Control Operation
IMPORTANT: THIS BROILER IS SHIPPED WITH FACTORY PRESETS THAT MUST BE CHANGED.
If this is the initial start-up for your broiler, ALL control settings must be made according to your restaurant operating guidelines.Follow the
steps outlined for calibration, changing preset times and setting the flex chamber element heat settings to properly set up this broiler.
1Turn Main Power Switch on. Light the broiler follow-
ing the lighting procedures. Allow the broiler 60 min-
utes to get to proper cooking temperature.
DO NOT COOK DURING WARM-UP!

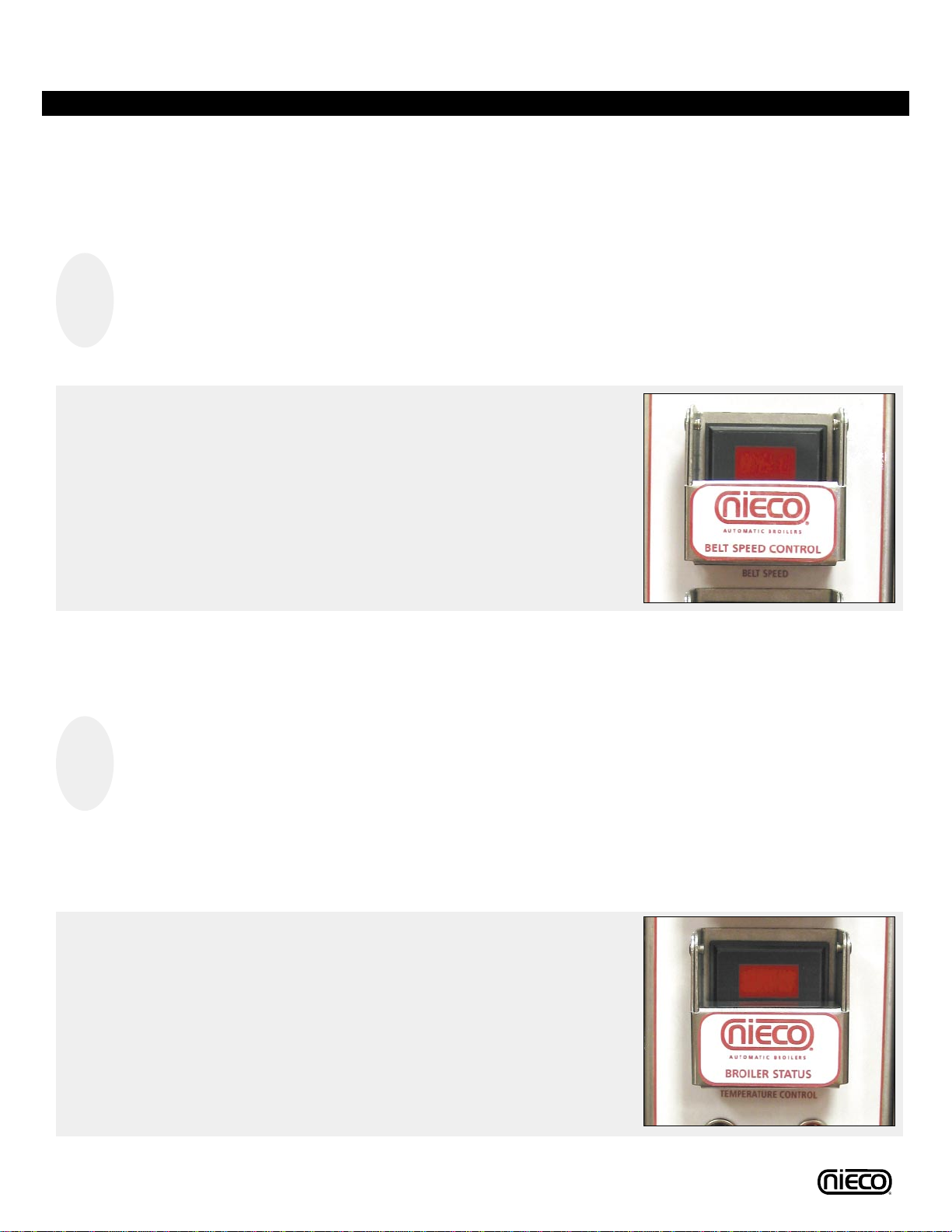

2Turn the BELT SPEED CONTROL knob to set the
belt speed to the desired setting. NOTE: The model
N850 has (2) two BELT SPEED CONTROLS.
WARMING UP
SET BELT SPEEDS
3
The N824/N850 can be calibrated automatically. Use the following steps to automatically calibrate your broiler:
1. Broiler must be OFF.
2. Push and hold the BROILER STATUS KNOB in.
3. Turn the broiler on. Continue to hold the knob in for 5 seconds.
4. Release the knob.The control will display a 60 minute countdown. At the end of the countdown, your
broiler will be calibrated and ready for use.
CALIBRATION MUST BE PERFORMED ON THE INITIAL START-UP OF YOUR BROILER.
The broiler should be recalibrated after any service work is performed. Nieco recommends calibrating your
broiler on a quarterly basis.
DO NOT COOK DURING CALIBRATION!
AUTOMATIC CALIBRATION
4During operation, the set point temperature and
actual temperature can be viewed by pressing and
holding the BROILER STATUS (Temperature
Control) KNOB in for 10 seconds.The first tempera-
ture shown will be the SET POINT, the second tem-
perature displayed will be the ACTUAL TEMPERA-
TURE.The display will change back to Rdy after 10
seconds.
CONTROL FUNCTIONS

15 Nieco Corporation - Model N824/850G
E. CLEANING AND DISASSEMBLY
Turn broiler off and close the main gas valve. Disconnect the power supply to the broiler before cleaning or
servicing. If this broiler is connected using a restraint, and disconnection of the restraint is necessary for clean-
ing or moving the broiler, the restraint must be reconnected after the broiler has been returned to its originally
installed position. Allow to cool for 30 minutes prior to cleaning/disassembly. Leave the ventilation system on
during cooling. Use only approved cleaning, degreasing and sanitizing solutions.
ALL PARTS ARE CLEANED ON A DAILY BASIS UNLESS OTHERWISE NOTED
Follow the steps for proper disassembly. Reverse the order for reassembly.
CAUTION
Follow the Disassembly and
Reassembly steps to ensure proper
operation of the broiler. Failure to
do so may result in operational
problems.
WARNING
BROILER PARTS ARE HOT. DO
NOT ATTEMPT TO DISASSEMBLE
THE BROILER UNTIL IT IS FULLY
COOL. FAILURE TO FOLLOW THIS
INSTRUCTION MAY RESULT IN
SEVERE INJURY.
WARNING
LEAVE THE VENTILATION HOOD
ON DURING COOLING. FAILURE TO
DO SO COULD POSE A FIRE
SAFETY HAZARD.
How to Use the Cleaning Section
The location of the part.
Slide grease pans out.
Make sure grease pans are cool before putting in
water or it may warp the pans.
Take to sink area and spray with degreaser.
Wash with a scrub pad, rinse, and sanitize in the
3-compartment sink.
Grease Pans
Feed End
Tools
6
Cleaning Aid
Instructions
Clean: Daily
3-Compartment Sink
Scrub Pad
Heat Resistant Gloves
Degreaser
1.
2.
3.
!
When to clean the part.
Picture of the part to be
removed and cleaned.
How to remove and
clean the parts.
The tools needed to
clean the part
The name of the part to be cleaned.

16 Nieco Corporation - Model N824/850G
Instructions
Allow the broiler to run free of product for 10
minutes before turning it off. This allows any
residue to burn off the chains.
Shut the broiler off and let it cool for 30 minutes
before disassembly and cleaning.
Close the main gas valve and unplug the broiler
before cleaning.
Always leave the ventilation hood on during the 30
minute cool down period.
Use only approved cleaning solutions.
Allow parts to air dry after cleaning.
Cleaning the Broiler
3-Compartment Sink
No-Scratch Pad Scrub Pad Towel
Heat
Resistant
Gloves
Degreaser
Soft Bristle
Brush
Lizard
Safety
Utility
Knife
Small Orifice
Brush Shaft Cleaning
Tool
Tools Needed
1.
2.
This “Stop” sign shows a step in the procedure that
must be followed exactly or personal safety could
be affected.
This warning symbol shows a step in the procedure
that must be followed exactly or broiler
performance could be affected.
This “puzzle” symbol shows a step in the
reassembly procedure that must be followed.
3.
4.
5.
!
Important Symbols
STOP 6.
Large Orifice
Brush Venturi Brush
Pull each meat guide out slightly from the bottom,
then lift off.
Wash, rinse, and sanitize in the 3-compartment
sink.
Meat Guides
Feed End
Tools
Instructions
3-Compartment Sink
No-Scratch Pad
Clean: 3:00 p.m.; 7:00 p.m.; 11:00 p.m.; 2:00 a.m.
1.
2.

17 Nieco Corporation - Model N824/850G
Slide the feeder cover towards you until it comes
off.
Wash, rinse, and sanitize in the 3-compartment
sink.
Feeder Cover
Feed End
Tools
Instructions
3-Compartment Sink
No-Scratch Pad
Clean: 3:00 p.m.; 7:00 p.m.; 11:00 p.m.; 2:00 a.m.
1.
2.
Pull the release pin.
Lift feeder base up and off.
Wash, rinse, and sanitize in the 3-compartment
sink.
DO NOT lift the feeder base by the feeder bar or the
chains. This will damage the feeder base.
REASSEMBLY: Pull the release pin and place feeder
base in position.
Feeder Base
Feed End
Tools
Instructions
3-Compartment Sink
No-Scratch Pad
Clean: 3:00 p.m.; 7:00 p.m.; 11:00 p.m.; 2:00 a.m.
1.
2.
3.
!

18 Nieco Corporation - Model N824/850G
Lift and remove.
Wash, rinse, and sanitize in the 3-compartment
sink.
REASSEMBLY: Hang feeder housing on brackets.
Feeder Housing
Feed End
Tools
Instructions
3-Compartment Sink
No-Scratch Pad
Clean: Daily
1.
2.
Slide grease pan out.
Make sure grease pan is cool before putting in
water or it may warp the pans.
Take to sink area and spray with degreaser.
Wash with a scrub pad, rinse, and sanitize in the
3-compartment sink.
Grease Pan
Feed End
Tools
Instructions
Clean: Daily
3-Compartment Sink
Scrub Pad
Heat Resistant Gloves
Degreaser
1.
2.
3.
!

19 Nieco Corporation - Model N824/N850G
Slide crumb tray out.
Wipe crumb tray clean over a trash can with a no
scratch pad.
Crumb Tray
Feed End
Tools
Instructions
Clean: Daily
1.
2.
No-Scratch Pad
Pull teflon sheets out.
Wipe with a clean dry towel.
Slide teflon sheets back under bun platens.
Teflon Sheets
Feed End
Tools
Instructions
Clean: Daily
1.
2.
3.
Towel

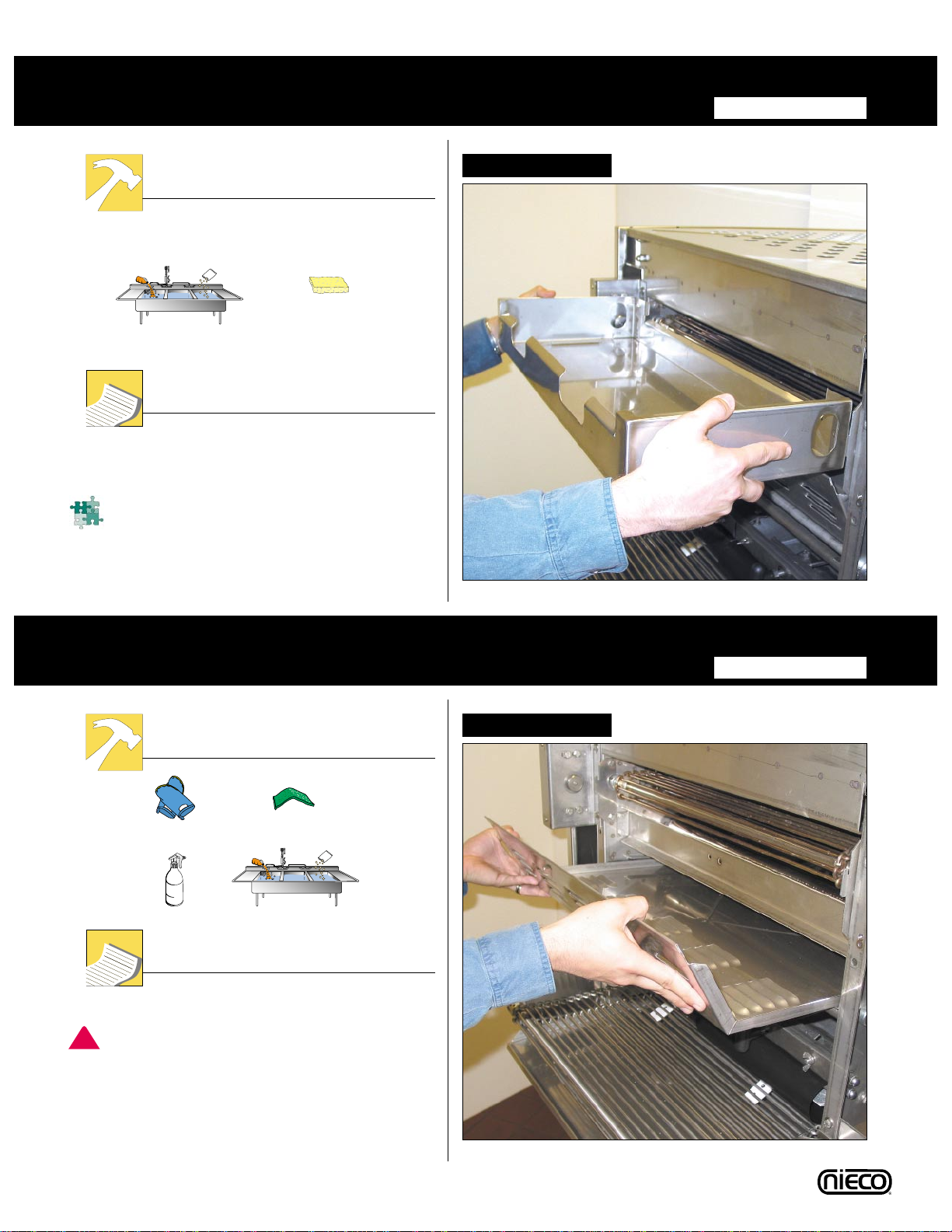

20 Nieco Corporation - Model N824/N850G
Tilt and lift pins off hooks; pull out.
Wash, rinse, and sanitize in the 3-compartment
sink.
Awning
Discharge End
Tools
Instructions
3-Compartment Sink
No-Scratch Pad
Clean: Daily
1.
2.
Heat Resistant
Gloves
Lift off brackets.
Take to sink area and spray with degreaser.
Wash with a scrub pad, rinse, and sanitize in the
3-compartment sink.
REASSEMBLY: Hang stripper blade on brackets.
Stripper Blade
Discharge End
Tools
Instructions
Clean: Daily
3-Compartment Sink
Scrub Pad
Heat Resistant Gloves
Degreaser
1.
2.
3.
