Jade ACACIA TS-051 User manual

ACACIA
TS-051
Installation Guide

ACACIA TS-051
Toilet Manual
Invisible L-Mount Brackets
Table of Contents
1. Sizing and Details 1
2. Necessary Tools and Materials 2
3. Precautions Before Installation 3
4. Installation
4 - 7
a. Positioning of the Drain Socket Flange 4
b. Installation of the L-Mount Brackets 5
c. Installation of the Toilet 6
d. Installation of the Toilet Seat 7
5. Recommended Measurements 8
6. Testing Operation 8
7. Troubleshooting & Solutions 8
8. Product Warranty 10
9. Customer Support & Technical Support 10

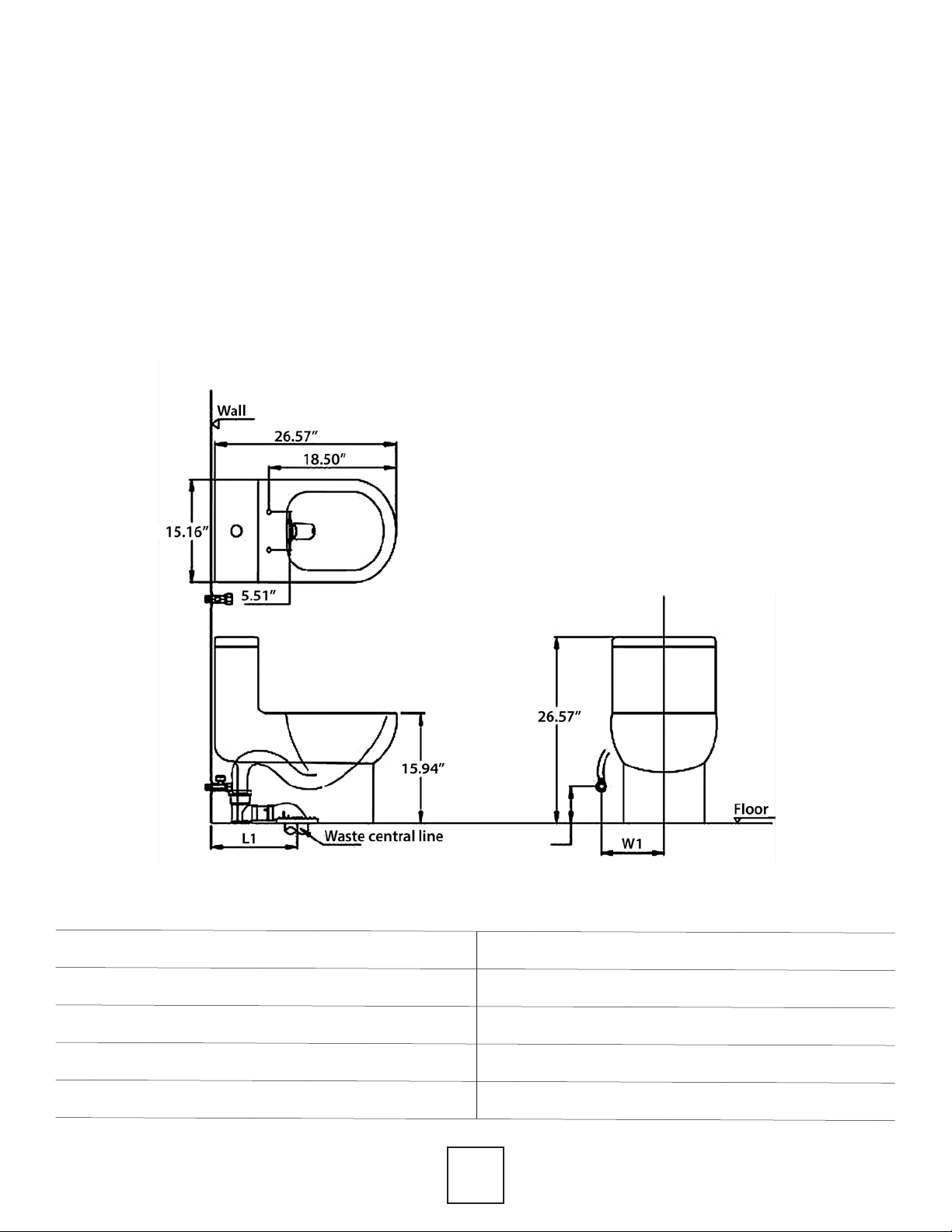

SIZING AND DETAILS
ACACIA TS-051
Contemporary european toilet
with dual flush
LENGTH 26”
WIDTH 15.16”
HEIGHT 26.57”
WATER CONSUMPTION 1.6 GPF / 0.8 GPF
TRAP DISTANCE 12”
1

PUTTY KNIFE
(Optional)
CRESCENT
WRENCH
SCREWDRIVER
(Phillips)
TAPE
MEASURE
DRILL
NECESSARY
TOOLS & MATERIALS
NECESSARY MATERIALS
Water Supply Valve
(also known as a water supply stop or
water supply fitting)
Water Supply Line Tape
Silicone
(color of your choice)
Closet Flange
(if the existing closet flange is not
used in this installation
INCLUDED MATERIALS
Wax Ring
Seat Hardware Kit
Not pictured
(varies among models)
Skirt Mounting Hardware
Drain Socket Flange
2
WAX RING DRAIN SOCKET
FLANGE
SKIRT MOUNTING
HARDWARE

PRECAUTIONS BEFORE
INSTALLATION
3
Please note, two people are needed during installation to place the toilet.
NOTE: The toilet flange is referred to as the drain socket flange, and the floor
flange is referred to as the closet flange for the purposes of this manual.
Before installing this product, note the required and recommended water
supply line pressure is between 20 and 80 psi.
Before installing your new toilet, the rough-in distance needs to be checked.
The distance between the floor drain and the water supply valve also needs to
be checked. Please reference the “Recommended Measurements” section
and the measurements for the model you have purchased.
Cleaning products prevent bacteria from growing on the surface of this
product. While the cleaning products are antibacterial, it cannot be ensured
that all bacteria are destroyed.
Oil, film, dust and other particles may come in contact with the product during
transportation and shelf life.
ANY and ALL residue must be removed from the closet flange.
The old closet flange bolts may need to be replaced.

INSTALLATION
4
Positioning of the Drain
Socket Flange
1. Remove the old toilet and the old wax ring with the putty knife.
2. Clean the closet flange thoroughly so there is no leftover residue.
3. Dry fit the drain socket flange (using the existing bolts in the closet flange)
and position it so it is straight.
NOTE: Do not install the new wax ring in this step.
4. Mark the position of the pilot holes for the drain socket mounting screws
at the rear of the drain socket flange. (You will mark 4 holes in total.)

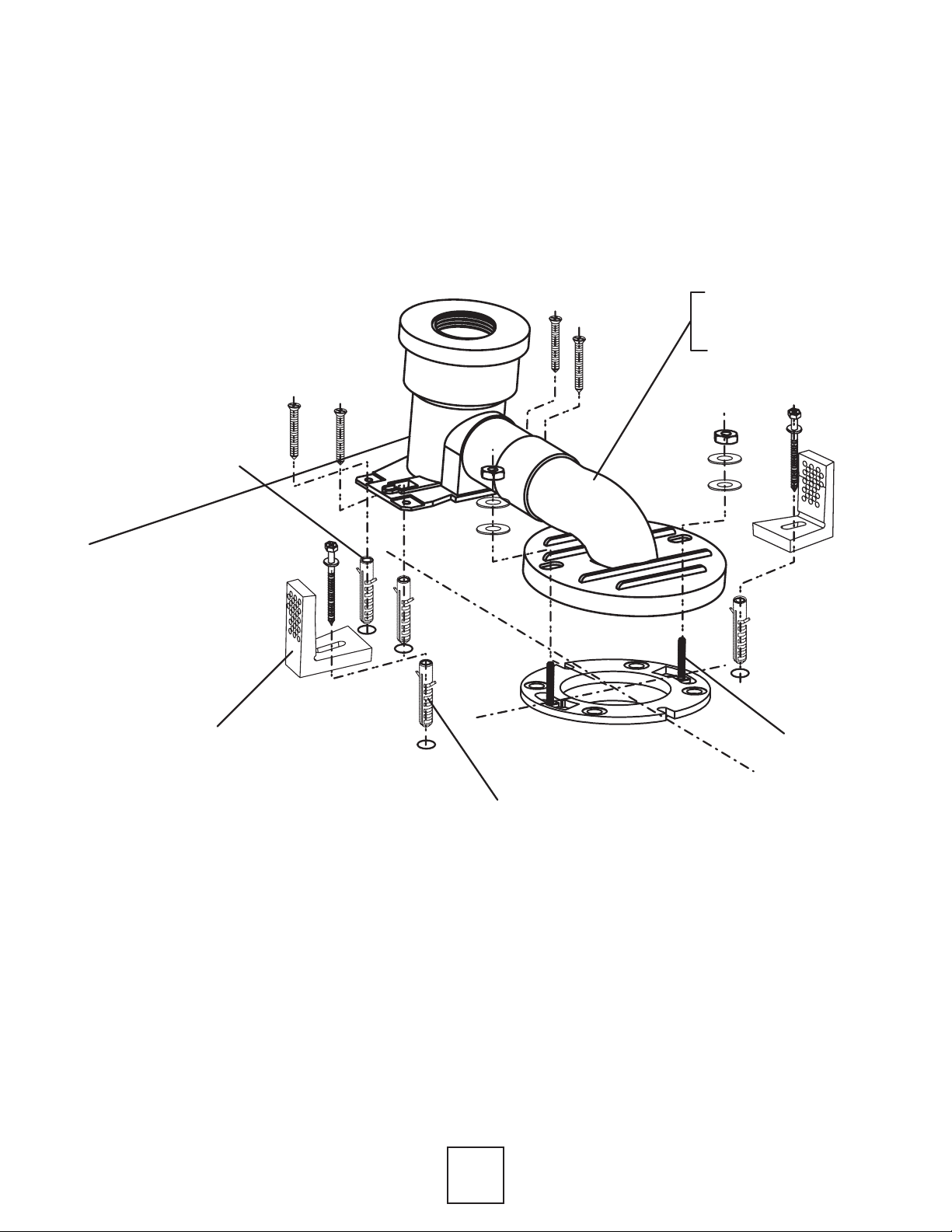

(See Illustration A)
5. Remove the drain socket flange and drill the 4 pilot holes. Insert the
anchors into the pilot holes.
NOTE: The existing closet flange may be used in this new toilet installation,
or you may purchase and install a new closet flange.
6. Fit the drain socket over the closet flange, using the existing bolts,
or you may purchase new bolts.
NOTE: The center of thedrain socket flange must be aligned with the
center of the closet flange. (Clogging may occur if the drain socket
is attached o center.)
7. Secure the drain socket with the washers and mounting screws.
8. Dry fit the toilet.
9. Use tape to mark the edge of the toilet skirt directly below the mounting
holes on each side of the toilet (these marks will be used to measure the
placement of the L-mount brackets).
10. Also mark the center edge of the front of the skirt with tape (this mark
will be used for placement of the toilet later in the installation).
11. Remove the toilet.

L-MOUNT BRACKET
L-MOUNT ANCHOR
DRAIN SOCKET
ANCHOR
DRAIN SOCKET
FLANGE
INSTALLATION CONT’D
5
Installation of the L-mount Brackets
1. Measure the thickness of the toilet skirt. It is recommended to add 1/8” to
this measurement. Measure this total measurement (thickness of the toilet
skirt plus an additional 1/8” as recommended) in from the tape marks
made in Step 9 of the previous section. Mark for placement of the L-mount
brackets.
2. Dry fit the L-mount brackets and mark the pilot hole for each L-mount
bracket.
3. Drill the 2 pilot holes and insert the L-mount bracket anchors into the pilot
holes.
4. Replace the L-mount brackets and secure them with the screws.

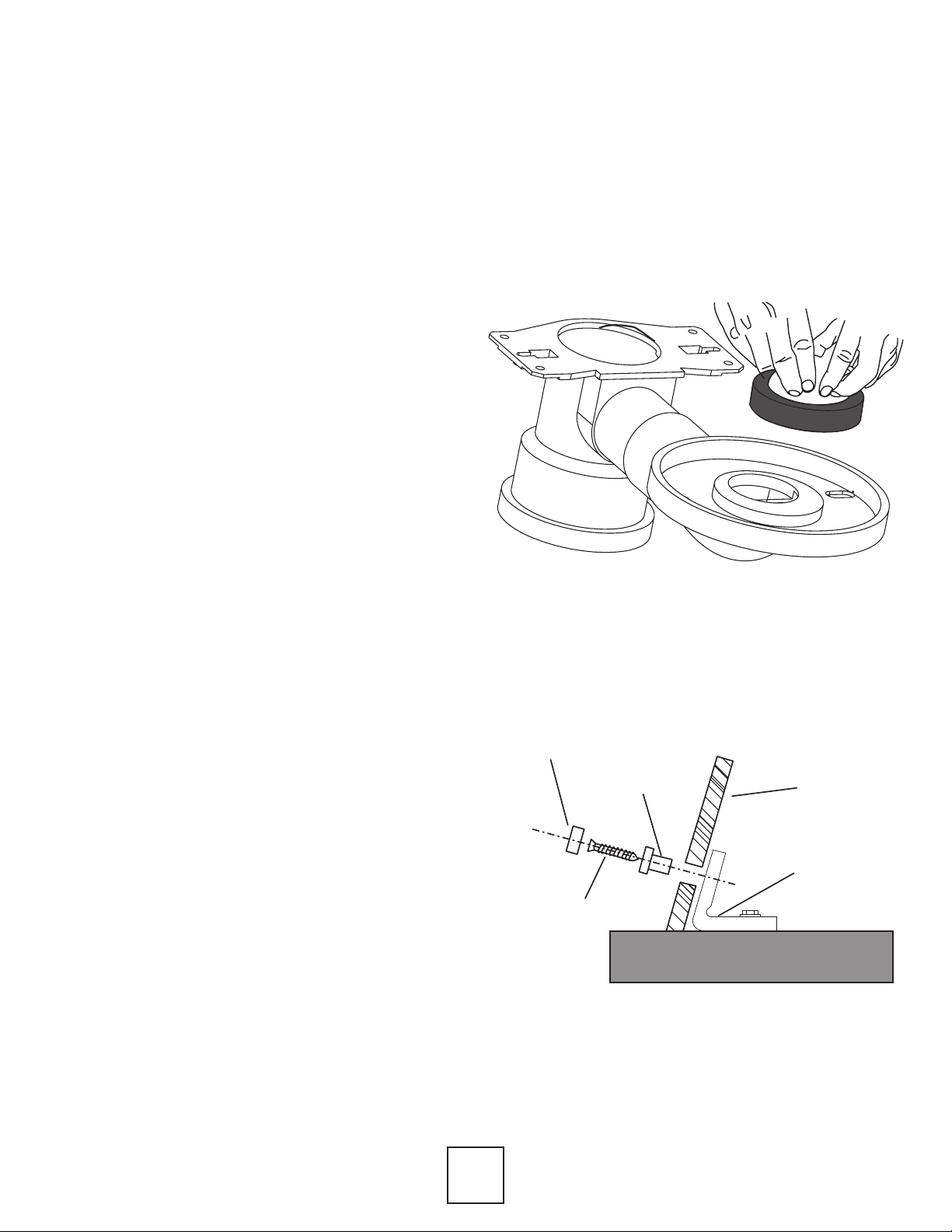

Illustration A

PLASTIC COVER
DECORATIVE CAP
TOILET SKIRT
L-MOUNT BRACKET
SCREW
FLOOR
INSTALLATION CONT’D
6
Installation of the Toilet
1. Remove the drain socket flange.
Attach the new wax ring to the
bottom of the drain socket flange.
(See Illustration B.)
2. Reinstall the drain socket flange as
done in Steps 6-7 of “Positioning
the Drain Socket Flange”
(on page 4).
3. Attach the water supply line (a steel
braided water supply hose is
recommended) to the tank filler
valve on the toilet.
4. Two people are needed to move the
toilet into place. The tape you
placed earlier shows you where to
place the front of the skirt.
5. Secure the toilet by installing the
screws, plastic cover and
decorative cap into the mounting
holes on each side of the toilet.
(These secure the toilet to the
L-mount brackets.
(See Illustration C.)
6. Attach the water supply line to the
water supply valve on the wall.
7. Seal the toilet to the floor with
silicone around the bottom edge
of the skirt.
NOTE: Do not move the toilet until the
silicone is dry
Illustration B

INSTALLATION CONT’D
7
Installation of the Toilet Seat
METHOD A
(WITH MOUNTING PLATE ):
1. Install the mounting plate bolt for the toilet seat into the mounting hole on
the toilet bowl.
2. Turn the mounting plate bolt for the toilet seat with a screwdriver to secure
the mounting plate. The tilted surface should face the front of the toilet
bowl after you attach the mounting plate for the toilet seat.
METHOD B
(WITH BOLTS ):
1. Place the new toilet seat on the toilet bowl with the hinges over the bolt
holes in the toilet bowl.
2. Open the hinge caps if applicable.
3. Drop the bolt through the open hinge and bolt hole.
4. Screw the bolt until snug.
METHOD C
(STANDARD)
5. With the hinged section of the toilet seat, set the toilet seat on the
mounting plate for the toilet seat.
6. The securing screw for the toilet seat is used on the side of the toilet seat.
(Without the securing screw, the toilet seat will be loose.) Insert the
securing screw for the toilet seat into the mounting hole on the side of the
toilet seat.

RECOMMENDED
MEASUREMENTS
TESTING OPERATION
8
1. The recommended rough-in distance between the center of the closet
flange and the wall is 12”.
2. The recommended distance between the center of the closet flange
and the water supply valve on the wall is 9” to 11”, depending upon the
toilet model.
3. The recommended distance between the water supply valve and
the floor is 11.5”.
1. Check the water level in the tank. The water level should reach the
waterline for the overflow pipe when the tank is full. If not, you will have
to use the following guidelines for adjusting the water level.
2. Flush the toilet and check for leaks between connecting sections while
the toilet is flushing.

TROUBLESHOOTING
& SOLUTIONS
9
Possible Causes:
1. The supply line is blocked
2. The flush button pushrods are
not contacting the flush valve.
3. The water supply valve is
closed.
Solutions:
1. You will need to turn o the
water supply and disconnect
the supply line. Also, inspect all
of the washers.
2. The length of the flush button
pushrod needs to be adjusted
as needed.
3. Open the water supply valve
by lifting the tank filler float
and let the toilet tank fill.
Problem 1:
The toilet is
not flushing
Possible Causes:
1. The drain socket flange is
loose.
2. The water supply hose is not
connected correctly.
Solutions:
1. Make sure that the bowl and
floor connection are
connected properly, and make
sure the toilet bowl is secured
correctly.
2. Disconnect and reconnect the
water supply hose. Plumbers
tape may be needed.
Problem 2:
The toilet leaks.
Possible Causes:
1. The supply valve is partially
closed.
2. There is clogging in the
strainer.
3. The water level in the toilet
bowl is too low.
4. The trapway and/or the vent
and/or the drain pipe are
partially clogged.
Solutions:
1. Fully open the supply valve.
Ensure that the water supply
line size is the correct size.
2. The strainer, inside the valve
shank, needs to be cleaned
(even if it is new).
3. Make sure the refill tube is
connected with the overflow
tube.
4. You need to eliminate the
obstruction. You may need the
assistance of a professional
plumber.
Problem 3:
The toilet flush
is weak.
Possible Causes:
1. The flapper and/or the flush
valve are deformed or worn
out.
2. The pushrods holding the flush
valve open are too long.
Solutions:
1. Turn o the water supply. Now,
replace the flush valve gasket.
2. Adjust the length of the
pushrod as much as needed.
Problem 4:
The toilet will
not shut o.

PRODUCT WARRANTY
CUSTOMER &
TECHNICAL SUPPORT
10
The product warranty is a 1 year limited parts warranty from the date it was
purchased. There is a warranty statement that accompanies the product.
Read the warranty statement for further information on your warranty.
For more information and for customer support, contact Jade
or our Technical Support Center at 1-866-333-0555 during our business hours
(Monday through Friday from 8 am EST to 5 pm EST).
11111 Rue Colbert,
Anjou, QC H1J 2S1
www.jadebath.com
514-756-6500
1-866-333-0555
