JADO G840S User manual

モデル:G840S
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

1
19
1
19
2
20
3
21
4
22
11
30
11
30
17
36
18
37
All manuals and user guides at all-guides.com

1
① ⑥
⑦
② ③ ④ ⑤
⑧
1
2
3
4
5
6
7
8
lens
Power port USB
Rearview mirror port
TF card slot
GPS
Fasteners
Display screen
Power button
5Mega pixel，170°wide angle lens
port for charging
Port used to connect the rear lens
Provide extensible storage(class10 Max 64GB)
GPS Port For GPS Antenna connection
The machine can be fixed by eight character Silicone button
11.66 inch touch screen display
Short press for off-screen，long press for power-off
All manuals and user guides at all-guides.com

2
北
0Km/h
北
0Km/h
All manuals and user guides at all-guides.com

3
Movie Mode：1296P/1082P/720P
Movie Clip Time: 1min/2min/3min
Sound Record: ON/OFF
LDWS: ON/OFF
Power Off: Set the automatic shutdown time of the driving recorder.
Optional shutdown, 1 minute, 3 minutes
Movie Mode
Movie Clip Time
Sound Record
LDWS
1296P
min
1080P 720P
1 2 3
北
0Km/h
All manuals and user guides at all-guides.com

4

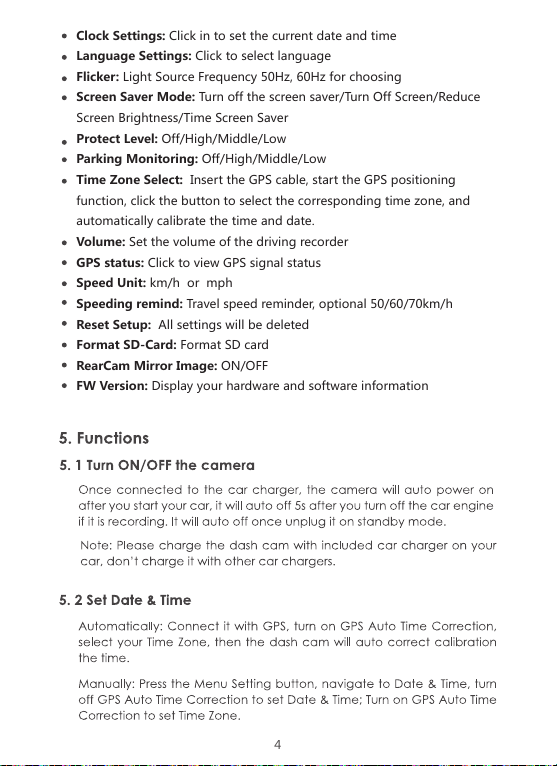

Clock Settings: Click in to set the current date and time
