JADO Glance 031/010 Series User manual

Installation Instructions
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
©JADO USA 2003
Products Luxury Faucets and Accessories
Wall Mounted Accessories
4HELPFUL HINTS FOR CLEANING AND MAINTENANCE
The solid brass product you have just purchased has been designed to give you years of beauty and service. It is
important to bring to your attention proper care and maintenance procedures, which will ensure its lasting beauty.
First and foremost, it is important (as it is with any fine piece of jewe ry or furniture) that the product be wiped c ean and
dry with a soft damp c oth after every use.
Second, under no circumstances shou d an abrasive c eaner or combination c eaner/po ish be used on JADO products.
The abrasive nature of such products wi eventua y destroy the finish and void the warranty.
In the event of stubborn b emishes shown on the finish, we recommend use of Windex window c eaner with a soft c oth,
but we do not recommend it be used on an everyday basis.
It is important to note that it is norma to expect signs of usage over time.
Thank you for selec ing JADO for your home.
109649 109649
JADO USA
7845 East Paradise Lane
Scottsdale, AZ 8526O
Phone:(8OO) 227-2734
Fax: (8OO) 552-JADO(5236)
www.jadousa.com

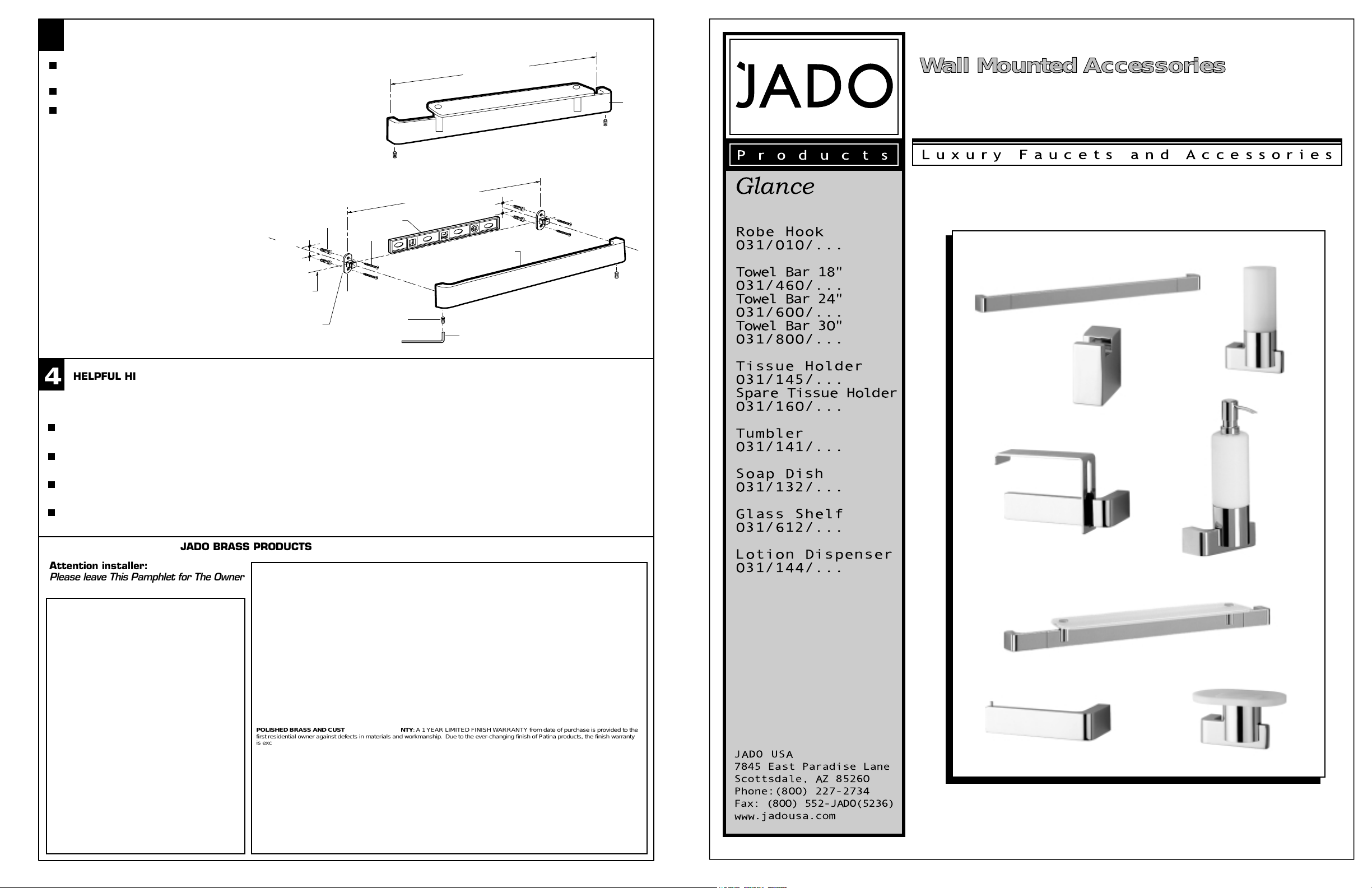

Product Numbers
Robe Hook
O31/O1O/...
Towel Bar 18"
O31/46O/...
Towel Bar 24"
O31/6OO/...
Towel Bar 3O"
O31/8OO/...
Tissue Holder
O31/145/...
Spare Tissue Holder
O31/16O/...
Tumbler
O31/141/...
Soap Dish
O31/132/...
Glass Shelf
O31/612/...
Lotion Dispenser
O31/144/...
Glance
TO THE PURCHASER OF JADO BRASS PRODUCTS
A en ion ins aller:
Please leave This Pamphlet for The Owner
POLISHED BRASS AND CUSTOM FINISHWARRANTY: A 1YEAR LIMITED FINISH WARRANTY from date of purchase is provided to the
first residential owner against defects in materials and workmanship. Due to the ever-changing finish of Patina products, the finish warranty
is excluded. Warranty shall not include problems related to the installation of the product.
MECHANICS
MECHANICAL WARRANTY: A LIFETIME LIMITED WARRANTY is provided to the first residential owner on parts to be free from failure
related to defects in materials and workmanship but not installation.
CONDITIONSTOWARRANTIES
JADO Bathroom & Hardware Manufacturing Corp.places the following conditions on its finish and mechanical warranties to the first residential owner only.
JADO finish and mechanical warranties are limited to products correctly installed and used in a residential environment.
JADO warranties will not assume liability for damage due to abuse, mishandling, incorrect installation, improper maintenance, or deterioration
due to normal use.
JADO will not be liable for labor or other costs relating to the sale, installation, or replacement of their products.
In the event of a defect in any JADO product covered by this warranty, the product must be returned to the dealer where originally purchased
along with proof of purchase.
JADO's obligation under the warranty shall be limited to the repair or exchange of any product which has been determined by JADO to be
defective after appropriate examination.
The state of California has mandated under Proposition #65 that
manufactures of products, including faucets which come into
contact with potable water, must warn the consumer if the product
contains materials listed by the state as a carcinogen or
reproductive toxin. Lead, which is contained in all brass faucets in
limited amounts appears on the State's list.
Preliminary industry tests have indicated that users of faucets
made from brass face no significant danger, however,
California Proposition #65 requires that we provide you with the
following notice:
NOTICE: JADO products conform to industry
requirements of water conservation under the
ASTM / ANSI A112.18.1M-1994 plumbing code.
Lavatory, bidet, wet bar and kitchen faucet sets
have a maximum flow rate of 2.2GPM. Shower
heads, hand showers and body sprays have a
maximum flow rate of 2.5GPM.
Warning: This product contains an element
known to the State of California to cause cancer
of reproductive harm.
JADO BATHROOM AND HARDWARE MFG.CORP.
7845 East Paradise Lane
Scottsdale, AZ 85260
JADO warrants this product to be free from defects in materials or workmanship for as long as the original consumer purchaser
owns their home.
JADO will provide, free of charge, at it’s sole option, replacement part(s) or product (or if no longer available, a comparable
product) to replace those which have proven defective in materials or workmanship.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to JADO for all limited
warranty claims.This limited warranty is non transferable.It does not apply in the event of product damage due to the use of other than
genuine JADO replacement parts, installation error, abuse, misuse, or improper care and maintenance (whether performed by
a plumber, contractor, service provider or member of the purchaser’s household).The limited warranty excludes damage due to aggressive
air or water conditions, or harsh or abrasive cleaners and/or materials.This limited warranty excludes all industrial, commercial and business
usage, whose purchasers are hereby extended a two year limited warranty (with the exception of solenoid valves and other electronic
components which carry a one year limited warranty) applying to all other terms of this limited warranty except duration. This limited warranty
does not cover labor charges incurred and/or damages sustained in installation, repair or replacement, nor incidental or consequential
damages, all of which are expressly disclaimed.This limited warranty is applicable only to JADO faucets manufactured after June 1, 1996
and installed in the United States and/or Canada.
This limited warranty gives the original consumer purchaser of an JADO faucet specific legal rights which may vary from state to
state or from province to province.This limited warranty does not cover any liability for consequential or incidental damages, all of which
are hereby expressly disclaimed, or the extension beyond the duration of this limited warranty of any implied limited warranties, including
those of merchantability or fitness for an intended purpose.In some states or provinces the exclusion or limitation of incidental or consequential
damages is not allowed, so those exclusions may not apply to you.
JADO Bathroom & Hardware Manufacturing Corp. provides the following warranties only to the first residential owner of our products.
FINISHES
FAUCET LIFETIME FUNCTION AND FINISH LIMITED WARRANTY
See detai for the center to center dimension of TOWEL BARS (1) and
GLASS SHELF (7). For insta ation of the MOUNTING PLATE (3) see step 1.
Note: The center ine of MOUNTING PLATES (3) must be eve .
3INSTALL TOWEL BAR OR GLASS SHELF
USE MOUNTING
PLATE AS TEMPLATE
OPTIONAL TO
FINISHED FLOOR
(50" TO 60")
LEVEL
031/460 (18")
031/600 (24")
031/800 (30")
031/612 (23-5/8")
C/L 2
1
3
4
C/L
C/L
C/L
C/L
Towel Bar
Glass Shelf
6
5
7
Insta WALL MOUNTED ACCESSORY (1) onto insta ed MOUNTING
PLATE (3). Push WALL MOUNTED ACCESSORY (1) f ush against
finished wa and tighten SET SCREW (5) with HEX WRENCH (6)
supp ied with accessory.

ROUGHING-IN
DIMENSIONS
109649 109649
Phi ips Screwdriver
TOOLS REQUIRED
OPTIONAL TO
FINISHED FLOOR
C/L
The wa mounted accessories (1) work best if secured to a wa stud or cross brace within the wa , using the SCREWS (2) supp ied.
If the WALL MOUNTED ACCESSORIES (1) are to be insta ed on a ti e or p aster wa the ANCHORS (4) and SCREWS (2) shou d be used.
Secure MOUNTING PLATE (3) to wa with SCREWS (2).
For installations on drywall or tiled walls Use ANCHORS (4) and SCREWS (2) for securing MOUNTING PLATE (3) to finished wa .
Dri two 1/4" dia. ho es a minimum of 1-3/4" deep. Insert the two ANCHORS (4) f ush with face of the finished wa .
Determine desired height and ocation (optiona ) and mark a center ine. Using the MOUNTING PLATE (3) as a temp ate mark the two
spots for the ANCHORS (4). If MOUNTING PLATE (3) is secured to a stud or cross brace dri sma pi ot ho es for SCREWS (2).
1INSTALL WALL BRACKET
2INSTALL ACCESSORY
2
1
3
4
3
4
2
FINISHED WALL
OPTIONAL TO
FINISHED FLOOR
031/460 (18")
031/600 (24")
031/800 (30")
Insta WALL MOUNTED ACCESSORY (1) onto insta ed MOUNTING PLATE (3). Push WALL MOUNTED ACCESSORY (1) f ush against
finished wa and tighten SET SCREW (5) with HEX WRENCH (6) supp ied with accessory.
Note Installation is typical for all wall mounted accessories.
Robe Hook
Robe Hook
Robe Hook
Soap Dish
Tissue Holder
Spare Tissue
Holder
Tissue HolderSpare Tissue Holder
Tumbler
Soap Dish
Towel Bar
Drill Level
10'
Tape
Measure
Tumbler
Regular Screwdriver
Lo ion Dispenser
1-3/8"
3/8" 1/2"
1-3/8" 3/4"
18-1/8"-31-1/2" 1-3/4"
3/4"
Glass Shelf
Lo ion Dispenser
6"
1-3/8"
3-1/4"
3-3/4"
1-3/8"
6"
3/4"
2-5/8"
2"
6-1/2"
1-3/8" 2-5/8"
4"
3/4"
5-1/4"
1-3/8"
5-1/4"
3/4"
3-1/2"
5-1/8"
3-1/8"
2"
6-3/8"
1-3/8" 3-3/4"
3-1/4"
3/4"
3-3/4"
17-5/8"
23-5/8"
24-3/8"
3/4"
4-1/4"
6
5
