  9. James Baroud Evasion User manual

James Baroud Evasion User manual

Evasion / Evasion XXL / Explorer / GrandRaid / GrandRaidXXL
EN/ Lid Protection cover
FR/ Housse de protection pour le stockage
DE/ Deckel-Schutzhülle
ES/ Funda protectora para la tienda
FR/ Guide de L’utilisateur
EN/ User Guide
DE/ Benutzerhandbuch
ES/ Guía del usuario
11
2
2
- Placement des pattes fixation et d barres de toit
- Placement of clamps and roof bars
- Platzierung der Klemmen und bars
- Colocación de las grapas de fijación en las barras de techo
- Positionnement et la distribution des barres de toit
- Position and distribution of the roof racks
- Positionierung und den Vertried von Dachtrager
- Posición y distribución de las barras de techo
- Avec 2 barres
- With 2 Bars
- Mit 2 Bars
- Avec 2 barres
- With 2 Bars
- Mit 2 Bars
- Con 2 barras
- Avec 3 barres
- With 3 Bars
- Mit 3 Bars
- Con 3 barras
- Avec
- Avec 4 barres
- With 4 Bars
- Mit 4 Bars
- Con 4 barras
- Avec
( Minimum weight supported by bar should be 45kg / Poids minimum supporté par barre deverait être 45kg / Mindestgewicht von 45kg unterstutzt wird, sollte sein.)
( Peso minimo soportado por barra deberá ser 45 kg)
www.jamesbaroud.com
EN/ After maintenance place the mattress on his original position
FR/ Après l'entretien, placez le matelas sur sa position d'origine
DE/ Nach der Instandhaltung die matratze auf die ursprüngliche position bringen
ES/ Después del mantenimiento coloque el colchón en su posición original
A
EN/ Tent front
FR/ Arrière de la tente
DE/ Zelt vorne
ES/ Frente de la tienda
B
EN/ Tent rear
FR/ Tente arrière
DE/ Zelt hinten
ES/ Trasera de la tienda
A
B
50 CM
30 CM
EN/
Mattress placement instructions
FR/
Instructions de placement de matelas
DE/
Matratze Platzierungsanweisungen
ES/
Instrucciones de colocación del colchón:
ATTENTION!!
CLOSE
21
2
3
5
6
1
12
4
12
123
4
12
12
3
OPEN

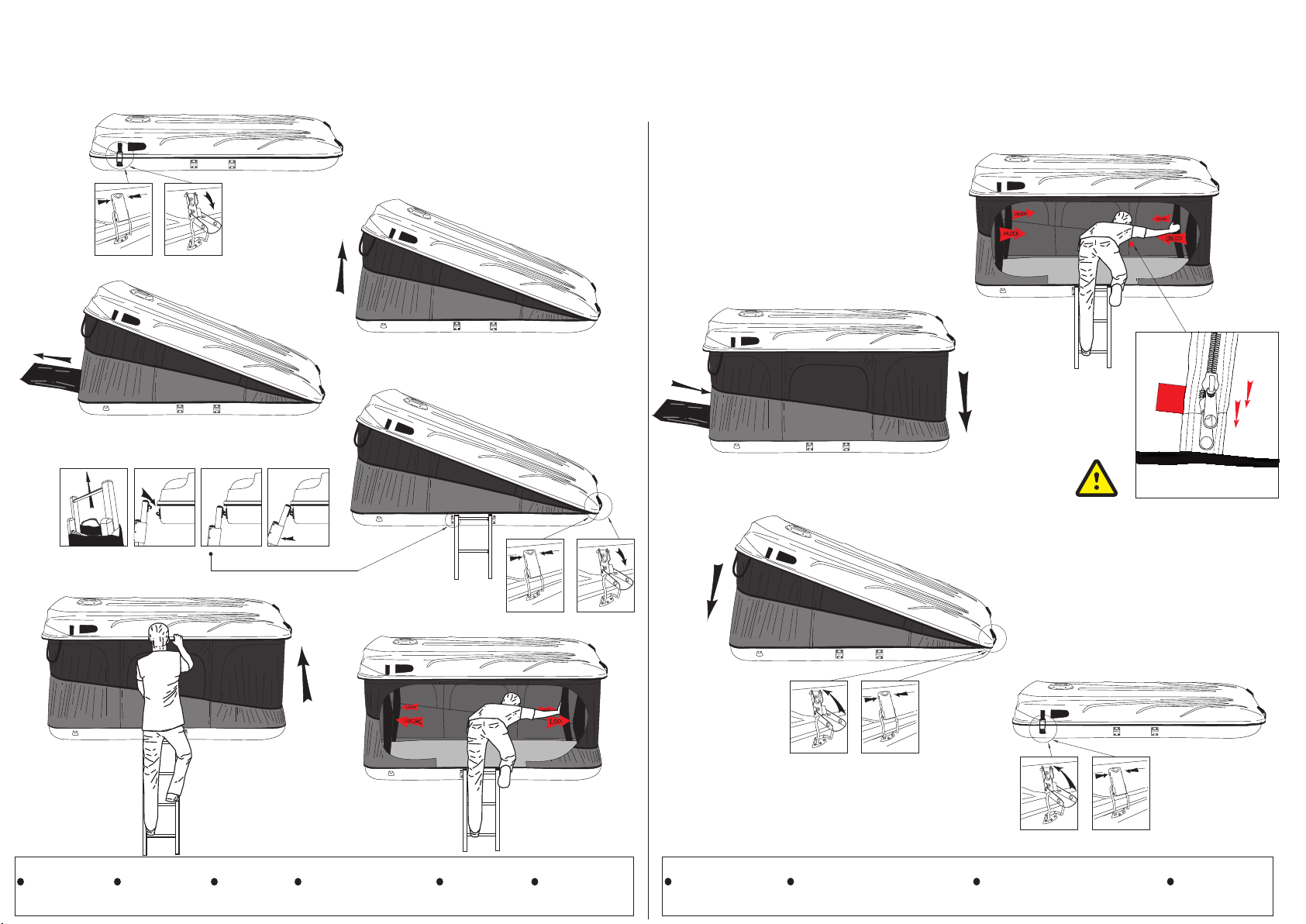

OPENING INSTRUCTIONS / INSTRUCTIONS D'OUVERTURE/ ERÖFFNUNGSVERFAHREN/ INSTRUCCIONES DE APERTURA
1
EN/ Open rear latches
FR/ Ouvrir les fermetures arrière
DE/ Offene hintere Riegel
ES/ Abrir los cierres traseros
2
EN/ Open the tent rear
FR/ Ouvrir l'arrière de la tente
DE/ Öffnen Sie das Zelt Hinter
ES/ Abrir la parte trasera de la tienda
3
EN/ Remove the ladder
FR/ Retirer l'échelle
DE/ Entfernen Sie die Leiter
ES/ Retirar la escalera
4
EN/ Place the ladder / Open front latches
FR/ Placez l'échelle / Ouvrir les fermetures avant
DE/ Setzen Die Leiter/ Öffnen Sie vordere Riegel
ES/ Colocar la escalera/ Abrir los cierres delanteros
5
EN/ Open the tent front
FR/ Ouvrir l'avant de la tente
DE/ Öffnen Sie das Zelt Vorder
ES/ Abrir la parte frontal de la tienda
6
EN/ Lock the 4 arms
FR/ Bloquer les 4 bras de la tente
DE/ Sperren Sie die vier Arme
ES/ Bloquear los 4 brazos
CLOSING INSTRUCTIONS / INSTRUCTIONS DE FERMETURE/ SCHLIEßENSVERFAHREN/ INSTRUCCIONES DE CIERRE
1
EN/ Unlock the 4 arms
FR/ Débloquer les 4 bras
DE/ Lösen Sie die vier Arme
ES/ Desbloquear los 4 brazos
2
EN/ Stow the ladder / Close the tent front
FR/ Ranger l’échelle / Fermer l’avant de la tent
DE/ Vereinbaren die leiter / Schließen Sie das Zelt Vorder
ES/ Guardar la escalera/ Cerrar la parte frontal de la tienda
3
EN/ Close front latches / Close the tent rear
FR/ Fermer les fermetures avant / Fermer l’arrière de la tente
DE/ Schließen vorderen Verriegelungen / Schließen Sie das Zelt Hinter
ES/ Cerrar los cierres delanteros/ Cerrar la trasera de la tienda
4
EN/ Close rear latches
FR/ Fermer les fermetures arrière
DE/ Schließen hintere Riegel
ES/ Cerrar los cierres traseros
ATTENTION!
Lors de la fermeture de la tente, amener
les curseurs au niveau des marques rouges.
CAUTION!
When closing the tent place all cursors
along the red marks.
WAARSCHUWING!
Während des Schließens des Zeltes,
stellen Sie cursor auf die roten Markierungen.
¡ATENCIÓN!
Al cerrar la tienda poner todos los cursores
al lo largo de las marcas rojas.

This manual suits for next models
