JAMO DVR 50 User manual

DVD Receiver DVR 50

4
Contents
Introduction 5
Quick Setup 9
Advanced Setup 11
Receiver 13
DVDs and Other Media 14
Advanced Functions 15
Radio 16
Support 17
Appendix 19
Congratulations on your new Jamo DVR 50 Receiver
The many different functions provided by your new DVD receiver will be a source of pleasure for you for many
years to come. Naturally, you can play and watch DVD films with superb audio and visual quality.
You can watch films in many other formats than DVD, such as MPEG-4, XviD, DivX.
The audio features also give you the option of playing music CDs, MP3 or Ogg Vorbis files. The DVR 50 auto-
matically recognises each format and can read CD-RW and DVD-RW alike. Your new DVR 50 also supports
Picture CDs (jpg), which means that you can display your photos directly on the TV screen. This includes pic-
tures developed at the photo shop and any photos you have scanned and saved to a CD yourself.
Note: Do not use the DVD Receiver until you have studied the quick setup menu. To do so, the DVD Receiver must be connected to a TV set.
english

5
1Introduction
Make sure the following accessories are included with your DVD Receiver.
DVD-Receiver Jamo DVR 50
Power Cable Batteries
for the remote control (size “AAA” R6P) Remote control
S-Video
Not provided in Europe
Composite Video
FM Antenna
SCART
Provided in Europe only
Audio Cable AM Antenna

Connecting
Refer to the illustration below to connect speakers, subwoofer and antennas. To fit the DVR 50 into your current video system, refer to the three
configuration examples. Choose from one of them or make your own combination.
6
Speakers
Extra accessories
Subwoofer
Extra accessory
Jamo DVR 50
FM Antenna
AM Antenna
Power Cable
Back panel
Detailed overview of the back panel
12
3
4
5 7
6
8 9 10
11 12 13 14
15 16 17 18 19
20
1. FM antenna
2. AM antenna
3. SCART connector
4. Component video output
5. Composite video output
6. S-Video output
7. Analog audio output
8. TV analog input
9. Video analog input
10. Auxiliary analog input
11. Subwoofer output
12. Optical audio input
13. Coaxial audio input
14. Optical audio output
15. Surround speaker centre out
16. Surround speaker right out
17. Surround speaker left out
18. Right speaker out
19. Left speaker out
20. AC input

7
SCART video configuration
Both audio and video is connected through the SCART lead. If a Satellite receiver or set top box has digital audio output (here optical), you can con-
nect to it directly.
S-Video configuration
Video is connected through the S-Video connectors (or composite video connectors) to the TV. Audio is also connected through the TV to the DVD
receiver. If a Satellite receiver or set top box has digital audio output (here coaxial), you can connect it directly
Component video configuration
Video is connected to the monitor, and audio is connected to the DVD receiver
VCR
SAT/STB
VCR
SAT/STB
VCR
SAT/STB/HDTV/PC
TV
TV
Monitor/
Plasma TV
Jamo DVR 50
Jamo DVR 50
Jamo DVR 50
Quick Setup
Video output must be set to SCART
Advanced setup - audio
TV input must be set to SCART
Video input must be set to optical
Quick Setup
Video output must be set to S-Video
Advanced setup - audio
TV input must be set to Analog
Video input must be set to coaxial
Quick Setup
Video output must be set to component video
Advanced setup - audio
TV input must be set to analog or if digital
audio to coaxial/optical
Video input must be set to analog
1
2
3
1
2
3
1
2
3
12
3
1
2
3
1
232

8
Overview
Front Panel
The front panel has the standard buttons listed below. When the disk tray is open, push the end of the tray to close it.
1. Standby
2. Source select
3. Volume up
4. Volume down
5. Previous (Arrow down in menus)
6. Next (Arrow up in menus)
7. Play/pause (Enter in menus)
8. Load (Eject)
Display
The DVD Receiver is equipped with a VFD display which indicates the current ongoing activities.
1. Indicates the selection of the disk being played
2. Indicates the track, chapter or program being played
3. Indicates the status on the source or the media playing
4. Indicates the type of media being played
Remote
The receiver is delivered with a standard remote control. All the player’s functions can be performed from it.
1. Standby
2. DVD Selector
3. Radio Selector
4. Video or Auxiliary Selector
5. TV Selector
6. Up Arrow
7. Left Arrow/Rewind
8. Play/Pause/Enter
9. Right Arrow/Fast Forward
10. Down Arrow
11. Previous Track/Chapter/Program
12. Stop
13. Next Track/Chapter/Program
14. Menu
15. List
16. Setup
17. Info
18. Mute
19. Sound Mode
20. Load/Eject
21.Volume -
22. Volume +
Note:
Certain functions will only work if sup-
ported by the media.
Putting the batteries in the remote
12 3 4 5 6 7 8
1 2
34
1
2 3 4 5
6
78
9
10
11 13
12
14 16
15
17 20
18 19
21 22

9
2Quick Setup
If your DVD Receiver is correctly connected (see the chapter on cable connections), a menu will appear when you turn
on the DVD Receiver. The menu installs the most important settings for your TV set and language.
Note: If this menu does not appear when you start the DVD Receiver, recheck the cable connections.
Note: Try connecting your TV set using the Composite Video cables. Composite Video always produces a picture.
Language
Select the language that will be used whenever
you open the DVR 50’s built-in menus. Use the
arrow buttons on the remote control to move
the rectangular frame to the language you wish
to select and press ENTER.
Video
Select the video connection your DVD receiver is
plugged with. Your options are SCART, S-Video
or Component video. Composite video is always
available, but the quality level is not as good as
the other connections.

10

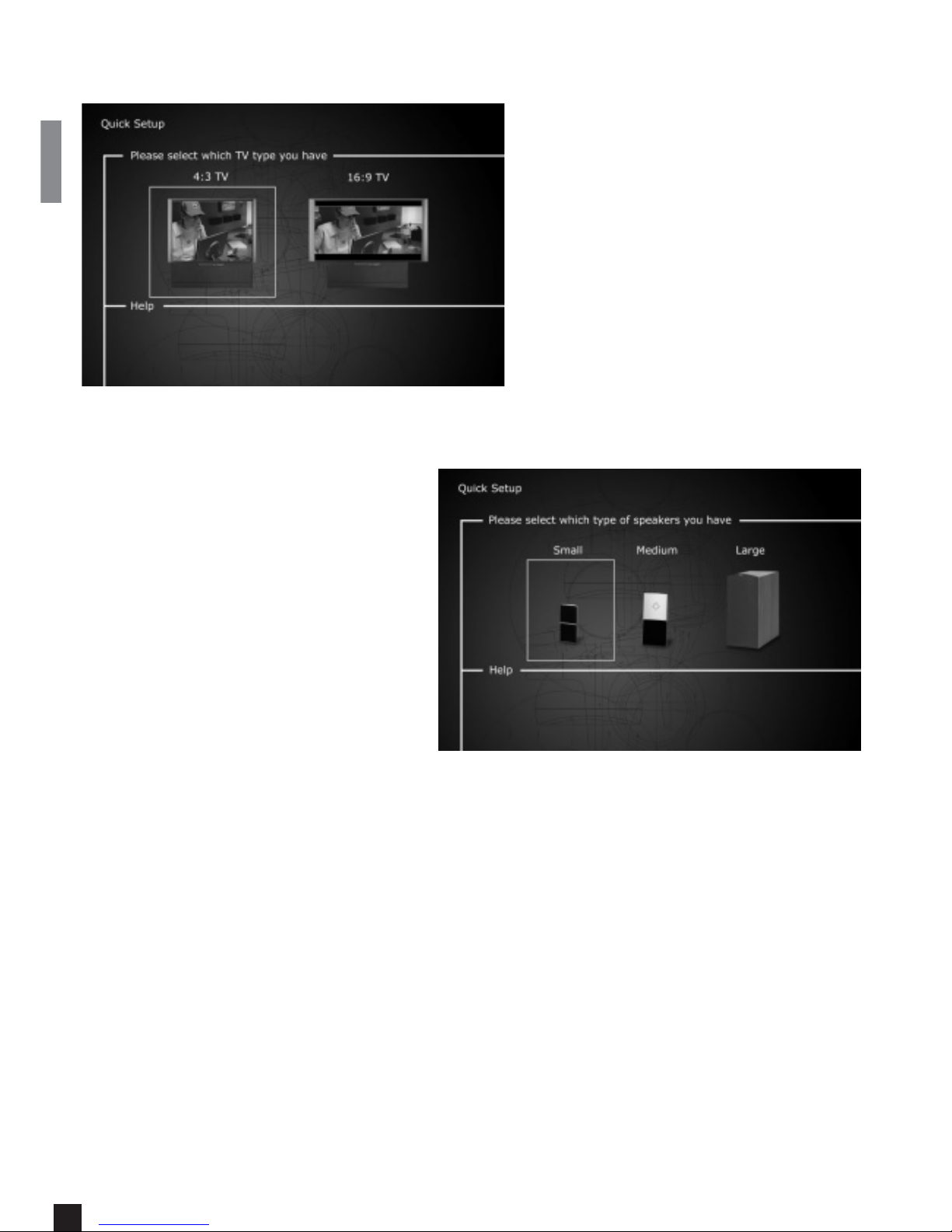

TV
This screen presents two different types of TV
formats: 4:3 (normal) or 16:9 (wide screen).
Speaker Type
To get the best possible sound select the type of
front speakers you have connected.
You can always go back and start again if you happen to do something wrong, or if you wish to enter the Setup menu and edit it.
Note: Some 4:3 TV screens can display 16:9 format.

11
3Advanced Setup
You can always access the Setup menu and adjust the DVR 50 to your specific requirements and hardware. When the
Jamo logo appears on the main screen, press the SETUP button on your remote control, and a menu will appear with
the available options. The orange frame shows your position on the menu. Use the arrow buttons to move the frame
and select by pressing the ENTER button. The settings on some of the menus have already been determined under
Quick setup, but there are several settings available under Advanced setup as well.
Language Settings
The first menu is the Language settings menu.
Here you select the language you wish to use
for the menus, that will appear on the screen,
and your preferred language when playing a
DVD film – for subtitles, speech and menus
(they will only be used if the film supports the
language). You can select more DVD languages
by selecting and entering a country code from
the table shown on appendix.
Video Settings
You can select the TV type (16:9 or 4:4 format),
video system (Pal or NTSC) and video connec-
tion where SCART, S-Video or Component video
is available. Composite video is always avail-
able.
Note: Progressive scan only works on Component video output. This connection
gives the best video quality .

12
Audio Settings
Jamo has tuned the product to give you the best
possible sound experience (Jamo Reference).
Under acoustic setup, you can neutralize these
settings or enhance them further by selecting
dynamic sound. Speaker size is used to make the
right base management. When using small front
speakers, try to place the subwoofer between
the front speakers. Speakers level let you
change the level on the speakers individually.
Select the channel you want to change and use
the volume buttons to adjust up and down.
External Input Setup
For external sources (TV, video and auxiliary),
you must define which plugs are used for the
audio connection. For each source, the input
plugs can be: Analog, SCART, Digital optical,
Digital coaxial.
Miscellaneous Settings
This display lets you set your preferred level of
protection on the films. Some films are divided
into levels, so that parents can prevent their
children from seeing a specific type of film. In
the next menu item, you create a password that
is required for editing this setup*. The light in
the DVD Receiver’s display can be modified from
dim to normal or bright. All settings can be reset
in the “Restore settings” menu, and the Quick
setup can be re-initiated from the last menu.
*If you wish to modify this setup later on, you
must re-enter the password.
To leave a menu, press the left arrow on the remote control.

13
4Receiver
Turn on and select DVD, radio, video and TV by pressing the source buttons.
Standby Button
Standby will turn off the DVD receiver
Source Select Buttons
Press the DVD button to start playing a medium. Pressing the
Radio button will start playing radio. TV or Video should be
pressed to select external inputs from TV or Video sound.
Auxiliary can be selected by pressing the Video button twice.
Amplifier Buttons
Change the volume level by pressing the volume buttons. Press
mute if instant silence is needed. The mode button is used to
change between different sound modes. By default, the best
available sound mode is selected for the source or media play-
ing. It can be changed according to the table shown below. The
default for CD, mp3 and radio is always stereo (centre and rear
speakers are turned off).
DTS: Surround, Stereo
Dolby Digital: Surround, Stereo
Stereo: PLII movie, Stereo, PLII music, 4 channel Stereo

5DVDs and Other Media
The DVD Player supports the following media: DVD Video, DivX, XviD, ISO MPEG-4, Audio CD, MP3, Ogg Vorbis and JPG.
DVD Menu
If you have adjusted your DVD Receiver according to the
instructions above, you can now insert a DVD into your
DVD Receiver. A moment later, the DVD menu will appear.
Use the arrow buttons to navigate in the menu and start
the film.
Note: As this menu is part of the DVD itself, it will vary
one from DVD to another.
CD, MP3 and Ogg Vorbis
When you insert an audio CD or a disc with MP3 or Ogg
Vorbis files, the player will automatically recognise the
format and start playing it. You can use next/previous
track or you can use the menu to navigate through the
file structure, and select the song you want to hear by
pressing enter.
Photo CD and Jpeg
The DVR 50 can show photos on your TV. The photos must
be stored in JPEG format on a Disc. The player will auto-
matically recognise the files, and start showing them as
a slide show. In the menu you can navigate to find a spe-
cific photo, and start the slide show from here by press-
ing enter.
DivX, XviD and MPEG-4
The DVR 50 recognises the format and automatically
starts playing the CD when you insert it into the drive.
Use the counter in the display to help you to see where
you are in the film. You have access to the usual playback
options, such as stop, pause, go to next, time search, etc.
DVD films are normally supplied with a regional code (1), (2), etc., and can only be played on DVD players/receivers with the same regional code. You
can see the region on the back of the player. Region tags appear as follows:
14

Subtitle
Use this function to choose from the subtitles available on the film. Normally you
can also choose the subtitle on the DVD menu
Audio
Use this function to chose among the available audio tracks on the film. Normally
you can also chose Audio on the DVD menu.
Search
When activating search you can enter a specific title, chapter or time on the disk,
and start playing from here by pressing enter.
Set Mark, Goto Mark
Set mark will remember the current position (timestamp) on the disc. By activating
the Goto mark, the player will start playing from that position. When the disc is
changed the bookmark will be reset.

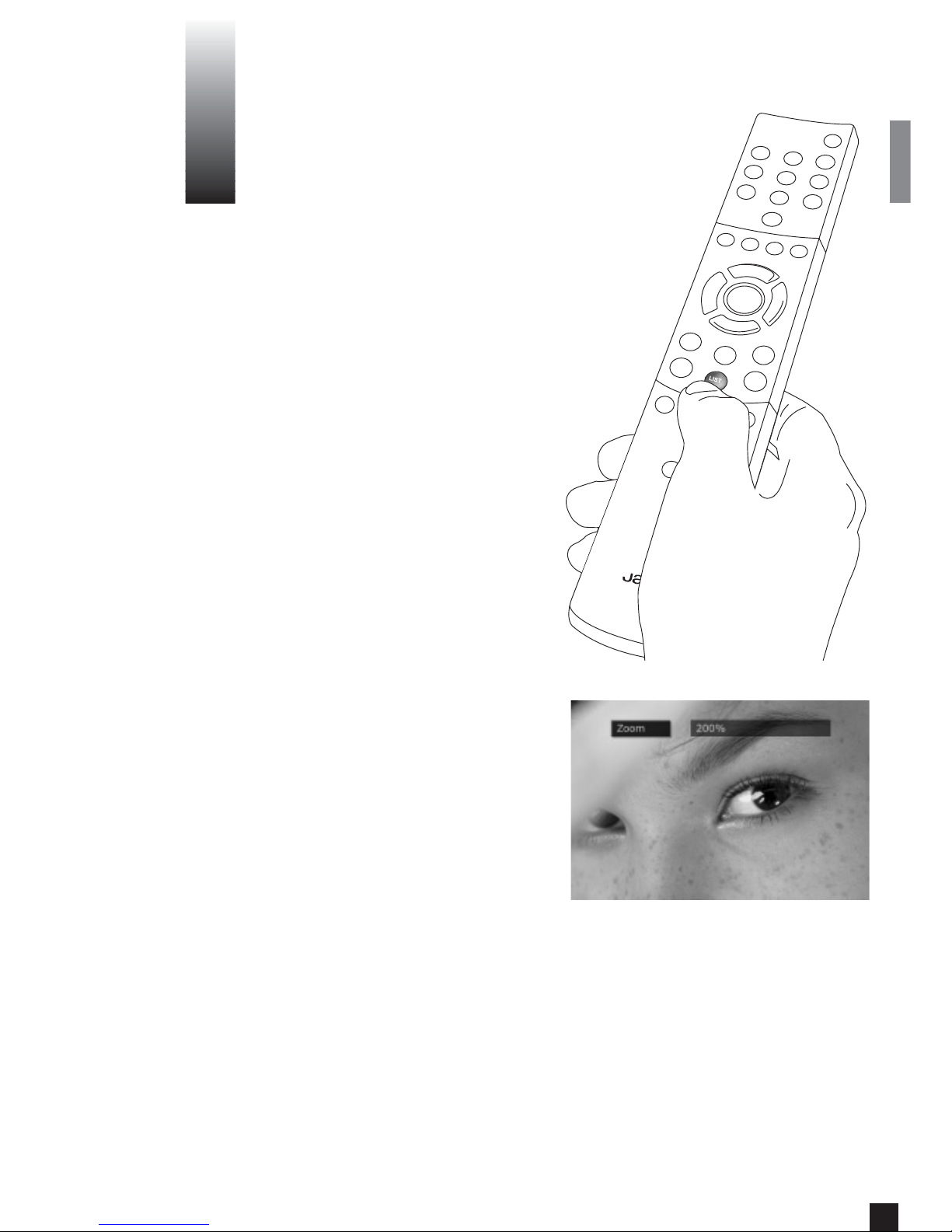

Zoom
You can zoom in on specific areas. When zoom is available, press enter to zoom in,
and use the cursor to move the zoom-window on the screen.
Angle
If the film supports more than one camera angle, you can use enter to switch from
one camera angle to another.
Repeat
You can play the current title/disc or a chapter/track continiously by activating
repeat. Default repeat is off.
Shuffle
When shuffle is activated tracks are played in random order. Default shuffle is set
to off.
Late night
If you want to watch a movie without disturbing others in the house, you can
reduce the dynamics (loud sounds) by activating the late night function. This func-
tion is reset when the product is turned off.
Slide show
With this function you can change the time that each picture is shown in the slide
show. You can also stop the slide show by selecting off.
Title menu
This function is sometimes used if you have more than one film (title) on one DVD.
15
6Advanced Functions
To simplify the remote, we have put all advanced functions under the list button. Press
list until you get the function you want to operate. Press enter to activate it.
Working the List functions
Press the List button until the function (Zoom in this
example) is available on the on-screen menu. Press enter
to activate it (change Zoom level in this example).
Note: The on-screen menu times out automatically after
a few seconds with no changes.
Not all the functions are available on all the medias

16

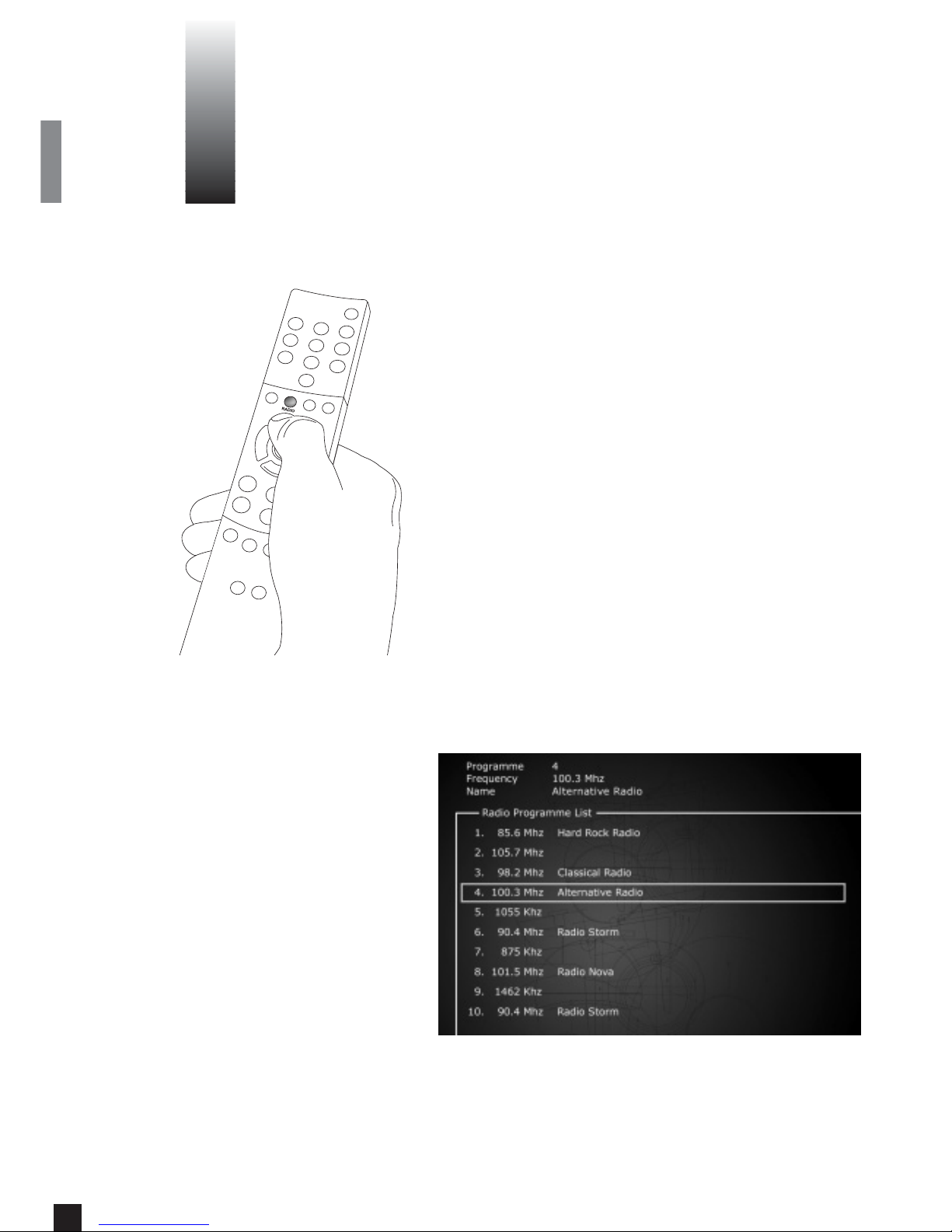

7Radio
If the antennas are correctly connected, you should be able to listen to both FM and AM radio
Find a radio station
Press >> or << to start searching for a radio
station. The display will show the current fre-
quency. If necessary you can fine tune with
arrow up/down. It is possible to change
between FM and AM by pressing the List button
until the FM/AM function is available and press
enter to toggle between FM and AM.
Programmes
Once the radio station is found, you can store it
to a specific programme number. Use the List
button to find the Store function and activate
it. Enter the program number (1 to 30) and press
enter. Stored programmes can be selected by
digit input, or by next/previous, you can also
press the menu button and select from the pro-
gramme list. Where RDS is available, the pro-
gramme name will appear as well as the fre-
quency. By pressing info you will get more RDS
information.

17
8Support
More information is available at Jamo’s website.
Address: www.jamo.com
Updates
At our website, you can update the DVD Receiver’s firmware/operating system with the latest new features. To do so, download the software from
the download section at the www.Jamo.com website. Then burn it on a CD-R and load it into the DVD receiver. See our website under download for
additional information.
If you do not have Internet access, or do not own or have access to a CD burner, an update can be purchased from the dealer where you purchased
your DVD Receiver.
Jamo reserves the right to change all settings and specifications without notice.
Environmental information
•The system is made of recyclable materials which can be reused if disassembled by authorised personnel.
•Please follow local regulations for the disposal of packaging materials, used batteries and discarded units.
Copyright
This product contains copyright technology which is protected pursuant to the patents that are the property of Macrovision Corporation and other
copyright holders. Any use of this copyright technology must be approved by Macrovision Corporation. The technology is intended for use in the
home unless otherwise approved by Macrovision Corporation. Breakdown and disassembly are prohibited.
Made under license from Dolby Laboratories. “Dolby” and the double “D” symbol are trademarks of Dolby Laboratories. “DTS” and “DTS Digital Out”
are trademarks of Digital Theater Systems, Inc.
Service
In case of warranty enquiries, please contact your dealer. In case of request for service under warranty, please enclose your original receipt.
Important: Never send the product to be repaired without prior agreement. If the DVD player is STILL UNDER WARRANTY, Jamo will pay freight costs
back and forth between the dealer and the Jamo authorised service centre. Any other freight must be paid for by the customer. The product must
always be packed properly, otherwise the product warranty will be discontinued. If the DVD player is NOT UNDER WARRANTY, all costs must be paid
for by the customer.
Warranty certificate
Jamo provides a twenty-four (24) month warranty from the date of purchase against material and manufacturing defects. For defects covered by the
warranty, the product must be returned to the dealer that sold the product, or refer to the enclosed appendix on the Jamo Instant Repair Service. The
expected time of repair, including transport, is approximately five working days (except for remote areas).
If any problems arise, information from our authorised service centres is available at the following address, or from the dealer who sold the product.
Terms of Warranty
1. The warranty is only valid on presentation of the original sales receipt, and if the serial number on the product
is fully legible.
2. The obligations of Jamo are limited either to repair or replacement of defective components. The repair or replacement of defective
components is based on an assessment by Jamo.
Exchange is only possible if the repair cannot be performed.
3. Warranty repairs must be carried out by an authorised Jamo dealer, or an authorised service centre. No remuneration is provided for
repairs performed by unauthorised workshops. Any repairs or damage to the product caused by unauthorised intervention are not covered by this
warranty.
4. This product will not be considered as being defective, either in materials or in manufacture, if adaptation to national, local, technical or safety-
related requirements is required in countries other than the specific country for which the product was originally designed and manufactured.
5. This warranty does not cover these types of adaptations, and no remuneration will be offered for these types of adaptations or for any
consequential damages. The warranty does not cover the following:
a) Periodic inspection, maintenance and repair or replacement of parts resulting from normal wear.
b) Costs connected to transport, disassembly or installation of the product.
c) Misuse, including use for purposes other than was intended, or faulty installation.
d) Damage caused by lightning, water, fire, natural catastrophes, war, insurrection, incorrect line voltage, insufficient ventilation or other causes
outside of the control of Jamo.
6. This warranty applies to every legal owner of the product during the warranty period.

Packaging
If possible, use the original packing material for any shipping. Otherwise, repack the DVR 50 using:
•Areinforced cardboard box, strong enough to carry the weight of the product.
•At least 6 cm / 2.36 inches of shock-absorbing material around the product.
•Nonabrasive dust-free material for the other parts.
•Nonabrasive wrapping for the product. (Dust and dirt cover)
•Repack the product in such a way as to ensure that it cannot shift in the box during transport.
Information we must receive before repairing the product:
Model name: Jamo DVD Receiver DVR 50
Serial no.:
Fault description (if possible):
Copy of the invoice or sales receipt
The dealer’s name, address and phone no.
Personal information: Name, address, post code/city, phone no. and e-mail address (optional).
Your signature
Dealer’s stamp and signature
Date
18

19
9Appendix
AFGHANISTAN 004
ALBANIA 008
ALGERIA 012
AMERICAN SAMOA 016
ANDORRA 020
ANGOLA 024
ANGUILLA 660
ANTARCTICA 010
ANTIGUA AND BARBUDA 028
ARGENTINA 032
ARMENIA 051
ARUBA 533
AUSTRALIA 036
AUSTRIA 040
AZERBAIJAN 031
BAHAMAS 044
BAHRAIN 048
BANGLADESH 050
BARBADOS 052
BELARUS 112
BELGIUM 056
BELIZE 084
BENIN 204
BERMUDA 060
BHUTAN 064
BOLIVIA 068
BOSNIA AND HERZEGOWINA 070
BOTSWANA 072
BOUVET ISLAND 074
BRAZIL 076
BRITISH INDIAN OCEAN TERRITORY 086
BRUNEI DARUSSALAM 096
BULGARIA 100
BURKINA FASO 854
BURUNDI 108
CAMBODIA 116
CAMEROON 120
CANADA 124
CAPE VERDE 132
CAYMAN ISLANDS 136
CENTRAL AFRICAN REPUBLIC 140
CHAD 148
CHILE 152
CHINA 156
CHRISTMAS ISLAND 162
COCOS (KEELING) ISLANDS 166
COLOMBIA 170
COMOROS 174
CONGO 178
COOK ISLANDS 184
COSTA RICA 188
COTE D'IVOIRE 384
CROATIA 191
CUBA 192
CYPRUS 196
CZECH REPUBLIC 203
DENMARK 208
DJIBOUT 262
DOMINICA 212
DOMINICAN REPUBLIC 214
EAST TIMOR 626
ECUADOR 218
EGYPT 818
EL SALVADOR 222
EQUATORIAL GUINEA 226
ERITREA 232
ESTONIA 233
ETHIOPIA 210
FALKLAND ISLANDS (MALVINAS) 238
FAROE ISLANDS 234
FIJI 242
FINLAND 246
FRANCE 250
FRANCE, METROPOLITAN 249
FRENCH GUIANA 254
FRENCH POLYNESIA 258
FRENCH SOUTHERN TERRITORIES 260
GABON 266
GAMBIA 270
GEORGIA 268
GERMANY 276
GHANA 288
GIBRALTAR 292
GREECE 300
GREENLAND 304
GRENADA 308
GUADELOUPE 312
GUAM 316
GUATEMALA 320
GUINEA 324
GUINEA-BISSAU 624
GUYANA 328
HAITI 332
HEARD AND MC DONALD ISLANDS 334
HONDURAS 340
HONG KONG 344
HUNGARY 348
ICELAND 352
INDIA 356
INDONESIA 360
IRAN (ISLAMIC REPUBLIC OF) 364
IRAQ 368
IRELAND 372
ISRAEL 376
ITALY 380
JAMAICA 388
JAPAN 392
JORDAN 400
KAZAKHSTAN 398
KENYA 404
KIRIBATI 296
KOREA, DEM. PEOPLE'S REPUBLIC OF 408
KOREA, REPUBLIC OF 410
KUWAIT 414
KYRGYZSTAN 417
LAO PEOPLE'S DEMOCRATIC REPUBLIC 418
LATVIA 428
LEBANON 422
LESOTHO 426
LIBERIA 430
LIBYAN ARAB JAMAHIRIYA 434
LIECHTENSTEIN 438
LITHUANIA 440
LUXEMBOURG 442
MACAU 446
MACEDONIA 807
MADAGASCAR 450
MALAWI 454
MALAYSIA 458
MALDIVES 462
MALI 466
MALTA 470
MARSHALL ISLANDS 584
MARTINIQUE 474
MAURITANIA 478
MAURITIUS 480
MAYOTTE 175
MEXICO 484
MICRONESIA, FEDERATED STATES OF 583
MOLDOVA, REPUBLIC OF 498
MONACO 492
MONGOLIA 496
MONTSERRAT 500
MOROCCO 504
MOZAMBIQUE 508
MYANMAR 104
NAMIBIA 516
NAURU 520
NEPAL 524
NETHERLANDS 528
NETHERLANDS ANTILLES 530
NEW CALEDONIA 540
NEW ZEALAND 554
NICARAGUA 558
NIGER 562
NIGERIA 566
NIUE 570
NORFOLK ISLAND 574
NORTHERN MARIANA ISLANDS 580
NORWAY 578
OMAN 512
PAKISTAN 586
PALAU 585
PANAMA 591
PAPUA NEW GUINEA 598
PARAGUAY 600
PERU 604
PHILIPPINES 608
PITCAIRN 612
POLAND 616
PORTUGAL 620
PUERTO RICO 630
QATAR 634
REUNION 638
ROMANIA 642
RUSSIAN FEDERATION 643
RWANDA 646
SAINT KITTS AND NEVIS 659
SAINT LUCIA 662
SAINT VINCENT AND THE GRENADINES 670
SAMOA 882
SAN MARINO 674
SAO TOME AND PRINCIPE 678
SAUDI ARABIA 682
SENEGAL 686
SEYCHELLES 690
SIERRA LEONE 694
SINGAPORE 702
SLOVAKIA (Slovak Republic) 703
SLOVENIA 705
SOLOMON ISLANDS 090
SOMALIA 706
SOUTH AFRICA 710
SPAIN 724
SRI LANKA 144
ST. HELENA 654
ST. PIERRE AND MIQUELON 666
SUDAN 736
SURINAME 740
SVALBARD AND JAN MAYEN ISLANDS 744
SWAZILAND 748
SWEDEN 752
SWITZERLAND 756
SYRIAN ARAB REPUBLIC 760
TAIWAN, PROVINCE OF CHINA 158
TAJIKISTAN 762
TANZANIA, UNITED REPUBLIC OF 834
THAILAND 764
TOGO 768
TOKELAU 772
TONGA 776
TRINIDAD AND TOBAGO 780
TUNISIA 788
TURKEY 792
TURKMENISTAN 795
TURKS AND CAICOS ISLANDS 796
TUVALU 798
UGANDA 800
UKRAINE 804
UNITED ARAB EMIRATES 784
UNITED KINGDOM 826
UNITED STATES 840
UNITED STATES MINOR OUTLYING ISLANDS 581
URUGUAY 858
UZBEKISTAN 860
VANUATU 548
VATICAN CITY STATE (HOLY SEE) 336
VENEZUELA 862
VIET NAM 704
VIRGIN ISLANDS (BRITISH) 092
VIRGIN ISLANDS (U.S.) 850
WALLIS AND FUTUNA ISLANDS 876
WESTERN SAHARA 732
YEMEN 887
YUGOSLAVIA 891
ZAIRE 180
ZAMBIA 894
ZIMBABWE 716
List of country codes available for DVD language setup
