ROKKER® XXRP 630w Amplifier
Kit For 2014-2016 Harley® Street
Glide with Lower/Rear Speakers
#
JAMP-630HC14-SGP
Installation
and Operation
Instructions

Product Description
This new J&M ROKKER XXRP DSP controlled 4-channel 630
watt RMS fairing/rear speaker amplifier kit has been designed
specifically for use on the 2014-2016 Harley® StreetGlide (NOT
for CVO) with the stock Harley radio (either version NO radio FLASH
required) with rear-lid or lower-fairing speakers added.
The specific green-band plug-n-play RCA input harnesses included
with this amplifier kit, take the 2-channels of audio signal available
from the StreetGlide version of the Harley Infotainment radio and
provides 4 separate channels of amplification at 157.5 watts RMS
continuous power per-channel into a 2 or 4-ohm speaker load.
(Manually selectable on the amplifier itself for a 2-ohm or 4-ohm
speaker load)
This is a full range class D digital amplifier properly shielded
against RF interference into the AM or FM stereo radio bands.
The ROKKER XXRP amplifier uses advanced digital switching power
supply technology to dramatically reduce the 12v current demands
on the motorcycle electrical system, compared to other brand
amplifiers in this power range.
Amplifier mounts to the custom made stainless steel 2-piece
bracket system, to provide solid and secure mounting inside the
StreetGlide or Ultra fairing, in addition to blocking amplifier heat
from being transferred to the radio.
These new ROKKER XXRP series amplifiers are fully programmable
thru the internal digital signal processor (DSP) and come out of the
box already dialed in for this specific StreetGlide custom speaker
configuration, to provide maximum highway performance from your
Harley Davidson audio system.
Should you wish to alter these DSP settings using the internal
programming dongle already built into this new amplifier, (USB
computer connection cable also included with this amplifier kit) all
of our specific custom amplifier programs are now available as a
consumer download from the J&M website @ www.jmcorp.com .
Also included are our custom made heavy-gauge power and ground
wires used for the fused battery & frame connections, along with
all necessary mounting hardware & complete installation/operation
instructions.
Amplifier itself measures 8 1/4” Long X 5 1/8” Wide X 1 5/8” Tall.
Installation Instructions
1. Remove the windshield, outer fairing shell, vent below
windshield, fuel tank and seat.
2. Remove and replace the stock metal tray above the radio with
the J&M Amplifier mounting tray by removing the 4 screws holding
the tray to the radio, 4 screws holding the tray to the speaker
enclosures, and 2 screws holding the tray to the gauge assembly.
Place the J&M Amplifier mounting tray in place of the stock tray
and secure with the screws removed from the stock tray. (Figure B)
3. Mount Amplifier to the J&M Amplifier mounting plate with the 4
screws provided. The 2 shorter screws go toward the gauges.
4. By following the factory wiring harness, route the amplifier
power harness from the fairing, under the fuel tank, and on to the
battery. (removal of the fuel tank is required )
5. After first disconnecting the negative battery cable from the
battery, connect the positive (red) lead from the amplifier power
harness directly to the positive post of the battery. Then connect
the negative (black) lead from the power harness to the same bolt/
stud on the frame that the negative battery cable is connected to.
Then reconnect the negative battery cable to the battery. (Figure A)
Do not connect the negative (black) lead from the amplifer to the
negative post of the battery.
6. Make speaker and Amplifier connections per diagram. Note:
Tweeter rings will now be plugged into the supplied ROKKER XX
Extreme harness instead of the 6.65 speaker. (Figure B, C and D)
Important Programing Note: The amplifier gain & frequency
response adjustments have been pre-programed at our factory
for this specific Harley Davidson audio system application, using
speakers with an impedance of 2-ohms, to provide maximum
performance at highway speeds. Should speaker impedance
change, an alternate software programing package will need to
be downloaded & flashed to the digital signal processor inside the
amplifier. This programming service is available direct from ‘J&M
Corporation in Tucson AZ USA. Send email direct to ROKKER_DSP_
[email protected]
BATT
+
Red
Black
Master Frame
Grounding Stud
Negative
Battery Cable
Fuse
Heavy Gauge
Amplifier Power/Ground
Wire Harness
Fig. A

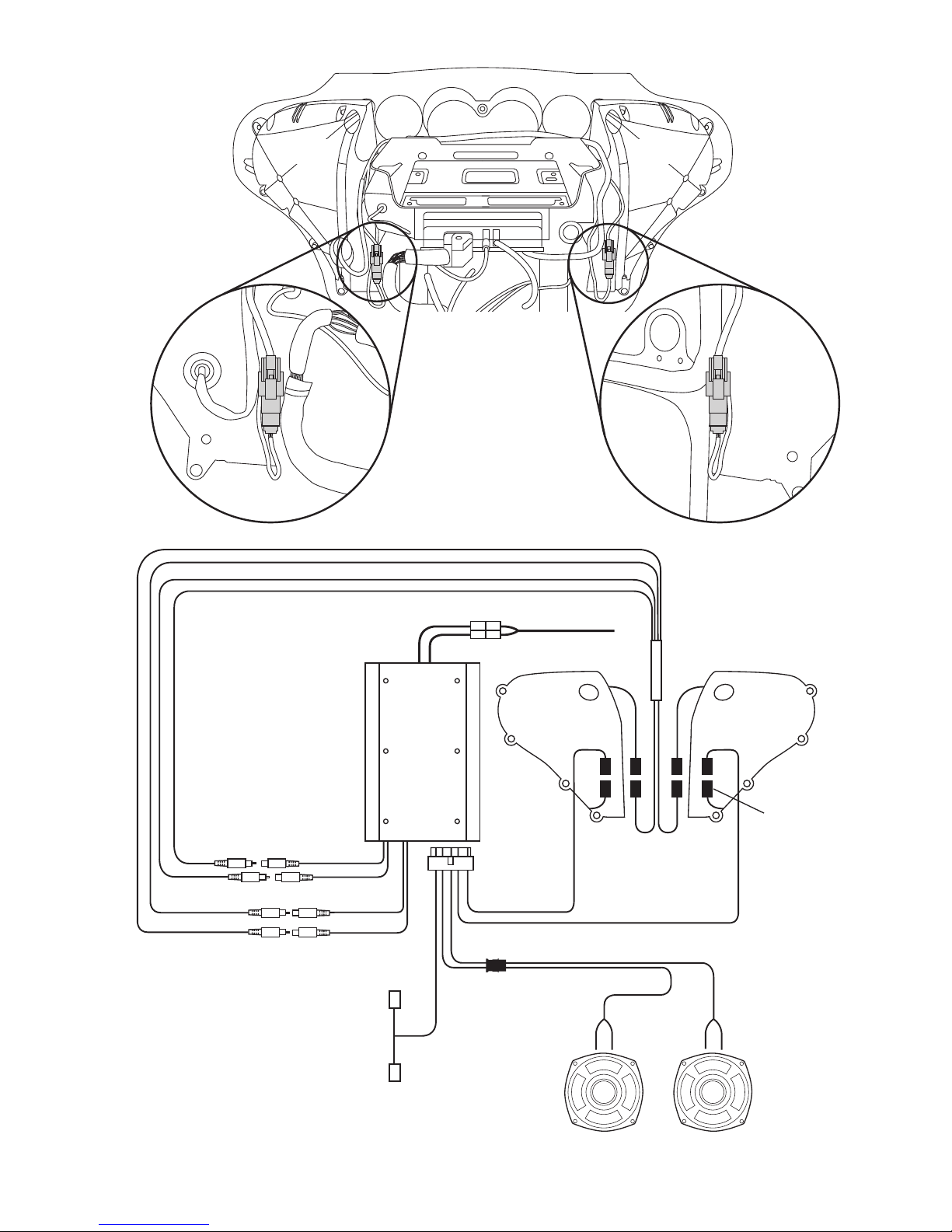

Speaker
Enclosure
Speaker
Enclosure
2-Pin
Connectors
Fig. B
Power Harness
Amplifier
Speaker
Enclosure
Speaker
Enclosure
FL
FR
Orange
2-Pin
Connectors
2-Pin
Remote
Tu rn On
Connector
Right SpeakerLeft Speaker
Lower Fairing Speakers
or Rear Speakers
RL
RR
4-Pin
Connectors
Fig. C

ROKKER® XXRP 630
Full Range Class D Amplifier
Output Power (RMS) @ 1% THD 1000Hz 14.4V CEA 2006
Stereo @ 4ohms 4 x 157.5 Watts – 630w RMS Total
Stereo @ 2ohms 4 x 157.5 Watts – 630w RMS Total
Frequency Response -3dB 1Hz - 69kHz Capable
S/NRatio
Separation >90dB
>74dB
Input Sensitivity .35V - 3.9V
Input Impedance 47.5K
Specifications
1415 S. Cherry Avenue
Tucson, AZ 85713 U.S.A.
Tel [phone]
Website: http://www.jmcorp.com
E-mail: [email protected]

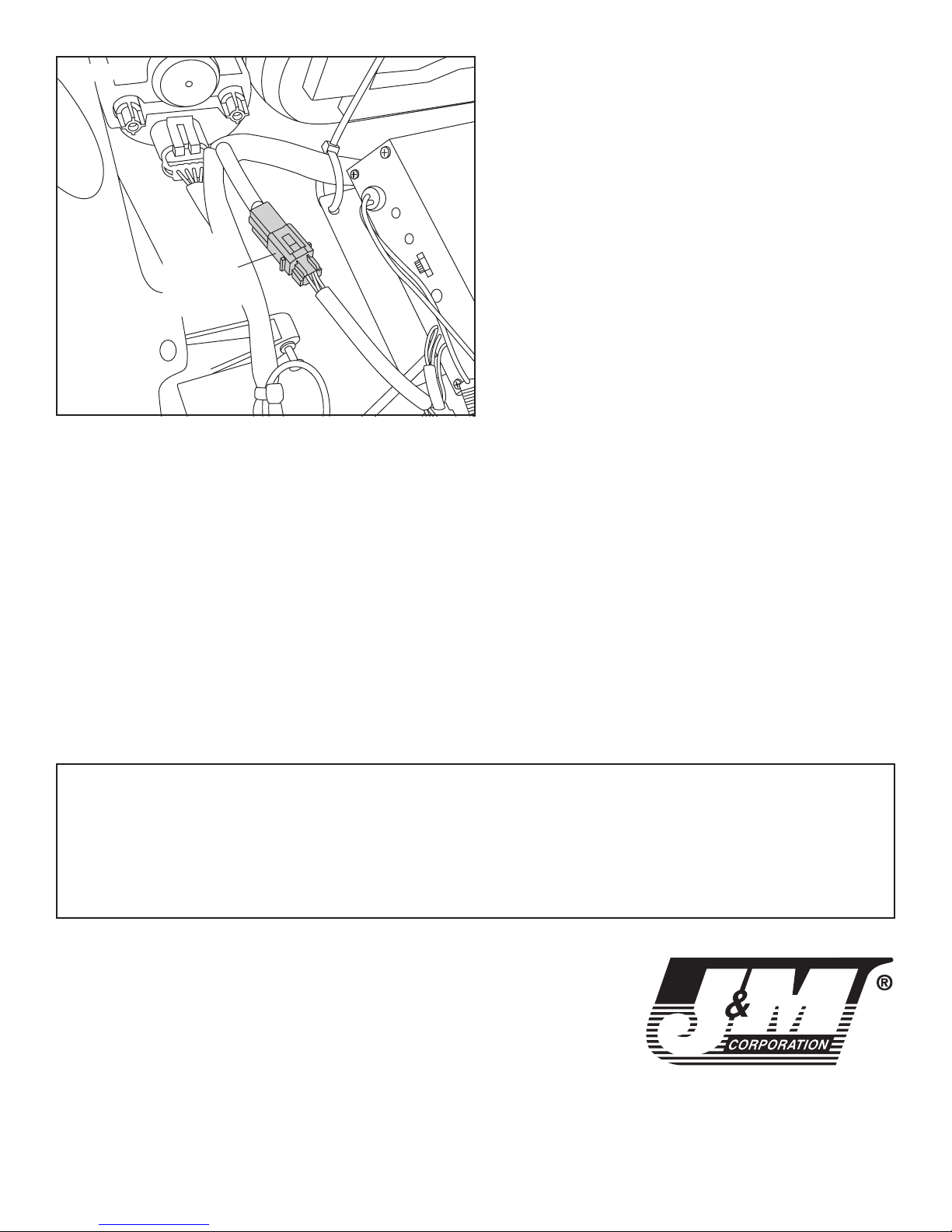

2-Pin
12v Amp
Tu rn On
Connector
Fig. D
Thank you for the confidence you have shown in J&M
Corporation by purchasing one of our innovative products.
If you have any question or comments about this product,
you may contact us at USA 1-520-624-7000 Monday thru
Friday, 8:00AM thru 5:00PM Mountain Standard Time.
