J&M Corporation XXRK-630SP4-14SG-ST4 User manual

© 2017 J&M Corporation. All rights reserved. 9/17
Warning: The speakers provided in this kit have an impedance of 2-ohms. They are designed for use with
the 2006-2010 Harley Harmon Kardon audio system ONLY. Use of these 2-ohm speakers on the 1998-2005
Harley audio system can and will cause permanent damage to the system.
STAGE-4 ROKKER®XXR
Custom 630w 4-Speaker/
Amplier Install Kit for
2014-2018 Harley®
StreetGlide/Ultra
#XXRK-630SP4-14SG-ST4
Installation
Instructions

Product Overview
This is the new J&M STAGE-4 ROKKER® XXR Custom 630w 4-speak-
er/amplier installation kit for your 2014-2018 Harley StreetGlide
with the Harley BoomBox 6.5GT Premium or 4.3 standard radio.
At the very heart of this system is our in-fairing mounted 4 channel
ROKKER XXRP amplier rated @ 157.5w RMS per channel X 4 to
provide up to 630w total RMS power!
The amplier will be custom tuned for use in conjunction with your
specially FLASHED Harley Infotainment radio (Diag4bike digital
technician “J&M Audio Custom” menu option), to provide THE BEST
on-highway volume, clarity and overall performance available, from
your music source selections of FM stereo, XM sat radio, Smartphone
or USB thumb drive.
Included are J&Ms fully weatherproof 6.71” ROKKER XXR fairing
speakers featuring a high-tech woven-ber woofer cone & a mas-
sive high-density high-ux strength Neodymium magnet structure
with large center & perimeter positioned voice coil cooling vents, to
provide for maximum heat dissipation when operating at high volume
levels for extended periods.
The custom designed speaker grills with mounted high-output dome
tweeters are also weather-proof and shock-proof for maximum long-
term durability.
Also included are 2 of J&Ms 5X7” ROKKER XX speakers for the rear
saddlebag-lid position, 2 of J&Ms saddlebag lid speaker grills, along
with the custom complete saddlebag speaker wiring harness. (The
Harley saddlebag lids themselves designed for 5X7” speakers are
NOT included with this kit & are an extra cost item).
This STAGE-4 ROKKER XXR custom installation KIT has been engi-
neered to be 100% plug-and-play for your convenience during the
installation and to maintain the complete integrity of your Harley’s
internal wiring harness.
The new J&M music-source test USB thumb-drive is also included for
your performance comparison testing.
Fairing Speaker Installation
1. Remove the windshield and outer fairing clamshell completely.
Important Note: If the bike is equipped with the Harley CB radio
module, ensure that the CB module is removed before removing
the applicable speaker pod assembly.
RIGHT SPEAKER
2. Remove the three 7/16 attachment screws from the inner bottom
edge of the speaker pod. (Figure A)
3. Remove three 3/16 Allen head screws on the outside edges of
the speaker pod. (Figure B)
4. Remove the two 5/32 Allen head screws from top edge of metal
mounting tray. (Figure C)
5. Unplug the wire connection for the cigarette lighter socket from
the speaker pod.
6. Remove the pod from the fairing.
7. Remove the speaker from the pod by removing the 4 retaining
screws.
Fig. B
Remove screws
Remove screw
Fig. A
Remove screws

8. Unplug the speaker wires from the speaker and set aside.
9. Remove the stock grill from the inner fairing by removing the 3
attachment screws. VERY IMPORTANT: Discard these screws as
they will not be used again. (Figure D)
10. Install the new ‘J&M grills using the (3) #12 X ½” countersunk
self-tapping screws provided, with the grill-mounted tweeter in the
upright position. VERY IMPORTANT: Do Not use the stock Harley
screws to attach the new ‘J&M grills, or the speaker pods will not
reinstall properly.
11. Install the new 6.71” ROKKER XXR speaker using the original
speaker attachment screws; Ensure that the speaker is placed
into the pod with the tweeter-wire exiting to the upper, outer cor-
ner. (Figure E)
12. Plug the tweeter wire from the speaker into the plug on the back-
side of the grill & then re-install the speaker pod assembly back
into the fairing.
13. Repeat steps 2 through 12 for the opposite side speaker.
Important Note: If the bike is equipped with the Harley CB radio
module, ensure that the CB module is removed before removing
the applicable speaker pod assembly.
14. Test each speaker for proper operation before reassembling the
fairing.
Fig. D
Fig. C
Remove screws
Remove screws
Fig. E

Saddlebag-Lid Speaker Installation
1. Remove the windshield, outer fairing shell, vent
below windshield, fuel tank and seat.
2. From the top of the saddlebag lid, remove the 4
screws securing the speaker and as you remove the
stock Harley speaker from the lid, unplug the wire
connection at the bottom of the speaker.
3. Set the ‘J&M ROKKER XX speaker down into the bas-
ket and mark the position over the very center of the
magnet. Using a 3” hole saw, drill a 3” hole into the
bottom of the speaker shield basket using this mag-
net center location for the hole-saw pilot bit. (This
3” hole is to allow the 5X7” ROKKER XX speaker
magnet to breathe and cool the voice coil under high
load or volume levels)

4. Position the speaker down into the lid to determine if
the 3” hole needs to be enlarged slightly in any direc-
tion, to completely clear the ROKKER XX speaker
magnet. A Dremel tool with rotating bit can be used
to enlarge this opening.
5. Place the included plastic protective magnet cup
down into the 3” opening and mark the rst of three
9/64th” holes to be drilled, thru the ange and
saddlebag lid basket, to secure the plastic cup into
the opening.
6. Insert the 6-32 X ½” Allen head screw, with washer,
up thru the bottom of the basket, thru the cup and
secure using the supplied nut plate.

7. Mark the second of three 9/64th” holes to be drilled,
drill the hole and then insert the 6-32 X ½” Allen
head screw, with washer, up thru the bottom of the
basket, thru the cup and secure using the supplied
nut plate.
8. Mark the third 9/64th” hole to be drilled, drill the
hole and then insert the 6-32 X ½” Allen head screw,
with washer, up thru the bottom of the basket, thru
the cup and secure using the supplied nut plate.
9. Completed protective cup installation and attach-
ment as shown below.
10. Plug the wire to the back of the 5X7” ROKKER XX
speaker and secure in place using the two rear
mounting screws ONLY and tighten.
11. Using a 7/64” drill bit, drill new mounting holes for
the front 2 mounting screws, then install and tighten.
9. Reinstall the speaker grill using the same 4 mounting
screws that you removed previously.
10. Repeat the entire process with the opposite saddle-
bag lid.

Amplier Installation
1. Remove the windshield, outer fairing shell, vent below windshield,
fuel tank and seat.
2. Remove and replace the stock metal tray above the radio with the
J&M Amplifier mounting tray by removing the 4 screws holding
the tray to the radio, 4 screws holding the tray to the speaker
enclosures, and 2 screws holding the tray to the gauge assembly.
Place the J&M Amplifier mounting tray in place of the stock tray
and secure with the screws removed from the stock tray. (Figure
B)
3. Mount Amplifier to the J&M Amplifier mounting plate with the 4
screws provided. The 2 shorter screws go toward the gauges.
4. By following the factory wiring harness, route the amplifier power
harness from the fairing, under the fuel tank, and on to the
battery. (removal of the fuel tank is required )
5. After first disconnecting the negative battery cable from the
battery, connect the positive (red) lead from the amplifier
power harness directly to the positive post of the battery. Then
connect the negative (black) lead from the power harness to the
same bolt/stud on the frame that the negative battery cable is
connected to. Then reconnect the negative battery cable to the
battery. (Figure A) Do not connect the negative (black) lead from
the amplifer to the negative post of the battery.

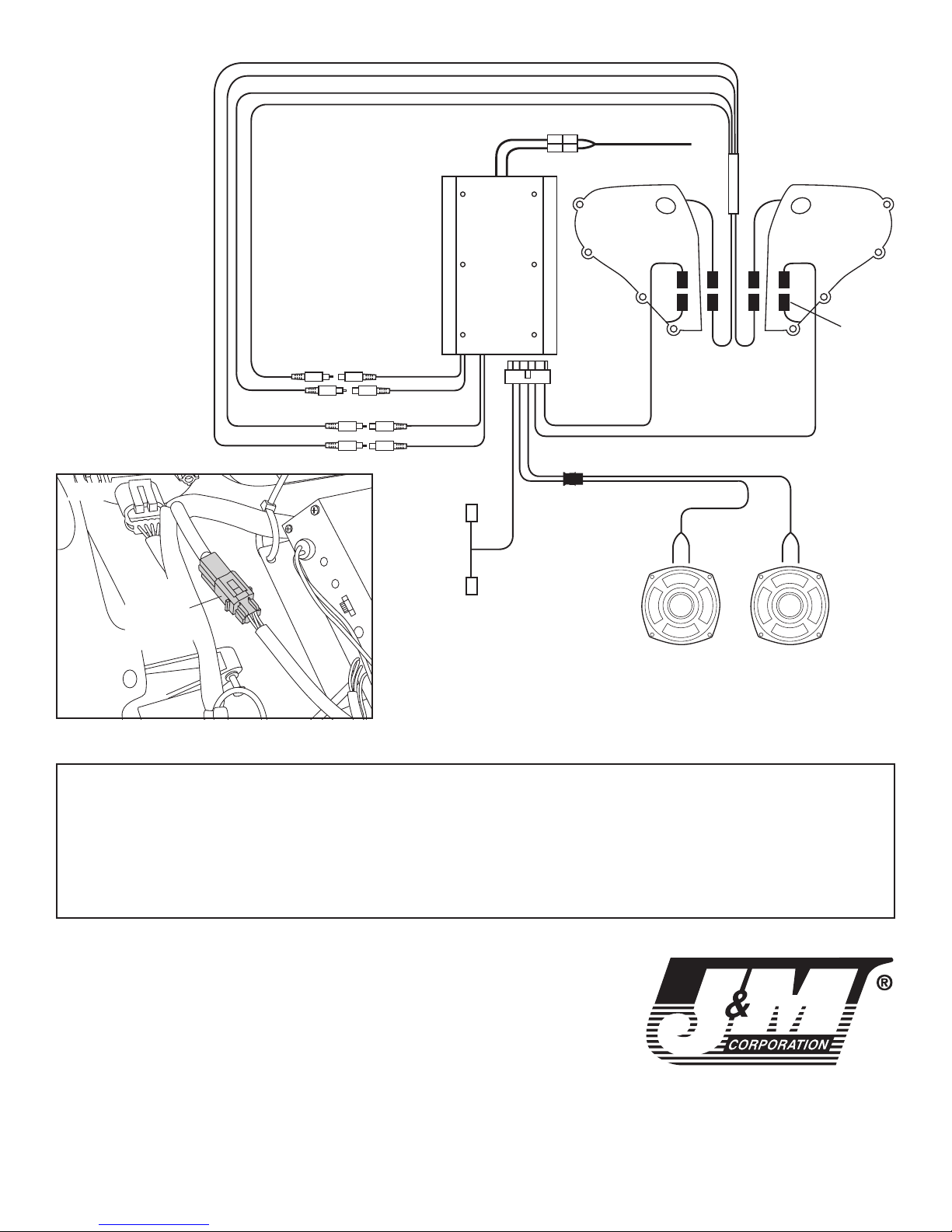

6. Make speaker and Amplifier connections per diagram. Note:
Tweeter rings will now be plugged into the supplied ROKKER XX
Extreme harness instead of the 6.65 speaker. (Figure B, C and D)
Important Programing Note: The amplifier gain & frequency response
adjustments have been pre-programed at our factory for this specific Harley
Davidson audio system application, using speakers with an impedance of
2-ohms, to provide maximum performance at highway speeds. Should speaker
impedance change, an alternate software programing package will need to be
downloaded & flashed to the digital signal processor inside the amplifier. This
programming service is available direct from ‘J&M Corporation in Tucson AZ
USA. Send email direct to [email protected]
BATT
+
Red
Black
Master Frame
Grounding Stud
Negative
Battery Cable
Fuse
Heavy Gauge
Amplifier Power/Ground
Wire Harness
Fig. A
Speaker
Enclosure
Speaker
Enclosure
2-Pin
Connectors
Fig. B

ROKKER® XXRP 630
Full Range Class D Amplifier
Output Power (RMS) @ 1% THD 1000Hz 14.4V CEA 2006
Stereo @ 4ohms 4 x 157.5 Watts – 630w RMS Total
Stereo @ 2ohms 4 x 157.5 Watts – 630w RMS Total
Frequency Response -3dB 1Hz - 69kHz Capable
S/NRatio
Separation >90dB
>74dB
Input Sensitivity .35V - 3.9V
Input Impedance 47.5K
Specifications
1415 S. Cherry Avenue
Tucson, AZ 85713 U.S.A.
Tel [phone]
Website: http://www.jmcorp.com
E-mail: [email protected]
Thank you for the confidence you have shown in J&M
Corporation by purchasing one of our innovative products.
If you have any question or comments about this product,
you may contact us at USA 1-520-624-7000 Monday thru
Friday, 8:00AM thru 5:00PM Mountain Standard Time.
Power Harness
Amplifier
Speaker
Enclosure
Speaker
Enclosure
FL
FR
Orange
2-Pin
Connectors
2-Pin
Remote
Tu rn On
Connector
Right SpeakerLeft Speaker
Lower Fairing Speakers
or Rear Speakers
RL
RR
4-Pin
Connectors
Fig. C
2-Pin
12v Amp
Tu rn On
Connector
Fig. D

WARRANTY REGISTRATION FORM Please fill out this card completely and mail it immediately after purchase. Please be sure that your zip code
and serial number (if applicable) are legible. This will help us to serve you better.
(PLEASE PRINT)
Name ______________________________________________________________________________________________________________________________________________________
Address_____________________________________________________________________________________________________________________________________________________
City _______________________________ _________________________________State __________________________ Zip ______________________________________________________
Motorcycle mOther m E-mail ______________________________________________________________________________________________________
Make ___________________________________________ Model ______________________________________ Year __________________
Product part number ______________________________________________________________________
Serial number (if applicable)________________________________________________________________
Date of purchase _________________________________________________
Name of dealer it was purchased from ____________________________________________________________________________________
Mail to:
J&M Corporation
1415 S. Cherry Avenue
Tucson, AZ 85713
U.S.A.
WARRANTY AND REPAIR INFORMATION
TWO YEAR LIMITED WARRANTY In order to facilitate the servicing of this warranty, the Warranty Registration Form should be filled out and
returned within 10 days of the date of purchase. However, return of the Warranty Registration Form is not a precondition of this warranty,
and this Warranty will be observed by J&M CORPORATION whether or not the Warranty Registration Form is returned,
on the condition that other satisfactory evidence of the date of the original purchase is provided to J&M CORPORATION.
WHO PROVIDES THE WARRANTY? This warranty is provided by J&M CORPORATION.
WHO IS PROTECTED? This warranty is extended only to the original owner of this J&M CORPORATION product and may not be
transferred or assigned.
WHAT IS COVERED AND HOW LONG? This warranty covers all defects in material or workmanship of our product for a period of
2 years from date of original retail purchase. At its option, J&M CORPORATION will repair or replace any defective part(s) or
equipment.
The provisions of the warranty shall not apply to any unit which has been subjected to misuse, neglect, incorrect mechanical or
electrical installation, unauthorized modifications, accident, nor to units which have been repaired or altered outside of our factory.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY In the event that the product does not conform to this warranty, the product
should be shipped prepaid to the J&M CORPORATION service facility. Transportation charges, insurance fees, and labor costs for shipment,
removal, or reinstallation of our product are not covered by this warranty. Loss or damage in shipment is the sole responsibility of the freight
carrier.
FOR YOUR INFORMATION Repair as provided under this warranty is the exclusive remedy of the consumer. J&M CORPORATION shall
not be liable for any incidental or consequential damages or for breach of any express or implied warranty on this product. Except to the
extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose on this product is limited
in duration to the duration of the warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages,
or allow limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives
you specific legal rights which vary from state to state.
J&M CORPORATION reserves the right to make changes in design and to make improvements in its products without the obligation to
incorporate the changes or improvements in any of its previously manufactured products.
J&M CORPORATION has not authorized anyone to make representations or warranties other than the warranty contained herein.
The above warranty is effective for all products manufactured after 10/01/86.
NON-WARRANTY REPAIR RATES J&M CORPORATION reserves the right to change the labor repair rates without prior notice. At the time
of this printing the out-of- warranty repair is $40 per hour for labor only. However, the customer is advised to verify the
current rate when he/she calls customer service to obtain the return authorization number.
FACTORY SERVICE ADDRESS J&M Corporation, 1415 S. Cherry Avenue, Tucson, Arizona, 85713, U.S.A. Tel: [phone] audio@
jmcorp.com www.jmcorp.com
CUSTOMER SERVICE NUMBER 1-800-358-0881
