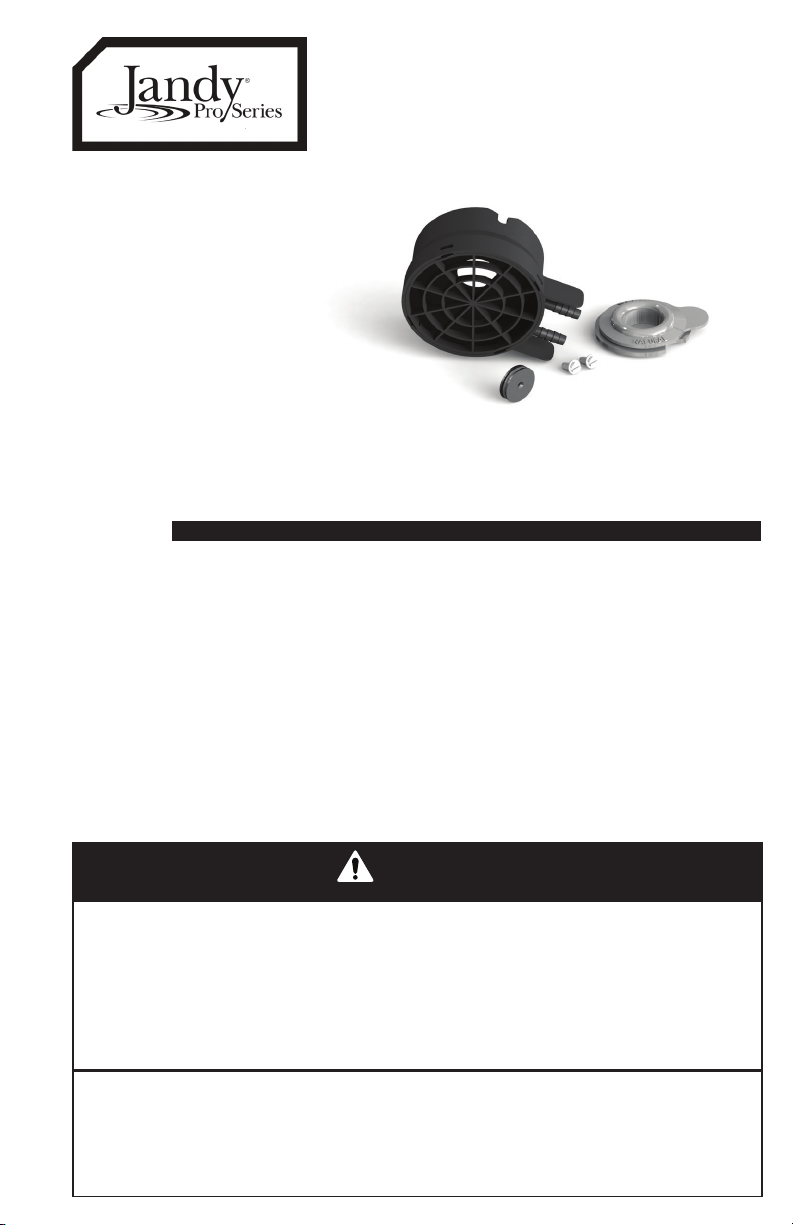

Jandy Pro Series JXi 200 User manual

This conversion kit shall be installed by a qualified sevice agency in accordace with the
manufacturer’s instructions and all applicable codes and requirements of the authority having
jurisdiction. The information in these instructions must be followed to minimize the risk of fire
or explosion or to prevent property damage, personal injury or death. The qualified service
agency is responsible for the proper installation of this kit. The installation is not proper
and complete until the operation of the converted appliance is checked as specified in the
manufacturer’s instructions supplied with the kit.
WARNING
THE CONVERSION SHALL BE CARRIED OUT IN ACCORDANCE WITH THE REQUIREMENTS
OF THE PROVINCIAL OR LOCAL AUTHORIES HAVING JURISDICTION AND IN ACCORDANCE
WITH THE REQUIREMENTS OF THE NATURAL GAS AND PROPANE INSTALLATION CODE,
CSA-B149.1 IN CANADA. IN THE US, FOLLOW THE REQUIREMENTS OF THE NATIONAL FUEL
GAS CODE (NFPA®54) OR THE LIQUEFIED PETROLEUM GAS CODE (NFPA 58).
H0439900 REV A
JXi™Gas-Fired Pool & Spa Heater
Parts Kit Installation Instructions
These instructions are to be used with the
following Jandy Pro Series kits:
R0591601 Fuel Orice Kit, Model 200, Propane to Natural
R0591602 Fuel Orice Kit, Model 260, Propane to Natural
R0591604 Fuel Orice Kit, Model 400, Propane to Natural
R0591605 Fuel Orice Kit, Model 200, Natural to Propane
R0591606 Fuel Orice Kit, Model 260, Natural to Propane
R0591608 Fuel Orice Kit, Model 400, Natural to Propane
JXi Gas Conversion and
Fuel Orice Replacement Kit

Page 2
Before starting the installation, check Table 1 to identify each of the
parts required for this installation. If any parts are missing from the
kit, please call your local distributor for assistance.
WARNING/SHOCK HAZARD
Turn off all switches and the main breaker in the pool/spa heater electrical circuit
before starting the replacement procedure. Failure to comply may cause a shock
or hazard resulting in severe personal injury or death.
While disconnecting and/or connecting any electrical wiring in the appliance, be
careful not to damage or abrade any of the wiring.
FOR YOUR SAFETY: This product must be installed and serviced by a contractor
who is licensed and qualified in pool equipment by the jurisdiction in which the
product will be installed where such state or local requirements exists. In the event
no such state or local requirement exists, the installer or maintainer must be a
professional with sufficient experience in pool equipment installation and maintenance
so that all of the instructions in this manual can be followed exactly. Before installing
this product, read and follow all warning notices and instructions that accompany
this product. Failure to follow warning notices and instructions may result in property
damage, personal injury, or death. Improper installation and/or operation can create
carbon monoxide gas and flue gases which can cause serious injury, property
damage, or death. For indoor installations, as an additional measure of safety, Zodiac
Pool Systems, Inc. strongly recommends installation of suitable carbon monoxide
detectors in the vicinity of this appliance and in any adjacent occupied spaces.
Improper installation and/or operation will void the warranty.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Immediately switch off main gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
Jandy®Pro Series, JXi™Pool & Spa Heater

Page 3
JXi™ Gas Conversion / Replacement Instructions
List of Parts
KIT PART NO.
(BTU/Fuel Type)
(N-Natural, LP-Propane)
EACH R-KIT LISTED (at left)
INCLUDES ALL COMPONENTS
BELOW.
NOTE:
EACH PART WILL BE SPECIFIC TO THE
MODEL AND FUEL TYPE ORDERED
(see Table 2)
QTY
R0591601 (200/ P to N), Air Orice (LP or NAT) 1
R0591602 (260/ P to N),Gas Orice (LP or NAT) 1
R0591604 (400/ P to N),Converted Fuel Type Rating plate
Sticker (LP or NAT) 1
R0591605 (200/ N to LP),Gas Train Label (LP or NAT) 1
R0591606 (260/ N to LP),Conversion Mail-in Card 1
R0591608 (400/ N to LP) Screw, #10 Hex Head 2
Intake Screen 1
Sealing Grommet (LP or NAT) 1
O-Ring, BUNA-N 1
Table 1. List of Parts in the Kit
WARNING
Replacement/conversion kits listed in Table 1 are to be used only with
the JXi™ pool and spa heater, and only with specified heater models
associated with the listed kit part number. Failure to follow warning
notices and instructions may result in property damage, personal injury,
or death. Improper installation and/or operation can create carbon
monoxide gas and flue gases which can cause serious injury, property
damage, or death.
IMPORTANT
Order by replacement kit number only (Table 1). See Table 2 for
cross-reference and verification of kit contents.

Page 4 Jandy®Pro Series, JXi™Pool & Spa Heater
FUEL ORIFICE REPLACEMEN KITS FOR JXi HEATERS
PROPANE (LP) TO NATURAL GAS (NAT)
BTU Capacity
of Heater
Fuel Orice Kit
Part Number
Gas Orice
Markings
(1)
Air Orice Label
Color/Markings
(2)
Fuel LIne Sealing
Grommet Color/Markings
(3)
Data Rating
plate P/N
(4)
Gas Valve Label
Color/Markings
(5)
200,000 R0591601 200 NG Black/A0217401, NG Blue, Natural H0489500 Blue, Natural, H0230100
260,000 R0591602 260 NG Black/A0217402, NG Blue, Natural H0489500 Blue, Natural, H0230100
400,000 R0591604 400 NG Black/A0217404, NG Blue, Natural H0489500 Blue, Natural, H0230100
NATURAL GAS (N) TO PROPANE (LP)
BTU Capacity
of Heater
Fuel Orice Kit
Part Number
Gas Orice
Markings
(1)
Air Orice Label
Color/Markings
(2)
Fuel Line Sealing
Grommet Color/Markings
(3)
Data Rating
plate P/N
(4)
Gas Valve Label
Color/Markings
(5)
200,000 R0591605 200 LP White/A0217405, LP Orange, Propane H0489700 Orange, Propane, H0230200 260,000 R0591606 260 LP White/A0217406, LP Orange, Propane H0489700 Orange, Propane, H0230200 400,000 R0591608 400 LP White/A0217408, LP Orange, Propane H0489700 Orange, Propane, H0230200
Table 2. Gas Orifice Kits, Contents by Part Number
NOTE: The ve critical parts are not available individually but only as part of the complete Fuel Orice kit listed. Select the correct fuel type and heater
BTU Capacity from Table 2. The Orice Kit listed will come with the ve (5) critical components as indicated (1) - (5). Always ensure that all ve critical components are correct for the heater fuel type and BTU model. Use the identifying color and markings listed in the chart for each component to verify they are correct before installing, repairing, or operating the heater. High Altitude: Derating for high elevation is not necessary with the JXi heater because of its venturi-type combustion system which self- compensates for changes in barometric pressure. Air ow through the blower inlet pulls the correct ow of gas into the burner regardless of air density. Proper combustion and high efciency are assured without special adjustment or changes to the heater.

Page 5
JXi™ Gas Conversion / Replacement Instructions
STOP!
If you are only replacing a defective fuel orice and not
doing a fuel conversion, see Section 2: FUEL ORIFICE
REPLACEMENT Instructions (page 27).
If you are doing a fuel type conversion, see Section 1:
GAS CONVERSION Instructions (page 5).
Section 1: GAS CONVERSION
Instructions
Required Tools
You will need the following tools for CONVERSION:
• Permanent Marker (black)
• Digital Differential Pressure Manometer
• Manometer Accessories (hoses, tee, ttings)
• 3/16ʺ Hex Key
• 5/16ʺ Nut Driver
• 7/16ʺ Hollow Shaft Nut Driver
• Barbed Fittings (1/8ʺ NPT to 1/16ʺ)
• Blunt Tool (Key or Phillips Head Screwdriver)
• Pipe Wrench
• Second Pipe Wrench for Removing Gas Union
IMPORTANT: READ BEFORE YOU START
WARNING
The gas fuel orifice kit contains critical components required to ensure safe
reliable operation of the JXi™model heater. It is critical that each of the five
(5) components included in this kit are installed correctly and used with no
substitutions for the fuel type specified (either Natural Gas or Liquid Propane),
see Table 2 and Table 2 NOTE (page 4).
NOTE: The design of the JXi heater allows the same gas valve to be used for
both natural gas and propane models.
Failure to follow warning notices and instructions may result in property damage,
personal injury, or death. Improper installation and/or operation can create
carbon monoxide gas and flue gases which can cause serious injury, property
damage, or death.

Page 6 Jandy®Pro Series, JXi™Pool & Spa Heater
IMPORTANT: READ BEFORE YOU START
1. Gas Orifice
The orifice is specific for each BTU and for fuel type. Ensure you have
the correct gas orifice for the BTU and fuel type required by checking
the part number factory-stamped on the gas orifice against Gas Orifice
Markings column, Table 2. It is also critical that the O-ring used is
the one provided by Zodiac®in this kit and is BUNA-N type (no
substitutions).
2. Air Orifice
The air orifice is specific for each BTU and fuel type. Ensure you
have the correct air orifice for the BTU size and fuel type required
by checking the part number factory-molded on the air orifice and its
color against Air Orifice Color/Markings column, Table 2.
3. Fuel Line Sealing Grommet
The inlet fuel grommets are color coded to provide a visual indication
of the heater’s pre-conversion fuel type. Ensure you have the correct
gas supply sealing grommet for the fuel type by checking the color and
fuel type factory-molded on the grommet against Gas Supply Sealing
Grommet Color/Markings column, Table 2.
4. Rating Plate Sticker and Prepaid Mail-In Card
The rating plate sticker is factory-applied to the heater on the outside
of the combustion chamber (see Figure 1). It is critical that the rating
plate matches the gas and air orices installed in the heater and
accurately reects the BTU size and fuel type. If the heater is being
converted, the new rating plate (included in this kit) MUST be placed
on the combustion chamber over the original rating plate with the
heater model number and serial number visible (see Figure 2).
• Specic instructions for placement of the new rating plate are
outlined in STEP 9: Afx Conversion Rating Plate to the Heater.
• Specic instructions for returning the prepaid mail-in card to
Zodiac Pool Systems are outlined in STEP 10: Complete and Send
the Mail-In Card to Zodiac.

Page 7
JXi™ Gas Conversion / Replacement Instructions
Figure 1. Rating Plate Located on Outside of Combustion Chamber
Place conversion sticker
over original rating
plate sticker as shown,
directly below the
Model No and Serial
No. DO NOT COVER
UP OR HIDE THE
MODEL NO.
AND SERIAL NO.
Fill out top
section with
permanent
marker
before
affixing to
the heater
Figure 2. Correct Placement of the Converted Fuel Type Data
Rating Plate Sticker
R059103
9/12/2014
Bob Majors JOHNSON POOL SERVICES
1804 CHERRY LN, BIGTOWN, NC 140054

Page 8 Jandy®Pro Series, JXi™Pool & Spa Heater
5. Installation Steps
There are nine (9) steps to complete to ensure correct installation and
implementation of the gas conversion procedure. Failure to follow
steps exactly and in the consecutive order listed in this instruction
booklet (as well as all warnings, cautions, and notes associated with
each step) may result in improper operation of the heater and possible
property damage, personal injury, or death. Installation steps are as
follows:
• Step 1: Before You Start
• Step 2: Install the Gas Orice

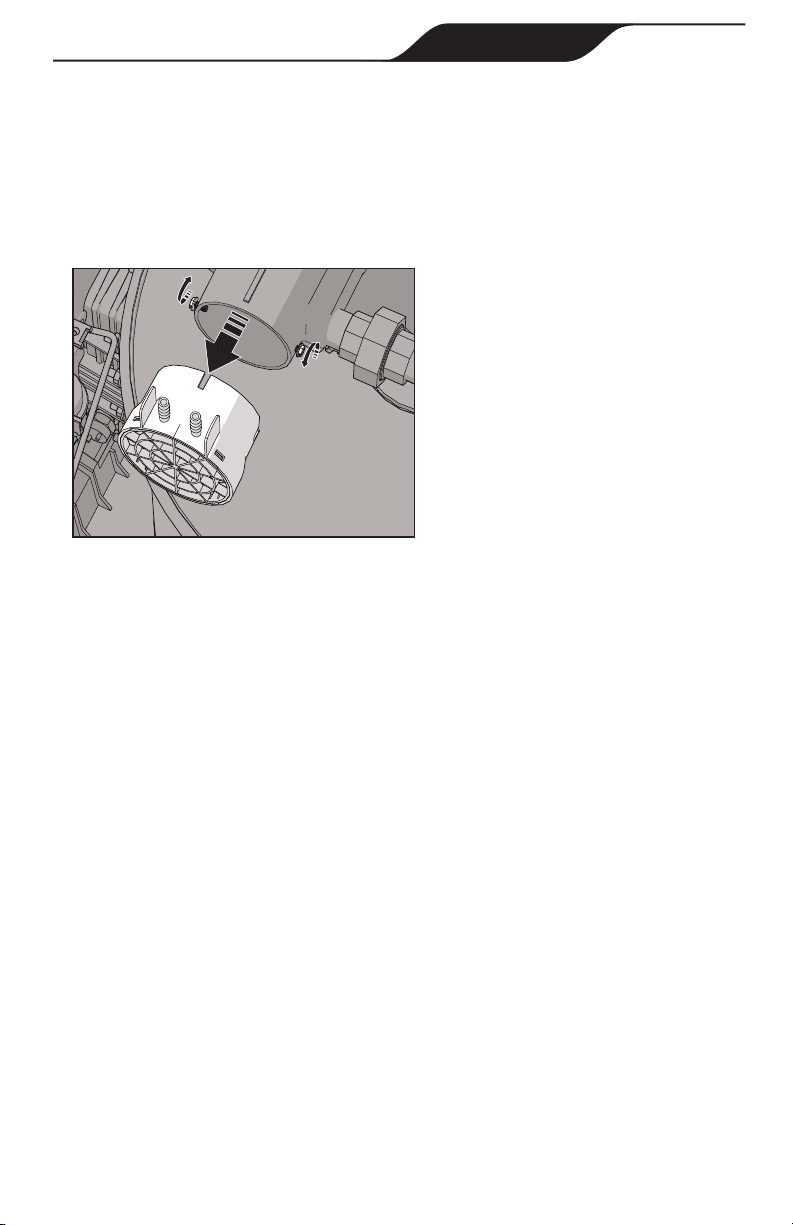

• Step 3: Install the Air Intake Orice
• Step 4: Install the Fuel Line Sealing Grommet

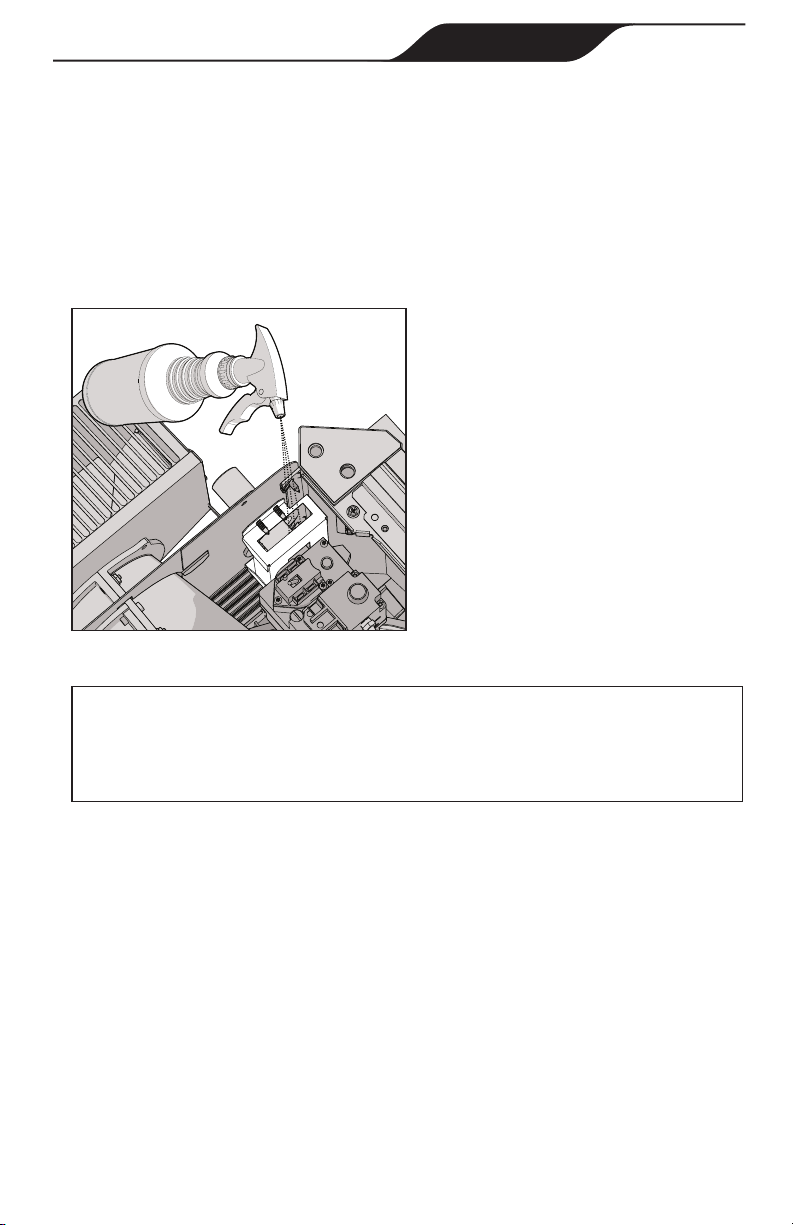

• Step 5: Perform Gas Leak Test
• Step 6: Test the Inlet Pressure
• Step 7: Test the Gas Orice Differential Offset Pressure
• Step 8: Check Normal Operating Sequence
• Step 9: Afx the Conversion Rating Plate to Heater
• Step 10: Complete and Send Mail-In Card
STEP 1: Before You Start
1. Verify you have all of the necessary parts (see Table 1).
2. Verify the parts in your kit are specic for the model/BTU
conversion (see Table 2).
3. Turn off the electrical power to the heater.
4. Turn off the main gas supply to the heater at the meter or the
manual gas cock outside the heater.
5. Make sure the lter pump is off and will remain off for the
duration of the installation procedure.
6. If the heater is below the surface level of the water in the pool or
spa, close all shut-off valves between the heater and the pool.

Page 9
JXi™ Gas Conversion / Replacement Instructions
STEP 2: Install the Gas Ori ce
1. Remove eight (8) screws to take off the heater front panel.
2. Con rm the fuel type for the heater you are converting by
checking the rating plate on the front of the combustion chamber
(Figure 1).
3. Remove four (4) screws to take off the heater top panel
(Figure 3). Take care not to damage or abrade any of the wiring.
Remove
Left Side View Right Side View
Figure 3. Remove Top Panel

Page 10 Jandy®Pro Series, JXi™Pool & Spa Heater

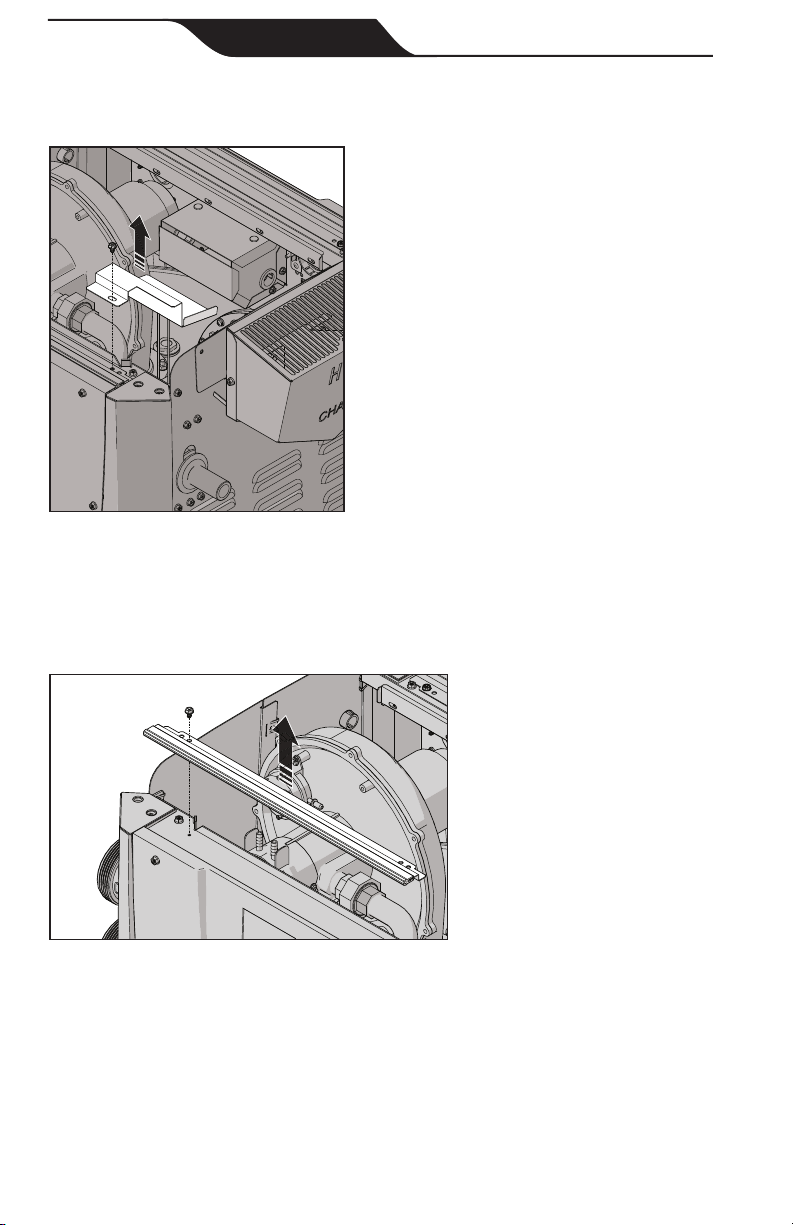

4. Remove one screw to take off gas valve bracket (Figure 4).
Figure 4. Remove Gas Valve Bracket
5. Remove one screw to take off the gasket retainer bracket
(Figure 5).
Figure 5. Remove Gasket Retainer Bracket

Page 11
JXi™ Gas Conversion / Replacement Instructions
6. Remove eight (8) screws to take off heater rear panel (Figure 6).
Figure 6. Remove Rear Panel
7. Unscrew four (4) hex head screws and remove the rear brace bar
for easier access to the gas train (Figure 7).
12
Figure 7. Remove Rear Brace Bar

Page 12 Jandy®Pro Series, JXi™Pool & Spa Heater
8. Using a pipe wrench, loosen the gas union. Rotate the gas train
upward to allow access to the ori ce.
NOTE: It may be helpful to use a second pipe wrench to hold one of
the joints in place while loosening the gas union (see
Figure 8).
Figure 8. Unscrew the Union
9. Use a blunt tool, such as a key or a Phillips head screwdriver, to
pry the original gas ori ce and O-ring out of the union
(see Figure 9). Discard the original gas ori ce.
Figure 9. Remove the Gas Orifice

Page 13
JXi™ Gas Conversion / Replacement Instructions
10. Pressing  rmly, seat the new gas ori ce and O-ring  rmly in the
middle of the union. Use only your  ngers so as not to damage
the O-ring or the ori ce. Ensure it is fully inserted and  at against
the ori ce seat with the etched surface facing outward for easier
identi cation of the ori ce type and size (see Figure 10).
ETCHED SURFACE
O RING
Figure 10. Etched Surface of Gas Orifice
WARNING
To avoid the risk of a gas leak, which can lead to  re or explosion
resulting in property damage and serious injury, including loss of
life, do not replace the O-ring with anything but a genuine Zodiac®
custom part included in this kit. No substitution should be made
for the O-ring. Always replace the gas ori ce and O-ring as one
assembly and use ONLY Zodiac original equipment parts.
11. Reposition and reconnect the gas train to the blower by tightening
the union.
12. There is a sticker on the gas valve indicating the original gas.
Remove this fuel type sticker from the gas valve and discard.

Page 14 Jandy®Pro Series, JXi™Pool & Spa Heater

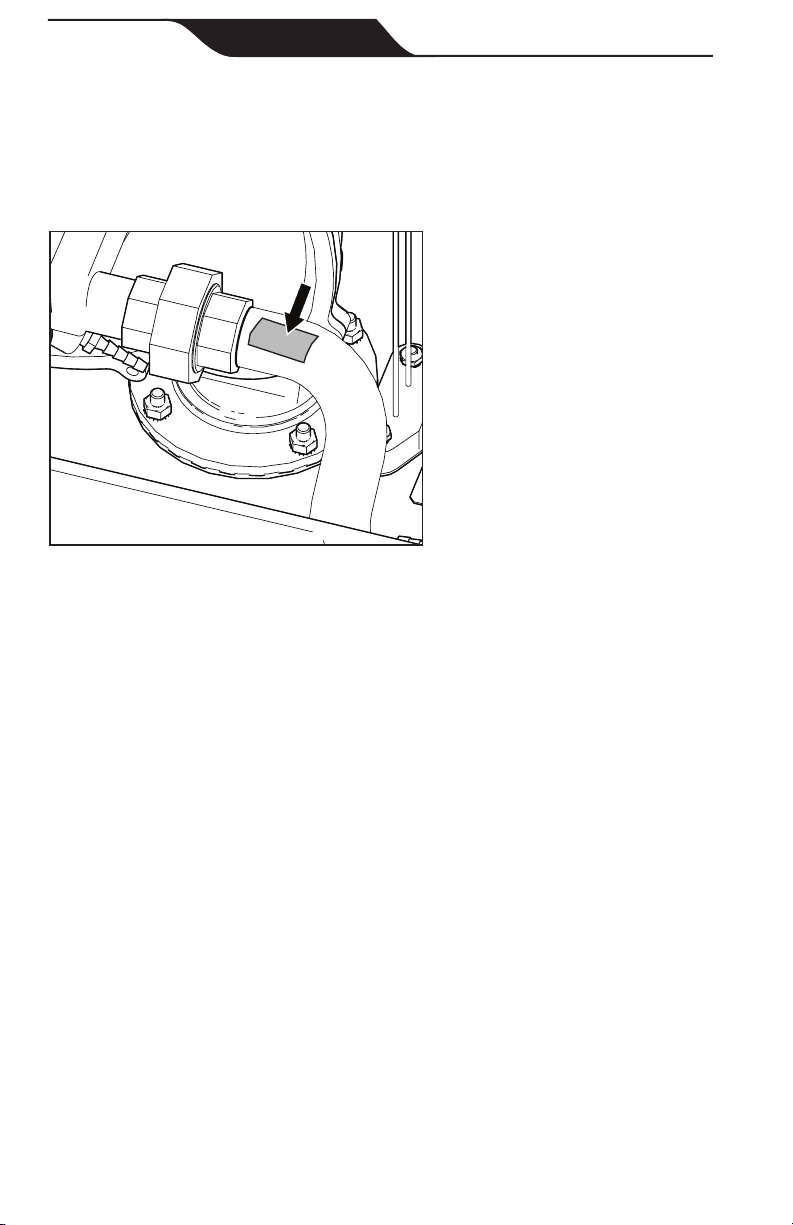

13. Place the new fuel type sticker (included in this kit) onto the gas
train near the union (see Figure 11) so that it can be easily seen
indicating the heater fuel type has been converted.
Figure 11. Affix Converted Fuel Type Sticker onto the Gas Train

Page 15
JXi™ Gas Conversion / Replacement Instructions
STEP 3: Install the Air Intake Ori ce
1. Using a short-handled screwdriver, slightly loosen the
two (2) screws from the air intake ori ce.
2. Gently remove the original air intake ori ce and screen from the
blower air intake (Figure 12).
Figure 12. Remove Air Intake Orifice
3. Note the exact position of the intake hoses on the old air intake
ori ce. Remove the intake hoses from the old air intake ori ce
an install them on the new air intake ori ce in exactly the same
positions as they were found on the old air intake ori ce.
4. Replace the new air intake ori ce onto the blower and tighten two
(2) screws.

Page 16 Jandy®Pro Series, JXi™Pool & Spa Heater
STEP 4: Install the Fuel Line Sealing Grommet
1. Disconnect the gas inlet line.
2. Using a wrench, remove and discard the fuel line sealing
grommet indicating the original fuel type.
3. Insert the new fuel type sealing grommet into gas inlet port
(Figure 13).
4. Seat the grommet securely in the port so that the lip is smooth on
both edges. Orient the grommet so that the tab lines up with the
gas pressure tap port (Figure 13).

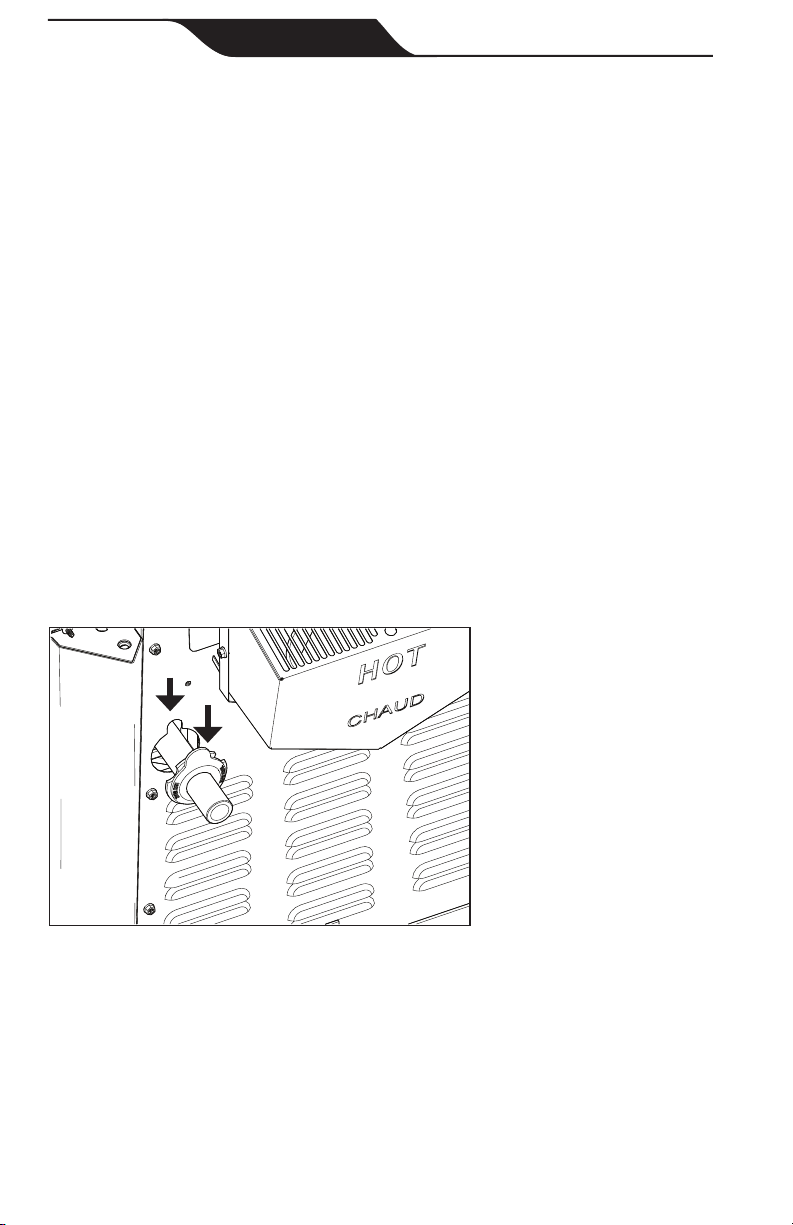

Figure 13. Line Up Tab with Gas Pressure Tap Port
5. Rotate the sealing grommet 90° right to expose the inlet pressure
port plug (Figure 14).
6. Reconnect the gas supply.
View With Side Panel Hidden
1/8" NPT Plug
1/8" NPT Plug
1/8" NPT to 1/16”
Barbed Adapter
Connect Hose to
Positive (+) Manometer Port
Connect Hose to
Barbed Adapter
Figure 14. Rotate the Sealing Grommet to Expose the NPT Plug

Page 17
JXi™ Gas Conversion / Replacement Instructions
STEP 5: Perform Gas Leak Test & Check Heater Operation
1. Reopen the gas supply valve.
2. Test the complete gas supply system and all connections for leaks
using a soap solution (Figure 15).
Do not use an open fl ame to test for leaks.
Figure 15. Spray Soap Solution for Leak Test
CAUTION
Some leak test solutions (including soap and water) may cause corrosion or
stress cracking. Rinse the piping with water after testing.
3. Turn on the heater in Pool or Spa mode via the user interface.
4. Verify current water temperature reading on the user interface, then
con gure the set point so it is higher than the current temperature.
This will prompt the ignition sequence.
5. Verify the blower starts (this signi es the ignition sequence
has begun).
6. Verify that the igniter powers up after a 15-second pre-purge.
7. Verify that the heater begins normal operation once  ame is sensed at
the burner.
8. Turn off the heater via the user interface.

Page 18 Jandy®Pro Series, JXi™Pool & Spa Heater
STEP 6: Test the Inlet Pressure
NOTE: Test the gas inlet pressure with the heater running using a
digital differential pressure manometer.
1. Shut off the gas supply.

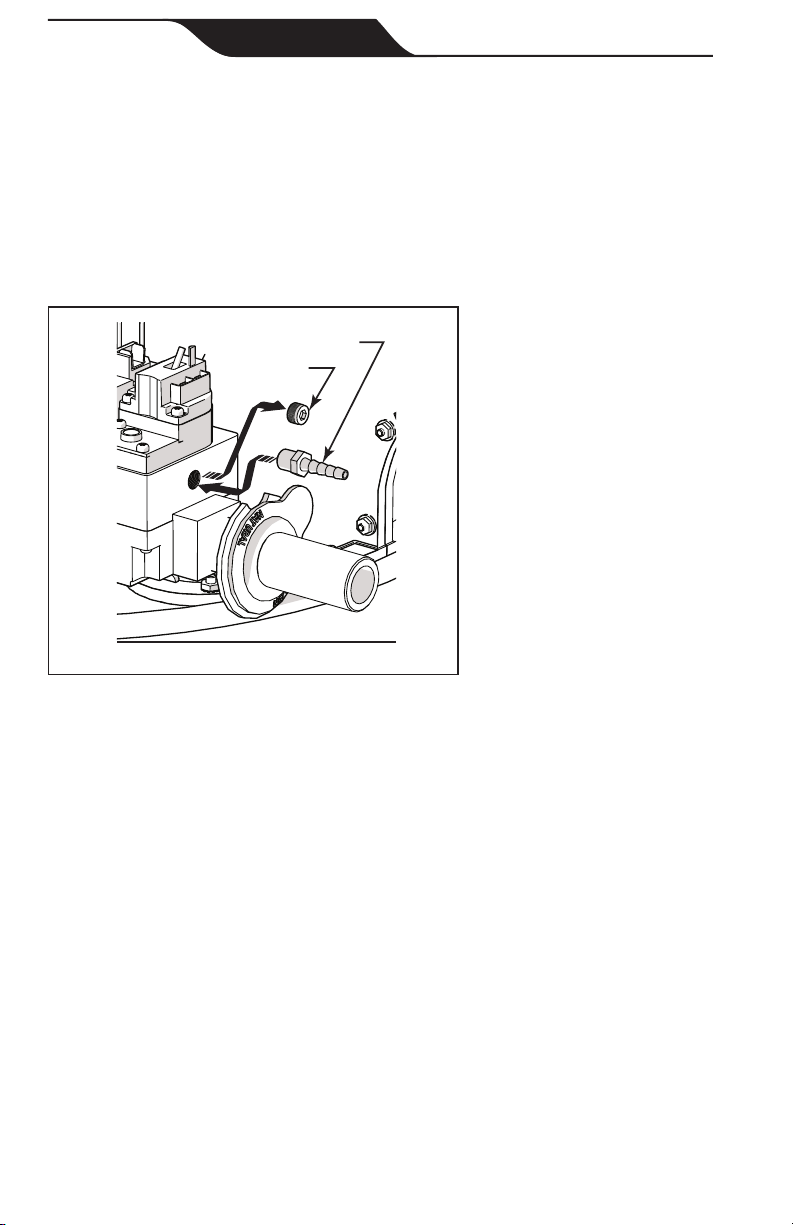

2. Remove the 1/8ʺ NPT plug from the gas valve (Figure 16)
using a 3/16ʺhex key.
View With Side Panel Hidden
1/8" NPT Plug
1/8" NPT Plug
1/8" NPT to 1/16”
Barbed Adapter
Connect Hose to
Positive (+) Manometer Port
Connect Hose to
Barbed Adapter
Figure 16. Remove NPT Plug and Insert Barbed Adapter
NOTE: Take care not to drop the plug down into the heater body, or it
will be extremely dif cult to retrieve.
3. Apply pipe joint compound over the  tting threads of 7/16ʺmale
barbed adapter.
4. Thread the male barbed adapter into the gas inlet port
(see Figure 16) using a 7/16ʺhollow shaft nut driver.

Page 19
JXi™ Gas Conversion / Replacement Instructions
5. Verify the gas valve control switch is in the ON position.
6. Connect a hose to the adapter at the gas inlet port (see Figure 17).
View With Side Panel Hidden
1/8" NPT Plug
1/8" NPT Plug
1/8" NPT to 1/16”
Barbed Adapter
Connect Hose to
Positive (+) Manometer Port
Connect Hose to
Barbed Adapter
Figure 17. Rotate the Sealing Grommet to Expose the NPT Plug
7. The manometer has a positive (high pressure) port and a negative (low
pressure) port. Connect the other end of the hose to the positive (high
pressure) side of the manometer (Figure 18).
ON
OFF
UNITS
ZERO
NEGATIVE
(Low Pressure Port)
_
POSITIVE
(High Pressure Port)
+
DIGITAL MANOMETER
FAN INLET PORT
GAS VALVE VENT PORT
GAS VALVE MANIFOLD PORT
DIGITAL READING
Figure 18. Test the Gas Inlet Pressure

Page 20 Jandy®Pro Series, JXi™Pool & Spa Heater
8. Turn on the gas supply.
9. Start the heater and record the maximum and minimum inlet
pressure with the heater running.
10. For conversions from Propane to NATURAL GAS:
Minimum inlet pressure should be 4.0ʺ WC
Maximum inlet pressure should be 10.5ʺ WC
For conversions from Natural Gas to PROPANE:
Minimum inlet pressure should be 4.0ʺ WC
Maximum inlet pressure should be 14.0ʺ WC
11. If the gas inlet pressure is not within the minimum to maximum
range, contact the local gas utility company for assistance.
12. Shut off the gas.
13. Remove the manometer and hoses and the barbed adapter from
the gas valve.
14. Apply joint compound to the NPT plug and reinstall.
15. Rotate the fuel line sealing grommet so the tab lines up with the
gas pressure tap port (Figure 19).
Figure 19. Line Up Tab with Gas Pressure Tap Port
