Janome MC11000SE User manual

Instruction Manual
Memory Craft 11000 Special
Edition
*Please Note: This version is only a partial manual. Visit your local Janome Dealer for a full version.

2
GETTING READY TO SEW
Names of Parts
1 Bobbin winder spindle
2 Bobbin winder stopper
3 Bobbin thread cutter
4 Visual touch screen
5 Screen up/down button
6 Knee lifter socket
7 Feed balancing dial
8 Extension table (accessory storage)
9 Hook cover release button
10 Hook cover plate
11 Needle plate
12 Automatic needle threader
13 Thread cutter/holder
14 Face plate
15 Foot pressure dial
16 Bobbin winding thread guide
17 Stylus holder (for the touch panel stylus)
18 Spool pin
19 Spool holder
20 Needle clamp screw
21 Needle
22 Zigzag foot A
23 Foot holder
24 Thumbscrew
25 Auto needle threader button
26 Bobbin winding button
27 Thread cutter button
28 Speed control slider
29 Start/stop button
30 Reverse button
31 Auto-lock button
32 Needle up/down button
1234
5
6
7
8
9
10
11
12
13
14
15 16 17 18 19
20
21
22
23
24
25 26
27
28
29 30
31
32

3
1 Carrying handle
2 Power switch
3 Machine socket
4 Carriage release lever
5 USB port (for direct PC link)
6 USB port (for CD-ROM drive/USB memory key)
7 Foot control jack
8 Card ejecting button
9 Card slot
10 Hand wheel
11 Buttonhole lever
12 Retractable carriage arm
13 Hard cover (accessory storage)
1
2
3
4
567
8
9
10
11
12
13

4
1 Embroidery hoop-ST (with template)
2 Embroidery hoop-SQ (with template)
3 Foot control
4 Power supply cord
5 Knee lifter
6 Set of red tip needles
7 Bobbin thread for embroidery
8 Felts
9 Stabilizers
10 Template sheets for built-in embroidery designs
11 USB cable
12 Instruction book
13 Key icon reference chart
14 Instructional movie DVD
15 Handbook CD-ROM
16 MC11K Tools CD-ROM (with instruction booklet)
17 Cloth guide
18 Embroidery hoop-AQ (with template and clamps)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Standard Accessories and Storage
The embroidery hoops, foot control, power supply cord,
knee lifter etc. can be conveniently stored in the hard cover.
18
17

5
1 Overcasting foot C
2 Rolled hem foot D
3 Zipper foot E
4 Satin stitch foot F
5 Blind hemming foot G
6 Cording foot H
7 Overedge foot M
8 1/4” seam foot O
9 Button sewing foot T
10 Automatic buttonhole foot R
11 Embroidery foot P
12 Darning foot P-2
13 Even feed foot with quilting bar
14 Quilting guide bar
15 Spool holder (large)
16 Spool holder (small)
17 Extra spool pin
18 Spool supporter
19 Felt cushion
20 Bobbins
21 Set of needles
22 Screwdriver
23 Screwdriver key
24 Scissors
25 Lint brush
26 Seam ripper (Buttonhole opener)
27 Button shank plate
28 Touch panel stylus
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26 27 28
The extension table provides a handy compartment for
storing various accessories.

6
Extension Table
The extension table provides an extended sewing area
and can be removed for free arm sewing.
1 Extension table
To detach:
Draw the table out to the left.
To attach:
Slide the table on the base and push the table to the
right.
1
2
Free arm sewing
Free-arm sewing is used for stitching sleeves, waist-
bands, pant legs or any other tubular garments.
It is also useful for darning socks or mending knees or
elbows.
For free arm sewing
1 Return the carriage to the home position (refer to
page 67).
2 Turn the power switch off.
3 Remove the extension table.
4 Hook your finger on the bottom of the fillet and draw
the fillet out to the left.
2 Fillet
For flat bed sewing
1 Return the carriage to the home position.
2 Turn the power switch off.
3 Insert the fillet and slide it to the right, between the
free arm and carriage base.
4 Attach the extension table.
3 Carriage base
4 Free arm
NOTE:
Do not pull or push the carriage base.
3
4

7
Connecting the Power Supply
First mak sure the power switch is off and then insert
the foot control plug into the jack on the machine if you
wish to use foot control.
Insert the machine plug of the power supply cord into
the machine socket.
Insert the power supply plug into the wall outlet, and
turn the power switch on.
1 Power switch
2 Machine plug
3 Machine socket
NOTES:
Make sure to use the power supply cord that came with
the machine.
If you turn off the power switch, wait for 5 seconds
before turning it on again.
The foot control cannot be used in the embroidery mode.
WARNING:
While in operation, always keep your eyes on the
sewing area, and do not touch any moving parts such
as the thread take-up lever, handwheel or needle.
Always turn off the power switch and unplug the
machine from the power supply:
- when leaving the machine unattended.
- when attaching or removing parts.
- when cleaning the machine.
Do not place anything on the Foot Control.
Operating Instructions:
The symbol “O” on a switch indicates the “off” position
of the switch.
For the U.S.A. and Canada only
Polarized plug (one blade wider than the other):
To reduce the risk of electric shock, this plug is intended
to fit in a polarized outlet only one way. If it does not fit
fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the proper outlet.
Do not modify the plug in any way.
If you wish to use the foot control, pull out the cord from
the foot control and insert the pin connector into the
jack on the machine.
1 Foot control cord
2 Pin connector
Insert the machine plug of the power supply cord into
the machine socket.
Insert the power supply plug into the wall outlet, and
turn the power switch on.
CAUTION:
Do not pull the foot control cord beyond the red mark.
1
2
3
1
2

8

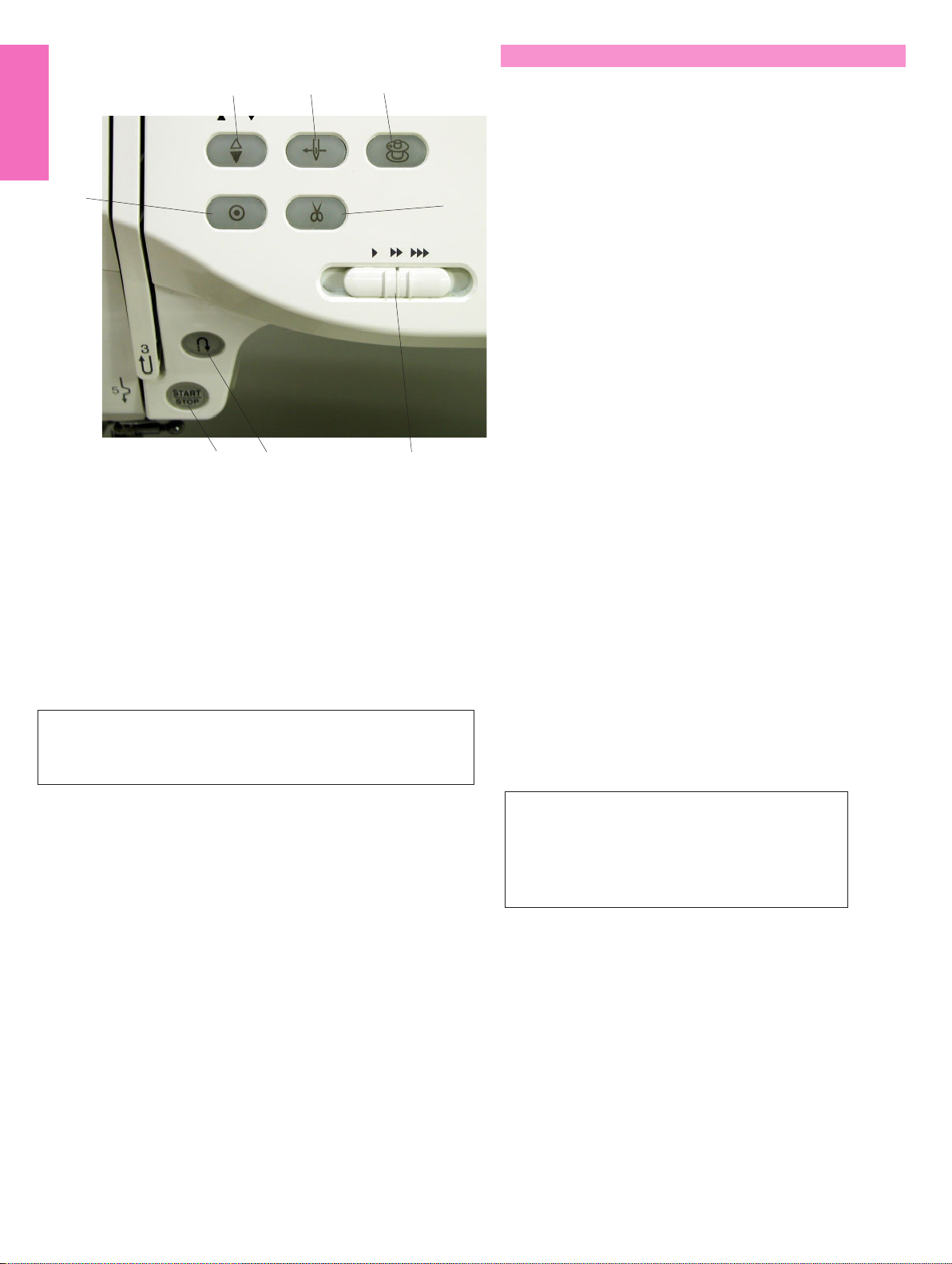

1 Start/stop button
Press this button to start or stop the machine. This button
can be used either in the ordinary sewing mode or
embroidery mode. In the ordinary sewing mode, the machine
starts running slowly for the first few stitches, it then runs at
the speed set by the speed control slider. The machine runs
slowly as long as this button is pressed.
The button will turn red when the machine is running, and
green, that it has been stopped.
NOTE:
The start/stop button cannot be used in the ordinary sewing
mode when the foot control is connected to the machine.
2 Reverse button
When sewing stitch pattern U1, U2, U8 or U9, the machine
will sew in reverse as long as the reverse button is pressed.
If the stitch pattern U1, U2, U8 or U9 has been selected and
the foot control is not connected, the machine will start
sewing in reverse as long as the reverse button is pressed.
If you press the reverse button when sewing any other
stitches, the machine will immediately sew locking stitches
and automatically stop.
3 Needle up/down button
Press this button to bring the needle bar up or down.
4 Auto-lock button
When sewing stitch pattern U1, U2, U8 or U9, the
machine will immediately sew locking stitches and
automatically stop when the auto-lock button is
pressed.
When sewing all other stitches, the machine will sew
to the end of the current pattern, sew locking stitches
and stop automatically.
The machine will trim the threads automatically after
locking the stitch when the auto thread cutting is
enabled (refer to page 22).
5 Speed control slider
This slider will set the maximum sewing speed in the
ordinary sewing mode (refer to page 9).
6 Auto needle threader button
Press this button and follow the step-by-step
instruction displayed on the visual touch screen to
thread the needle.
Refer to page 13.
7 Bobbin winding button
Press this button to wind the bobbin.
Refer to page 10.
8 Thread cutter button
Press this button after finishing sewing and the
machine will trim the threads automatically.
Refer to page 28.
NOTES:
The thread cutter button does not function:
- soon after turning on the power.
- when the presser foot is in the up position.
- when being pressed 4 times in a row.
Machine Operating Buttons
12
3
4
5
67
8

9

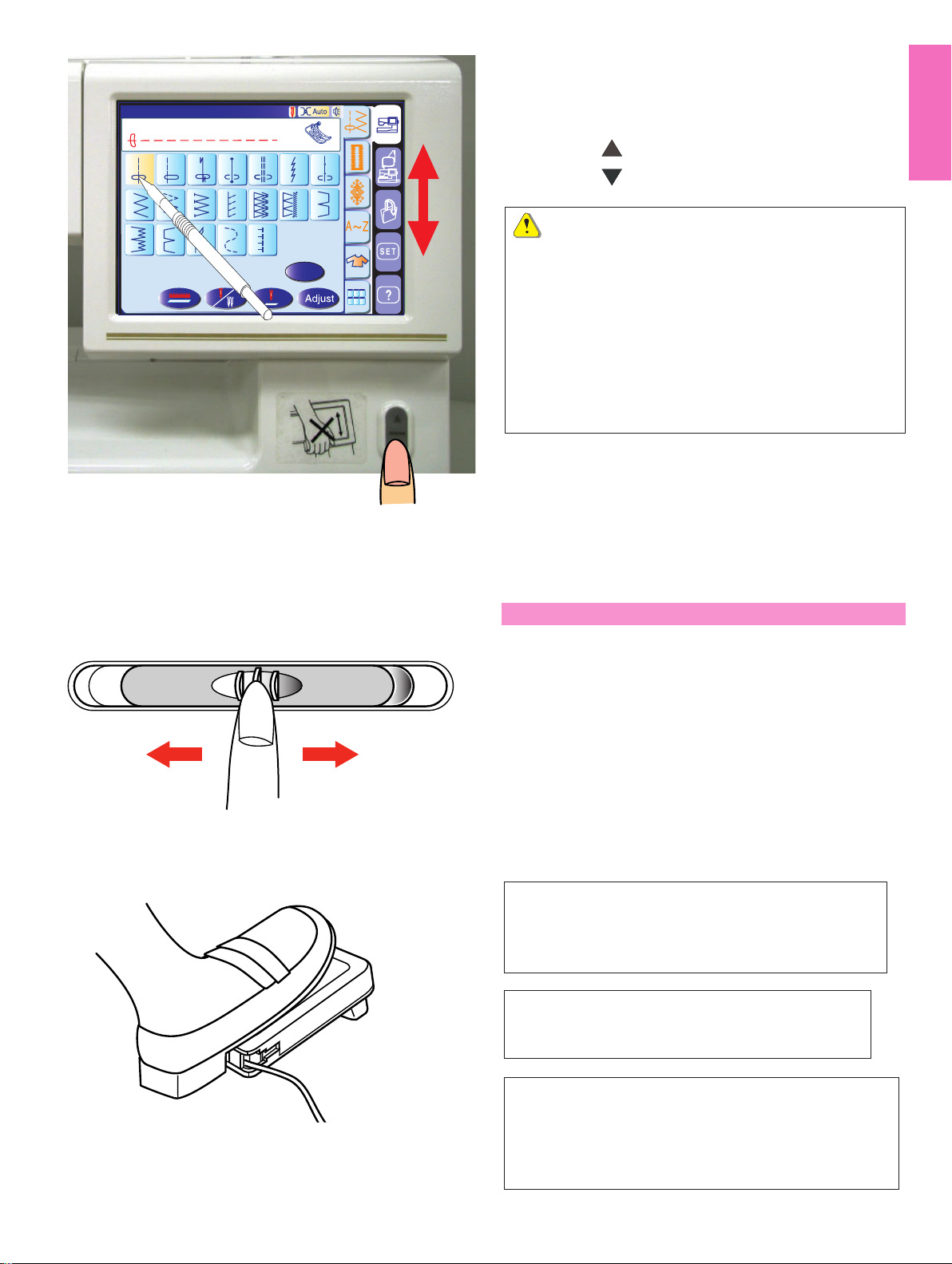

Controlling Sewing Speed
Speed control slider
You can limit the maximum sewing speed with the
speed control slider according to your sewing needs.
To increase the sewing speed, move the slider to the right.
To decrease the sewing speed, move the slider to the left.
Foot control
Pressing on the foot control can vary sewing speed.
The harder you press the foot control, the faster the
machine runs.
NOTE:
The machine runs at the maximum speed set by the
speed control slider when the foot control is fully
depressed.
Operating Instructions:
Foot controller Model 21371 is for use with sewing
machine model MC 11000.
NOTE:
This machine is equipped with an automatic shutdown
safety feature to prevent overheating whenever the
machine is running overloaded. Follow the safety
instructions that appear on the visual touch screen.
Screen up/down button
The visual touch screen can be raised to open (clear)
the space for handling fabrics etc.
Pressing the button raises the screen, while
pressing the button lowers the screen.
CAUTION:
Be sure to store the visual touch screen in the lowest
position before carrying or storing the machine to
prevent the screen from damage by impact.
Do not force to move the visual touch screen by hand.
Do not press the surface of the visual touch screen
with hard or sharp objects like pencils, screwdrivers or
the like. Use the touch panel stylus to press the visual
touch screen.
4
Utility(U)
6
2357
8910 11 12 13 14
15 16
A
17
1
Straight Stitch
1918
B

10
Setting the Spool of Thread
Lift up the spool pin. Place the spool of thread on the
spool pin with the thread coming off the spool as
shown. Attach the large spool holder, and press it firmly
against the spool of thread.
NOTE:
Use the small spool holder to hold narrow or small
spools of thread.
Extra spool pin
Use the extra spool pin when you need to wind a
bobbin without unthreading the machine while working
on a sewing project.
Insert the extra spool pin into the spool supporter and
then into the hole beside the horizontal spool pin.
Place the felt cushion on the spool pin and place a
spool of thread on it as shown.
NOTE:
The extra spool pin is also used for twin needle
sewing.
Winding the Bobbin
This machine has an exclusive motor for bobbin
winding, which allows you to wind the bobbin while
stitching.
1 Slide the hook cover release button to the right, and
remove the hook cover plate.
2 Lift out the bobbin from the bobbin holder.
3 Pull the thread from the spool and pass the thread
through the thread guide.
Draw the thread around and under the bobbin
winding tension disk.
4 Pass the thread through the hole in the bobbin from
the inside to the outside.
5 Put the bobbin on the bobbin winder spindle.
Push the bobbin winder stopper to the left.
6 Hold the free end of the thread in your hand and
press the bobbin winding button .
Press the bobbin winding button again to stop the
bobbin when it has wound several layers, and cut
the thread close to the hole in the bobbin .
1
2
3
4
5
6
Use the Janome plastic bobbins for horizontal hook
(marked with “J”). Using other bobbins, such as
prewound paper bobbins, may cause stitching problem
or damage to the bobbin case.
NOTE:

11
7 Press the bobbin winding button again .
When the bobbin is fully wound, the bobbin winder
stopper returns to the original position and the
machine will stop automatically.
Cut the thread with the thread cutter.
Inserting the Bobbin
1 Place the bobbin in the bobbin holder with the thread
running off counterclockwise.
2 Guide the thread into the front notch (A) on the
bobbin holder.
3 Draw the thread to the left, sliding it between the
tension spring blades.
4 Continue to draw the thread lightly until the thread
slips into the side notch (B).
5 Pull out about 10 cm (4") of thread to the rear.
Reattach the hook cover plate.
NOTE:
A threading chart is shown on the hook cover plate for
your reference.
(A)
(B)
1
2
3
4
5
7

12
Threading the Machine
Raise the presser foot. Press the needle up/down
button twice to raise the needle.
Turn the power switch off.
1 Draw the thread from the spool. Hold the thread with
both hands and pass the thread under the thread
guide plate. Tug the thread until it snaps.
2 Draw the thread down along the right channel and
around the bottom of the guide plate.
3 Pull the thread up along the left channel to the
thread take-up lever.
4 Firmly draw the thread up to the take-up lever and
down into its eye from the right to the left, while
holding the thread at the spool.
5 Then pull the thread down along the left channel
and through the lower thread guide.
6 Slide the thread behind the needle bar thread guide
on the left.
7 Thread the needle with the automatic needle
threader (refer to the next page).
1
2
3
4
5
6
7

13

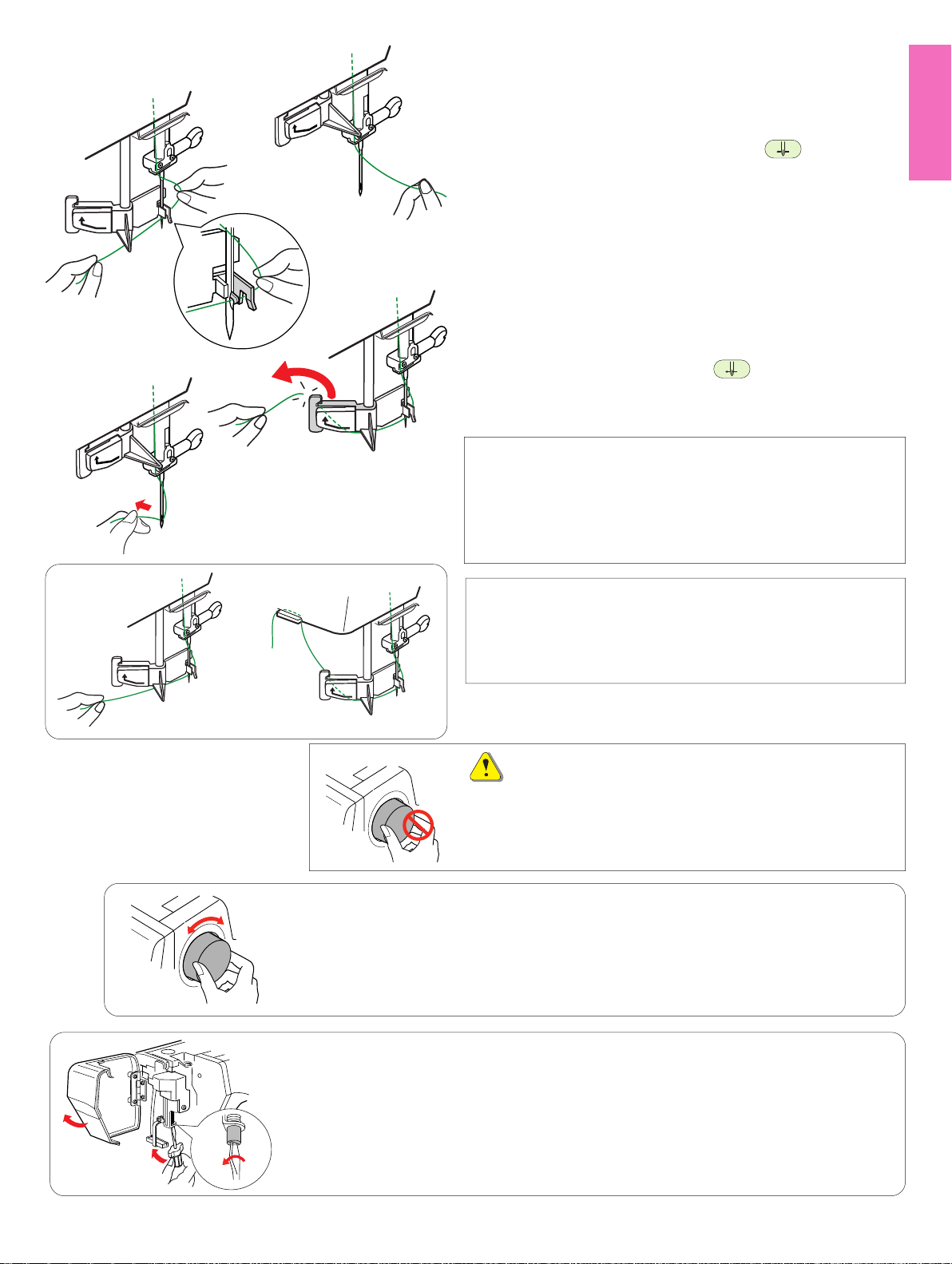

Using the Automatic Needle Threader
Turn the power switch on and lower the presser foot.
1 Hold the end of the needle thread gently.
2 Press the auto needle threader button . The threader
lowers automatically and the hook comes out through
the needle eye from behind it.
3 Pull the thread down around the thread guide, then
pass the thread from the right and under the hook as
shown.
4 Draw the thread to the left and slip it into the slit of the
thread holder from the bottom and cut the thread with
the thread cutter as shown.
5 Press the auto threader button again. The threader
goes up automatically and pulls the thread out through
the needle eye. Pull the loop of thread to the back.
NOTES:
The automatic needle threader works well on the needles
Nos. 11-14, sewing threads Nos. 50-90 and Janome
embroidery threads.
Thick threads, Nos. 20 and 30, are not suitable for the
automatic needle threader.
NOTES:
You may need to hold the thread end with your hand when
threading certain kinds of threads.
When threading monofilament thread, hang the thread end
on the thread holder on the face plate.
CAUTION:
Do not turn the handwheel while the automatic needle
threader is in the lowered position to prevent it from
damage. Do not touch the automatic needle threader while it
is moving.
If the automatic needle threader is locked by turning the handwheel accidentally,
release it as follows:
Carefully turn the handwheel to move the needle up or down a little, so that it frees the
automatic needle threader.
Press the auto needle threader button to restore the automatic needle threader to the
up position.
If the automatic needle threader will not return to the up position by pressing the auto
needle threader button, correct it as follows:
1. Turn the power switch off.
2. Open the face plate.
3. Turn the threader shaft counterclockwise to release the hook from the needle eye.
4. Turn the power switch on and the automatic needle threader will return to the up
position.
5. Close the face plate.
1
2
34
5

14
Drawing Up the Bobbin Thread
1 Raise the presser foot lifter.
2 Hold the needle thread with your finger and press
the up/down needle button twice to pick up the
bobbin thread.
3 Draw up the needle thread to bring up a loop of the
bobbin thread.
4 Slide 10 cm (4") of both threads to the back under
the presser foot.
12
3
4

15
Changing Needles
CAUTION:
Always make sure to turn the power switch off and
disconnect the machine from power supply before
changing the needle.
Raise the needle by pressing the up/down needle
button and lower the presser foot.
Turn the power switch off.
Loosen the needle clamp screw by turning it counter-
clockwise.
Remove the needle from the clamp.
Insert a new needle into the needle clamp with the flat
side of the needle to the rear.
When inserting the needle into the needle clamp, push
it up against the stopper pin and tighten the needle
clamp screw firmly with a screwdriver.
To check needle straightness, place the flat side of the
needle onto something flat (a needle plate, glass etc.)
The gap between the needle and the flat surface should
be consistent.
Never use a blunt needle.
Weight
Very Light
Light
Medium
Heavy
Very Heavy
Fabric
Chiffon, Georgette, Fine Lace, Organdy Net, Tulle
Batiste, Voile, Lawn, Pure Silk, Crepe de Chine, Sheer
Crepe, Chambray, Handkerchief Linen, Gingham,
Challis, Percale, Wool Crepe, Peau de Soie, Taffeta,
Satin, Silk Surah, Satin-backed Crepe, Qiana
Single Knits, Jersey, Swim wear, and Tricot
Leather Suede
Flannel, Velour, Velvet, Muslin, Velveteen, Poplin,
Corduroy, Broadcloth, Linen, Chintz, Gabardine, Felt,
Terry, Burlap, Quilted Fabrics
Double Knits, (synthetic and natural) Stretch Velour,
Stretch Terry, Sweater Knits
Leather, Vinyl, Suede
Denim, Sailcloth, Ticking
Double Faced Wool, Heavy Coating, Fake Fur,
Drapery Fabrics
Leather, Suede
Canvas, Duck, Upholstery Fabrics
Topstitching for Special Finish
Type of Needle
Universal, Ball Point
Blue Tipped Needle
Universal
BlueTipped Needle, Ball Point
Wedge Point Leather Needle
Universal
Ball Point
Wedge Point Leather Needle
Denim Needle
Universal
Wedge Point Leather Needle
Universal
Topstitching Needle
Needle Size
9 (65)
11 (75)
11 (75), 12 (80)
11 (75)
11 (75)
14 (90)
14 (90)
14 (90)
16 (100)
16 (100)
16 (100), 18 (110)
16 (100)
14 (90)
Fabrics and needle chart

16
Raising and Lowering the Presser Foot
The presser foot lifter raises and lowers the presser
foot.1 Presser foot lifter
You can raise the presser foot about 6 mm (1/4")
higher than the normal up position by exerting more
pressure when lifting the presser foot lifter. This helps
you to place the layers of thick fabrics or embroidery
hoops under the foot.
Knee Lifter
The knee lifter is extremely helpful when sewing
patchwork, quilting etc, since it allows you to handle
the fabric while your knee controls the presser foot.
Attaching the knee lifter
Match the ribs on the knee lifter with the notches in the
knee lifter socket and insert the knee lifter.
1 Knee lifter
2 Knee lifter socket
Adjusting the knee lifter
The angle of knee lifter can be adjusted to fit your
knee.
Loosen the setscrew and slide the angle bar in or out
to adjust the angle of the knee lifter.
Tighten the setscrew to secure the angle bar.
3 Setscrew
4 Angle bar
Using the knee lifter
Push the knee lifter with your knee to easily move the
presser foot up and down.
You can control how high the foot rises by the amount
of knee pressure you exert.
NOTE:
Do not touch the knee lifter while stitching, otherwise
the fabric will not be fed smoothly.
2
1
1
4
3

17
Removing and Attaching the Presser Foot
WARNING:
Turn the power switch off before changing the presser
foot.
Removing the presser foot
Raise the needle to its highest position and raise the
presser foot lifter.
Press the red button on the back of the foot holder.
The presser foot will drop off.
Attaching the presser foot
Place the presser foot you wish to use so that the pin
on the foot lies just under the groove of the foot holder.
Lower the presser bar to lock the foot in place.
Button sewing foot T
Insert the rear pin on the foot into the groove of the foot
holder.
Gently lower the presser bar while holding the foot with
your fingers.
Darning foot P-2
Loosen the thumbscrew and remove the foot holder.
Attach the darning foot P-2 to the presser bar putting
the pin on the needle clamp screw.
Tighten the thumbscrew firmly with the screwdriver.
Even feed foot
Loosen the thumbscrew and remove the foot holder.
Attach the even feed foot to the presser bar with the
lever over the needle clamp screw and secure it with
the thumbscrew.
Embroidery foot P
Loosen the thumbscrew and remove the foot holder.
Attach embroidery foot P to the presser bar from be-
hind.
Tighten the thumbscrew securely with the screwdriver.
Adjusting the Foot Pressure
The foot pressure control dial should be set at “3” for
regular sewing.
Reduce the pressure to “2” for appliqué, cutwork, drawn
work, basting and embroidery.
Set the dial at “1” when sewing extra fine fabrics.

18
Mode Selection
When you turn on the power switch, the visual touch
screen will show the opening “welcome” window, then
the ordinary sewing mode will appear after a few
seconds.
The machine will be set for straight stitch sewing.
NOTE:
After turning on the power, it takes several seconds for
the pattern selection window to be displayed on the
visual touch screen.
(This is the required boot up time and is not a defect.)
Mode selection keys
1 Ordinary sewing mode key
Press this key to enter the ordinary sewing mode.
2 Embroidery mode key
Press this key to enter the embroidery mode.
3 Open file key
Press this key to open files such as programmed stitch
patterns and embroidery designs you have saved.
4 Set mode key
Press this key to enter the setting mode. In this mode,
you can customize the machine settings to your prefer-
ence. The machine settings for ordinary sewing, em-
broidery, language selection and common settings are
available in this mode.
5 Help movie key
Press this key to view the on-screen movie on the
essential operations.
CAUTION:
Do not press the surface of the visual touch screen with
hard or sharp objects like pencils, screwdrivers or the like.
4
Utility(U)
6
2357
8910 11 12 13 14
15 16
A
17
1
Straight Stitch
1918
46
57
112 13 14
A
198
1
2
3
4
5
B
B

19

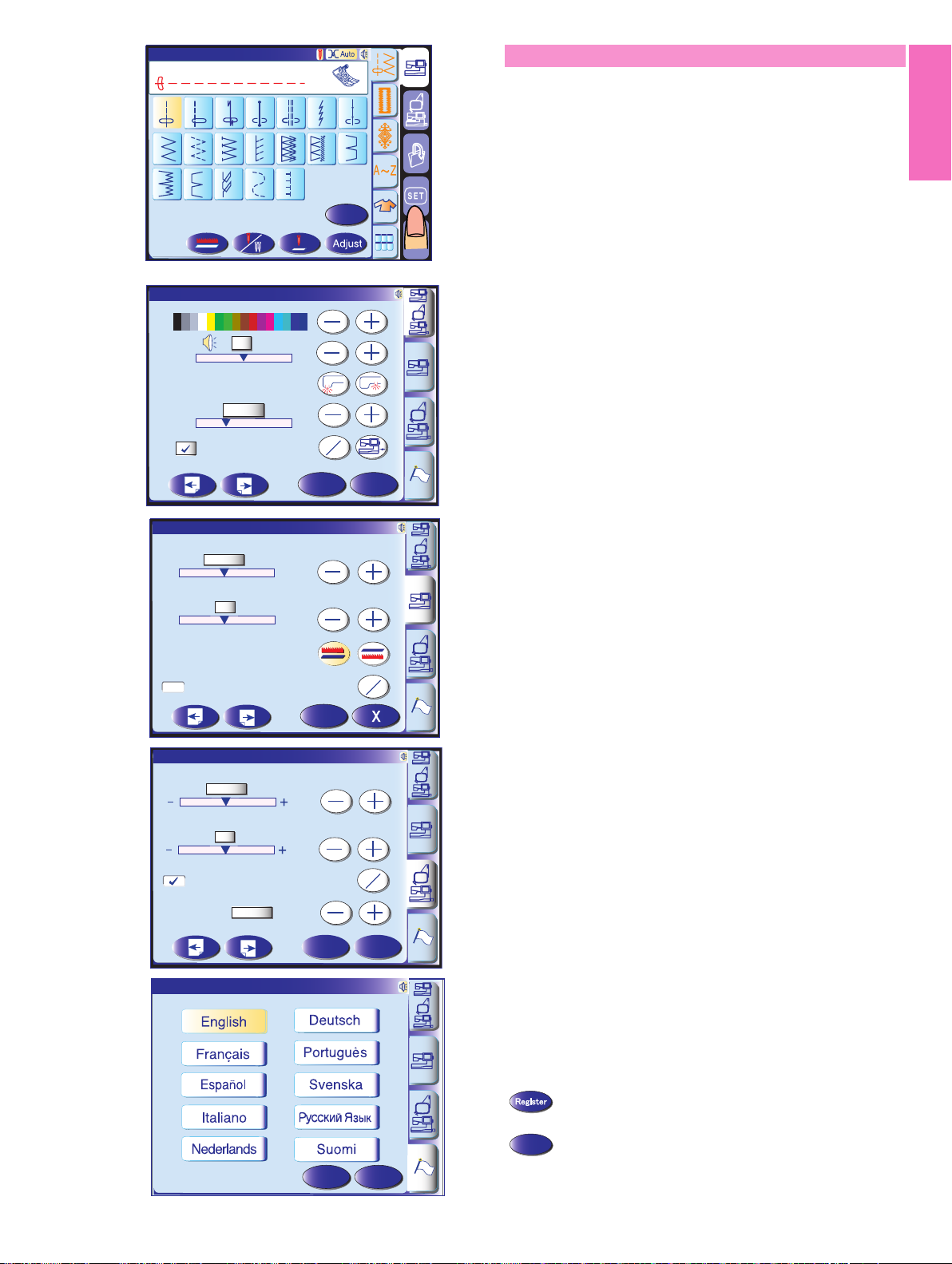

Machine Settings
Set mode key
When you press the set mode key, you can customize
the machine settings.
Press one of the 4 setting mode keys to select the
mode to customize.
1 Common setting mode
In this mode, the machine settings or function for both
ordinary sewing and embroidery can be customized or
executed.
2 Ordinary sewing setting mode
In this mode, the machine settings or function for
ordinary sewing can be customized or executed.
3 Embroidery setting mode
In this mode, the machine settings or function for
embroidery can be customized or executed.
4 Language selection mode (Flag mode)
In this mode, you can select one of 10 languages for
the messages displayed on the screen.
Registering the custom settings
After customizing the settings, press the register key
to enable the new settings.
To cancel the changes to the settings, press the exit key
and the setting mode window will close.
Screen Contrast
+
-
Sewing Light
+
-
SET1
SET1
Eco Mode
X
Register
Register
10 mim
10 mim
5
5
Screen Saver
on
off
+
-
SET1 Auto Tension
Register
Auto
Remaining Bobbin Thread
+
-2
Thread Cut after Auto-Lock on
off
Feed Dog
SET1
X
Register
10mm
Auto Tension
Auto
Remaining Bobbin Thread
2
Grid Line
on
off
Grid Size
Language
X
Register
Language Selection
1
2
3
4
X
4
Utility(U)
6
2357
8910 11 12 13 14
15 16
A
17
1
Straight Stitch
1918
B

20
Common settings
1 Screen contrast
The contrast of the visual touch screen can be adjusted
with “+” or “–“ key.
2 Sound
The buzzer sound can be adjusted with the “+” or “–“
key. To mute the buzzer, set the value to “0”.
3 Sewing light options
The dual sewing lights can be turned on or off
individually.
4 Eco mode
The sewing lights will turn off, and the visual touch
screen will display go dark if you have not used the
machine for a while. Touching the screen will turn on
the lights and screen.
The eco mode timer can be set from 1 to 30 minutes by
pressing the “+” or “–“ key.
5 Screen saver
Press the on/off key to check the box. so the
screen will show the screen saver instead of entering
the eco mode.
You can also create your original screen saver for the
MC 11000 with the Screen Saver tool.
Save the data in an ATA PC card or USB memory key,
and insert it into the port of the MC 11000.
Press the import key to import the screen saver
from the ATA PC card or USB memory key.
NOTES:
The Screen Saver Tool is available in the MC11K Tools
CD-ROM included in the standard accessories.
For instructions on installation and operation of the
software, refer to the separate instruction booklet.
Screen Contrast
+
-
Sewing Light
+
-
SET1
SET1
Eco Mode
X
Register
Register
10 mim
10 mim
5
5
Screen Saver
on
off
1
2
3
4
5
