Janus JANUS HD User manual
USERĜS MANUAL
Rev 1.0
2
JANUS HD
Caution
Do not clean the product with the liquid
or the volatility chemical. (it may damage
on the product. And it might cause a fire
or an electric shock.)
Do not insert something into the product
and let the product be heavily attacked.
(It causes the defectiveness and a fire and
an electric shock might happen.)
Do not overcoat on the windshield.
(it may distort and dim the video data.)
Make sure to pull out the SDHC card
after turning off the product. (It might
cause the damage on the SDHC card.)
Do not disassemble, repair or modify the
product. It causes the defectiveness. It
will void the warranty.
3
Userğs Manual
About the product
Thank you for purchasing Janus HD. Janus HD features a built-in GPS antenna,
h.264 video compression for ultra-clear video, and intuitive playback
software for you to archive and view your recorded videos. Janus HD is
designed to record daily driving events inside your vehicle, and from the
driverĜVview. To play back the events, please use the included Janus HD
software.
Continuous recording
During driving, the product can keep recording the road view, audio and
GPS coordinates.
Record Speed ėMAX. 30 fps
Resolution ė720P(1280 x 720), HVGAW (640 x 384)
Event Record
If some events happens while keep the continuous recording, the event
record automatically performs(a user can change the setting menu).
Emergency ( By pressing the emergency button)
Impact (By physical impact on the vehicle)
Over speed (for the case that the speed exceeds the one user set)
Analyze the data for video, audio, speed and GPS coordinates
Recorded data in SDHC card can be easily played back and analyzed in
the exclusive Janus HD viewer program. The recorded video/audio/GPS
coordinates/Speed are to be shown in the Janus HD viewer.
4
JANUS HD
Contents
ࢿ૽˱۽5
ࢿ૽ָঢ়6
ࢿ૽یߦ7
ɾЯ۶ܻ۰8
ࢿ૽۶9
ֻТࠉʼ13
ԻԒ۶14
ԻԒ۶ָ15
ࢢۢ؏ئ16
ࢢۢTip 17
ࠒۘؒ߶؏ئ18
ݤݛ۶ࢽ19
ࢇجઝ۶ࢽ20
یࡈ۶ࢽ21
ࢇѰݥҡݛ22
؟ࢷ23
߶ԦࢇҖ؏ئ24
ˈࢠɼЯ25
ˈیତ26
ܕٸٗࢪଥʼࣱ27
ࢿ૽ؿ۰28
5
Userğs Manual
Contents of the package
ȄĚContents of package can be changed.
ȄĚSDHC memory model can be changed in accordance with the
Ȅmarket supply situation.
JANUS HD & Bracket
Cable Holder
AV out cable
SDHC card
Cigar jack cable
CD
CD
6
JANUS HD
Name of Each part
Front
Rear
Left
Right
Lens
Bracket
EMG button
Mic
REC LED
GPS LED
Power Jack
Mini USB
Monitor port
SD card
Slot
ȄMini USB is only for factoryğs debugging use. It cannot be used for the other
purpose. It cannot be connected with PC.
7
Userğs Manual
JANUS HD
Image Sensor
1M CMOS sensor
Audio input
MIC Built In
Video Compression
H.264
Audio Compression
ADPCM
Record resolution
720P(1280*720), HVGAW(640*384)
Record Speed
Max.30fps
Emergence button
Event record by the emergency button
G-Sensor
Event record by the outside impact
GPS sensor
Event record by the userĜs set about over speed
Record Media
SDHC card (Max: 32GB, Default 8GB)
Recommendation type: over Class 6
Lens
120wide lens
Viewer
Windows XP/ VISTA/ 7
Power
DC 7V~26V (enable Car Battery)
Operation
temperature
-5a0&(Storage temperature: -20a0&
Humidity
10~95%
Weight
100g(Except SDHC card)
Size (W x D x H)
100(W) x 42(D) x 39(H)mm
ȄAs our products are subject to continuous improvement, we and our
subsidiaries reserve the right to modify product design, specifications,
and prices without notice and without incurring any obligation
Features
8
JANUS HD
1. Please insert the SDHC card into the product.
2. Please combine the Janus HD main body and the bracket.
3. Please assign the proper place of the windshield behind the room mirror
and clean up the humidity and dirty on it with the dry fabric.
4. Please remove the protection cover the adhesive tape of the bracket.
5. After attaching the bracket on the windshield and fix the screw of the
bracket with the coin.
6. Please connect the power cable with JANUS HD and tie up the power cable.
7. Please start the drive and use the product(Keeping REC LED light on means
the normal operation).
8. Please remove SDHC card after turning off the product and check the
recorded data in the exclusive viewer in PC.
Easy Installation
Caution
When you install the product, please stop driving and park the
vehicle at the safe place
First connect the product to the power outlet then turn on it.
Only use the supplied power cable(DC 12V~24V).
Please clean up the windshield where the product is attached on
Janus HD. The dirty and the humidity can make the product dropped
from the windshield.
9
Userğs Manual
Installation
Insert the SDHC card into the SD
card slot like the left image. In case
that the SDHC card is compulsorily
inserted unlike the left image,
damages will happen in SDHC card
and the product.
Assemble the bracket with the main
body.
The screw of bracket locates in the left
side from the over view.
Assign the place on the windshield, on
which the product is installed. Before
the installation, please clean off the
dirty and the humidity on the
windshield.
If possible, please install the product
behind the middle position of the
rear-view mirror to protect from
interfering with a driverĜs sight view.
10
JANUS HD
Remove the protection cover from the
adhesive bracket and loosen the screw
of the mounting bracket slightly
loosen to adjust the mounting angle.
Firmly press the mounting bracket
combined with the product onto the
suitable place of the windshield.
Hold for 3 seconds to secure
11
Userğs Manual
Tighten the screw of the mounting
bracket with the coin. Tighten screw
to secure mounting position, Road
view cameraĜs angle should be
adjusted in accordance with the
windshieldĜs tilt.
Put the power cable in order with the cable fix holder.
12
JANUS HD
Plug in the car adapter to the product
and into the cigarette lighter to power
up.
Product takes 30 seconds to start up. It starts recording
with a beep.
During normal operation, REC LED will always be on.
13
Userğs Manual
Connect the mini-jack from the video
cable into the Monitor port on the
side of the unit..
Connect the video cable into the
ěvideo inputĜof the portable
display(not included).
Only use the supplied video cable. ėNot support.
Monitor Connection
14
JANUS HD
Install the viewer
Run ę-$186_HD(1.x.x).exeĚ
file from the installation CD.
(If the OS is windows
VIST/7, click the right
button of mouse and install
with userĜs authorization.
Foreign languages are
provided and the program
will be translated according
to the PCĜs OS
Select ęGeneral installationĚ
then click ęNextĚbutton.
After clicking ęFinish InstallationĚ, the viewer program automatically
runs and the ICON creates.
15
Userğs Manual
Backward play, Play
Volume up/down
1 frame playback
Explore events
Repeat a event
GPS signal window
Pause
Print
Next Event
Back up
Playback speed
Set up
Speed
Open a file
E-google map
(Under the
conditions that the
internet is
connected)
GPS Signal Bar
Viewer Guide
16
JANUS HD

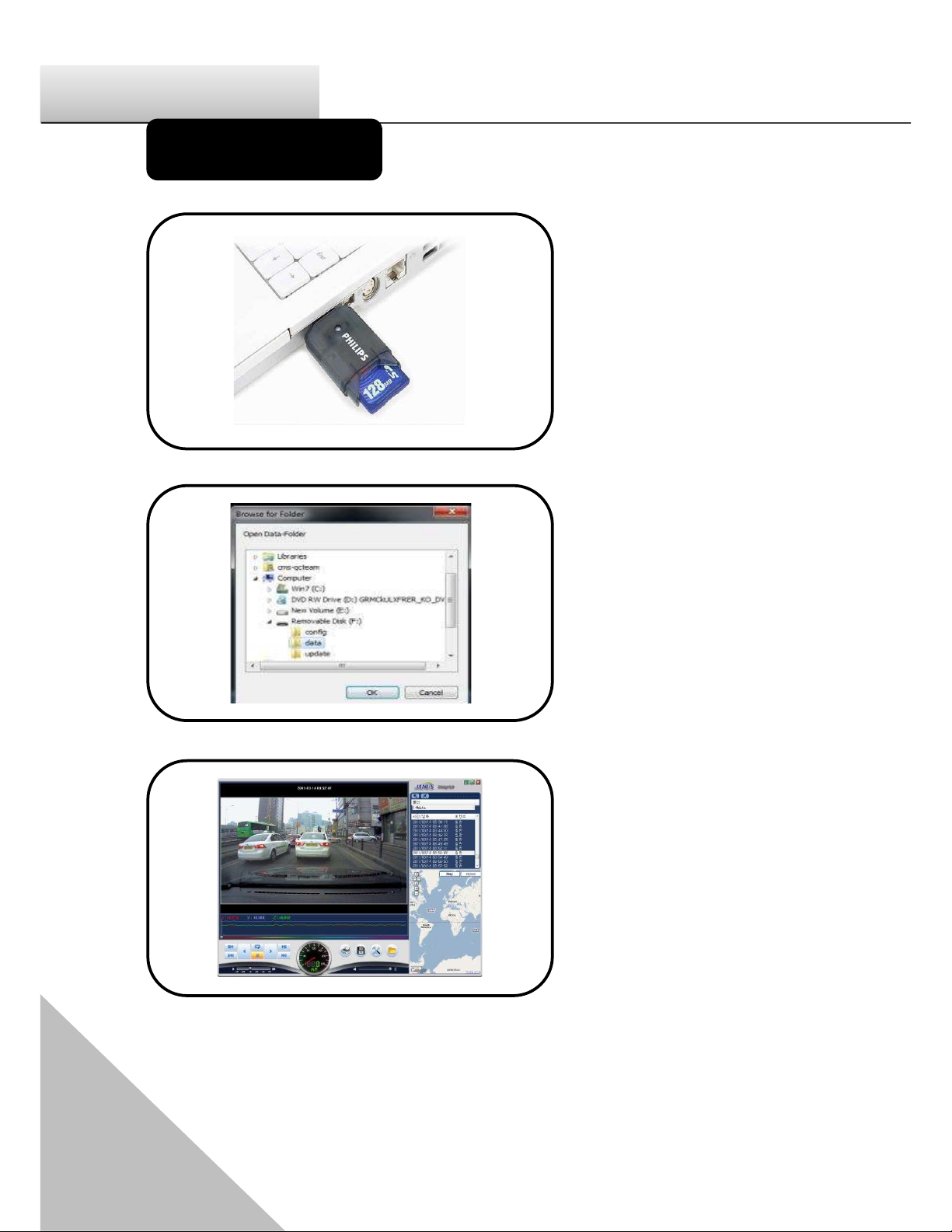

How to playback
After turning off the
product and take SDHC
card. Insert SDHC card
into PC and click the
viewer program Icon to
execute the program.
On the main menu,
select the time data you
want play and click the
play button to watch
the recorded data.
17
Userğs Manual

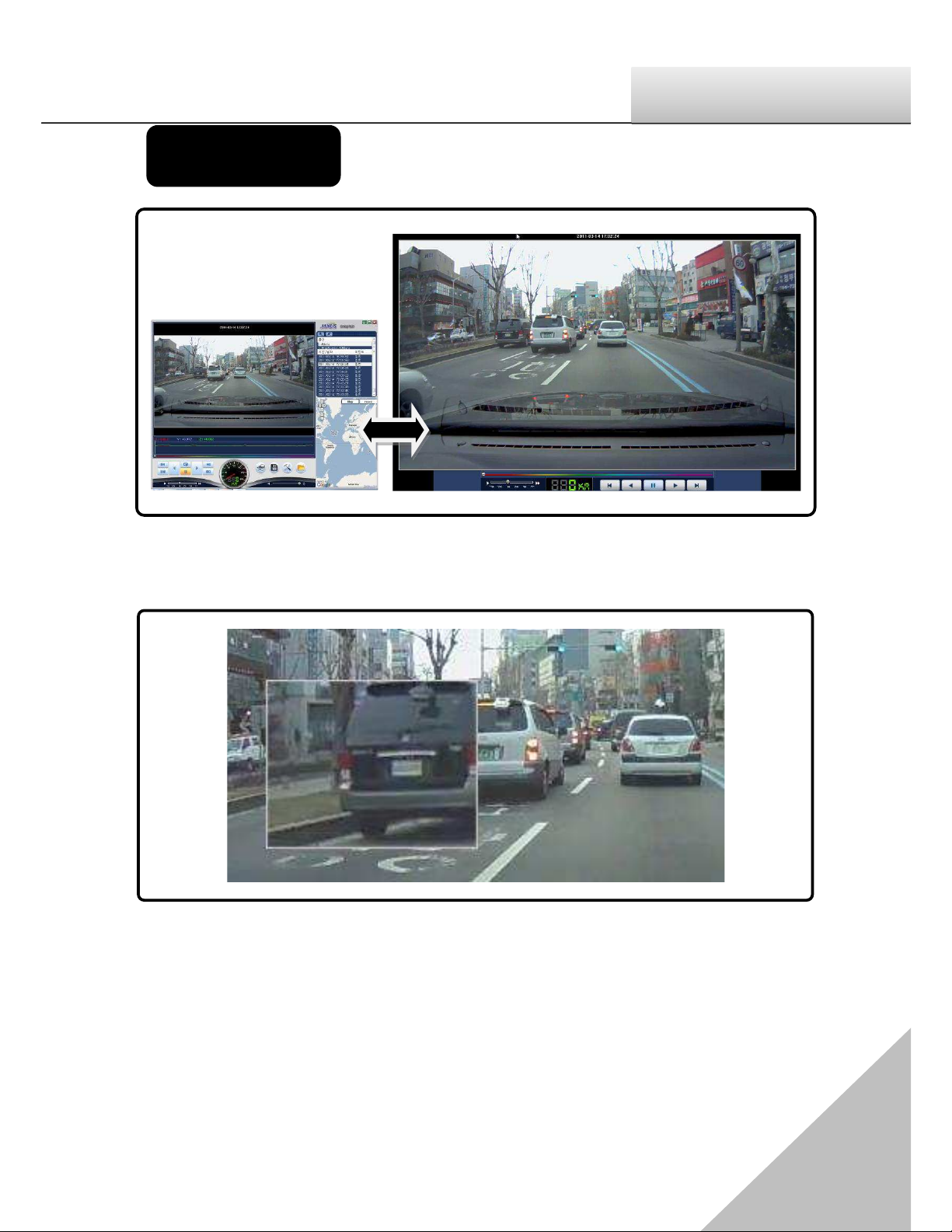

Playback
Double click the left button of the mouse to convert the full screen from the
main screen. To return the main screen, click the left button of mouse again.
On the play screen, click the right button of the mouse on the position to make
the zoom. You can move everywhere for the zoom after pressing the button of
the mouse. Press the right mouse to remove the zoom function.
18
JANUS HD
Back-up
There are
Image back up - JPEG, BMP,
AVI Back up, JDR Back up,
G-SENSOR Back-up.
-Back up for Image, AVI and JDR-
Select the time of the recorded data to
be back up and press the back-up
button.
In case of backing up the audio together
with video, check ęAudioĚand nominate
the path of data then press ęNextĚ
button to make progress of the back-up.
1. AVI back-up file can be played back
in Windows Media Player or
other AV players.
2. JDR back-up file can be played
back in only JANUS HD viewer
program.
3. Image back-up file can be shown in
an image viewer or ęPaintĚof
Window OS.
19
Userğs Manual
System Set-up
Resolution- Select one among 720P or HVGAW.
Camera- Adjust the frame/sec.
Quality- Video quality can be set to one among 5 levels like ęVery
high/high/normal/low/very lowĚ.
Above setting are to make the influence on the data size and the SD card storage
space.
Audio : Recorded with voice or not.
Overwrite- In checking ęuseĚ, when the SD memory card is full, it will automatically
overwrite only the normal mode data saved on to the SD card from the beginning.
In checking ęNot useĚ, it will not record after writing the last data in SD card.
Standard time zone : Setting the appropriate time for each country
Auto Reboot - Set the auto reboot once daily for keeping the stable operation.
Km/Miles- Choose Kilometers or Miles on viewer.
20
JANUS HD

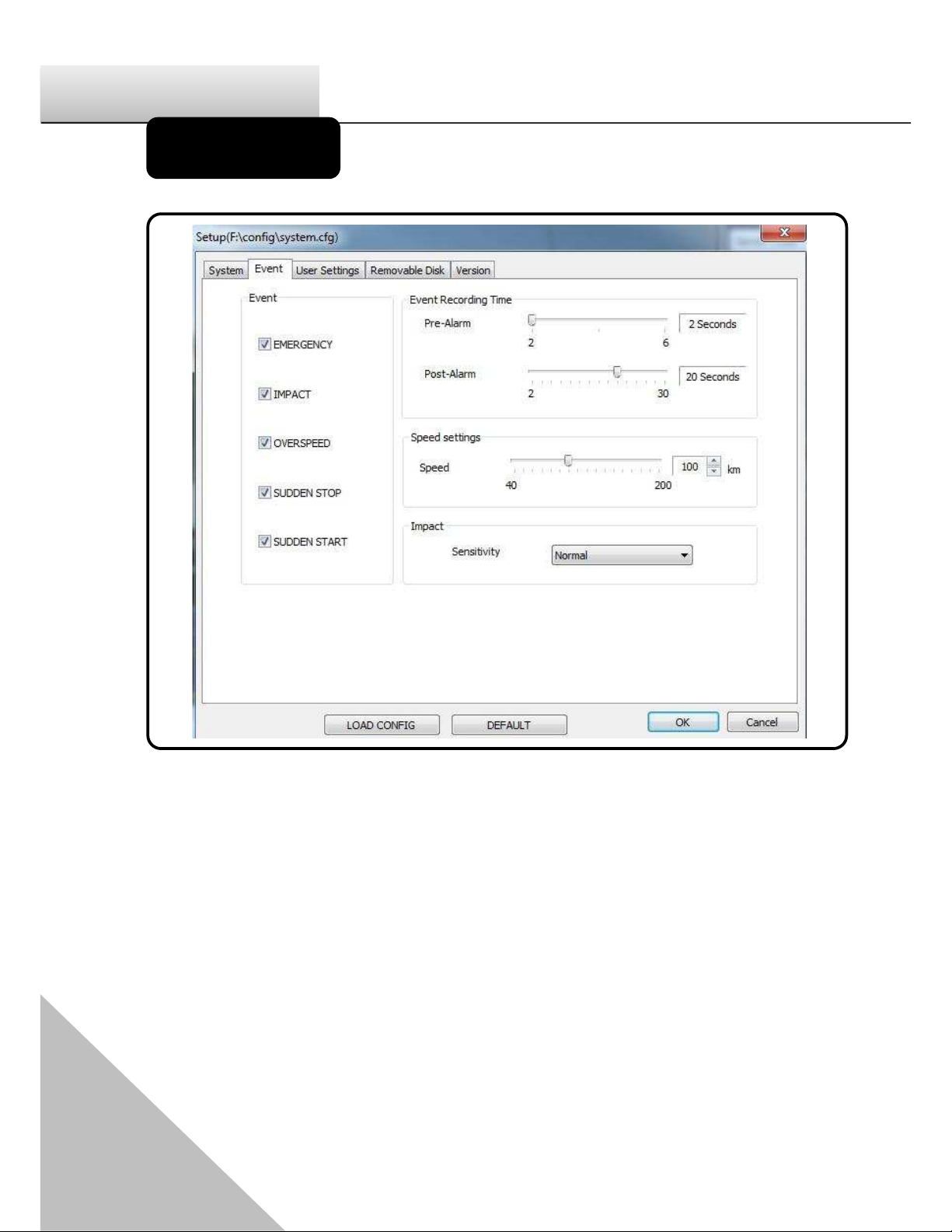

Event- Emergency/Impact /Over speed /Sudden deceleration /Sudden acceleration
Frame :
Pre-alarm: 2~6 seconds recording before event occurs.
Post-alarm:2 ~30 seconds recording after event occurs.
Over speed- Set up the over speed monitoring system. Once the over speed limit has
been exceeded, the device will begin recording. Km or Miles will be shown according to
your chosen on System.
Impact : Applying G-6HQVRUĜVVHQVLELOLW\
Event Set-up
