Janus V2 HD User manual

Janus V2 HD
Product Manual

Camera & Parts 1
Assembly & Installation 3
First Use & Card Formatting 13
Settings & Viewer Software 14
WiFi Setup & Janus Center 18
Table of Contents

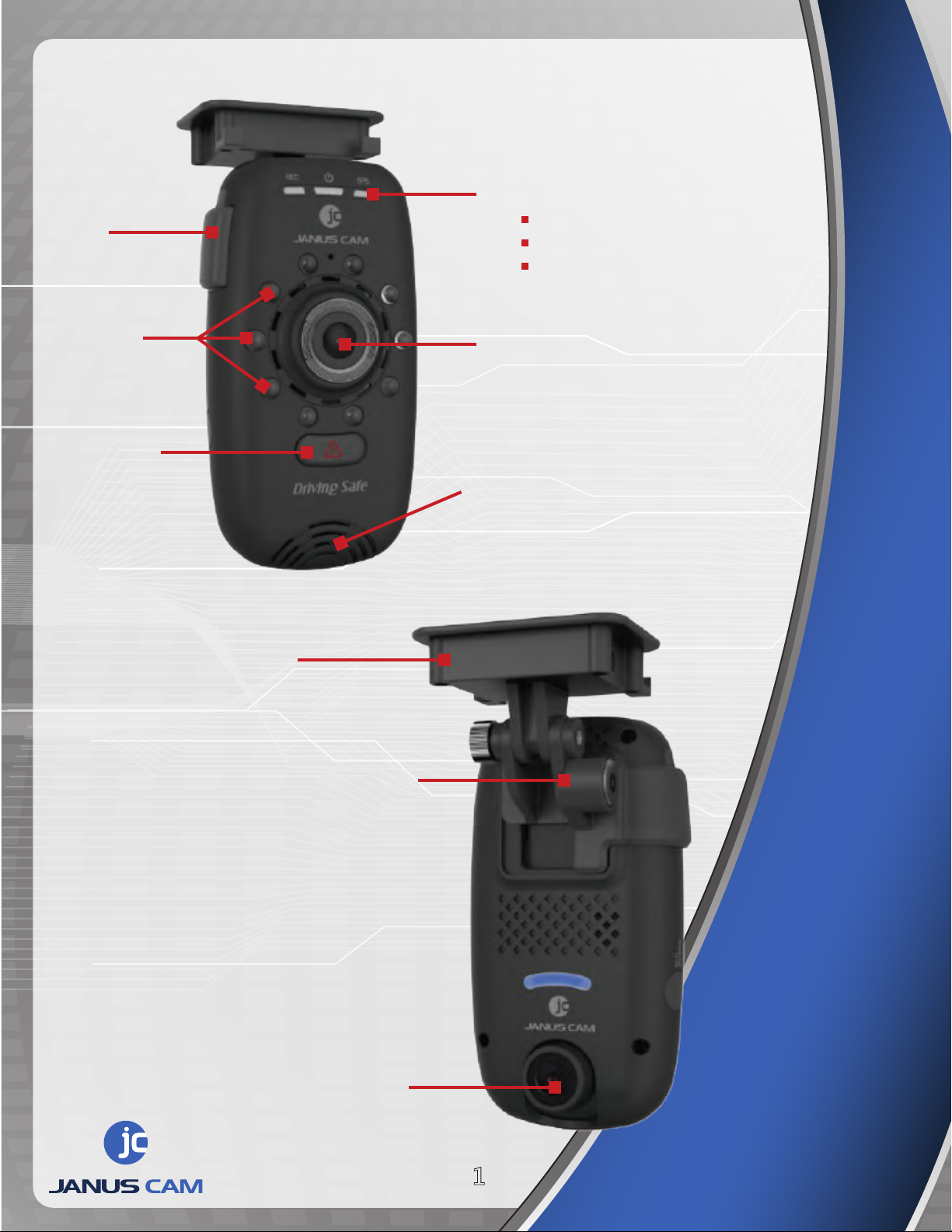

Camera
&
Parts

Camera & Parts
Exterior HD Lens
Speaker
GPS
Security
Bracket
Indicator Lights
REC
Power
GPS
SD Card
Slot
10-IR LED
Diodes
Emergency
Button
Interior HD Lens
1

Page | 1
januscam.com
Camera & Parts
1
4
2
5
3
6
1
2
3
4
5
6
Security Bracket
Mount Arm
GPS Bracket
Power Cable
Emergency Button
WiFi Antenna
2

Assembly
&
Installation

Page | 1
januscam.com
Assembly & Installation

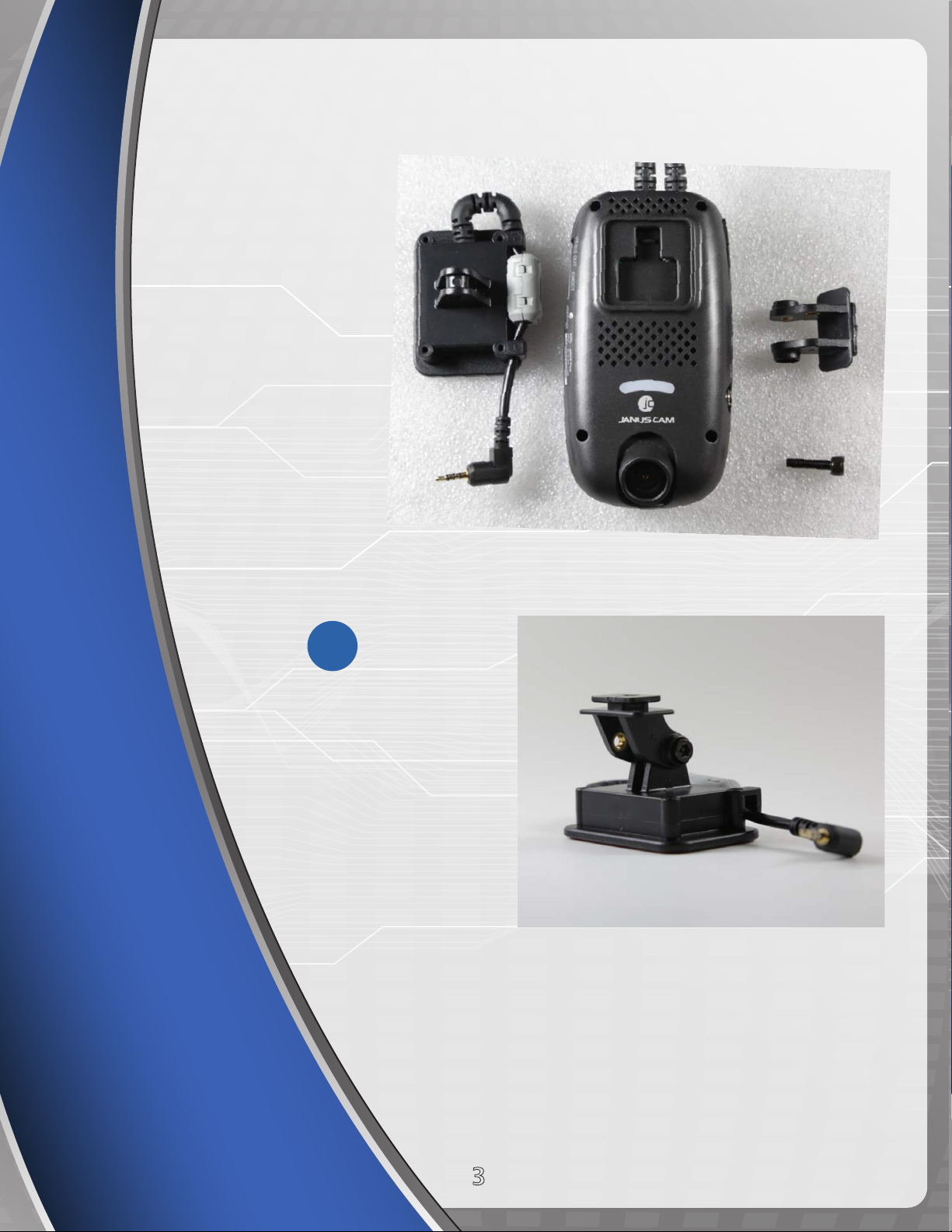

To begin assembly,
you will need the
camera, mount arm,
GPS and long screw.
Align and attach
the mount head to
the GPS bracket as
seen in the image
below and use long
screw to connect
both pieces.
1
3

Assembly & Installation
3

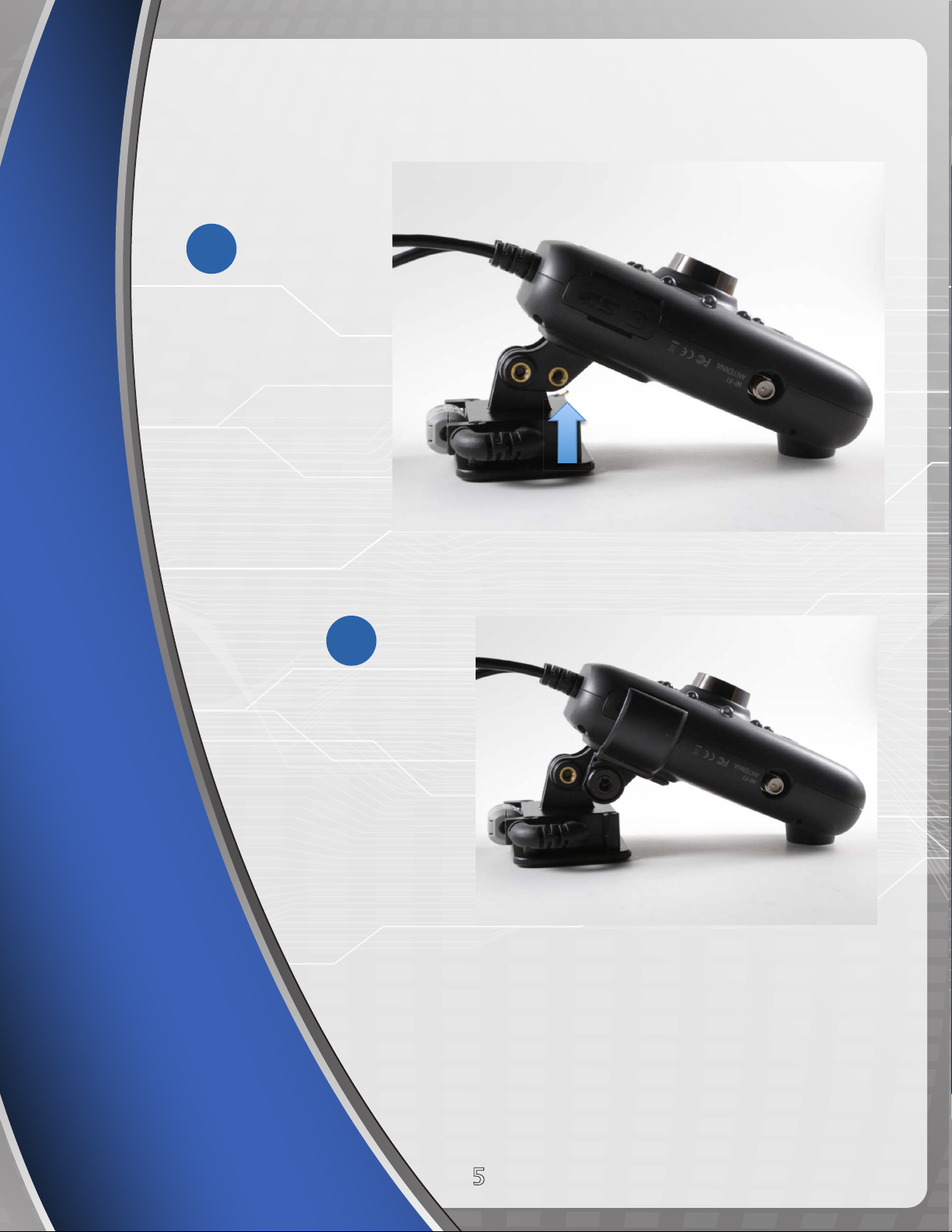

Slide the mount
head vertically
upwards into the
back of the camera
as pictured with
arrow.
If you do not
plan on using
the security bracket,
you may continue
to page 8 step 6.
You will need
the security
bracket and
short screw as
seen in the
image to
the left.
2
3
4

Page | 1
januscam.com
Assembly & Installation
Align the security
bracket with the
hole pointed out in
the image, then
insert the short
screw and tighten.
Your result
should look
like this:
5
4
5

Assembly & Installation
5
Insert the GPS
bracketʼs plug into
the port on top of the
camera labeled GPS.
Make sure it is
plugged in all the
way.
(If using with WIFI
download)
With the
camera facing you,
attach the Wi-Fi
antenna to the port
located on the left
hand side of the
camera.
6
7
6

Page | 1
januscam.com
Assembly & Installation
DO NOT REMOVE
THE 3M BACKING
YET. For optimal
viewing, find the
mount location that
would allow for
similar placement as
pictured in the
images.
Once you have found
the location you would
like to mount the camera
to, peel off the red 3M
backing from the GPS
bracket and apply the
assembled unit to that
point, pressing it firmly
against the windshield.
9
8
7

Assembly & Installation
7
10
Locate the fuse box you
will be running the power
from. Take the power
line out of the camera
and begin to tuck it into
the headliner in the
direction of the fuse box.
If you are using the
backup reader, now is
the time to connect
11
Begin to unravel
the power cable
your external USB. Once the external device is connected, tuck it away in
the opposite direction of where your power is coming from.
8

Page | 1
januscam.com
Assembly & Installation
Return to the vehicle
and slowly from the
top of the pillar pull the
door seal away from the
vehicle all the way to the
bottom of the door
exposing the interior of
the pillar.
12

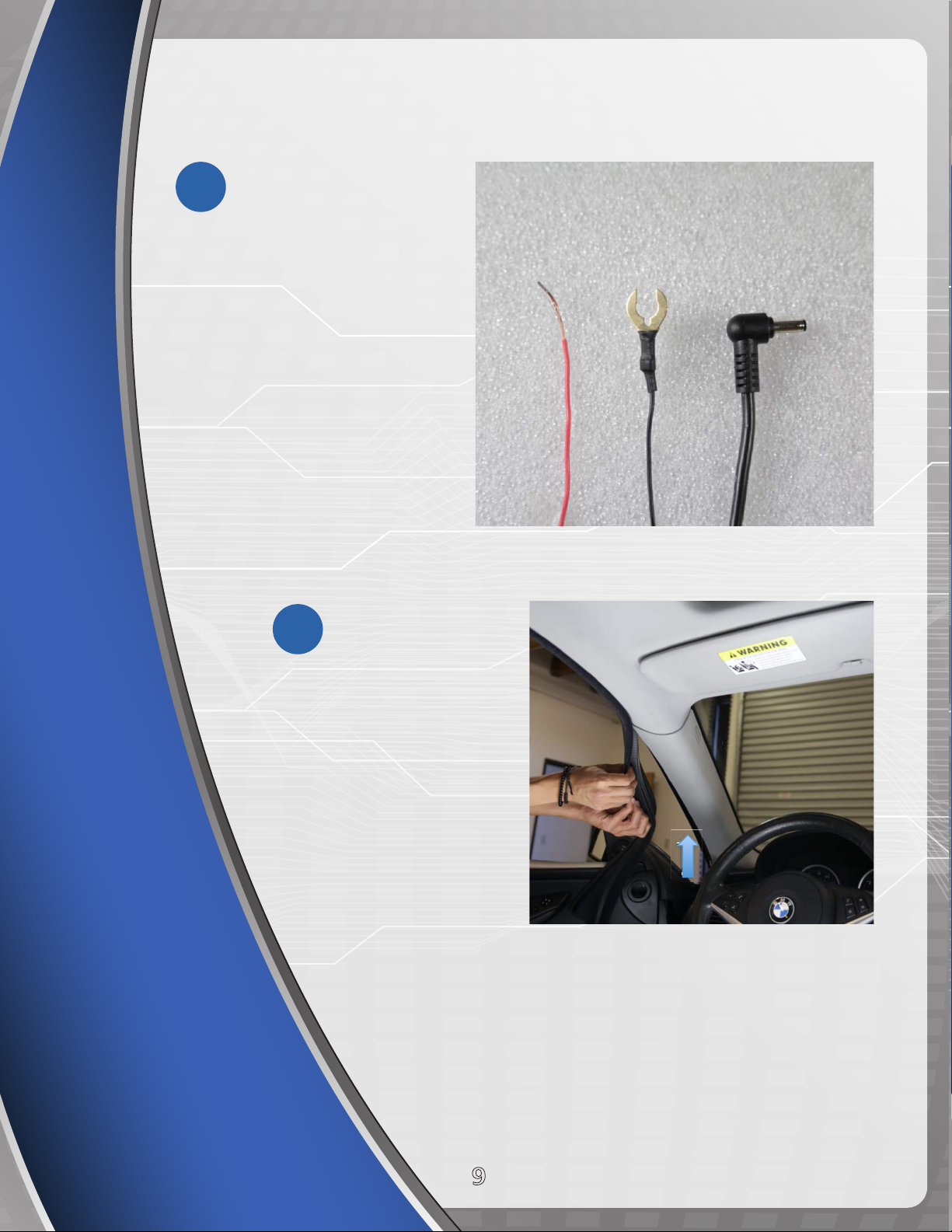

On one end you have the power
wire (A. red wire) and the
ground clip (B. black with gold
clip attached). On the
opposite end you have the
(male jack connector C.). Strip
1/2 an inch of the protective
sleeve off of the power wire (A.
red wire)
13
A. B. C.
9

Assembly & Installation
9
With the fuse box
panel exposed, find a
constant power fuse that
supplies at least 12 V
(you will
need a volt meter).
Avoid sharing power
with another
device.
14
Place male jack close to
female jack and leave
some slack on both ends.
Begin to tuck the wiring
cable towards the fuse
box going through the
top of the support pillar.
Once the end of the power
cable with the
power and ground wires
15
reaches the fuse box, reapply the door seal concealing the cable. Make sure
to leave some slack on both ends to prevent disconnection on both ends.
10

Page | 1
januscam.com
Assembly & Installation
any fuse panel.
16
Remove the fuse you will be using from its location
(remember the exact location it was sitting if there are
empty fuse socked in the cable box). Wrap the
exposed section of the power wire (red wire) neatly
around one of the teeth and place it back into the
proper slot. Locate a proper place to connect the
ground wire.
IMPORTANT: For Hybrid
vehicles, only use the cigarette
power adapter. Do not tap into
11

Assembly & Installation
Page | 1
januscam.com
11
ONCE YOU HAVE PROPERLY ASSEMBLED THE CAMERA AND WIRING,
YOU WILL NEXT NEED TO FORMAT THE SD CARD. FOLLOW THE BELOW
STEPS ONCE SD CARD HAS BEEN FORMATTED AND INSERTED INTO
THE CAMERA.
1. Allow the camera to run for about 2 minutes until all the lights
turn solid.
(If the GPS continues to blink, this indicates that 1.) you are in
an area where there is bad signal. Once in an area with good
signal, the GPS light should stay solid or 2). the GPS is not
properly connected.)
2. Once all lights are solid, press the Emergency button
located on the front camera (illustrated below), and the
REC light should blink for a few seconds and then turn
solid again.
17
Test power by
connecting the female
and male jacks and
turning on the ignition.
In the event the camera
does not power on,
recheck all connections.
When the three lights on
the camera light up, you
can tuck the female and
male jacks into the
headliner and begin to conceal the remaining exposed cable and wire
around the fuse box with the zip ties provided.
12

First Use
&
Card Formatting

First Use & Card Formatting
Before your camera is ready to be used, it must be prepared. The following steps
will guide you in preparing your SD.
FORMATTING SD CARD WITH CAMERA
If you are using a new 32GB SD card or lower, insert SD card into camera while the camera
is powered OFF. Once the SD is secured in the camera, you can then power it ON and a
voice prompt will notify you that the SD is being formated. This should take about 1
minute. Once formatting is complete, camera will beep once and all 3 lights should stay
solid. Card is now formatted and ready for all configurations.
*USED SD cards:
If you are using a SD card that has been used, you will first need to format the SD card. Follow
directions below.
SD CARD SIZE:
I. 32GB and lower: You can either use the camera OR viewer software to format SD
cards lower than 32GB.
- Select the Setup icon on the bottom of the viewer software indicated with the
cross wrench and hammer. Then select the fourth tab labeled Removable Disk.
Under the Select Drive box, make sure to select the drive in which the SD card is in
then press Format Drive. Your SD card will now have a folder labeled config.
II. Higher than a 32GB (64-128GB): SD cards higher than 32GB will not format
properly with the viewer software nor with the computer. Please contact a sales rep

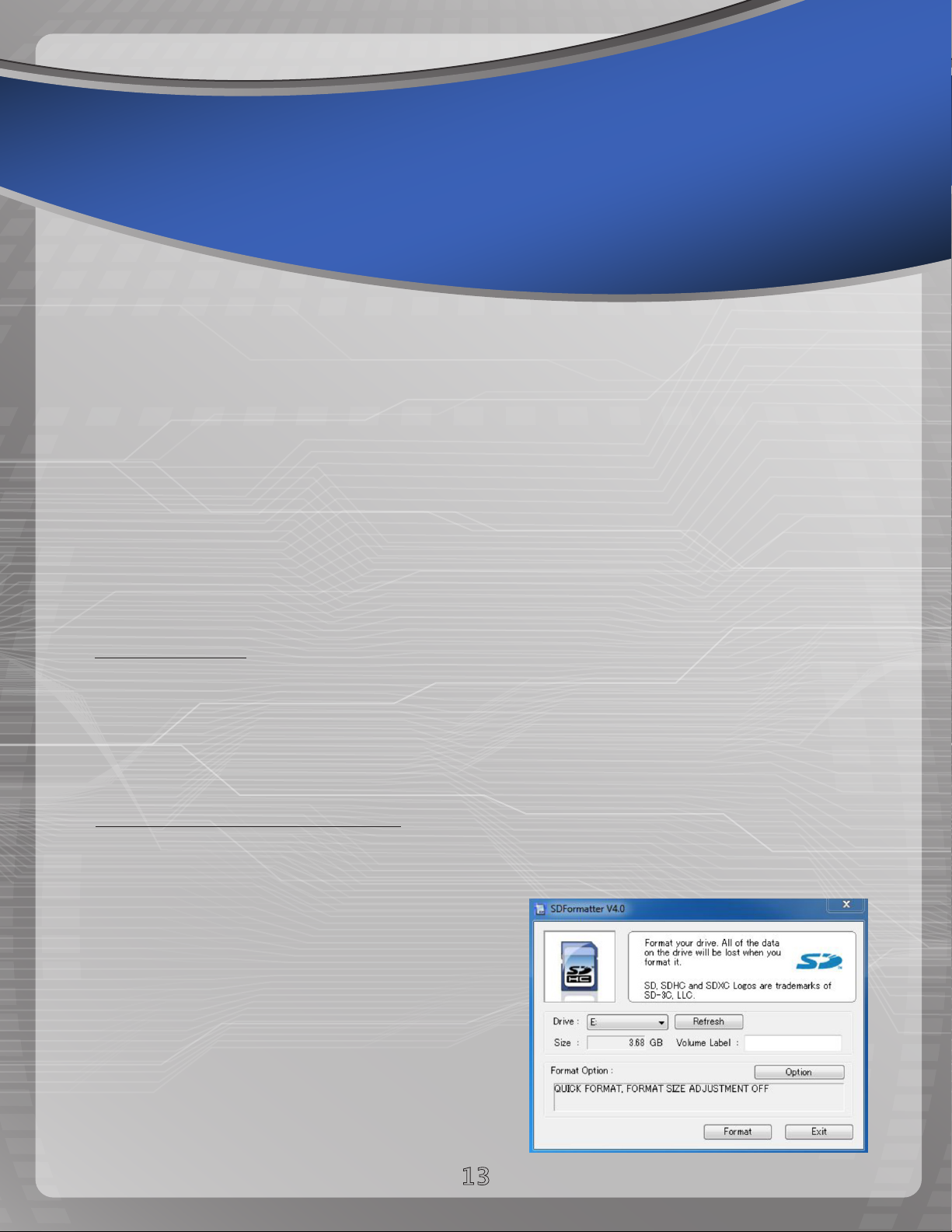

when using a 32GB SD card or higher. Special formatter required. (Example
illustrated below)
After your SD card has been formatted, you
are ready to make your configurations.
NOTE: Make sure after making your
configuration changes, you are saving it in the
SD card drive, in the cong folder.
13
