Janz Tec emPC-CX+/C-1047UE User manual

PROPRIETARY NOTICE
All rights reserved by Janz Tec AG.
No parts of this technical manual may be modified, copied or reproduced
in any form or by any means for commercial use without the prior written
permission of Janz Tec AG, Germany.
All instructions, information and specification contained in this manual
are for reference only and remain subject to change without
announcement.
emPC-CX+
embedded PC
(Hardware Manual)
Version 1.3
refers to product revision no.
-

Title:
emPC-CX+ embedded PC
File:
j:\as\entwicklung\projekte\hw\empc\empc_+\doc\manual\manual_empc-
cxplus_hardware.docx
Pattern:
c:\users\as\appdata\roaming\microsoft\templates\normal.dotm
Created:
Stefan Althöfer, 27.05.2021
Last Update:
Stefan Althöfer, 06.07.2022
© Janz Tec AG 2021
Im Dörener Feld 8
D-33100 Paderborn, Germany
Tel.:
[phone]
FAX:
[phone]
email:
[email protected]
Internet:
www.janztec.com

emPC-CX+ (Hardware Manual) •Contents i
Rev. 1.3 © Janz Tec AG
Contents
1 Introduction 5
1.1 Features...............................................................................................................................5
1.1.1 Hardware ........................................................................................................................5
1.1.2 Hardware Customization ................................................................................................5
1.1.2.1 PCI(e) Cards..............................................................................................................5
1.1.2.2 PCI Express Mini Card ..............................................................................................5
1.1.2.3 Internal USB ..............................................................................................................5
1.1.2.4 Personality Board ......................................................................................................6
1.1.2.5 COM Express ............................................................................................................6
1.1.3 Software..........................................................................................................................6
1.2 Functional Overview ............................................................................................................7
2 Safety Instructions 8
2.1 Installation and Maintenance...............................................................................................8
2.2 Ambient and Environmental Conditions...............................................................................8
3 Intended use 9
3.1 Disposal and Recycling........................................................................................................9
3.1.1 EU...................................................................................................................................9
3.1.2 Germany .........................................................................................................................9
4 Installation 10
4.1 Mounting ............................................................................................................................10
4.2 Connectors and Operators.................................................................................................11
4.2.1 POWER IN....................................................................................................................12
4.2.2 Graphics connector (DVI-I)...........................................................................................12
4.2.3 Ethernet Interfaces (LAN1 and LAN2)..........................................................................12
4.2.4 USB type A receptacle (USB1-USB4)..........................................................................13
4.2.5 CFast card ....................................................................................................................13
4.2.6 RS232 connector..........................................................................................................14
4.2.7 CAN ..............................................................................................................................14
4.2.8 Digital IO .......................................................................................................................14
5 Maintenance 16
5.1 Battery Replacement .........................................................................................................17
5.2 PCI Express Mini Card.......................................................................................................18
5.3 Installing PCI-Cards...........................................................................................................18
5.4 SATA drives.......................................................................................................................19
6 Appendices 20
6.1 Technical Data...................................................................................................................20
6.2 References.........................................................................................................................27
6.3 Dimensions ........................................................................................................................28
6.4 Product History...................................................................................................................29
6.5 Manual History...................................................................................................................30

ii emPC-CX+ (Hardware Manual) •Contents
© Janz Tec AG Rev. 1.3
List of Figures
figure 1: block diagram (with 4 slot riser card shown)..............................................................................7
figure 2: emPC-CX+ mounting options...................................................................................................10
figure 3: emPC-CX+ connector panel.....................................................................................................11
Figure 4: Power connector .....................................................................................................................12
Figure 5: CFast slot cover ......................................................................................................................13
figure 6: Digital input /output structure....................................................................................................15
figure 7: Removing and replacing coin cell battery ................................................................................17
Figure 8: Drive mounting for 0 slot systems...........................................................................................19
Figure 9: Disk mounting for 2+ slot systems ..........................................................................................19
figure 10: housing dimensions (0 slot system shown)............................................................................28
List of Tables
Table 1: Power connector pin assignment .............................................................................................12
table 2: DVI-D connector........................................................................................................................12
table 3: Ethernet connector ....................................................................................................................13
table 4: USB connector...........................................................................................................................13
table 5: RS232 connector.......................................................................................................................14
table 6: CAN connector ..........................................................................................................................14
table 7: digital IO connector....................................................................................................................14

emPC-CX+ (Hardware Manual) •Contents iii
Rev. 1.3 © Janz Tec AG
About this Manual
This is the hardware manual for the emPC-CX+ embedded PC.
Conventions
If numbers are specified in this manual, they will be either decimal or hexadecimal. We use C-notation
to identify hexadecimal numbers (the 0x prefix).
If we refer to low active signal names, they will suffixed by a “#” character.
Some parts of the contains notices you have to observe to ensure your personal safety, or to prevent
damage to property. These are visually marked with the following alert symbols:
DANGER
Indicates that death or severe personal injury will result if proper precautions are not
taken.
WARNING
Indicates that death or severe personal injury may result if proper precautions are not
taken.
CAUTION
Indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
Indicates that damage to equipment can result if proper precautions are not taken.
Indicates information that we think you should have read to save your time by avoiding
common problems. Important suggestions that should be followed will also be marked
with this sign.
Acronyms and Abbreviations
EMC Electromagnetic capability.
ESD Electrostatic discharge.
GND System ground potential. Inside the product this is connected to the metal housing,
which might be connected to protective earth by the installation. There exist some
isolated reference grounds for communication interfaces or IO. These reference
signals are referred to as GND-x, where x indicates function.
SELV Safety extra low voltage.

emPC-CX+ (Hardware Manual) •Introduction 1 - 5
Rev. 1.3 © Janz Tec AG
1 Introduction
1.1 Features
1.1.1 Hardware
•COM Express Processing Core with various CPU options
oCeleron, Core i3/i5/i7 (3rd Gen)
oAtom E38xx (Bay Trail)
oAMD Ryzen V1404I
•DDR3/4 memory as defined by COM Express Module (DDR4 only on V1404I)
•PCI or PCIe expansion slots. Available options:
oNo slots
o2 x PCIe x1
o2 x PCIe x1 + 2 x PCIe x4 (not possible with Atom)
o2 x PCI 32 bit 5V
•Internal CFast Socket for SATA based SSD modules
•Up to two internal SATA connectors
•2 x 10/100/1000 Mbit/s Ethernet
•4 x USB interface. USB 3.0 if supported by COM Express Module, else USB 2.0 only
•128 kB of M-RAM which does not require battery backup
•Battery backed up RTC
•COM express internal watchdog function
•Power supply/temperature/FAN monitoring
•DVI-I display connector
•PCI express mini card
•internal LVDS display interface
•System Power supply 9..34 VDC
•Reset Push Button and Power LED
•4 user defined LEDs
•Personality Board for IO expansion. Available options:
o2 x CAN (optionally with digital IO)
o1 x CAN, 1 x RS232/RS485 (optionally with digital IO)
1.1.2 Hardware Customization
Due to it’s flexible system architecture, the emPC-CX+ can be customized if the standard products do
not provide optimum features or price. Customization is possible even at moderate quantities. Ask
sales department for details.
1.1.2.1 PCI(e) Cards
Refer to the available riser cards. More options are possible, e.g. 1 x PCIe x8.
1.1.2.2 PCI Express Mini Card
One internal slot is available. Ask for customized connector panels with additional holes to be utilized
by the Mini Card connectors.
1.1.2.3 Internal USB
Two internal USB interfaces are available on 10 pin header, e.g. for integration of dongles.

1 - 6 emPC-CX+ (Hardware Manual) •Introduction
© Janz Tec AG Rev. 1.3
1.1.2.4 Personality Board
System depended IO interfaces are implemented by the personality board (refer to the block diagram).
Either existing personality boards can be customized or a custom personality board can be build.
The personality board is connected to the system by the following interfaces:
•FPGA (up to 30 IO signals)
•2 x PCIe x1 (not available on ATOM)
•HDA (high definition audio)
1.1.2.5 COM Express
The emPC-CX+ is open for all COM express modules with the following constraints:
•Type 6 (Compact or Basic)
•DDI1 must support T.M.D.S (HDMI,DVI)
•Sufficient PCIe lanes available
1.1.3 Software
Supported by
•Windows 7/8
•Windows 7/8 embedded
•Linux
Contact Janz Tec for more information about the available software packages.

emPC-CX+ (Hardware Manual) •Introduction 1 - 7
Rev. 1.3 © Janz Tec AG
1.2 Functional Overview
The functional components of the product are shown in figure 1.
LVDS
GBE Intel
i210
COM Express Module
RS232/485
DVI-I
Reset Button
Power Button
Status LED
SATA
PCIe/USB
2.5”
SATA disk
CX+
Baseboard
FPGA
GBE
PCIe x1
System
Fan
DC Power
Input
CX+ Riser Card
Board
MCU
PCIe x1
PCIe x4
PCIe x4
USB 2.0
USB 2.0
CX+
P.-Board
CFast
PCIe
Mini Card
2 x PCIe ø
PCIe PEG ø
DC/DC
DC/DC
á : Build to order option
ø: Not available with some
COM Express modules
User LED
á
á
á
á
á
LAN1
LAN2
1 x HDA
USB 3.0ø
Note: CX+/L is a stripped down version with
additional limitations. Refer to technical
data for full details
figure 1: block diagram (with 4 slot riser card shown)

2 - 8 emPC-CX+ (Hardware Manual) •Safety Instructions
© Janz Tec AG Rev. 1.3
2 Safety Instructions
Refer to page iii for explanation of the warning notice system.
The product described in this documentation may be operated only by personnel qualified for the
specific task in accordance with the relevant documentation for the specific task, in particular its
warning notices and safety instructions. Qualified personnel are those who, based on their training and
experience, are capable of identifying risks and avoiding potential hazards when working with these
products.
2.1 Installation and Maintenance
The power supply of the product operates with hazardous voltages.
DANGER: Electrical Shock
Danger to life.
This product operates with 9..34 V DC SELV power supply. Do not connect this product
to an improper power supply.
DANGER: Electrical Shock
Danger to life.
The IO interfaces (connectors) of the product are only suited to be connected to SELV
circuits. Use interfaces (connectors) for their intended use only.
CAUTION: Explosive Risk
The installed computer board is equipped with a Lithium battery.
Danger of explosion if battery is incorrectly replaced. Replace only with battery of the
same or equivalent type.
WARNING: Burns Hazard
The product generates considerable amount of heat. The housing transports this heat to
the environment and therefore gets hot. Caution when touching the housing, burns
hazard!
2.2 Ambient and Environmental Conditions
CAUTION: Damage
Do not operate the product beyond the specified ambient conditions
DANGER: Explosive Risk
Do not operate the product in potentially explosive atmosphere.
NOTICE: EMI
This product is a class A device. This product may cause radio interference. In this case
the user must take adequate measures.

emPC-CX+ (Hardware Manual) •Intended use 3 - 9
Rev. 1.3 © Janz Tec AG
3 Intended use
The emPC-CX+ is designed for computing purposes in industrial environments. It is destined to be
used indoor only.
3.1 Disposal and Recycling
Janz Tec products are manufactured to satisfy environmental protection requirements where possible.
Some of the components used are capable of being recycled. Final disposal of this product after its
service life must be accomplished in accordance with applicable country-, state-, or local-laws or -
regulations.
This product contains a lithium battery. This should be removed before disposal and be
returned separately
Don’t forget to delete all sensitive data on the product before disposal. Especially delete
all person related data.
3.1.1 EU
Janz Tec electronic products are labelled with the crossed-out trash can. This means that the products
must not be disposed into the domestic garbage.
Used Janz Tec products have to be recycled properly. If in doubt, you can return them to Janz Tec at
your own expense. Refer to https://www.janztec.com/recycling or contact Janz Tec under
[email protected] for more instructions how and where to return the products.
3.1.2 Germany
All Janz Tec products are registered as B2B custom at the german EAR. Hence Janz Tec products
must not be disposed to public collection points for used electronic equipment. Refer to §14 of
General Terms & Conditions of Janz Tec AG for the details regarding the mutual obligations as to the
disposal of Janz Tec products.
The Lithium battery included in the product is registered at “GRS Batterien” and can be disposed to
public collecting points for used batteries.
As stated above, used Janz Tec products can also be returned to Janz Tec at you own expense for
free-of-charge recycling.

4 - 10 emPC-CX+ (Hardware Manual) •Installation
© Janz Tec AG Rev. 1.3
4 Installation
WARNING: Burns Hazard
The product generates considerable amount of heat. The housing transports this heat to
the environment and therefore gets hot. Caution when touching the housing, burns
hazard!
The product can be operated with DC power supply from 9 to 34 V. The lower limit is system
dependent and might be higher for systems high power consumption (e.g. 14 to 34 V).
4.1 Mounting
The emPC-CX+ is intended for wall mount. Refer to figure 2 for the recommended mounting
orientation.
Top
Mounting Wall
Wall Mount Bracket
Do not bock heat transfer at this side!
Top Cover
Heatsink
Connector Panel
figure 2: emPC-CX+ mounting options

emPC-CX+ (Hardware Manual) •Installation 4 - 11
Rev. 1.3 © Janz Tec AG
4.2 Connectors and Operators
DVI-I
CFast
LAN-2 LAN-1 Serial 1
Headers defined by personality module
4 x USB
User LEDs
CAN2 CAN1
digital IO
Power HDD
Reset
BTN
Power BTN
Power IN
Power HDD
Reset
BTN
Power BTN
Power IN
DVI-I
CFast
LAN-2 LAN-1 Serial 1
Headers defined by personality module
4 x USB
User LEDs
CAN2 CAN1
digital IO
PCIe
PCIe
figure 3: emPC-CX+ connector panel

4 - 12 emPC-CX+ (Hardware Manual) •Installation
© Janz Tec AG Rev. 1.3

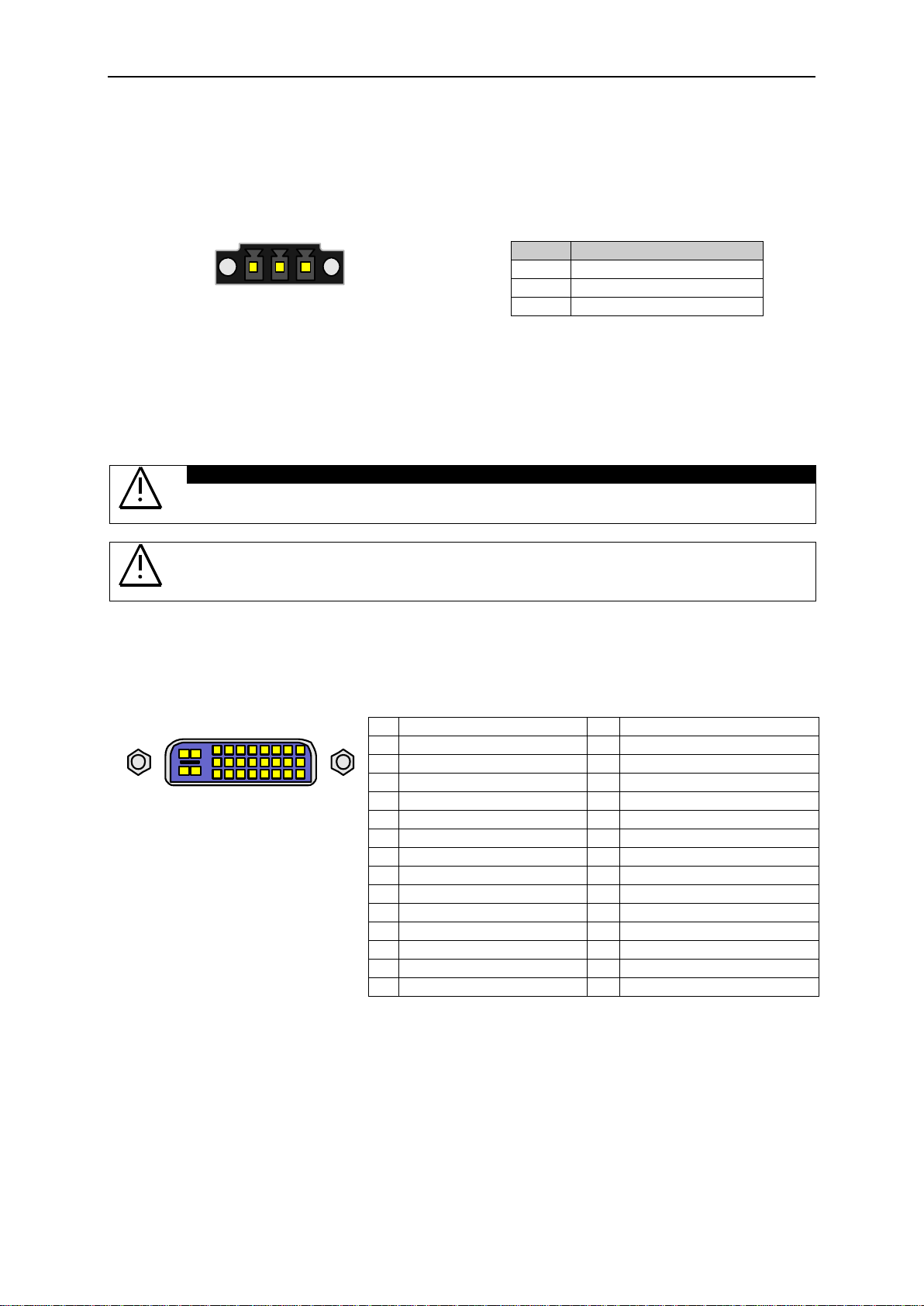

4.2.1 POWER IN
The system power supply is connected with a 3 pin screw terminal with 5.08 mm pitch.
13
+S-
Pin
Description
1 (+)
+9 ..34 VDC
2 (S)
Control input (0 .. 34 V)
3 (-)
GND
Figure 4: Power connector
Table 1: Power connector pin assignment
A suitable mating connector is Phoenix Contact 1900895. Equivalent Models exists from other
vendors.
DANGER
The product may only be operated with power supplies which can be considered SELV
circuits.
NOTICE
Do not insert the power connector when power is applied, instead turn power off before
inserting the power connector.
4.2.2 Graphics connector (DVI-I)
Combined digital and analog graphics connectors. The digital interface provides single link only.
4.2.3 Ethernet Interfaces (LAN1 and LAN2)
Ethernet interfaces of the motherboard. The Ethernet physics is 10/100/1000BaseT, available through
the shielded modular jack at the connector panel. Twisted pair cable can be used to connect to this
port.
1
TMDS 2-
13
N/C
2
TMDS 2+
14
+5V
3
SHIELD
15
GND
4
N/C
16
Hotplug detect
5
N/C
17
TMDS 0-
6
DDC clock
18
TMDS 0+
7
DDC data
19
SHIELD
8
N/C
20
N/C
9
TMDS 1-
21
N/C
10
TMDS 1+
22
SHIELD
11
SHIELD
23
TMDS C+
12
N/C
24
TMDS C-
C1
RED
C3
BLUE
C2
GREEN
C4
H-Sync
C5
GND
table 2: DVI-D connector

emPC-CX+ (Hardware Manual) •Installation 4 - 13
Rev. 1.3 © Janz Tec AG
The two LEDs indicate Ethernet status as follows:
LED1
LED2
No activity
No Link
Activity
10/100/1000 MBit Link
4.2.4 USB type A receptacle (USB1-USB4)
Four USB interfaces are available at the connector panel.
If the system’s COM Express Module supports USB 3.0, then Super Speed USB is available on the
supported ports. USB 2.0 is available on all connectors.
The color coding of the connectors is blue, regardless whether USB 3.0 is available or not.
The USB connectors provide standby power, thus wake on USB is possible.
NOTICE
Although each port can deliver supply current of 900 mA, the overall load on USB1 to
USB4 interfaces should be limited to 1500 mA to prevent power supply from overheating.
4.2.5 CFast card
The cFAST memory card is accessible after removing the cover on the connector panel of system.
Push the ejector button to remove.
CFast
Figure 5: CFast slot cover
NOTICE
The CFast card must NOT be inserted or removed when power is applied to the
1
MDI0+
5
MDI2+
2
MDI0-
6
MDI2-
3
MDI1+
7
MDI3+
4
MDI1-
8
MDI3-
1
table 3: Ethernet connector
1
+5V, IMAX = 900 mA, 1500 mA total
2
USB-
3
USB+
4
GND
5
SSRX-
6
SSRX+
7
GND_DRAIN
8
SSTX-
9
SSTX+
table 4: USB connector

4 - 14 emPC-CX+ (Hardware Manual) •Installation
© Janz Tec AG Rev. 1.3
system.
4.2.6 RS232 connector
If RS232 connector is provided, it has the following pinout.
9pin male D-Sub
1
DCD
6
DSR
2
RxD
7
RTS
3
TxD
8
CTS
4
DTR
9
RI
5
GND
table 5: RS232 connector
4.2.7 CAN
The CAN connector (if available) is a standard 9 pin D-SUB plug with a pin out shown in table 6. The
CAN interface is isolated and has a software switchable 120 Ohm termination.
9pin male D-Sub
1
n.c.
6
GND
2
CANL
7
CANH
3
GND
8
n.c.
4
n.c.
9
VEXT1
5
n.c.
table 6: CAN connector
4.2.8 Digital IO
The digital IO connector (if available) is a standard screw terminal with 3.81 mm pitch. Variants with 4
inputs plus 4 outputs and with 8 inputs only are available.
A suitable mating connector is Phoenix Contact 1803659. Equivalent Models exists from other
vendors. Mating connectors with spring-cage connection are also available.
Digital output pins drive VIN-DIO to the output pins (high side switch). See figure 6 for details.
1
This signal is optionally available to provide power to supply an external transceiver module
110
10pin 3.81mm connector
1
DIGIN-0
2
DIGIN-1
3
DIGIN-2
4
DIGIN-3
5
GND-DIO
6
VIN-DIO (24VDC nom.)
7
DIGIN-4 / DIGOUT-0
8
DIGIN-5 / DIGOUT-1
9
DIGIN-6 / DIGOUT-2
10
DIGIN-7 / DIGOUT-3
table 7: digital IO connector
1
6
1
6

emPC-CX+ (Hardware Manual) •Installation 4 - 15
Rev. 1.3 © Janz Tec AG
Each port pin (DIGOUT-0…DIGOUT-3) is able to source 500mA into a load. The sum of all output
currents should be limited to 1A.
Systems without the digital IO option have the connector mounted, with all contacts not connected to
any logic.
Refer to technical data for characteristics.
EXTVCC
VN330SP
Polarity
Reversal
Protection
EXTGND
DIGIN
Output Register
Input Register
DIGOUT
figure 6: Digital input /output structure

5 - 16 emPC-CX+ (Hardware Manual) •Maintenance
© Janz Tec AG Rev. 1.3
5 Maintenance
NOTICE
Always follow common ESD practice when you service the product!
To open the housing, you can remove the mounting bracket or the top cover. Different maintenance
tasks require one of them to be removed, others both.
Task
Top
Cover
Mounting
Bracket
Remarks
Replace PCI card
remove
Replace SSD/HDD
remove
Replace FAN
remove
Replace Battery
remove
PCI cards must be removed
Replace PCIe mini card
remove
PCI cards must be removed
Replace CFast
Only remove CFast cover from
mouting panel
Top cover
Remove these 8 screws

emPC-CX+ (Hardware Manual) •Maintenance 5 - 17
Rev. 1.3 © Janz Tec AG
5.1 Battery Replacement
CAUTION
The installed computer board is equipped with a Lithium battery.
Danger of explosion if battery is incorrectly replaced. Replace only with battery of the
same or equivalent type (3-volt lithium coin cell battery).
•Do not attempt to recharge the battery.
•Do not disassemble, crush, puncture, short external contacts, or dispose of
in fire or water.
Compatible battery type: CR2032 (3 Volt lithium coin cell battery)
The battery is used for backing up the system time when the power supply is removed.
1. Turn off the computer properly through the operating system, then turn off any
external devices.
2. Disconnect the power supply from the power inlet and disconnect any external
devices.
3. Unmount the wall mount bracket product and locate the battery on the system main
board
4. Remove the battery from the holder (See figure 7)
5. Insert the new battery (See figure 7)
6. Reinstall the wall mount bracket
1. Removal: Insert screwdriver at right side and bend so that the battery
pops outs. Use only gentle force, otherwise the battery holder might be
damaged.
The use a plastic tool is preferred to avoid shorting the battery
2. Insertion: Align new battery to the left side of the holder and gently
press down on the right side of the battery until the battery snaps into
the holder.
figure 7: Removing and replacing coin cell battery

5 - 18 emPC-CX+ (Hardware Manual) •Maintenance
© Janz Tec AG Rev. 1.3
5.2 PCI Express Mini Card
NOTICE
The PCI express mini card must not be inserted or removed when power is applied to the
system.
After inserting the mini card into the connector, it must be push down and locked with two M2,5
screws.
NOTICE
•The insertion depth of the screws that lock the PCI express mini card must not
exceed 3.2mm.
•Make sure that the diameter of the screw or the washer does not make contact
with components or traces on the mini card. Some cards have components very
near to the mounting holes.
The PCI express mini card socket does not support mSATA modules or other SATA
based storage modules.
5.3 Installing PCI-Cards
The PCI/PCIe slot versions of the emPC-CX+ series allows the use of add-on cards.
When installing PCI cards, please consider that the card must support 5VIO signalling.
Additionally the amount of current the emPC-CX+ system can provide to the slots is
limited.
A large amount of current drawn by the PCI card usually leads to a large amount of heat dissipated
inside the housing. This causes the system to overheat and a damage of the systems is possible. If
high power PCI cards are used a system fan is recommended. Contact the Janz Tec AG for further
information. Before installing a PCI card, please make sure that the system is turned off. To get
access to the PCI slot, the top cover must be removed. If you use a system with a built-in hard disk
drive, please be careful when opening the housing because the hard disk drive is mounted on the
backside of the top cover.
