1 Introduction
Janz Tec AG’s emVIEW systems are an additional development. These HMI systems and industrial
display solutions are a combination of the familiar Janz emPC systems with a wide range of LCDs,
with or without touch-screen. Starting from 6.4’’, the LCDs can be combined with emPC-A500 or
emPC-M as a complete HMI solution with smallest dimensions and power dissipation. EmVIEWs are
also available without touch-screen. The emVIEW-12T/D is a display only solution.
If a touch-screen is not needed contact Janz Tec AG for further information.
1.1 Features
Touch screen linked by RS232 or USB
Wake On Touch (with RS232, only)
DVI and VGA connectors
Small housing size
14 –32 V DC power supply
Fan less cooling concept
Protection rating of the front is IP54
Fast and easy mounting
High grade aluminium front
Customizable design of the front panel
1.2 Functional Overview
EmVIEWs are normally delivered with a touch-screen. To use the touch-screen the emVIEW-12T/D
must be connected to a standard RS232 or USB port of a computer system e.g. an emPC and a driver
must be installed at the host.
The control of the resistive touch-screen is realized through a PenMount DMC9000. The resistive
touch-screen is realized through a 2.1mm thick glass panel with resistive surface. The PenMount
controller is linked to the RS232 port and USB port. If the USB port is used, the serial port is
deactivated.
The power must be supplied by an external power supply. This power supply must be capable to
provide enough power for the emVIEW-12T/D. Please refer to the technical specifications section for
more information.

emVIEW-12T/D (User's Manual) Introduction 1 - 7
Rev. 1.3 © Janz Tec AG
figure 2: emVIEW-12T/D side view

2 - 8 emVIEW-12T/D (User's Manual) Safety Instructions
© Janz Tec AG Rev. 1.3
2 Safety Instructions
Refer to page 5 for explanation of the warning notice system.
The product described in this documentation may be operated only by personnel qualified for the
specific task in accordance with the relevant documentation for the specific task, in particular its
warning notices and safety instructions. Qualified personnel are those who, based on their training and
experience, are capable of identifying risks and avoiding potential hazards when working with these
products.
2.1 Installation and Maintenance
NOTICE
The product is intended to be used in industrial environments. Typical applications are
process virtualization.
WARNING: Unauthorized Opening
Improper opening of the device may result in substantial damage to the equipment.
Remove power before you open the housing of the product. Do not connect power or
operate the product until you have closed the housing and tightened all screws.
WARNING: Electrical Shock
The IO interfaces (connectors) of the product are only suited to be connected to SELV
circuits. Use interfaces (connectors) for their intended use only.
2.2 Ambient and Environmental Conditions
WARNING
This product does NOT fulfil the requirements for a fire enclosure according to EN
60950-1 in all possible mounting positions. In these mounting positions, installation is
only permitted above concrete or other non-inflammable materials.
NOTICE: Damage
Do not operate the product beyond the specified ambient conditions. Do not cover the
vent slots of the product.
DANGER: Electrical Shock
Danger to life.
This product operates with 14..32 V DC. Do not connect this product to an improper
power supply.
DANGER: Explosive Risk
This product is NOT designed to be used in potentially explosive atmosphere.
Do not operate this product in potentially explosive atmosphere.
NOTICE: EMI
This product is a class A device. This product may cause radio interference. In this case
the user must take adequate measures.

emVIEW-12T/D (User's Manual) Installation 3 - 9
Rev. 1.3 © Janz Tec AG
3 Installation
When opening the shipping package of the emVIEW-12T/D, the contents of the package should be
checked immediately.
The emVIEW-12T/D is delivered in a configured state, but the configurations can be adjusted by the
user as well. To adjust the emVIEW-12T/Ds configuration, an OSD (On Screen Display) is installed
and controllable by buttons at the backside.
The package also contains a terminal plug for the power connector. The emVIEW-12T/D needs a
power source in between 14 to 30V DC for operation.
The installation of this equipment is allowed for qualified service personnel, only.
Auxiliary existing rules for installation of electrical equipment must be attended to.
3.1 Dimensions and mounting information
figure 3: emVIEW-12T/D measures
The needed cut-out measures are given by Aand B. The overall front panel dimensions are denoted
with C and D. E is the depth of the case.
A
B
C
D
E
300 -0/+2 mm
240 -0/+2 mm
320 mm
260 mm
42.5 mm
table 1: emVIEW-12T/D dimensions
C
D
B
A
E
A

3 - 10 emVIEW-12T/D (User's Manual) Installation
© Janz Tec AG Rev. 1.3
figure 4: emVIEW-12T/D cut-out and holes
*†
*
Not true to scale
†
Refers to drawing drill_jig_emv12_rev1
320 mm
260 mm
240 mm
300 mm
8 mm
252 mm
8 mm 109 mm
312 mm
211 mm
Hole for M5 screws
130 mm
10 mm
10 mm

emVIEW-12T/D (User's Manual) Installation 3 - 11
Rev. 1.3 © Janz Tec AG
3.2 Technical specification
The emVIEW-12T/D has five connectors, the main power supply, a serial interface and USB
connector, VGA and DVI-D connector. figure 5 shows a block diagram of the internal function.
figure 5: Block diagram for the internal logic
3.2.1 DC main power supply
The Power unit (figure 5) is energizing all internal components, the display and its backlight. Thereby
the power supply can vary in between 14 to 32 VDC. The emVIEW-12T/D has a power dissipation
with less than 9 W. Before connecting the DC main power supply the protective bonding conductor
(PE) must be connected. table 2 shows the measured power dissipation.
Resolution
Picture source
Interface used
Voltage [V]
Current [mA]
Power [W]
800x600
VGA
RS232
32,04
302
9,68
800x600
VGA
RS232
28,04
342
9,59
800x600
VGA
RS232
24,04
394
9,52
800x600
VGA
RS232
19,02
494
9,39
800x600
VGA
RS232
14,05
661
9,29
800x600
DVI
RS232
24,04
400
9,64
800x600
VGA
USB
24,04
389
9,35
1024x768
VGA
USB
24,04
389
9,35
table 2: Power dissipation according to various operating conditions
The power connector is included in delivery. The assignment of this connector is shown in figure 6 and
table 3.
Pin
Description
1
+ 14..32 VDC
2
NC, do not connect
3
GND
figure 6: Power connector
table 3: Power connector assignment
1
2
3
VGA
DVI-D
Power
USB
RS232
Scaler
unit
Interface
unit
Power
unit
Display
with
touch-screen

3 - 12 emVIEW-12T/D (User's Manual) Installation
© Janz Tec AG Rev. 1.3
3.2.2 Serial interface - RS232
The emVIEW-12T/D provides a serial interface to connect the touch-screen to a host computer. If the
USB is connected to the host the serial interface chip is deactivated. The pin assignment of the 9 pin
female SUB-D connector is shown in table 4.
Pin
Assignment
Output
1
NC
2
TxD
●
3
RxD
4
NC
5
GND
6
NC
7
RTS
8
NC
9
RI
●
table 4: SUB-D 9 Pin assignment
The emVIEW-12T/D provides a ring indicator (RI) signal for waking up the host PC. To use this feature
the host must provide ‘Wake On Ring’(also ‘PowerUp on Modem’) and this option must be activated in
the BIOS.
The length of serial cable must not exceed 10 m.
3.2.3 Universal serial bus - USB
To connect the touch-screen to a host computer the USB can be used, too. The connector is USB
Type B, so a standard USB Type A to Type B cable can be used to connect the touch-screen with the
host.
The length of USB cable must not exceed 5 m.
3.2.4 Analogue Video - VGA
There are two ways to apply video data. One of them is an analogue video signal over the VGA
connector (High density 15 pin female SUB-D). Analogue resolutions to SXGA (1280x1024) at 75 MHz
or UXGA (1600x1200) at 60 MHz are support.
A 10 m VGA cable is tested with the emVIEW-12T/D.
3.2.5 Digital video - DVI
As noticed earlier there is a second way to apply video data, the digital input DVI. The reliable DVI port
is operating up to 165 MHz (UXGA at 60 MHz), thus it can be connected to all compliant digital DVI
transmitters.
The length of the DVI-D cable must not exceed 10 m.
The best picture results are obtained by setting the native resolution. The native resolution
is 800 x 600 (SVGA).

emVIEW-12T/D (User's Manual) Installation 3 - 13
Rev. 1.3 © Janz Tec AG
3.2.6 Display
The panel is built as a thin film transistor liquid crystal display TFT-LCD with a diagonal screen of
12.1’’ and up to 16M colours.
Description
Specification
Display area
246.0 x 184.5 mm
Number of dots
800x3 (H) x 600 (V) (RGB vertical stripe)
Pixel Pitch
0.3075 (H) x 0.3075 (V)
Brightness
450 (Cd/m²) typ.
Viewing angles
-80° to 80° (H), -75° to 65° (V) typ.
Backlight
LED
table 5: Display specifications
3.3 Driver installation
If the emVIEW is delivered without touch-screen there are no drivers needed. Using the serial
interface only the PenMount DMC 9000 driver has to be installed. Is the USB interface used, the
PenMount driver must be installed as well and an auxiliary driver for the USB transceiver chip FT-
232R with virtual COM port (VCP) must be installed. A Linux kernel (newer than version 2.4.20)
contains the VCP driver.
Both drivers are receivable for several operating systems, visit the driver developer homepages:
PenMount: http://www.penmount.com/down.php
3.3.1 Windows XP driver installation for touch-screen on RS232 or USB
If the touch-screen is connected on the RS232 connector or the USB virtual COM port driver is
installed the PenMount driver has to be installed. It can be downloaded at the address above. The
driver installation is started by clicking the Setup executable in the PenMount folder.

3 - 14 emVIEW-12T/D (User's Manual) Installation
© Janz Tec AG Rev. 1.3

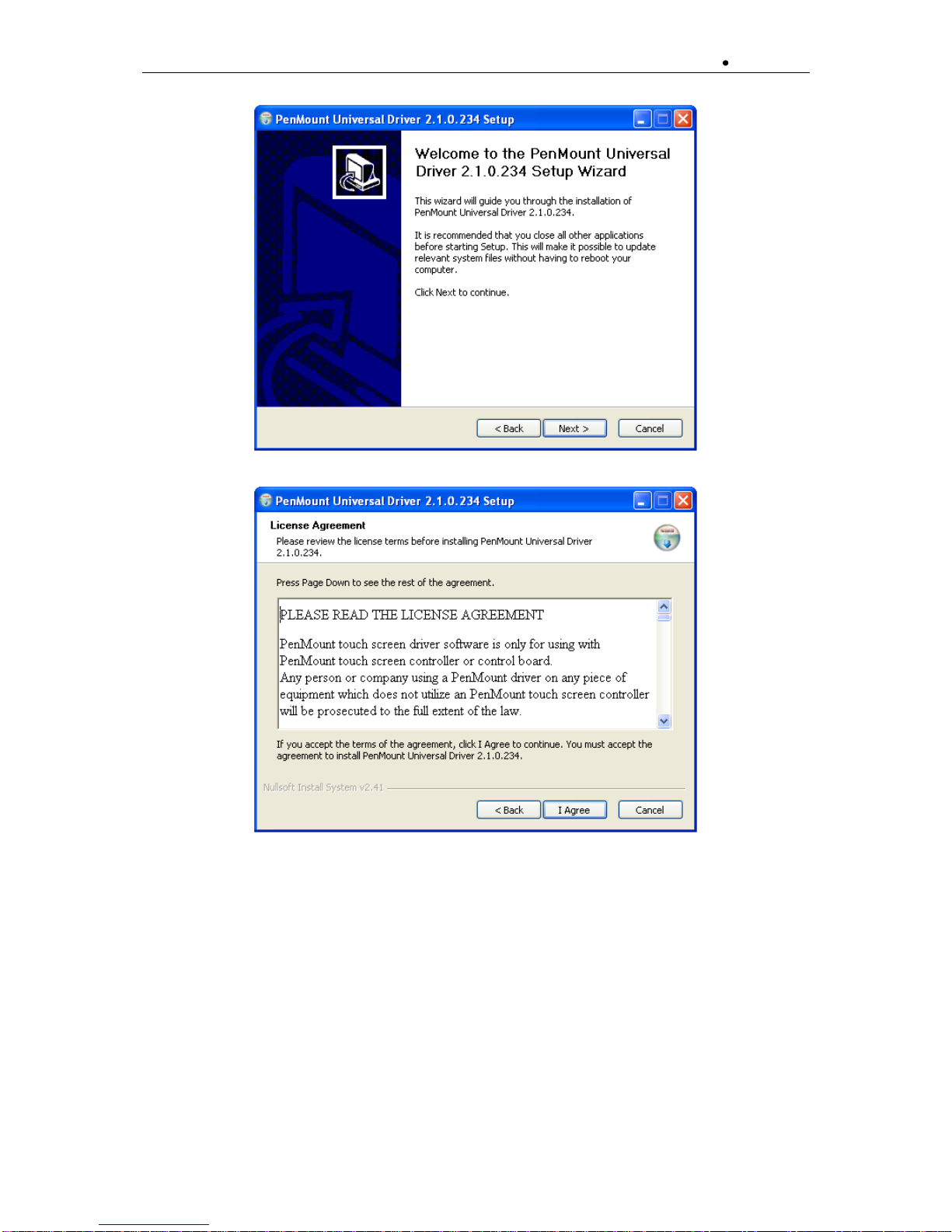

The license agreement must be confirmed.
The location where the driver will be installed to must be chosen.

emVIEW-12T/D (User's Manual) Installation 3 - 15
Rev. 1.3 © Janz Tec AG
After choosing the location the driver will be installed and the device is searched.
Is the device found the installation is finished by clicking Finish.

3 - 16 emVIEW-12T/D (User's Manual) Installation
© Janz Tec AG Rev. 1.3
3.3.2 Ubuntu Linux driver installation for touch-screen on RS232 or USB
Download the correct driver for the installed OS. In this section the installation on an Ubuntu 8.04 is
shown. Once the driver is downloaded (Ubuntu 8.04 Driver 2.2) the archive has to be unzipped
somewhere with:
gunzip “PenMount Ubuntu8.04 Driver V2.2.tar.gz“and
tar -xvf “PenMount Ubuntu8.04 Driver V2.2.tar“.
After unzipping the archive a folder pmlinux-ubuntu8.04 remains. Jumping into it with
cd pmlinux-ubuntu8.04 and installing the driver with
sudo ./pm-setup.
Choosing the model 4 (PenMount 9000). Now the difference is coming, when installing the touch-
screen with RS232 choose the correct device (e.g. /dev/ttyS0 while using COM1). When the touch-
screen is connected to USB choose 5 for other serial devices and type in /dev/ttyUSB0. This is the
device where the FTDI driver mounts the found chip to. Baud rate 19200, right button, stream mode,
500 (for 500 ms hold time) and the driver is installed. Now restart the xserver (Ctrl + Alt + Backspace).

emVIEW-12T/D (User's Manual) Use of emVIEW-12T/D 4 - 17
Rev. 1.3 © Janz Tec AG
4 Use of emVIEW-12T/D
Once the emVIEW is installed it can be used at once, it is already configured. The user is free to
adjust the configuration at will. To do so, the installed on screen display (OSD) must be used.
To finish the driver installation, the touch screen must be calibrated.
4.1 Using and calibrating the touch-screen on Windows XP
Once the drivers are installed, the PenMount monitor icon is shown in the taskbar. By clicking the
icon the control panel is started and the touch screen configuration is displayed as shown in figure 7.
There are four tabs in the control panel, ‘Device’, ‘Multiple Monitors’, ‘Tools’and ‘About’. On the device
tab a field with found device is shown. By selecting one of these devices it can be configured. While
using more than one monitor with touch-screen the ‘Multiple Monitors’tab helps to map the touch-
screens at will. The ‘Tools’ tab shows miscellaneous small tools for working with the touch-screen and
at least the ‘About’ tab shows version information for the control panel.
figure 7: PenMount Control Panel
The device window displays the detected devices, in case of figure 7 there is only one device installed.
By double clicking this device (PenMount 9000 RS232) another window (figure 8) is shown.
figure 8: ‘Device 0’configuration

4 - 18 emVIEW-12T/D (User's Manual) Use of emVIEW-12T/D
© Janz Tec AG Rev. 1.3
On this window the settings for ‘Device 0’are accessible. As seen in figure 8 there are three tabs to
configure the touch-screen. The first is for calibrating the device, the second shows settings like
‘touch-mode’, ‘cursor stabilization’ and ‘right click’ characteristic. To calibrate the touch-screen the
button ‘Standard Calibration’ must be activated and the following screen appears
figure 9: Standard calibration screen
Further steps are displayed. After hitting all the red squares the calibration is done and the touch-
screen is operational.
Note: The shown example is for calibrating the touch-screen on Windows XP system, on other
Microsoft operating systems or Linux it is similar.
4.2 Calibrating the touch-screen on Ubuntu 8.04
The function of the touch-screen can be checked by looking into the device with
cat /dev/ttyS0 or cat /dev/ttyUSB0
The console gives out some characters while touching the touch-screen. The calibration program is
started with
sudo gCalib.
Sometimes it is necessary to jump into the folder, where the installation files for the PenMount driver
are to start gCalib.

emVIEW-12T/D (User's Manual) Use of emVIEW-12T/D 4 - 19
Rev. 1.3 © Janz Tec AG
The calibration screen is looking like that.
The calibration is finished by clicking the red squares.

4 - 20 emVIEW-12T/D (User's Manual) Use of emVIEW-12T/D
© Janz Tec AG Rev. 1.3
4.3 Adjusting the display
On the backside of the emVIEW-12T/D there are five buttons. The first button is
On/Off, it controls the backlight and display controller. The serial interface and the
USB interface are kept alive. Second is the OSD button, it activates the OSD
menu. Third is a confirm button to save and exit the OSD menu. The two others
(Up/Down) are to navigate within the OSD menu.
There are two ways for adjusting the display. The first is the OSD menu and a second is a Quick
Settings window.
4.3.1 Using the OSD menu
Once the OSD Button is activated, the OSD is displayed. The main menu has six tabs
Main menu
Input select
This menu item is the default tab and the input VGA or DVI is
selectable.
Note: These items are selectable only if there is a signal source
at every connector.
Brightness
This menu item shows four submenu items to control the
brightness, contrast, backlight and one for stepping up to the
main menu
Color settings
This menu controls the colour settings; to adjust the colours the
wizard is used. Secondary the colour temperature is adjustable.
Note: If using the DVI input the wizard is disabled.
Image settings
This menu controls the position of the image. It contains a
wizard, the width, phase, horizontal and vertical position and
exit.
Note: This item is accessible with the VGA input only.
Tools
This menu contains tools for controlling the OSD, sharpness and
overlapped mode and a factory, color and position reset are
possible.
Exit
To exit the OSD.
table 6: Main menu
Input select menu
DVI
Selects the digital input, if a digital signal source is connected.
VGA
Selects the analogue input, if a analogue signal source is connected
Exit
To exit this menu.
table 7: Input select menu
Brightness menu
Brightness
Adjusts the brightness of the display with buttons Up/Down.
Contrast
Adjusts the contrast of display with buttons Up/Down.
Backlight
Adjusts the backlight of display with buttons Up/Down.
Exit
To exit this menu.
table 8: Brightness menu
