Jaton Video-117PCI-16 User manual

Video-117PCI-16
Video-117PCI-32
multimedia accelerator
User Manual
version 1.00
Copyright © 2002 Jaton Corporation, USA.

2
NOTICE
The information in this document is subject to change in order to
improve reliability, design, or function without prior notice and does not
represent a commitment on the part of the company. In no event will the
company be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or the inability to use the
product or documentation, even if advised of the possibility of such
damages. No part of this manual may be reproduced or transmitted in
any form or by any means without the prior written permission of the
company.
June 2001, Rev. A

3
Contents
1. INTRODUCTION..........................................................................................5
2. FEATURES.....................................................................................................6
2.1 PCI BUS INTERFACE....................................................................................6
2.2 PERFORMANCE (@800 MHZ PIII WITH 32MB OF MEMORY)...............6
2.3 3D GRAPHICS ENGINE.................................................................................6
2.4 DVD SUPPORT.............................................................................................8
2.5 VIDEO ENGINE.............................................................................................8
2.6 ADVANCED POWER MANAGEMENT........................................................9
2.7 MEMORY BUS INTERFACE.........................................................................9
2.8 DIRECT 7.0....................................................................................................9
2.9 SOFTWARE...................................................................................................9
3. CHECK LIST...............................................................................................10
4. SYSTEM REQUIREMENTS......................................................................10
5. HARDWARE DESCRIPTION....................................................................11
5.1 BOARD LAYOUT AND SPECIFICATION..................................................11
6. HARDWARE INSTALLATION..................................................................11
6.1 INSTALLATION PROCEDURES.................................................................11
6.2 STEPS:.........................................................................................................12
7. SOFTWARE INSTALLATION..................................................................12
7.1 MICROSOFT WINDOWS®98 / ME...........................................................12
7.1.1 Microsoft Windows NT™4.0 .........................................................19
7.1.2 Microsoft Windows  2000............................................................24
7.1.3 Microsoft Windows® XP................................................................29
8. TECHNICAL ASSISTANCE (Q & A)......................................................33
8.1 TIPS..............................................................................................................36
9. VIDEO MODE REFERENCE TABLE........................................................36
9.1 STANDARD MODES...................................................................................37
9.2 EXTENDED MODES...................................................................................38
10. PINOUT AND SYNC FREQUENCIES...................................................41
10.1 ANALOG COLOR DISPLAY PINOUTS (DB 15)......................................41

4
10.2 CONVERSION TABLE: PIN ADAPTERS.................................................41
10.3 9-TO-15 PIN CONVERSION TABLE.........................................................42
10.4 ANALOG VIDEO SIGNALS.......................................................................42
11. FCC SHIELDED CABLE WARNING......................................................42
11.1 TECHNICAL SUPPORT ............................................................................43
12.LIMITED WARRANTY...........................................................................44
12.1 OTHER LIMITS.........................................................................................44
12.2 EXCLUSIVE OBLIGATION.......................................................................45
12.3 OTHER STATEMENTS............................................................................45
12.4 TERMS AND CONDITIONS......................................................................45
12.5 SERVICES AGREEMENT:..........................................................................46
12.6 ENTIRE OBLIGATION..............................................................................46
13.REDUCING WARRANTY CLAIM REJECTIONS................................46

5
1. Introduction
Video-117PCI-16 and Video-117PCI-32 are based on Trident Blade
T16/T64(9970) Graphics Processor with PCI bus and DVD
playback. With 128-bit memory bus at 143 MHz clock on PCI bus
aggregation, the performance of these multimedia accelerators are
beneficial to brings the DVD playback in real-time and the high density
video formal expression at high pixel rate up to 286 million per
second, and that is biggest unparalleled cost/performance graphics
solution for today’s desktop application.
The most payoff on Trident Blade T16/T64(9970) is that integrates
the advanced 2D/3D Graphics engine, which capable of supporting
with DVD, video, and digital TV into a single chip solution. The
overlying combines highly evolved per pixel 3D graphics engine setup
and rendering with 2D graphical user interface (GUI) acceleration can
blend the high speed low latency access on 128-bit totally. Taking
expediency of Direct Memory Access (DMA) to retrieve textures from
main memory, textures are no longer limited by local memory.
Trident Hardware Assisted MPEG-2 Architecture (THAMA™) enables
DVD playback support to the multimedia PC. Compared to software
only DVD players, the combination of software based decode and
hardware based motion compensation delivers smooth frame rates
without overloading the processor, requires no extra frame buffer and
minimum PCI Bus bandwidth.
For maximum throughput, the Video-117PCI-16 & Video-117PCI-32
are use PCI bus interface that supports at up to 1.06 GByte per second
transfer rate. Furthermore, Video-117PCI-16 & Video-117PCI-32 are
subsistence Microsoft graphics standard - DirectX 7.0 Cubic mapping,
and PC2001 compliant.
Jaton Corporation, USA.

6
2. Features
2.1 PCI Bus Interface
• PCI Bus Support at up to 1.06 GByte/sec transfer rate
• DMA bus mastering support with Scatter Gather
• Execute Mode for Direct Textures, Video, and DVD
2.2 Performance (@800 MHz PIII with 32MB of
memory)
• Pixel processing rate: 800 Million pixels/sec
• Texel access rate: 1,200 Million pixels/sec
• Supports 16MB/32MB of SDRAM at up to 143 MHz
memory clock
• 230 MHz RAMDAC for 1600x1200 resolution
• DVD playback in real-time (30fps) with 75% of CPU
headroom
2.3 3D Graphics Engine
2.3.1.1.1 Setup − Up to 143 MHz clock
− Hardware interface to Direct 7.0
− 32-bit IEEE Floating Point Input Date
− 1/16 Sub-Pixel positioning accuracy for butter
image quality
2.3.1.1.2 Rendering
− Dual independent 64-bit pixel pipelines (128-bit
total)

7
− Single-pass processing of diffused, specular
lighting and fog
− Enhanced Gouraud Shading & Phong-like
environmental lighting
− Fast order-independent scene anti-aliasing
support
− Fully OpenGL-compliant blending including fog
& depth cueing
− Hidden surface removal with 16, 24, or 32-bit Z
buffer or W buffer
− Color format includes 16, 24, or 32-bit per pixel
− Supports 8-bit stencil buffer
2.3.1.1.3 Texturing
− Single-pass processing of up to 4 textures per
clock
− Single-pass Bi-linear, Tri-linear and Anisotropic
texture filtering
− Non-linear magnification and sharpening texture
filtering
− Multi-format texture cache
− Palletized texture format of 1, 2, 4, and 8-bit per
pixel
− Non-palletized texture of 16 or 32-bit per pixel
− Pallete data format with 565, 1555 or 4444 for
ARGB
− Texture color keying & enhanced filtering for
translucent objects
2.3.1.1.4 2D GUI − 128-bit graphics engine
− 8/15/16/24/32-bit per pixel color formats

8
− 256 Raster Operations (ROPs)
− Hardware support for all 2D functions (BitBLT,
lines, polygons, fills, patterns, clipping, bit
masking…)
− Panning, scrolling, clipping, color expansion,
sprites
− Built-in 32x32 and 64x64 Hardware Cursor
2.4 DVD Support
• THAMA™ architecture enables full DVD player support
• Requires no extra frame buffer and minimum PCI bus
bandwidth
• Includes both Motion Compensation and IDCT hardware
assist
• Real-time playback (30fps) of 9.8 Mbps MPEG-2 video
bitstream with 80% CPU headroom for other application
• Alpha blending for subpicture
• Advanced error recovery & concealment
• Programmable multi-tap filtering
• Pan and scan support
• Anti-tearing support
• Supports DVD version 1.0 and VCD version 2.0
2.5 Video Engine
• State-of-art video de-interlacing
• Capable of supporting HD0 HDTV resolution (1280x720)
• TrueVideo® bilinear interpolation with proprietary edge
recovery scaling
• Dual apertures for simultaneous access to graphics and
video display memory area

9
• Dual color space converters (CSC)
• Accelerates YUV planar format
2.6 Advanced Power Management
• 7 GPIOs, suspend and standby modes
• Internal clock gating on each functional block
• PCIPM (H/W PCI initiated)
• AGP Clock Busy/Stop and PCI Clock Run
• ACPI and DPMS support
2.7 Memory Bus Interface
• 64-bit SDRAM/SGRAM memory bus at 143 MHz clock
• Up to 32 Mbytes of local frame buffer
2.8 Direct 7.0
• Microsoft graphics standard for Windows 2000
• hardware support of Cubic mapping reflections, refraction
and lighting
• Hardware support of environment and emboss bump
mapping
• Hardware support of texture compression
• Hardware support of all data formats for setup processing
• Adaptive sharing of Transform & Lighting processing
with CPU
2.9 Software
• Window 98/Me and Window 2000/XP
• Windows NT 4.0
• DirectX 6.0, 7.0
• DirectShow 3.0 and 4.0

10
• OpenGL ICD 1.0 and 1.2
3. Check List
The package you have purchased should contain the following:
þ Video-117PCI-16, or Video-117PCI-32 multimedia
accelerator
þ Software and Document CD
þ Quick Start Guide (Printed)
If any of these items is missing or damaged, contact your dealer.
IMPORTANT:Keep all packaging materials that accompany your
adapter in the event you need to return the product.
4. System Requirements
• Intel or compatible Pentium® II system with PCI Bus
Extension Slot
• CD-ROM drive, Quad speed or faster
• Hard Drive with at least 10MB Free space
• MS Windows®98/Me, Windows® NT4.0, Windows2000/XP
operating systems

11
5. Hardware Description

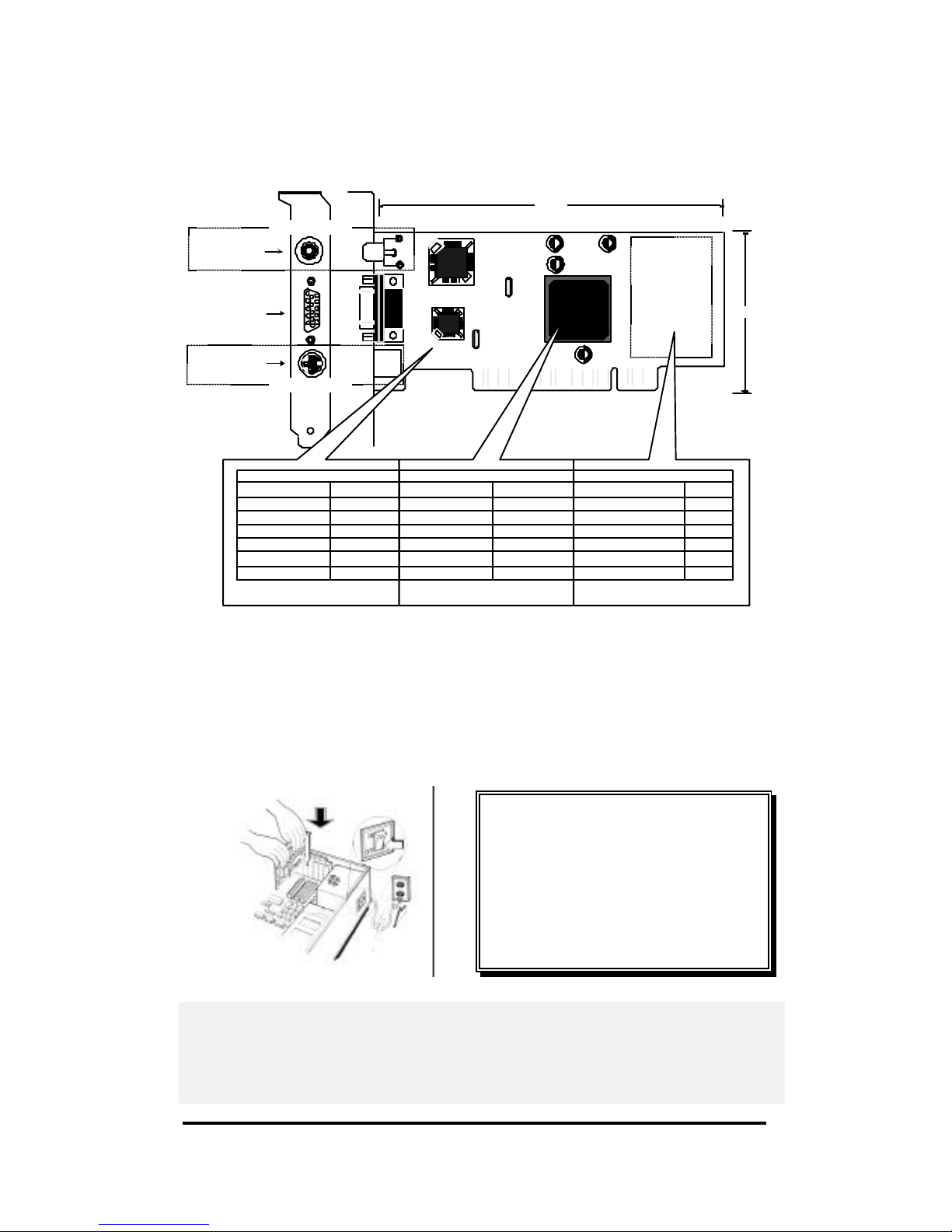

5.1 Board Layout and Specification
Display memory
PCI BUS
Y
1
Plate
S_Video
CompositeVideo
DB15VGA
Product's Name / PCB version Core Chipset / PCB size Memory Module / Size
Video-117PCI-16
Video-117PCI-32
82117K
82117K
TridentBladeT16
TridentBladeT64
W=5.6"xH=3.1"
W=5.6"XH=3.1"
2MX16SDRAMX4
4MX16SDRAMX4
16MB
32MB
WIDTH
HEIGHT
Y
2
TVoutoptional
TVoutoptional
Trident
Blade-Txx
6. Hardware installation
6.1 Installation Procedures
!! WARNING !!
Discharge static electricity by
touching the GROUNDsuch as
metal part of your case connected
with good power ground before
you handle the electronic circuit
boards.
The manufacturer assumes no liability for any damage, caused
directly or indirectly, by improper installation of any components by
unauthorized service personnel. If you do not feel comfortable
performing the installation, consult with a qualified computer
technician.

12
6.2 Steps:
1. Turn OFF all powers to your system, including any
peripherals (printer, external drives, modem, etc.).
2. Disconnect the power cord and the monitor cable from the
back of the computer.
3. Unfasten the cover mounting screws on your system and
remove the system cover. Refer to your system user manual
for instructions to determine the location of the mounting
screws.
4. Remove any graphics adapter that already installed on your
motherboard. Start by removing the screw that holds the
adapter retaining bracket in place (keep this screw, you will
need it later). Then, gently pull straight up on the adapter card
itself, and remove it from the motherboard.
5. Refer to your computer system manual for the location of the
PCI bus expansion slots. Remove the retaining screw that
holds the slot cover in place. Slide the slot cover out and put
the screw aside (you will need it to secure the adapter).
If you just removed an existing graphics adapter and are not
going to use that expansion slot, you can install the slot cover
you just removed from the unused expansion slot to cover the
open hole.
6. To install the adapter in the selected expansion slot, carefully
line up the gold-fingered edge connector on the adapter
directly above the expansion slot connector on the
motherboard. Then press the adapter into place, completely,
with necessary but minimum pressure. DO NOT USE
excessive force. Use the (remaining) screw you removed to
secure the adapter retaining bracket in place.
7. Replace the computer cover. Secure the cover with the
mounting screws you removed in Step 3.
You have now completed the installation of your new graphics adapter
on your system.
7. Software Installation
7.1 ÿÿ Microsoft Windows®98 / Me
Start Windows with VGA or SVGA drive detected. Insert the software’s CD
into your CD-ROM drive (e.g. X:). Typically, D: or E: drive, etc.

13

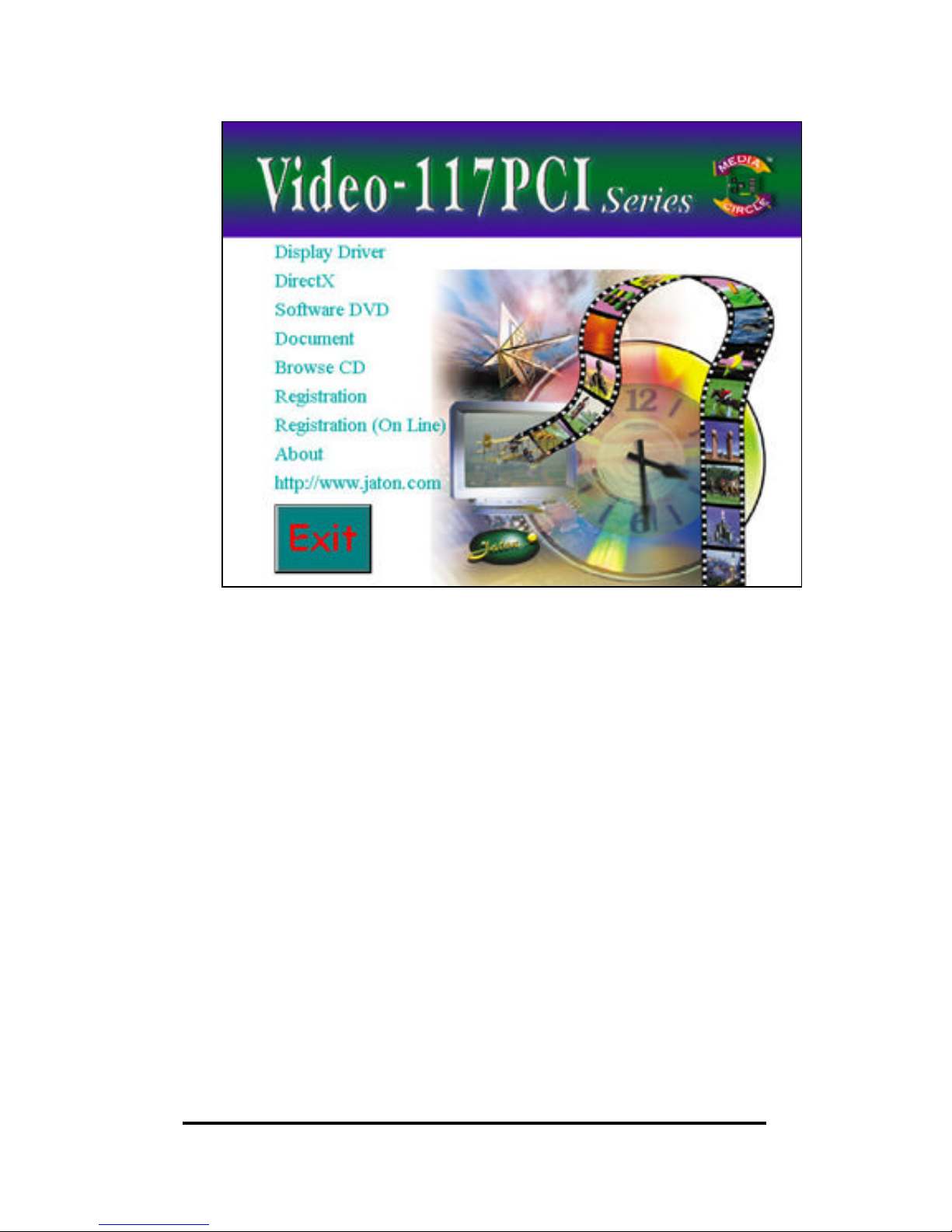

1. Autorun feature pops-up “Welcome” screen from software’s CD, click on
the "Display Driver" selectable text to start installation.

14
2. Tab to “Settings” screen, then click on “ Advance” button.

15
3. Click on “Next” button with [Advanced] selectable option.

16

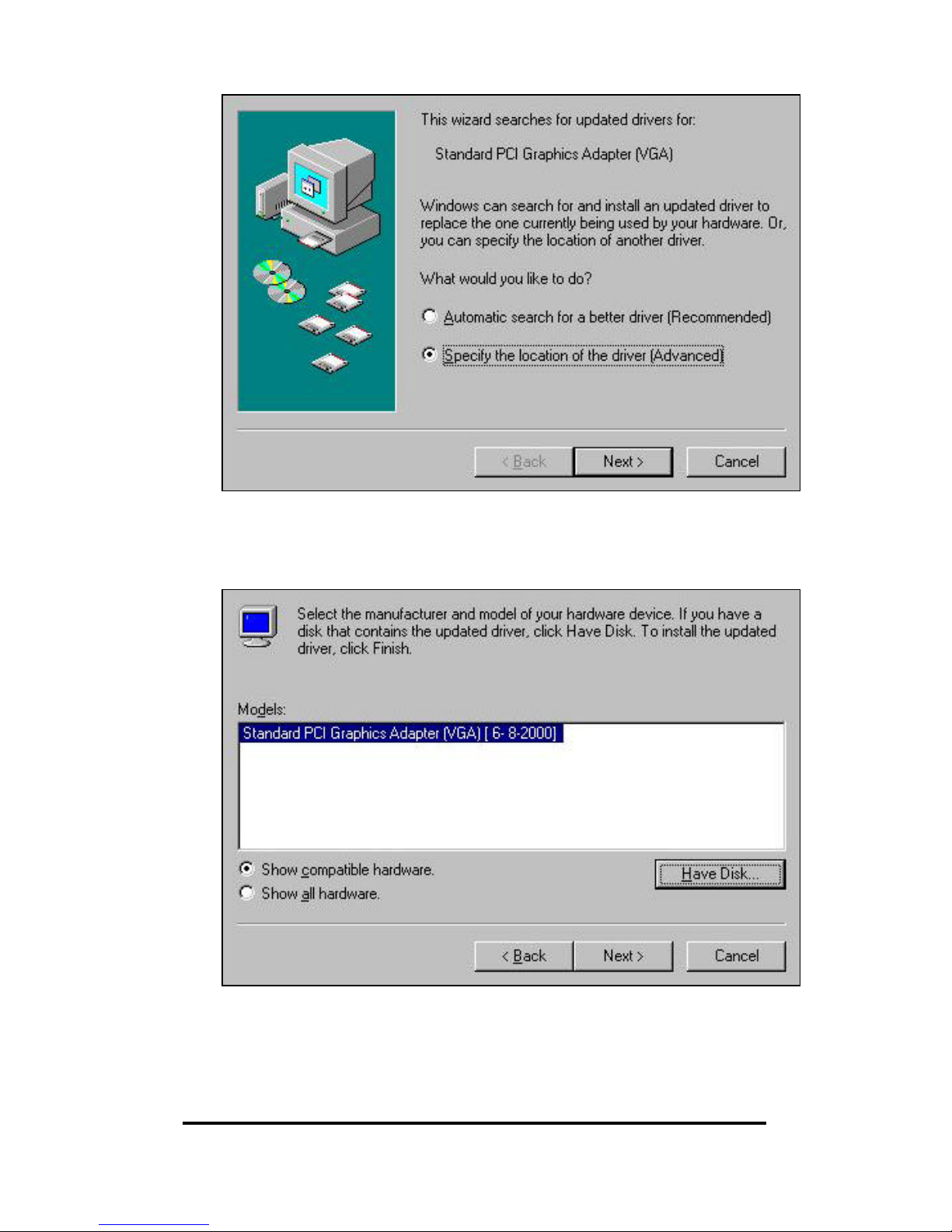

4. You may proceed the search wizard with “Display a list of all the driver in
a specific location, so you can select the driver you want.” option, then
click on “Next” button.
5. Click on “Have Disk…” button to continue.

17

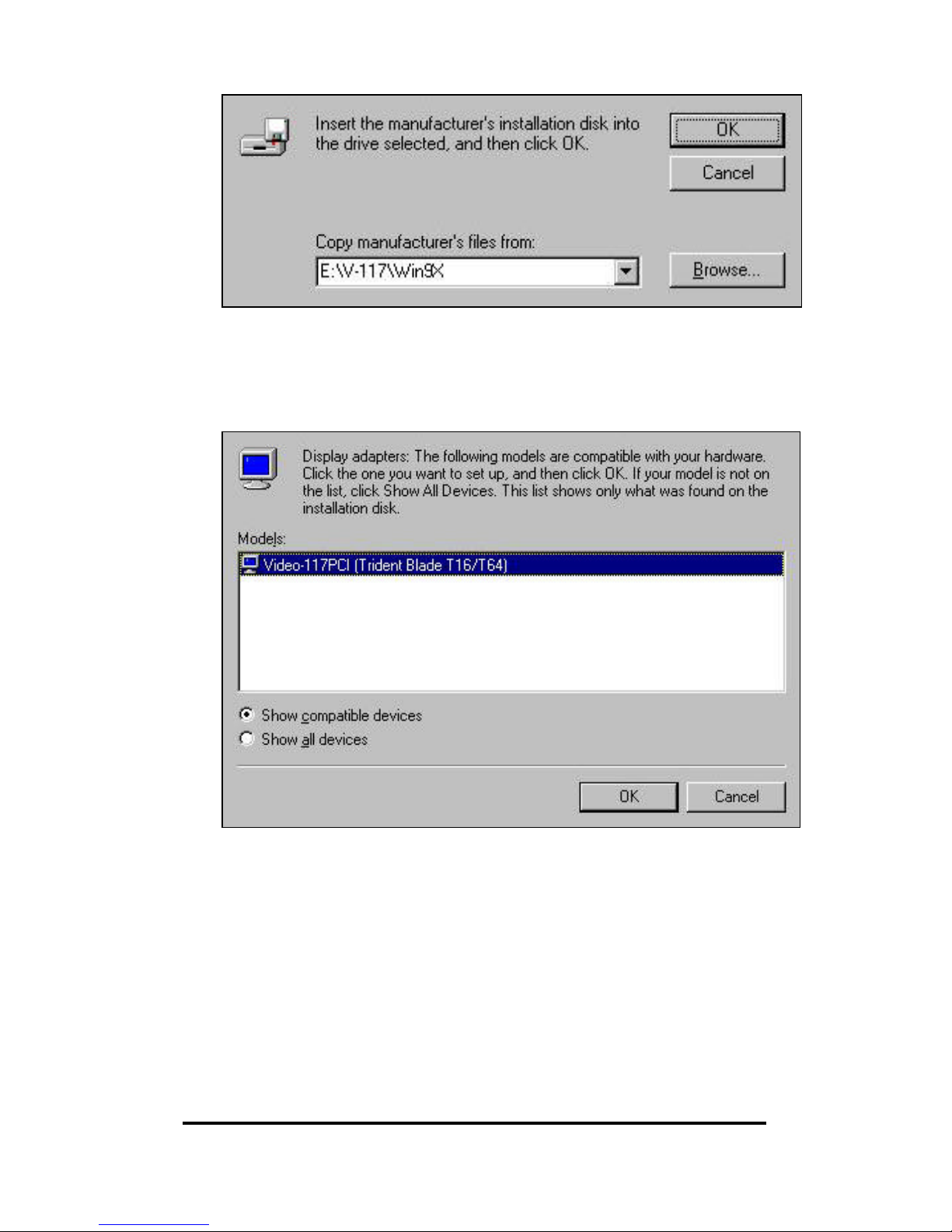

6. You may type E:\V-117\Win9x into the dialog box as shown above, or
browse on CD, unfold these folders; and click on “OK”. (If E is not your
CD-ROM drive , substitute E with the correct drive letter.)
7. Wizard has selected “Video-117PCI (Trident Blade T16/T64)” then
press on “OK” button.

18

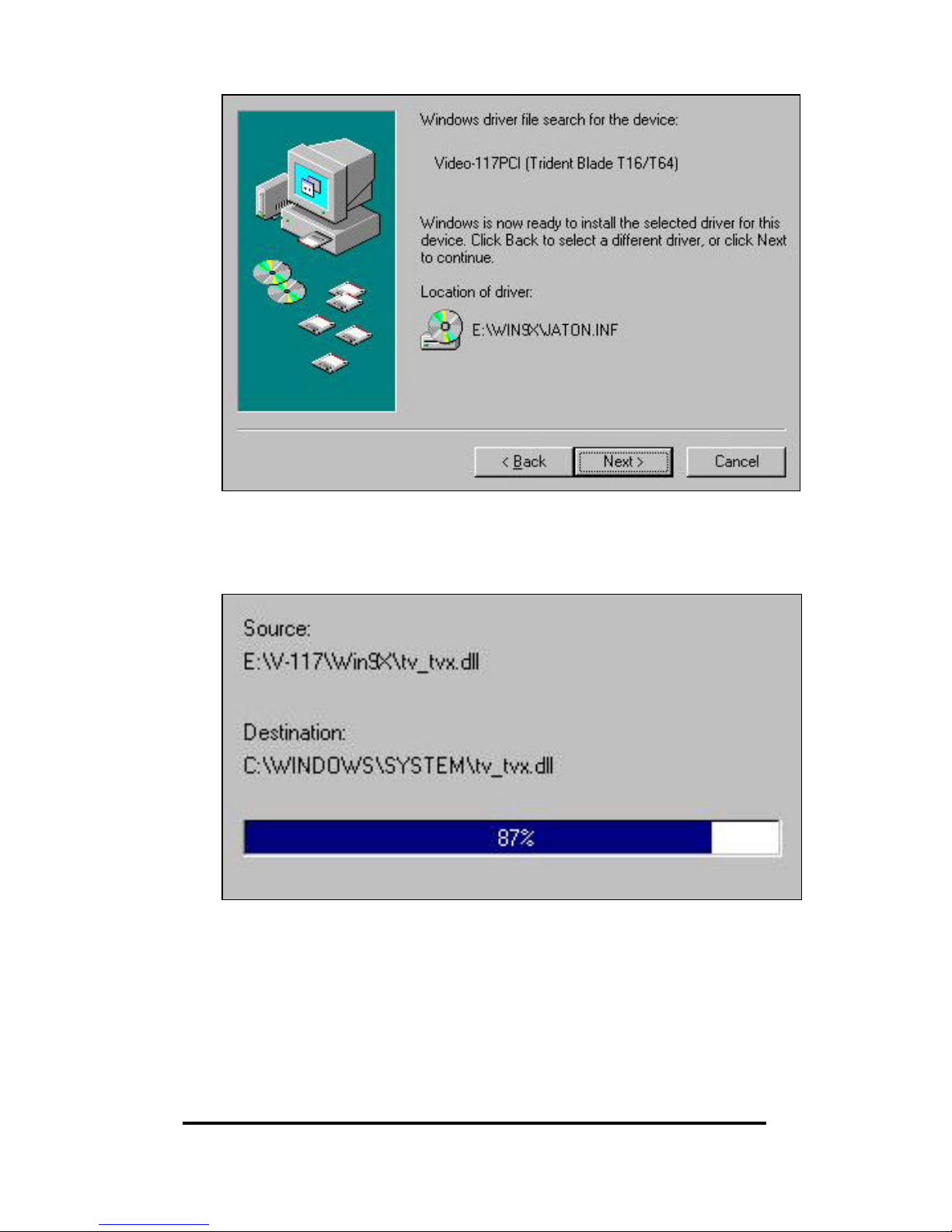

8. Windows is ready to install the driver for your hardware from CD-ROM
drive, please click on “Next” to do so.
9. Windows system transmit all files to your local hard disk drive, please wait
until the process is over.

19
10. Click on “Finish” to complete the driver installation.
7.1.1 ÿÿ MICROSOFT WINDOWS NT™4.0
Windows NT dose not identify the new PCI video adapter, and
always placed a default VGA video setting when system boots up.
To maximum the video board acceleration and performance, you
should install the video driver that is provide from video adapter
manufacturer. Please insert the software CD into your CD-ROM
drive after your desktop fully loaded with default video settings.

20
1. Autorun feature brings-up “Welcome” screen, CLICK on “Display Driver”
selectable text to start the installation.
