Jaton Video-118PCI-32 User manual

Video-118PCI Series
nVIDIA GeForce2 MX400™
User’s Manual
Version 8.00
Copyright © 2005 Jaton Corporation, USA

Contents
INTRODUCTION.............................................................4
KEY FEATURES.............................................................5
SECOND GENERATION GPU ..............................................5
PERFORMANCE .................................................................5
QUALITY............................................................................5
SYSTEM REQUIREMENT..............................................6
CHECK LIST...................................................................6
HARDWARE DESCRIPTION .........................................7
HARDWARE INSTALLATION ........................................8
INSTALLATION PROCEDURES..............................................8
STEPS: .............................................................................9
SOFTWARE INSTALLATION........................................9
á MICROSOFT WINDOWS®98/ME.................................9
á WINDOWS®2000 DISPLAY DRIVER:.........................12
á MICROSOFT WINDOWS®NT™4.0............................16
á WINDOWS®XP DISPLAY DRIVER: ............................18
TECHNICAL ASSISTANCE..........................................22
FREQUENTLY ASKED QUESTIONS (FAQ) ..........................24
PINOUT AND SYNC FREQUENCIES..........................26

ANALOG COLOR DISPLAY PINOUTS (DB 15) .....................26
CONVERSION TABLE:PIN ADAPTERS................................26
9-TO-15 PIN CONVERSION TABLE.....................................27
TECHNICAL SUPPORT ......................................................27
LIMITED WARRANTY. .................................................30
OTHER LIMITS.................................................................30
EXCLUSIVE OBLIGATION...................................................31
OTHER STATEMENTS.......................................................31
TERMS AND CONDITIONS. ................................................31
SERVICES AGREEMENT:...................................................32
ENTIRE OBLIGATION. .......................................................32
REDUCING WARRANTY CLAIM REJECTIONS.........33
3

Introduction
Video-118PCI Series are the 2D/3D graphics and multimedia
accelerators made by Jaton Corporation. These accelerators
are based on the GeForce2 MX400™core technology with
single chipset solution, which is provided by nVIDIA®.
By incorporating GeForce2 MX’s break-through 3D
architecture, in a 2-pipe form, GeForce2 MX delivers the full
GeForce2 GTS 3D feature set at mainstream price points.
nVIDIA GeForce2 MX400 GPUs integrated HDVP (High
Definition Video Processor) and be able to support 720p at the
specified frame rates. When combined with a high performance,
high-level software MPEG-2 decoder, and a Digital TV receiver,
GeForce2 MX chipset delivers a cost-effective, high-quality
HDTV solution. nVIDIA GeForce2 MX400 chipset also enables
ground-breaking new applications like HD time-shifting and digital
VCR capabilities.
Video-118PCI Series (GeForce2 MX400 ™) take benefit of the
latest advancements in PC computing to provide maximum
performance in all graphics applications. Video-118PCI Series
(GeForce2 MX400™) accelerators deliver the industry’s fastest
Direct3D® and OpenGL® gaining velocity in its class, they are
also the most complete Microsoft® DirectX® 7 hardware
implementation and meet all the requirements specified by
Microsoft PC 00, PC 99, and PC 99a initiatives.
For feature-rich multimedia solution, Video-118PCI Series
(GeForce2 MX400 ™) are implanted bridge and port for analog
TV output function.
Video-118PCI Series (GeForce2 MX400 ™) are continuing
products of Jaton heritage of bringing cutting edge technology
combined a better solution to the mainstream with its cost-
effective, which is absolutely integrated VGA graphics, and
2D/3D video in a multimedia homogenous mixture.
4

Key Features
Second Generation GPU
•Second generation transform and lighting (T&L)
engine
•Integrated Dual-Link TMDS transmitters
•nVIDIA Shading Rasterizer (NSR)
•High-Definition Video Processor (HDVP)
•32/64 MB SDR/DDR memory onboard
•32-bit color, 32-bit Z/stencil buffer
•4 texels per clock
•256-bit graphics architecture
•Cube environment mapping
•DirectX texture compression
Performance
•upto 700 million texel fill rate
•upto 20 million triangles/sec through T&L and setup
•upto 2.7 GB/sec memory bandwidth
•32 or 64 MB frame buffer size
•Maximum 3D/2D resolution of 2048x1536@75Hz
•Supports RGB / TV output optional display
•Complete DirectX® 7, DirectX® 6 and DirectX® 5
support
Quality
•nVIDIA Unified Driver Architecture
5

•Industry’s first fully compliant professional OpenGL
1.2 support for Windows® operating systems
•WHQL-certified Windows XP, Windows 2000,
Windows NT®4.0, Windows 98
System Requirement
•Intel Pentium® or compatible system with PCI Bus
Extension Slot
•CD-ROM drive, Double speed or faster
•Hard Drive with at least 50MB Free space
•MS Windows® 98/Me/NT™4.0/2000/XP operating
systems
Check List
•Video-118PCI Multimedia Accelerator
•Software & Documents CD
•Quick Start Guide (Printed)
6

Hardware Description
nVIDIA
DIM-4Pin Display
Memory
RCA Composite
(TV out)
(TV out)
DB 15 VGA
(RGB out)
MX400
TVout optional
32MB
nVIDIA GeForce2 MX400
32MB
nVIDIA GeForce2 MX400
Video-118PCI-64LTV
nVIDIA GeForce2 MX400
4M*16 x4 DDRTSSOP
nVIDIA GeForce2 MX40082118P
2M*32 x4 SDR TSSOP
Core Chipset
Video-118PCI-32DDR
nVIDIA GeForce2 MX400
82118Q
82118N
82118P
4M*16 x4 DDRTSSOP
8M*16 x2 DDRTSSOP
82118Q
2M*32 x4 SDR TSSOP
82118N
nVIDIA GeForce2 MX400
PCB Size
4M*32 x4 SDR TSSOP
Video-118PCI-32DDR-TV
82118N
4M*16 x4 SDR TSSOP
82118P
82118Q
nVIDIA GeForce2 MX400
4M*32 x4 SDR TSSOP
Video-118PCI-64DDR
W = 5.85" x H = 2.6"nVIDIA GeForce2 MX400
32MB
nVIDIA GeForce2 MX400
nVIDIA GeForce2 MX400
4M*16 x4 SDR TSSOP
Video-118PCI-64DDR-TV
W = 5.85" x H = 2.6"
64MB
W = 5.85" x H = 2.6"
W = 5.85" x H = 2.6"82118Q
W = 5.85" x H = 2.6"
W = 5.85" x H = 2.6"
64MB
MemorySize
82118P
82118Q
W = 5.85" x H = 2.6"
8M*16 x4 SDR TSSOP
Video-118PCI-32TV
8M*16 x2 DDRTSSOP
32MB
W = 5.85" x H = 2.6"
82118Q
32MB
W = 5.85" x H = 2.6"
8M*16 x4 SDR TSSOP
Video-118PCI-64
nVIDIA GeForce2 MX400
W = 5.85" x H = 2.6"
8M*16 x4 DDRTSSOP
W = 5.85" x H = 2.6"
32MB
Video-118PCI-64TV
W = 5.85" x H = 2.6"
W = 5.85" x H = 2.6"
8M*16 x4 DDRTSSOP
32MB
82118N
Video-118PCI-32LTV
W = 5.85" x H = 2.6"
Video-118PCI-32
32MB
64MB
64MB
Video-118PCI-64L
nVIDIA GeForce2 MX400
Product Name /PCB Version
nVIDIA GeForce2 MX400
64MB
64MBnVIDIA GeForce2 MX400
Special Bracket (s) Alternative ( Low profile system only)
Bracket model Use in Dimension
P203 Video118PCI-64DDR-TV L = 3.118”, W =0.725”
P213 Video118PCI-32DDR / 64DDR L = 3.118”, W =0.725”
Alternative brackets can be purchased at
http://store.anvshopper.net/index.html
7

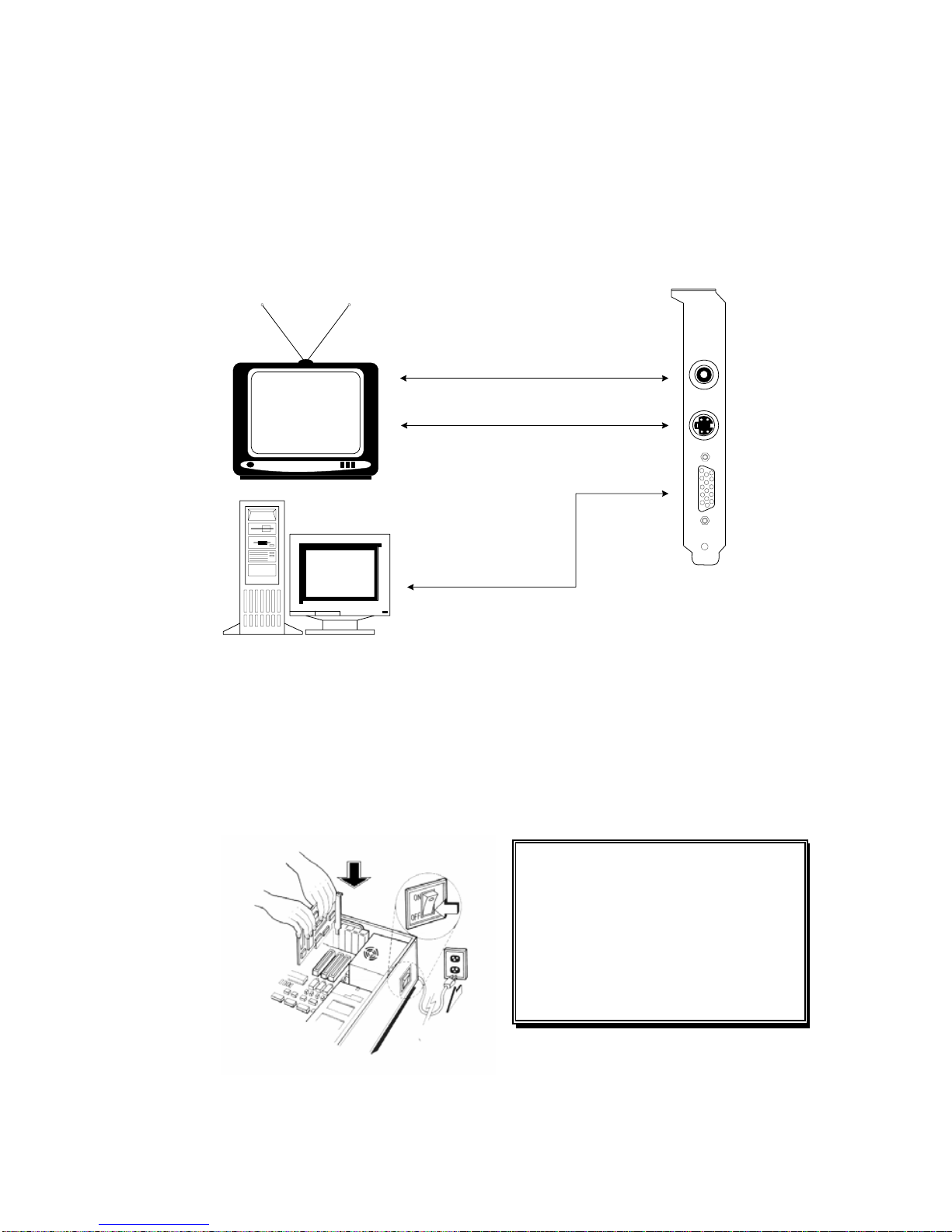

Display Devices Connection :
Plate
TV set
PC Computer
DB 15 VGA
Connector
S_Video
Connector
RCA Composite
Connector
Hardware Installation
Installation Procedures
!! WARNING !!
Discharge static electricity by
touching the GROUND such
as metal part of your case
connected with good power
ground before you handle the
electronic circuit boards.
8

The manufacturer assumes no liability for any damage,
caused directly or indirectly, by improper installation of
any components by unauthorized service personnel. If
you do not feel comfortable performing the installation,
consult with a qualified computer technician.
Steps:
1. Turn OFF all powers to your system, including any
peripherals (printer, external drives, modem, etc.).
2. Disconnect the power cord and the monitor cable from the
back of the computer.
3. Unfasten the cover mounting screws on your system and
remove the system cover. Refer to your system user manual
for instructions to determine the location of the mounting
screws.
4. Remove the retaining screw that holds the slot cover in
place. Slide the slot cover out and put the screw aside (you
will need it to secure the adapter).
5. To install the adapter in PCI expansion slot, carefully line up
the gold-fingered edge connector on the adapter directly
above the expansion slot connector on the motherboard.
Then press the adapter into place, completely. Use the
(remaining) screw you removed to secure the adapter-
retaining bracket in place.
6. Replace the computer cover. Secure the cover with the
mounting screws you removed in Step 3.
You have now completed the installation of your new graphics adapter
on your system.
Very Important Note:
Software Installation
áMicrosoft Windows® 98/Me
Since the Microsoft InstallShield®program has been added
into our software’s CD, the Display Driver Installation and its
procedures are much easier for users to run with Windows®
98/Me operating systems. When you power-up the computer
and boot-up to Windows, the Plug-and-Play detects new
hardware and it pops-up the install wizard. Do Not [Cancel]
because you must place a default display setting from
9

Microsoft Windows for your video adapter, then restart the
Windows. After the desktop is loaded completely, insert the
software’s CD into CD ROM drive and proceed the display
driver installation, which is provided from the hardware
manufacturer.

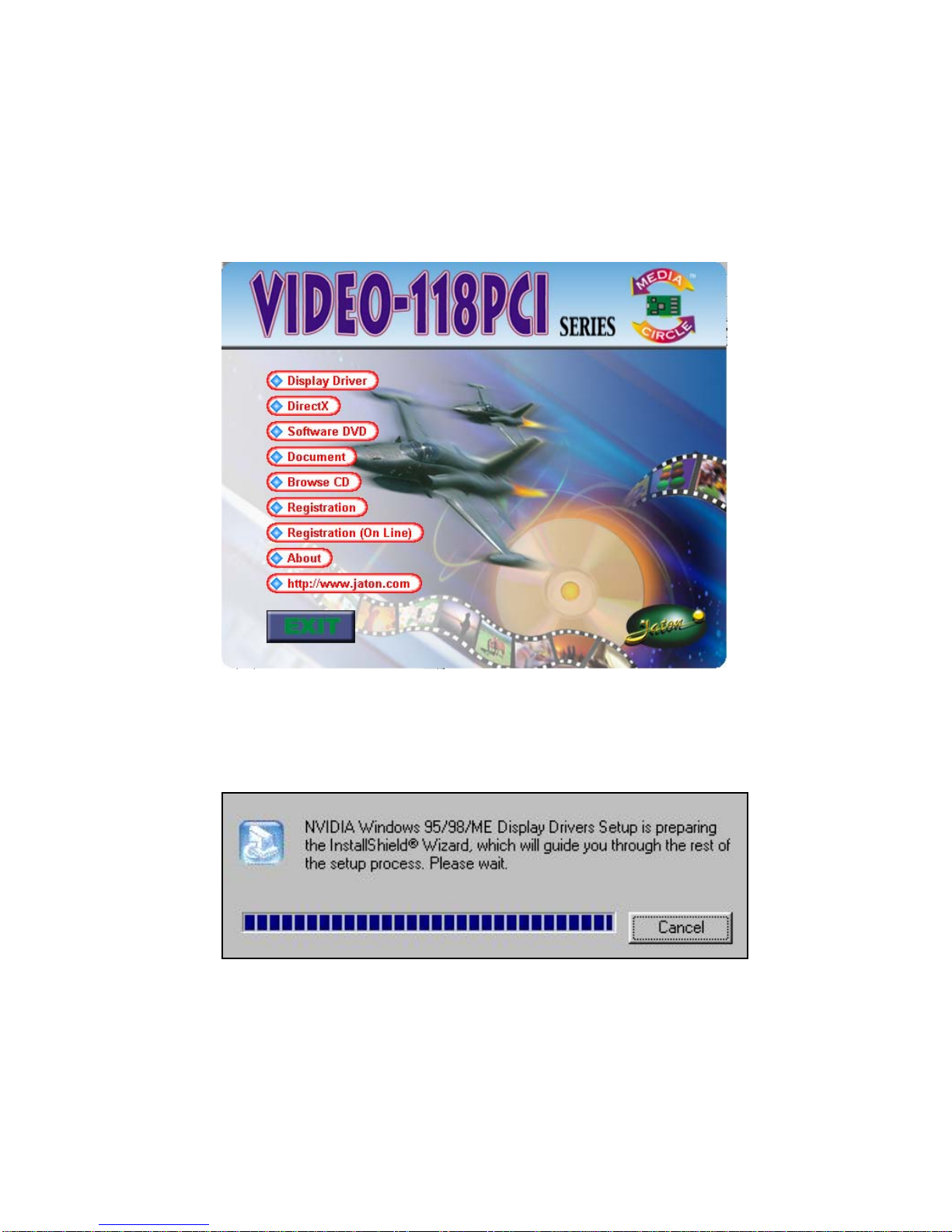

1. Autorun feature brings-up the “Welcome Screen”, and you
may point to “display driver” then press on it.

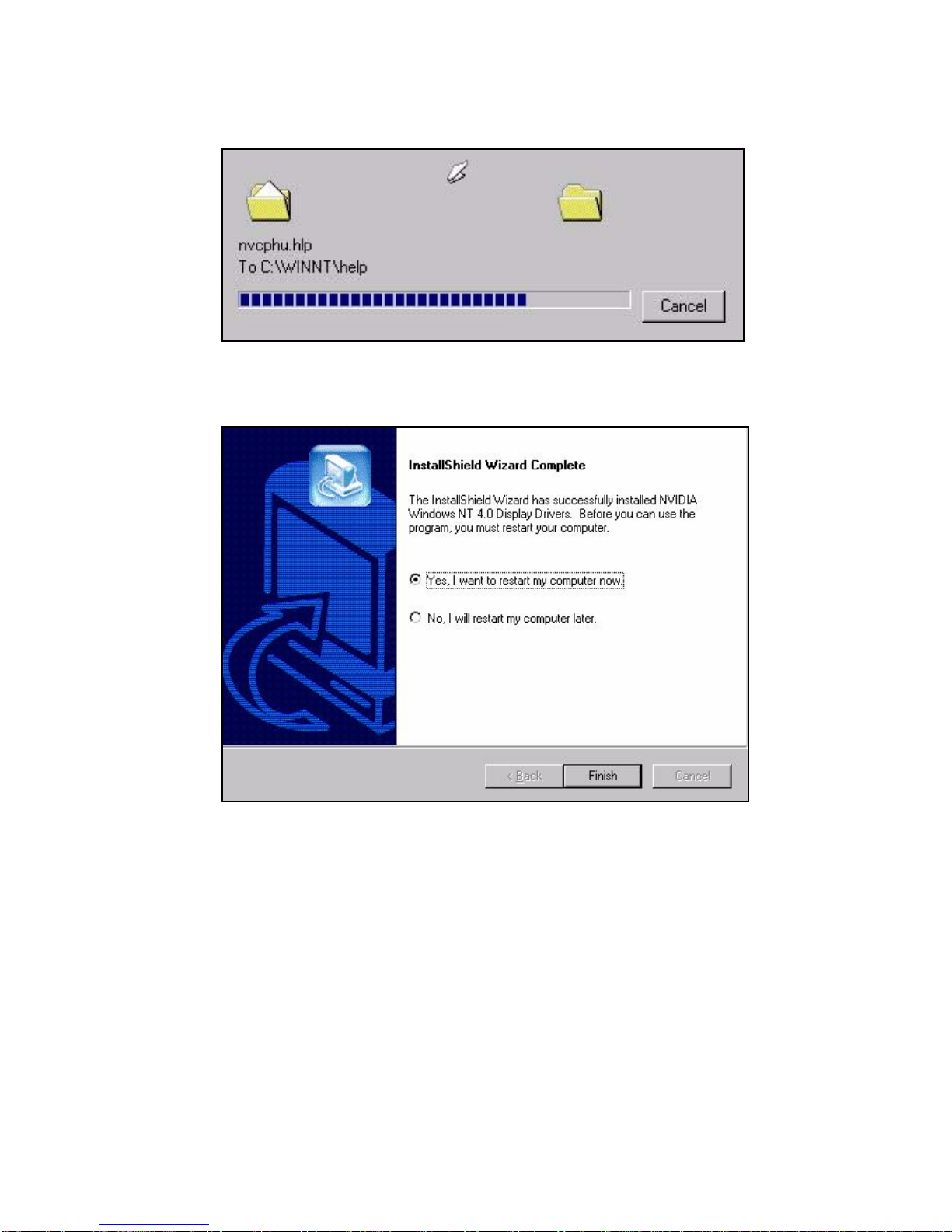

2. Microsoft InstallShield®Wizard has start loading its setup
process; please wait until it has completed.
10

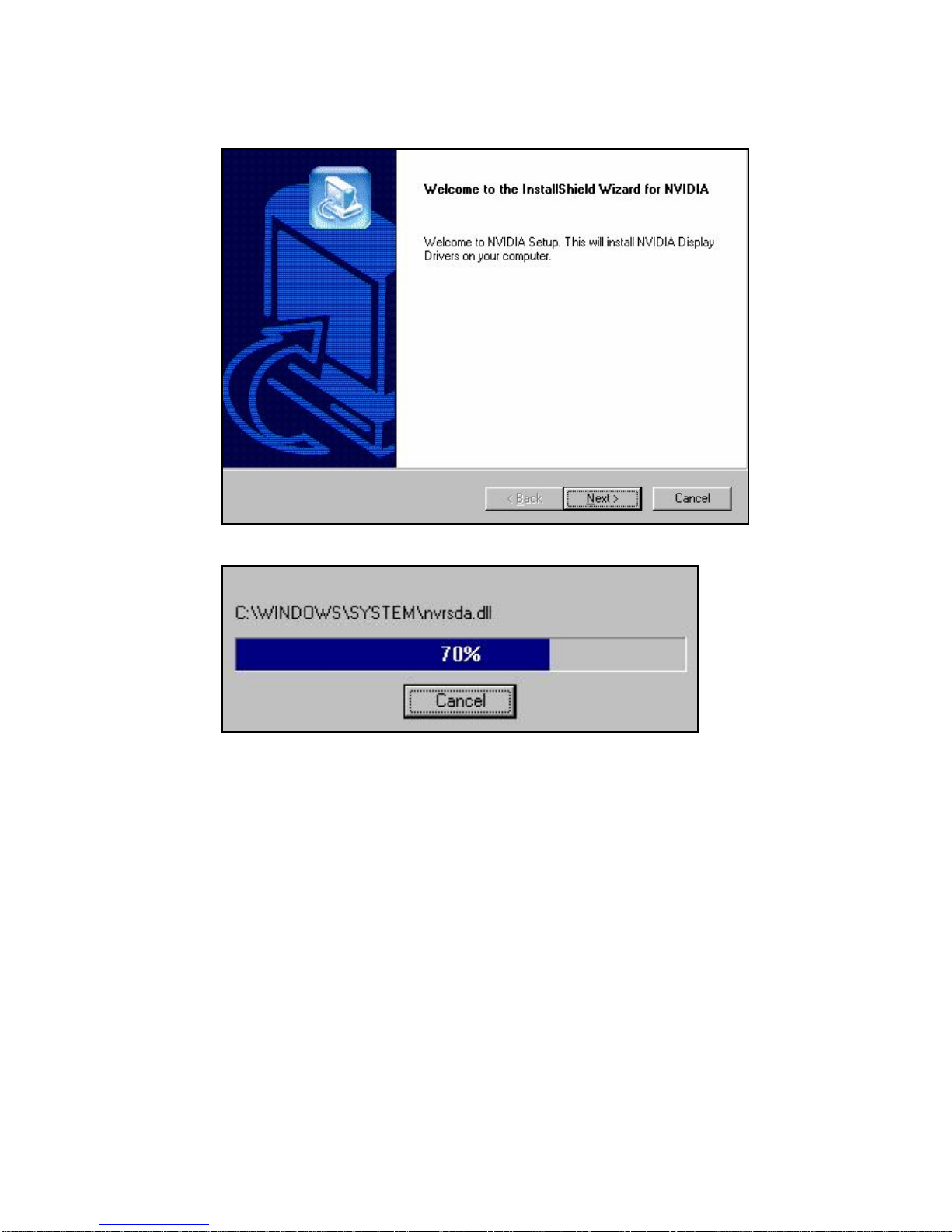

3. Click on “Next” to continue.
4. The Windows system will copy all driver files from source
media to your local hard disk; please wait until the process
has completed.
11

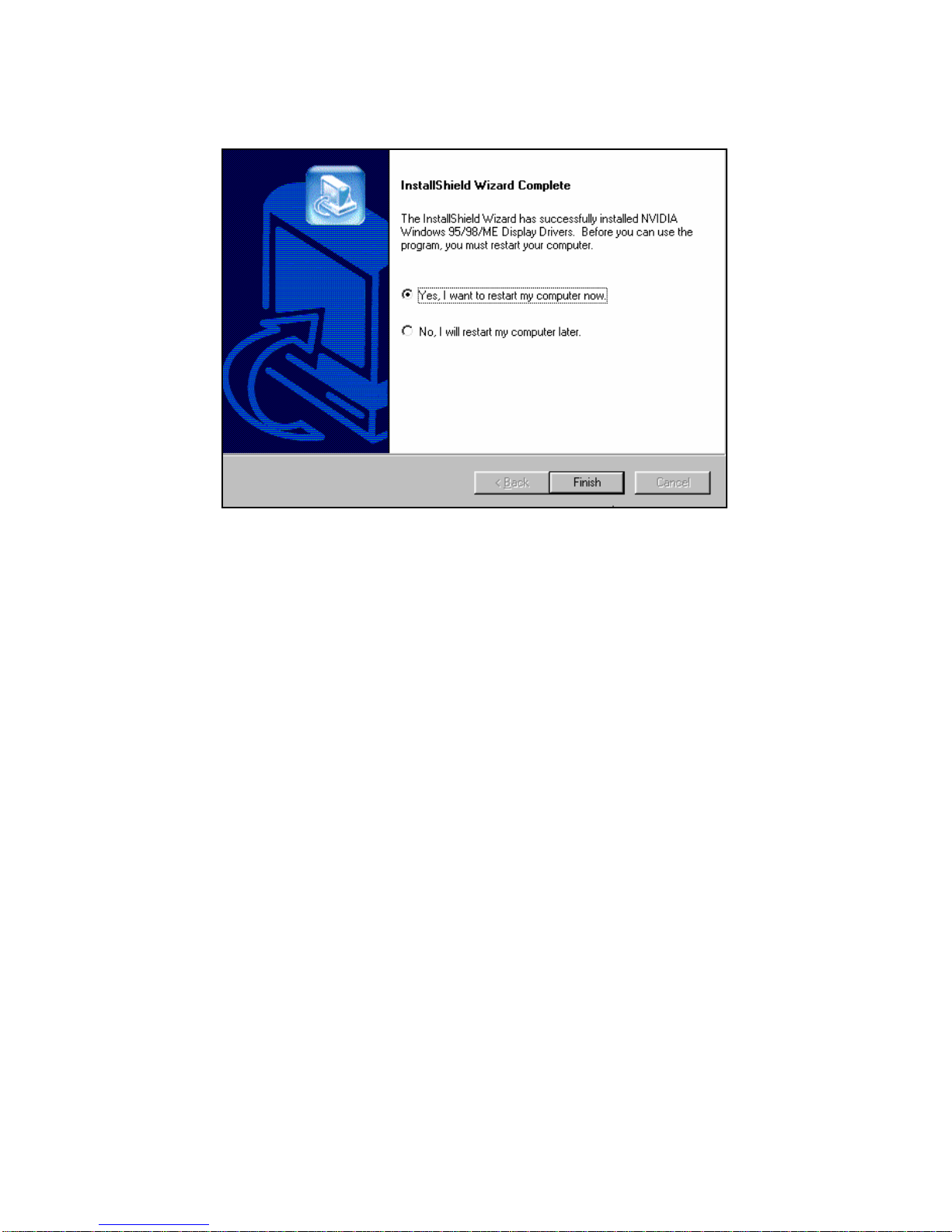

5. Click on “Finish” to restart your computer, the new display
driver will be in place after Windows boots-up.
áWindows® 2000 Display Driver:
Microsoft Windows®2000 detects this new hardware and
places appropriate display driver from its system folder
automatically - it doesn’t matter you have added a new driver
or changed the existing one. To maximum the video board
acceleration and increase its performance, you may install the
manufacturers display driver as the follows:
12

1. Autorun feature brings-up the “Welcome Screen”, and you
may point to “display driver” then press on it.
2. Microsoft InstallShield®Wizard has start loading its setup
process; please wait until it has completed.
13

3. Click on “Next” to continue.
4. Click on “Yes” to continue the installation. Otherwise, you
may terminate the process by clicking on “No”.
14

5. Click on “Finish” to restart your computer, the new display
driver will be in place after Windows boots-up.
15

áMicrosoft Windows ® NT™4.0

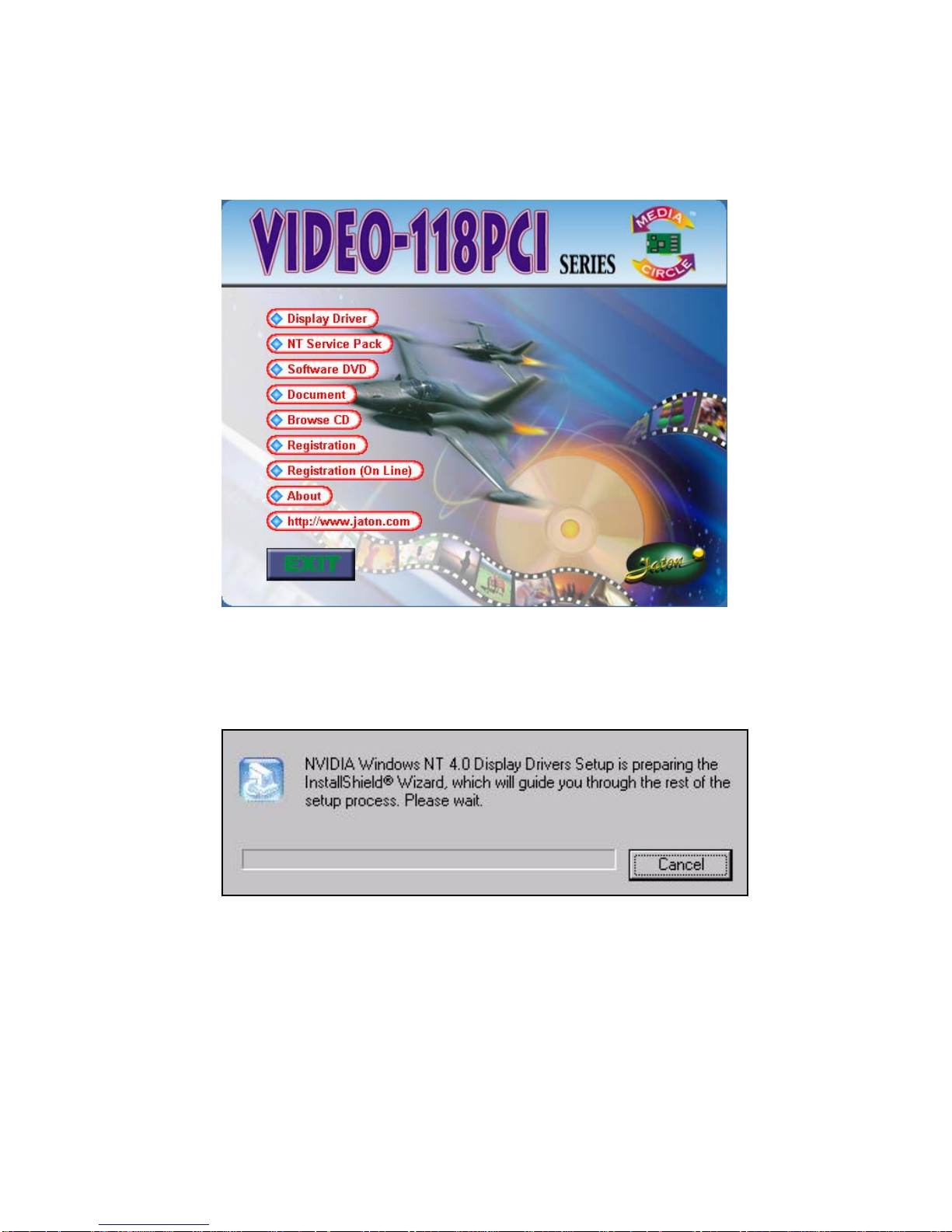

1. Autorun feature brings-up the “Welcome Screen”,
and you may point to “display driver” then press on
it.
2. Microsoft InstallShield®Wizard has start loading its setup
process; please wait until it has completed.
16

3. Click on “Next” to continue.
4. Scroll down and Select on the “Video-118PCI Series,
nVIDIA GeForce2 MX200/400” then click on “OK” for next
screen.
17

5. The Windows system will copy all driver files from source
media to your local hard disk; please wait until the process
has completed.
6. Click on “Finish” to restart your computer, the new display
driver will be in place after Windows boots-up.
áWindows® XP Display Driver:
Microsoft Windows® XP detects this new hardware and places
appropriate display driver from its system folder automatically -
it doesn’t matter you have added a new driver or changed the
existing one. To maximum the video board acceleration and
18

increase its performance, you may install the manufacturer
display driver as the follows:
1. Autorun feature brings-up the “Welcome Screen”, and you
may point to “display driver” then press on it.
2. Microsoft InstallShield®Wizard has start loading its setup
process; please wait until it has completed.
19

3. Click on “Next” to continue.
4. Click on “Continue Anyway” to carry through the
installation. Otherwise, you may terminate the
process by clicking on “Stop Installation”.
20
