Introduction
IntroductionIntroduction
Introduction
3DForceFX 5600 series video accelerators are nVIDIA GeForceFX
5600 core technology based 128MB/256MB DDR memory modules
built-in onboard totally. These AGP 8x-bus video accelerators are
capable of driving very complex geometry and character animation
images on your PC desktop incomparably, with truly genuine filling
experience you may anticipate like never before. The particular
emphasis of this AGP’s ability that is very ease of play all fancy PC
games with preferred resolution, unique visual effects, life-like, and
these much of realistic graphical improvements must be performed on
high-end computers.
The nVIDIAGeForceFX Graphics Processing Unit (GPU) is 0.13µ
Micron Process Technology, which delivers high performance through
faster clock rates. CineFX engine produces gaming effects on par with
the hottest motion pictures. Combined with 128-bit studio quality color
processing technology, 3D worlds and characters are more real than
anything is that’s come before. Powered by the CineFX engine, the
GeForce FX shifts the focus from simple pixel fill rate to sophisticated
pixel shading. To maximized programming choice, the nVIDIA CineFX
engine includes the most complete hardware feature implementation for
both OpenGLand MicrosoftDirectXenvironments, including total
support for the DirectX 9.0-vertex and pixel shader specification.
Well-developed CineFX engine features include the support of 1024
instructions in a single rendering pass, allowing for complex effects that
aren’t practical in any other architectures. Complex lighting can
dramatically improve the realism of images, but traditionally adds the
rendering time. With GeForce FX all of those gorgeous enhancements
are possible without sacrificing performance.
The Intellisample process uses gamma-adjusted sampling, taking into
account the dramatic physical differences between how your eyes and
monitor perceive light and color, making for much smoother and more
natural edge transitions.
New nVIDIA GPUs and PC platforms will incorporate AGP 8X
capabilities and take full advantage of AGP 3.0 specification. As
always, nVIDIA solution incorporate new technology and advances
without compromising the overall stability and quality of the system, and
nVIDIA Unified Driver Architecture (UDA) makes it painless to take
advantage of new capabilities as the are introduced.

6
For a number of years, Jaton has done a spectacular job of competing
in the tough graphics card market. We’ve largely accomplished his task
by always offering a little something extra over the competition. Jaton
has been extremely innovative in the VIVO field, having championed
both video out and video in, and also given users such neat little
programs such as WinDVD Creator, which allows end users the ability
to place a camera to record events.
We’ve also added a new Multi-standard video decoder and encoder
chip onto our 3DForceFX 5600 Series Diamond Edition accelerators for
high quality video input and TV output functions. This is a highly
integrated circuit especially designed for desktop PC video applications
and is a remarkable option - as opposed to just RGB and DVI such as
the other makers offer.
However, as time and the market march on, the features that has
always provided over the competition have now became more and
more commonplace.
A matchless of hardware and software technology combination, the
primary principles of 3DForce FX 5600 series video accelerators that
will contribute many of new features and more benefits to your desktop
computing as well as the best-performance integrated, unusual quality
and exceedingly resolution.
Features
CineFX Engine
Powers cinematic effects beyond imagination. With advanced
vertex and pixel shader capabilities, stunning and complex
special effects are possible. In addition, increased horsepower
delivers faster and smoother gameplay.
Intellisample Technology
Intellisample's intelligent gamma-adjusted antialiasing and
advanced adaptive anisotropic filtering deliver silky-smooth, ultra-
realistic visuals at lightning speeds. Say goodbye to the jaggies
for good: your current games will benefit immediately from this

7
state-of-the-art technology, and the games to come will positively
rock your world.
High-Precision Graphics
By combining the incredible dynamic range of today's state-of-
the-art 3D motion pictures with 128-bit studio-precision color, the
GeForce FX brings you the industry’s best image quality for the
most demanding applications.
nView Multi-display Technology
The nView hardware and software technology combination
delivers maximum flexibility for multi-display options, and
provides unprecedented end-user control of the desktop
experience.
Digital Vibrance Control (DVC)
Allows the user to adjust color controls digitally to compensate for
the lighting conditions of their workspace, in order to achieve
accurate, bright colors in all conditions.
Unified Driver Architecture (UDA)
Guarantees forward and backward compatibility with software
drivers. Simplifies upgrading to a new NVIDIA product because
all NVIDIA products work with the same driver software.
AGP 8X
Provides double the bandwidth of AGP 4X—2.1GB/sec. vs.
1.1BG/sec. AGP 8X enables more complex models and detailed
textures, creating richer and more lifelike environments.
Uninterrupted data flow allows for smoother video streaming and
faster, more seamless gameplay.

8
0.13 Micron Process Technology
Delivers high performance through faster clock rates.
400MHz RAMDACs
Industry’s fastest RAMDACs support QXGA displays with ultra-
high, ergonomic refresh rates.
Architect for Cg
Ensures that the newest, cutting-edge special effects in
applications will run flawlessly. Speeds up content creation so
game developers can get their new games out to PC users faster
than ever before.
Microsoft® DirectX® 9.0 Optimizations and
Support
Ensures the best performance and application compatibility for all
DirectX 9 applications.
New 64-phase Video Scaler
Highest quality for scaling DVD and other video to full-screen
HDTV resolutions.
OpenGL® 1.4 Optimizations and Support
Ensures the best performance and application compatibility for all
OpenGL applications.

9
Video Mixing Renderer (VMR)
Harnesses the power of the 3D graphics engine to empower the
user to view multiple video windows simultaneously with superior
quality, and avoids the problems associated with video overlay.
DVI
Able to drive large displays with up to 1600x1200 resolution.
Overall performance
•1.4 billion pixels per second fill rate
•88 Million vertical per second fill rate
•Up to 11.2 GB per second on memory bandwidth
•128MB/256MB DDR TSSOP onboard supported
VIVO Reference data
•Video decoder
−Two built-in analog anti-aliasing filter
−Two 9-bit ADCs
−On-chip clock generator
−Line-locked system clock frequencies
−Automatic detection of 50Hz and 60Hz field
frequency, and automatic switching between PAL
and NTSC standards
−Luminance and chrominance signal processing for
PAL BHGI, PAL N, combination PAL N, PAL M,
NTSC M, NTSC-Japan, NTSC N, NTSC 4.43 and
SECAM
−Cross-color reduction for NTSC by chrominance
comb filtering
−PAL delay line for correcting PAL phase error

10
−Multstandard VBI data slicer decoding World
Standard Teletex (WST), North-American Broadcast
Text System (NABTS), Closed Caption (CC), Wide
Screen Signaling (WSS), Video Programming
System (VPS), Vertical Interval Time Code (VITC)
variants (EBU/SMPTE) etc.
−active video
−decoded VBI data
•Video Scaler
−Both up and down scaling
−Conversion to square pixel format
−NTSC to 288 lines (video phone)
−Phase accuracy better than 1/64 pixel or line,
horizontally or vertically
−Independent scaling definitions for odd and even
fields
−Anti-aliasing filter for horizontal scaling
•Video encoder
−Digital PAL/NTSC encoder with integrated high
quality scaler and anti-flicker filter for TV output from
a PC
−27 MHz crystal-stable sub carrier generation
−Maximum graphics pixel clock 45 MHz at double
edged clocking, synthesized on-chip or from external
source
−Up to 800x600 graphics data at 60 Hz or 50 Hz
underscan range
−Three DACs at 270 MHz sample rate for CVBS, VBS
and C signals; all at 10-bit resolution
−Non-interlaced input at maximum 4:4:4 sampling
−Down scaling from 1:1 to 1:2 and up to 20% up
scaling

11
Support for hardware cursor
Compatibility
•nVIDIA Unified Driver Architecture (UDA)
•Fully compliant professional OpenGL 1.4
•Microsoft DirectX 9.0
•WHQL-certified for windows XP, Windows Me, windows
2000, Windows NT, and Windows 98
Operating Systems
•Windows®95/98, Windows® Me, Windows® 2000,
Windows® NT (all), Windows® XP
System Requirement
•Intel Pentium® P4, or compatible system with AGP 2x4x8x
Bus Extension Slot
•CD-ROM drive, Quad speed or faster
•Hard Drive with at least 20MB Free space
•MS Windows® 98/Me/NT 4.0/2000/XP operating systems
Check List
•3DForceFX 5600 or 3DForceFX 5600-256 Diamond Edition
Multimedia Accelerator
•8” cable converter for VIVO MD 9pin connector adapt to
S_Video and Composite RCA connectors.
•DVI to RGB converter for Dual RGB out
•Software & Documents CD
•Quick Start Guide (Printed)

12
Hardware Description
NVIDIA
GeForce FX
5600
Display Memory
Bracket
DB 15 VGA
(RGB out)
Width
Height
Y201
Product Name / PCB Version
3DForceFX 5600
3DForceFX 5600-256
82238A
82238A
Core Chipset PCB Size Memory / Size
nVIDIA GeForce FX 5600
nVIDIA GeForce FX 5600
W = 6.875" x H = 4"
W = 6.875" x H = 4"
8M*16 x 8 DDR TSSOP
16M*16 x 16 DDR TSSOP
128MB
256MB
AGP Bus 8x4x2x
DVI-I 24Pin
(DVI out)
MD-9PIN
(VIVO)

13
Display Devices Output
Display Devices OutputDisplay Devices Output
Display Devices Output
AGP Plate
S_Video
Connector
Composite
Video Connector
DVI out Connector
TV set
MD-9PIN Connector
2
2
1
DB 15 VGA Connector
CRT Monitor
CRT Monitor
4
WIESON
3
DVI to RGB Converter
LCD Display Panel
Camcorder
VCR
VIDEO OUTPUT
VIDEO INPUT
1. RGB out - DB15 VGA connector to analog monitor.
2. VIVO - MD9 connector for Video I/O with adapt to S_Video and RCA
Composite converter cable.
3. DVI out - DVI connector to LCD display panel.
4. DVI convert to RGB with DVI-RGB converter for Dual RGB out.

14
Hardware Installation
Installation Procedures
!! WARNING !!
Discharge static electricity by
touching the GROUND such as
metal part of your case
connected with good power
ground before you handle the
electronic circuit boards.
The manufacturer assumes no liability for any damage, caused directly
or indirectly, by improper installation of any components by
unauthorized service personnel. If you do not feel comfortable
performing the installation, consult with a qualified computer technician.
Steps:
1. Turn OFF all powers to your system, including any peripherals (printer,
external drives, modem, etc.).
2. Disconnect the power cord and the monitor cable from the back of the
computer.
3. Unfasten the cover mounting screws on your system and remove the
system cover. Refer to your system user manual for instructions to
determine the location of the mounting screws.
4. Remove the retaining screw that holds the slot cover in place. Slide
the slot cover out and put the screw aside (you will need it to secure
the adapter).
5. To install the adapter in AGP expansion slot, carefully line up the gold-
fingered edge connector on the adapter directly above the expansion
slot connector on the motherboard. Then press the adapter into place,
completely. Use the (remaining) screw you removed to secure the
adapter-retaining bracket in place.

15
6. Replace the computer cover. Secure the cover with the mounting
screws you removed in Step 3.
You have now completed the installation of your new graphics adapter on your
system.
Upgrade Steps:
Add or change your video adapter to an existing system, you may
proceed a few steps before you install the new hardware and
software (video display driver). The followings are some of the
considers:
1. To change a new adapter, please remove the existing video
driver, or replace it to SVGA driver from Windows®98/Me
system before you remove the existing hardware.
2. To added a new adapter, ensure the mainboard that has
available IRQ for new devices, and there is no conflict
between the others.
3. If you try adding this video adapter to an ALL-IN-ONE
mainboard (which video port built-in already), then you have
to disable that port first. Otherwise, that will be a problem for
the new video adapter setup.
4. The driver installation for system upgrade as same as below,
if error occur when you proceed step 1,2 or 3, please consult
with your system dealer or the existing hardware
manufacturer support.
Software Installation
Software InstallationSoftware Installation
Software Installation
Windows 

 98 Driver Installation
Upgrade video adapter to an existing system. (Windows has
been pre-loaded)
1. Select [Next] to install Standard VGA Graphics Adapter at
Add New Hardware Wizard screen.
2. Check [Search for the best driver for your device] then select
[Next]

16
3. Insert the software’s CD.
4. Check [Specify a location:], Under that enter D:\Win9x, then
select [Next].
5. Select [Next] to install “3DForceFX 5600, nVIDIA GeForceFX
5600” driver.
6. Select [Finish] to restart the computer.
To a new system:
1SELECT the “Display” icon from control panel and then tab on
“Settings” screen.
1. Select Advanced at selection bar.
2. Click on Adapter tab screen.
3. Click the Change button.
4. Click the Next button at Update Device Driver Wizard.
5. Click the Next button.
6. Select Display a list of the drivers in a specific location...
Then click the Next.
7. Insert the Software’s CD then Click the Have Disk button.
8. Under Copy manufacturer’s file from statement you may
input D:\Win9x, click the OK button. (Where D is the letter of
your CD-ROM drive, typically, D or E Drives, etc.)
9. Select ”3DForceFX 5600, nVIDIA GeForceFX 5600”, then
Click the OK button.
10. Click the Next button.
11. Click the Finish button.
12. Click the Close button.

17
13. Click Close at the Display Properties screen.
14. Click the Yes button next to restart computer.
InstallShield

Program:
Since the Microsoft InstallShieldprogram has been added into our
software’s CD, the Display Driver Installation and its procedures are
much easier for users to run with Windows98/Me operating systems.
When you power-up the computer and boots-up in Windows, the Plug-
n-Play detects new hardware and pops-up install wizard. Do Not
[Cancel] because you must place a default display setting from
Microsoft Windows for your video adapter, then restart your Windows.
After the desktop has loaded completely, insert the software’s CD into
CD ROM drive and proceed the display driver installation which
provided from hardware manufacturer.

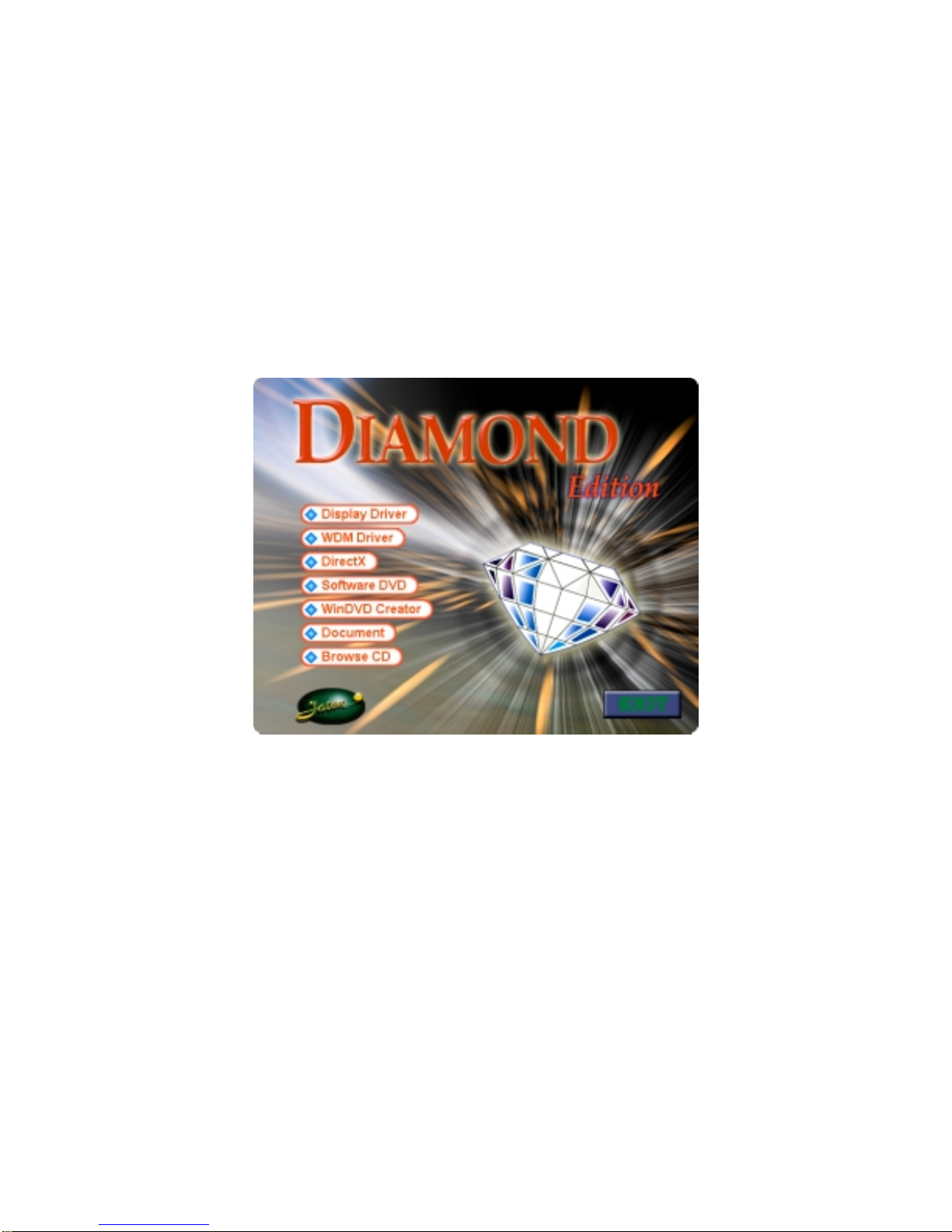

1. Autorun feature brings-up the “Welcome Screen”, and you may
point to “display driver” then press on it.

18
2. Microsoft InstallShieldWizard has start loading its setup process;
please wait until it has completed.
3. Click on “Next” to continue the process.

19
4. The Windows system will copy all driver files from source media to
your local hard disk; please wait until the process has completed.
5. Click on “Finish” to restart your computer, the new display driver
will be in place after Windows boots-up.
Windows 

 Me Drive Installation
Upgrade video adapter to an existing system. (Windows has
been pre-loaded)
1. Select [Next] to install Standard VGA Graphics Adapter at Add New
Hardware Wizard screen.
2. Check [Search for the best driver for your device] then select [Next]
3. Insert the software’s CD.
4. Check [Specify a location:], Under that enter D:\Win9x, then select
[Next].
5. Select [Next] to install “3DForceFX 5600, nVIDIA GeForceFX 5600”
driver.

20
6. Select [Finish] to restart the computer.
To a new system:
1. SELECT the “Display” icon from control panel and then tab on
“Settings” screen.
2. Select Advanced at selection bar.
3. Click on Adapter tab.
4. Click the Change button at Adapter Screen
5. Click [Specify the location of the driver (Advanced)] then check
Next.
6. Insert Software’s CD to CD-ROM.
7. Click Specify a location then under Copy manufacturer’s file
from statement you may input D:\Win9x, click the Next button.
(Where D is the letter of your CD-ROM drive, typically, D or E
drives, etc.)
8. Click Next to install “3DForceFX 5600, nVIDIA GeForceFX
5600” driver.
9. Click the Finish button.
10. Click the Yes button next to restart computer.
InstallShield

Program:
Since the Microsoft InstallShieldprogram has been added into our
software’s CD, the Display Driver Installation and its procedures are
much easier for users to run with Windows98/Me operating systems.
When you power-up the computer and boots-up in Windows, the Plug-
n-Play detects new hardware and pops-up install wizard. Do Not
[Cancel] because you must place a default display setting from
Microsoft Windows for your video adapter, then restart your Windows.
After the desktop has loaded completely, insert the software’s CD into
