jbc DS360 User manual

DS360
Micro Desoldering Iron
INSTRUCTION MANUAL

Tip
Ref. C360004
Through-Hole Desoldering Ø 1.2
Micro Desoldering Iron ............................................................ 1 unit
Tip Ref. C360004 already inserted
Manual ............................ 1 unit
Ref. 0028149

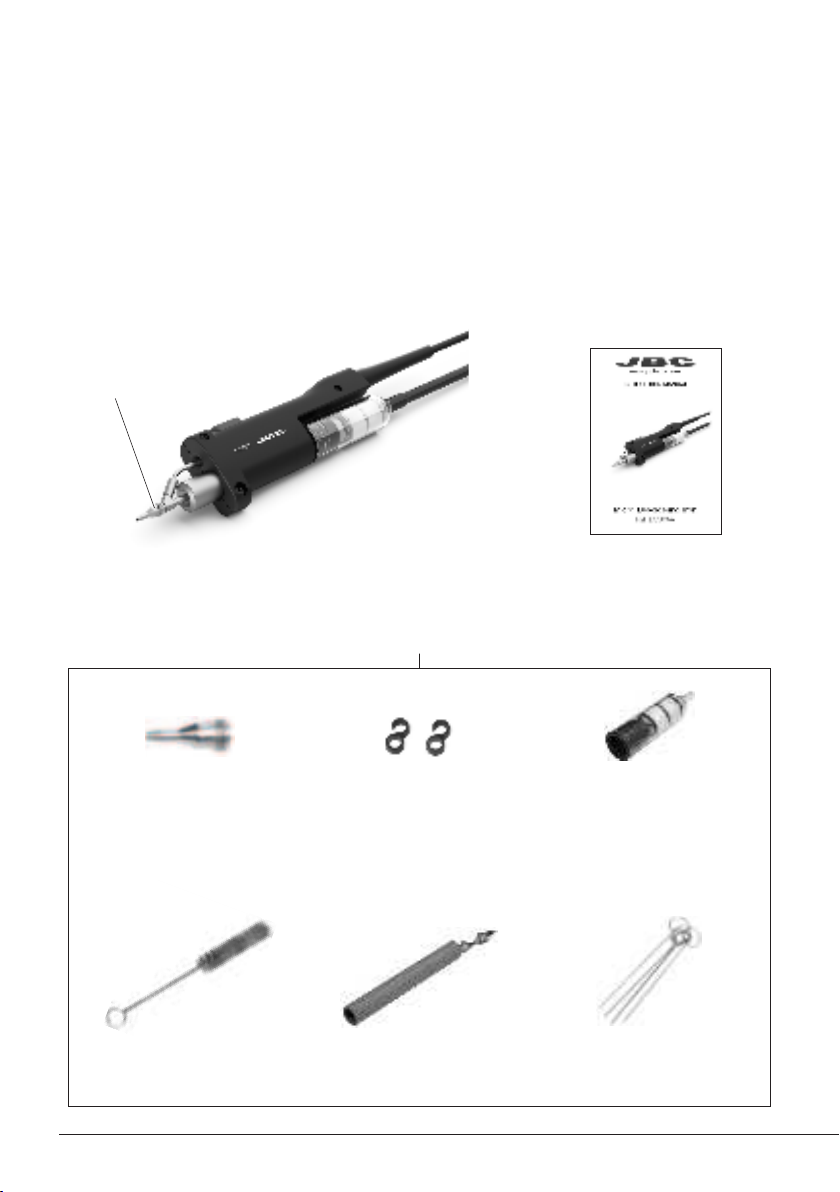

Packing List
The following items are included:
This manual corresponds to the following reference:
- DS360-A
DS360 Accessories
Ref. 0010259
Cleaning Rods .............. 1 unit
Ref. 0008466
Tips .......................... 10 units
Ref. C360002 (x5)
C360004 (x5)
Cleaning Brush ......... 1 unit
Ref. 0008297
Union Flanges ......... 2 units
R ef. 0 0113 56
Solder Collector ..... 2 units
Ref. 0008467
Filter ........................... 2 units
Ref. 0008473
2

Desoldering process
When desoldering, use a tip with a diameter larger than the pad being desoldered. This will achieve
maximum suction and thermal efficiency.
The vacuum pump will continue to run for a few seconds. This makes sure that the vacuum
circuit is completely empty. If there are any solder remains left on a terminal, just resolder it
with fresh solder and repeat the desoldering operation.
Connection
Micro Desoldering Iron
Ref. DS360-A
to Desoldering Module
to Stand
Suction Filter
Ref. 0821830
Supplied with
Desoldering Module
Place the tip so that it
fits over the component
terminal.
When the solder liquefies,
gently rotate the tip so
that the component
terminal can be lifted off.
Press the vacuum pump
button long enough to
remove the solder.
3. Aspirating1. Placing 2. Rotating
3

Heating
Element
Filter
Fixing
Screw
Fixing
Screw
Changing Heating Element
1. Remove the filter before changing the heating
element.
2. Remove the fixing screw and take out the
heating element.
Note: For the following operations, turn off the station or disconnect the tool and wait until the
tool temperature drops to room temperature.
Desoldering Iron Maintenance
3. Insert the new heating element into the tool. 4. Tighten the fixing screw and insert the filter.
Filter
Heating
Element
4

Tube
Filter
Filter
Filter
Tube

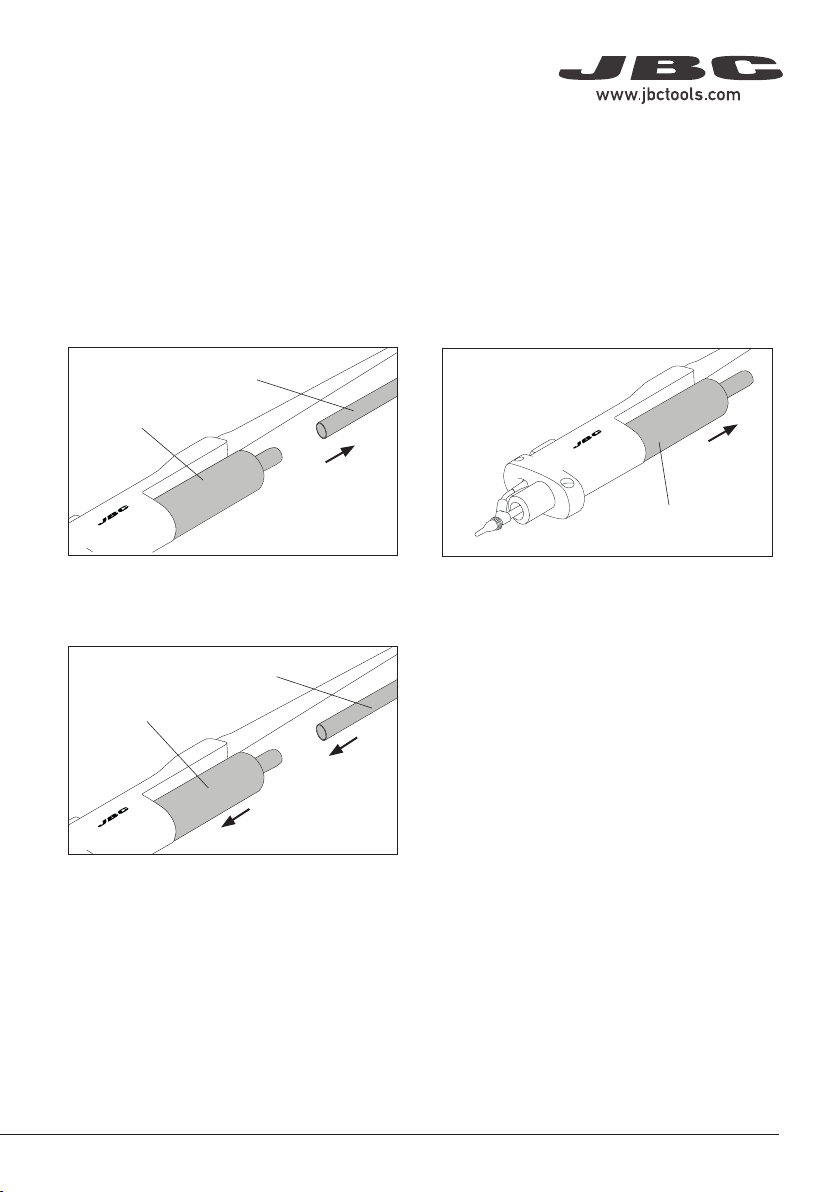

Changing Iron Filter
1. Remove the tube from the filter. 2. Remove the filter form the tool.
3. Insert a new filter (ref. 0008473) into the tool
and mount the tube onto the filter.
5

Filter Solder
Collector
Solder
Retention
Cleaning
Brush
Solder
Collector
Solder
Retention
Filter
Cleaning Solder Collector
1. Remove the filter before cleaning the solder
collector.
3. Use the cleaning brush (ref. 0008297) to
clean the solder collector inside or replace it for
a new one.
2. Take out the solder collector with the metal
solder retention.
4. Insert the solder collector with the metal
solder retention into the heating element.
Note: For this operations, turn off the station or disconnect the tool and wait until the tool
temperature drops to room temperature.
5. Mount the filter onto the tool.
6

Pliers
Pliers
Cleaning
Rod
Changing Tips
1. To remove the tip, use a pair of flat-nosed
pliers, twist the tip and pull.
2. To fasten the tip, do not hold it on the spring
clamp. Place the pliers directly in front of the
spring.
Note: This operation should be done while the tip is hot and at a minimum temperature of
250°C, so that any tin left inside is still molten.
Cleaning Tips
The tip hole should be periodically cleaned.
Note: Let the tool cool down before
performing this operation.
Choose the cleaning rod diameter according to
the tip size. Put the rod at the tip, gently move it
back and forth while turning it slightly.
Tip Care
To prevent tip oxidation cover tip with solder tin when not in use. Note: Do not press the vacuum
pump button while tinning the desoldering tip, as the fumes given off by the flux would quickly block
the ducts and the air filter.
Compatible Tips
DS360 uses C360 tips. Different sizes are
available for through-hole desoldering and for
pad cleaning. Find the model that best suits
your soldering needs at: www.jbctools.com
Through-Hole
Desoldering
Pad Cleaning
7

Maintenance
Before carrying out maintenance, always switch the device off and disconnect it from the mains. Allow
the equipment to cool down.
- Use a damp cloth to clean the tool. Alcohol can only be used to clean the metal parts.
- Periodically check that the metal parts of the tool and stand are clean so that the station can detect
the tool status.
- Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat transfer to the solder joint.
- Periodically check all cables and tubes.
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
8

It is imperative to follow safety guidelines to protect health and prevent electric
shock, injury, fire or explosions.
Safety
- Do not use the tool for any purpose other than soldering or rework. Incorrect use may cause fire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode. The
soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- It is necessary to turn the station off before changing tips.
- Heat can cause inflamable products to ignite even when out of sight.
- Be careful with the remains of liquid tin. Avoid flux coming into contact with skin or eyes to prevent
irritation.
- Utmost care must be taken with liquid tin waste which can cause burns.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- This appliance can be used by children over the age of eight as well as persons with reduced physical,
sensory or mental capabilities or lacking of experience provided that they have been given adequate
supervision or instruction concerning use of the appliance and understand the hazards involved.
Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
9

Notes
10

Notes
11

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
0028149-012 2
DS360
Micro Desoldering Iron
Ref.: DS360-A
- Total Net Weight: 176 g / 0.39 lb
- Package Dimensions / Weight: 300 x 125 x 65 mm / 341 g
(L x W x H) 11.81 x 4.92 x 2.56 in / 0.75 lb
Complies with CE standards.
ESD safe.
Specifications
