JBJ Lighting T5Ho-24 User manual

TRANSWORLD AQUATIC ENTERPRISES INC.
WWW.JBJLIGHTING.COM

TABLE OF CONTENTS
Important Safety Instructions 3—5
TRINITY™ - PARTS PAGE 6—7
Dimensions 8
Introduction 9
Getting Started 10-11
Lighting 12-15
Maintenance Log 16-17
Maintenance Notes 18-19
2

A. If the appliance falls into water, DON’T reach for it! First un-
plug it and then retrieve it. If the electrical components of the
appliance get wet, unplug the appliance immediately.
B. Carefully examine the appliance after installation. It should
not be plugged in if there is water on parts not intended to be
wet.
C. Do not operate any appliance if it has a damaged cord or
plug, or if it is malfunctioning or if it is dropped or damaged in
any manner.
D. To avoid the possibility of the appliance
plug or receptacle getting wet, position
aquarium stand and tank to one side of a wall
mounted receptacle to prevent water from
dripping onto the receptacle or plug. A “drip
loop”, shown in the Figure at the right should
be arranged by the user for each cord con-
necting an aquarium appliance to a recepta-
cle. The ”drip loop” is that part of the cord be-
low the level of the receptacle or the connec-
tor if an extension cord is used, to prevent
water travel along the cord and coming in contact with the re-
ceptacle. (Continued on pg 4)
WARNING
To avoid possible electric shock, special care should be taken
since water is employed in the use of aquarium equipment. For
each of the following situations, do not attempt to repair your-
self: return the appliance to an authorized service facility for ser-
vice or discard the appliance.
READ ALL SAFETY INSTRUCTIONS BEFORE USE.
DANGER
To guard against injury, basic safety precautions should be ob-
served, including the following:
3

D. (Continued from pg 3)
If the plug or the receptacle do get wet, DON’T unplug the
cord. Disconnect the fuse to the circuit breaker that supplies
power to the appliance. Then unplug and examine for the pres-
ence of water in the receptacle.
E. Close supervision is necessary when any appliance is used by
or near children.
F. To avoid injury, do not contact moving parts or hot parts
such as heaters, reflectors, lamp bulbs, and etc.
G. Always unplug an appliance from the outlet when not in
use, before putting on or taking off parts, and before cleaning.
Never yank the cord to pull plug from the outlet. Grasp the plug
and pull to disconnect
H. Do not use an appliance for other than intended use. The
use of attachments not recommended or sold by the appliance
manufacturer may cause an unsafe condition.
I. Do not install or store the appliance where it will be exposed
to the weather or to temperatures below freezing.
J. Make sure an appliance mounted on a tank is securely in-
stalled before operating it.
K. Read and observe all the important notices on the appliance.
L. This Appliance has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will fit in a polarized out-
let only one way. If the plug does not fit fully in the outlet, re-
verse the plug. If it still does not fit, contact a qualified electrician.
Never use with an extension cord unless plug can be fully in-
serted. Do not attempt to defeat this safety feature.
M. This appliance is intended FOR HOUSEHOLD USE ONLY.
4

SAVE THESE INSTRUCTIONS
It is important to keep this hood appliance clean. Always un-
plug the appliance before performing maintenance or clean-
ing of the exterior of this hood. Wipe exposed surfaces care-
fully with a damp terrycloth to remove any dust or mineral
deposits which may collect over time. Make sure all surfaces
are dry before re-plugging into an electrical outlet. To prevent
scratching the aquarium, use a damp terrycloth when clean-
ing. Never use algae scrapers, scouring pads, razor blades,
glass cleaner or other such abrasives.
Please carefully read the entire “Owner’s Manual” for proper
operation procedures before proceeding with turning on this
appliance and adding livestock such as fish, corals, and inverte-
brates.
CLEANING
SERVICING
OPERATION
In order to assure proper electrical connections and polarity,
replacement parts and servicing should be performed only by a
qualified electrician.
5

PARTS EXPLODED VIEW & IDENTIFICATION
6

PART # Name
T5 1 ALUMINUM CASE—TOP
T5 2 ALUMINUM CASE—FRONT
T5 3 SIDECAP—RIGHT
T5 4 SIDECAP—LEFT
T5 5 SWITCH
T5 6 POWER CORD—T5
T5 7 STRAIN RELIEF BUSHING
T5 8 LEG STAND—HINGE
T5 9 LEG STAND—ARM SUPPORT
T5 10 LEG STAND—ARM SUPPORT
T5 11 LEG STAND—SCREW
T5 12 LED—FEMALE POWER CORD
T5 13 LED—STRAIN RELIEF BUSHING
T5 14 T5—ELECTRONIC BALLAST
T5 15 FAN-12 VOLT CONVERTER
T5 16 FAN-CIRCUIT BOARD
T5 17 FAN-CIRCUIT BOARD TRAY
T5 18 COOLING FAN
T5 19 ALUMINUM CASE—GROMMET
T5 20 ALUMINUM CASE—REAR
T5 21 1 WATT LED
T5 22 LED—MOISTURE PROOF COVER
T5 23 T5—LAMP SOCKET
T5 24 T5– LAMP SOCKET TRAY
T5 25 T5-LAMP SOCKET TRAY
T5 26 T5-PARABOLIC REFLECTOR
T5 27 T5-HIGH OUTPUT LAMP
T5 28 SPLASH GUARD LENS
T5 29 LED -TRANSFORMER
7

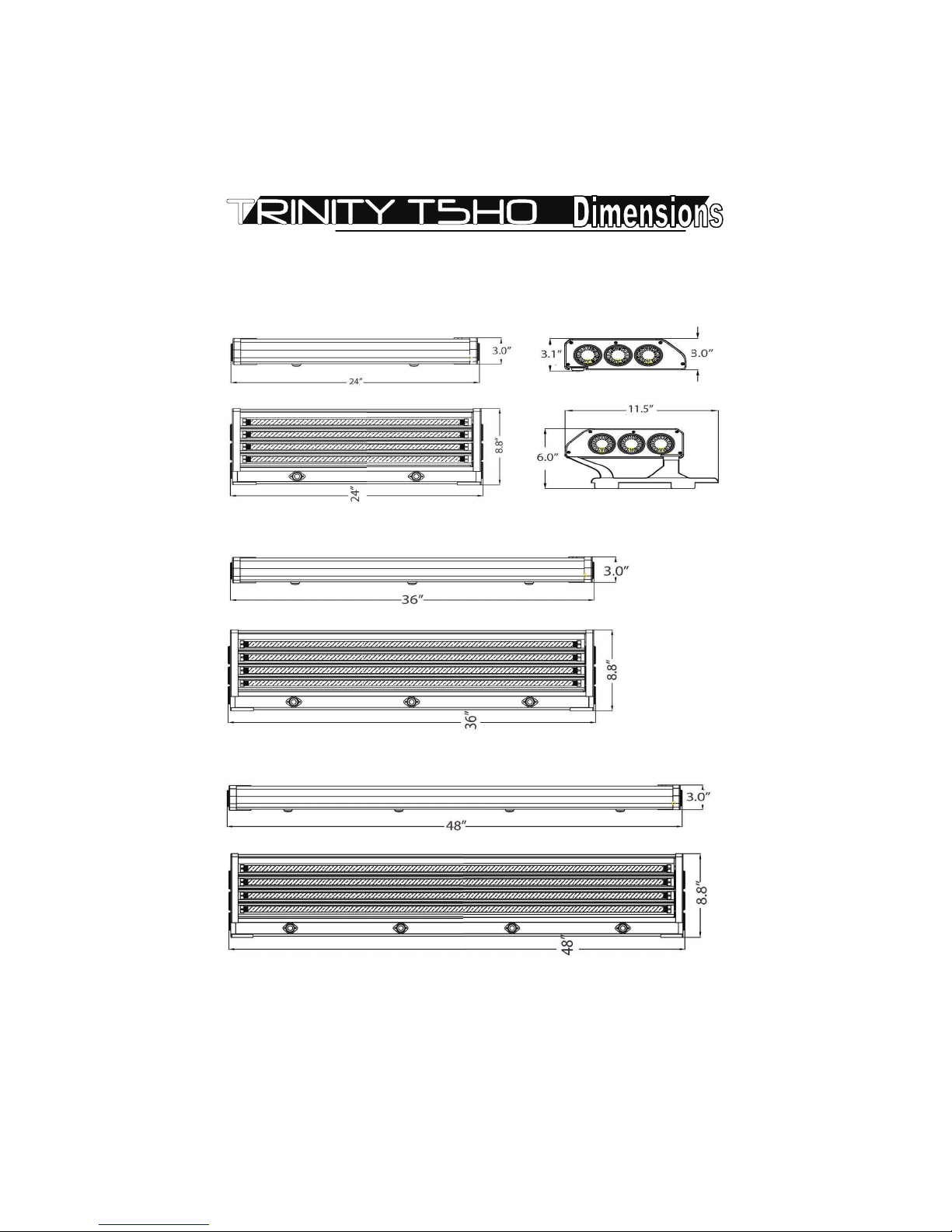

DIMENSIONS
Model # T5HO-24
Model # T5HO-39
24W x 4 + 1W x 2 Nite-Vu LEDs
39W x 4 + 1W x 3 Nite-Vu LEDs
54W x 4 + 1W x 4 Nite-Vu LEDs
Model # T5HO-48
8

This sleek lighting fixture offers 24 hour photo-
period cycles that mimic sunrise, daylight, sun-
set, and moon lighting.
T5 high output lamps are 5/8” diameter fluorescent tubes that
are produced in higher wattage configurations to produce a
tremendous of lumens for live corals and invertebrates.
INNOVATIVE DESIGN
AROUND THE CLOCK ILLUMINATION
INDIVIDUAL PARABOLIC LAMP REFLECTORS
TRINITY™ fixtures are equipped with individual lamp reflectors to
maximize reflective efficiency.
Thank you for purchasing the TRINITY™ T5HO illumination sys-
tem. TRINITY™ fixtures are offered in 24”, 36”, and 48” lengths.
These low profile fixtures are compact and modern in style. Fix-
tures are intended for use above covered aquariums with Flip
Top Stands.
TRINTY™ fixtures are preinstalled with dual cooling fans and in-
dependent power cords for use with timers.
Our highly efficient parabolic reflector encompasses each lamp
for maximum light penetration for corals and invertebrates.
9

WARNING
Do not plug into electrical outlet until all lamps are installed cor-
rectly

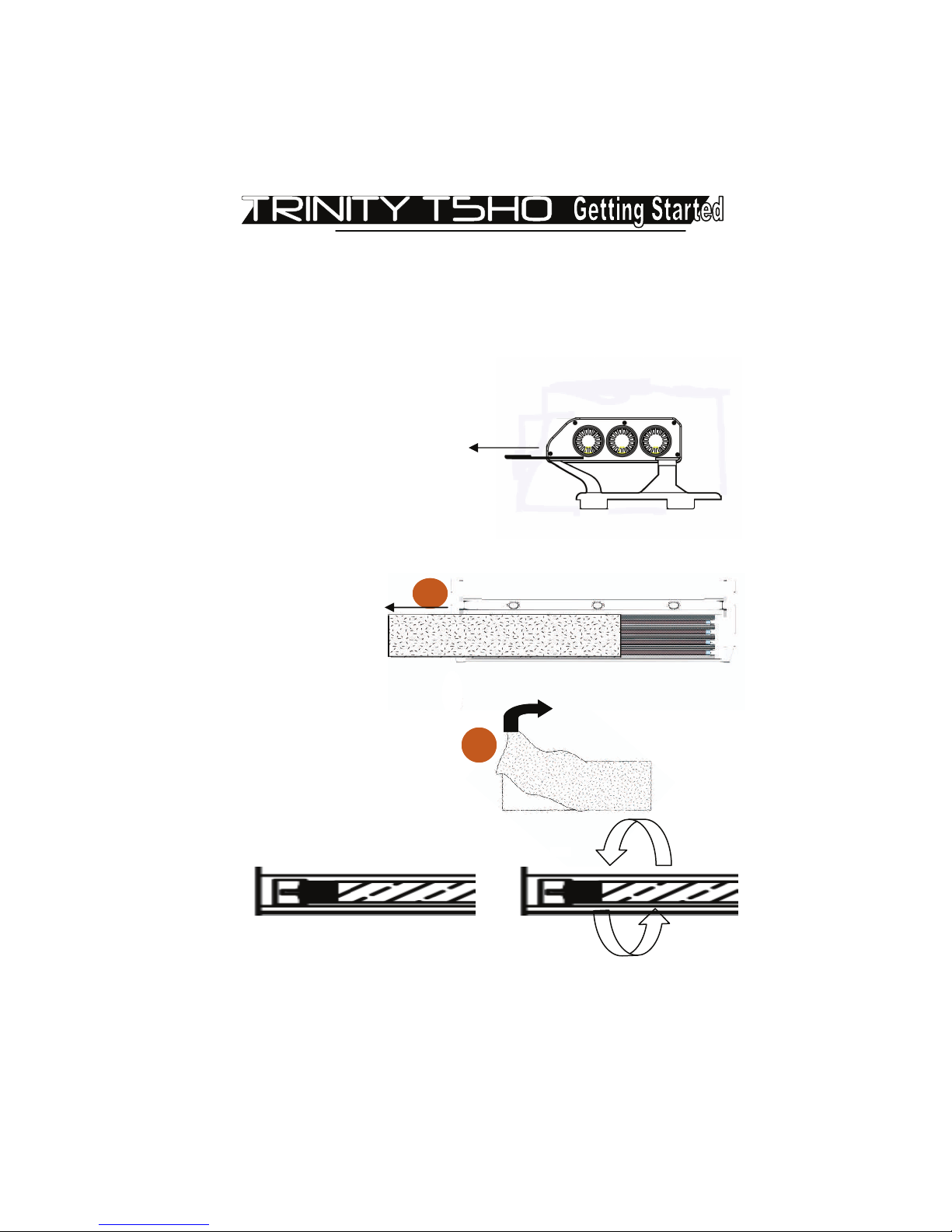

REMOVING PROTECTIVE FILM OFF SPLASHGUARD LENS
REMOVING PROTECTIVE FILM OFF SPLASHGUARD LENS
INSTALLING T5 LAMPS
1
2
1/4 Turn
Locate the Sliding Tab on the
right sidecap.
Pull out Sliding Tab
Gently slide out Splash Guard
Lens
1. Slide out Splash
Guard Lens
Carefully align the bi-pins into the socket
Rotate the lamp until it locks into socket
2. Peel off Protective
Film off Splash Guard
Lens
10

INSTALLING—FLIP TOP LEG STANDS
Your TRINTIY™ fixture includes our Flip-Top Leg Stands that raise
the fixture for maximum reflection and allows the fixture to be
raised back for routine maintenance and cleaning. The innova-
tive design fits all glass and acrylic aquariums.
A. Insert stands into the “Sliding Track” on the underside of the
fixture and adjust to tank size.
B. Tighten plastic screw to lock.
C. Flip light fixture up and it will stay in the upright position .
11

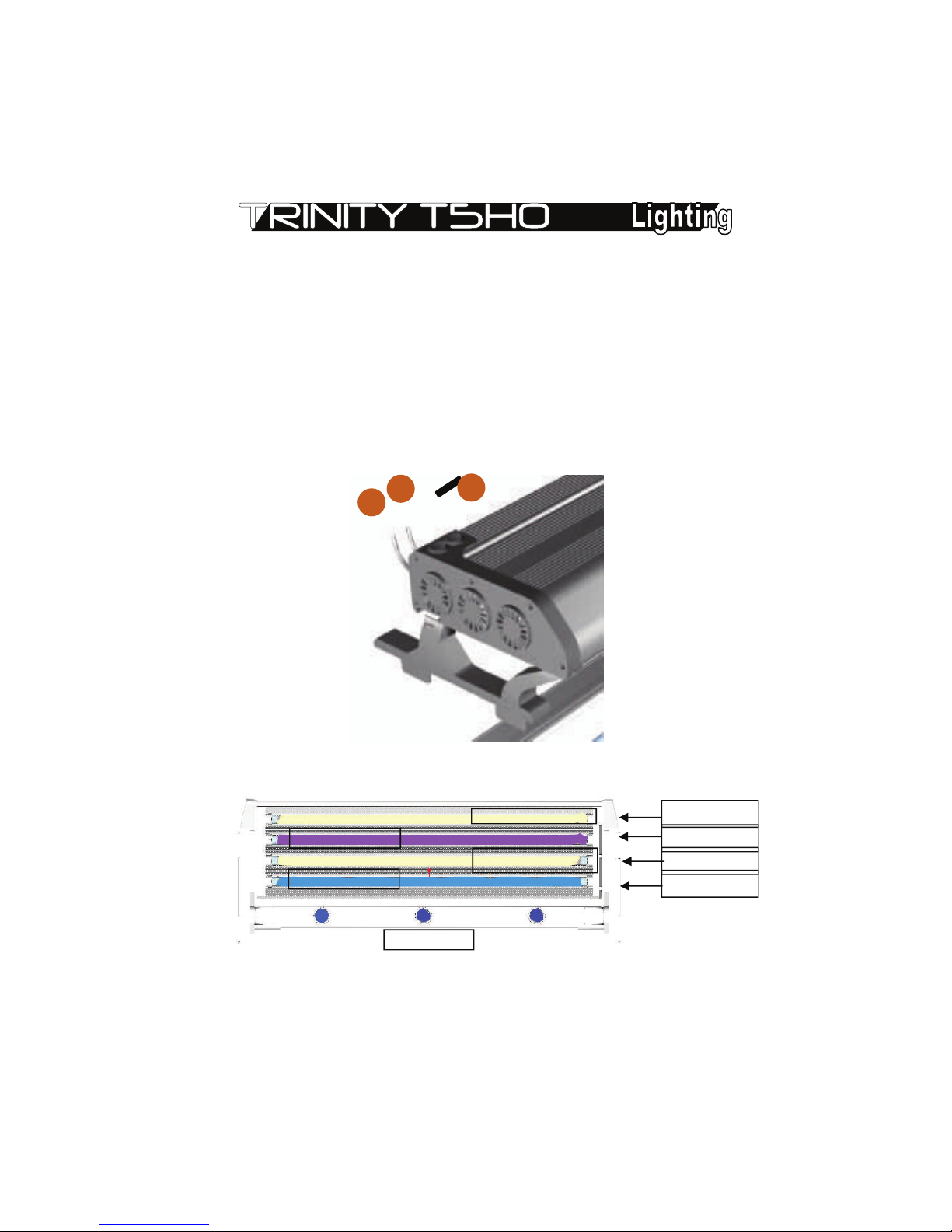

TRINITY™ POWER CORDS & LAMP LAYOUT
1. Daylight Power Cord
- Controls Rows 1 & 3
2. Dawn/Dusk Power Cord
- Controls Rows 2 & 4
3. Nite Vu—LED Power Cord
-Controls Moonlights
NITE-VU LEDs
10K DAYLIGHT
420nm ACTINIC
10K DAYLIGHT
460nm ACTINIC ROW 4
ROW 3
ROW 2
ROW 1
1.
3.2.
12

UTILIZING TIMERS FOR LIGHT CYCLES
TURNING ON YOUR LIGHTING SYSTEM
(Moonlights)
We recommend purchasing 2 grounded tim-
ers from your local hardware or electronics
store for use with the lighting fixture.
You will be able to automate sunrise/sunset and daylight
photoperiods by simply adding these simple devices.
Your TRINITY™ fixture is installed with 1 Watt Nite-Vu LED’s
that simulate nocturnal cycles with very dim blue light that
casts sparkling rays that shimmer for a more natural light cycle
commonly found in nature.
A. Connect the single female prong cable from the fixture to
the small block transformer. We recommend always keeping
this plugged into an electrical outlet without a timer.
B. The Nite-Vu LED lighting is very dim not to disturb the night
cycles of fish but just bright enough to watch their nocturnal
behaviors. The Nite-Vu LED lighting is best seen when sur-
rounding light is turned off in the room.
13

TURNING ON YOUR LIGHTING SYSTEM
(DAWN/DUSK)

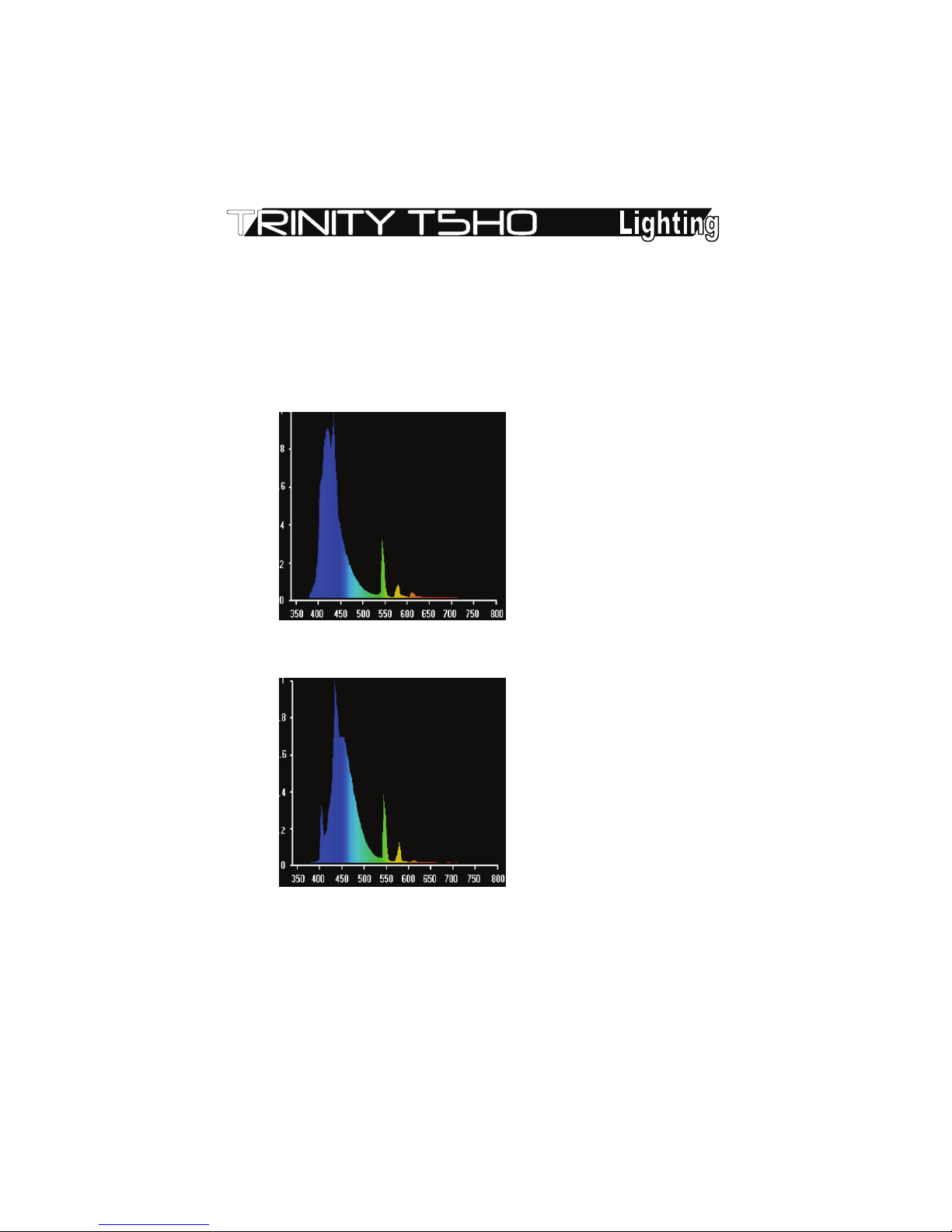

Your TRINITY™ fixture is installed with (2) type of Actinic
Lamps
A. 420 Nanometer—Utilizes 03 phosphors to create a bril-
liant purple fluorescence for photosynthesis
420 nm
460 nm
* Lamp should be inserted into Row 2 or 4
* We recommend that the timer be set to turn on 2 hours
before the daylight starts and stay on 2 hours after the day-
light turns off to simulate a sunrise/sunset effect
B. 460 Nanometer—Utilizes phosphors to produce a bright
blue wavelength
14

TURNING ON YOUR LIGHTING SYSTEM
(DAYLIGHT)
10,000K
Your TRINITY™ fixture is installed with (2) daylight 10,000K
Lamps.
A. 10,000K— Simulates high intensity daylight for promoting
zooxanthalle production. Produces a crisp white spectrum.
* Lamps should be inserted into Rows 1 & 3
* We recommend the daylight lamps to be on for 6-8
hours per day.
* Plug into a household timer for 6-8 hours of a day. Fans
will simultaneously start to keep the hood at proper oper-
ating temperatures.
15

MODEL T5HO-24 T5HO-36 T5HO-48
DIMENSIONS T5 LAMP QTY 24W x 4 39W x 4 54W x 4 T5 LAMP KELVIN (2) 10K DAYLIGHT
(1) 420nm ACTINIC (1) 460nm ACTINIC
(2) 10K DAYLIGHT (1) 420nm ACTINIC (1) 460nm ACTINIC
(2) 10K DAYLIGHT (1) 420nm ACTINIC (1) 460nm ACTINIC
AMPS/VOLTS 0.56/120 1.15/120 1.15/120 BALLAST TYPE FULHAM –ELECTRONIC FULHAM-ELECTRONIC FULHAM—ELECTRONIC LIFE OF T5 LAMP 9-12 Months 9-12 Months 9-12 Months FAN VOLTAGE 12 Volt 12 Volt 12 Volt FAN RPM 2300 2300 2300 LIFE OF FAN 9-12 Months 9-12 Months 9-12 Months MOON LIGHT LED QTY 1W x 2 1W x 3 1W x 4 LED DRIVER POWER DC 500mA DC-500mA DC-1000mA LIFE OF LED LIGHT 3 Years 3 Years 3 Years
RECOMMENDED MAINTENANCE
16

DATE MAINTENANCE
17

18

19

Visit us at www.jbjlighting.com
TransWorld Aquatic Enterprises, Inc
3730 W. Century Blvd #3
Inglewood, CA 90303
