JBJ HB-15 User manual

Reaction HOB
Hang-On-Back Power Filter
HB-15
HB-45
HB-55
User Guide

2JBJ AQUARIUMS 3
www.jbjaquarium.com
[email protected]
[phone]
TRANSWORLD AQUATIC ENTERPRISES, INC.
3730 W Century Blvd, Ste. #3
Inglewood CA 90303
Table of
Contents
SAFETY INFORMATION
General Guides
REACTION HOB
Specications
Parts Diagram & Identication
GETTING STARTED
Mounting Pump on Filter Body
Water Intake Assembly
Flow Control Valve Assembly
Filter Cartridge Placement
Leveling Wheel & Mounting Filter to Aquarium
Powering Up & Flow Control
POLICIES
Limited Warranty
Warranty Registration
4
4
6
6
7
8
8
8
9
10
11
11
12
12
13
TABLE OF CONTENTS

4JBJ AQUARIUMS 5
DANGER - TO AVOID POSSIBLE ELECTRICAL SHOCK.
Special care should be taken to avoid possible electric shock,
since water is employed in the use of aquarium equipment. Do
not attempt any repairs by yourself; return the appliance to an
authorized service facility for service, or discard the appliance.
1. If the appliance falls into water, DON’T reach for it! First,
unplug it and then retrieve it. If electrical components of
the appliance get wet, unplug the appliance immediately.
2. Carefully examine the appliance after installation. Unplug
the appliance if there is water on parts not intended to get
wet.
3. Do not operate any appliance if it has a damaged cord or
plug, or if it is malfunctioning, or if it has been dropped or
damaged in any manner.

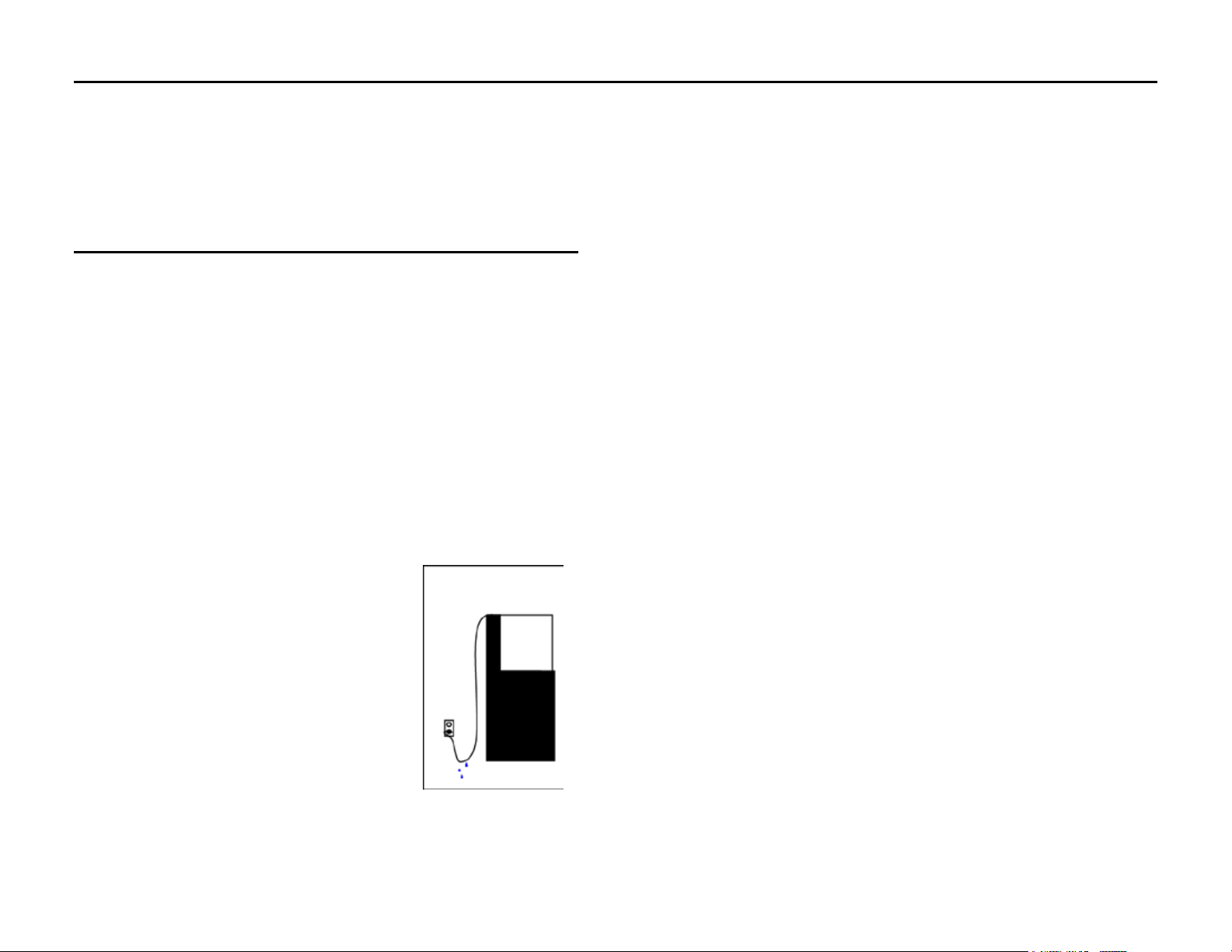

4. Arrange a “drip loop” for each
cord connecting an aquarium
appliance to an outlet. The
“drip loop” is the part of the
cord below the level of the
outlet that prevents water
from traveling along the cord
and coming in contact with
the outlet.
5. If the plug or outlet should get
wet, do not unplug the cord.
Disconnect the fuse or circuit
breaker that supplies power
to the appliance. Once the power has been disconnected,
unplug the cord and examine it for the presence of water in
the outlet.
Safety
Information
6. Always unplug the appliance from an outlet when it is
not in use. Also unplug it before cleaning, and prior to
disconnecting or attaching parts. Never yank the cord to
pull the plug from the outlet. Grasp the plug and pull to
disconnect.
7. The filter is designed to operate while filled with water.
If the filter runs “dry” over an extended period of time,
the motor should be examined to determine if its plastic
surfaces have warped or melted. If so, replace the motor.
8. Do not use an appliance for anything other than its intended
use. Do not use attachments that are not recommended
or sold by the manufacturer; they may cause an unsafe
condition.
9. Do not install or store the appliance where it will be
exposed to the weather or to temperatures below freezing.
10. Make sure the appliance is securely installed before
operating it.
11. This appliance has a polarized plug (one blade is wider
than the other). As a safety feature, this plug will fit in a
polarized outlet only one way. If the plug does not fully
fit into the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician. Never use with an extension
cord unless the plug can be fully inserted. Do not attempt
to defeat this safety feature.
12. To avoid injury, do not touch hot or moving parts.
13. Read and observe all notices on the appliance.
14. Supervise children closely when they are near or using the
appliance.
SAFETY INFORMATION

6JBJ AQUARIUMS 7
Reaction HOB
HB-15
Up to 20 Gallons
7” x 4” x 12” in
4.6 W
80 GPH
HB-45
Up to 40 Gallons
9” x 5” x 13” in
6.5 W
130 GPH
HB-55
Up to 50 Gallons
10.5” x 6” x 14” in
8.6 W
190 GPH
MODEL:
TANK SIZE:
EXT. SIZE:
WATTAGE:
FLOW RATE:
MODEL:
TANK SIZE:
EXT. SIZE:
WATTAGE:
FLOW RATE:
MODEL:
TANK SIZE:
EXT. SIZE:
WATTAGE:
FLOW RATE:

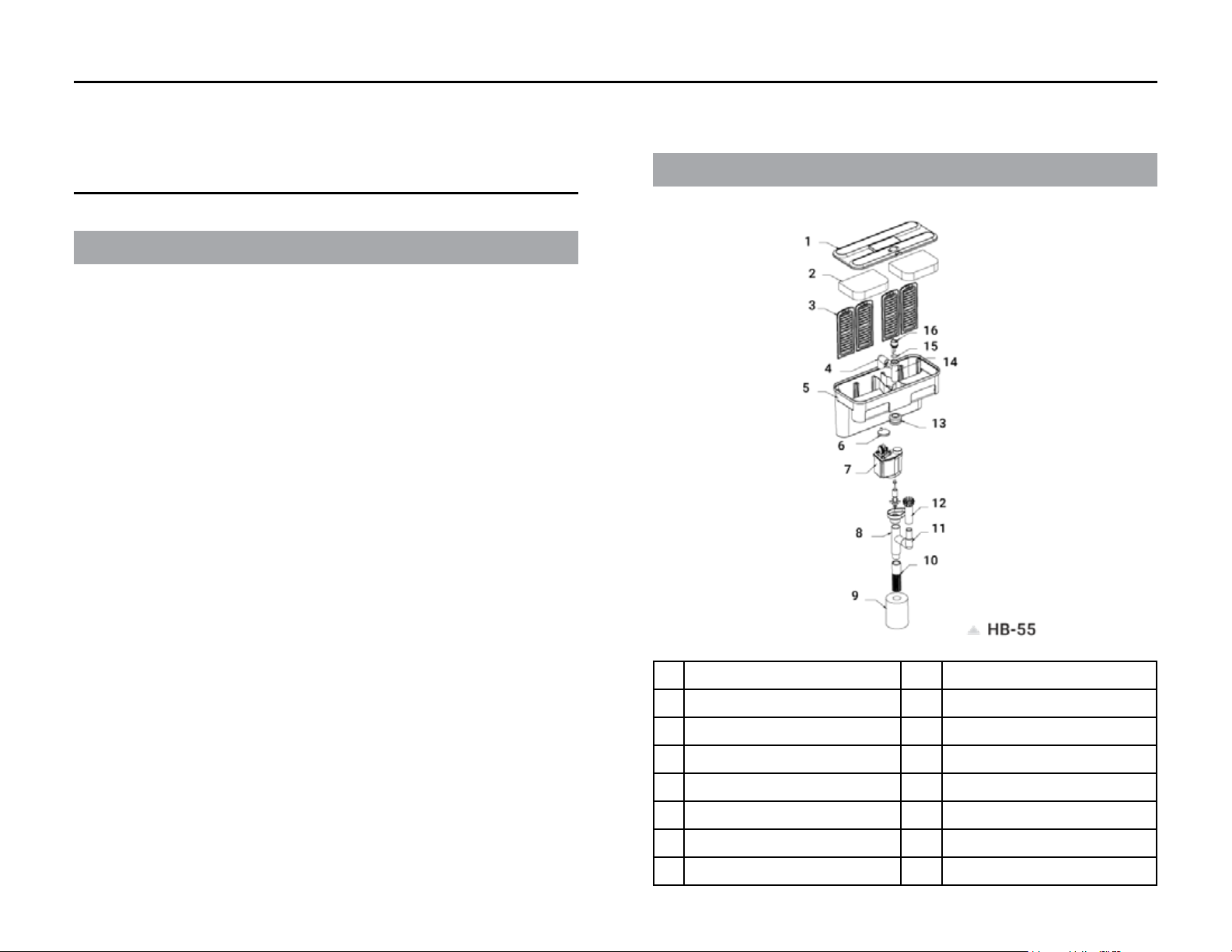

1Filter Cover 9Prelter Sponge
2Filter Sponge 10 Prelter Pipe
3Filter Cartridges 11 Surface Skimmer Elbow
4Intake Elbow 12 Surface Skimmer
5Filter Body 13 Rubber Sleeve
6Leveling Wheel 14 Flow Control Pipe
7Power Head 15 O-Ring
8T-Pipe 16 Flow Control Valve
Specications
Parts Diagram & Identication
REACTION HOB SPECIFICATIONS

8JBJ AQUARIUMS 9
1. Mounting Pump on Filter Body
• Insert pump outlet into opening on bottom of main lter
body. Make be sure that the pump tube in fully inserted
into the rubber sleeve.
• Secure pump to lter body by tightening screw clockwise.
2. Water Intake Assembly
• Connect T-pipe with surface skimmer elbow and prelter
pipe.
• Slide prelter sponge over the prelter pipe.
• Mount surface skimmer pipe to surface skimmer elbow.
• Connect entire assembly to the water inlet on lter body.
(Refer to gure 3 & 4 on next page)
Getting
Started
GETTING STARTED
3. Flow Control Valve Assembly
• Connect ow control valve elbow to ow control pipe.
• Place O-ring into the ow control pipe and insert the ow
control knob into the ow control pipe.
• Connect ow control assembly to the lter body.

10 JBJ AQUARIUMS 11
4. Filter Cartridge Placement
• Slide lter cartridge into main lter body.
• Place lter sponge onto the top of the water outlet.
• Place lter cover onto the lter body.
5. Leveling Wheel & Mounting Filter
to Aquarium
• Insert leveling wheel on the bottom of the lter body.
• Mount lter onto aquarium.
• Adjust the leveling wheel to make sure lter is level.
6. Powering Up and Flow Control
• Ensure there is enough slack in the cable to create a drip
loop before plugging the lter into an electrical socket.
• Adjust the water ow to the desired ow by turning the
valve.

12 JBJ AQUARIUMS 13
6 MONTH LIMITED WARRANTY
Reaction HOB is warrantied to the original purchaser against defective
material and workmanship for 6 months from the date of original purchase.
This warranty is valid only under the following conditions: additions,
modications, or changes made to the product by the purchaser and not by
the manufacturer shall void this warranty. Damages brought on by abuse,
misapplication, or mishandling also voids this warranty.
This warranty is limited to the repair or replacement of the product at the
discretion of the manufacturer. This warranty does not cover personal
injury, property loss, including livestock or damage (direct, incidental, or
consequential) arising out of use of this product. This warranty gives you
specic rights and you may also have other rights, which may vary from state
to state.
This warranty card must be lled out completely and returned within (14)
days from the date of purchase. Failure to do so will void this warranty. A
proof of purchase from an authorized dealer must be provided when making
a warranty claim.
Upon discovery of a defect, please call us to obtain an RMA #.
Tel: [phone]
Tel: [phone]
All claims should be sent prepaid to the following address:
TRANSWORLD AQUATICS ENTERPRISES, INC.
3730 W Century Blvd, Ste. 3
Inglewood, CA 90308
Limited
Warranty
Please Fill Out Completely and Return within 14 days from date
of purchase. (Please Print)
NAME: _________________________________________________________
ADDRESS: ______________________________________________________
_________________________________________________________________
CITY: ___________________________________________________________
STATE: ________________________________ ZIP: ___________________
PHONE: ________________________________________________________
EMAIL: _________________________________________________________
Yes I would like to receive emails on JBJ News,
New Products, Sales, Rebates!
DATE OF PURCHASE: __________________________________________
MODEL: ________________________________________________________
PURCHASED FROM: ____________________________________________
Please mail warranty registration and Proof of Purchase to:
TRANSWORLD AQUATICS ENTERPRISES, INC.
ATTN: Warranty Dept.
3730 W Century Blvd, Ste. 3
Inglewood, CA 90308
You can also register your product online at www.jbjaquarium.com/register
WARRANTY REGISTRATION
