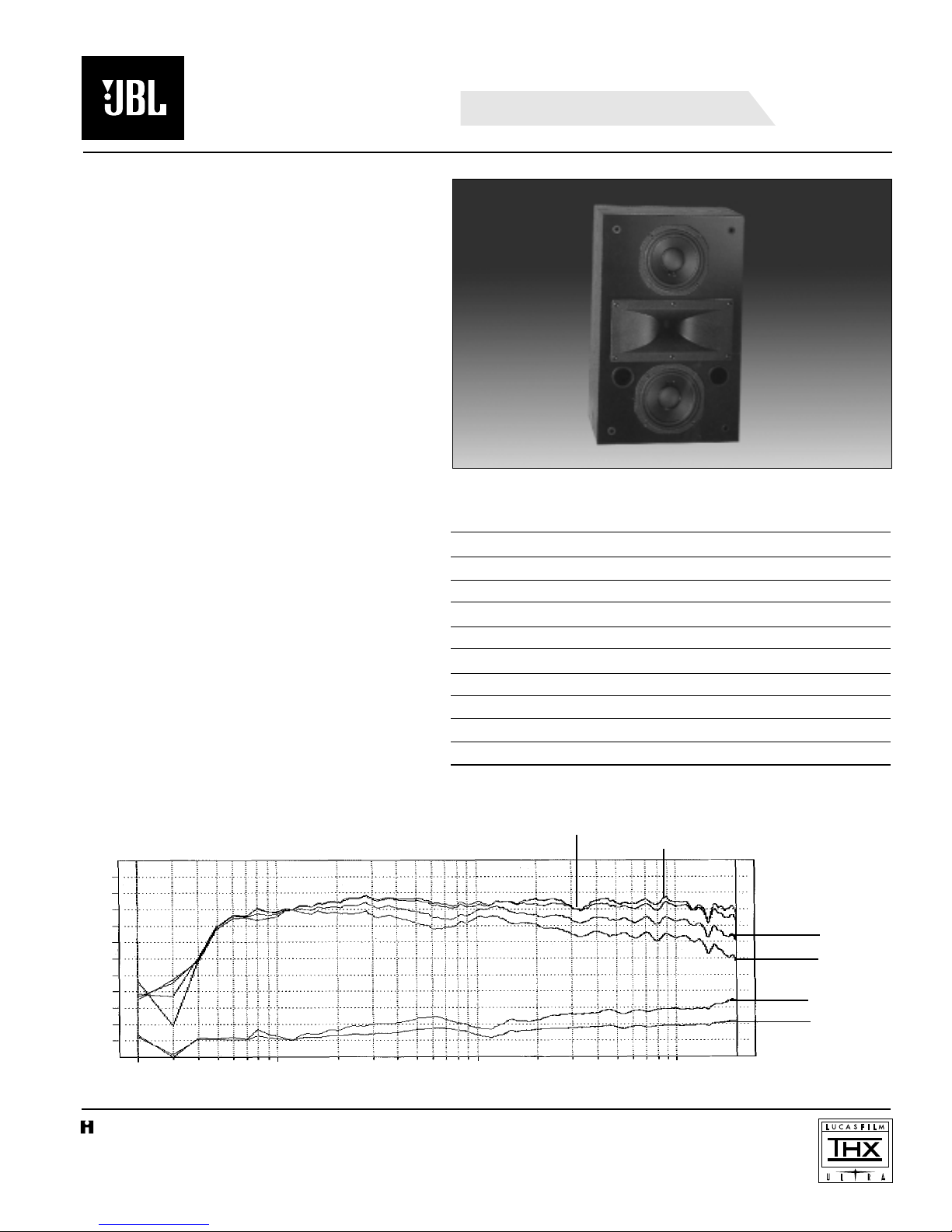

JBL S2C User manual

Quick Spec S2C
SYSTEMS INTEGRATION
SPECIALIST PRODUCTS
Frequency Response 80 Hz - 17 kHz
Sensitivity 91 dB (1 watt @ 1 meter)
Recommended Maximum Amplifier Power 150 Watts
Nominal Impedance 8 Ohms
High Frequency Transducer 2” Pure Titanium Compression Driver
Crossover Frequency 2.8 kHz
Low Frequency Transducer 6.5” Cone Transducer
Weight 65 lbs. /29.5 kg.
Dimensions (H x W x D) 23.5” x 15” x 10.78”
597mm x 381mm x 274mm
Specifications
JBL SIS Products Group: Tel [phone] Fax [phone]
8500 Balboa Boulevard, Northridge, CA 91329
250 Crossways Park Drive, Woodbury, NY 11797
A Harman International Company
On Axis Response* Listening Window
(+/- 30 degrees Horizontal,
+/- 10 degrees Vertical)
Early Reflections
Total Sound Power
Directivity Index
Early Reflection Directivity Index.
100.0
95.0
90.0
85.0
80.0
75.0
70.0
65.0
60.0
55.0
50.0
20.0 100.0 1000.0 10000.0
log frequency Hz
Key Features
◗THX certified L, C, R loudspeaker.
◗2" titanium compression driver – shielded.
◗Bi-radial horn – 80 degrees vertical, 100
degrees horizontal.
◗(2) 6.5" Poron-fiber-cone, cast-frame
woofers – shielded.
◗Vertical orientation.
◗Easily placed behind perforated screens.
◗Black ash semi-gloss finish.
◗Front ported enclosure for easy installation as
free standing or built-in.
Description
◗Synthesis 2 vertical front loudspeaker.
Frequency Response

Quick Spec S2C
SYSTEMS INTEGRATION
SPECIALIST PRODUCTS
–
+
Side
Back
Front
Top
Footprint
15
15
23.5
23.5
10.75
15
10.75
10.75
15
23.5
JBL SIS Products Group: Tel [phone] Fax [phone]
8500 Balboa Boulevard, Northridge, CA 91329
250 Crossways Park Drive, Woodbury, NY 11797
A Harman International Company
All measurements in inches
