JBL SR-X Series User manual

SR-X Series Users Guide
Part Number: 981-00052-04 Rev A

BeforeYou Begin - Important Information
Product Range
Specifications and Recommended Power

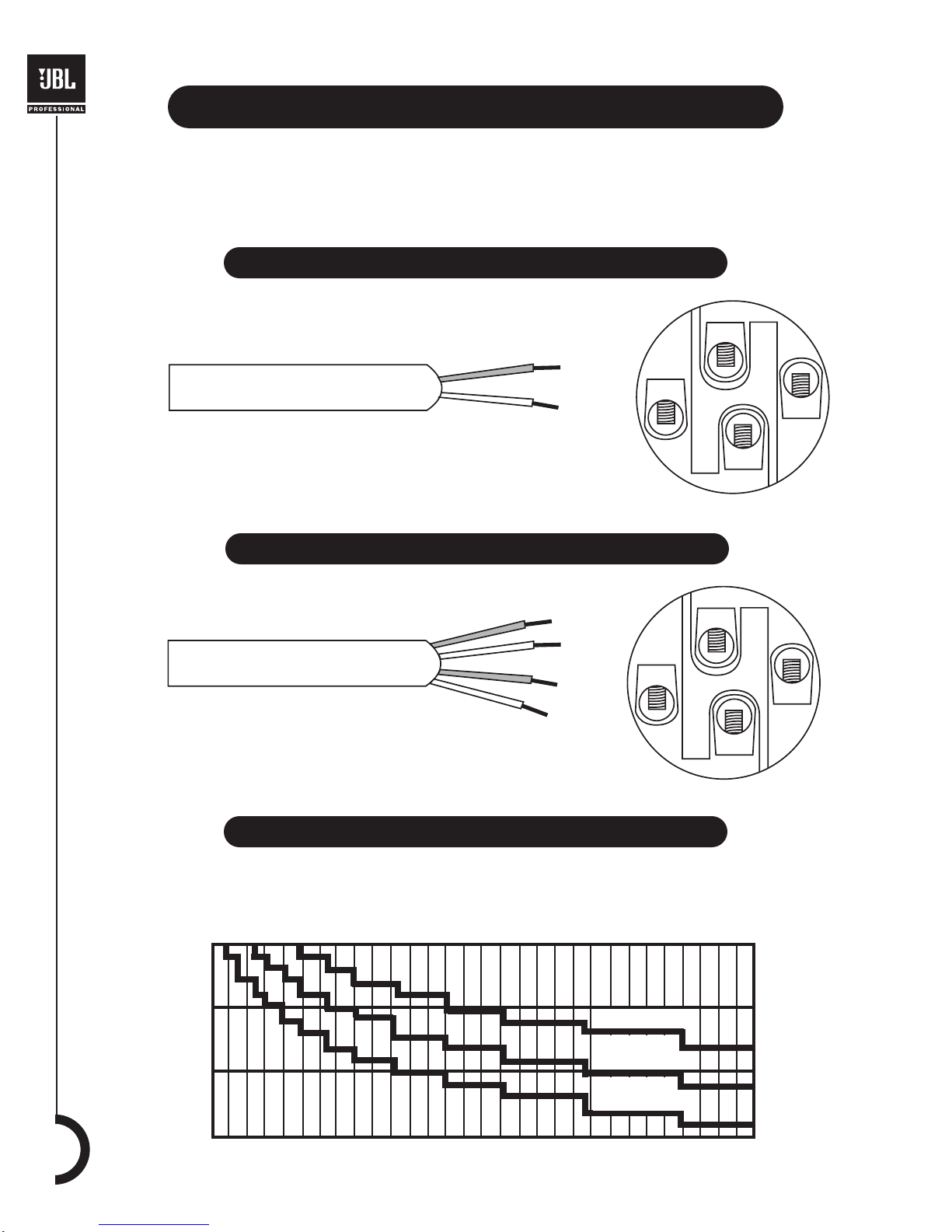

Cable and Connections
Input Panel

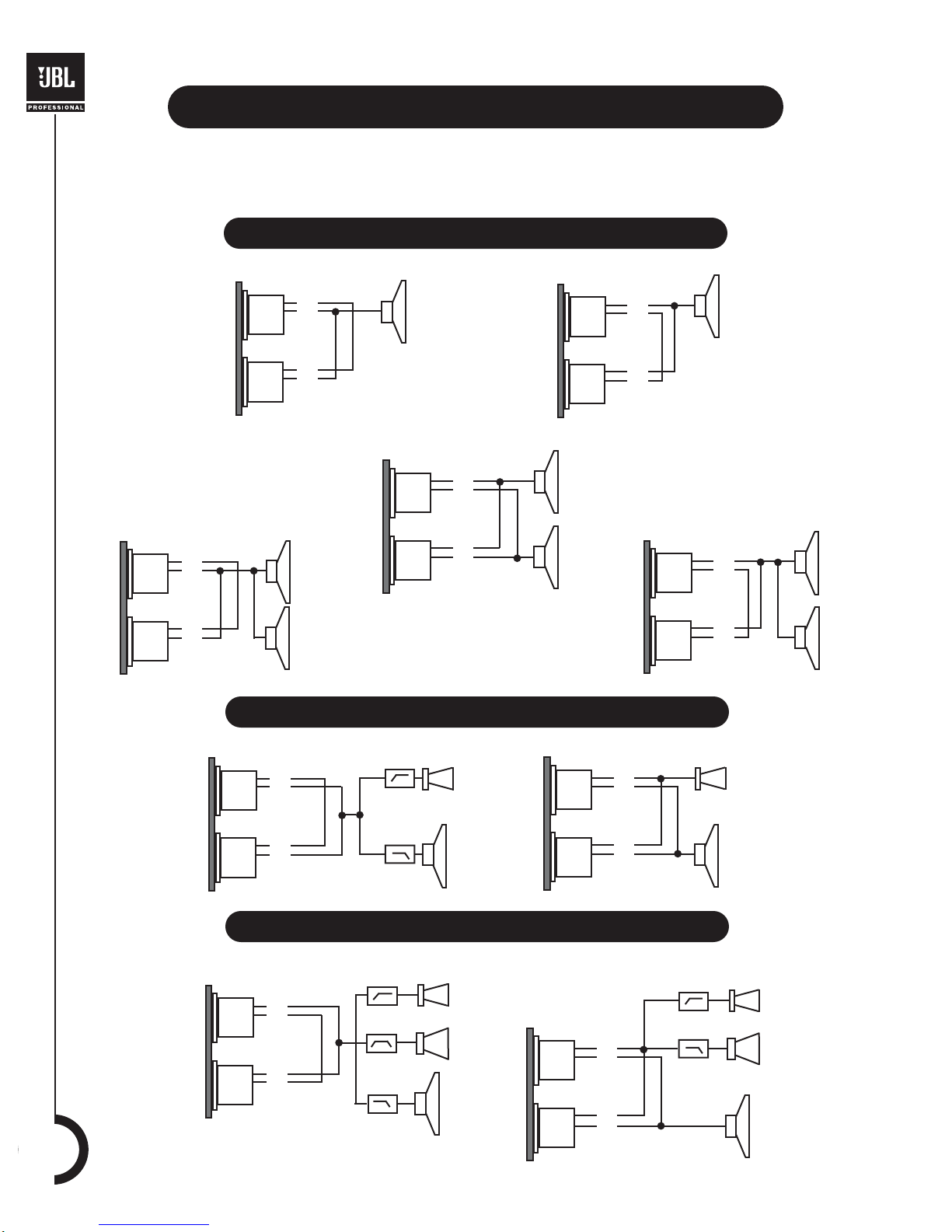

Input Configurations

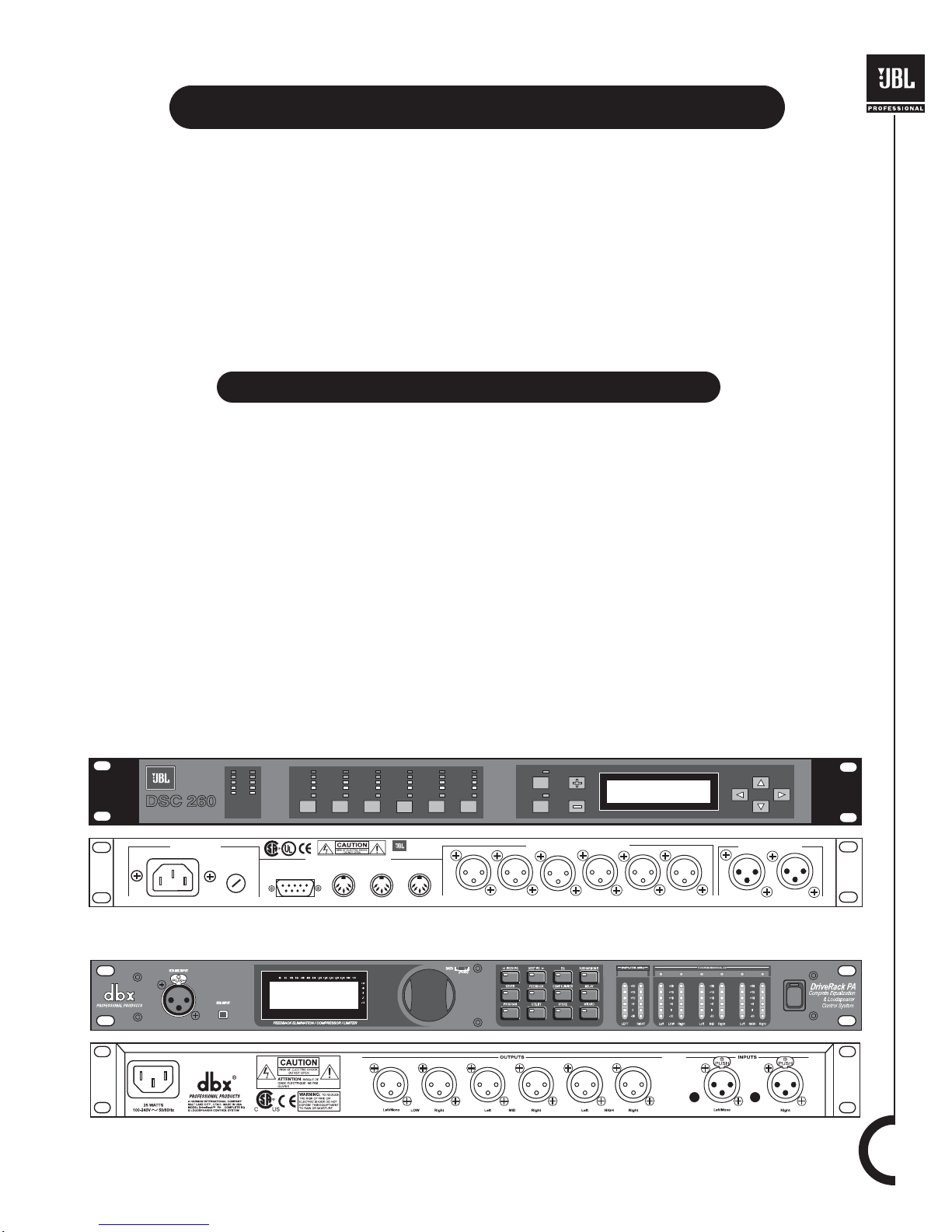

Crossovers and Controllers

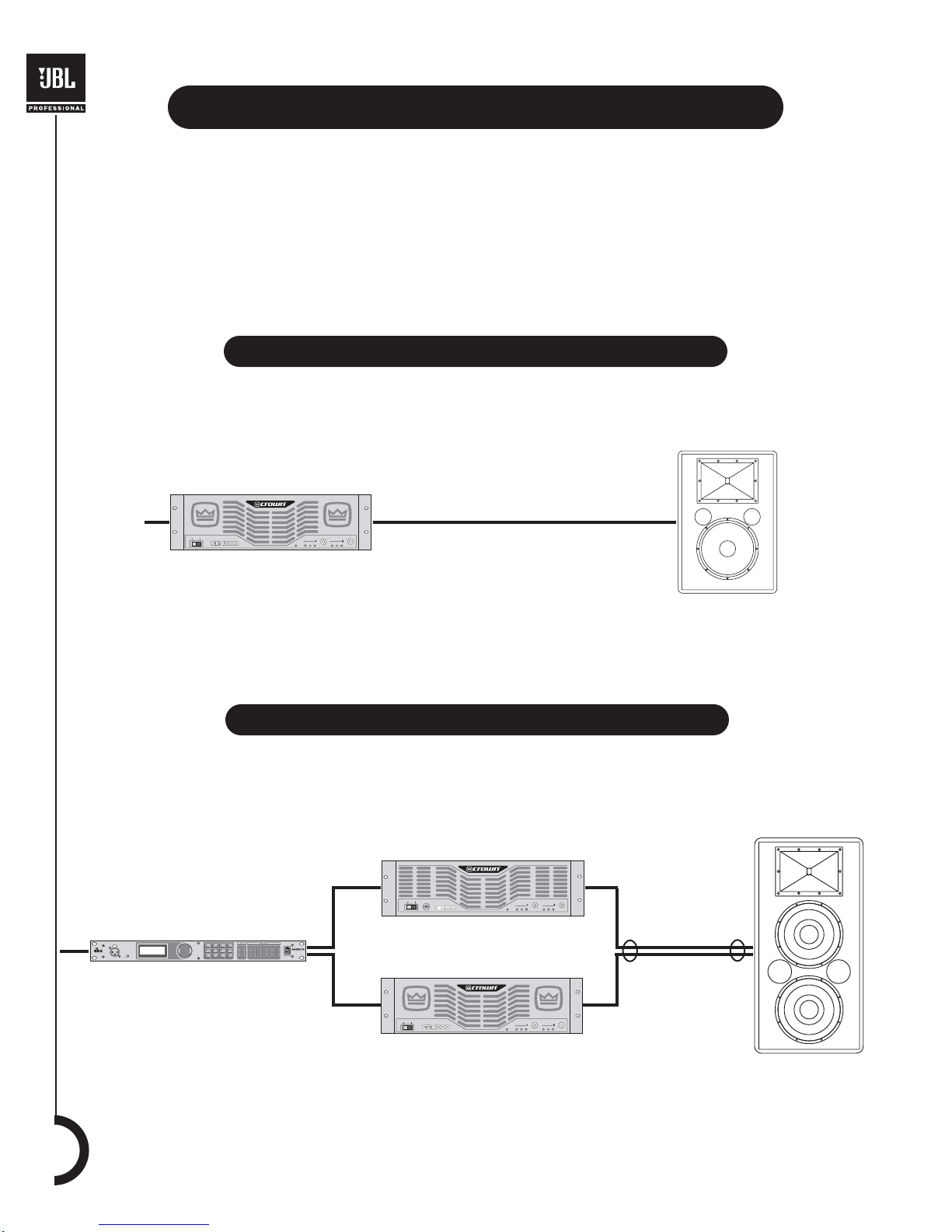

System Configurations

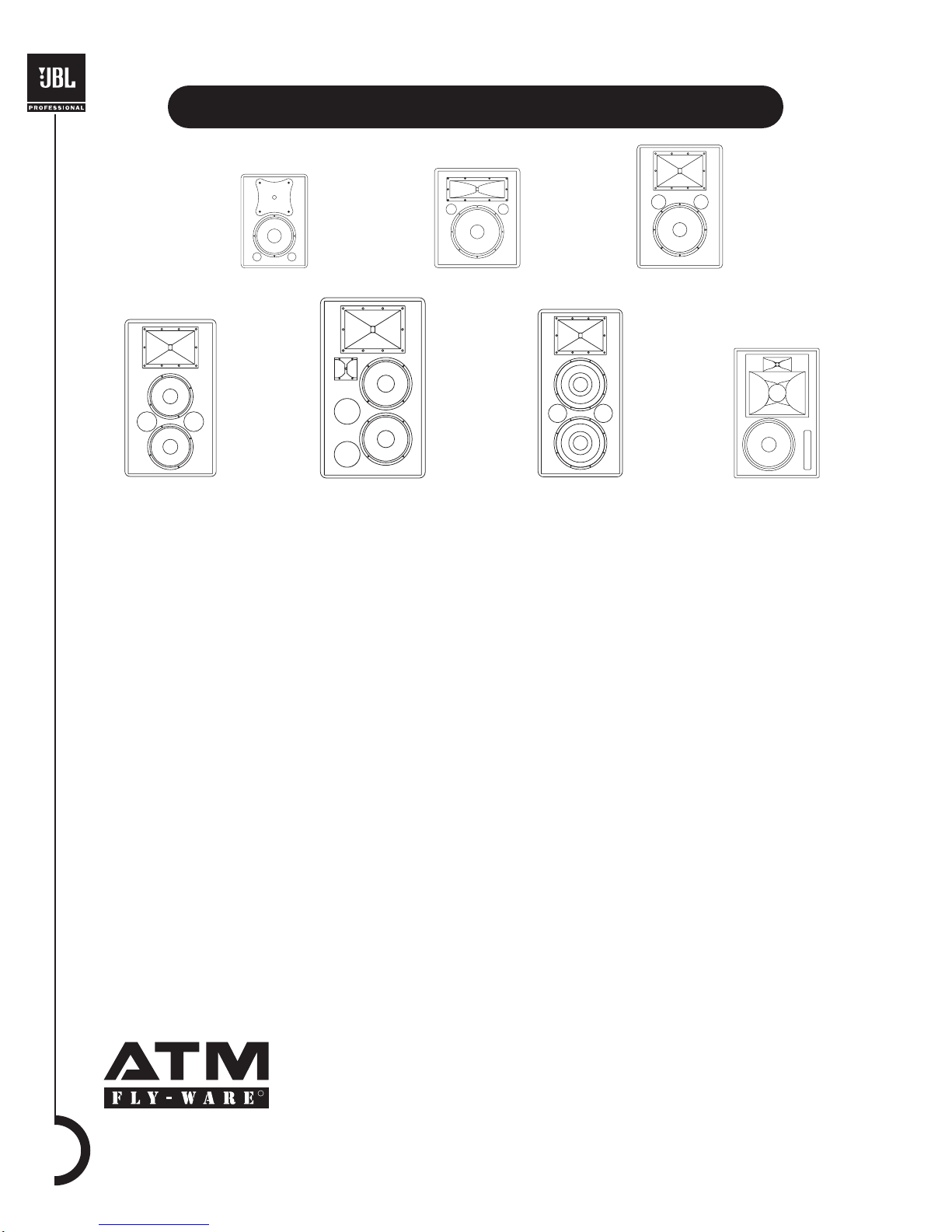

SR-X/F Flying Versions
JBL Warranty and Contact Information
3
4-6
7
8
9
10-11
12
13
14-15
16
CONTENTS
The exclamation point within an equilateral triangle is
intended to alert the users to the presence of impor-
tant operating and maintenance (servicing) instruc-
tions in the literature accompanying the product.
The lightning flash with the arrowhead symbol, within
an equilateral triangle, is to alert the user to the
presence of insulated “dangerous voltage” within the
products enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to humans.
CAUTION: TO REDUCE THE RISK OF ELECTRON-
IC SHOCK - DO NOT REMOVE COVER. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVIC-
ING TO QUALIFIED PERSONNEL.
ATTENTION: POUR EVITER LES RISQUES DE
CHOC ELECTRIQUE, NE PAS ENLEVER LE COU-
VERCLE. AUCUN ENTRETIEN DE PIECES
INTERIEURES PAR L’USAGER. CONFIER L’EN-
TRETIEN AU PERSONNEL QUALIFIE. AVIS: POUR
EVITER LES RISQUES D’INCENDIE OU D’ELEC-
TROCUTION, N’EXPOSEZ PAS CET ARTICLE A
LA PLUIE OU A L’HUMIDITE.
The IEC fuse symbol pictured at the left represents
an approved user replaceable fuse.When replacing
a fuse, make sure to replace with only the correct
type and fuse rating.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings
4. Follow all instructions
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.Install in accordance with
manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than the
other. A grounding-type has two blades and a third grounding
prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit your outlet, consult a
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit the apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Use only with a cart, stand, bracket, or table
specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution
when moving the cart / apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when un-used for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when a apparatus has been damaged in any way, such as
power-cord or plug is damaged, liquid has been spilled, or objects
have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
Explanation of Graphic Symbols Important Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
DO NOT EXPOSE
TO RAIN OR MOISTURE!
ATTENTION
RISQUE DE CHOC ÉLECTRIQUE
NE PAS ENLEVER!
NE PAS EXPOSER Á
LA PLUIE NI Á L'HUMIDITÉ!
2

BEFOREYOU BEGIN
Welcome to the family of discerning sound equipment users who have selected JBL Professional loudspeakers.
This Users Guide contains important information that will help you get the most from your JBL speakers so
please take a few moments to read it and be sure to keep it in a safe place for future reference.
Important Information
Before using your SR-X Series speaker system, please review the following for important information on safety
and protection of your investment in quality loudspeakers.
Rigging / Suspending SR-X Products
SR-X Series speakers are designed for portable applications in which the speakers will be stacked directly on
the floor, stage, speaker stands (SR4702X, SR4722X only), other speakers, or a solid, stable platform. SR-X
Series speakers have no provisions for hanging, rigging or suspension.
SR-X/F Series speakers are similar to SR-X and in addition have provisions for flying.
SR-X/F versions should always be substituted for SR-X if flying or suspending the speaker system is required.
ONLY SPEAKERS SPECIFICALLY DESIGNED FOR FLYING / RIGGING SHOULD BE SUSPENDED. For
further information on suspending speakers contact JBL and request Technical Note Volume 1, Number 14 -
"Basic Principles for Suspending Loudspeaker Systems".
Stand Mounting
Some SR-X models (SR4702X, SR4722X) include a receptacle cup to facilitate mounting on tripod stands.When
using these stands, be sure to observe the following precautions:
•Check the stand specification to be certain it is designed to support the weight of the speaker. Observe all
safety precautions specified by the stand manufacturer.
•Always verify that the stand is placed on a flat, level, and stable surface.
•Route cables so that performers, crew, and audience will not trip over them and pull the speaker over.
•Be sure to fully extend the legs of tripod type stands.
•Position the stand so that the legs do not present a trip hazard.
•Do not attempt to place more than one speaker on a stand.
•Always be cautious in windy, outdoor conditions. It may be necessary to place additional weight (i.e. sand-
bags) on the base of the stand to improve stability.
Stacking Speakers
Safety precautions should be observed when stacking SR-X speakers.
•Verify that the floor or stage on which the speakers will be stacked is flat, level and solid.
•When used outdoors, be aware of winds that could tip a tall speaker stack over.
•Position the speakers to minimize the possibility that performers, crew, or audience will bump into them.
•Under extreme, high-SPL conditions it's possible that speakers on a highly polished surface can "creep."
(i.e. move due to the power of the acoustic energy) Precautions should be taken so that such creeping will
not result in toppling of the speaker stack.
Hearing Damage, Prolonged Exposure to Excessive SPL
SR-X series loudspeakers are easily capable of generating sound pressure levels (SPL) sufficient to cause
permanent hearing damage to performers, production crew and audience members. Proper precautions should
be taken to avoid prolonged exposure to SPL in excess of 85dB.
Exposure to Moisture, Outdoor Applications
While SR-X Series loudspeakers will work great for outdoor sound reinforcement, they are not "weather-proof"
and are not intended for continuous exposure to extremes of humidity, temperature, salt air, or UV rays.
Exposure to outdoor environmental conditions may result in premature failure of components as well as
degradation to appearance.
3

PRODUCT RANGE
The SR-X Series consists of 11 popular configurations including subwoofers, front-of-house systems, and stage
monitors. SR-X models include these features:
•Metalized polyester capacitors are used throughout (instead of cheaper electrolytics) for higher power
handling and lower distortion.
•"Dual-mode" crossovers can be easily switched from full-range to bi-amplified operation. A tamper-resistant,
internal mode selector provides a visible, external indication of the selected mode.
•Dual driver subwoofers may be operated in parallel or discrete mode.
•VGC™ (Vented Gap Cooling) low-frequency transducers control heat build-up to increase power handling
and decrease power compression, providing more acoustic output for every watt of amplifier input.
•13 ply birch enclosures are finished in tough DuraFlex™ that resists the inevitable scuffs and dings a
hard-working speaker suffers during a life of one-nighters.
•Pure titanium diaphragm compression drivers are used in all two & three-way models for high power
handling and reliability.
•Optimized Aperture™ horn/driver combinations reduce throat distortion and provide smooth frequency
response.
•A non-resonant, full-length perforated metal grill provides protection for the components and a rich yet
unobtrusive appearance.
•Trapezoidal enclosures (except SR4715X, SR4718X, SR4719X, SR4702X) for optimal coverage when
splaying multiple cabinets.
•Family footprint on the most popular models provides ease of stacking for larger, full-range systems

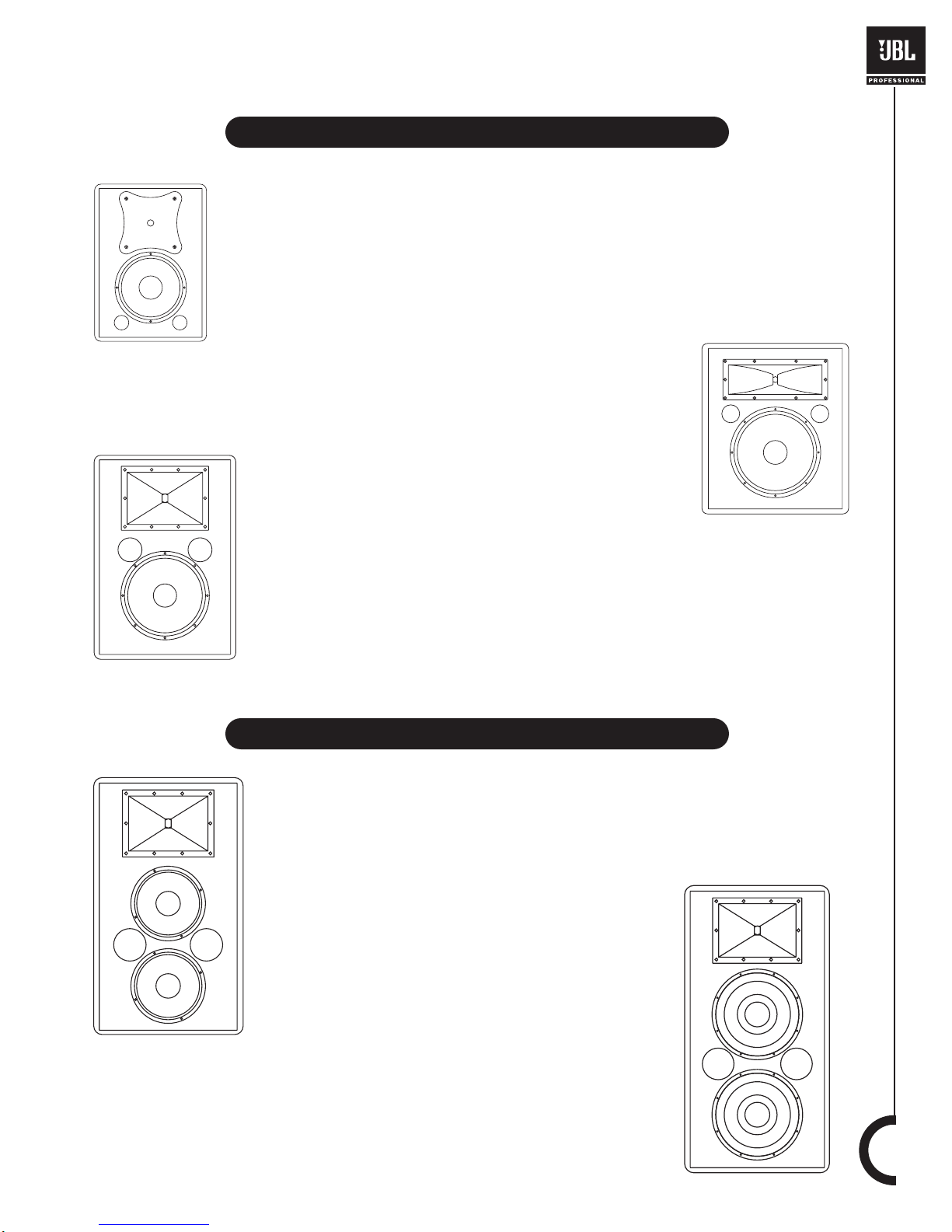

Stage Monitor
SR4702X
12" two-way stage monitor: With 600 watts of power capacity and 95 dB sensitivity, the
SR4702X delivers all the output needed to cut through high stage volumes. Its compact
footprint won't crowd the stage and the low profile won't come between the performer
and the audience. For increased flexibility, a tripod mount socket is provided to facilitate
use as a front-of-house speaker. A "pass-thru" speaker connector allows cleaner
connection of adjacent cabinets driven by the same amplifier.
4

Two-Way Systems
SR4722X
12" two-way compact speaker: A great choice for applications where compact
size, ease of transport, and speaker stand "mountability" are required. For
speech and many music uses, the SR4722X works great by itself. When more
bass is needed, team it up with an SR-X Series sub-woofer. A pole-mount socket
(35 mm) is provided for stand mounting.
SR4725X
15" two-way compact speaker: The 15" two-way system
is a favorite for general music and speech applications.
The SR4725X produces extended low frequencies in a
transportable enclosure.
SR4726X
15" two-way high-output speaker: When the requirement is for very high
acoustic output, extended low-frequency performance, and the convenience of
a one-box system, chose the SR4726X. The large format 2447 compression
driver coupled to an Optimized Aperture™ horn delivers great pattern control
at very high levels with low distortion.
Dual LF,Two-Way Systems
SR4731X
Dual 12" two-way system: With the combined power
of two VGC LF motors and the cone area of dual 12"
speakers, the SR4731X produces incredible
amounts of mid-range power combined with lots of
tight, punchy bass.The transition from the 12" LF
drivers to the large format 2447 compression driver
is very smooth. For extremely high-power
applications requiring earth-moving bass, use
the SR4731X over the SR4719X subwoofer.
SR4733X
Dual 15" two-way system:The SR4733X delivers the
power and performance of separate subwoofer / high-mid
configurations combined with the simplicity of an all-in-
one system. At home in a wide range of live sound and
playback applications, the SR4733X delivers very high
acoustic output combined with lots of extended low bass. 5

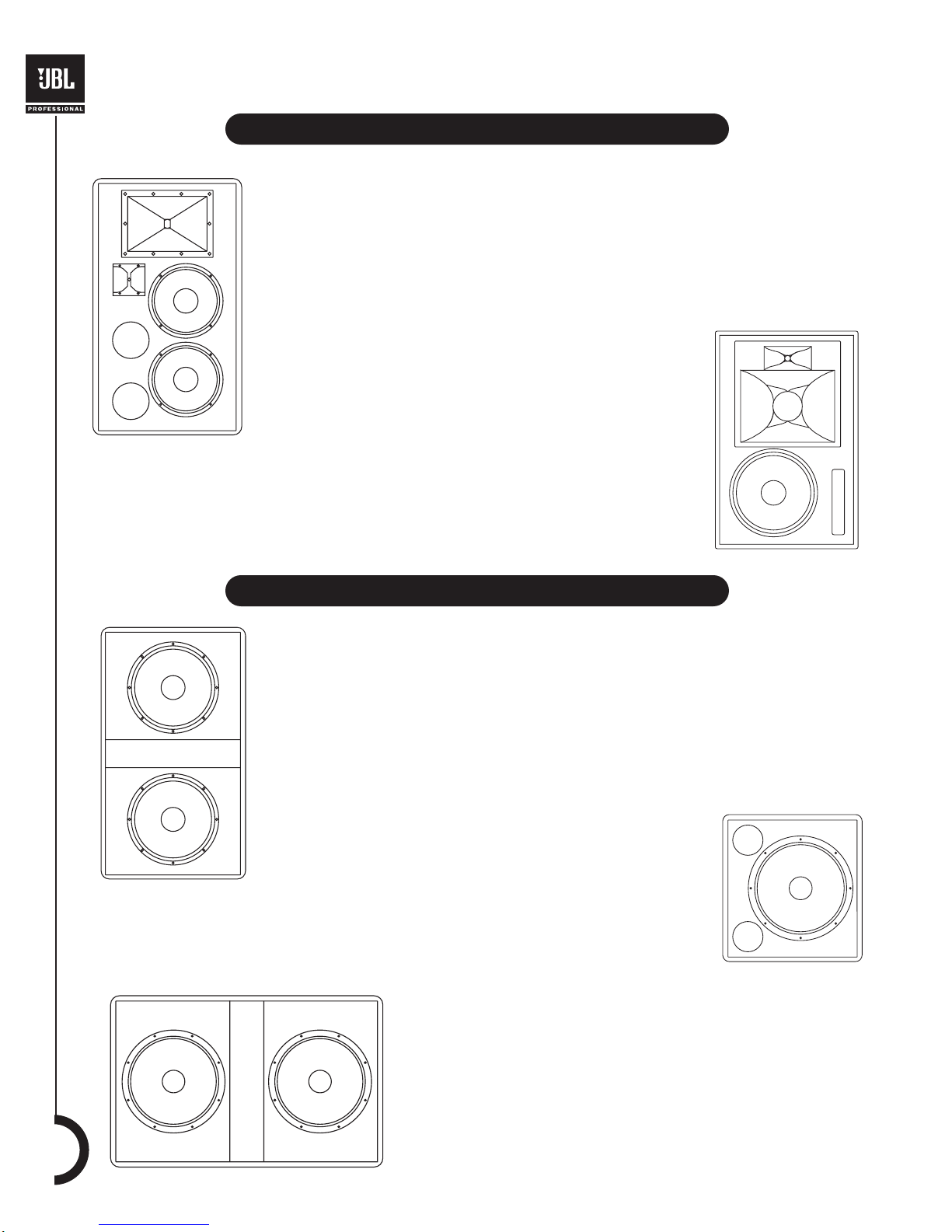

Three-Way Systems
SR4732X
Dual 12" three-way system: Take the SR4731X, add the high-frequency
sizzle of a 2404 UHF driver and you get the ultimate speaker system for
very high-level music playback in medium to short throw applications. In
combination with the SR4719X subwoofer, this is an unbeatable system
for DJ and dance club applications.
SR4735X
15" three-way system: For long-throw applications
in which the power and additional control of a
horn-loaded cone MF driver is desired, choose the
SR4735X.This system boasts extremely wide
frequency response and is a great choice as an
arrayable, front-of-house reinforcement system.
Subwoofers
SR4718X
Single 18" subwoofer: The single 2241 subwoofer produces
pounding bass down to 30 Hz. A top mounted, 35 mm
diameter socket is provided for an optional pole (JBL model
SS3-BK) to elevate a speaker such as the SR4702X or
SR4722X above your subwoofer.The socket is intended to
accommodate speakers up to 100 lbs (45 kg). Observe the
stand mounting precautions outlined in the "Before You
Begin" section of this User's Guide.
SR4715X
Dual 15" subwoofer: For those who prefer the tight, punchy bass of
a 15" sub, the SR4715X is the answer.The SR4715X has the same
footprint as the other SR-X 15" two-way systems (including the dual
LF models) for tight floor stacking.
SR4719X
Dual 18" subwoofer: Capable of delivering a wall-shaking 136 dB of
acoustical output with a frequency range extending to 25 Hz, the
SR4719X is the choice for large rooms, outdoor performance and
high-level sound reinforcement or music playback.The rectangular
enclosure is ideal for stacking any of the SR-X two-way systems for
those who require uncompromising high-level sound reproduction.
6

Model LF Mid HF Horn Rated System Freq Range Crossover Nominal Dispersion Weight Shape Dimensions
Driver Driver Power* Impedance (-10 dB) Frequency Sensitivity** (H X V)
SR4702X 2206H -- 2426H OASR 600 8 42Hz-20kHz 1.3 kHz 95dB 85º x 85º 29 kg Multi-angle 648 x 403 x 356
64 lbs Monitor 25.5 x 15.9 x 14
SR4715X 2226H -- -- -- 1200 4 35Hz-300Hz 80 - 100 Hz 100dB -- 47.2 kg Rectangular 1067 x 616 x 435
(x2) recommended 104 lbs 42 x 24.3 x 17.1
SR4718X 2241G -- -- -- 600 4 38Hz-300Hz 80 – 100 Hz 98dB -- 39.9 kg Rectangular 616 x 613 x 610 mm
recommended 88 lbs 24.3 x 24.1 x 24 in
SR4719X 2241H -- -- -- 1200 4 30Hz-300Hz 80 – 100 Hz 101dB -- 85.3 kg Rectangular 765 x 1219 x 616
(x2) recommended 188 lbs 30.1 x 48 x 24.3
SR4722X 2206H -- 2417H OASR 600 8 42Hz-18kHz 1.2 kHz 95dB 85º x 85º 27.2 kg Trapezoidal 686 x 486 x 333
SR4722X/F 60 lbs 27 x 19.1 x 13.1
SR4725X 2226H -- 2426H 2370A 600 8 35Hz-18kHz 1.1 kHz 98dB 90º X 40º 37.2 kg Trapezoidal 718 x 616 x 435
SR4725X/F 82 lbs 28.3 x 24.3 x 17.1
SR4726X 2226H -- 2447H 2381 600 8 35Hz-20kHz 1.1 kHz 97dB 90º X 50º 48.5 kg Trapezoidal 883 x 616 x 435
SR4726X/F 2383 60º X 50º 107 lbs 34.8 x 24.3 x 17.1
SR4731X 2206H -- 2447H 2381 1200 4 39Hz-20kHz 1.2 kHz 98dB 90º X 50º 59.9 kg Trapezoidal 1067 x 616 x 435
SR4731X/F (x2) 2383 60º X 50º 132 lbs 42 x 24.3 x 17.1
SR4732X 2206H 2447H 2404H 2381 1200 4 39Hz-21kHz 1.2 kHz, 98dB 90º X 50º 62.1 kg Trapezoidal 1067 x 616 x 435
SR4732X/F (x2) 6 kHz 137 lbs 42 x 24.3 x 17.1
SR4733X 2226H -- 2447H 2381 1200 4 37Hz-20kHz 1.2 kHz 100dB 90º X 50º 65.8 kg Trapezoidal 1219 x 616 x 435
SR4733X/F (x2) 2383 60º X 50º 145 lbs 48 x 24.3 x 17.1
SR4735X 2226H M209-8A 2426H MH1 600 8 36Hz-20kHz 340 Hz and 97dB 70º X 50º 50.8 kg Trapezoidal 946 x 616 x 479
SR4735X/F 1.6 kHz 112 lbs 37.3 x 24.3 x 18.9
* IEC filtered random noise with a 6 dB crest factor
**1W@1m (2.83V for 8ohms, 2.00V for 4ohms, ave'd 500Hz-5kHz)
Specifications subject to change without notice
SPECIFICATIONS
DuraFlex
The SR-X loudspeaker system is finished in JBL's DuraFlex™. DuraFlex is tough and inherently flexible and it is
extremely resistant to knocks, scratches and scuffs.The DuraFlex finish on your SR-X speakers is actually much
tougher than the plywood to which it is applied. Note: SR-X enclosures are not paintable. In the event that
cosmetic damage occurs to your speakers, a DuraFlex touch-up kit (PN 16677) is available from JBL.
Recommended Power
The following table shows the recommended amplifier power for SR-X models.
1.Full-range / Parallel: Is the amplifier power required to optimally drive this speaker system when used in full-
range (passive) mode. In the case of dual-driver subwoofer models, this is the power required to drive both
transducers at the same time.
2.HF: Is the amplifier power required to optimally drive the high-frequency section of this speaker system when
used in bi-amp mode.
3.LF: Is the amplifier power required to optimally drive the low-frequency section of this speaker system when
used in bi-amp mode.
4.Discrete: Is the amplifier power required to optimally drive an individual transducer in a dual transducer
subwoofer.
5.±1 or ±2 Pass-Thru: This allows for the convenience of a single conductor cable from the amplifier rack to the
speakers stack, this configuration supplies separate amplifier power to the subwoofer (ie ±2) and to the
mid-high speaker (ie 1 Pass-Thru).
Model Full-Range / Parallel (1) HF (2) LF (3) / Discrete (4)
SR4702X 600 to 1,200W@8Ω100 to 200W@8Ω600 to 1,200W@8Ω
SR4715X 1,200 to 2,400W@4Ωn/a 600 to 1,200W@8Ωx2
SR4718X 600 to 1,200W@4Ωn/a n/a
SR4719X 1,200 to 2,400W@4Ωn/a 600 to 1,200W@8Ωx2
SR4722X 600 to 1,200W@8Ω60 to 120W@8Ω600 to 1,200W@8Ω
SR4725X 600 to 1,200W@8Ω100 to 200W@8Ω600 to 1,200W@8Ω
SR4726X 600 to 1,200W@8Ω150 to 300W@16Ω600 to 1,200W@8Ω
SR4731X 1,200 to 2,400W@4Ω150 to 300W@16Ω1,200 to 2,400W@4Ω
SR4732X 1,200 to 2,400W@4Ω150 to 300W@16Ω1,200 to 2,400W@4Ω
SR4733X 1,200 to 2,400W@4Ω150 to 300W@16Ω1,200 to 2,400W@4Ω
SR4735X 600 to 1,200W@8Ω100 to 200W@8Ω600 to 1,200W@8Ω
7

CABLE AND CONNECTIONS
Passive Systems & Subs (Parallel Mode)
Bi-Amp Systems & Subs (Discrete Mode)
Wire Gauges
Each connector panel incorporates two Neutrik® Speakon® connectors. The second connector facilitates the
ability to "loop through" to other SR-X speakers in the system.The diagrams below detail the cable-side
connections.
Selection of the appropriate wire gauge is important to system operation. A cable that is too light will result in
amplifier power being wasted due to the series resistance of the cable and in loss of low-frequency performance
due to degraded damping factor.
2-
2+
1+
1-
+1
-1
2-
2+
1+
1-
+2
-2
+1
-1
Wire Gauge Chart for 0.5 dB Loss
20
15
10
55
1.5 50
15 100 30 150 46 200 61 250 76 300 91
Length of Run (ft.) / (m)
Wire Size (AWG)
16 Ohm Load
8 Ohm Load
4 Ohm Load
.52
1.65
5.26
16.77
mm2
8

INPUT PANEL
Internal Network Mode Selector
All SR-X models are fitted with the internal network mode selector.
The ability to select the mode of operation provides the sound system user flexibility
in the system configuration, and also permits the system to be upgraded at a later
date. By simply removing the input panel and changing the position of a heavy duty
connector, the system can be configured as either a bi-amp or a passive system.
After replacing the input panel, the network position is indicated on the connector
plate panel.This provides a truly tamper resistant solution to avoid the horrors of a
mis-configuration.
In passive operation, a system can be operated with a minimum of only one
amplifier and no additional system controllers. In bi-amp operation, the system can
be operated for maximum transducer performance and will require the use of
additional amplifiers-and an electronic crossover (see "Crossovers and Controllers").
For Sub systems with more than one transducer, the same ability to select the mode
of operation is provided - but instead of bi-amp/passive selection, the input can be
configured for either parallel woofers (4 ohm) or individual transducer access
(2 x 8 ohm).This can be useful for assuring maximum power transfer from the
amplifier to the transducers.
Please Note:There are no passive network components in the circuit when the
Bi-amp mode is selected. (Except: SR4732X and SR4735X which retain a crossover
section between midrange and HF.)
Changing the Input Mode Connector
1. Remove 6 connector plate retaining screws and
remove the plate.
2. Turn plate over and locate the male connector.
3. Pull out connector and firmly place in socket of
desired system mode - you should be able to see
the yellow indicator in the desired mode window.
4. Replace plate and secure with 6 screws.
Please Note: For SR4715X - SR4719X, the connector is
split to permit discrete mode operation.
IN/OUT
±1 LF
IN/OUT
±2 NC
SR-X SERIES
Impedance: 8Ω
Impedance: 16Ω
±2 HF
±1 Full Range
BI-AMP
PASSIVE
Impedance: 8Ω
JBL PROFESSIONAL
Northridge, CA USA
Made in U.S.A
Serial No.
9
IN/OUT
±1 PASS-THRU
IN/OUT
±2 PASS-THRU
SR-X SERIES
Impedance: 4Ω
±2 LF
±1 LF
Impedance: 4Ω
JBL PROFESSIONAL
Northridge, CA USA
Made in U.S.A
Serial No.
BOTH INDICATORS
DISCRETE MODE
±1 LF 8Ω
±2 LF 8Ω

SR4715X/19X Discrete Mode
In
Out
LF #2
LF #1
± 2
± 1
± 2
± 1
INPUT CONFIGURATIONS
Subwoofers
Two-Way Systems
Three-Way Systems
This section describes the different configurations of Input Connector Panel mode selections.The wiring connec-
tions from the Input Panel to the transducers change when the mode selector is moved. Please Note: Each line
in the diagrams below represents a pair of wires. (E.g. both +1 and -1 connecting wires.)
SR4715X/19X Pin 1 Hot (as shipped) SR4715X/19X Pin 2 Hot
In
Out
LF #2
LF #1
In
Out
LF #2
LF #1
± 2
± 2
± 1
± 1
Passive Mode Bi-Amp Mode
In
Out
HF
LF
In
Out
HF
LF
± 2
± 1
± 2
± 1
± 2
± 1
± 2
± 1
± 2
± 1
± 2
± 1
Passive Mode Bi-Amp Mode
In
Out
HF
LF
In
Out LF
± 2
± 1
± 2
± 1
± 2
± 1
± 2
± 1
MF
HF
MF
LPF
BPF
HPF
LPF
HPF
LPF = Low Pass Filter
BPF = Band Pass Filter
HPF = High Pass Filter
10
LPF
HPF
In
Out
LF
± 2
± 2
± 1
± 1
In
Out
LF
± 2
± 1
± 2
± 1
SR4718X Pin 1 Hot (as shipped) SR4718X Pin 2 Hot
(yellow indicator visible in both windows)

CROSSOVERS AND CONTROLLERS
Digital System Controllers
Digital signal processing technology has made it possible to build sophisticated loudspeaker system controllers
that incorporate into a single unit, the ability to control crossover frequencies, slopes, and filter topology. In
addition, these units may include graphic and parametric equalization, time / phase alignment, and compression /
limiting. Some of these digital system controllers include factory-programmed presets for SR-X series
loudspeakers. As this manual goes to press, these controllers include the JBL DSC260, and the dbx®
DriveRack™ and DriveRack™ PA products.
If you are using a digital system controller that does not include pre-programmed presets for SR-X series loud-
speakers, it may be useful to review the JBL DSC260 settings as a starting point for programming your controller.
A PDF download detailing these settings may be found at www.jblpro.com/pages/tunings/ srx_dsc260.pdf.
Note that various processors will respond to these settings in different ways, so you will probably need to refine
your settings by ear or with the help of acoustical measurement equipment.
As with any software driven device, it is always good practice to check with the manufacturer of your digital
system controller for updates. JBL will also attempt to post notifications of any new developments at
www.jblpro.com
11
DSC 260
DIGITAL SYSTEM CONTROLLER
ACCESS
LAST NEXT
PARAMETER
STORE
(ENTER)
RECALL
MUTE
1
MUTEMUTE
MUTEMUTEMUTE
5
4
32 6
LIMIT
-3dB
-6dB
-20dB
LIMIT
-3dB
-6dB
-20dB
LIMIT
-3dB
-6dB
-20dB
LIMIT
-3dB
-6dB
-20dB
LIMIT
-3dB
-6dB
-20dB
LIMIT
-3dB
-6dB
-20dB
INPUT
AB
CLIP
+6dB
0dB
-6dB
-12dB
CROSSOVER/ALIGNMENT DELAY/GRAPHIC EQ/PARAMETRIC EQ/AUTO/EQ
SR-X series loudspeakers may be operated in bi-amplified mode. In this mode, all crossover components are
bypassed (except in the case of the three-way SR4732X and SR4735X) and the voice-coils of the drivers are
connected directly to the power amplifier outputs. When operated in this manner, an external, electronic
crossover is required. Such crossovers may be cards or modules that can be installed in the power amplifiers or
may be separate processors.
SR-X series speakers include CD (constant directivity) horn designs. A characteristic of this type of horn is that it
requires a power response correction consisting of a 6 dB per octave rise beginning at approximately 4 kHz. This
power response correction is built into the passive networks of SR-X series speakers. When used in bi-amp
mode, the power response correction must be provided by the electronic crossover. Most analog crossovers will
include a "CD Horn EQ" function.
BALANCED INPUTS
BA
1
65432
FLOATING BALANCED OUTPUTS
MAIN SUPPLY
AC 50/60Hz @ 30Watts
FUSE
T160MA 23DV
WARNING!
THIS EQUIPMENT
MUST BE EARTHED RS232
CONTROLLER INTERFACES
MIDI OUT MIDITHRU MIDI IN
MADE INTHE UK
DSC260
JBL DSC260 (front / back)
dbx® DriveRack™ PA (front / back)

SYSTEM CONFIGURATIONS
Full-Range Two-Way
Bi-Amplified Two-Way
There are many different possible configurations of systems within the JBL SR-X Series.This section shows a
selection of key system configurations that will provide a basis for setting up any system, it includes: dbx®
DriveRack™ PA controllers, Crown® amplifiers and wiring connections. It is very important that you are familiar
with the previous sections of this Users Guide and also the dbx® DriveRack™ PA and Crown® amplifiers. Note:
Each line in the diagrams below represents a pair of wires. (E.g. both +1 and -1 connecting wire.)
See “Crossovers and Controllers” for important information.
Full-Range ±1
HF ±2
High Output
LF ±1
Mid Output
Crown® CE4000
Crown® CE2000
Crown® CE4000
dbx® DriveRack™ PA
12

Full-Range Two-Way w/ Sub (Parallel Mode)
Bi-Amp Two-Way w/ Sub (Discrete Mode)
13
Full-range Two-way with Sub (using a single 4 conductor amp - speaker cable)
High Output
HF ±2
LF ±1
Sub ±2
Sub ±1
Mid
Output
Low Output
HF ±1
LF ±2
Full-Range ±1
Pin 2 Mode
Mid Output
Low Output
Full-Range ±1
Sub ±1
Crown® CE4000
Crown® CE4000
Crown® CE2000
Crown® CE4000
Crown® CE4000
Crown® CE4000
Crown® CE4000
Crown® CE4000
dbx® DriveRack™ PA
dbx® DriveRack™ PA
dbx® DriveRack™ PA
Mid Output
Low Output
Low
Output

R
SR-X/F FLYING VERSIONS
SR4722X/F SR4725X/F SR4726X/F
SR4731X/F SR4732X/F SR4733X/F SR4735X/F
14
Prior to suspending the system, an expert, trained and experienced in flying speaker systems should inspect all
components for cracks, deformations, corrosion, missing parts or damaged parts that could reduce strength and
integrity of the system. For further information on precautions and rigging techniques, see JBL Technical Note
Volume 1, Number 14.This document is available in the Technical Reference section of www.jblpro.com
The rigging track used on SR-X/F models can accommodate both 10 mm forged shoulder eyebolts and detach-
able track fittings.When using 10 mm forged shoulder eyebolts with SR-X/F, always use a 10 mm washer
between the track and the eyebolt/ Failure to do so can result in damage to the track and unsafe suspension of
the speaker system.The the event that the track is damaged, the speaker should not be suspended until the
damaged part is replaced. A kit containing 10 mm forged eyebolts and washers is available from JBL
Professional Parts (PN: 229-00017-00).
When used with an appropriate eyebolt and washer (see above) the SR-X/F suspension system has a working
load limit (WLL) of 400 lbs. (181 kg.) per point with a 7:1 design factor. When used with an appropriate track fit-
ting, the SR-X/F suspension system has a working load limit (WLL) of 500 lbs. (227 kg.) per point with a 7:1
design factor.
Suspension or flying speaker systems requires training and expertise. Improper rigging of a flying speaker may
result in injury, death, equipment damage, and legal liability.This User Guide is intended to provide a skilled
system rigger with resources needed to get the most from the SR-X/F speaker system.This User Guide will not
provide the novice with the skills and training needed to safely fly a speaker system. If you lack the skills,
training, and proper ancillary equipment to fly a speaker system do not attempt to do so. Obtain the services of a
qualified rigger or get the proper training yourself.
The SR-X/F models are equipped with ATM FLY-WARE® rigging hardware. Only hardware rated for overhead
suspension and certified in accordance with appropriate safety standards should be used to fly speaker systems.
A source for such hardware and assistance in selecting appropriate hardware is:
ATM FLY-WARE In Europe:
(888) RIG-MORE / [phone] (44) 0171-482-3300
2100 South Wilmington Avenue 102 Grafton Road
Carson, CA 90810 London NW5 4BA UK
www.atmflyware.com www.atmflyware.com

Example
15
Each primary “load bearing” suspension point shall be rated for the entire load.
Primary “Load Bearing”
Facility Attachment Points
(MIN: 5:1 design Factor or Local Standard, Whichever is Greater)
Appropriate Track Fitting
(User supplied, overhead
suspension rated and certified)
Secondary Suspension Point
Appropriate Track Fitting
(EG: AF-DSF)
Working load limits: No more than four (4) high (vertical)
The four (4) high vertical specification represents a static ratio of 7:1

Who Is Protected by This Warranty?
Your JBL Warranty protects the original owner and all subsequent owners so long as: A.) Your JBL product has been
purchased in the Continental United States, Hawaii or Alaska. (This Warranty does not apply to JBL products purchased
elsewhere except for purchases by military outlets. Other purchasers should contact the local JBL distributor for warranty
information.); and B.) The original dated bill of sale is presented whenever warranty service is required. The JBL Limited
Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the
first consumer purchase. JBL amplifiers are warranted for three years from the date of original purchase. Enclosures and all
other JBL products are warranted for two years from the date of original purchase.
What does the JBL Warranty cover?
Except as specified below, your JBL Warranty covers all defects in material and workmanship. The following are not covered:
Damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage
resulting from failure to follow instructions contained in your Instruction Manual; damage resulting from the performance of
repairs by someone not authorized by JBL; claims based upon any misrepresentations by the seller; any JBL product on
which the serial number has been defaced, modified or removed.
Who Pays for What?
JBL will pay all labor and material expenses for all repairs covered by this warranty. Please be sure to save the original
shipping cartons because a charge will be made if replacement cartons are requested. Payment of shipping charges is
discussed in the next section of this warranty.
How to Obtain Warranty Performance?
If your JBL product ever needs service, write or telephone us at JBL Incorporated (Attn: Customer Service Department),
8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893-8411).We may direct you to an authorized JBL
Service Agency or ask you to send your unit to the factory for repair. Either way, you'll need to present the original bill of sale
to establish the date of purchase. Please do not ship your JBL product to the factory without prior authorization.
If transportation of your JBL product presents any unusual difficulties, please advise us and we may make special arrange-
ments with you. Otherwise, you are responsible for transporting your product for repair or arranging for its transportation and
for payment of any initial shipping charges. However, we will pay the return shipping charges if repairs are covered by the
warranty.
JBL WARRANTY AND CONTACTS
Mailing Address:
JBL Professional
8500 Balboa Blvd.
Northridge, CA 91329
Shipping Address:
JBL Professional
8370 Balboa Blvd., Dock D
Northridge, CA 91329
Customer Service:
Monday through Friday
8:00am - 5:00pm
Pacific Coast Time In the U.S.A.
(800) 8JBLPRO (800.852.5776)
www.jblproservice.com
On the World Wide Web:
www.jblpro.com
Outside the USA:
Contact the JBL Professional Distributor in your area. A
complete list of JBL Professional international distributors is
provided at our U.S.A.website - www.jblpro.com
Product Registration:
Register your product online at www.jblpro.com/registration
Contact Information
