THANK YOU FOR YOUR PURCHASE . . .
Your JBL product has been designed to provide you with the performance and ease of operation you would expect
fromJBL.
• Pleasetaketimetoreadyourowner’smanualinitsentiretybeforeoperatingorinstallingyoursoundbar.
• Keeptheowner’smanualforyourSoundbarinyourglovecompartmentalongwiththeowner’smanualforyourcar.
• PutyourSoundbarsalesreceiptwithotherimportantdocumentsinordertoexpeditewarrantyserviceifneeded.
Legendary JBL pro and home audio performance is now available for the great outdoors. The new JBL STADIUM UB4100
AMPLIFIED Powersports Soundbar is designed for UTVs, boats and other personal and family vehicles built for fun and
recreation. Take the wheel or helm and experience the sound of powerful JBL rollicking sound. (Try 100dB at fifteen feet!) It’s also
equipped with a super flexible mounting system that fits any size roll cage and will take a 10G shock and stay put. You can also
separate the soundbar into two speaker towers to optimize sound quality for any installation. Bluetooth®, 3.5mm and RCA output
jacks allow you and your friends to take turns streaming playlists. There’s a GoPro™ shoe for an action camera to share your
finest moments – like how you look when you hit your first hole in one. With a glowing red LED output display and ambient
lighting, you’re in the cockpit ready to do things you’ve never done before – be it on land, sea or a long green fairway.
ABOUT THE MANUAL
Thismanualdescribesgeneralinstallationguidelinesandoperationinstructions.However,pleasenotethatproperinstallationof
mobile audio and video components requires qualified experience with mechanical and electrical procedures. If you do not have
the knowledge and tools to successfully perform this installation, we strongly recommend consulting an authorized JBL dealer
about your installation options. Keep all instructions and sales receipts for reference. Consider this manual as an indispensable
featureofyoursoundbar.

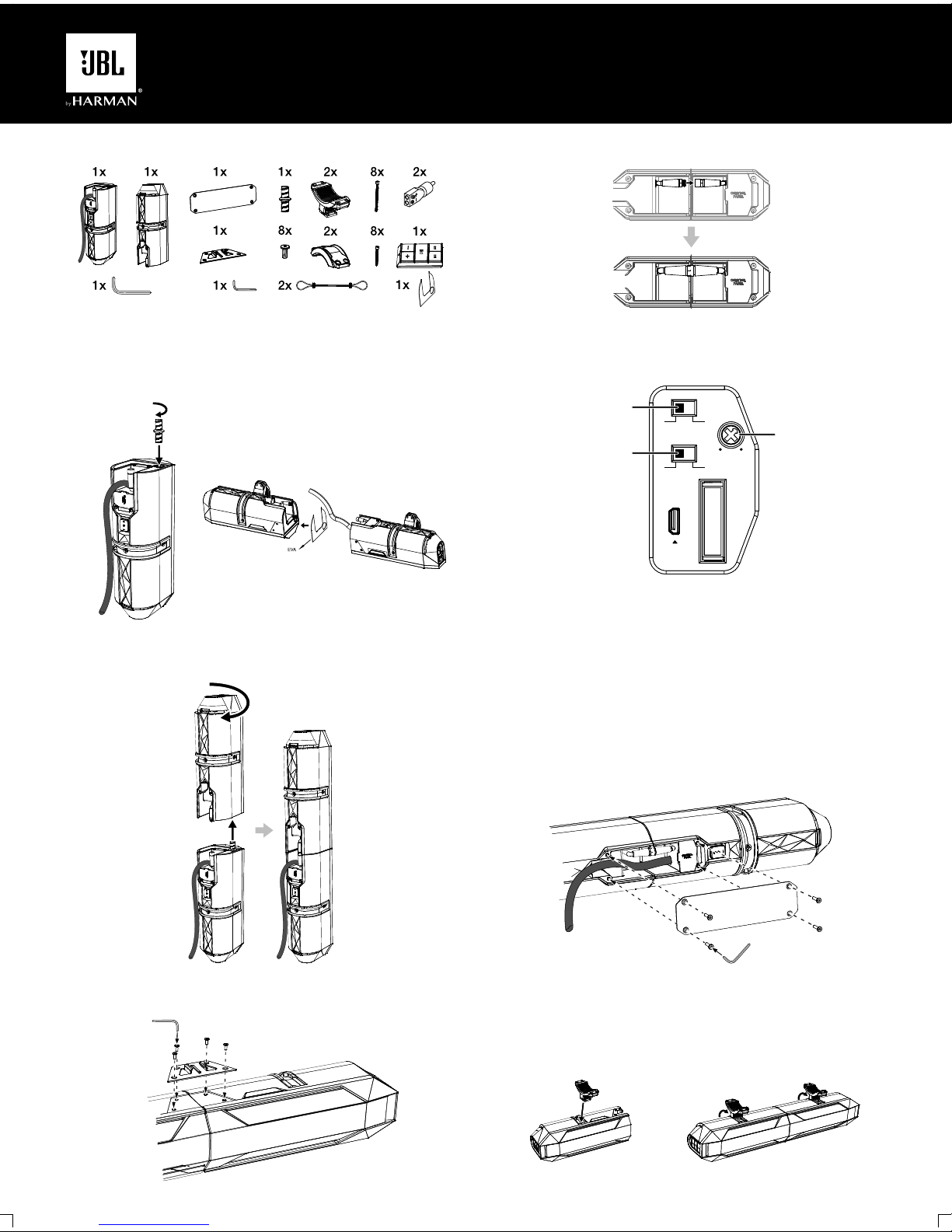

INCLUDED ITEMS
2. Screw the soundbar’s right speaker section onto the portion of the threaded rod
that is protruding from the left speaker. When the speaker is threaded all the way
onto the rod and tightened securely the fronts of both speakers should be properly
aligned.
3. Attach the bottom bridge plate tothe two speakers, using the small
hex wrench and 4 of the bridge plate screws.
4. Connect the umbilical cables between the two speakers.
6. Attach the rear bridge plate to the two speakers, using the small hex wrench and
the remaining 4 bridgeplatescrews.
5. Before attaching the rear bridge plate, you will need to set the Input Level switch,
Auto Turn-On switch and Gain control:
a. If you will be connecting the soundbar’s audio inputs to the pre-outs of a car
stereo head unit or other line-level source, set the Input Level switch in the
“Lo” position. If you will be connecting the soundbar to the speaker-level
outputs of a car stereo head unit, set the Input Level switch in the “Hi”
position.
b. If you set the Input Level switch to “Hi” and want the soundbar to
automatically turn on when it receives an audio signal, set the Auto Turn-On
switch in the “On” position. If not, set the switch in the “Off” position. (The
Auto turn-On switch has no effect if the Input Level switch is set to “Lo.”)
c. Set the Gain control at the 12 o’clock position. You can fine-tune this control
to maximize the soundbar’s performance once you have completed the
installation andcan playmusic throughthe soundbar.
MOUNTING
1a. Insert the 2 mounting bracket base assemblies into the 2 mounting track openings
onthebottomofthesoundbar.
1b. Slide the mounting bracket bases inside the tracks all the way around to the top of
the soundbar.
AUTO TURN ON
INPUT LEVEL
GAIN
MIN
OFF ON
MAX
FUSE
20A
UPGRADE
LO HI
Input Level
Switch
Gain
Control
Auto Turn-On
Switch
x2
a. b.
ASSEMBLY
1. Hand-tighten the threaded rod into the soundbar’s left speaker section (with the
cable attached). Apply the supplied EVA gasket to the end panel of one of the
speakers before assembling the Soundbar.
STADIUM UB4100 AMPLIFIED POWERSPORTS SOUNDBAR
Page1
“JBL STADIUM UB4100 Subwoofer output works with optional JBL MPS1000.”

WHEN YOU HAVE COMPLETED ALL OF THE SOUNDBAR
CONNECTIONS:
1. Insert the40Afuseintothefuse holderyou installedonthe soundbarpowerwire.
2. Re-connect the vehicle’s negative (–) battery terminal.
3. Pair the supplied Bluetooth remote control with the soundbar:
a. Set the soundbar’s rear-panel power switch to On.
b. Insert the supplied battery into the remote’s battery compartment with its “+”
 side UP.
c. Press the remote’s “+” button.
LISTENINGTOYOURSOUNDBAR
Turning the Soundbar On and Off
Set the soundbar’s rear-panel power switch to On. This will put the soundbar in the
standby mode. To turn the soundbar on, press the Standby button on the soundbar’s
end panel:
If your source unit does not have RCA outputs use the supplied bare wire-to-RCA
adapters to connect the source unit’s speaker wires to the soundbar’s audio input
cable, as shown in the illustration below.
2. Position the soundbar in the desired location against the vehicle mounting bar. Use
4 of the supplied mounting bracket bolts to secure each bracket top to a bracket
base. Two sets of bolts are supplied, allowing the soundbar to be mounted to
pipes from 1” (25mm) to 3-1/2” (89mm) in diameter.
a. When the soundbar is in the correct position, tighten the mounting bracket
adjustment screws as tight as possible using your fingers, then insert the
supplied small hex wrench into the holes on the adjustment screws and use
it as a lever to secure the screws as firmly as possible.
3a. Run one end of one safety harness wire through one of the soundbar’s harness
attachment loops, and use the supplied clamp to secure the wire.
IMPORTANT: Be sure to tighten the bolts on the clamp as far as they will go and
test the connection to be sure that the safety harness wire is secure in the clamp.
3b.Runtheotherendofthesafetyharnesswirearoundthevehiclemountingbarand
use the supplied clamp to secure the wire.
IMPORTANT: Be sure to tighten the bolts on the clamp as far as they will go and
test the connection to be sure that the safety harness wire is secure in the clamp.
3c. Repeat Steps 3a and 3b with the other safety harness wire, using the other
soundbar harness attachment loop and the vehicle mounting bar.
IMPORTANT: Be sure to tighten the bolts on the clamp as far as they will go and test
the connection to be sure that the safety harness wires are secure in the clamps.
Vehicle Chassis
(bare metal)
Battery
Illumination
Remote
Turn-On
Orange/White
Wire
Blue/White
Wire To illumination or
accessory circuit
To head unit
remote wire
Soundbar
Wiring
Harness
Black
Wire
Red
Wire
40A
Fuse
+12VGround
18”
(46 cm)
AUDIO INPUT CONNECTIONS
Connecting to an audio system head unit
Connect the source unit’s RCA line
outputs to the soundbar’s (black)
RCA audio input cable, as shown in
the illustration below.
Audio System
Head Unit
Front L/R
Audio Out
Black RCA
Audio Cable
Audio
Input
Soundbar
Wiring
Harness
When you’re finished connecting the source unit’s speaker outputs to the adapters,
plug the adapters into the amplifier’s input connectors as shown in the previous
illustrations.
Connecting to a mobile phone or portable audio device
Connect the mobile phone’s or portable device’s headphone port to the soundbar’s
black 3.5mm audio cable, as shown in the illustration below.
From mobile phone or
portable audio device Audio
Input
Soundbar
Wiring
Harness
Black 3.5mm
Audio Cable
Connecting to a subwoofer or secondary amplifier
Connect the subwoofer or a secondary amplifier to the soundbar’s (gray) audio output
cable, as shown in the illustration below.
To subwoofer or
secondary amplifier
Gray RCA
Audio Cable
Audio
Output
Soundbar
Wiring
Harness
GROUND,POWER,ILLUMINATIONANDREMOTE
CONNECTIONS
IMPORTANT: Disconnect the vehicle’s negative (–) battery terminal before
beginning the installation.
Connect the soundbar’s +12V power (red), ground (black), illumination (orange/white)
and remote turn-on (blue/white) wires as shown below.
• Use sandpaper to clear the paint from the metal surface at the ground connection.
Use astar-typelock washerto secure theconnection.
• Install a fuse holder for a 40A fuse on the power (12V) wire within 18” (46cm) of the
(+) battery terminal. Do not install the fuse in the holder at this time.
a.
a.
b.
ON
OFF
AUTO
EXT LO
HI
Standby
Button
Bluetooth
Button Page2

If you have connected the soundbar’s remote (blue/white) to the vehicle audio
system’s remote wire, the soundbar will automatically turn on whenever the audio
system is turned on.
When the soundbar in in Standby, making a connection to the 3.5mm audio cable
will automatically turn on the soundbar and switch it to the 3.5mm input. If there is no
connection to the 3.5mm audio cable, pressing “Play” on a connected Bluetooth
device will automatically turn on the soundbar and the device will play through the
soundbar.
To put the soundbar in standby, press the Standby button.
The soundbar will automatically revert to standby when the vehicle’s audio system is
turned off and no audio is detected for five minutes from a connected Bluetooth
device, andthe high-leveland 3.5mm audioinputs.
Selecting an Input
The soundbar automatically selects the audio input based on the following priorities:
Priority 1: 3.5mm audio cable. Whenever there is a physical connection to this cable it
will have priority over the other inputs, even if no audio is playing through it. To listen to
another input, disconnect this cable.
Priority 2: Bluetooth. When there is no connection to the soundbar’s 3.5mm cable, a
connected Bluetooth device has priority and will play through the soundbar whenever
its “play” button is pressed.
Bluetooth Pairing
To pair a Bluetooth device with the soundbar, press the soundbar’s Bluetooth
button (the Bluetooth indicator will flash), go to the device’s Bluetooth menu and
pair it with the soundbar. The soundbar’s Bluetooth indicator will remain lit when it
is connected to a Bluetooth device.
Bluetooth Party Mode
The soundbar can maintain connection with up to 3 paired Bluetooth devices at
same time. The last connected device to enter the “play” mode will have its audio
play throughthe soundbar,placing any otherconnected devicesin “pause.”This
allows up to 3 people to share the soundbar, playing songs in turn. Pairing a 4th
device will disconnect the first paired device from the soundbar (although it will
remain paired).
Making a connection to the soundbar’s 3.5mm audio cable will override a Bluetooth
device, even if it is playing though the soundbar at the time.
Priority 3: Audio system head unit. When there is no connection to the soundbar’s
3.5mm cable and all connected Bluetooth devices are paused, the audio system
connected to the soundbar’s black RCA audio cable will play through the soundbar.
Making a connection to the soundbar’s 3.5mm audio cable or pressing “play” on a
connected Bluetoothdevice willoverride theblack RCA audioinput, evenif itis playing
though the soundbar at the time.
Controlling the Soundbar’s Volume
The soundbar’s volume is controlled by the volume of the source device playing
through it.
CONTROLSANDINDICATORS

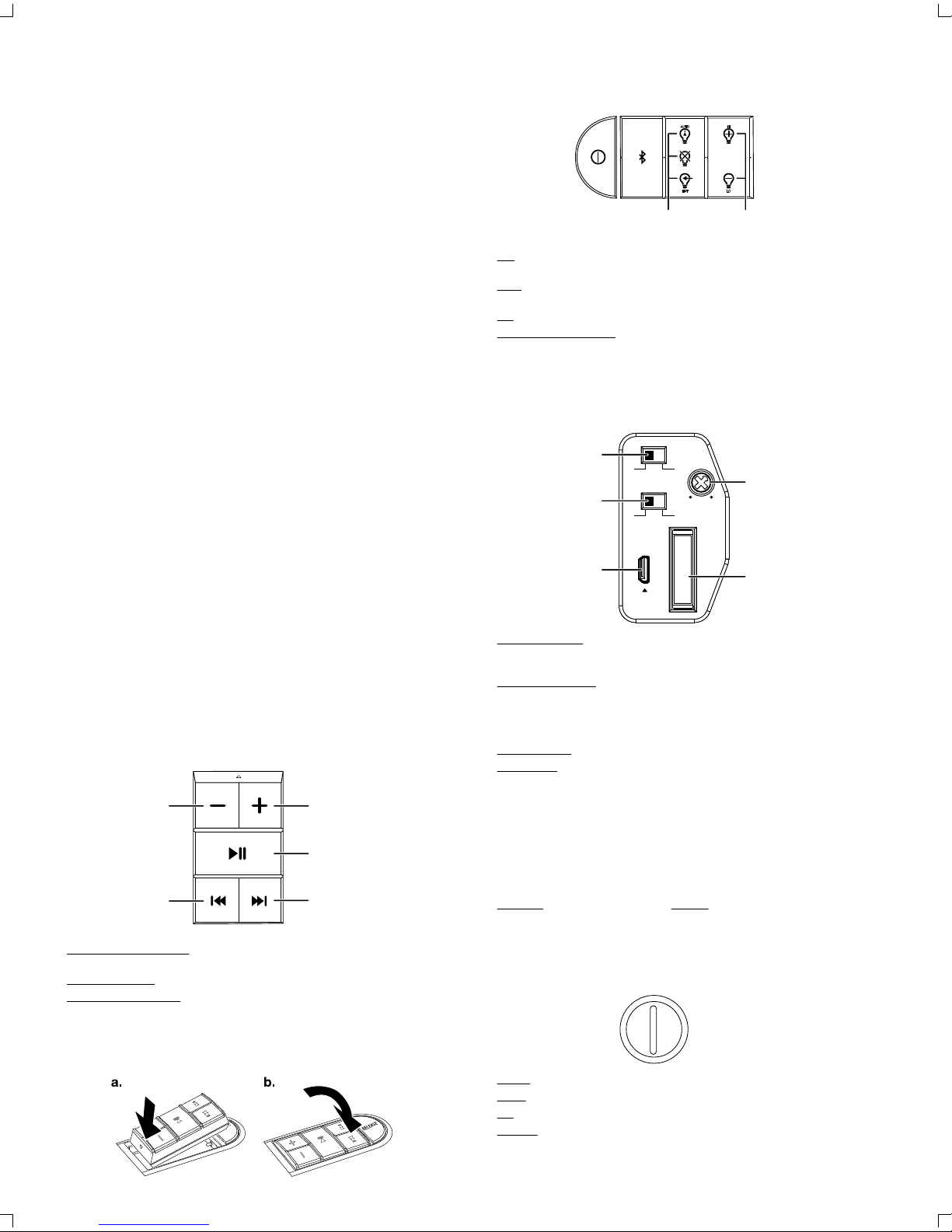

Bluetooth Remote
This remote controls the Bluetooth source that is playing through the soundbar.
Volume Down
Button
Track Down
Button
Volume Up
Button
Play/Pause
Button
Track Up
Button
Volume Up/Down Buttons:PresstoraiseandlowerthevolumeoftheBluetooth
source.
Play/Pause Button: Pressto playor pause theBluetooth source.
Track Up/Down Buttons: Press to skip ahead or skip back the track playing on the
Bluetoothsource. Press-and-holdto fast-forwardor fast-reversethrough the
currently-playing track.
The remote can be inserted into the soundbar’s end panel for storage. Press the
remote into the panel as shown below to store it; press the “Release” button to lift
out the remote.
Ext: The lights are controlled by the vehicle circuit the soundbar’s (orange/white)
illumination wire is connected to.
Auto: Thelights willturn on whenthe soundbaris on,and will turnoff whenthe
soundbar is in the standby mode.
Off: Turns off the lights.
Illumination Level Buttons: Sets the illumination level to high or low.
Control Panel
This panel is located on the soundbar behind the rear bridge plate and is not readily
accessible after you have mounted the soundbar in the vehicle. To access the panel,
remove the soundbar’s rear bridge plate. See the Assembly section (above) for
details.
Input Level Switch: Set to“Lo” if you’ve connected thesoundbar’s audio inputs to
the pre-outs of a car stereo head unit or other line-level source. Set to “Hi” if you’ve
connected the soundbar to the speaker-level outputs of a car stereo head unit.
Auto Turn-On Switch: If you set the Input Levelswitch to“Hi” andwant thesoundbar
to automatically turn on when it receives an audio signal from the vehicle’s audio
system,set theAutoTurn-On switchinthe “On”position. Ifnot,set theswitchin the
“Off” position. (The Auto turn-On switch has no effect if the Input Level switch is set
to “Lo.”)
Micro USB Port: Used for future software upgrades.
Gain Control: This control lets you maximize the soundbar’s audio output
performance.
1. Turn the soundbar Gain control fully counter-clockwise (all the way down).
2. Play some dynamic music through your source unit and turn its volume up to 3/4
volume.
3. Slowly turn the soundbar Gain control clockwise until the music begins to sound
distorted.
4. Turn the Gain Control counter-clockwise slightly until the music no longer sounds
distorted. Leave the Gain control in this position.
20A Fuse: Replace only with a fuse of identical rating (20A).
IMPORTANT: Replace the soundbar’s rear bridge plate before operating the vehicle.
DO NOToperate thevehicle withthe soundbar’srear bridgeplate removed.
Standby Indicator
TheStandby indicatorislocated onthe Standbybutton,and changescolorto
indicate the soundbar’s current operating state.
Amber: The soundbar is in standby mode.
White: The soundbar is on.
Off: The soundbar is off.
Flashing:Thesoundbarisinprotectionmodeduetoovercurrent,overvoltage,
undervoltage, overtemperature or DC offset. See the Troubleshooting section (below)
for details.
Soundbar Illumination Controls
These buttons control the soundbar’s illumination.
AUTO
EXT LO
HI
Illumination
Mode
Buttons
Illumination
Level
Buttons
AUTO TURN ON
INPUT LEVEL
GAIN
MIN
OFF ON
MAX
FUSE
20A
UPGRADE
LO HI
Input Level
Switch
Gain
Control
20A
Fuse
Auto Turn-On
Switch
Micro USB
Port
Page3

• Check that the soundbar’s +12V and GND connections have been properly made.
• Check if the fuse on the +12V wire located near the battery is blown; if so, replace it with an identical fuse.
• Check the fuse located on the soundbar’s control panel. If it’s blown, replace it with an identical fuse.
• If you are using the soundbar’s remote wire for turn-on, check that the wire is properly connected to the
audio system's remote turn-on wire.
No sound (Standby indicator is off)
• Check that the source device’s volume control is not turned all the way down.
• If you’re trying to listen to a Bluetoothdevice or yourvehicle’saudiosystem, make surethat there is no
connection to the soundbar’s 3.5mm audio cable. (A connection to this cable will override all other audio
inputs.)
• If you’re trying to listen to a Bluetooth device, make sure it is paired and connected to the soundbar.
• Check that the soundbar’s Gain control is not turned all the way down (counter-clockwise). See Gain
Control, on page 3, for information about setting the Gain control.
No sound (Standby indicator is on)
• Confirm that the vehicle’s electrical system is supplying between 9V and 16V DC to the soundbar. If the
supply voltage is outside of this range, correct the condition before attempting to use the soundbar.
• If the soundbar has overheated, wait until it has cooled down before attempting to use it again.
• If you have corrected the two above conditions and the soundbar’s Standby indicator is still flashing,
contact your authorized JBL dealer for assistance.
No sound (Standbyindicator is
flashing)
• Check that the soundbar’s Gain control is not turned too low. See Gain Control, on page 3, for
information about setting the Gain control.
Sound is too quiet when listening to
thevehicle’saudiosystem,evenwith
the vehicle audio system’s source unit
volume turned all the way up.
• Check that the distortion is not originating from the source device.
• Check that the soundbar’s Gain control is not turned too high. See Gain Control, on page 3, for
information about setting the Gain control.
Sound is distorted
Problem Causes and Solutions

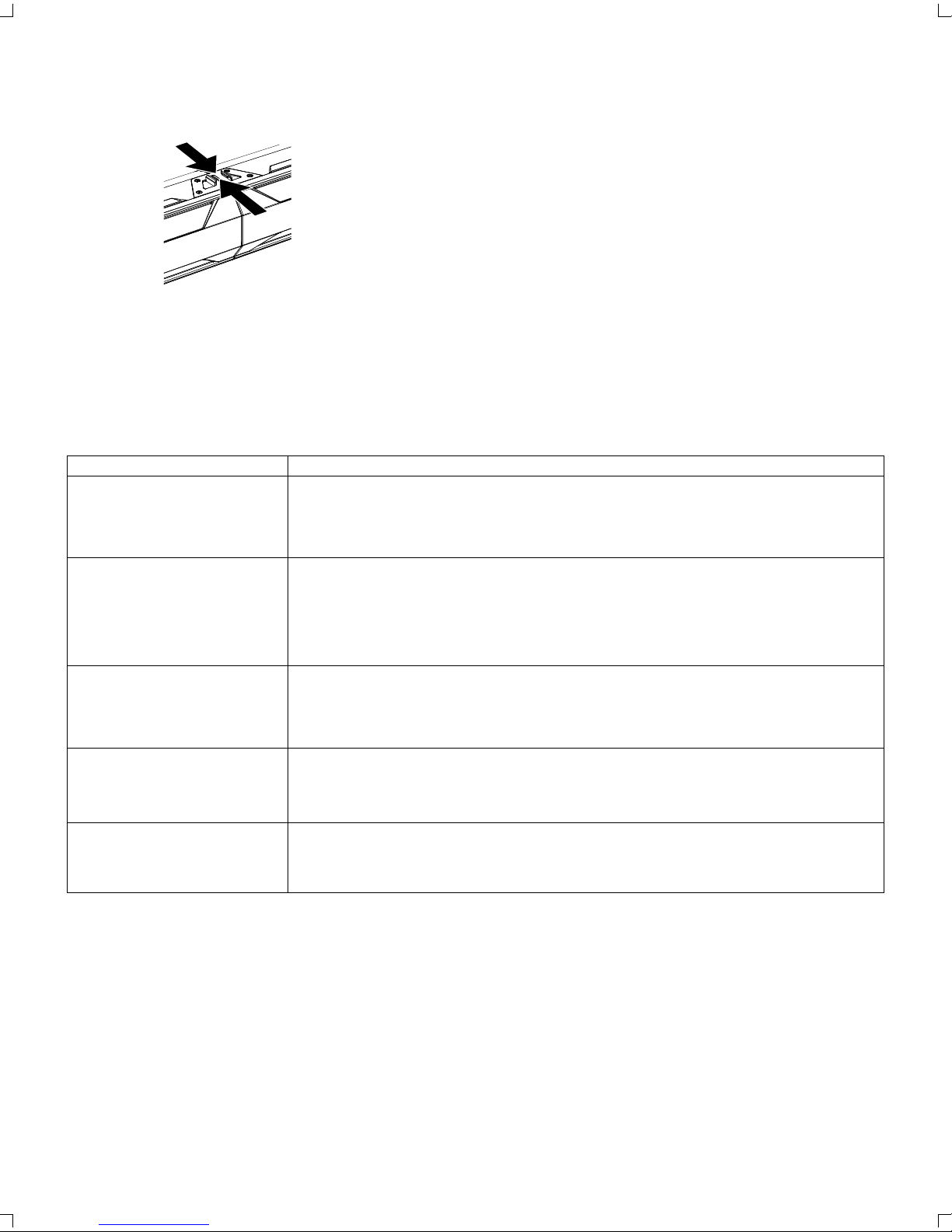

GOPROMOUNT
Thesoundbar’s bottom bridge plate includes a mountthat lets youeasilyattacha
GoPro™camera. Slide the camera’s foot into the mount clip as shown in the illustration
below. (You can insert the camera into the mount from either direction.)
TROUBLESHOOTING
SPECIFICATION
Product Type : Stereo amplified mobile soundbar
Frequency Response : 50Hz-20kHz
Maximum SPL : 100dB
Total Amplifier Power : 120Wx2
Power handling : N/A
Driver Complement : 4x 4" Long excursion woofers;
2x 2" Edge-Driven Dome Tweeters
Soundbar Dimension (L x W x H) : 31.5" x 6.12" x 5" (800 x 155.5 x 128mm)
Soundbar Weight : 22.7 lbs (10.3 kg)
Low input level sensitivity : 0.35V – 2V
Hi level input sensitivity : 1.75V – 10V
Aux sensitivity : 0.35V – 1V
BT sensitivity : -9dBFS
BT version : 4.0
BT Transmitter power : 0 – 4dBm
BT transmitter frequency range : 2.402 – 2.480GHz
Profile Support : A2DP V1.3, AVRCP V1.5
SNR @ 1W : >75dB
Channel separation : >60dB
Page4

Торговая марка : JBL
Назначение товара : Автомобильная акустическая система
Изготовитель : Харман Интернешнл Индастриз Инкорпорейтед, США,06901 Коннектикут, г.Стэмфорд,
Атлантик Стрит 400, офис 1500
Страна происхождения : Китай
Импортер в Россию : OOO “ХАРМАН РУС СиАйЭс“, Россия, 127018, г.Москва, ул. Двинцев, д.12, к 1
Гарантийный период : 1 год
Информация о сервисных центрах : www.harman.com/ru тел. [phone]
Срок службы : 5 лет
Номер документа соответствия : Товар сертифицирован
Дата производства : Дата изготовления устройства определяется по двум буквенным обозначениям из второй
группы символов серийного номера изделия, следующих после разделительного знака «-».
Кодировка соответствует порядку букв латинского алфавита, начиная с января 2010 года:
000000-MY0000000, где «M» - месяц производства (А - январь, B - февраль, C - март и т.д.) и «Y» -
годпроизводства(A-2010,B-2011,C-2012ит.д.).
TR04016_C
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN
International Industries, Incorporated is underlicense. Othertrademarksand tradenames arethose oftheir respectiveowners.
HARMAN International
Industries, Incorporated
8500 Balboa Boulevard,
Northridge, CA 91329 USA
www.jbl.com
© 2017 HARMAN International Industries, Incorporated. All rights reserved. JBL is a
trademark of HARMAN International Industries, Incorporated, registered in the United States
and/or other countries. Features, specifications and appearance are subject to change
without notice.
GOPRO, HERO, the GOPRO logo, and the GoPro Be a Hero logo are trademarks or
registered trademarks of GoPro, Inc.
