JBT Fresh'n Squeeze Citrus Juicer User manual

November 2017
Operator & Service Manual
Citrus Juicer

2FNS-0006-060-EN November 2017 Rev F
Operator & Service Manual
Citrus Juicer
Copyright © John Bean Technologies Corporation 2017
JBT Corporation
400 Fairway Avenue
Lakeland, FL 33801
[phone]
Manual No. FNS-0006-060-EN

3FNS-0006-060-EN November 2017 Rev F
Safety Information ····················································4
Safety Instructions ····················································5
Technical Specifications ············································6
General Information ························································ 7
Operating Instructions ·············································· 10
Cleaning Instructions················································ 12
Maintenance ···························································· 16
Periodic Inspection··················································· 19
Troubleshooting-Operator ········································· 21
Troubleshooting-Service ·········································· 24
Rebuilding······························································· 27
Rebuild Tooling Kits ················································· 42
Drive Parts······························································· 44
Juicing Parts···························································· 46
Cart Assembly Enclosed Parts··································· 48
Electrical Parts (110 Volt) ·········································· 50
Electrical Parts (220 Volt) ·········································· 54
Electrical Box Assembly············································ 56
Cover Parts······························································ 58
Hopper Parts –Low Profile ········································ 60
Hopper Parts –High Capacity (Round)························ 62
Waste Container Assembly········································ 64
Miscellaneous Parts·················································· 66

4FNS-0006-060-EN November 2017 Rev F
Important Safety Information
You can help prevent personal injury and/or property damage.
Please read this manual carefully before operating the JBT Corporation Citrus Juicer.
DO NOT attempt any operation until you understand exactly how the machine functions.
If uncertainty remains after studying this manual, please contact:
John Bean Technologies Corporation
JBT Corporation
400 Fairway Avenue
Lakeland, FL 33801
863.683.5411
or
The local JBT Corporation service representative in your country.
We're here to help. With proper handling, the JBT Corporation, Fresh ‘n Squeeze Citrus Juicer
will provide safe, efficient and convenient service for years to come.
Revision History
Manual Code
Rev.
No.
Date
Pages
Change History
FNS-0006-060-EN
A
5/6/15
Entire manual
Updates, modifications and alignment to JBT global version
control and inventory standards
FNS-0006-060-EN
B
12/15/15
Entire manual
Addition of new Fresh 'n Squeeze logo
FNS-0006-060-EN
C
7/19/16
50, 51, 52. 53, 56
Updates to part numbers and/or drawings for assemblies
060-02005, 060-02005-01, 060-02005-02, 060-02003
FNS-0006-060-EN
D
12/14/16
64
Update to part description 060-00296
FNS-0006-060-EN
E
1/19/17
50, 52, 53
Addition of information for motor conversion kit, 060-10157
FNS-0006-060-EN
F
11/10/17
Entire manual
Edits and additions

5FNS-0006-060-EN November 2017 Rev F

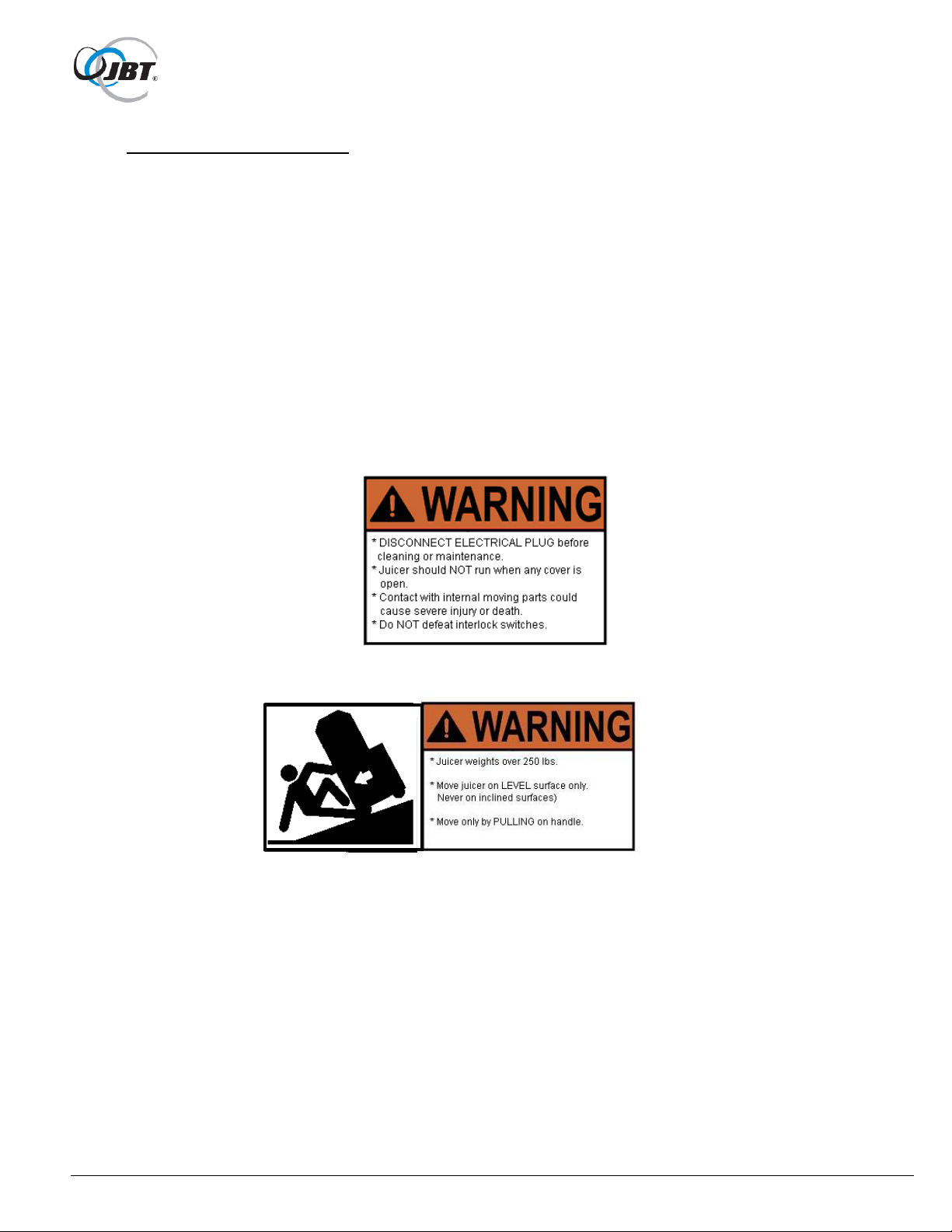

Safety Labels
The safety labels shown below appear on the Citrus Juicer. They provide essential instructions
on how to avoid possible hazards.
Please, for your safety: FOLLOW THOSE INSTRUCTIONS AT ALL TIMES.
Should the Citrus Juicer safety labels become damaged or unreadable, contact JBT Corporation
for replacement labels.
Safety Instructions
Carefully review the following safety instructions.
Make them a habit when using the JBT Corporation Citrus Juicer.
1. If Citrus Juicer continues to run when any access cover is open, interlock switch is
defective.
Turn Juicer off and unplug immediately. Call for service.
2. Prevent unauthorized access to Citrus Juicer by locking all covers with supplied key.
3. NEVER attempt to make any safety device inoperative.
4. NEVER operate or perform maintenance or repair work on Citrus Juicer when
taking any kind of drug or sedative, when under the influence of alcohol, or when
fatigued.
5. ALWAYS check adjustment of all nuts, bolts, and screws after installation, repair,
or periodic maintenance.

6FNS-0006-060-EN November 2017 Rev F
Technical Specifications
Fruit Size: ········································ 2-1/2” to 3-1/4" major diameter
Oranges - FL:···································· 125 to 80 count
Oranges - CA:··································· 138 to 88 count
Lemons, Limes:································· 138 to 115 count
Holding capacity: ······························· 15 to 20 fruit
Speed:············································· 10 fruit/minute
Waste container capacity:···················· 30 to 40 fruit
Optional for customer to put hole in counter.
Optional cart and waste container on wheels available.
Electrical Specifications
115V 60HZ Single Phase
Or
230V 50HZ Single Phase
12 GA. wire - up to 100 ft. from main breaker panel or
10 GA. wire - up to 200 ft. from main breaker panel
Shipping Specifications
Machine without cart: With cart:
Height: 32" 62"
Width: 18" 24"
Depth: 22" 22"
Weight: 200 lbs. 250 Ibs.

7FNS-0006-060-EN November 2017 Rev F
General Information
The JBT Corporation Citrus Juicer is designed to provide years of dependable service. It
uses a unique patented design to extract every available amount of juice from the fruit with
the least amount of peel oil. The peel is completely separated from the juice and juice sacs
before being compressed and strained.
The machine will juice oranges, lemons, limes, tangerines, etc., without changing or
adjusting parts. In fact, different varieties of fruit can be juiced to create various fruit juice
blends.
Clean up is simple, requiring disassembly of only five parts. All waste material - peel,
membranes, and seeds - is collected for easy removal and disposal.
The Citrus Juicer is solidly built using heavy-duty components in all assemblies, including
the drive. It is simple to operate and uses a minimal number of parts.
ALWAYS follow cleaning and maintenance schedules in this manual to prevent equipment
damage.
For a quick introduction to the JBT Corporation Citrus Juicer, please review the diagram on
the next page.

8FNS-0006-060-EN November 2017 Rev F

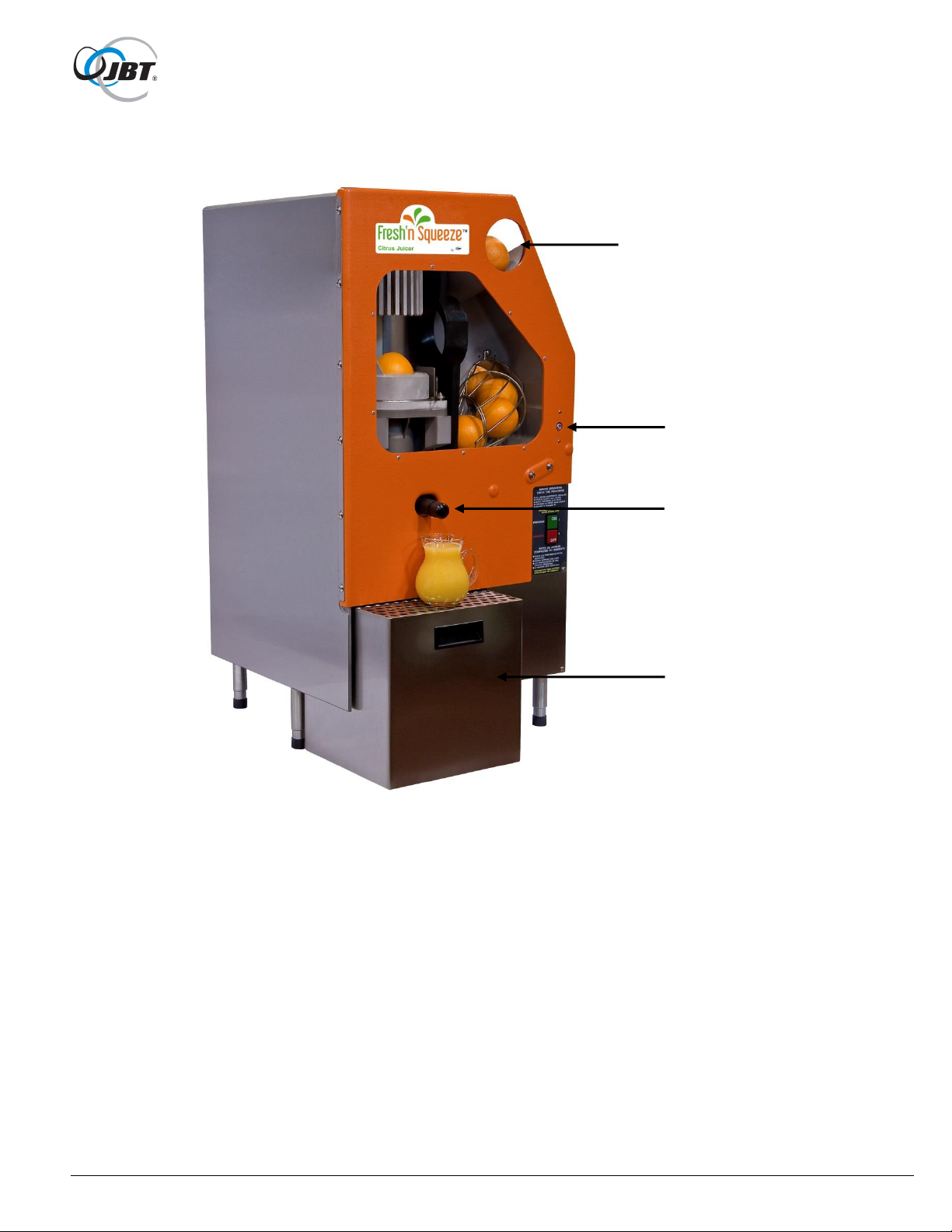

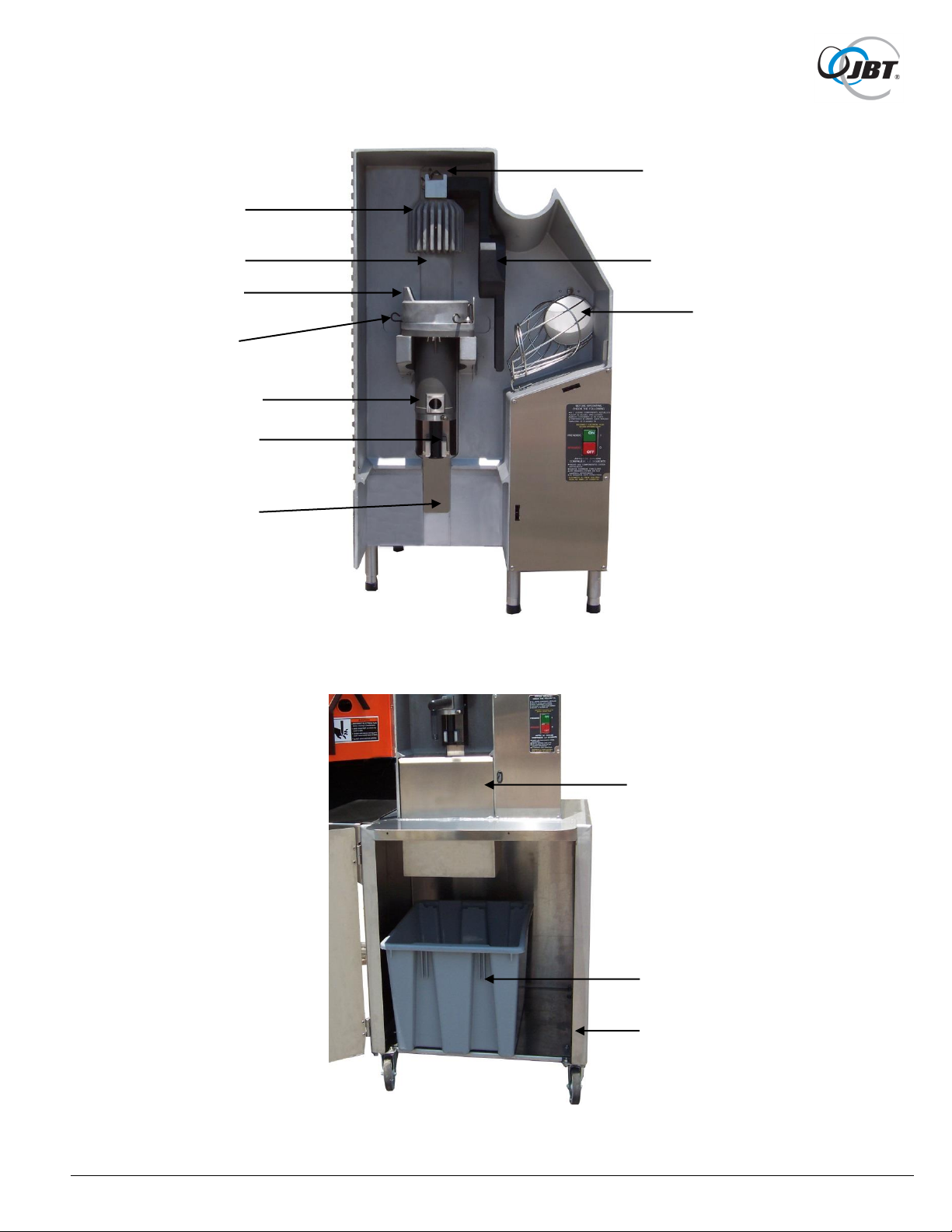

Figure 1a. JBT Corporation Citrus Juicer
Single
Feed Hole
1/4 Turn
Lock
Juice Nozzle
Counter Top
Waste
Container

9FNS-0006-060-EN November 2017 Rev F

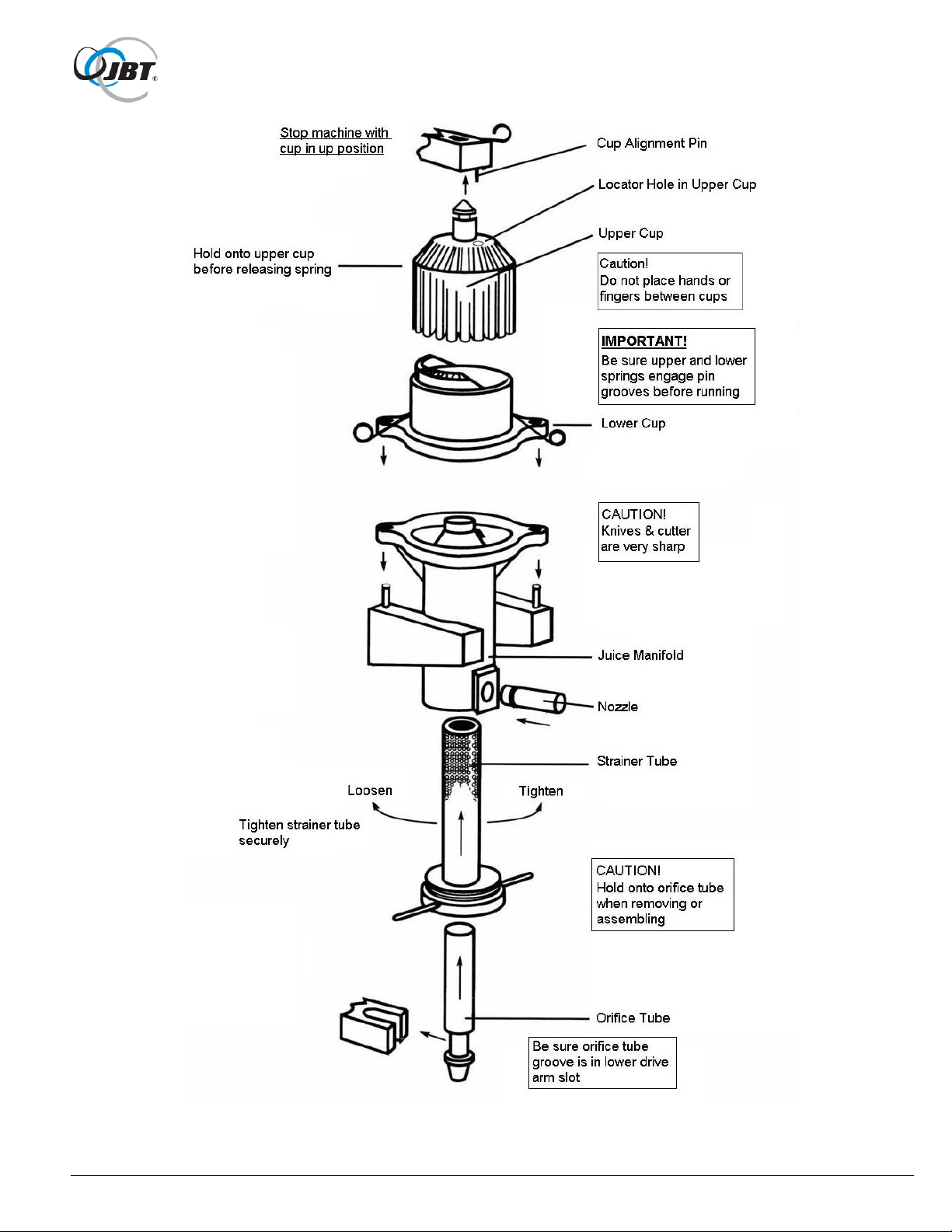

Figure 1b.Juicing Components Assembly
Figure 1c. Optional Cart & Waste Container
Upper Cup
Spring
Fruit Lift
Fruit Guide
Upper Cup
Upper Splash
Guard
Lower Cup
Lower Cup
Spring
Juice Manifold
Lower Splash
Guard

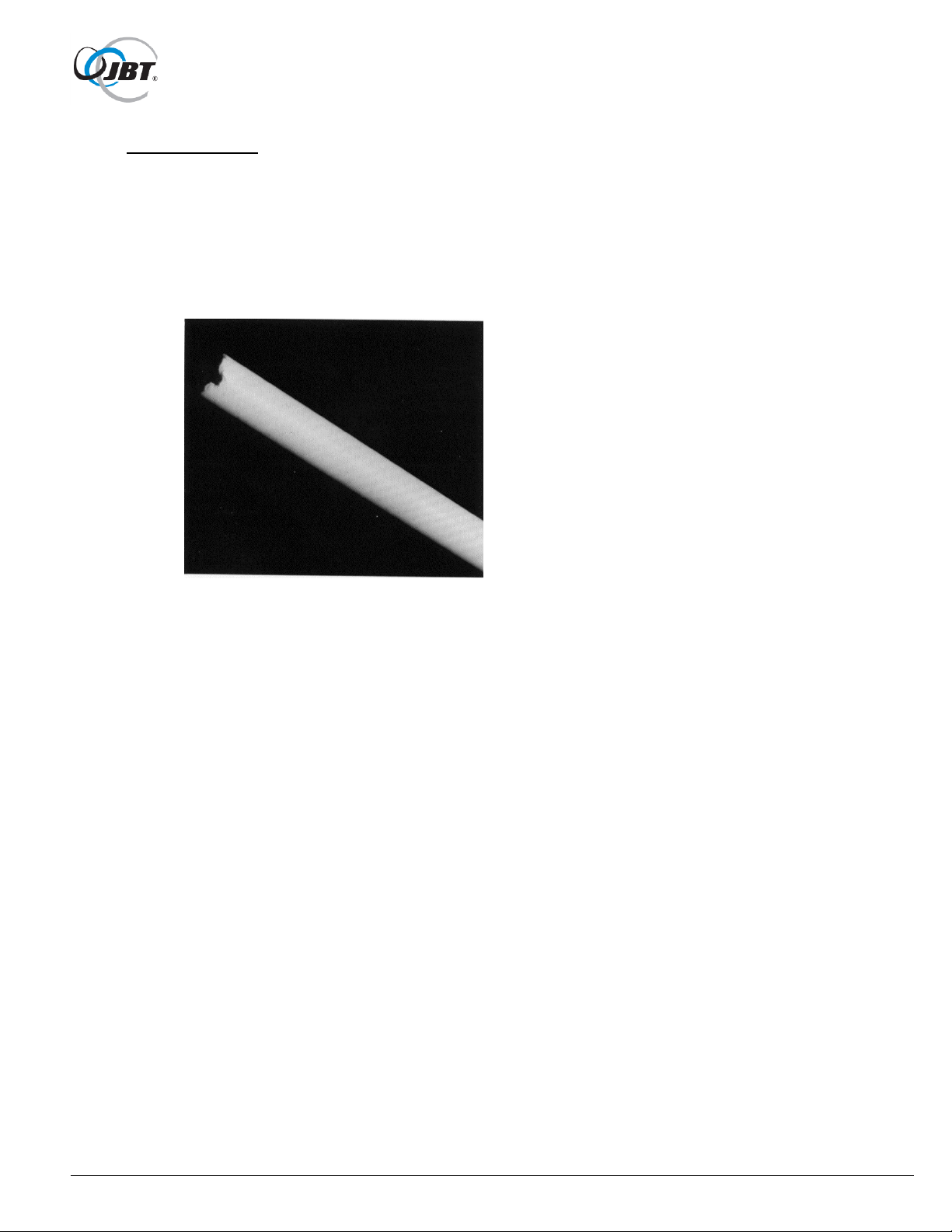

Orifice Tube
Note: Groove
part of Orifice
Tube in slot.
Waste Chute
Waste Container
Cart

10 FNS-0006-060-EN November 2017 Rev F
Operating Instructions
Equipment Check
Before plugging the JBT Corporation Citrus Juicer into an electrical outlet, the
following steps must be performed:
1. Locate the Citrus Juicer on alevel surface.
This will prevent fruit feed problems.
2. Check waste container.
Make sure that waste container is in place.
3. Check juicing components
Use key to unlock juicing components cover. Open cover and check that juicing
components are installed and securely fastened. See Figure 1b, page 9.
4. Close and lock access cover.
Juicing component cover must be locked. Counter top waste container (if used)
must be in place with key engaged. NEVER operate Citrus Juicer unless all covers
are in place.
5. Replace juice nozzle.
6. Make sure juice collector is in place.
7. Check the fruit feed chute or hopper for foreign objects.
Remove any foreign objects found in the chute or hopper.
8. Make sure floor area around Citrus Juicer is clean and free of obstructions and water.
When water is necessary, wear appropriate non-slip footwear.
