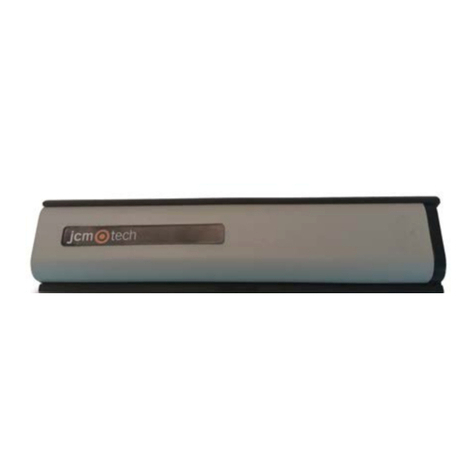

jcm-tech RB3 TGLA868 User manual

RB3 TGLA868
User Manual

Table of contents
Important safety instructions 3
Use of the equipment 3
Introduction 4
Installation 5
Connection 7
Programming 10
Starting up 10
IN1 and IN2 connections 10
Programming transmitter to receiver 10
Programming of one safety transmitter (IN1 input) 11
Programming of two safety transmitters (IN1 and IN2 input) 11
Check the correct operation 11
Maintenance 12
Leds and beeps indication table 12
Replacing the transmitter battery 13
Notes 14
Technical data 15
Regulatory Data 16
EU Declaration of conformity 16
jcmtechnologies
2

Important safety instructions
Disconnect the power supply whenever you proceed to
the installation or repair of the equipment.
In compliance with the European Low Voltage Directive, we inform you of the fol-
lowing requirements:
•When the devices remain permanently connected, an easily accessible connecting
device must be incorporated into the wiring.
•This system must only be installed by qualified professionals that have with auto-
mated garage doors and knowledge of the relevant European standards.
•The user instructions for this device must always be in the user’s possession.
•The operating frequency of the receiver does not interfere in any way with the 868
MHz remote control systems.
Use of the equipment
This device is designed for applications with an automated garage door. It is not guar-
anteed for the direct activation of devices other than those specified. The man-
ufacturer reserves the right to change the device specifications without warning.
More tips, interactive demos and online videos.
jcmtechnologies
3

Introduction
The RadioBand system is designed of domestic, commercial and industrial door
applications where a safety edge is used. The system provides a wireless system
replacing spiral cables or energy chain systems to provide the safety signal to the
door or gate control panel. The receiver monitors the status of transmitters con-
nected to it.
Up to three transmitters per output can be connected to the receiver. There are two
outputs on each receiver that can be connected to the control panel as 8k2 or NC
contact.
The transmitter is compatible with 8K2 monitored safety edges or electromechanical
safety edges (NC contact), and also with standard low voltage optical safety edges
and OSE-S7502B and OSE-S7502 optical safety edges.
The system complies with EN ISO 13849-1:2015, category 2, PLd.
jcmtechnologies
4

Installation
jcmtechnologies
5

RUBBERLIP
jcmtechnologies
6

Connection
IN1 Connection SW1:1 SW1:2
JCM Optical safety edge (OSE-S7502B and OSE-
S7502) OFF OFF
Standard optical safety edge ON OFF
8k2 resistive safety edge OFF ON
NC contact* ON ON
IN2 Connection SW1:3
NC contact* ON
8k2 resistive safety edge OFF
* In order to comply with the EN 12453:2017 safety standard,
NC contact input can not be used to connect safety devices.
jcmtechnologies
7

8k2 RESISTIVE SAFETY EDGE / MECHANICAL OR CONTACT DEVICES
OSE-S7502 “ALWAYS ON” OPTICAL SAFETY EDGE
jcmtechnologies
8

STANDARD OPTICAL SAFETY EDGE (Only used with ATEST function)
OSE-S7502B “ALWAYS ON” OPTICAL SAFETY EDGE
OSE-S7502B “ALWAYS ON” OPTICAL SAFETY EDGE AND WICKET DOOR
CONTACT
jcmtechnologies
9

Programming
Starting up
IN1 and IN2 connections
See Table IN1 CONNECTION. * These two configurations are supported only if
working in WORK mode in the receiver.
In programming mode, the receiver will warn us that it cannot support these con-
figurations, emitting 6 continuous beeps and leaving programming mode.
Programming transmitter to receiver
The receiver allows programming 6 transmitters (3 for Relay 1 and 3 for Relay 2).
Each safety edge transmitter must be learnt into the appropriate channel of the
safety edge receiver. A transmitter should only be connected to one receiver.
Press PROG button and keep pressed until desired mode selected.
jcmtechnologies
10

Programming of one safety transmitter (IN1 input)
Mode
Configuration of transmitter programming
in the receiver. Led R1 Led R2
1Safety edge activates relay 1 on the
receiver ON OFF
2Safety edge activates relay 2 on the
receiver OFF ON
3Safety edge activates the two relays 1 and
2 at the same time ON ON
Programming of two safety transmitters (IN1 and IN2 input)
4Safety edge in IN1 activates relay 1 and
safety edge in IN2 activates relay 2 Flashing Flashing
Check the correct operation
It is recommended to verify the installation while the leds are active. Each press of
PROG button activates the leds for 5 minutes.
Press each safety edge connected to assure that the appropriate relay on the
receiver is activated.
If not, see the Leds and Beeps indication table, to check what is happening and how
to solve it.
jcmtechnologies
11

Maintenance
Leds and beeps indication table
The status of leds is shown during 5 minutes after pressing PROG button or dur-
ing the Check function. The rest of the time they are turned off.
IN1/IN2
LED Beeps Equipment Message Solution
ON No
beeps transmitter
Safety edge activ-
ated ---
OFF No
beeps
RB3
transmitter
Safety edge con-
nection and oper-
ating correctly
---
ON No
beeps
RB3
transmitter
Connection/ Con-
figuration error
Check if safety
edge is pressed, if
not review the con-
nections and con-
figuration and
reprogram again
Intermittent No
beeps
RB3
transmitter
The safety edge
does not oper-
ates well (it is not
connected or not
programmed)
Connect properly
or program the
safety edge trans-
mitter on the
receiver
OFF
4 beeps
every 20
seconds
RB3
receiver
RB3 transmitter
low battery
Verify the batteries
of the transmitter
ON No
beeps
RB3
receiver
Communication
failure between
RB3 R and RB3
T
Verify the radio sig-
nal with the Check
function
jcmtechnologies
12

Replacing the transmitter battery
Remove the box cover. Replace the two used batteries with new ones, taking into
account the polarity indicated by the connector. Check that the new batteries sup-
port the same temperature range as those they are replacing.
Before throwing away the device, the batteries must be removed
and deposited in a collection point.
jcmtechnologies
13

Notes
jcmtechnologies
14

Technical data
Parameter Value
Frequency Multifrequency system 868 MHz auto-
adjustable
Operating consumption 12mA
Radiated power < 25mW
Minimum / Maximum
range (in open field) 0,20m / 50m
Battery life (aprox) 1,5 Years (standard use with optical safety
edge: 4 manoeuvres of 30s a day)
Reaction time (typical) 35ms
Maximum reaction time
when interferences 265ms
Operating temperature -20 ºC to 55 ºC
jcmtechnologies
15

Regulatory Data
EU Declaration of conformity
JCM TECHNOLOGIES, S.A. hereby declares that the product RB3 TGLA868 com-
plies with the relevant fundamental requirements of the RED Directive 2014/53/EU,
as well as with the Machine Directive 2006/42/EC whenever its usage is foreseen;
and with the 2011/65/EU RoHS Directive.
See website https://www.jcm-tech.com/declarations/
JCM TECHNOLOGIES, SA
C/COSTA D'EN PARATGE, 6B
08500 VIC (BARCELONA)
SPAIN
The system complies with EN ISO 13849-1:2015, category 2, PLd. Certified by
TÜV NORD CERT GmbH.
jcmtechnologies
16
UM_3201478_RB3 TGLA868S_EN_Rev01
