JD Williams and Co ASPEN 4+2 DRAWER CHEST User manual

Assembly Instructions - Please keep for future reference
Width - 66.8cm
4 + 2 Drawer Chest
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123
Please turn to back page for important information when contacting Customer Helpline.
Dimensions
Depth - 35.2cm
Height - 88.4cm
Rev C - 20/06/2016
002 xx 6642
MADE IN
GREAT BRITAIN

Important - Please read these instructions fully before starting assembly
Safety and Care Advice
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and seperate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Parts of the assembly will be
easier with 2 people.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Care and maintenance
Always lift furniture when
moving it (do not drag)
otherwise the joints may be
damaged.
From time to time check that
there are no loose screws on
this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
1
Dust surfaces with a soft, dry,
lint free cloth.
More stubborn marks can be
removed using a damp
(not wet) cloth. Wipe the
surface dry immediately
using a soft lint free cloth.
Do not use detergents, abrasive
cleaning products or cleaning
products that contain ammonia,
solvents or silicone as these
may damage the surface finish.
To protect the furniture,
position the furniture out of
direct sunlight and away from
direct heat sources such as
radiators and fires.
Do not place the furniture in
excessively dry and humid
conditions.
Do not place hot or cold
objects on the surface, always
use protective mats to avoid
marking the furniture.
Clean spills up immediately
Dispose of all packaging
carefully and responsibly
when assembly complete.
Do Not dispose of packaging
until assembly complete.

Please check you have all the panels listed below
Components -Panels
2
Important - Thick lines indicate finished edges
Top (66.8x35.2cm)
4968
End Panel x 2
(80.4x32.8cm)
0315
Backpanel (83.0x66.0cm)8312
Drawer Front x4
(66.0x15.6cm)
4717
Drawer Bottom x 4
(61.2x29.8cm)
5671
Drawer Bottom x 2
(28.7x29.8cm)
4883
Divider Panel (32.8x16.0cm)
0323
624xx7010
Draw Front (Top Right)
(32.8x15.6cm)
4882
Left drawer side x6
(30.0x10.0cm)
Drawer back x2
(27.6x10.0cm)
Drawer back x4
(60.1x10.0cm)
Right drawer side x6
(30.0x10.0cm)
622xx7002
624xx7003
623xx7002
Draw Front (Top Left)
(32.8x15.6cm)
4881
Bottom Panel
(66.8x35.2cm)
5377

3
70 80 90 100 110 120
010 20 30 40 50 60
mm
130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws
Please check you have all the fittings listed below
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly, In some case more
fittings may be supplied than are required.
Tools required
If you have damaged or missing components, call the
Customer Helpline: 01709 534123 Please turn to back page
for important information when contacting Customer Helpline.
Cross headed screwdriver
(medium & large )
Small Hammer
Tape Measure
Eye protection
(when using a
hammer)
Large cam x 6
Code 760001103
Metal dowel x 18
Code 760003004
ABC
E
DF
Small cam x 12
Code 760003005
8mm screw x 24
Code 700003510
Panel pin x 30
Code 760001012
Panel pin guide x 1
Code 684004501
Runner x 12
Code 760001040
HJ
9mm bolt x 12
Code 690001078
K
LMN
OP
7/8” CSK Screw x 4
Code 690001018
M4x20 Bolt x 10
Code 700002006
Assembly Screw x 4
Code 690001075
Pine Glide Foot x 4
Code 720006001
Timber Knob x 10
Code 640031118
O
White Glide Foot x 4
Code 720365001
P
Ceramic Knob x 10
Code 640006001
IMPORTANT: Depending on the colour variation you purchased this unit in, you will have
one of the handles and glide feet shown above.
Wooden Dowel x 4
Code 770001006
Bradawl
Q
Support bracket x 1
Code 760001901
1/2 inch roundhead
Screw x 2
Code 690001099
R

Exploded View
4
4717
5671
Large Drawers x4
622xx7002
622xx7002
623xx7002
624xx7003
4883
4881
622xx7002
623xx7002
623xx7002
624xx7003
624xx7010
4883
4882
4968
0315
0323
8312
5377
0315

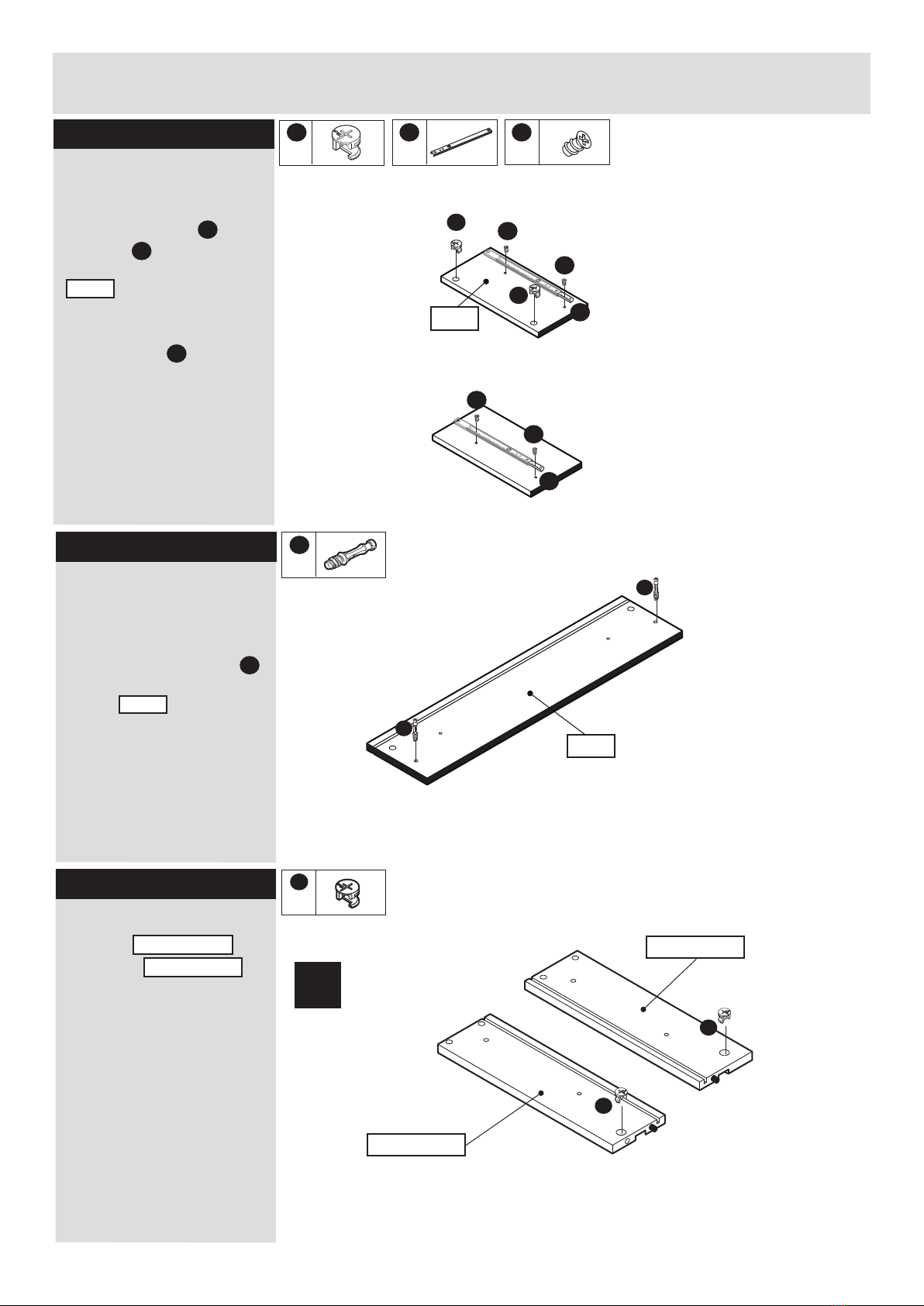

Step 1
Assembly Instructions
5
B
x6
B
Fitting dowels to top
panel.
B
Insert 6 metal dowels
into the top panel 4968
Note: Tighten metal
dowels up fully against
the panel.
Do not over-tighten.
B
B
B
B
B
B
4968
Fitting cams and
dowels to the end
panels.
A
Insert 2 cams to the
end panels .
Insert 2 wooden dowels
into the inner holes in
end panels .
0315
Step 2
A
A
x4
K
0315
0315
0315
A
A
Important :-
Lay end panels out
as shown
A
A
Important :-
Lay end panels
out as shown
K
K
K
Use a hammer to
knock in wooden dowels
into inner holes.
K
K
x4
K
K

0315
0315
Assembly Instructions
6
Step 3
H
H
EE
Important :-
Lay end panels out
as shown
Position the runner so
that the front hole
of the runner lines up
with the pre-drilled hole
nearest to the edge of
the panel.
Use screws to secure
the runner.
Slide the runner forward
revealing the back of the
runner. The third hole
to the back of the runner
should now line up with
the second pre-drilled
hole.
Repeat to add runners
to additional holes.
E
Front of runner
H
x10
E
x20
Attaching runners to
end panels
Important :-
Lay end panels
out as shown

Assembly Instructions
7
B
B
4717
Step 5
Fitting dowels and
handles to drawer
fronts.
B
Insert 2 metal dowels
into the the drawer
fronts .
Repeat on the remaining
large drawer fronts.
4717
x8
B
x8
A: Insert small cams
into left
and right
drawer sides.
Note: Ensure cam arrow
points towards the edge
with hole.
Left hand side
Right hand side
622xx7002
623xx7002
622xx7002
623xx7002
C
C
C
Step 6
A
Insert the runner and
2 cams into the right
face if the divider panel
.
Turn the panel over and
insert runner .
Take care not to damage
the floor when turning
panel with exposed fittings
over.
E
E
H
H
x2
E
x4
Step 4
0323
Fitting cams and
runners to the divider.
A
A
x2
H
H
0323
E
E
H
x4
A
A

Assembly Instructions
8
C
624xx7010
5671
D
4717
622xx7002
623xx7002
B: Insert wooden dowels
in drawer back
into holes in
left
right hand
drawer sides.
Left hand side
622xx7002
623xx7002
624xx7010
622xx7002 BDrawer Back
624xx7010
Right hand side
623xx7002
5671
4717
C: Sit drawer bottom
into groove on
drawer front .
Ensure foil on the drawer
bottom is facing upwards.
D:Locate grooves in left
and right drawer sides
around the drawer bottom
and slide down, locating
cams already inserted in
left and right drawer sides
onto dowels in drawer
front.
Turn cams 180 degrees
to lock.
5671
4717
Foil surface facing upwards.
Plain chipboard surface
to underside.

Assembly Instructions
9
x4
B: Insert wooden dowels
in drawer back
into holes in
left
right hand
drawer sides.
A: Insert small cams
into left
and right
drawer sides.
Note: Ensure cam arrow
points towards the edge
with hole.
Left hand side
Right hand side
Left hand side
Right hand side
Drawer Back
622xx7002
624xx7003
623xx7002
622xx7002
623xx7002
622xx7002
623xx7002
623xx7002
624xx7003
622xx7002
C
C
C
Step 8
A
B
B
B
4881
B
B
4882
Step 7
Fitting dowels to the
drawer front.
B
Insert 2 metal dowels
into the the drawer
front .
Repeat on the drawer
front .
4881
4882
x4
B

Assembly Instructions
10
D
C
622xx7002
623xx7002
4881
D:Locate the metal
dowels (already inserted)
in the drawer front into the
small cams in the left and
right hand drawer sides.
Turn the cam 180 degrees
to lock.
M
P
Fit bolt through
the pre-drilled holes in
the drawer front
and connect to the handle
.
Repeat the above process
to complete the assembly
of the second small
drawer and also
the four large drawers
.
M
P
4881
4881
4882
4883
C: Sit drawer bottom
into groove on
drawer front .
Ensure foil on the drawer
bottom is facing upwards.
4883
4881
4881
4883
4883
4717
M
P
M
P
4717
Foil surface facing upwards.
Plain chipboard surface
to underside.
Step 9
x10
M
x10
P

Connect the metal dowels
in the top panel
to the cams in the end
panels
Assembly Instructions
11

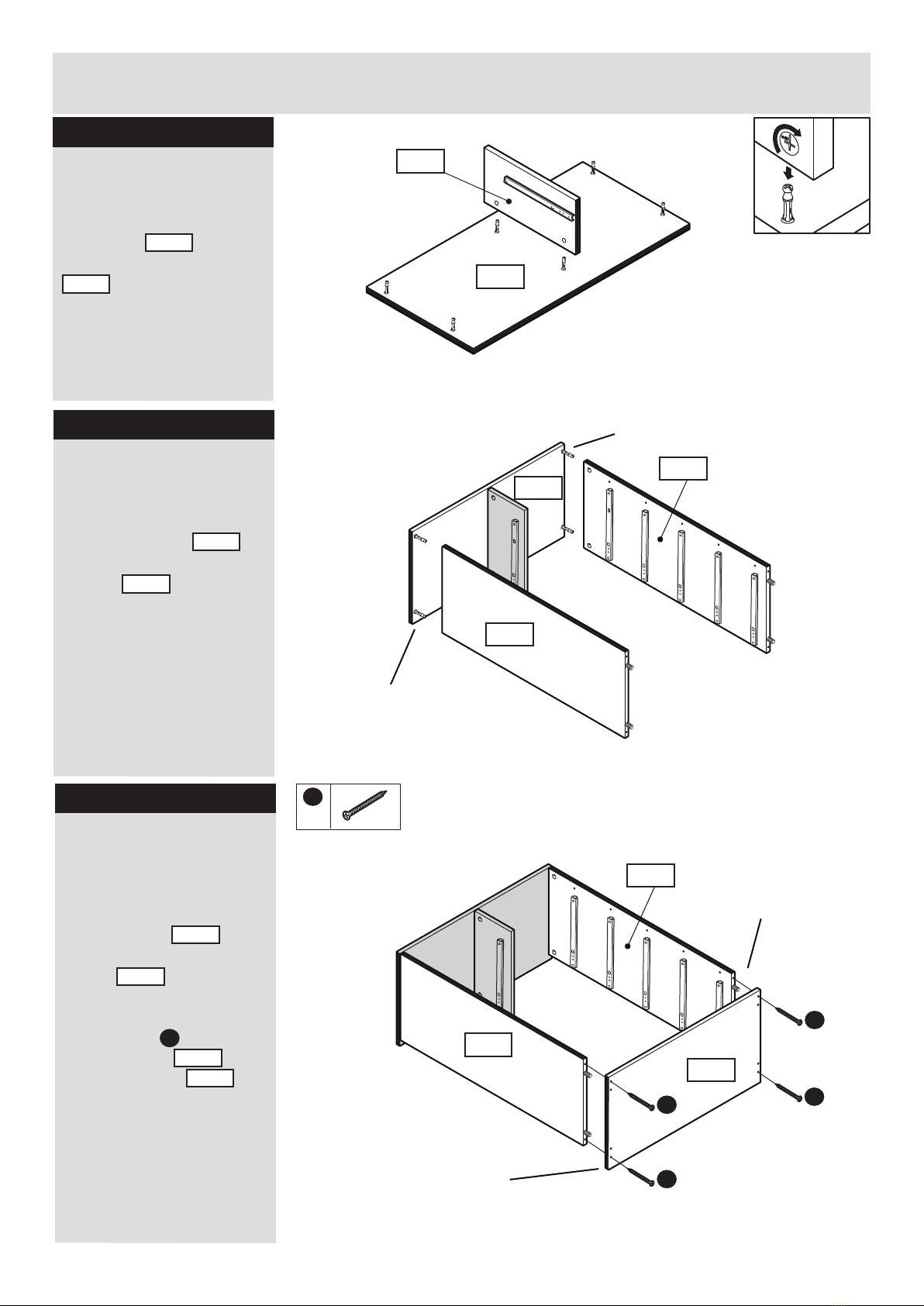

Step 11
4968
0315
Connect the end panels
to the top panel.
Locate wooden dowels
in end panels into
inner holes in bottom
panel .
Use screws to secure
bottom panel to
the end panels .
Step 12
0315
5377
Connect the bottom
panel to the end panels.
Step 10
Connect the dowels in the
top panel to the
cams in the divider panel
.
Turn cams 180 degrees to
lock.
Connect the top panel
to the divider panel.
4968
0323 4968
0323
0315
0315
4968
Turn cams 180 degrees to
lock.
Overhang to
floor
Panels sit flush
N
x4
N
N
N
N
0315
0315
5377
5377
0315
N
Overhang to
floor
Panels sit flush

Assembly Instructions
12
Step 13
Squaring up the unit.
IMPORTANT!
Before securing the back
it is necessary to square
up the unit.
You can do this by
measuring between
XX - XX and YY - YY
ensuring these are the
same (DIAG 1).
If they are not (DIAG 2)
Apply slight pressure as
indicated (DIAG 3) until
they are the same.
Ensure a tape
measure is used
to square unit up.
DIAG 3
DIAG 1
XX
XX
YY
YY
XX
XX
YY
YY
DIAG 2
XX
XX
YY
YY
XX
XX
YY
YY
TAPED SIDE
TO BACK
Step 14
D
F
D
x30
F
x1
Attach the back panel
to the unit.
Use the panel pin guide
when locating the panel
pins. This will hold the
panel pins vertical and
ensure the correct
distance from the edge.
8312
Stand the unit on its
top once you have
finished this step.
Two people may be
required to do this.

Assembly Instructions
13
Step 15
L
x4
O
x4
Attach the feet to the
bottom panel.
Use a bradawl to mark
out the holes for the feet.
Use 4 screws to attach
feet to the bottom
panel .
5377
L
O
5377
L
L
L
L
O
O
O
O
Stand the unit upright
once you have finished
this step.
Two people may be
required to do this.

Assembly Instructions
14
Step 16
We recommend that this
unit is fixed to a suitable
wall to prevent possible
overbalancing. We have
included a fixing bracket
for this. No fixing screws
are provided as they will
need to suit the wall
type, and the length of
screw will depend on
the distance from the
back of the unit to the
wall. Please ensure
fixings used are
appropriate to your wall
type. Locate the bracket
to the top panel or to the
end panel as close to
top as possible. We do
not specify exact
location for the bracket,
this is left to the
customer’s discretion.
Fixing to wall
Please take care when
drilling into the wall,
avoiding any pipes and
wires. Wear safety
goggles when drilling.
The use of residual
current device (RCD) is
recommended when
working with tools.If in
doubt consult a
qualified person.
Warning:
2 people to lift.
Lift with care.
With help move the
unit into position.
Warning:
Q
x1
R
x2

Assembly Instructions
15
Step 17
Fit the drawers.
For this step we
recommend you follow
the helpful hints on the
next page. 2nd Hole
J
x12
J
4881
4882
4717

Assembly Instructions
16
Step 18
a: Pull sliding part of
drawer runners out
so they are fully
extended.
Locate drawers helpful
hints
H
b: Locate drawer onto
runners.
c: Locate screwdriver
into second threaded
hole in drawer runner .
d: Keeping screwdriver
in place push the drawer
in until the screwdriver
pushes against the
panel.
Remove the screwdriver.
e/f: Pull drawer out slowly
and line the front hole in the
drawer side with the 2nd
threaded hole in runner .
Holding runner and
drawer side together
insert bolts through the
drawer side and
into threaded hole in
runner .
J
J
Now repeat these
steps for the other
side of the drawer.
J
D
EF
AB
C
2nd Hole
H
2nd Hole
J
L
L
L
L
L
J
H
H
H
H
H
H

Assembly Instructions
Congratulations! Your unit is complete.
Important Information
If you need help or have damaged or missing parts, call the Customer Helpline:
01709 534123 8am - 4.30pm (Monday toThursday)
8am - 2.30pm (Fridays)
Please have the following information to hand:
>> Unit Description
>> Product Code
>> Product Colour
>> Place of Purchase
>> Catalogue Ref. No.
>> Item Code
>> Assembly Instructions
You can also e-mail your requests to us at:
[e-mail]
Alternatively, you can write to us at: Customer Service Department, Addspace Furniture Limited,
Braithwell Way, Hellaby Industrial Estate, Hellaby, Rotherham, South Yorkshire, S66 8QY.
We do have an answer machine should you contact us out of office hours, so in addition to
the above information could you leave your name, address, daytime telephone number and
the nature of your call on the answerphone. All calls will be actioned asap.
(by contacting the customer service line your statutory rights are not affected)
