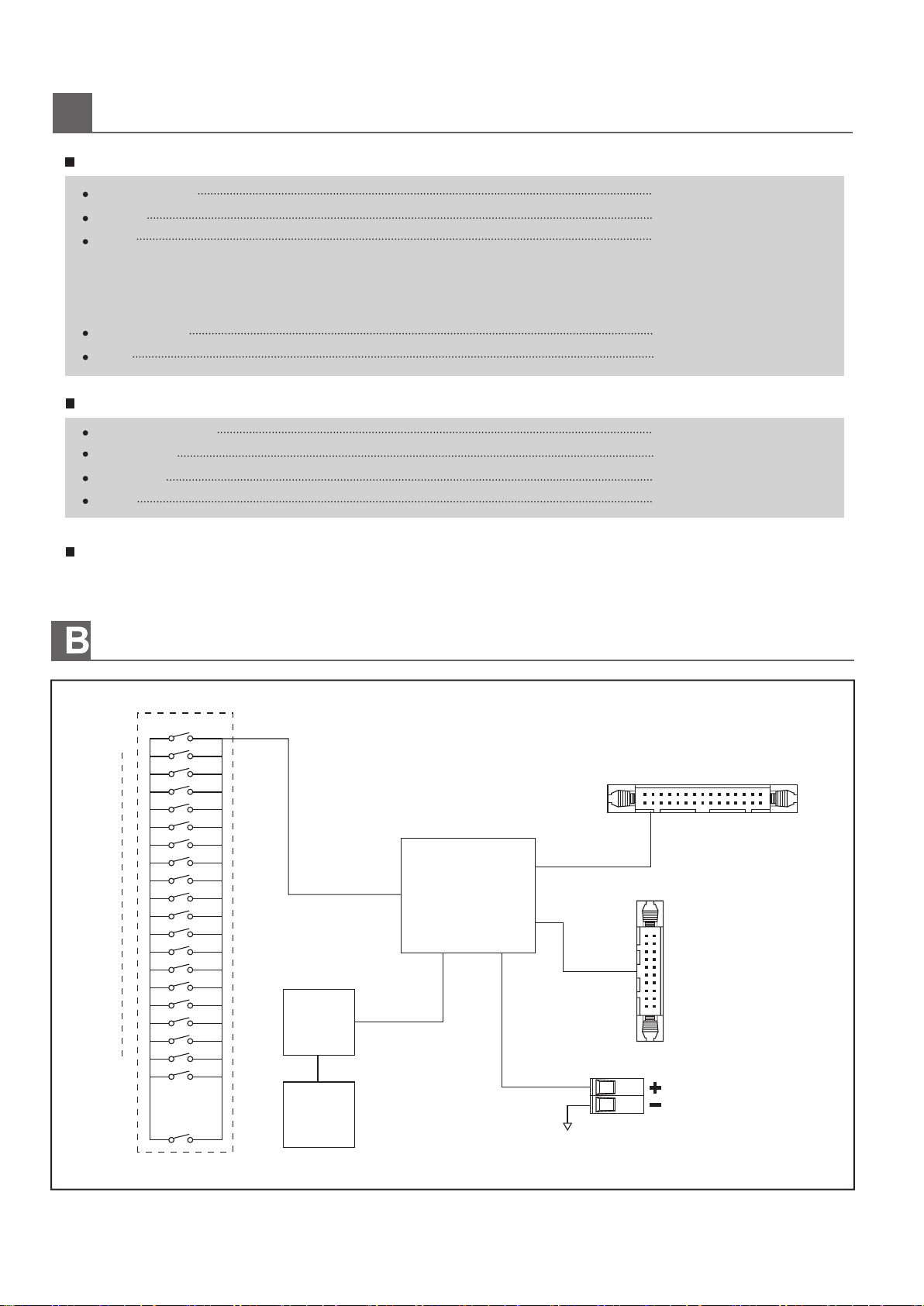

LOCK DIAGRAM
B
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 ALL E/M

1
JSS-5120의 특 징
JSS-5120의 동작방법
1
2
3
구역별 및 전층 방송을 임의 제어할 수 있음.(JRG-220A와 연결)
릴레이 그룹 (JRG-220A)과 연결되어 원격, 비상신호가 입력되면
우선순위로 MODE전환.
일반방송, 원격방송의 입력 제어 기능으로 신호를 제어.
RS-232C통신을 사용하여 PC와 연동이 가능.
별도의 PC프로그램을 사용하여 볼륨 및 타 장비의 연동이 가능하며,
JMA-5104와 연결시 비상방송 및 아날로그
전관방송 장비를 디지털 전관방송으로 개조 변경 사용이 가능하며
PC와 무관하게 순수 아날로그 방송이 가능하다.
원거리에서 방송 구역의 식별이 가능하도록 스피커 회선 표시용 램프 내장
리모트 앰프 (JRA-051A)에서 방송하기 위해 스피커 회선을
선택하면 스피커 셀렉터에서 선택한 스피커 회선은 해제됨
시스템 운용이 비상상태(화재발생)로 전환되면 E/M LED가 ON되고
스피커 셀렉터에서 선택한 스피커 회선은 해제됨.
본 장비 후면에 있는 각 단자를 연결 블럭도와 같이 연결합니다.
본 장비 후면에 있는 UNIT NO를 설정한후 RS-232C통신단자를
컴퓨터나 그외의 연동장비(JMA-5104)와 연결한후 PC프로그램을
이용하여 일반 방송 구역의 스피커 회선을 제어 할수 있습니다.
전면의 스위치를 이용하여 일반 방송구역의 스피커 회선을
선택하여 사용한다.
Features
How to operate
1
2
3
User can select each speaker zone or all speaker zones for
broadcasting with connect to Relay Group, JRG-220A.
With connect to Relay Group (JRG-220A), when the Remote
or Emergency signal is inputted, it overrides other input signals.
Available to monitor input signals from Remote Amplifiers.
(JRA-051A, 051B)
Available to link with PC by RS-232C communication.
Indicator Lamp to discern selected speaker zones from long distance.
When select the speaker zones for remote broadcasting,
Selected zone by Remote Amplifier (JRA-051A, 051B) is prior
to Selected zone by Speaker Selector (JSS-5120).
In case of Emergency like fire, E/M LED indicator will be turn
on and release selected speaker zones by Speaker Selector
(JSS-5120) simultaneously.
Please connect all connectors like following system
connection diagram.
After setting Unit no. of this equipment, can select speaker
zones through Extra PC program by RS-232C communication.
Available to select Speaker zones for General broadcasting.
SAFETY INSTRUCTIONS
Read al l safety i nstr ucti on befor e oper ati ng the JSS-5120.
1. Install equipment as follow conditions.
The apparatus shall not be exposed to dripping or splashing and no object filled with liquids, such as vases, shall be place on the apparatus.
Install at the place, not bending curved.
Do not install this apparatus in a confined space such as a book case or similar unit.
Locate this apparatus away from heat source, such as radiators or other device that produce heat.
Do not drop objects or spill liquids into the inside of the apparatus.
2. Keep in mind the following when connecting the apparatus.
Connect the apparatus after reading of O/P manuals.
Connect each connection of amplifier perfectly, if not, it maybe Caused hum, damage, electric shock in case of mis-connecting.
To prevent electric shock, do not open top cover.
Connect the power cord with safety after check of AC power.
This apparatus should be serviced by qualified service person.
The apparatus shall not be exposed to dripping or splashig and no object filled with liquids, such as vases, shall be
place on the apparatus

1. SPEAKER SELECTORS(1󰾝20)
PUSH SWITCH
일반방송 구역의 스피커 회선을 선택할 수 있습니다.
LED
스피커회선이 선택되면 해당하는 LED가 켜집니다.
비상 또는 화재발생시 E/M LED가 켜지며 스피커 셀렉터에서 선택한
스피커 회선은 해제됩니다.
2. ALL SWITCH
3. E/M LED
1. SPEAKER SELECTORS(1󰾝20)
2. ALL SWITCH
3. E/M LED
PUSH SWITCH
이 스위치를 누르면 전체구역의 스피커회선을 선택할 수 있습니다.
LED
전체 구역이 선택되면 LED가 켜집니다.
이 때, 스피커회선선택 LED(1󰾝20)는 모두 켜집니다.
PUSH SWITCH
this is speaker zone selector for general broadcasting.
LED
this is indicator for selected speaker zones.
In case of Emergency like fire, E/M LED indicator will be turn
on and release selected speaker zones by Speaker Selector
(JSS-5120) simultaneously.
PUSH SWITCH
this is selector for all speaker zones.
LED
this is indicator for all speaker zones. In this case, all speaker
zone LED is turned on.
FRONT PANEL CONTROLS (전면기능)
2
2 3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 ALL E/M
1

3

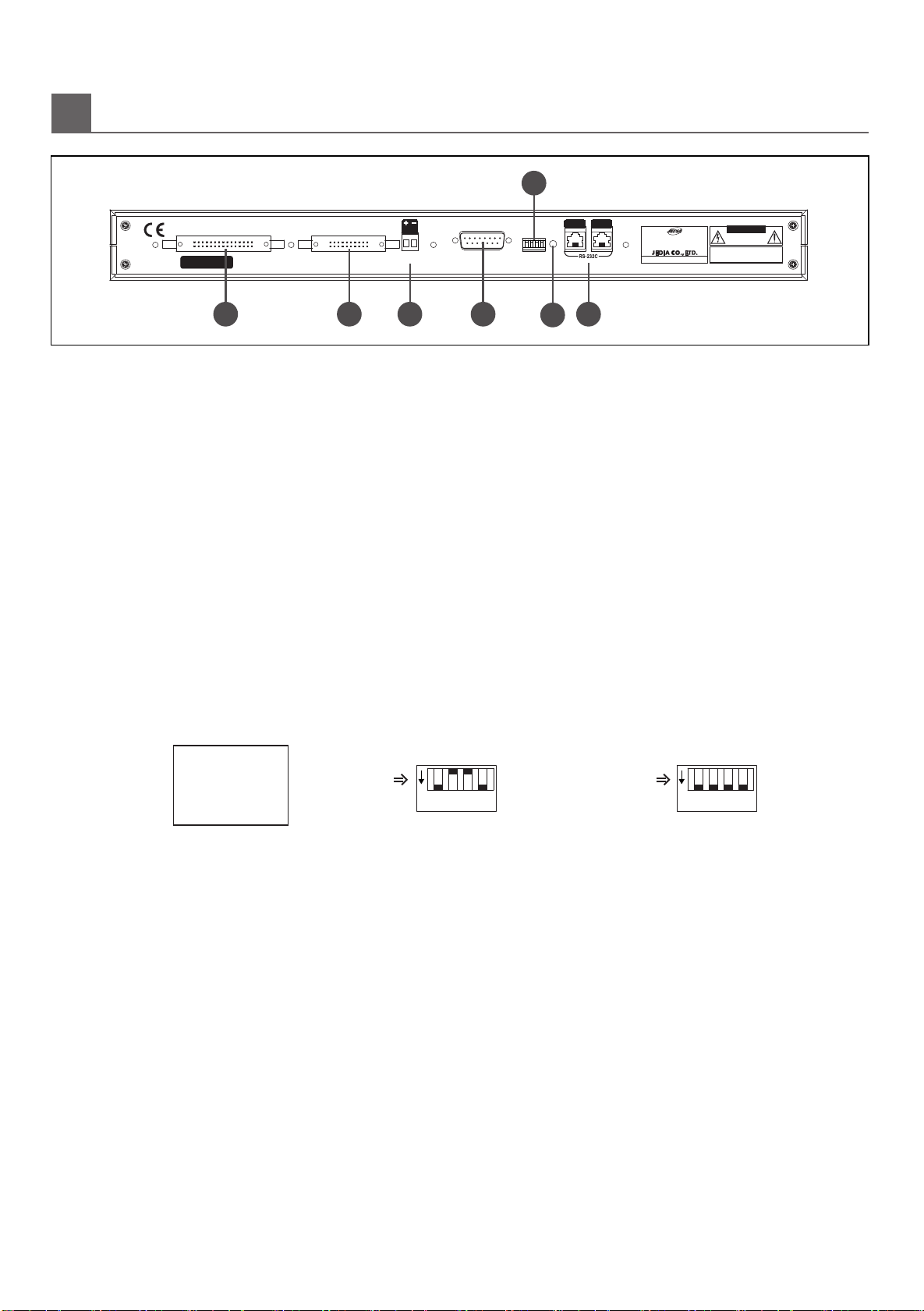

REAR PANEL CONTROLS (후면기능)
REMOTE ALL IN
TO J6CD-10
5V~24VDC
SERIAL NO.:
TO JRG-220A
SPEAKER SELECTOR OUT
TO JRG-220A
REMOTE ZONE DATA IN
REMOTE CONTROL UNIT NO.
RESET
IN OUT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
MADE IN KOREA
MODEL NO.: JSS-5120
SPEAKER SELECTOR
with DIGITAL MATRIX
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
UNIT NO.
1234
ON
UNIT NO.
1234
ON
ex)장비번호
9번설정시
ex)장비번호
15번설정시
1 = 1
2 = 2
3 = 4
4 = 8 1 + 8 = 9 1+2+4+8 = 15
스위치 번호 = 해당값
RELAY GROUP(JRG- 220A)의 스피커 셀렉터입력과 연결되어
일반방송 스피커회선을 제어하기 위한 출력단자입니다.
(전면의 스피커 회선선택 스위치를 누르면 직류 5V가 출력됨.)
1. SPEAKER SELECTOR OUT
리모트앰프(JRA- 051A)에 방송하기 위해 스피커회선을 선택하면
스피커 셀렉터에서 선택한 스피커회선만 해제되고 나머지는
일반방송이 계속되게 하는 기능입니다.
2. REMOTE ZONE DATA IN
외부에서 전체 스피커회선을 선택할 수 있는 ALL입력 기능입니다.
(직류 5V󰾝4V까지 입력 가능합니다.)
3. REMOTE ALL IN
본사의 CD플레이어 (J6CD- 10)을 PC프로그램을 이용하여
제어하는 단자입니다.
4. REMOTE CONTROL
5. 유닛 넘버 설정 스위치
6. 리셋 스위치
장비를 초기화시키는 스위치 입니다.
7. RS- 232C통신 입출력 단자
본장비는 PC프로그램과 연동이 가능하며 여러대의 장비를
LINK하여 사용이 가능한 장비 입니다.
A. RS- 232C IN
통신입력단자입니다. RS- 232C IN콘넥터와 PC의
COMPORT가 서로 연결되어야 가능합니다.
B. RS- 232C OUT
통신 출력단자입니다. JMA- 5104등 여러대의 장비를
연결하는 단자 입니다.
This is Output connector to control speaker zones by connect
to Speaker Selector Input of Relay Group (JRG- 220A).
When push selector switch, DC 5V will be supplied.
1. SPEAKER SELECTOR OUT
When select the speaker zones for remote broadcasting,
Selected zone by Remote Amplifier (JRA- 051A, 051B
is prior to Selected zone by Speaker Selector (JSS- 5120).
Please connect to Remote 1 Card of JRG- 220A.
2. REMOTE ZONE DATA IN
This is connector to control all speaker zones by remote from
external.
Permissible to input DC 5V 󰾝24V.
3. REMOTE ALL IN
This is connector to control CD Player (J6CD- 10) through
extra PC program.
4. REMOTE CONTROL
5. UNIT NO.
6. RESET S/W
7. RS- 232C DATA PORT
123 4
5
67
This switch is to assign the number (address) of the
equipment itself.
Setup method : summing up the value of ON switch number.
(from 1 up to 15)
Legend :
This switch is to initialize the equipment.
This connector is for multiple links with other equipments.
This equipment can be linked with PC program.
A. RS- 232C IN
this is DATA IN connector. This connector should be
connected with Comport of PC.
B. RS- 232C OUT
this is DATA OUT connector. This connector can be
connected with several other equipments like JMA- 5104.
Ex) Equipment no.,
Setup no.9
Ex) Equipment no.,
Setup no.15
(Switch no. = Value)

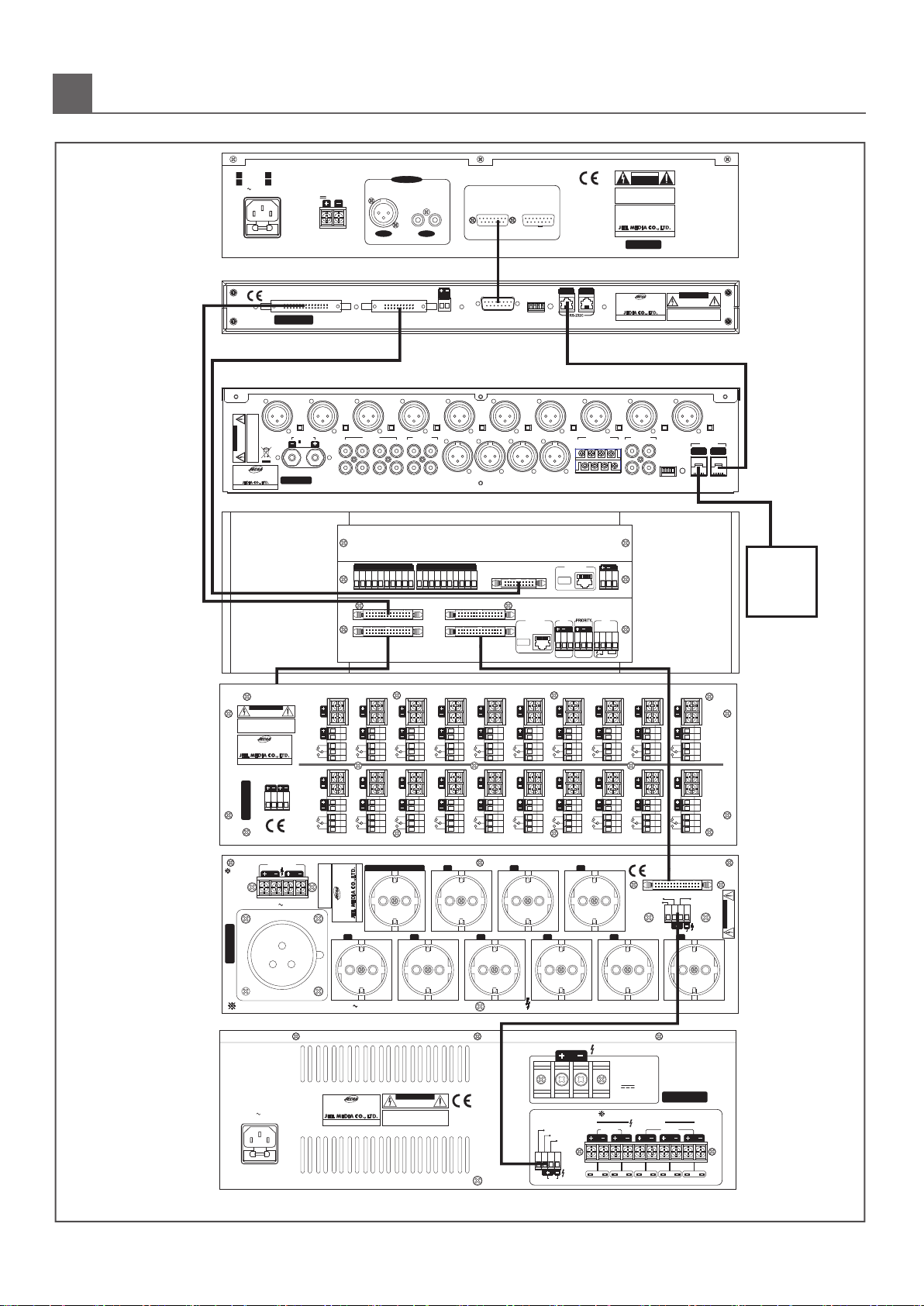

SYSTEM CONNECTIONS (시스템 연결 방법)
REMOTE ALL IN
TO J6CD-10
5V~24VDC
SERIAL NO.:
TO JRG-220A
SPEAKER SELECTOR OUT
TO JRG-220A
REMOTE ZONE DATA IN
REMOTE CONTROL UNIT NO.
RESET
IN OUT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
MADE IN KOREA
MODEL NO.: JSS-5120
SPEAKER SELECTOR
with DIGITAL MATRIX
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
