Jenn-Air C1200 Series User manual

JENN-AIR ®
Use and Care Manual
TElectric Grill-Range Cooktops
/MODELS C1200,C2000, C2200,C3200, CR2200Series
.......... i i

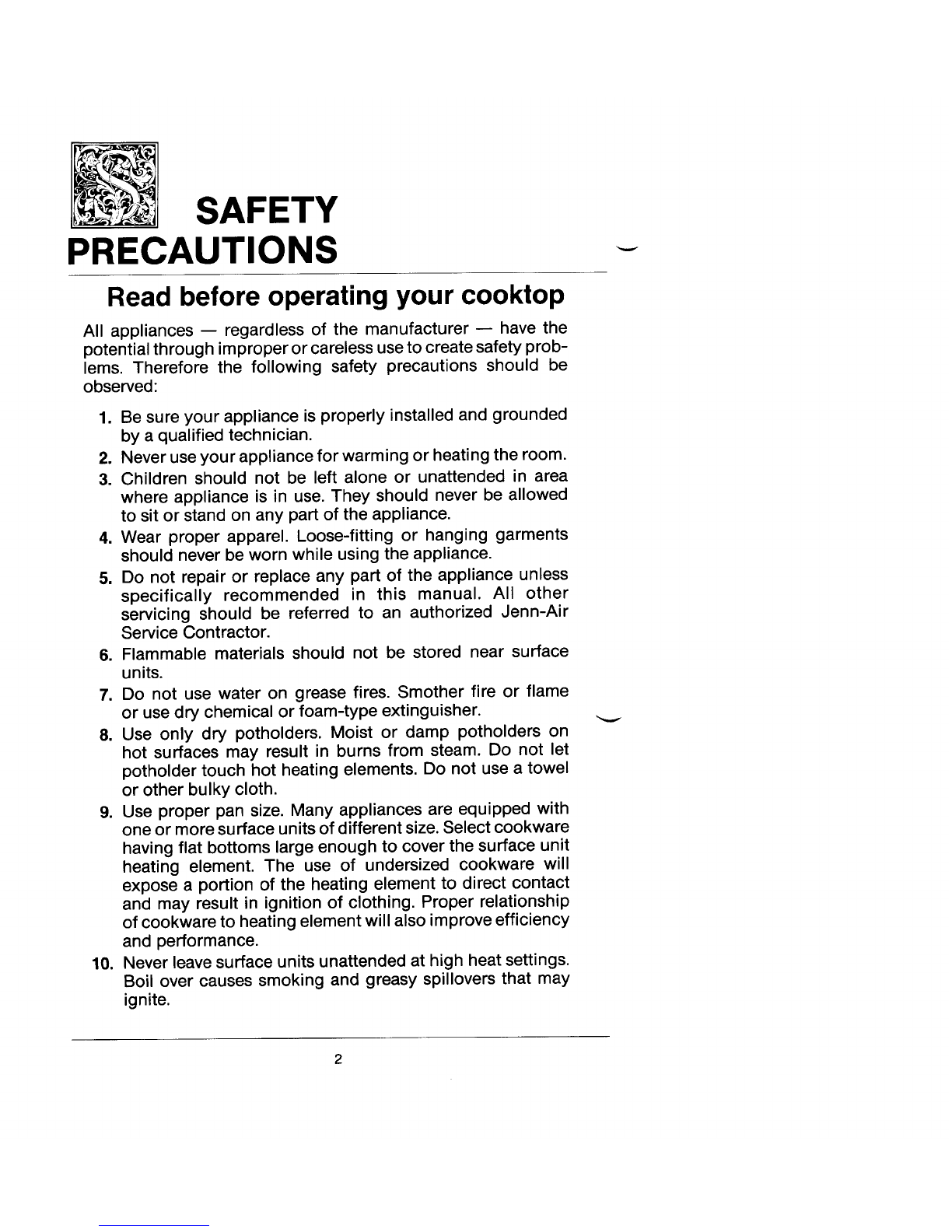

SAFETY
PRECAUTIONS
Read before operating your cooktop
All appliances -- regardless of the manufacturer _have the
potential through improper or careless useto create safety prob-
lems, Therefore the following safety precautions should be
observed:
1.Be sure your appliance is properly installed and grounded
by a qualified technician.
2.Never use your appliance for warming or heating the room.
3. Children should not be left alone or unattended in area
where appliance is in use. They should never be allowed
to sit or stand on any part of the appliance.
4. Wear proper apparel. Loose-fitting or hanging garments
should never be worn while using the appliance.
5. Do not repair or replace any part of the appliance unless
specifically recommended in this manual.All other
servicing should be referred to an authorized Jenn-Air
Service Contractor.
6. Flammable materials should not be stored near surface
units.
7. Do not use water on grease fires. Smother fire or flame
or use dry chemical or foam-type extinguisher.
8. Use only dry potholders. Moist or damp potholders on
hot surfaces may result in burns from steam.Do not let
potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
9. Use proper pan size.Many appliances are equipped with
one or more surface units of different size.Select cookware
having flat bottoms large enough to cover the surface unit
heating element. The use of undersized cookware will
expose a portion of the heating element to direct contact
and may result in ignition of clothing. Proper relationship
of cookware to heating element will also improve efficiency
and performance.
10. Never leave surface units unattended at high heat settings.
Boil over causes smoking and greasy spillovers that may
ignite.

11. On conventional element cooktops make sure that drip
"- pans are in place. Absence of these pans during cooking
may subject wiring or components underneath to damage.
12. Do not use aluminum foil to line surface unit drip pans
or grill basin. Installation of these liners may result in an
electric shock or fire hazard.
13. Glazed cookware -- only certain types of glass, glass-
ceramic,ceramic,earthenware,or other glazed cookware
are suitable for cooktop surface without breaking due to
the sudden change in temperature.Use only such
cookware asyou know has been approved for this purpose.
14.Cookware handles should be turned inward and not extend
over adjacent surface heating elements to avoid burns,
ignition of flammable materials and spillage due to uninten-
tional contact with the cookware.
15.Do not soak or immerse removable heating elements in
water.
16. CAUTION -- Do not store items of interest to children
in cabinets above cooktop--children climbing on the cook-
top to reach items could be seriously injured.
17. Do not touch surface units or areas near units.Surface
units or heating elements may be hot even though they
are dark in color. Areas near surface units may become
hot enough to cause burns. During and after use, do not
_"" touch or let clothing or other flammable materials contact
these areas until they have had sufficient time to cool.
Other surfaces may become hot enough to cause burns
among these surfaces is the cooktop.
18. Do not cook on glass-ceramic cooking surface if the cook-
top is broken. Cleaning solutions and spillovers may pene-
trate the broken cooktop and create a shock hazard.
Contact an authorized Jenn-Air Service Contractor.
19. Clean glass-ceramic cooktops with caution.If wet sponge
or cloth is used to wipe spills on a hot cooking area,be
careful to avoid steam burns. Some cleansers can produce
noxious fumes if applied to a hot surface.
20. Do not operate with damaged cooking element after any
product malfunction until proper repair has been made.
21. Keep all switches "OFF" when unit is not in use.

Ventilation System
_-" The built-in ventilation system removes cooking vapors, odors and smoke from foods
prepared on the cooktop, grill and grill accessories.
Regular use of this system will insure a more comfortable and less humid kitchen
which is free of heavy cooking odors and fumes that normally create a frequent
need for cleaning and redecorating.
Using the Ventilation System
• The fan control is located normally at the rear
of the control panel. To operate the ventilation
system manually, turn the fan control knob
clockwise.The variable speed fan can be
operated at an infinite number of settings when
using the cooktop cartridges or the griddle.
• The ventilation system will operate automatically when the grill element is
in use. NOTE: During grilling, the fan speed is automatically set for the Hi
setting and cannot be varied.
• Besides using the ventilation system to remove cooking vapors and fumes,
it can be used to cool baked pies, cakes or hot pans. To cool an item, set
it on the air grille and turn on the fan. The air being pulled over the item
will quickly cool it. Be careful not to cover the entire air grille.
• The fan can be used to remove strong odors from the kitchen as when chopping
onions near the fan.
Cleaning the Ventilation System
Grille: The air grille lifts off easily. Wipe clean or wash in sink with mild
'_,,_,lousehold detergents. May be cleaned in dishwasher.
Filter: Turn off ventilation system before
removing.The filter is a permanent type and
should be cleaned when soiled. Clean in sink
with warm water and liquid dishwashing
detergent or in dishwasher.
IMPORTANT:DO NOT OPERATE SYSTEM
WITHOUT FILTER. Filter should always be
placed at an angle. As you face the front of the
cooktop, the bottom of the filter should rest on
the ledge on the left side. The top of the filter
should rest against the right side. There are also
ledges on the front and rear sides for the filter
to rest. (NOTE: If filter is flat against the fan wall,
ventilation effectiveness is reduced.)
Ventilation Chamber-" This area, which houses the filter, should be cleaned
in the event of spills or whenever it becomes coated with a film of grease. May
be cleaned with paper towel, damp cloth, or sponge and mild household detergent
or cleanser. (Note: for easier cleaning, remove the basin pans.)
5

Surface Controls
The variable heat controls for the cooktop cartridges and grill element provide flexibil-
ity in heat setting selection. --..-
To Set Controls
• Since the controls are a push-turn type, they must be pushed
down before turning. To set (from the OFF position), pushdown
on control knob and turn in either direction to desired heatsetting.
• When control is in any position, other than OFF, it may beturned
in any directionwithout pushing down.
•ControlPanelA:A red indicator light will glow when a surface
heating element is ON. There is a light for each control.
•Control PanelB: When control knob is in the OFF position, the
only setting visible is OFF. When control knob is turned ON,
all other controlsettings will beshown. The ring around control
knob will glow when surface heating element is ON. ControlA Control B
Control Locations
•The graphics beside each control knob indicate the element locations.
_I -control used to operate cartridge element, or half of the Energy-Saver
grill element.
IIIII -control used to operate a ca,ridge element, half of the Energy-Saver
grill element, griddle or entire standard grill element.
NOTE:The Energy-Savergrill element(shown)is includedwith some
cooktopsor maybe purchasedasan option.Thispermitsutilizingonly
half of the grill area or usingdifferent heatsettingsfor the front and
rear positionof the element.To use the full grill, both front and rear
controlsmustbeused.
Suggested Control Settings
for Surface Elements Energy-Saver
The size and type of cookware used and the amount and type of food being cooked
will influence the setting needed for best cooking results. Electrical line voltage
may also vary, which will affect the needed control setting. The setting indicated
should serve as a guide while you become familiar with your cooktop.
HI A fast heat to start cooking quickly, to bring liquids to a boil, to preheat oil for deep
fat frying. Usedfor most grilling.
7-10 (Medium High) For fast frying or browning foods, to maintain rapid boil of large amounts
of food, tomaintain oil temperature for deep fat frying.
5-6 (Medium) For foods cooked in a double boiler, sauteing, slow boil of large amounts
of food, and most frying.
3-4 (Medium Lo) To continue cooking foods started on higher settings.
LO-2 Maintaining serving temperatures of foods, simmering foods, melting butter or chocolate.
The heat controls offer flexibility in heat setting selection. On settings other than Hi, you may
adjust the controls above or below the numbered setting for best results. This applies to settings
when using cooktop cartridges or when usingthe grill or any of the grill accessories.Suggested
settings are provided as general guidelines.
6

Using Cooktop
Cartridges
.._. Cooktop cartridges options include conventional coil, halogen, radiant, or solid element.
To Install Cartridges
1.If the grill grates, element, and/or grill liner pans are in place, remove before
installing a cooktop cartridge. Clean basin pan of any grease accumulation. (See
page 12 for cleaning recommendations.)
2.To install any of the optional cooktop cartridges, be sure control knobs are
turned OFF, basin pan is in place, and air grille is removed.
3. Position the cartridge terminal plug towards the terminal receptacle. Slide the
cartridge towards the receptacle until the cartridge terminal plug is completely
engaged.Lower the opposite side of the cartridge into the cooktop until it is
flush with the surface.
4. Add the air grille. Your cooktop is now ready to use.
To Remove Cartridges
1. Control knobs must be in the OFF position and the cartridge should be cool.
2. Remove the air grille.
3. Lift the cartridge side next to the ventilation chamber until the top of the cartridge
is about 3 inches above the cooktop. Lifting the cartridge too high while still
engaged in the receptacle could damage the terminal plug.
4. To disengage terminal, hold cartridge by the ventilation chamber side and slide
away from the terminal receptacle.Lift out when fully unplugged.
5. Do not stack cartridges where they may fall or be damaged. Never store other
materials on top of a glass-ceramic cartridge since this could damage or mar
the surface.
NOTE: Remember to replace the air grille before using the ventilation system.
Home Canning
Canning should be done on the conventional coil cartridge only. Canning element
accessory, Model A145, makes it possible to use large oversized canners with the
conventional coil cartridge.
For additional information, refer to use and care manual packaged with your cartridge.
7

The grill accessory consists of two black grill grates, a grill element and a grill .....
liner pan.
To Install Grill
1. Before installing grill components, be certain surface controls are in the OFF position.
2. Place the grill liner pan into an empty basin pan with the opening next to the terminal
block.The grill liner pan must be used since it supports the grill element.
3. Position the grill element with the terminal plug towards the terminal receptacle.Slide
the element towards the receptacle until the terminal plug is completely engage r'
The grill element should rest flat on the side ledges of the grill liner pan. _._
4.Place the black grill grates on the top of the basin pan.
To Remove Grill
1. Remove grill components once they are cool. Be sure control switches are in the
OFF position.
2. To remove grill element, lift the side at the ventilation chamber until the top of the
element is about 1/2 inch above the cooktop. (NOTE: Lifting the element too high
while still engaged in the receptacle could damage the terminal plug.) To disengage
terminal, slide away from the terminal receptacle. Lift out when fully unplugged.
Grill Covers
1. Grill covers can be used to cover the grill, when not in use, or an empty basin pan.
2.To remove the grill covers, push down on front or rear side. The opposite side will
lift slightly for easy removal.

Using the Grill
•Before the first use, wash your new grill grates in hot soapy water, rinse and
dry. Then "season" the surface by wiping on a thin coating of cooking oil.Remove
excess oil by wiping again with another paper towel. This procedure should
_._ be repeated after cleaning in the dishwasher since the detergent may remove
seasoning.
• Seasoning prior to each use is NOT necessary.However anytime a sugar-based
marinade (for example,barbecue sauce) is going to be used, the grates should
be "seasoned" prior to preheating.
• Preheat the grill on Hi for 5 minutes. Preheating improves the flavor and
appearance of meats and quickly sears the meat to help retain the juices. The
heating element should glow a bright cherry red.
•Use nonmetalfic spatulas or utensils to prevent damaging the grill grate finish.
•Excessive amounts of fat should be trimmed from meats. Only a normal amount
is necessary to produce the smoke needed for that smoked, "outdoor" flavor.
Excessive fat can create cleaning and flame-up problems.
•Allowing excessive amounts of grease or drippings to constantly flame voids
the warranty on the grill grates. Excessive flare-ups indicate that either the grill
interior needs to be cleaned or that excessive amounts of fat are in the meat
or the meat was not properly trimmed.
• Grease drippings will occasionally ignite to produce harmless puffs of flame
for a second or two. This is a normal part of the cooking process.
•NEVER LEAVE GRILL UNATTENDED DURING GRILL OPERATION.
Should excess grease cause sustained flame-up
1. Turn on FAN manually.
2. Immediately turn grill heat control switch to OFF position.
3. Remove meatfrom grill.
IMPORTANT
• Do not use aluminum foil inside the grill area.
• Do not use charcoal or wood chips in the grill area.
• Do not allowgrill liner panto become overloaded with grease.Clean frequently.
• Do not cover grates completely with meat. Leave air space between each steak,etc.
to allow proper ventilation aswell as prevent flame-ups.

Grill Guide
Preheat grill on Hi, 5 minutes,for best flavor.
TypeSetting Cooking Time Procedure
Steak (1,__H")
Rare Hi 10 to 12minutes Turn after 5to 6 m nutes.
Medium IHi 16 to 21 minutes Turn after 8 to 11 minutes. .
Well Hi 21 to 28 minutes Turn after 11 to 14minutes.
Steak (1 - 1W')
Rare Hi 20to 26 minutes Turn after 10to 13 minutes.
Medium Hi 26 to 30 minutes Turn after 13 to 15minutes. '
Well Hi 30 to 34 minutesTurn after 15to 17minutes.
Hamburgers (3- 4 oz.) 10 22 to 32 minutes Turn after half the time.
Pork Chops (V2"- 3/4") 10 25 to 40 minutes Turn occasionally.
Fully-cooked
Smoked Pork Chops Hi Turn once.
Ham Slices(1/2") Hi 8to 10 minutes Turn once.
Fully-cooked Sausages
Hot Dogs H Turnoccasionally.
Polish Hi10to 20 minutes Turn once.
Italian Sausage 10 25to 35 minutes , Pierce casing with afork. Turn
once.
Lamb Chops
Med Hi Turn occasionally.Brush with
Well Hi 20 to 30 minutes glaze, if desired.
Chicken
Boneless Breasts 10 30 to 40 minutes Turn occasionally.
Bone-in: Turn occasionally.Brushwith
Breasts 10 50 to 70 minutes I marinade Orglaze during last
Drumsticks& Thighs10 35to 55 minutes10 minutes. _"
Fish
Steaks(1") 10 20to35 minutes Brushwith butter.Turn after half
thetime.
Fillets(1,_") 10 12to 20minutes Startskinside down.Brushwith
(withskinon) butter. Turn after halfthe time.
Shrimp Hi 8 to 12minutes Turn and brushwith butteror
(skewered) marinadefrequently.
GarlicBread Hi 2to4 minutes Turn after halfthe time.
Hot DogBuns,
HamburgerBuns 10 2to 3 minutes
NOTE: This chart is a suggested guide.Cooking times and control settingsare approximate
due to variationsin meats,controlswitches, and voltage.
10

Grilling Tips
With your Jenn-Air grilland accessories, literally any food you've considered "at
its best" when prepared outdoors can now be prepared indoors with less fuss and
great flavor.
The following suggestions are good rules to follow and will increase your enjoyment
of the equipment.
• Be sure to follow directions on page 9 for using the grill.
• Suggested cooking times and control settings are approximate due to variations
in meats and electrical voltage. Experience will quickly indicate cooking times
as well as which settings work best.
• Use the Energy-Saver grill element for grilling small amounts of food on half
of the grill or for keeping cooked foods warm or preparing food requiring
different heat control settings.
• For best results, buy top grade meat.Meat that is at least 3/4-inch will grill
better than thinner cuts.
• Score fat on edges of steak,but do not cut into meat, to prevent curling while
cooking.
• For the attractive "branded" look on steaks, be sure grill is preheated.Allow
one side of meat to cook to desired doneness, or until juices appear on the
top surface,before turning. Turn steaks and hamburgers just once.Manipulating
food causes loss of juices.
• When basting meats or applying sauces to foods, remember that excessive
amounts wind up inside your grill and do not improve the food flavor. Apply
sauces during the last 15 to 20 minutes of cooking time unless recipe specifies
otherwise.Sugar-based sauces, excessively used,will caramelize on the grill
grates and grill liner pan and will create a cleaning chore.
• There are many meat marinades which will help tenderize less expensive cuts
of meat for cooking on the grill.
• Certain foods, such as poultry and non-oily fish,may need some extra fat.
Brush with oil or melted butter occasionally while grilling.
• Use tongs with long handles or spatulas for turning meats. Do not use forks
as these pierce the meat, allowing juices to be lost.
• To help retain meat juices, salt after turning meat or after cooking is completed.
• Should grilled foods be prepared and ready before you're ready to serve, turn
heat control to a low setting and cover meat with a single sheet of foil.Food
will continue to cook.
11

Cleaning the Grill
Be sure the grill is cool and control knobs are in the OFF position.
Grill Grates: These are made from cast aluminum and are coated with anonstick "---
finish.
•After the grill gates have cooled, wipe off grates with a paper towel.Wash cool
grates (DO NOT IMMERSE HOT GRILL GRATES IN WATER) with soap or
detergent in hot water in the sink or wash them in the dishwasher.Be sure to
remove all food residue before cooking on the grill grates again.
• Remove stubborn spots with a plastic mesh puff or pad.For best results, use
only those cleaning products which state they are recommended for use when
cleaning nonstick surfaces.
• If grates were washed in the dishwasher, season with oil prior to grilling.
•Do not use metal brushes or abrasive scouring pads or other scrubbers intended
to clean outdoor charcoal grills. Thesewill removethe finish as well as scratch
the grates. Do not clean in the self-cleaning oven or use oven cleaners on the
grates.
Grill Liner Pan: The grill liner pan is made from steel and is coated with a
nonstick coating.
• After the grill liner pan has cooled, wipe off grill liner pan with a paper towel.
Wash cool grill liner pan with soap or detergent in hot water in the sink or wash
in the dishwasher. Be sure to remove all food residue before using the grill liner
pan again.
•To remove stubborn spots,first soak grill liner pan in hot sudsy water (use a
grease cutting detergent). Or,spray with a household cleaner, cover with par
towels, spray with more household cleaner, and soak for 15 minutes or Iong__.
Then, scrub the spots with a plastic mesh puff or pad.For best results, use only
those cleaning products which state they are recommended for use when cleaning
nonstick surfaces.
Grill Element: The grill element should never be immersed in water.Most soil
will burn off during use.The terminal block may be cleaned with warm soapy water.
Do not use abrasive cleansers or materials. Dry thoroughly before reinserting in the
cooktop.
Porcelain Basin Pan- This pan must be used when using the grill and any
of the cartridges and accessories. This pan should be cleaned whenever soiled.
NOTE: The pan may be removed and taken to the sink.
• To remove light soil, clean with soapy water or spray with cleansers such as
Fantastik or 409. The basin pan may also be cleaned in the dishwasher.
• To remove stubborn soil, spray with a household cleanser, cover with paper towels,
spray with more household cleanser,and soak for 15 minutes or longer.
12

Cleaning Parts of
Your Cooktop
Control Knobs
The knobs on the controlpanel can be removed with the controls in the OFF position.
Pull each knob straight from the shaft. Wash knobs inwarm soapy water or dishwasher;
do not use abrasive cleansers or materials.To replace each knob, match flat part
of knob opening with the spring on the shaft, returning in OFF position.
Control Knob Area
Use mild cleansers, such as soapy water or mild liquid sprays, such as 409. Wipe
with sponge, damp cloth or paper towel. Do not scrub with S.O.S. pads or abrasive
cleansers.
Stainless Steel Trim
Use mild cleansers, such as soapy water or mild liquid sprays,such as Fantastik
or 409. Wipe with sponge, damp cloth or paper towel. Rinse, buff with soft cloth;
polish with glass cleaner if necessary.
Grill Covers
Clean with soapy water and cloth or wash in the dishwasher. Rinse, buff with soft
_th, and polish with glass cleaner if necessary. Do not scrub with S.O.S. pads
abrasive cleaners.
Under Counter
Grease Jar: A greasejar islocated
below each grill basin (under the
counter). Check periodically to prevent
spillovers. Unscrew and remove. Can be
replaced with any heattempered jar, such
as a canning jar, which has a standard
screw neck.
Serial Plate: DO NOT CLEAN.
13

Accessories
Griddle Grill Accessory Grill Covers
Model A0310 Model A0330 A set of two grill covers
Self-draining griddleGrill accessoryincludesmay be purchased to
makesmanyfavorite grill liner pan,Energy- cover a second
foods easier tofix. Saver grillelement, and (optional) grill accessory.
Family-sized surface lets two black nonstick grill Model A0340B -
you cook several pan- grates. 2800 watt grill Black Porcelain
cakes, hamburgersj or element permits you to Model A0340S -
grilled sandwiches at a control temperatures Stainless Steel
time.Has a black non- under front and rear Model A0360B -
stick finish, grills independently. Black Glass
Model A0360W -
White Glass
Wok Accessory C_nning Element
Model A141 Model A145
For use with conven- Special canning element
tional coil cartridgeonly. plugs into conventional
Includes special plug-in coil cooktop cartridge
contoured element that raising the heating ele-
replaces the large ele- ment above the cooking
ment. Wok has nonstick surface. Allows use of
finish, wood handles, oversized utensils and
cover, steaming rack, those with warped or
rice paddles, cooking rippled bottoms.
tips and recipes. 14

Cooktop Cartridges
Conventional Halogen Radiant Solid
Coil Element
Conventional Coil
Rated 240 volts .................................... AC110B -Black Porcelain
AC110S - Stainless Steel
Halogen AC110W -White Porcelain
Rated for 240 volts ................................. AH150B - Black
Radiant
Rated for 240 volts ................................. AR140B - Black
Solid Element
Rated for 240 volts ................................. AS130B - Black
AS130W - White
Ducting
Information
Jenn-Air's ventilation system is designed to capture both cooking fumes and smoke
from any place on the grill surface. If the system does not, these are some ducting
installation situations to check:
• 6" diameter round or 31/_'' x 10"rectangular ducting should be used. Note: 5"
diameter round ducting may be used for venting straight out the back of the
cooktop and directly through the wall for 10' or less.
• No more than three 90° elbows should be used. Distance between elbows should
be at least 18".
• Recommended Jenn-Air wall cap should be used. Make sure damper moves
freely when ventilation system is operating.
• There should be a minimum clearance of 6" for cooktop installed near a side
wall.
If there is not an obvious improper installation, there may be a concealed problem
such as a pinched joint, obstruction in the pipe, etc. Installation is the responsibility
of the installer and questions should be addressed first by the installer. The installer
should very carefully check the ducting installation instructions.
15

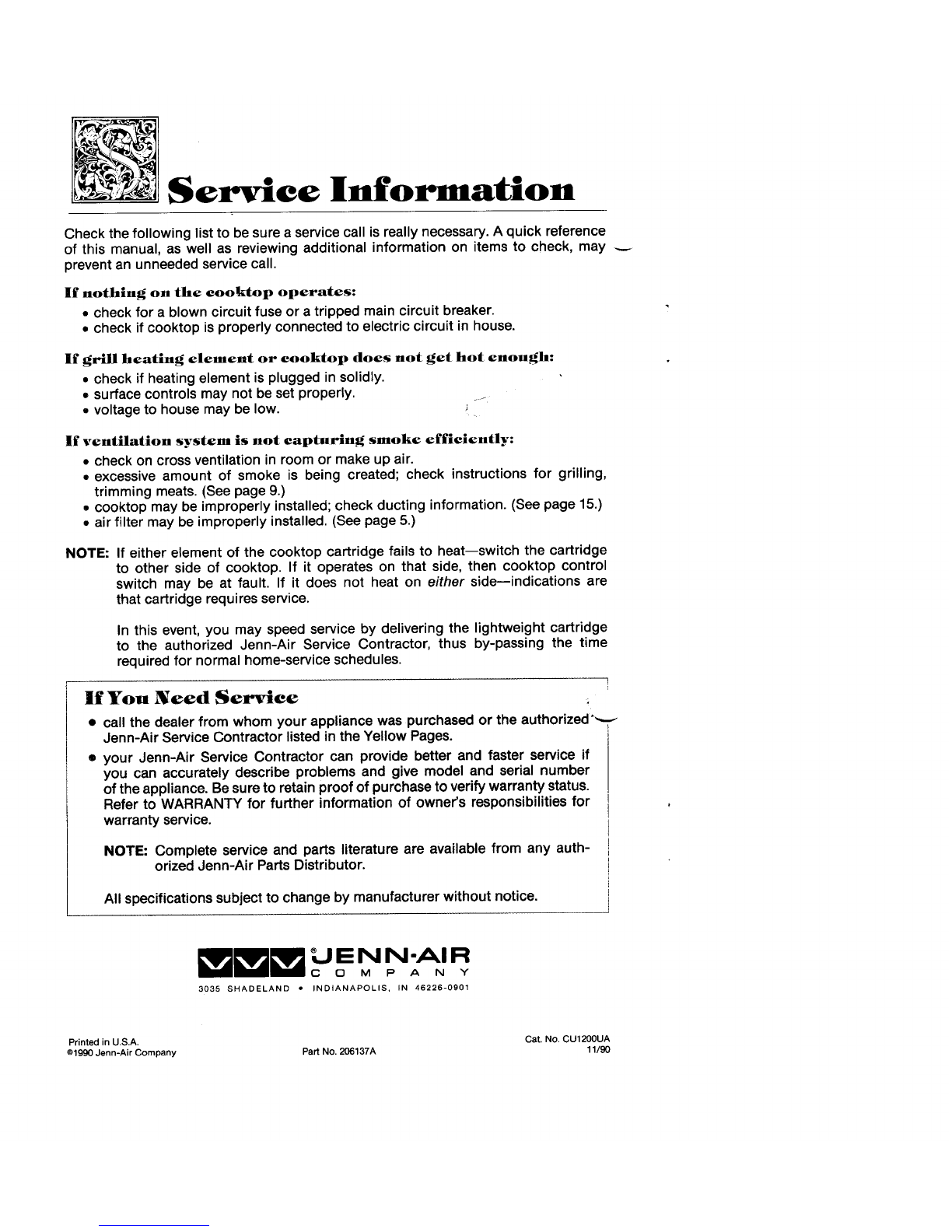

Service Information
Check the following list to be sure a service call is really necessary. Aquick reference
of this manual, as well as reviewing additional information on items to check, may .._-
prevent an unneeded service call.
If nothing on the cooktop operates:
• check for a blown circuit fuse or a tripped main circuit breaker.
• check if cooktop is properly connected to electric circuit in house.
If grill heating element or cooktop does not get hot enough:
• check if heating element is plugged in solidly.
• surface controls may not be set properly, j
• voltage to house may be low. ._
If ventilation system is not capturing smoke efficiently:
• check on cross ventilation in room or make up air.
• excessive amount of smoke is being created; check instructions for grilling,
trimming meats. (Seepage 9.)
•cooktop may be improperly installed; check ducting information. (Seepage 15.)
• air filter may be improperly installed.(See page 5.)
NOTE:If either element of the cooktop cartridge fails to heat--switch the cartridge
to other side of cooktop. If it operates on that side, then cooktop control
switch may be at fault. If it does not heat on either side--indications are
that cartridge requires service.
In this event, you may speed service by delivering the lightweight cartridge
to the authorized Jenn-Air Service Contractor, thus by-passing the time
required for normal home-service schedules.
If You Need Service
• call the dealer fromwhom yourappliancewas purchased orthe authorized'---_
Jenn-Air Service Contractorlistedin the YellowPages.
•your Jenn-Air Service Contractor can provide better and faster service if
you can accurately describe problemsand give model and serial number
oftheappliance.Besuretoretainproofofpurchasetoverifywarrantystatus.
Refer to WARRANTY for further informationofowner's responsibilitiesfor
warranty service.
NOTE: Complete service and parts literature are available from any auth-
orized Jenn-Air Parts Distributor.
All specifications subject to change by manufacturer without notice.
mJFNN:R
3035SHADELAND • INDIANAPOLIS.IN46226-0901
Printedin U.S.A. Cat.No.CU1200UA
©1990 Jenn-Air CompanyPart No. 206137A 11/90
