Jenn-Air JCD2595WES00 User manual

CABINET PARTS
1
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
7−12 Printed In U.S.A. (mms)(bay) Part No. W10239508 Rev. B
REFRIGERATOR

CABINET PARTS
2
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10203274 Use & Care Guide
W10152832 Service & Wiring
Sheet
2318510 Installation Instructions
W10204993 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7
W10001260 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008AP Apollo Gray
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
(Includes #34)
13 Filler, Wrapper
2223893AP Apollo Gray
14 Grille
W10194061 Midnight Grey
15 3400108 Screw
16 Hinge, Top FC
2307007AP Apollo Gray
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
26 Button, Water
Filter
2260503MG Midnight Grey
27
W10121140 Housing, Water
Filter
28 8212650 Water Filter
29 2307051 Door Closer, FC
30 Cap, Water
Filter
2260502MG Midnight Grey
31 Cabinet (Not A
Serviceable Part)
32
W10142234 Screw
34 2307049 Door Closer, RC
35 3400858 Screw
36 2224020 Tube, Filter
Outlet
37 2319867 Tube, Filter Inlet

REFRIGERATOR LINER PARTS
3
Illus. Part
No. No. DESCRIPTION
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
1 Liner (Not A
Serviceable Part)
2 2223524 Escutcheon, Meat
Pan Control
3 2223339 Slide, Meat
Pan Control
4 1118894 Switch, Rocker
Arm
5 2188820 Thermistor
6 2223456 Ladder, Shelf (2)
7 2301234 Housing, Door
Control
8 489084 Screw
9
W10162918 Slide, Door
Control
10 2171846 Release Valve
11 2209204 Clip, Thermistor
13 1116793 Cover, Thermistor
14
W10001260 Screw
15 2304597 Gasket,
Air Baffle
16 2223403 Cover,
Air Baffle
17 2224076 Air Diffuser
Assembly
18
W10185224 Air Baffle
19 2162085 Socket
20 2307107 Reservoir
21 2205813 Strap
22
W10194422 Light Bulb
23 2223663 Light Lens
24
W10141625 Screw

REFRIGERATOR SHELF PARTS
4
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 W10163053 Shelf Assembly,
Cantilever (3)
2 2301025 Button, Humidity
3 2301026 Slide, Humidity
4 2301117 Gasket, Side (2)
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6
W10163047 Snack Pan
(Includes 30 & 31)
14, & 19)
7 Glide Assembly,
Crisper Pan
2301548 Right Side
2301549 Left Side
8 2301001 Window,
Crisper Pan
9
W10163043 Cover, Crisper
(Includes 2, 3,
4, 11, 12, 13,
14, & 19)
10
W10163045 Glass, Cover
11 2301116 Gasket (Front)
12 2301115 Gasket (Rear)
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16
W10163039 Crisper Pan
(Includes 8, 13,
14, 19, & 31)
17
W10162924 Meat Pan
(Includes 13, 14,
19, & 22)
18 Glide Assembly,
Snack Pan
2301550 Right Side
2301551 Left Side
19 489261 Screw
20 2223487 Deflector
21 Support Assembly
2301569 Right Side
2301570 Left Side
22 2203031 Handle
23
W10270142 Door, Meat Pan
25 2196485 Stud Assembly
26
W10163048 Shelf, Snack Pan
27
W10191954 Screw
28 2196483 Stud Assembly
29
W10191952 Screw
30 2301006 Window, Snack Pan
31 Cap, Snack Pan
2301016 Right Side
2301017 Left Side

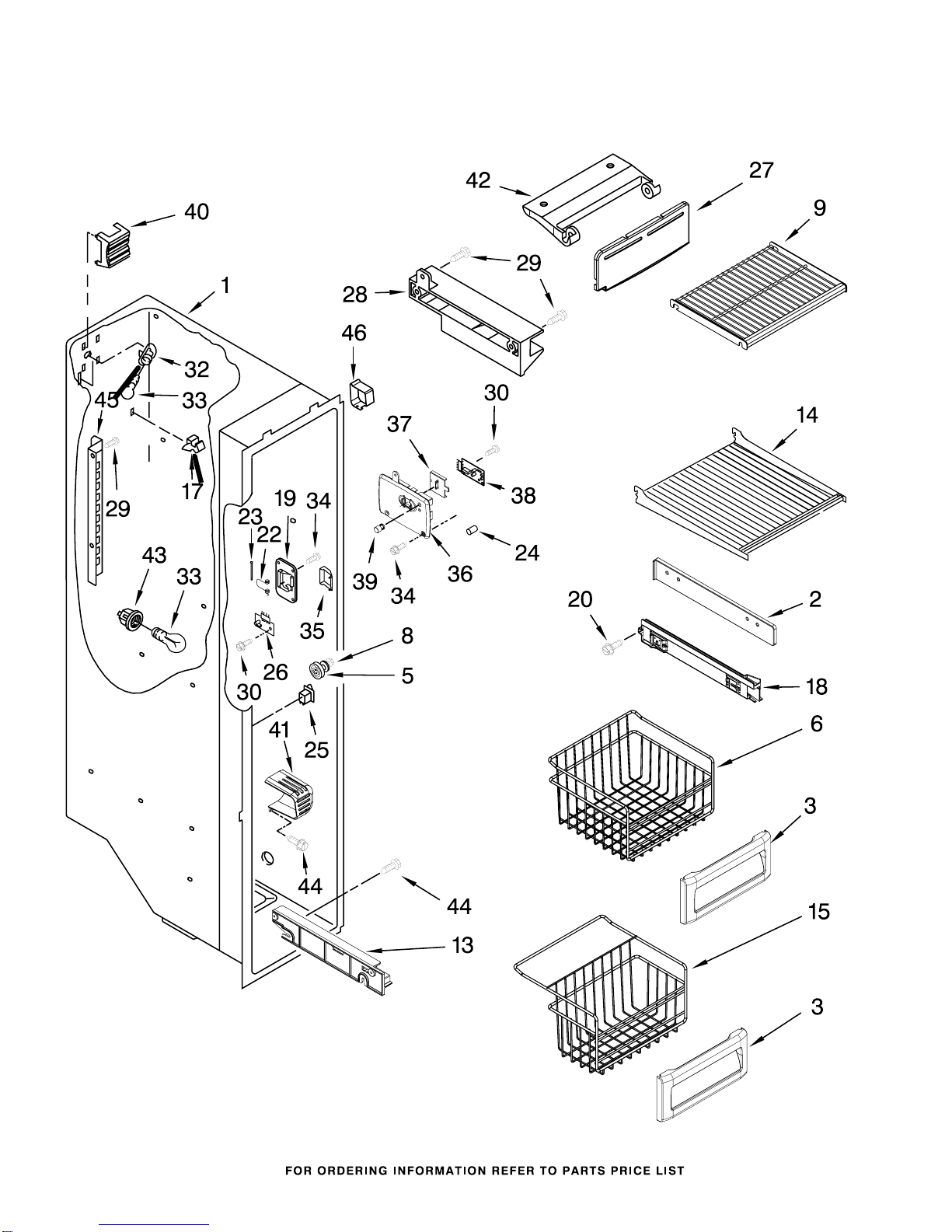

FREEZER LINER PARTS
5
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508

FREEZER LINER PARTS
6
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 2224053 Basket, Front
5 2196483 Stud Assembly
6 2223691 Basket, Deep (2)
(Includes #3)
8
W10191952 Screw
9 2223500 Shelf Assembly,
Cantilever (2)
13 Shelf Track
2223787 Right Side
2223788 Left Side
14 2254615 Shelf, Fixed
15 2223694 Basket, Lower
(Includes #3)
17 842534 Clip, Air Duct
18 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
19 2259487 Cover, Emitter
20 8534064 Screw
22 2198635 Spring
23 2198634 Pin
24 2198665 Tube, P.C. Board
25 1115373 Switch, Rocker Arm
26
W10193840 P.C. Board
Emitter
27
W10185438 Cover, Ice Maker
28 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
29
W10001260 Screw
30 489214 Screw
32 2162085 Light Socket
33
W10194422 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36
W10173569 Cover, Receiver
37 2315398 Slide, Ice Maker
Shut Off
38
W10193666 P.C. Board,Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
44 3400893 Screw
45 Ladder
2223414 Left Side
2223415 Right Side
46 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508

MOTOR AND ICE CONTAINER PARTS
8
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 W10139482 Ice Bin
2
W10205004 Crusher Bin
3
W10140642 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6
W10139321 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2305382 Rubber Boot
20
W10140685 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Harness,
IDI Motor
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
28 2198607 Spring
29 2305243 Drive Shaft
30 2252130 Dispenser, Motor
31 2305208 Bracket, Motor
32 2212365 Sleeve, Coupling
33 2317243 Wiper
34 2317250 Divider−Chamber
100
W10205005 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508

REFRIGERATOR DOOR PARTS
10
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
W10190731 Stainless
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223883 Caddy, Can
6 2326259 Stud, Handle
7 Door Gasket,
Magnetic
2326341 Apollo Grey
8 Handle Assy
W10183428 Stainless
W10214166 Stainless Pro
10 2223879 Dairy Compartment
11 488208 Screw
12 2307048 Door Closer,
Upper Cam
13 2308091 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
16 2223860 Door Bin (3)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
19 Nameplate
W10214168 Stainless
W10159578 Stainless Pro
20 2156006K Plug, Trim

FREEZER DOOR PARTS
11
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508

FREEZER DOOR PARTS
12
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10204994 Stainless
2 Handle Assy
W10183428 Stainless
W10214166 Stainless Pro
3 2326259 Stud, Handle
4 488208 Screw
5 3400012 Screw
7 2223559K Shelf Bin (3)
8 Door Gasket,
Magnetic
2326340 Apollo Grey
9 2310226 Wire Assy, Door
10 2308091 Thimble, Top
11 2307050 Door Closer,
Upper Cam
12 489420 Screw
13 Bracket, Door Stop
2306940 Chrome

13
DISPENSER FRONT PARTS
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508

DISPENSER FRONT PARTS
14
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
3 2305202 Bracket, Motor
4 2305242 Connector,
Door Bracket
5
W10184813 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice Door
8 4449745 Screw (4)
10
W10187441 Spigot
11 2305456 Seperator Assembly
12 2303843 Electronic Control
(Core)
13 Pad, Water
2305307AS Grey
14
W10205009 Lens, Front Cover
16
W10215843 UI Board Assy
(Includes #18)
17 Pad, Ice
2305306AS Grey
18 2305219 Cover, PC Board
20 2305342 LED Assembly
21 Front Cover,
Housing
2318912NO (Not Available,
Order #23)
22 Tray Assy
2315109NA Nickel Alloy
23 Front Cover Assy
W10205003 Nickel One
24
W10178851 Wire Assembly,
User Interface
25 2305447 Clip, Wiring

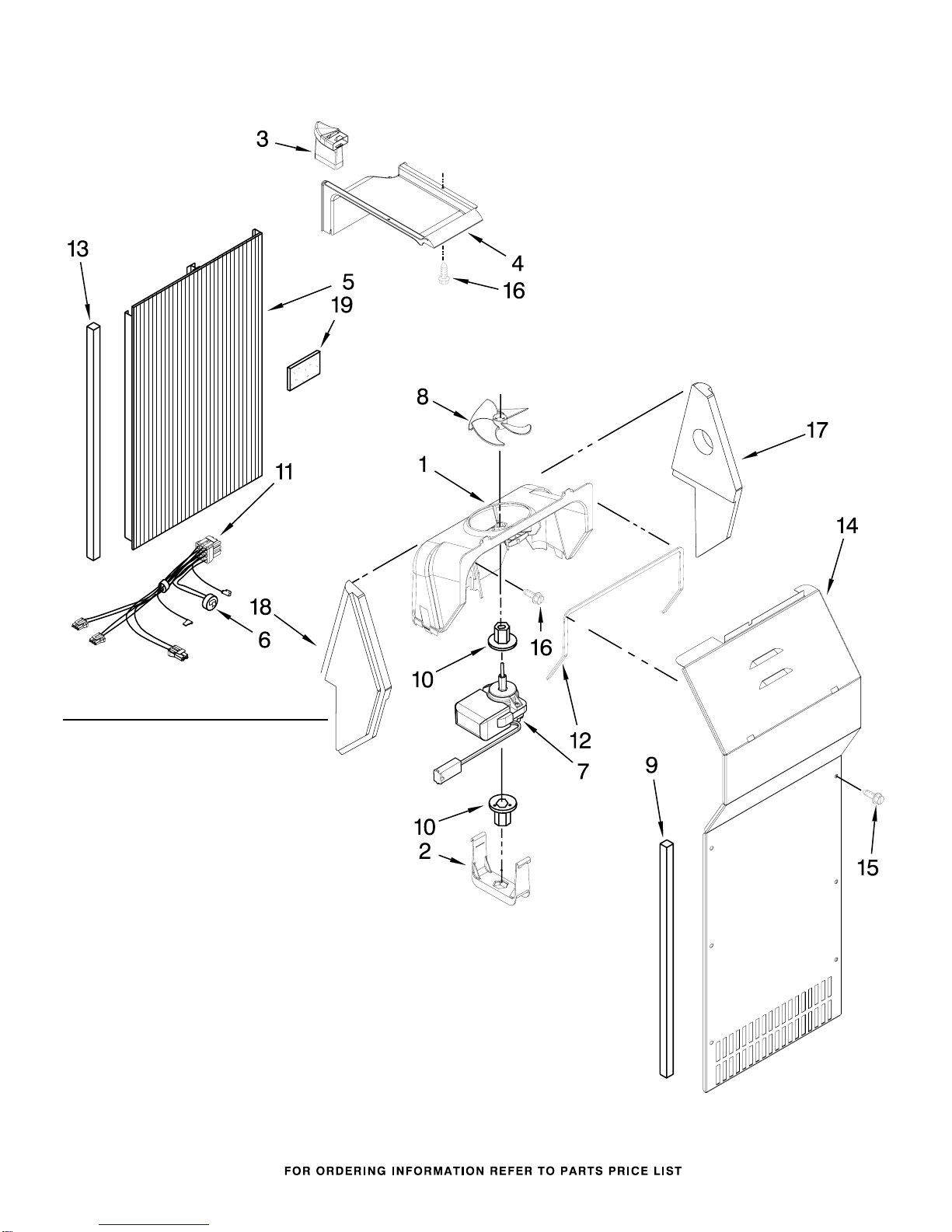

AIR FLOW PARTS
15
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2223733 Retainer,
Fan Motor
3 2223298 Air Scoop
4 2223303 Air Duct, Upper
5 2223297 Air Duct Freezer
6 2321799 Bi−Metal, Defrost
7 2259385 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2223986 Fan Grommet (2)
11
W10129813 Harness, Fan
Evaporator
(Includes #6)
12 2155789 Gasket, Fan Scroll
13 2203876 Gasket
14 2223413 Cover, Evaporator
(Includes #9)
15 8281159 Screw
16
W10001260 Screw
17 2223395 Support, R.S
18 2203596 Support, L.S
19
W10138980 Insulation,
Sound

CONTROL PARTS
16
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 W10205000 Control Box
(Includes #3)
2 2223882 Heat Shield Asm
(Includes #5)
3 2307037 Control Board Asm
4 2223506 Light Lens,
Control Box
5 2223857 Light Socket
6 2326255 Light Bulb

UNIT PARTS
17
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508

UNIT PARTS
18
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 W10142231 Screw
2
W10139483 Fan, Blade
3
W10131059 Condenser
Assembly
4 2169104 Insulation,
Sound
5 3400524 Screw (6)
6 2223703 Housing,
Control Board
7 2223351 Tube Suction
8 2161302 Sleeve
9 2319835 Grommet,
Condenser (4)
10 2325479 Process Tube
11 8533859 Screw
12 2215676 Cover, Terminal
14 2305373 Clamp, Cable
15 488280 Screw
19
W10185291 Electronic Control
20 2306932 Baseplate
21
W10001260 Screw
22 2188823 Evaporator
23 2161324 Clamp
24 2188874 Fan, Motor
25 2223398 Tray, Evaporator
26 2224022 Heat Shield
27
W10177049 Drier
28
W10155907 Compressor
(Includes Items
12 & 39)
29 2223800 Spacer (5)
31 2310122 Harness,
Main Control
32 2224024 Fan, Motor Bracket
33 2323199 Heater, Defrost
34 2304287 Clip
36
W10154805 Inverter Box
37 489373 Screw (4)
38
W10181542 Tube, Discharge
39 1100826 Grommet (4)
41 2223394 Extension,
Air Baffle
42 2155547 Clip, Heat Shield
43 2310121 Unit Harness
44 2300868 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.00 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508

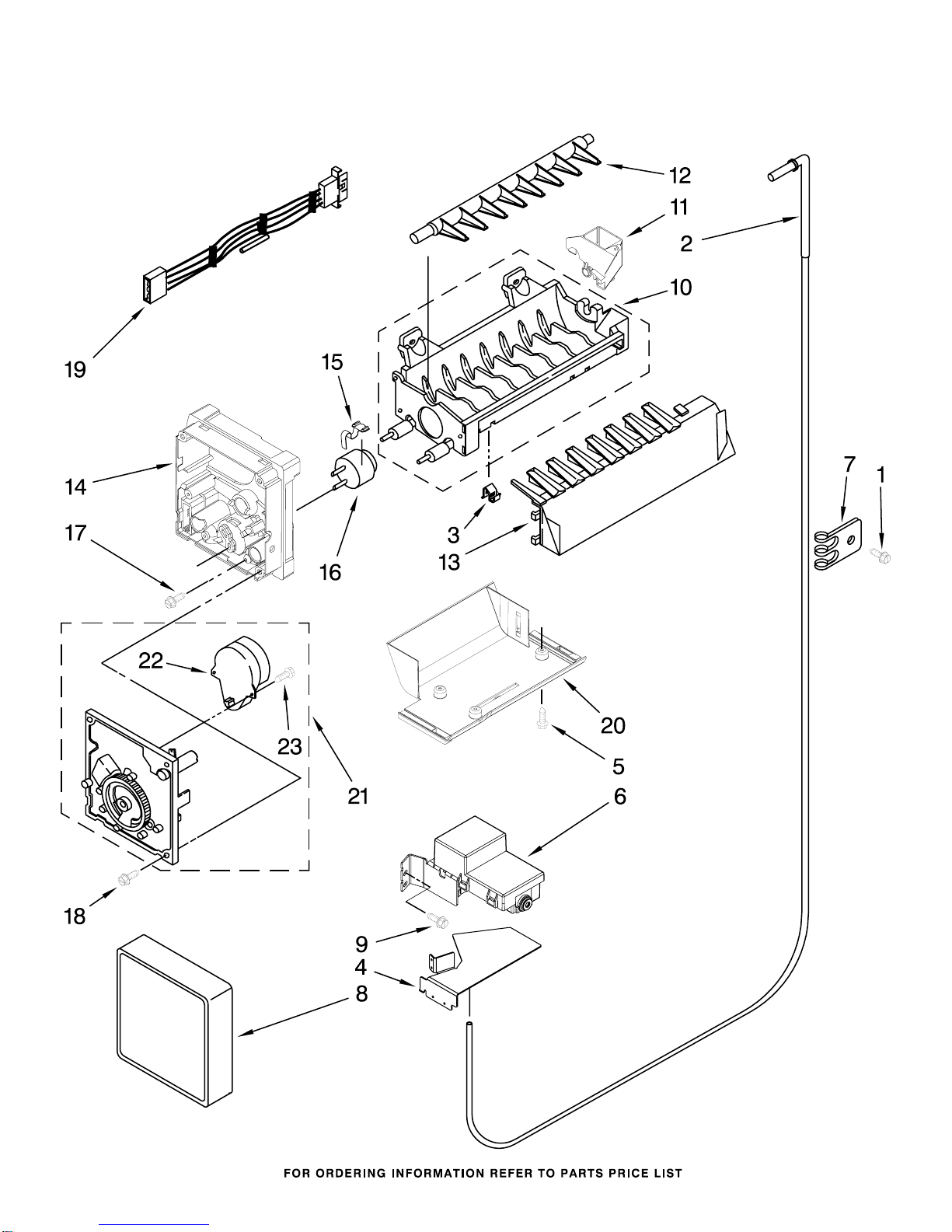

ICEMAKER PARTS
20
For Models: JCD2595WES00, JCD2595WEK00, JCD2595WEP00
(Stainless) (Stainless−On−Stainless) (Stainless Pro)
W10239508
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2303216 Fitting, Water
Tube
3 628379 Clip, Fuse
4 2313394 Shield,
Water Valve
5
W10001260 Screw
6
W10159840 Water Valve Asm
7 2208136 Tube Clip
8 2174358 Cover
9
W10141625 Screw
10
W10122527 Mold & Heater
Assembly (Also
Order 542638
11 2304969 Cup, Water Fill
12 627843 Ejector
13 2198598 Ice Striper
14 2194712 Support
15 2315522 Retainer,
Thermostat
16 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
17 8533917 Screw
18 489276 Screw
19 2187467 Harness, Wiring
20 2303583 Bracket, Icemaker
Mounting
21 626691 Module Assembly
(Includes Items
22 & 23)
22 Motor
23 489276 Screw
100
W10190960 Icemaker Assembly
