Jensen JE2610 User manual

26
26" 16:9 DIGITAL LCD-TV
Please keep this operating manual for future references.
Important Notes :
1. Before operating the unit, please read these instructions carefully.
2. Retain this manual for future reference.
3. Do not remove any WARNING stickers on the unit.
4. You are advised to follow the instructions carefully when operating the unit.
5. Do not use any chemical solvent, cleaning agent or corrosive detergent to
clean away dirt on the surface of the screen. By doing so, you may cause
irreversible damage to the surface of the TFT screen. To clean o dirt or
ngerprints, we recommend the use of a soft damp lens cleaning cloth.
6. Using spare parts from another manufacturer may caused permanent damage
to the unit.
7. Install unit in a dry location away from condensation.
8. Ensure no metal or foreign materials are dropped in between the display screen
and enclosure.
9. Do not use anything to block the cooling assemblies on the unit.
10. Ensure the plugs are properly plugged in before operating the unit.
11 Should the LCD panel be broken, do avoid all human contact with the broken
glass or uid leaking out from the enclosure. If come into contact, do ush and
clean aected areas with plenty of water. Seek medical attention immediately.
12. When operating the display unit, do avoid touching or pressing on the LCD
glass panel. Excessive force may cause irreparable damage to the LCD
screen.
OPERATING MANUAL
JE2610
Built-in 2-Channel IR Transmitter / Appended Luminous Remote

CONTENTS:
1. INTRODUCTION
Overview -------------------------------------------------------------------------
Product Specications --------------------------------------------------------
Contents/Accessories --------------------------------------------------------
2. FRONT PANEL CONTROL
Panel Control -------------------------------------------------------------------
Input/Output --------------------------------------------------------------------
3. REMOTE CONTROL FUNCTION
Controls & Functions ---------------------------------------------------------
4. INSTALLATION GUIDE
When Connecting to a TV Cable ------------------------------------------
Connecting to Other Equipment -------------------------------------------
Input (RCA) from other Equipment ----------------------------------------
Output (RCA) to Other AV Equipment ------------------------------------
VGA Input ------------------------------------------------------------------------
Connect Power -----------------------------------------------------------------
5. BASIC FUNCTIONS
Power Signal -------------------------------------------------------------------
Mode(SOURCE) --------------------------------------------------------------
Volume Setting -----------------------------------------------------------------
Channel Search ---------------------------------------------------------------
OSD Setting --------------------------------------------------------------------
Mute Setting --------------------------------------------------------------------

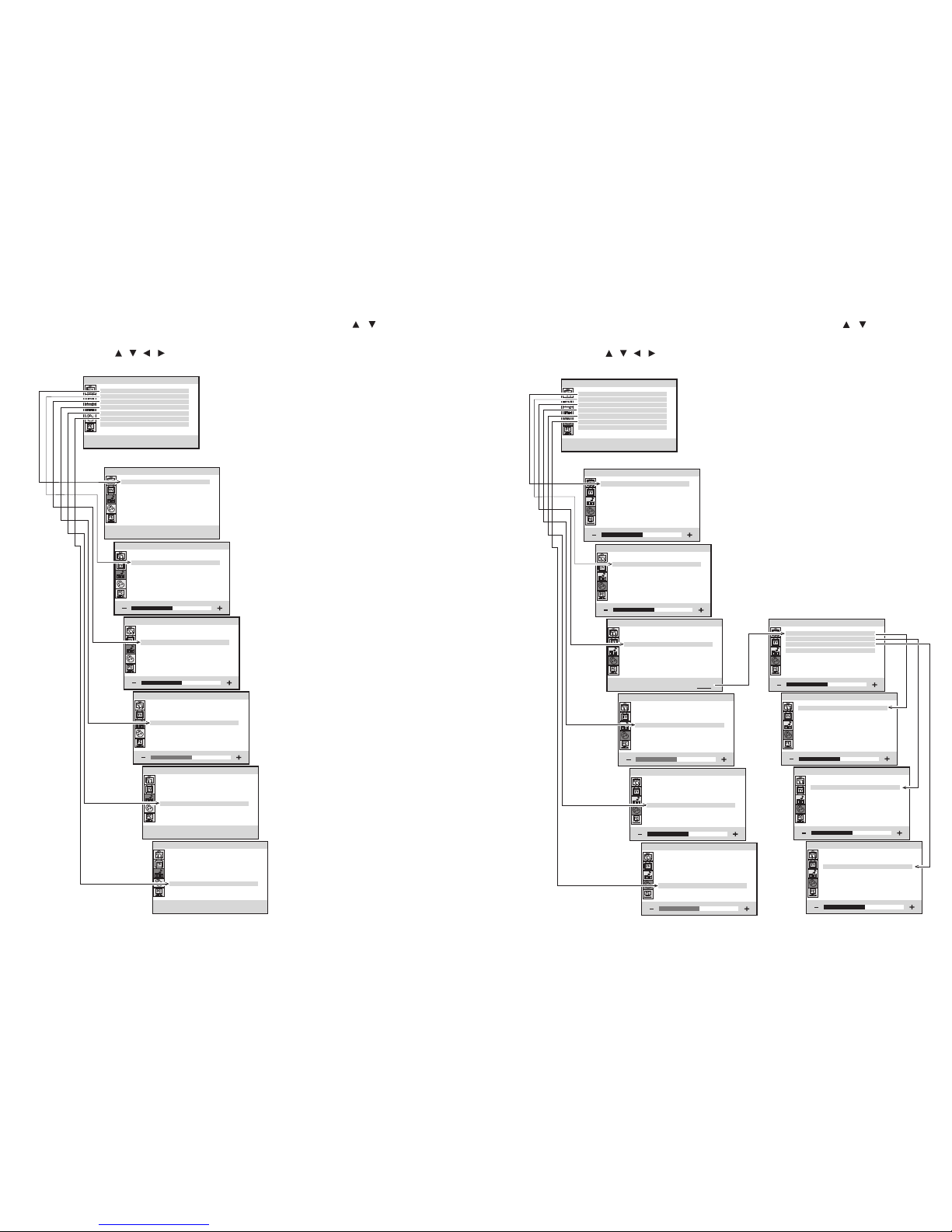

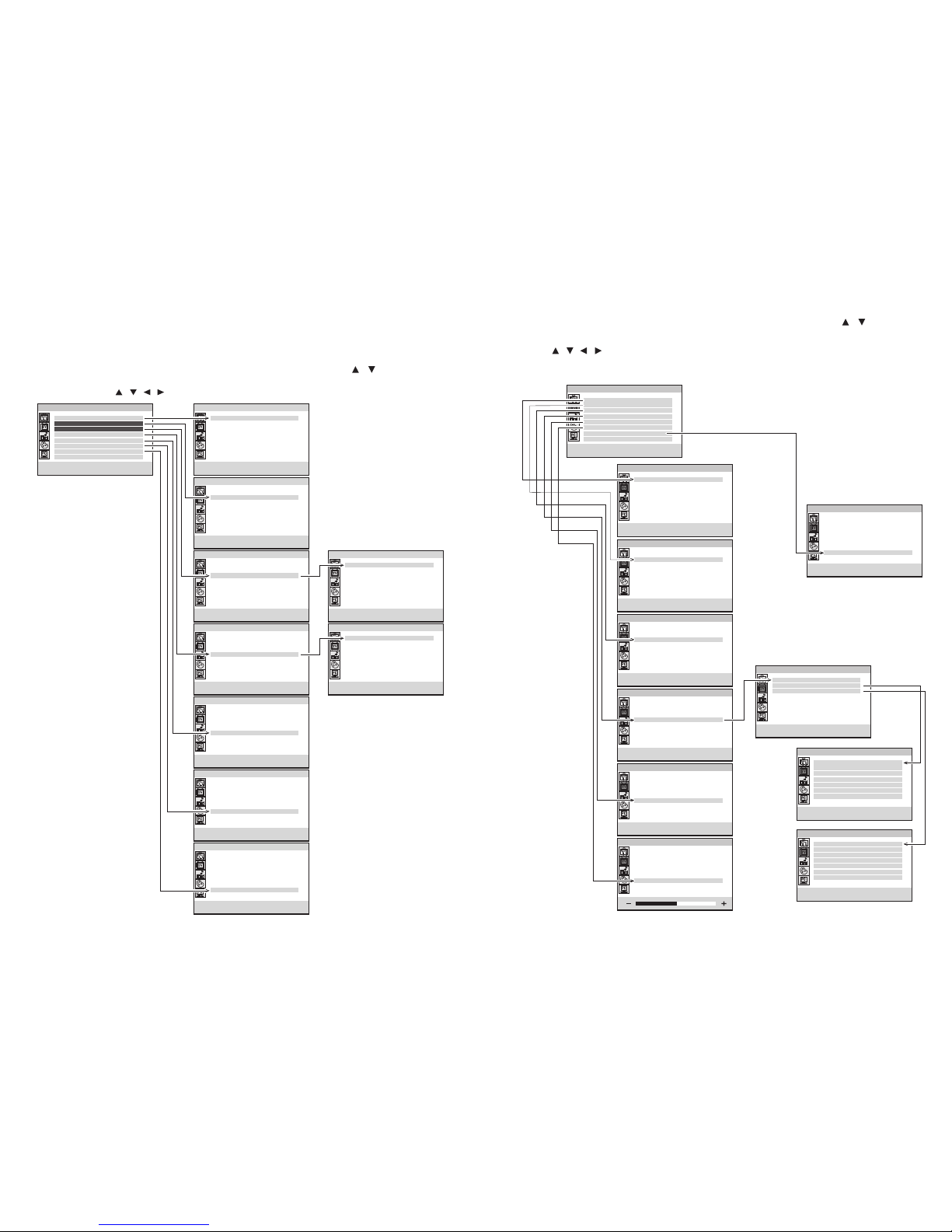

6. OSD SETTINGS
Management Setting ----------------------------------------------------------
TV Setting ------------------------------------------------------------------------
Audio Adjust Setting -------------------------------------------------------------
Picture Adjust Setting -----------------------------------------------------------
01
02
03
04
04
05
06
07
07
07
08
08
09
09
10
10
10
11
12
13
14
15
Safety Precautions:
1. Ensure the plug is securely plugged into the main socket before operating
the unit.
2. Ensure the Voltage on the main socket is the same as specied on the unit.
3. Use parts only manufactured by the unit manufacturers.
4. Request a repair report from the technician/service personnel.
5. Ensure the battery is correctly installed before using the unit.
In case of the following emergencies, remove plug from the main socket
immediately:
1. Plug or cables are damaged.
2. Any form of foreign objects dropped inside the enclosure.
3. Unit is being exposed to rain and/or water.
4. Unit unable to operate under normal operation.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Notices:
1. The changes or modications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. To comply with the FCC RF exposure compliance requirments , no change
to the antenna or the device is permitted. Any change to the antenna or
the device could result in the device exceeding the RF exposure
requirements and void user's authority to operate the device.
This device complies with part 15 of the FCC RULES. Operations is subject to
the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that
may cause undisried operation.

CONTENTS:
01
1. INTRODUCTION:
Overview :
New technology in LCD monitors allows the enjoyment of a higher quality picture
display and higher brightness; lighter in weight and slimmer body design, power
saving capabilities and low radiation, giving you a safe, relaxing and environmental-
friendly visual enjoyment.
Our product uses high quality original imported 26 inches 16:9 (Wide) colored
"Active Matrix TFT". The Active Matrix TFT high decoding capabilities enable
display of complicated or high quality images, presenting a vivid visual reproduction
and beautiful visual display. Incorporated with a user-friendly menu, allowing easy
customization to user preferences.
The unit comes with built-in screen display controls when used with the remote
control, allowing you to make changes to the settings. It even support the use of 2
channel wireless headphones, therefore you do not need to worry that the volume
coming out from the monitor will disturb other people. The Digital True Surround
Sound capabilities’from the 3D Stereo Speaker brings you the ultimate enjoyment
of audiovisual eects. Digital output function, when connected to other audiovisual
devices, gives you the best enjoyment in entertainment relaxation.
PC Adjust Setting -----------------------------------------------------------
7. ANNEX A
LCD Maintenance --------------------------------------------------------------
8. ANNEX B
Troubleshooting ----------------------------------------------------------------
Common Problems -------------------------------------------------------------
9. SPECIFICATIONS ---------------------------------------------------------------
16
17
18
18
19

02 03

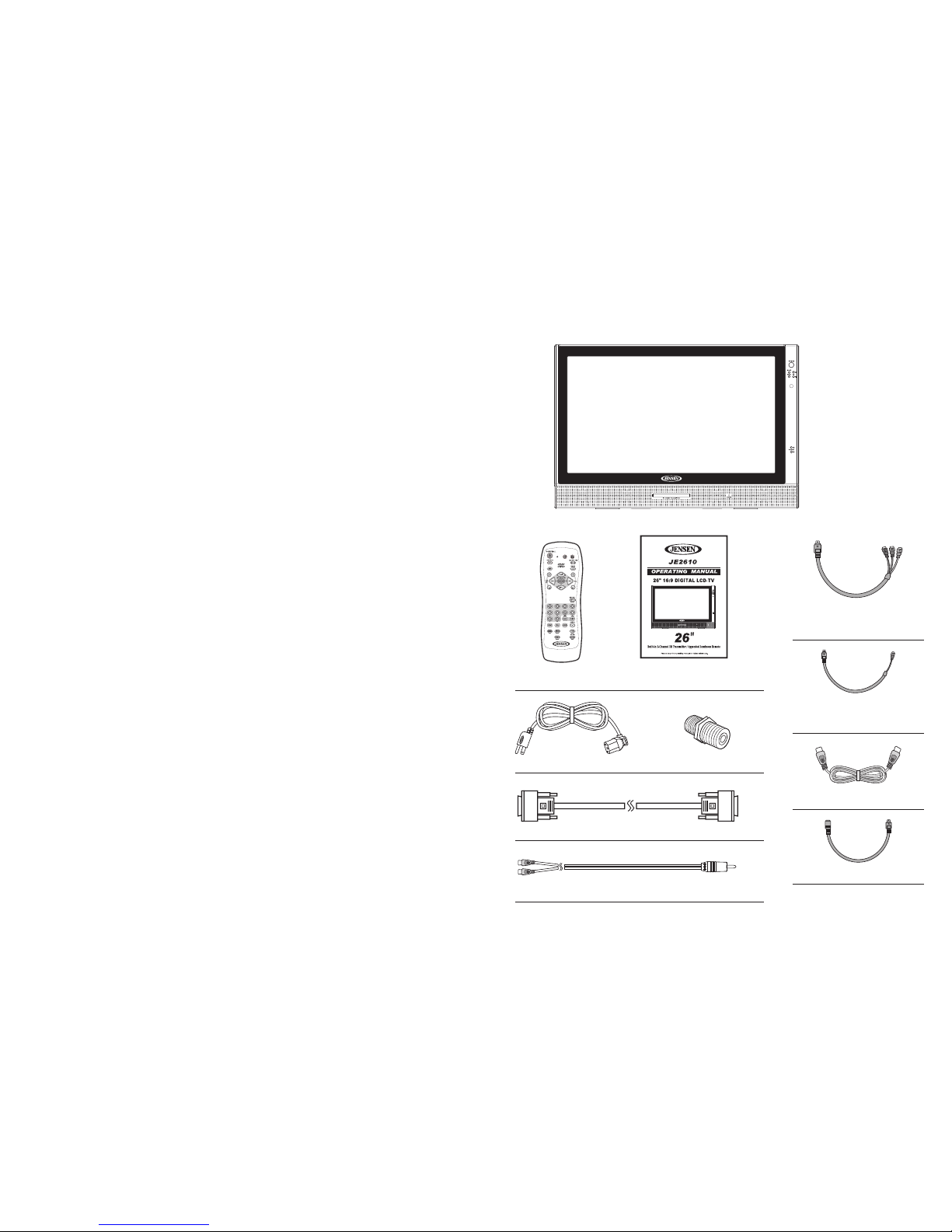

Contents/Accessories :
(Please check the content of the Package.)
2. Product Specifications:
1. 26" Television / monitor for Mobile use
2. 110V~230V , 50/60Hz Input
3. High Performance, 16:10 LCD Panel
4. High Brightness 600 nit
5. High contrast ratio 500:1
6. Ultra wide viewing angle 170 degrees
7. Front Panel controls
8. Cable ready TV Tuner with Closed Caption and V-Chip
9. High output speakers
10. Built in 2 Channel IR transmitter for optional wireless headphones
11. Wireless Night time viewable remote control included
12. Mounting bracket optional
13. Two auxiliary monitor inputs: One xed NTSC composite, one selectable
composite, S-Video or component ( HDTV )
14. HDTV ready
Remote Control Operation Manual
Monitor
S-Video Cable
Antenna Cable
Component Video
Conversion Cable
Composite Video
Conversion Cable
IR Transmitter Audio Input Harness
AC Power Cord
VGA Connect Cable
RF Connector

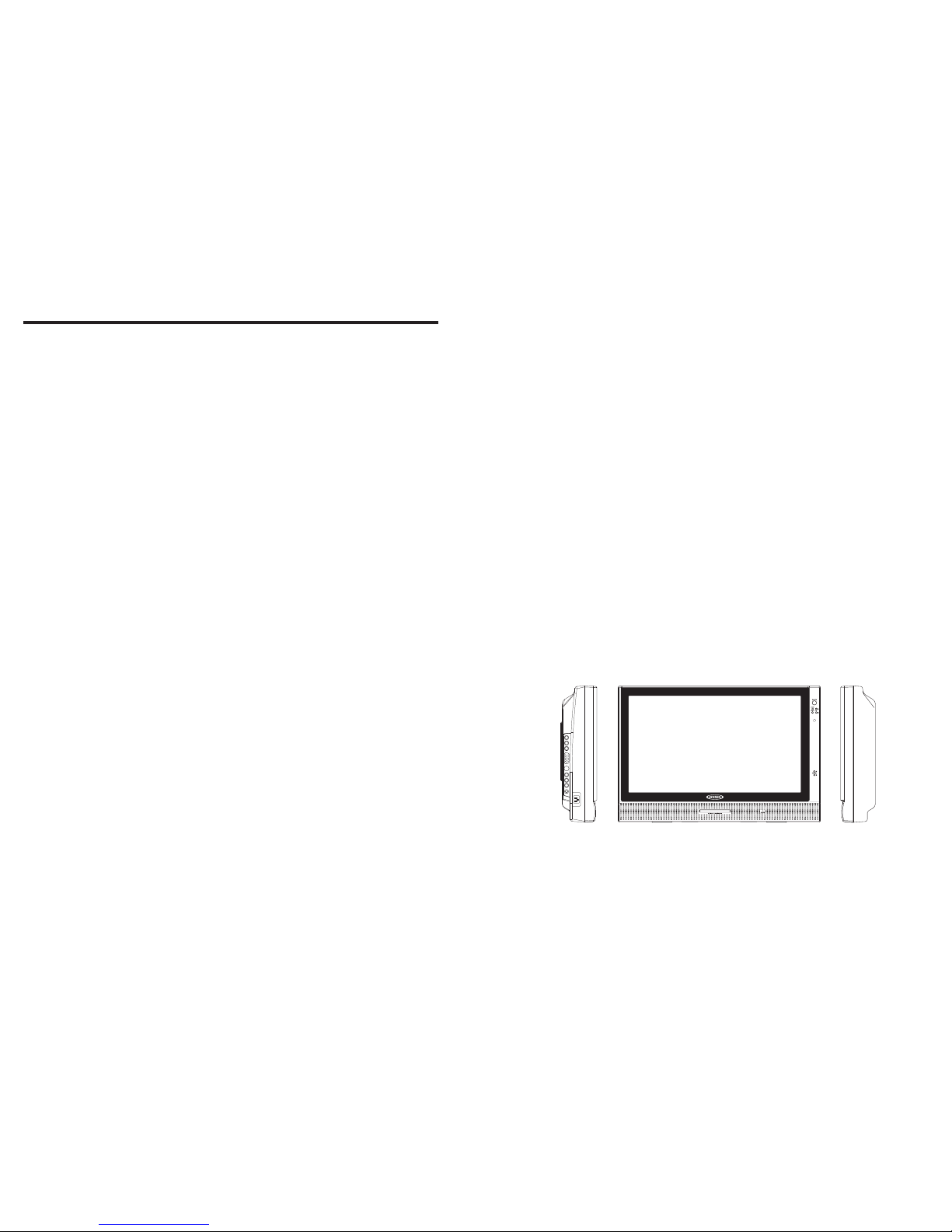

2. Front Panel Controls:
PANEL CONTROL :
1. POWER : Power On/O
2. MODE : Mode Select
3. CHANNEL +/- : Channel Select
4. MENU : Menu Setting
5. IR : IR Port for Remote Control
10. IR STEREO TRANSMITTER : For Wireless Headphone
04 05
1
12
11
14
13
16
15
18
22
23
21
17
19
20
910
2
3
4
8
7
8
6
7
INPUT/OUTPUT :
11. AV Out 1 : RCA Video Output
12. AV Out 1 : RCA Left Audio Output
13. AV Out 1 : RCA Right Audio Output
14. VGA : VGA Input (Computer)
15. S-Video (AV) In 1 : S-Video Input
/Component Input
16. AV In 2 : RCA Video Input
17. AV In 2 : RCA Left Audio Input
18. AV In 2 : RCA Right Audio Input
19. AV In 1 : AV 1 Audio Input
20. AC 110~230V IN
21. Antenna Input
22. Power Supply Socket
23. Second IR Transmitter Audio Input
6. VOLUME : Increase Volume
7. VOLUME : Decrease Volume
8. SPEAKER : Loud Speaker
9. STAND BY : Standby Mode Led
3. Remote Control Function :
(When using the remote control, point it towards the IR sensor.)
To prevent battery leakage which may result
in bodily injury or damage to the remote :
1. Install all batteries correctly, and as
marked on the remote control.
2. Do not mix batteries: (OLD and NEW or
CARBON and ALKALINE, etc.).
3. Remove batteries when the remote is not
used for a long time.
Note: 1. Some buttons on remote have two functions (for TV & DVD mode). When press the TV button, the
remote will get into TV function mode, each time when press the TV function button, the LED will
ash "RED" light. When in DVD Mode, each time when press the DVD function button, the LED will
ash "GREEN" light.
2.Some of the buttons are designed for operate single disc DVD player, pls read the DVD manual to
operate the DVD player.
Battery Usage Caution:
TV Mode: DVD Mode:
1
2
6
5
11
10
9
8
3
4
12
13
14
15
7
16
17
18
POWER : Power On/O
SOURCE : Signal Button
AUTO PROGRAM : Channel Scanning
/ / / :
Up, Down, Left, Right Button for setting
CH (+/- ) : Channel Up/Channel Down
1/2/3/4/5/6/7/8/9/0 : Numbers Button
LED : TV Mode --- Red Flash
: DVD Mode --- Green Flash
TV : TV Mode Selected
MUTE(TV) : TV Mute Button
ENTER : Enter Button
VOLUME (+/- ) : Volume Up/Volume Down
RECALL : Channel Return
NEXT TRACK ( ): Select Next Title/Chapter
FR( ) : FAST Reverse Play
DVD : DVD Mode Selected
FF( ) : FAST Forward Play
MENU : DVD Root Menu
PREVIOUS TRACK ( ): Select Previous
Title/Chapter
DVD Button : Buttons only for DVD use
1.
2.
3.
4./5./14./16.
6.
7.
8.
9.
11.
13.
15.
17.
4.
5.
10.
11.
12.
16.
18.

4. INSTALLATION GUIDE:
When Connecting to a TV Cable:
1. Remove Antenna Socket cover.
2. Plug the cable to the input socket on the unit.
3. Connect the cable that comes along with the unit to the one you are using when
needed.
TV AVTENNA
CATV CABLE
06 07
Connecting to Other Equipment :
1. This unit is able to support various input setting. You can connect your video recorder,
amplier, game console etc, to the unit, to enjoy high quality, digital audio-visual eect.
2. Connect AV equipment using S-Video. (photo.1)
3. Using the S-Video cable, connect your equipment to the S-Video/Component socket
on the TV Side Input Panel.
4. Connect your AV cable to the equipment. (photo.2)
Noted: When connect S-Video input, please set OSD (AV1 Select) to "SV" to view
S-VIDEO source.
Noted: When connect Component Video input, please set OSD (AV1 Select) to "CV" to
view Component-Video source.
Noted: When connect AV IN 2, please set OSD (AV1 Select) to "AV" to view AV IN 2
source.
Noted: When connect AV OUT 1, please set OSD (AV1 Select) to "AV" to view AV OUT 1
source.
(photo.1)
(photo.2)
Input (RCA) from other Equipment:
Connect to the TV AV IN 2 socket.
Output (RCA) to other AV Equipment:
Output the AV Signal using the unit AV output socket.

4. INSTALLATION GUIDE:
When Connecting to a TV Cable:
1. Remove Antenna Socket cover.
2. Plug the cable to the input socket on the unit.
3. Connect the cable that comes along with the unit to the one you are using when
needed.
TV AVTENNA
CATV CABLE
06 07
Connecting to Other Equipment :
1. This unit is able to support various input setting. You can connect your video recorder,
amplier, game console etc, to the unit, to enjoy high quality, digital audio-visual eect.
2. Connect AV equipment using S-Video. (photo.1)
3. Using the S-Video cable, connect your equipment to the S-Video/Component socket
on the TV Side Input Panel.
4. Connect your AV cable to the equipment. (photo.2)
Noted: When connect S-Video input, please set OSD (AV1 Select) to "SV" to view
S-VIDEO source.
Noted: When connect Component Video input, please set OSD (AV1 Select) to "CV" to
view Component-Video source.
Noted: When connect AV IN 2, please set OSD (AV1 Select) to "AV" to view AV IN 2
source.
Noted: When connect AV OUT 1, please set OSD (AV1 Select) to "AV" to view AV OUT 1
source.
(photo.1)
(photo.2)
Input (RCA) from other Equipment:
Connect to the TV AV IN 2 socket.
Output (RCA) to other AV Equipment:
Output the AV Signal using the unit AV output socket.
08 09
* VGA Input:
This unit provides VGA (Computer) input connector.
1. Connect computer VGA output to the monitor VGA input using VGA cable.
2. To connect audio source, using audio cable to connect from computer audio output to
VGA audio input.
Computrer Box
5. Basic Functions :
1. When POWER indication LED on unit turns RED in color indicating power is connected.
2. Press the "Power" button on the remote control, the POWER indication LED on the TV
Front Panel will turn "GREEN in color".
* POWER SIGNAL:
Power Indication LED
* MODE:
1. Press the "Mode" button on the TV front panel or "SOURCE" button on remote control
to select from the various mode settings.
2. The mode setting status will change each time the "Mode" or "SOURCE" button is
pressed – "AV1/AV2/CH 00"
** Please make sure video source is been connected properly.
AV2
AV1
CHANNEL
Noted: When connect VGA input, please set OSD (AV1 Select) to "PC" to view VGA
source.
Connect Power:
Connect to the power source using the power cable and adapter provided.
ATTENTION: Ensure the power supply is connected to the unit. When not using unit for
a long period of time, remove DC input socket from the main power point.
DC INPUT
SOCKET
DC 12V

10 11
* Volume Setting: * Mute:
1. Press "Volume +/- " ( / ) button on TV front control panel or remote control to
adjust volume level.
1. Press "MUTE" button on remote control to mute speakers. "MUTE" will display on
screen.
2. Press "MUTE" button again or "Volume +/-" button to return sound back to speakers.
* OSD Menu Setting:
This monitor provide "OSD" setting, enable you to customize the setting for monitor.
Press "MENU" button on remote or front control panel to set OSD menu.
Noted: Before adjust settings, ensure all the video source is in correct mode.
* Channel Select:
1. Press "Channel / " button on remote control or TV Front Control Panel to
change/select channels.
2. Press on Number buttons on remote control to change/select channel directly.
MUTE

TV Setting
ANT/CATV
Auto Scan
Add/Erase
Parent Control
Caption
Fine Tune
MTS
Exit
TV Setting
ANT/CATV
Auto Scan
Add/Erase
Parent Control
Caption
Fine Tune
MTS
Exit
ANT STD IRC HRC
TV Setting
ANT/CATV
Auto Scan
Add/Erase
Parent Control
Caption
Fine Tune
MTS
Exit
Mono Stereo SAP
TV Setting
ANT/CATV
Auto Scan
Add/Erase
Parent Control
Caption
Fine Tune
MTS
Exit
No Yes
TV Setting
ANT/CATV
Auto Scan
Add/Erase
Parent Control
Caption
Fine Tune
MTS
Exit
Add Erase
TV Setting
ANT/CATV
Auto Scan
Add/Erase
Parent Control
Caption
Fine Tune
MTS
Exit
TV Setting
T V - Y
Y 7
G
P G
1 4
M A
Exit
TV Setting
G
P G
PG13
R
NC17
X
Exit
TV Setting
ANT/CATV
Auto Scan
Add/Erase
Parent Control
Caption
Fine Tune
MTS
Exit
CC1
TT1
CC2
TT2
CC3
TT3
CC4
TT4 Off
TV Setting
ANT/CATV
Auto Scan
Add/Erase
Parent Control
Caption
Fine Tune
MTS
Exit
12 13
6. OSD Settings:
Management Setting :
Press "MENU" button, osd menu will display on screen, press "SET / " button to
select "Management setting", and press "ENTER" button to enter management setting,
then press "SET / / / select course settings. (Pls see chart as below)
This monitor provide "OSD" setting, enable you to customize the setting for monitor.
Noted: Before adjust settings, ensure all the video source is in correct mode.
Management
Main Display
PIP Display
PIP Adjust
Language
Recall
AV1 Select
Zoom
Exit
NTSC
H: 15. 7kHz V: 60.2H z
Management
Main Display
PIP Display
PIP Adjust
Language
Recall
AV1 Select
Zoom
Exit
TV AV2AV1
Management
Main Display
PIP Display
PIP Adjust
Language
Recall
AV1 Select
Zoom
Exit
Off AV2TV
Management
Main Display
PIP Display
PIP Adjust
Language
Recall
AV1 Select
Zoom
Exit
Management
Hi-Position
V-Position
PIP Size
Border
Exit
Management
Main Display
PIP Display
PIP Adjust
Language
Recall
AV1 Select
Zoom
Exit
Off AV2TV
Management
English
Frangaic
Dectsch
Espanol
繁體中文
Exit
Management
Main Display
PIP Display
PIP Adjust
Language
Recall
AV1 Select
Zoom
Exit
No Yes
Management
Main Display
PIP Display
PIP Adjust
Language
Recall
AV1 Select
Zoom
Exit
AV PCSV CV
Management
Main Display
PIP Display
PIP Adjust
Language
Recall
AV1 Select
Zoom
Exit
Full Normal14:9 Zoom
TV Setting
Parent Control
TV-Rating
M P A A
Change Pin
Exit
Off On
NTSC
H: 15. 7kHz V: 60. 2Hz
TV Setting :
Press "MENU" button, osd menu will display on screen, press "SET / " button to
select "TV setting", and press "ENTER" button to enter TV setting,then press
"SET / / / select course settings. (Pls see chart as below)

Picture Adjust
Brightness
Contrast
Color Temp.
Hue
Saturation
Sharpness
Exit
Picture Adjust
Brightness
Contrast
Color Temp.
Hue
Saturation
Sharpness
Exit
Picture Adjust
Brightness
Contrast
Color Temp.
Hue
Saturation
Sharpness
Exit
Picture Adjust
Brightness
Contrast
Color Temp.
Hue
Saturation
Sharpness
Exit
Picture Adjust
Brightness
Contrast
Color Temp.
Hue
Saturation
Sharpness
Exit
Picture Adjust
Brightness
Contrast
Color Temp.
Hue
Saturation
Sharpness
Exit
Picture Adjust
R
G
B
Exit
Picture Adjust
R
G
B
Exit
Picture Adjust
R
G
B
Exit
Picture Adjust
R
G
B
Exit
Picture Adjust
Brightness
Contrast
Color Temp.
Hue
Saturation
Sharpness
Exit
Audio Adjust
Speaker
Treble
Bass
Balance
Surround
Sound
Exit
Off On
Audio Adjust
Speaker
Treble
Bass
Balance
Surround
Sound
Exit
Main PIP
Audio Adjust
Speaker
Treble
Bass
Balance
Surround
Sound
Exit
Audio Adjust
Speaker
Treble
Bass
Balance
Surround
Sound
Exit
Audio Adjust
Speaker
Treble
Bass
Balance
Surround
Sound
Exit
Audio Adjust
Speaker
Treble
Bass
Balance
Surround
Sound
Exit
Audio Adjust
Speaker
Treble
Bass
Balance
Surround
Sound
Exit
OFF ON
14 15
Cool UserNeut. Warm
NTSC
H: 15. 7kHz V: 60. 2Hz
NTSC
H: 15. 7kHz V: 60. 2Hz
Audio Adjust Setting :
Press "MENU" button, osd menu will display on screen, press "SET / " button to
select "Audio Adjust setting", and press "ENTER" button to enter Audio Adjust setting,
then press "SET / / / select course settings. (Pls see chart as below)
Picture Adjust Setting :
Press "MENU" button, osd menu will display on screen, press "SET / " button to
select "Picture Adjust setting", and press "ENTER" button to enter Picture Adjust setting,
then press "SET / / / select course settings. (Pls see chart as below)

PC Adjust
Auto Image
H-Position
V-Position
Phase
Clock
Exit
No Yes
16 17
PC Adjust
Auto Image
H-Position
V-Position
Phase
Clock
Exit
PC Adjust
Auto Image
H-Position
V-Position
Phase
Clock
Exit
PC Adjust
Auto Image
H-Position
V-Position
Phase
Clock
Exit
PC Adjust
Auto Image
H-Position
V-Position
Phase
Clock
Exit
PC Adjust
Auto Image
H-Position
V-Position
Phase
Clock
Exit
7. ANNEX A:
To avoid possible shock hazard, be sure the LCD TV is turn o and unplugged from the
main electrical outlet before cleaning.
Do not use any form of solvents on the LCD monitor.
Cleaning the Enclosure:
Cleaning the LCD Monitor:
1. Use a soft, clean & dry cloth to gently wipe o the dust on the LCD monitor.
2. Use a clean cloth dampened with water to wipe o the dirt.
3. Do not exert force when cleaning the LCD monitor.
1. Use a soft, clean & dry cloth to gently wipe o the dust on the LCD monitor.
2. Use a clean cloth dampened with water to wipe o the dirt.
3. Do not exert force when cleaning the LCD monitor.
LCD Monitor Care & Cleaning Tips:
NTSC
H: 15. 7kH z V: 60.2Hz
PC Adjust Setting :
Press "MENU" button, osd menu will display on screen, press "SET / " button to
select "PC Adjust setting", and press "ENTER" button to enter PC Adjust setting,then
press "SET / / / select course settings. (Pls see chart as below)

18 19
8. ANNEX B:
Troubleshooting:
If the unit fails to operate normally, try solving the problems using the guide below. If the
problem persists, switch o the unit and ask the dealer or customer services ocer for
assistance. Do not attempt to repair the defective unit yourself. Do not endanger yourself
as high voltage is involved.
1. No Picture:
a. Check that the power cord is plugged into the main socket and the power
supply is turned on.
b. Check the contrast and brightness setting.
c. Check the Antenna connection to see if it is properly connected to the
LCD-TV Input Terminal.
d. Be sure you have selected the correct source mode.
2. Snowy Picture:
a. Check to see if the Antenna is correctly connected.
b. Check to see if the picture setting is correctly set.
3. Picture Flickers:
a. Check that the power coming from the main socket is sucient.
b. Check that unit is not placed too near speakers or magnetic objects.
c. Check to see that the unit setting is correctly set.
4. No Sound:
a. Check that mute function is o.
b. Increase the volume.
5. Remote Control not Working:
a. Check batteries are installed correctly, replaced if necessary.
b. Aim the remote controller towards the unit remote sensor.
6. Unit will not power on w/ front Power button:
a. Check the power is connected.
b. Power indication LED on unit is red in color.
9. SPECIFICATIONS:
Active Matrix LCD-TFT
26"-Zoll / W-XGA
16:10
983,040 Pixel (1280x768)
16.2 Mio.
600 cd/m
500 :1
H: 170 degrees, V: 170 degrees
NTSC
2 x 5W (Extendable to 2 x 10W)
96 kHz/24-Bit Audio-D/A-Converter
1x (S-Video/Component/CVBS Input <Mini-DIN>),
1x VGA Input, 1x AV-IN (RCA)
1x AV-OUT (RCA)
Channel 1: 2.3MHz/2.8MHz, Eective Angle:45°
Eective Range:12 Feets
Channel 2: 3.2MHz/3.8MHz, Eective Angle:45°
Eective Range:12 Feets
15 Feets
110V-230V, 50/60Hz Input
English, Frangaic, Dectsch, Espanol, Chinese
NTSC: Antenna / Cable
Monitor,Operating Manual, Remote Control, AC/DC Cable,
Component Video Conversion Cable, Antenna Cable,
Composite Video Conversion Cable, VGA Connector Cable,
RF Connector, IR Transmitter Audio Input Harness
Monitor
Display Size
Aspect Ratio
Resolution
Display Colours
Luminance
Contrast Ratio
View Angle
TV-System
Speakers
Audio DAC
Inputs
Outputs
IR-Transmitter
Remote Range
Power Supply
OSD-Language
TV Specication
Accessories
2
Noted: All specifications are subjected to change without prior notification

asaelectronics.com
www.asaelectronics.com
