Jenx Junior User manual

Seating Standing Sleeping Therapy
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use document 1/3
Junior
April 2015. Version 013
40.2 KG

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use
Minimum Safe Configuration

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use
Specification
SZ1 SZ2 SZ3
780 x 650 mm
50 kg
610 x 620 mm
- 30 °
+ 10 °
- 15 °
+ 15 °
Min : 210 mm
Max : 305 mm
Min : 150 mm
Max : 340 mm
Min : 195 mm
Max : 270 mm
Min : 310 mm
Max : 410 mm
Min : 305 mm
Max : 760 mm
Min : 240 mm
Max : 320 mm
Min : 150 mm
Max : 350 mm
Min : 250 mm
Max : 365 mm
Min : 330 mm
Max : 430 mm
Min : 315 mm
Max : 760 mm
Min : 275 mm
Max : 390 mm
Min : 150 mm
Max : 350 mm
Min : 250 mm
Max : 405 mm
Min : 360 mm
Max : 460 mm
Min : 365 mm
Max : 760 mm

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use

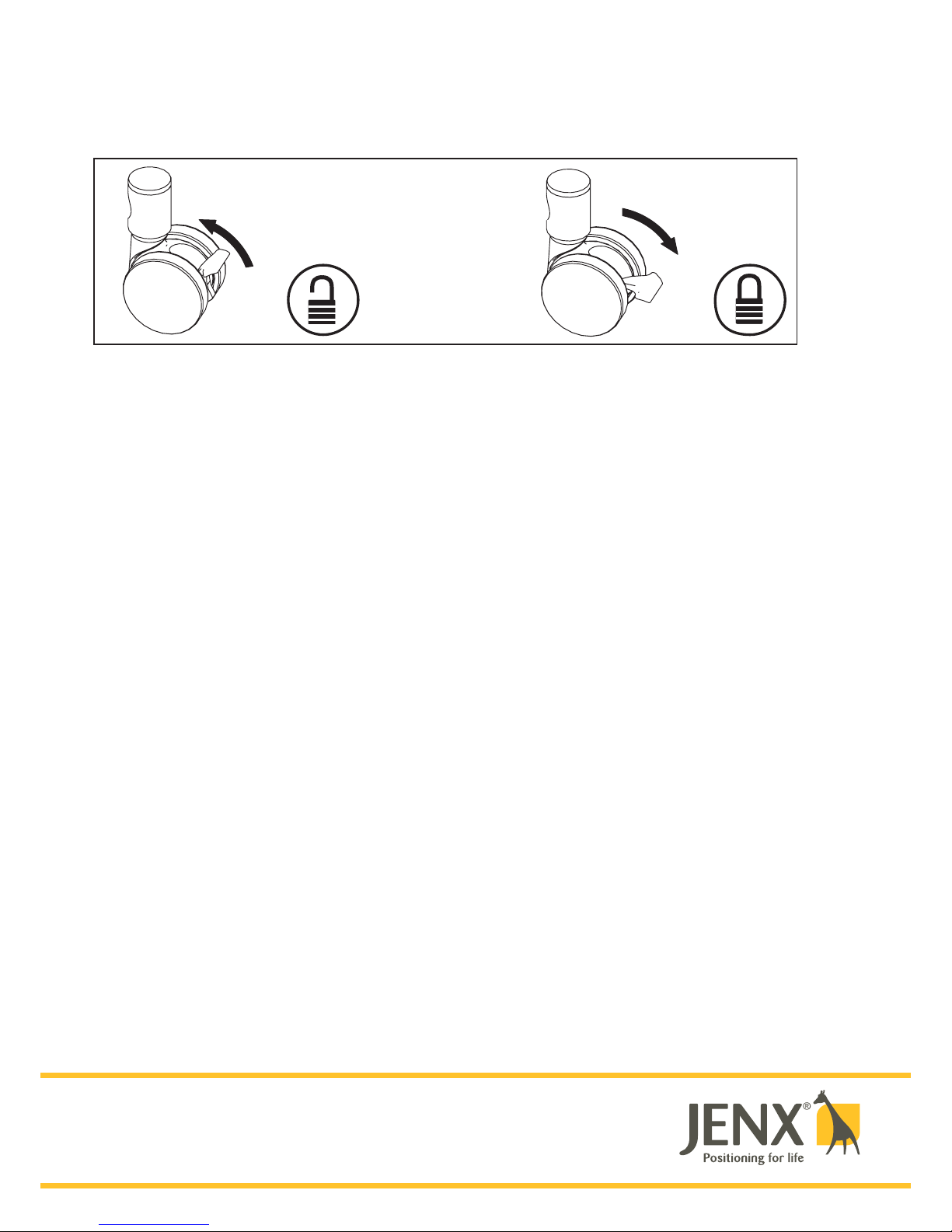

Castors

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use

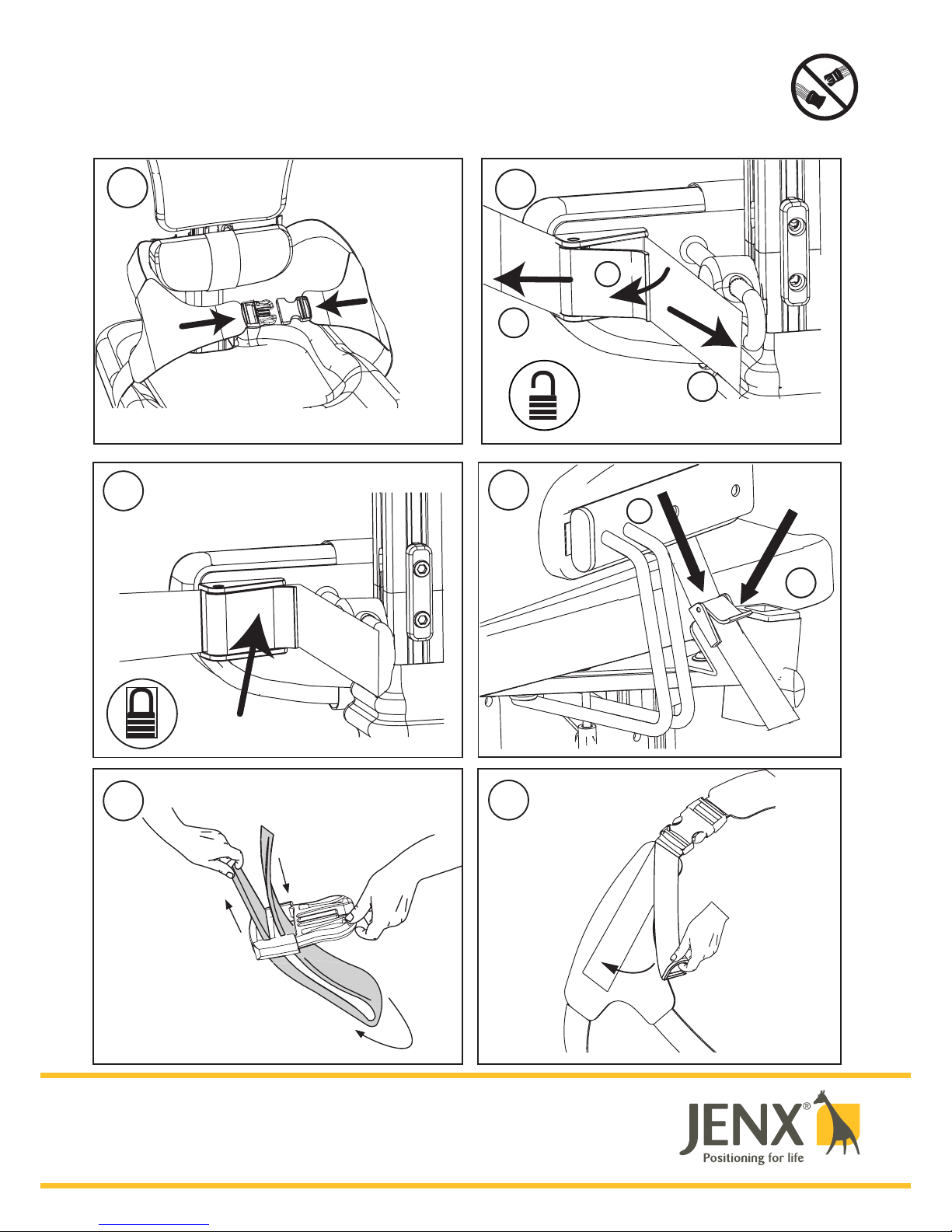

Safety straps
2
1
2
2
1
34
56
1
2x 2

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use
Chair Height/lock
2
1
3
2
1

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use
Chair Height/lock

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use
Tilt in Space
2
1
3

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use

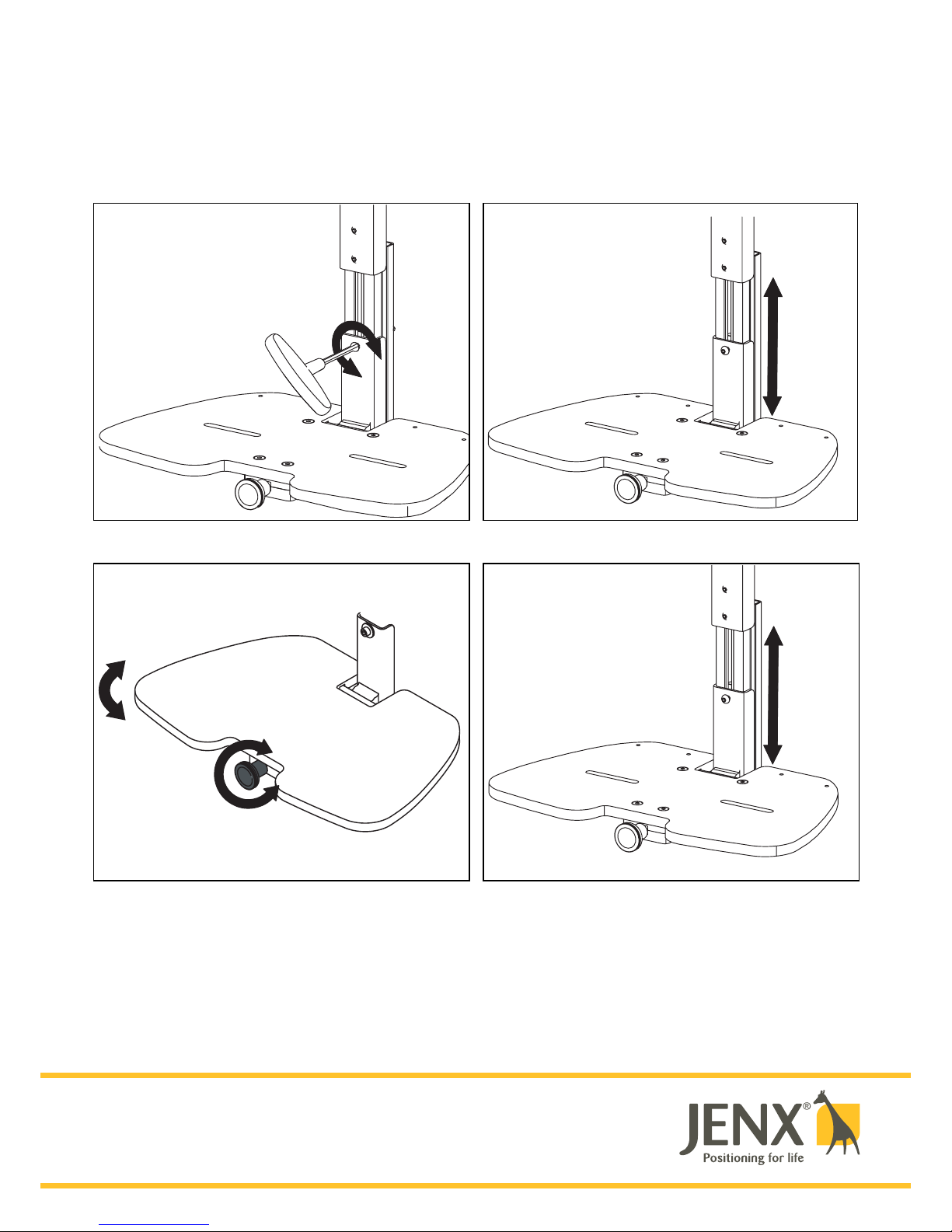

Footplate

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use

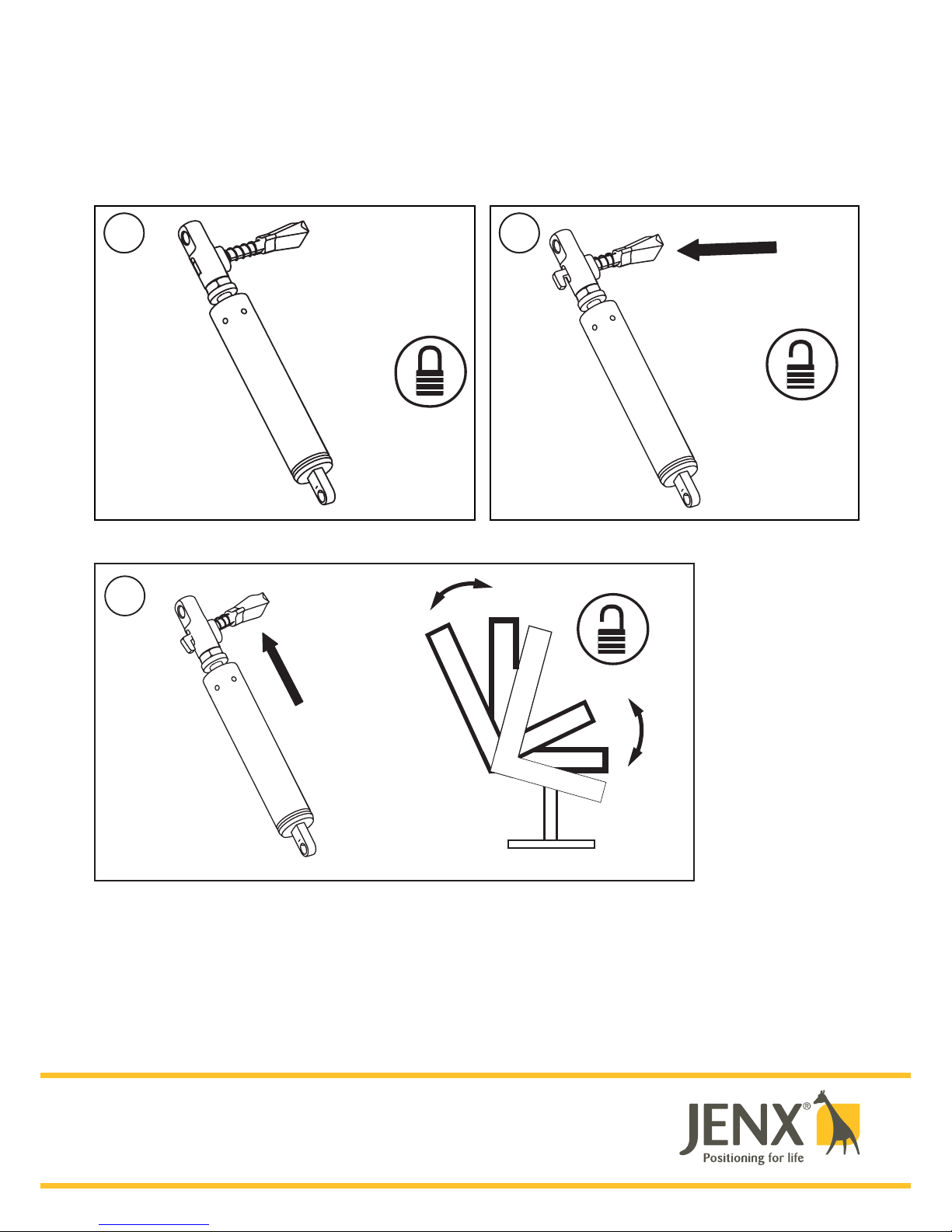

Back Angle
2
1
3

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use
Lumbar pad
Backpad
1
1
2
2
3
3

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use

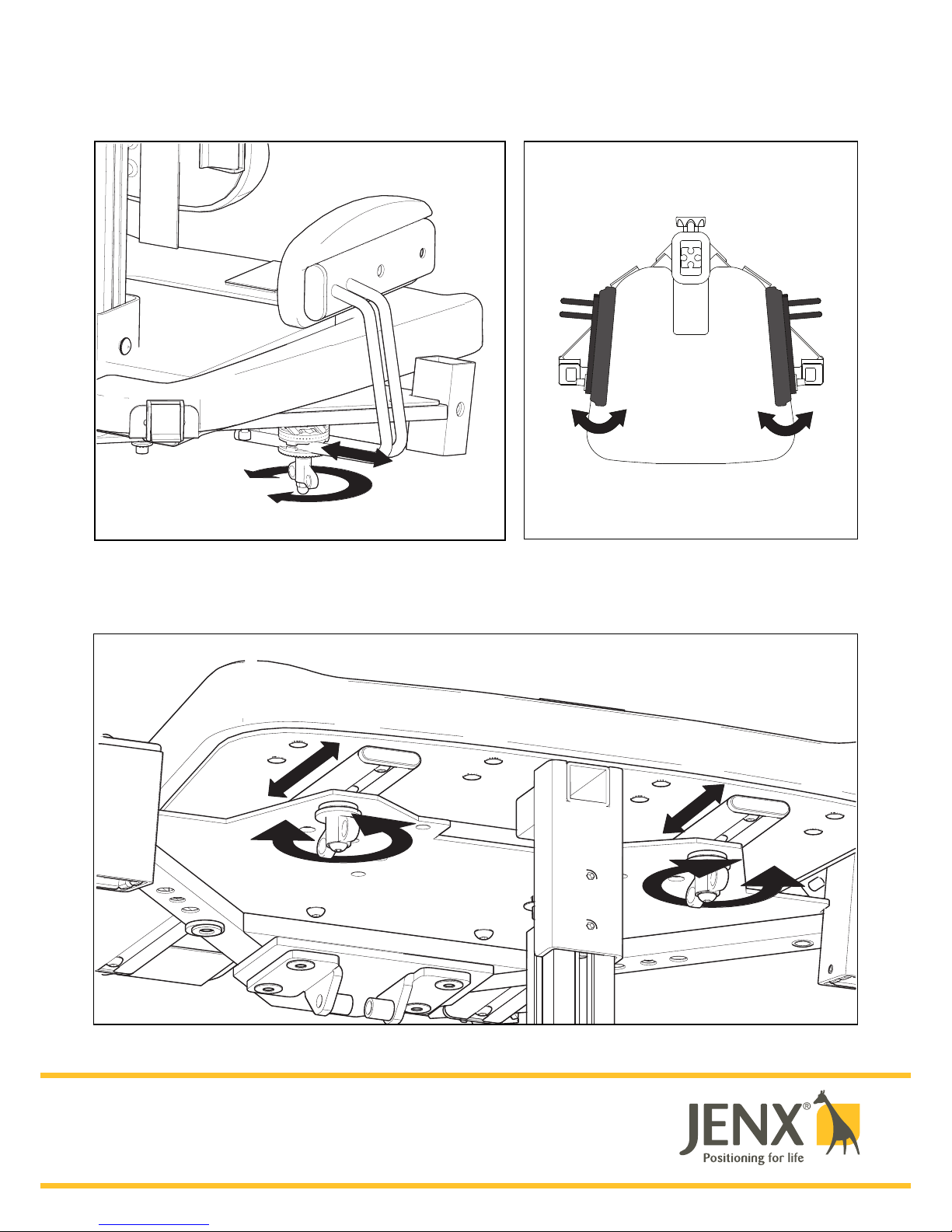

Hip Supports
Seat Depth

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use
Seat Pad

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use
Notes

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use

St T
Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
tel: [phone]
email ( UK & Ireland): [email protected]
email ( Rest of World): [email protected]
Instruction for use

Jenx Limited, Wardsend Road, Sheffield S6 1RQ, United Kingdom
Tel: [phone]
Email: [email protected]
www.jenx.com
Important Information. These instructions must be kept with the product at all times.
This product is a prescribed Medical Device. To be used only under the guidance of a
Therapist or Prescribing Practioner. You must read these instructions carefully before use.
Safety, Care &
Warranty
Information
(Instruction for use document 2/3)
April 2015. Version 001
Carers and
home users
Re-issue
and stores
Professional and
technical users

Jenx
What’s in this booklet?
Every position a child adopts has an effect on their development and
functional movement now and in the future.
As a leading global supplier of paediatric postural support equipment, we’re committed to
providing our customers with outstanding service and after sales support, so rest assured in
the knowledge that our after sales care is designed to offer you support and peace of mind with
every purchase of a complete system from the Jenx range.
This booklet contains all the safety, care and maintenance information for your product,
along with the Jenx warranty information.
Need some help? Visit www.jenx.com to nd your local Supplier/Distributor details.
Alternatively email: [email protected]
1. Important safety information
2. Care and cleaning instructions
3. Maintenance and Inspection
a. Why regular checks and inspection is necessary
b. Information for stores
c. Monthly checks
4. Warranty information (Jenx manufacturer’s warranty)

Jenx
1. Important Safety Information
What’s in this booklet?
The following information is for the benefit of you, the carer and the user of this
Medical Device, therefore please read thoroughly before using the Device.
This product must be thoroughly inspected by a qualied person at least annually
Ensure that your Therapist has conrmed that the product is correctly set up, by signing the ‘Set
Up’ section of the Log book before using this product. If the product has not been set up by your
Therapist DO NOT USE.
Jenx Ltd. recommends that children are never left unattended whilst using this Medical
Device. Children may slip or fall when unattended and may suffer serious injury. It is the sole
responsibility of the person caring for a child using this Medical Device to ensure the safety
of the child in the Device should they be left alone.
Always read the instructions before operating. Failure to read and follow the Instruction for Use,
especially with regard to moving parts, may pose a risk to the user.
Do not use this product if you suspect or know that it is broken or faulty.
Please contact your supplier.
This product contains small parts which could present a choking hazard to small children.
All Jenx Ltd. products are tested to meet current Fire Safety regulations. Always keep
products away from; naked ames, cigarettes and sources of heat such as heaters.
Assemble product fully before use. Please contact your supplier if you have any problems.
Ensure that good care is taken of your product: clean regularly. Do not use abrasive cleaners.
When not in use, store this product in a dry place that is not subject to extreme temperatures.
Please DO NOT store this product in garages, attics or garden sheds.
All belts and harnesses should be used at all times. For therapy purposes it may be necessary
to deviate from this rule and any deviation should be fully documented as part of a Risk
Assessment or Therapy Program and all relevant staff and carers appropriately trained. Secure
user with straps before adjusting product. Ensure there is a nger’s width between safety strap
and user to prevent over tightening or user moving to inappropriate position. Adjust straps for
each user and changes of clothing. Minimum Velcro® overlap: 3 inches (7.5cm) on all straps.
If strap is not long enough: DO NOT USE PRODUCT.
This product conforms to the European Medical Devices Directive. It has not been tested in
conjunction with other manufacturer’s products. Do not add any accessories other than Jenx
Ltd. accessories to this product. If in doubt, contact your supplier.
Any changes or alterations carried out by persons other than a Jenx Ltd. authorised service
person will invalidate the warranty and Jenx Ltd. can accept no liability for any injury or
damage so caused.
All Jenx Ltd. products are Medical Devices and are sold on the understanding that they will be
prescribed, issued and maintained in line with current national device management guidelines.

Safety Labels
There are various labels and symbols on your Medical Device that indicate various safety instructions
and also the Serial Number and CE Certication of the Device. Please make sure you are familiar with
these.
Serial Number/ CE Certification
The serial number is written on the CE label (see picture), which is located on the product. Please quote
this number on all correspondence.
Product Labels
Each Jenx product has a number of pictorial safety labels attached,
please refer to the explanations below.
Attention / Warning
Please read Instruction for Use
Only for indoor use
Do not leave child unattended
DO NOT USE as a mobility device
Never use product on rough ground
or uneven surface
User Weight Limit (changes per
model and size)
Conforms to CE Marking
Regulations Medical Devices
Directive (MDD) 93/42 EEC)
Always fasten and adjust
positioning straps and
belts to suit the child.
Adjust to suit changes in
clothing. Allow one ngers
width between the belt
and the child
xKg
