Jet Games Urban 4x4 User manual

1
Model Name：Urban 4x4
Model No.：KA-275
USER MANUAL
JET Games Corp *22 South Nova Road, Daytona Beach FL 32118
Tel: [phone] Fax:[phone]
[e-mail] Web: www.jetgamesusa.com
IMPORTANT:
★Read the manual before operating this machine
★Keep this manual for your reference
CONTENT

2
1. General Information ---------------------------------------------------------------------------3
1.1 Specification ------------------------------------------------------------------------------3
1.2 Warning------------------------------------------------------------------------------------4
1.3 Caution-------------------------------------------------------------------------------------4
1.4 Use-------------------------------------------------------------------------------------------4
1.5 Maintenance ------------------------------------------------------------------------------4
2. Parts and Functions -----------------------------------------------------------------------------5
3. Game Instruction---------------------------------------------------------------------------------6
4. Background Setting Instruction----------------------------------------------------------------7
5. Quick Trouble Shooting --------------------------------------------------------------------------9
6. Warranty -------------------------------------------------------------------------------------------12
1.1 Specification

3
1.2 Warning
Model
Off-road X
Reference Code
KA-275
Power at rest
70W
Power in operation
380W
Dimensions (mm)
2000*1260*1420
Weight (KG)
207 KGS
Feeding voltage
220V/110V
Seats
2
Users range of ages
3 years+

4
●Do not set the machine where it could block emergency exits.
●Install the machine in a horizontal and stable surface.
●Do not bend the power cord by force or place heavy objects on it.
●Never plug or unplug the power cord with wet hands.
●Before inspecting the machine, make sure the power is OFF.
●Use always, for replacement parts, pieces authorized by M SKY.
1.3 Caution
●Do not put the power cord where people walk through.
●Use only a grounded outlet.
●Confirm the work power before use, in case of a short circuit.
●Do not lift the machine by part, Must be always lifted by the base.
●Power off, if the power cord is damaged and contact our staff for replacement.
1.4 Use
●Please make sure child sits well before insert coin.
●Do not up and down when machine in operation.
●Only one player on one seat.
●Do not lean on the machine when in use.
●This machine must be operated under adult’s supervision.
●Please cut the power in Emergency.
1.5 Maintenance
●Please check and maintain the game regularly.
●Switch off the power before cleaning or replacing the parts of the game.
●Only qualified staff to inspect or test the electronic card.
●Please use clean and soft cloth to clean the game with gentle cleanser.
●Please use gentle cleanser.
2.Parts and Functions

5
3. Game Instruction
Transform hand stick
Steering wheel: Control
the game direction
Coin accepter
S key：collect the prop &
special speed up

6

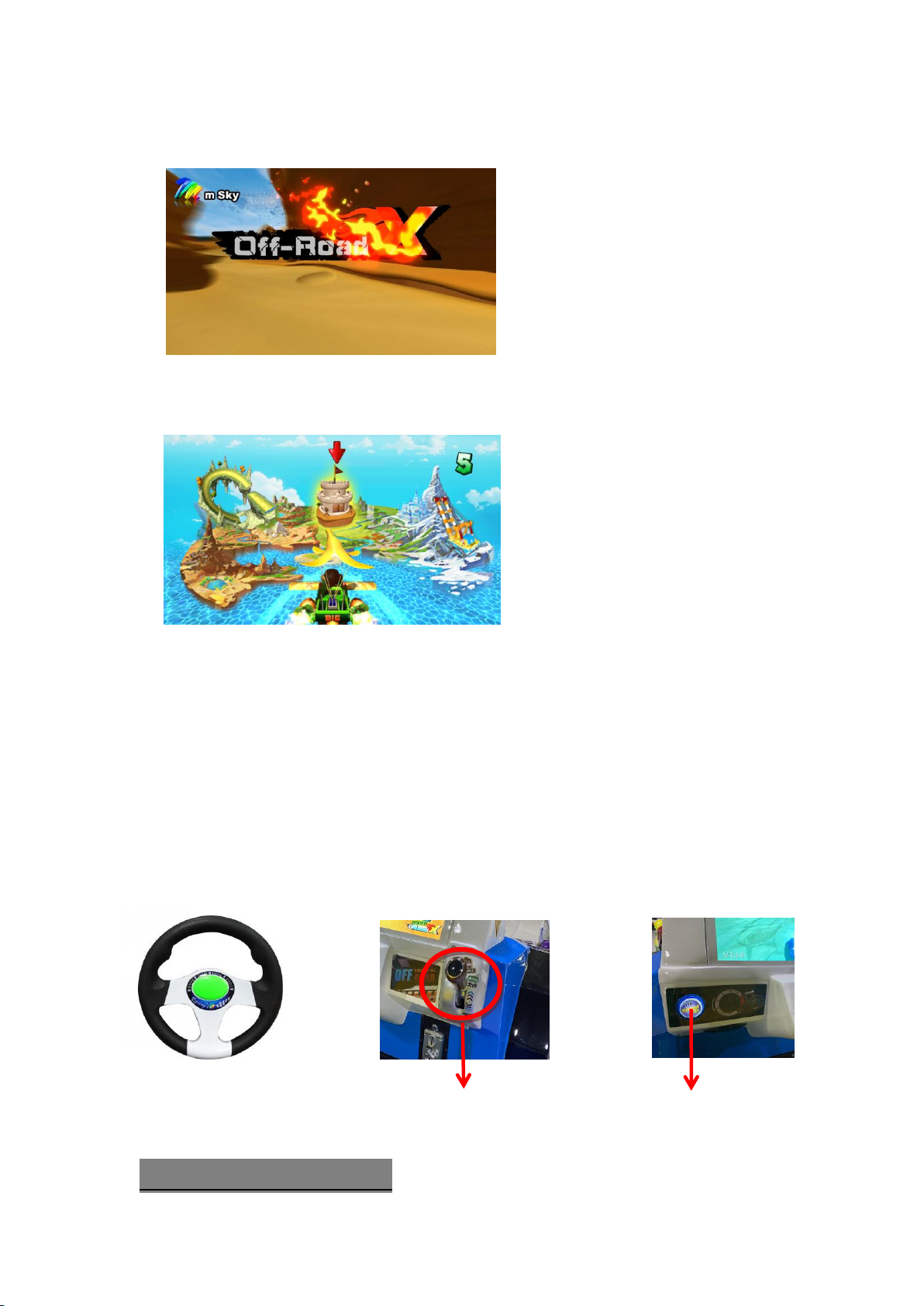

·3D racing car game, developed by UNITY engine, fluent image, real & exciting.
·Different interactive & vibration. Real racing feedback, cool & exciting。
How to play：
·Insert coin and wait for loading. Turn steering wheel to choose favourite racing
track.
·Collect gas bottle on the track to collect energy, press S key to boost. Try it on and
be NO.1.
Operating manual
①Steering wheel: control direction
②Transform Hand stick：during game, when the energy bar is full, push the hand stick up or
down to have special speed up
③S key: Collect different prop and press S key to use the prop attack other competitor
during game.
①Steering wheel ②Transform Hand stick ③S key
4. Background Setting

7
4.1 How to enter into background setting
1. Unlock the screen(Picture 1), find the setting board. (Picture 2)
2. Under “Insert Coin” page, press middle key for 3 seconds to enter into setting menu.
3. Press left or right key to choose, middle key to confirm. Please save data before
quit.
4.2 Background menu
Picture 2
Picture 1
Press to enter into setting menu

8
Sensor correction:
This is for steering wheel sensor correction. Under sensor correction item, press
to start.
1:Keep steering wheel straight status, press
2:Turn to left most status, press
3:Turn to right most status, press
Then correction finish.
5.Quick Trouble Shooting

9
Machine can not boot, no electricity
Please check whether 220V/110V power cable is connected well.
Power on machine, LED light is working, but monitor has no display.
Cable connected well
Cable bad connected, re-plug the cable
Please check whether the
power supply cable is
connected well
If cable is connected well, but
the LED light of the power
supply is off, then power
supply has problem
(Test way: Please use the
multimeter to check if the
power supply has output
voltage)
Cable bad connected, re-plug the cable

10
Please check whether the game box cable is connected well.
Machine has no voice during playing
Cable connected well
Cable bad connected, re-plug the cable
Reboot the machine & wait for
1 minute then insert coin
If machine can not accept
coin or machine has no
voice after inserting coin,
the game box has problem
If machine can accept coin and
has voice, please check whether
the driver board cable is
connected well, if connected
well, then the drive board or the
monitor has problem.

11
Please check whether the speaker cable was connected well.
Coin accepter can’t accept the coin or accept coin but machine doesn’t
work
Please check whether the coin accepter cable is connected well.
6.Warranty
Cable connected well
Cable bad connected, re-plug the cable
It might be the problem caused by speaker or game
box.
(Test way: Please replace a good speaker, if machine
has voice, then the speaker is broken. Or it’s the game
box’s problem)
Cable connected well
Cable bad connected, re-plug the cable
Please replace another coin accepter, if coin
accepter is working, then it is the game
box’s problem.

12
Spare parts
Warranty
Game box
12M
Motor
12M
Drive board
12M
Monitor
6M
*Quality guarantee is not including: man-made damage, abnormal voltage & factors such as irresistible
natural disasters
