Operating Instructions and Parts Manual

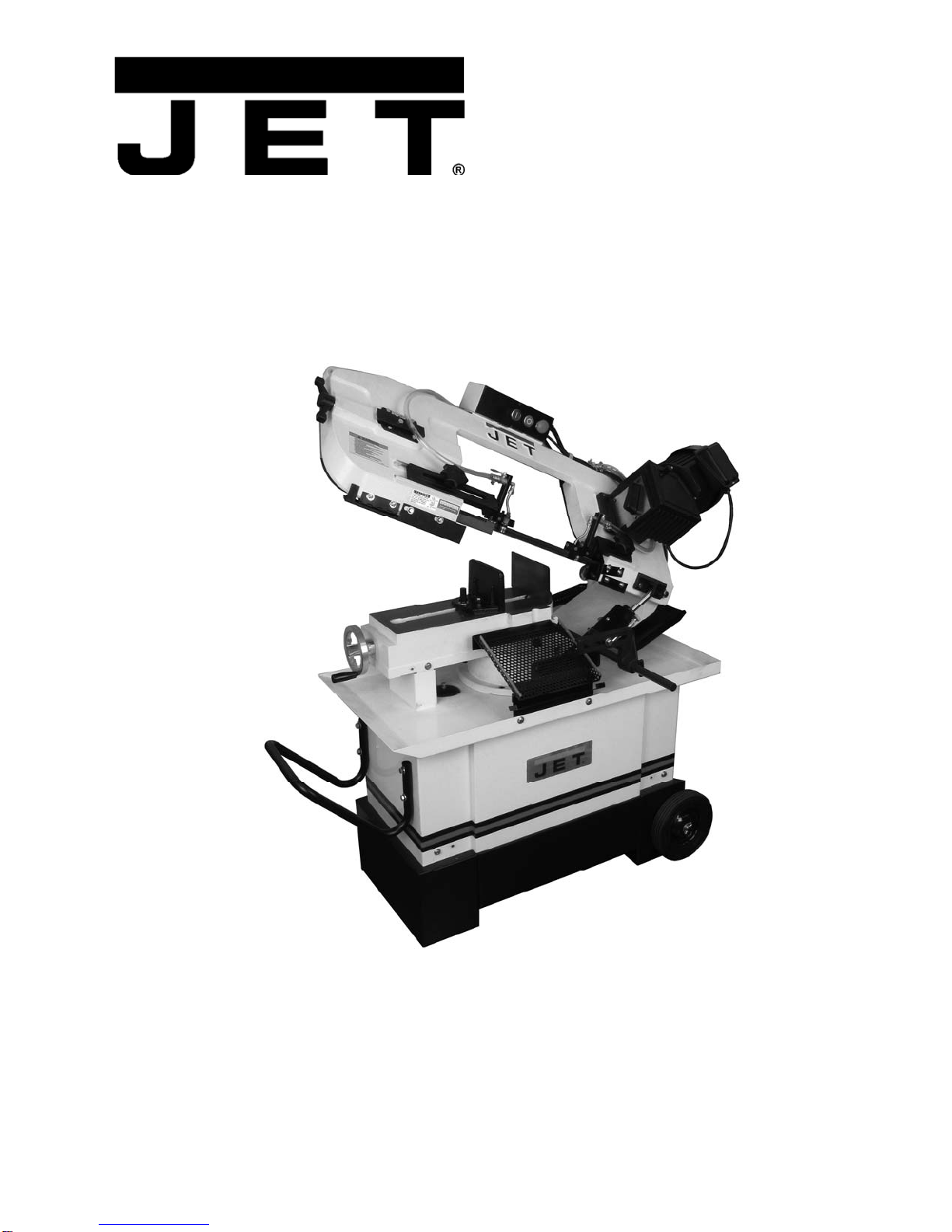

7x10-inch Gear Head Mitering Band Saw
Model HVBS-710SG
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-413452
Ph.: 800-274-6848 Revision A1 11/2012
www.waltermeier.com Copyright © 2012 Walter Meier (Manufacturing) Inc.

2
1.0 Warranty and Service
Walter Meier (Manufacturing) Inc., warrants every product it sells. If one of our tools needs service or repair, one of our
Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these
Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine
maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area call
1-800-274-6848.
MORE INFORMATION
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your
local Walter Meier distributor, or visit waltermeier.com.
WARRANTY

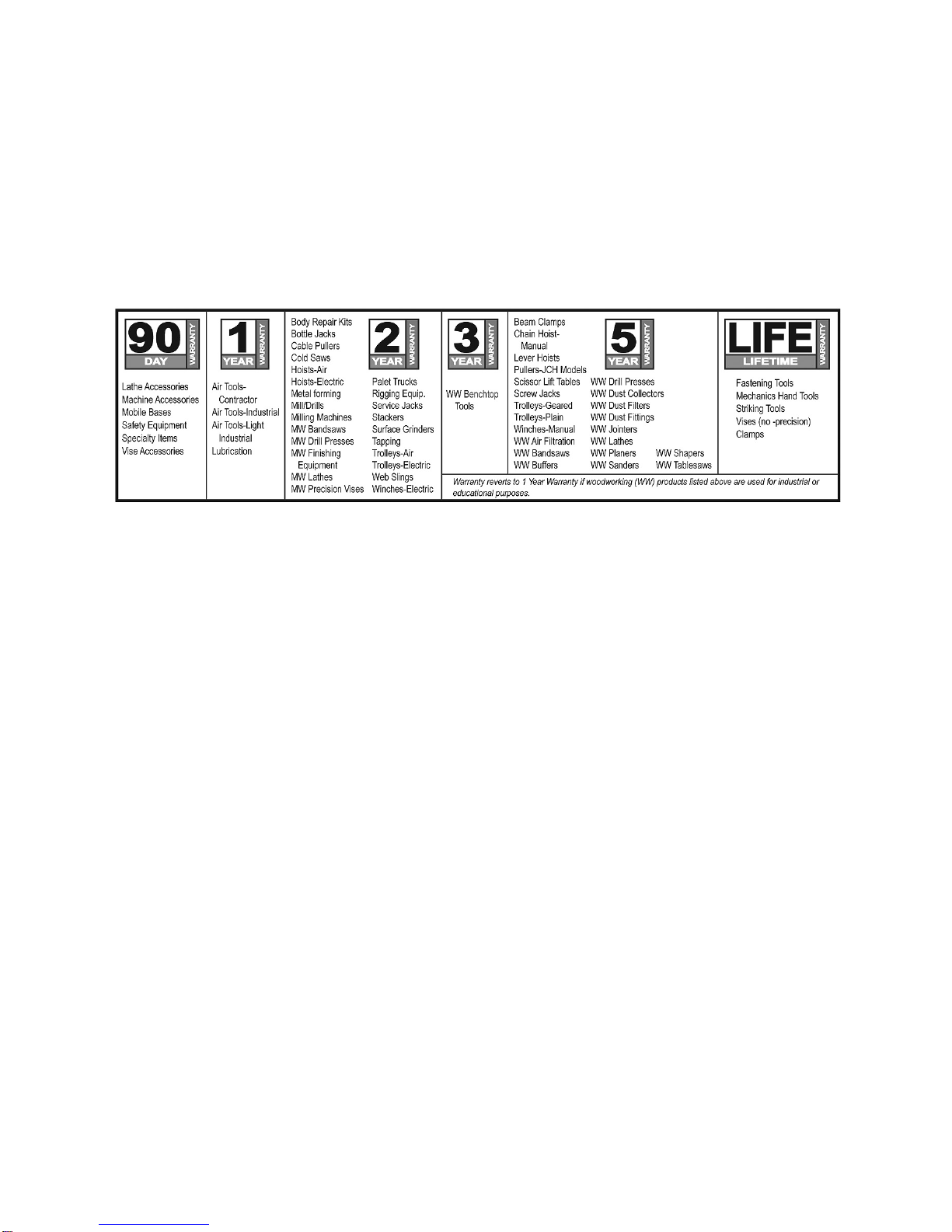

JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW =
Woodworking).
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools,
abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
The general JET warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED?
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational purposes.
Woodworking products with Five Year Warranties that are used for commercial, industrial or education purposes revert to a
One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or
accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name of the
location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the merchandise. If
our inspection discloses a defect, we will repair or replace the product, or refund the purchase price, at our option. We will
return the repaired product or replacement at our expense unless it is determined by us that there is no defect, or that the
defect resulted from causes not within the scope of our warranty in which case we will, at your direction, dispose of or
return the product. In the event you choose to have the product returned, you will be responsible for the shipping and
handling costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WALTER MEIER (MANUFACTURING) INC., LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED
WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR
MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
WALTER MEIER SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR
INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR
PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Walter Meier sells through distributors only. The specifications in Walter Meier catalogs are given as general information
and are not binding. Members of Walter Meier reserve the right to effect at any time, without prior notice, those alterations
to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. JET® branded
products are not sold in Canada by Walter Meier.

3
2.0 Table of Contents
Section Page
1.0 Warranty and Service...................................................................................................................2
2.0 Table of Contents.........................................................................................................................3
3.0 Safety Warnings...........................................................................................................................4
4.0 About this manual ........................................................................................................................5
5.0 Features......................................................................................................................................6
6.0 Specifications...............................................................................................................................6
7.0 Set-Up and Assembly...................................................................................................................8
7.1 Unpacking and cleanup.............................................................................................................8

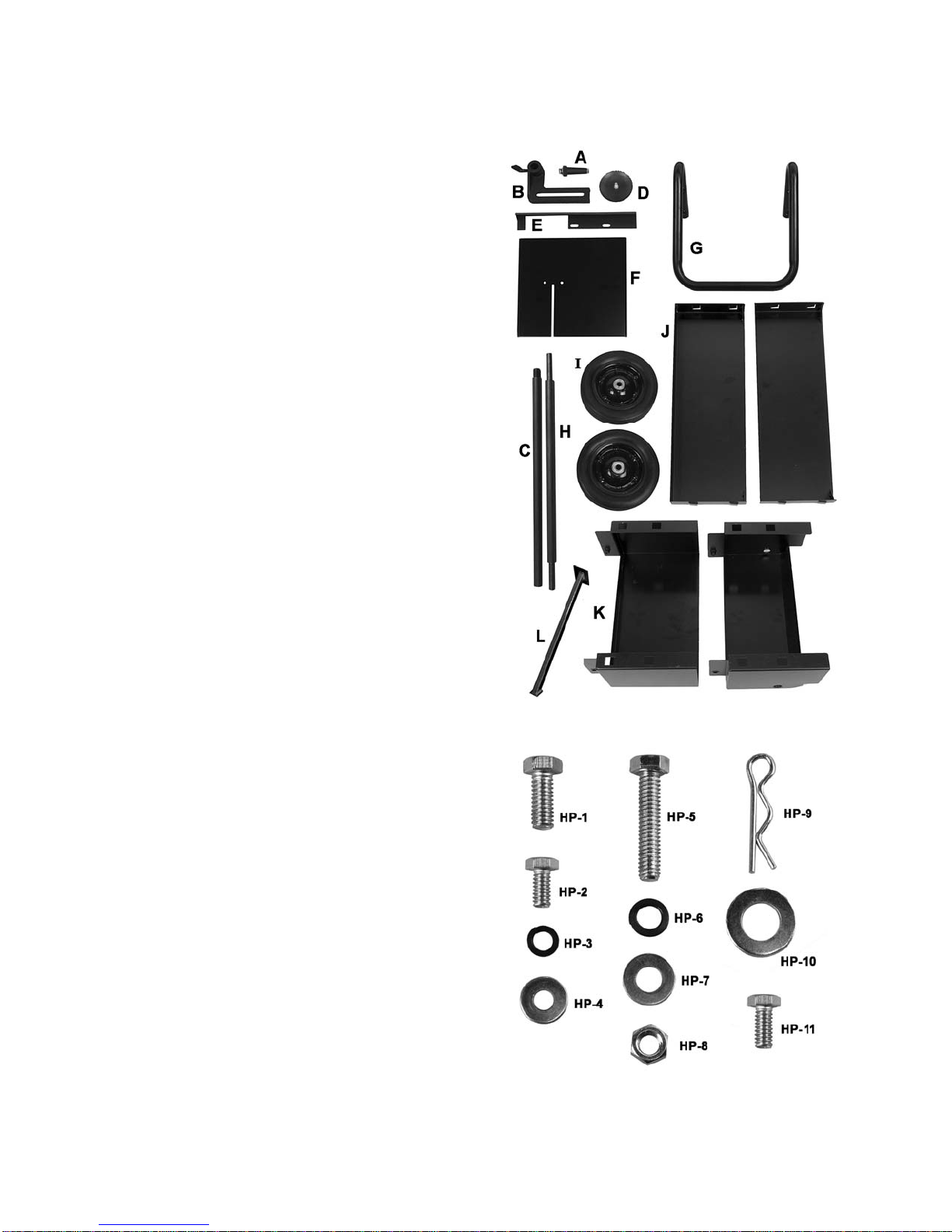

7.2 Shipping contents .....................................................................................................................8

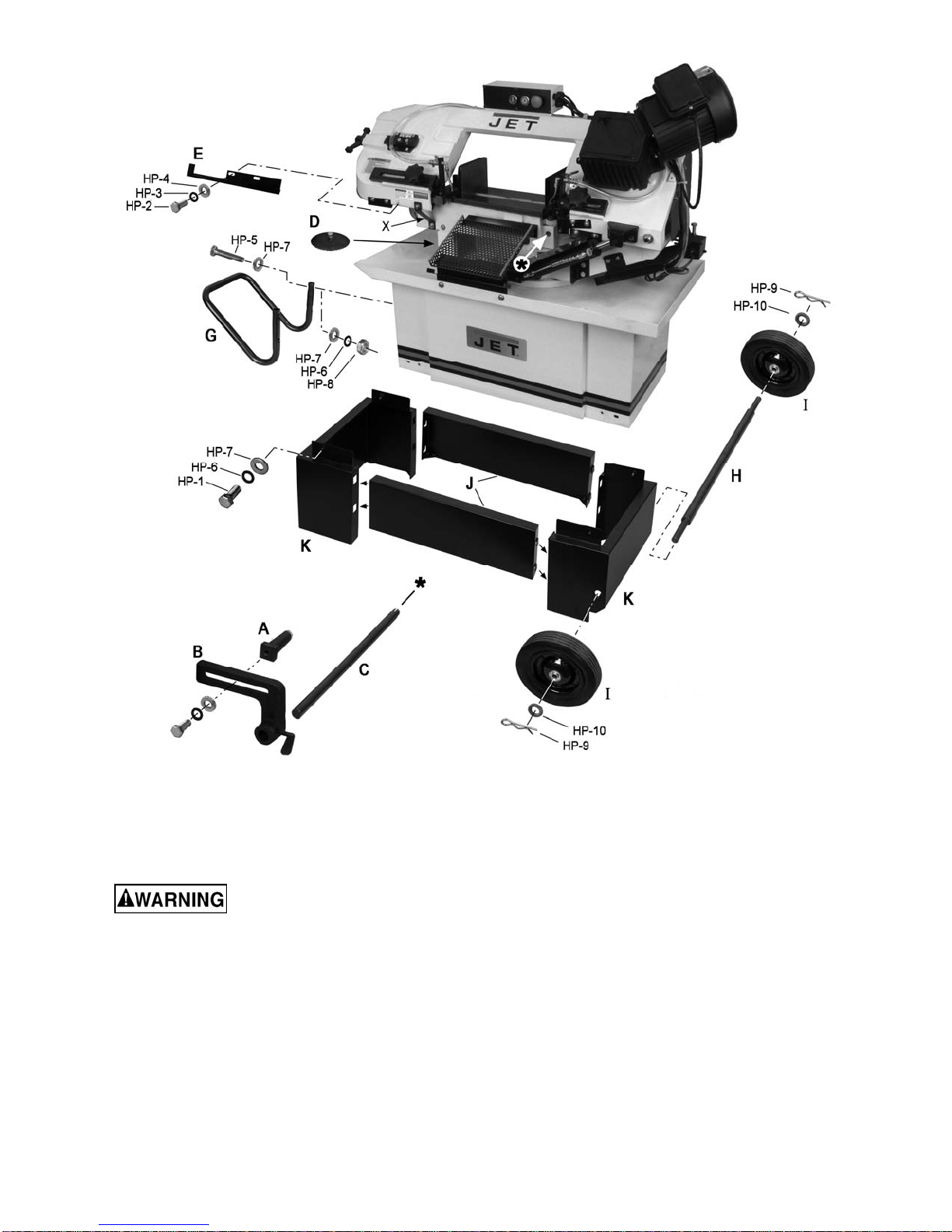

7.3 Assembly .................................................................................................................................9
7.4 Vertical cutting plate................................................................................................................10
7.5 Vertical support post ...............................................................................................................10

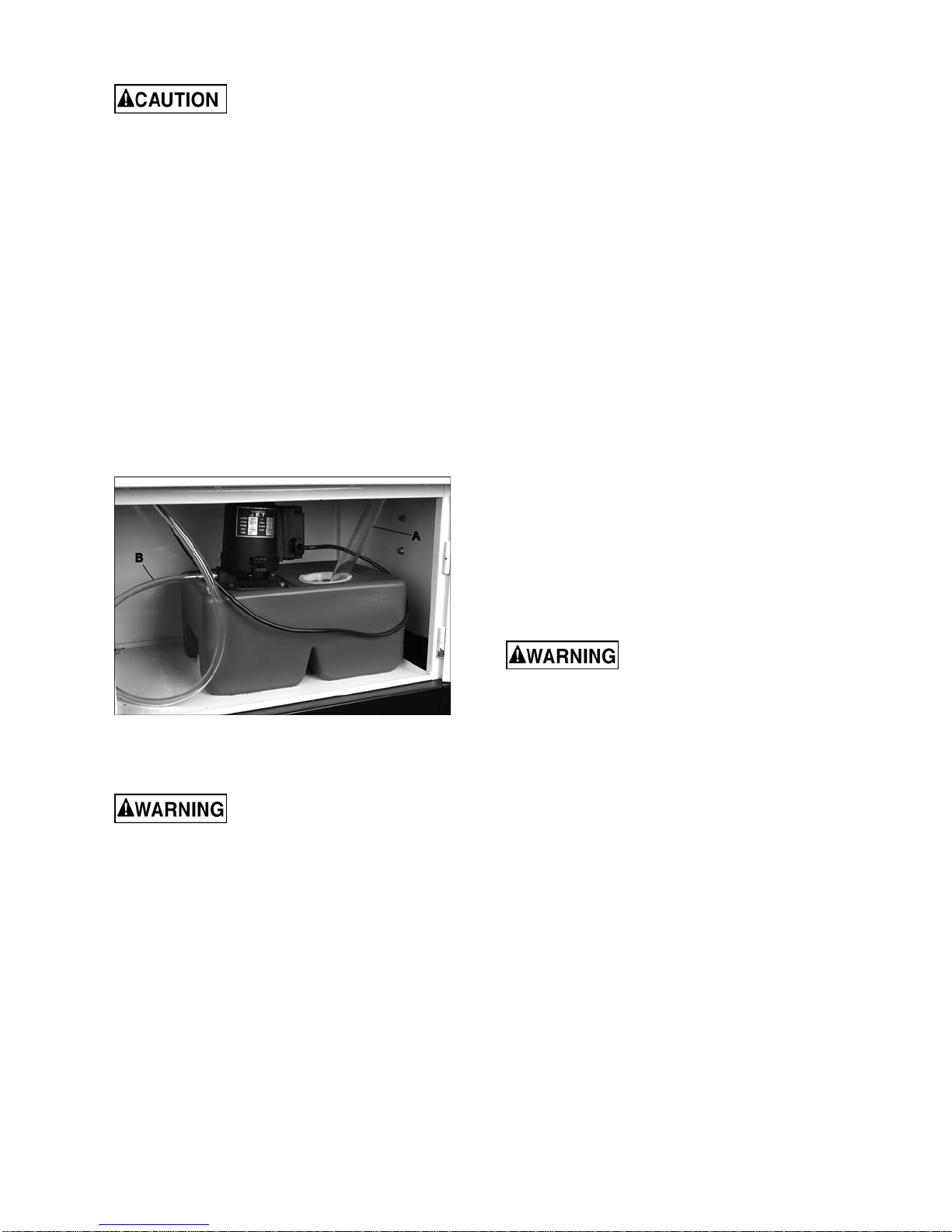

7.6 Coolant system.......................................................................................................................11
8.0 Electrical connections.................................................................................................................11
8.1 Grounding instructions ............................................................................................................11
8.2 Voltage conversion .................................................................................................................12
8.3 Extension cords......................................................................................................................12
9.0 Adjustments...............................................................................................................................13
9.1 Squaring blade to table ...........................................................................................................13
9.2 Squaring blade to vise.............................................................................................................13
9.3 Vise positioning ......................................................................................................................13
9.4 Miter cuts...............................................................................................................................14
9.5 Setting feed rate.....................................................................................................................14
9.6 Counterbalance spring ............................................................................................................14
9.7 Blade installation/replacement .................................................................................................14
9.8 Blade tension..........................................................................................................................15
9.9 Blade tracking.........................................................................................................................16
9.10 Test cutting to verify adjustment.............................................................................................16
9.11 Setting blade speed ..............................................................................................................17
9.12 Blade guide adjustment .........................................................................................................17
9.13 Chip brush............................................................................................................................18
9.14 Limit switch...........................................................................................................................18
10.0 Operating controls....................................................................................................................18
11.0 Operation.................................................................................................................................19
11.1 Pre-Operation inspection.......................................................................................................19
11.2 Blade break-in procedure ......................................................................................................19
11.3 General operating procedure .................................................................................................19
11.4 Evaluating cutting efficiency...................................................................................................20
12.0 Maintenance............................................................................................................................20
12.1 Coolant level.........................................................................................................................20
12.2 Gear box..............................................................................................................................20
13.0 Troubleshooting the HVBS-710SG ............................................................................................21
14.0 Replacement Parts...................................................................................................................22
14.1.1 HVBS-710SG Table and Stand Assembly – Exploded View..................................................23
14.1.2 HVBS-710SG Bow Assembly – Exploded View....................................................................24
14.1.3 HVBS-710SG Assembly – Parts List....................................................................................25
14.2.1 HVBS-710SG Gearbox Assembly – Exploded View..............................................................30
14.2.2 HVBS-710SG Gearbox Assembly – Parts List......................................................................31
15.0 Electrical Connections for HVBS-710SG....................................................................................32

4
3.0 Safety Warnings
1. Read and understand the entire owner’s
manual before attempting assembly or
operation.
2. Read and understand the warnings posted
on the machine and in this manual. Failure
to comply with all of these warnings may
cause serious injury.
3. Replace the warning labels if they become
obscured or removed.
4. This band saw is designed and intended for
use by properly trained and experienced
personnel only. If you are not familiar with
the proper and safe operation of a band
saw, do not use until proper training and
knowledge have been obtained.
5. Do not use this band saw for other than its
intended use. If used for other purposes,
Walter Meier (Manufacturing), Inc., disclaims
any real or implied warranty and holds itself
harmless from any injury that may result
from that use.
6. Always wear ANSI approved safety
glasses/face shields while using this band
saw. Everyday eyeglasses only have impact
resistant lenses; they are not safety glasses.
7. Before operating this machine, remove tie,
rings, watches and other jewelry, and roll
sleeves up past the elbows. Remove all
loose clothing and confine long hair. Non-
slip footwear or anti-skid floor strips are
recommended.
8. Wear ear protectors (plugs or muffs) during
extended periods of operation.
9. Some dust created by power sanding,
sawing, grinding, drilling and other
construction activities contains chemicals
known to cause cancer, birth defects or
other reproductive harm. Some examples of
these chemicals are:
•Lead from lead based paint.
•Crystalline silica from bricks, cement
and other masonry products.
•Arsenic and chromium from chemically
treated lumber.
Your risk of exposure varies, depending on
how often you do this type of work. To
reduce your exposure to these chemicals,
work in a well-ventilated area and work with
approved safety equipment, such as face or
dust masks that are specifically designed to
filter out microscopic particles.
10. Do not operate this machine while tired or
under the influence of drugs, alcohol or any
medication.
11. Make certain the switch is in the OFF
position before connecting the machine to
the power supply.
12. Make certain the machine is properly
grounded.
13. Make all machine adjustments or
maintenance with the machine unplugged
from the power source.
14. Remove adjusting keys and wrenches. Form
a habit of checking to see that keys and
adjusting wrenches are removed from the
machine before turning it on.
15. Keep safety guards in place at all times
when the machine is in use. If removed for
maintenance purposes, use extreme caution
and replace the guards immediately after
maintenance is complete.
16. Make sure workpiece is securely clamped in
the vise. Never use your hand to hold the
workpiece.
17. Check coolant level frequently. Replace dirty
or weak coolant.
18. Check damaged parts. Before further use of
the machine, a guard or other part that is
damaged should be carefully checked to
determine that it will operate properly and
perform its intended function. Check for
alignment of moving parts, binding of
moving parts, breakage of parts, mounting
and any other conditions that may affect its
operation. A guard or other part that is
damaged should be properly repaired or
replaced.
19. Inspect blade for cracks, wear or missing
teeth. Replace blade if these symptoms are
found.
20. Provide for adequate space surrounding
work area and non-glare, overhead lighting.
21. Keep the floor around the machine clean
and free of scrap material, oil and grease.
22. Keep visitors a safe distance from the work
area. Keep children away.
23. Make your workshop child proof with
padlocks, master switches or by removing
starter keys.
24. Give your work undivided attention. Looking
around, carrying on a conversation and

5
“horse-play” are careless acts that can result
in serious injury.
25. Maintain a balanced stance at all times so
that you do not fall or lean against the blade
or other moving parts. Do not overreach or
use excessive force to perform any machine
operation.
26. Use the right tool at the correct speed and
feed rate. Do not force a tool or attachment
to do a job for which it was not designed.
The right tool will do the job better and more
safely.
27. Use recommended accessories; improper
accessories may be hazardous.
28. Maintain tools with care. Keep blades sharp
and clean for the best and safest
performance. Follow instructions for
lubricating and changing accessories.
29. Make sure the workpiece is securely
attached or clamped to the table. Never use
your hand to hold the work piece.
30. Turn off the machine and disconnect from
power before cleaning. Use a brush to
remove chips or swarf — do not use your
hands.
31. Do not stand on the machine. Serious injury
could occur if the machine tips over.
32. Never leave the machine running
unattended. Turn the power off and do not
leave the machine until it comes to a
complete stop.
33. Remove loose items and unnecessary work
pieces from the area before starting the
machine.
Familiarize yourself with the following safety
notices used in this manual:
This means that if
precautions are not heeded, it may result in
minor injury and/or possible machine
damage.
This means that if
precautions are not heeded, it may result in
serious or even fatal injury.
4.0 About this manual
This manual is provided by Walter Meier (Manufacturing) Inc. covering the safe operation and
maintenance procedures for a JET Model HVBS-710SG Band Saw. This manual contains instructions on
installation, safety precautions, general operating procedures, maintenance instructions and parts
breakdown. Your machine has been designed and constructed to provide years of trouble-free operation
if used in accordance with the instructions set forth in this document.
This manual is not intended to be an exhaustive guide to band saw operations, stock selection, etc.
Consult a machinery handbook and/or experienced users for additional information. Whatever accepted
methods or materials are used, always make personal safety a priority.
If there are questions or comments, please contact your local supplier or Walter Meier. Walter Meier can
also be reached at our web site: www.waltermeier.com.
Retain this manual for future reference. If the machine transfers ownership, the manual should
accompany it.

6
5.0 Features
Figure 1
1. Blade tension handle
2. Cast iron bow
3. Coolant taps
4. Centralized control switch
5. 3-speed gearbox
6. 1HP motor
7. Ball bearing blade guides
8. Chip brush
9. Hydraulic cylinder with valve regulator
10. Adjustable work stop
11. Steel stand with coolant tank
12. Chip guide plate
13. Vise handwheel with quick release
14. Cast iron table
15. Adjustablefloating vise
16. Fixed vise
17. Rotating disc hub for miter cuts
6.0 Specifications
Model Number ............................................................................................................................................ HVBS-710SG
Stock Number........................................................................................................................................................413452
Materials:
Frame.............................................................................................................................................................cast iron
Table..............................................................................................................................................................cast iron
Blade wheels..................................................................................................................................................cast iron
Base.....................................................................................................................................................................steel
Vertical cutting plate.............................................................................................................................................steel
Blade included.........................................................................................................................bi-metal, variable tooth
Blade guides..............................................................................................................................................ball bearing

7
Capacities:
Miter angle...............................................................................................................................................90 to 45 deg.
Round capacity at 90°..............................................................................................................................7” (180 mm)
Round capacity at 45°..............................................................................................................................4” (100 mm)
Round capacity at 30°..........................................................................................................................6-3/4”(171mm)
Rectangle capacity at 90° (W x H) ..............................................................................7” x 10-13/64” (180 x 260 mm)
Rectangle capacity at 45° (W x H) .......................................................................................3-3/4” x 4” (95x 100 mm)
Rectangle capacity at 30° (W x H) ....................................................................................5-3/4” x 6” (146 x 150 mm)
Coolant tank capacity..............................................................................................................................9L (2.25 gal)
Motor and Electricals:
Motor type .........................................................................................................totally enclosed fan cooled, induction
Horsepower.........................................................................................................................................1 HP (0.75 kW)
Phase.................................................................................................................................................................single
Voltage ..............................................................................................................................115/230 V (prewired 115V)
Cycle ...................................................................................................................................................................60Hz
Listed FLA (full load amps)................................................................................................................................14/7 A
Starting amps ........................................................................................................................................................35A
Running amps (no load)........................................................................................................................................12A
Power transfer.................................................................................................................................................gearbox
Control switch..........................................................................................................push button with emergency stop
Motor speed ................................................................................................................................................. 1720 rpm
Blade speeds.................................................................................................................................150, 210, 250 sfpm
Power cord length ............................................................................................................................... 6 feet (180 cm)
Power cord type ........................................................................................................................................ 16AWGx3c
Power plug installed...............................................................................................................................................yes
Recommended circuit size
1
..............................................................................................20A for 115V; 15A for 230V
Noise emission:
without load...............................................................................................................70 dB at 60 inches fromblade
with load....................................................................................................................75 dB at 60 inches fromblade
Coolant pump:
Horsepower.......................................................................................................................................................1/8 HP
Phase.................................................................................................................................................................single
Voltage ........................................................................................................................................................115/230 V
Cycle ...................................................................................................................................................................60Hz
Listed FLA (full load amps)..........................................................................................................................0.5/0.25 A
Weights:
Net Weight ...........................................................................................................................................396 lb (180 kg)
Shipping Weight...................................................................................................................................462 lb (210 kg)
Dimensions:
Blade....................................................................................................3/4"W x 0.032”T x 93”L (19 x 0.9 x 2360 mm)
Blade wheel diameter.......................................................................................................................11-1/2” (292 mm)
Vise jaw height .........................................................................................................................................4” (102 mm)
Vise jaw depth..........................................................................................................................................7” (180 mm)
Table size (LxW) ...................................................................................................................17” x7” (432 x 178 mm)
Table height from floor, horizontal....................................................................................................22-7/8” (580 mm)
Vertical cutting plate...................................................................................................9-1/2”L x10”W (241 x 254 mm)
Cutting plate height from floor ....................................................................................................42-29/32” (1090 mm)
Overall assembled, horizontal position............................................50”L x 31-1/2”W x 48”H (1260 x 800x 1220 mm)
Overall assembled, vertical position.....................................50”L x 31-1/2”W x 72-29/64”H (1260 x800 x 1840 mm)
Other:
Miter stops............................................................................................................................................90 and 45 deg.
Blade tension range ......................................................................................22000-25000 lb/in² (1550-1760 kg/cm²)
1
subject to local and national electrical codes.
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, Walter Meier reserves the right to change specifications at any time and without prior notice, without
incurring obligations.

8
7.0 Set-Up and Assembly
7.1 Unpacking and cleanup
Inspect contents of shipping container for
shipping damage. Report any damage to your
distributor.
Remove all contents from carton, and compare
to the contents list in this manual. Report any
part shortages to your distributor. Do not discard
carton or packing material until machine is
assembled and running satisfactorily.
Exposed metal areas have a rust preventative
applied. Remove this with a soft rag and solvent
or degreaser. Do not use cellulose-based
solvents such as paint thinner or lacquer thinner;
these will damage painted and plastic surfaces.
7.2 Shipping contents
If you do not see a part below, check the
machine; some parts may have come pre-
assembled to the saw.
Refer to Figures 2 and 3.
1 Band Saw
1 Workstop bar – A
1 Workstop – B
1 Workstop rod – C
1 Filter screen – D
1 Splash guard – E
1 Vertical cutting plate – F
1 Handle – G
1 Axle – H
2 Wheels – I
2 Stand sides – J
2 Stand ends – K
1 Support post – L
1 Instructions and Parts Manual (not shown)
1 Warranty Card (not shown)
Hardware Package (p/n HVBS710S-HP):
4 Hex cap screws 5/16"x3/4"– HP-1
2 Hex cap screws 1/4"x1/2"– HP-2
4 Lock washers 1/4"– HP-3
2 Flat washers 1/4"– HP-4
4 Hex cap screws 5/16"x1-1/2"– HP-5
8 Lock washers 5/16"– HP-6
12 Flat washers 5/16"– HP-7
4 Hex nuts 5/16"– HP-8
2 Cotter pins – HP-9
2 Flat washers 1/2"– HP-10
2 Hex cap screws 1/4"x5/8” – HP-11
Tools required for assembly:
12mm wrench
3, 4, and 6mm hex keys
Figure 2
Figure 3
Hardware package HVBS710S-HP

9
Figure 4
7.3 Assembly
Refer to Figure 4.
Band Saw should be
disconnected from electrical power during
assembly and setup.
1. Assemble base parts (J,K) according to
Figure 4.
2. Install axle and wheels (H,I). Install cotter
pin (HP-9) through hole in axle, and bend
back legs of cotter pin to secure each wheel.
3. Remove the four brackets holding saw to
pallet.
4. Use properly rated lifting equipment (hoist or
forklift) with straps placed beneath cast iron
portion of saw.
5. Position saw atop base and secure with four
screws and washers (HP-1/6/7).
6. Install work stop assembly (A/B/C) into hole
on saw base.
7. Install handle (G), and place filter screen (D)
over coolant drain hole in pan.
8. Remove shipping bracket (x). Retain this
piece in case you must transport the
machine inthe future.
9. Install guard (E) in place where shipping
bracket was removed, with two screws and
washers (HP-2/3/4).

10
7.4 Vertical cutting plate
These steps are only necessary when using
band saw in vertical position.
1. Disconnect machine from power source.
2. Open valve on hydraulic cylinder (lever
parallel to cylinder) and raise bow to vertical
position.
3. Remove two screws and remove seat plate,
as shown in Figure 5.
Figure 5
4. Guide blade through slot in vertical cutting
plate (F, Figure 5), and tighten with the two
screws.
5. Verify that vertical cutting plate is square to
blade, using a machinist’s square on the
plate and against the blade (Figure 6).
6. If adjustment is needed, loosen screws and
place shims where required. Tighten screws.
Figure 6
7. Place a level on vertical cutting plate (Figure
7).
8. Loosen hex nut (M, Figure 8) and turn stop
screw (N) as needed, until cutting plate is
level. Tighten hex nut.
9. Close valve on cylinder (lever perpendicular
to cylinder) to secure bow in position.
Reinstall seat plate before using bow in
horizontal position.
Figure 7
Figure 8
7.5 Vertical support post
This is mounted to rear of band saw to help
stabilize saw when bow is in vertical position. It
is generally not needed when bow is set for 90°
cuts before raising it to vertical. However, if
operator raises bow that was set for
mitering, the band saw can tip over. The
support post must be installed to prevent this.
To avoid tipping risk,
remember to set bow at 90-degree cut angle
before raising to vertical position.
Mount post with two screws and washers to rear
of saw, as shown (Figure 9).
Figure 9

11
7.6 Coolant system
Make sure there is coolant in
the tank before operating, to prevent damage
to pump.
Use of a water-soluble coolant will increase
cutting efficiency and prolong blade life. Do not
use black cutting oil as a substitute.
1. Remove coolant return hose (A, Figure 10)
from filter cup, and slide tank out of saw
base.
2. Fill tank to approximately 80% of capacity.
Full capacity is 9 liters (2.5 gal).
3. Place tank into base. Place coolant return
hose into the filter cup. Verify that opposite
end of coolant return hose is connected to
the coolant pan.
4. The coolant supply hose (B, Figure 17)
should connect to the two valves on the
blade guide assemblies.
Figure 10
8.0 Electrical connections
Electrical connections must
be made by a qualified electrician in
compliance with all relevant codes. This
machine must be properly grounded to help
prevent electrical shock and possible fatal
injury.
The HVBS-710SG Band Saw is rated at
115/230V power, and pre-wired for 115 volt. The
band saw comes with a plug designed for use
on a circuit with a grounded outlet that looks like
the one pictured in A, Figure 11.
Before connecting to power source, be sure
switch is in off position.
It is recommended that the band saw, when
operated at 115 volt, be connected to a
dedicated 20 amp circuit with a 20 amp circuit
breaker or time-delay fuse rated “D”. It is
recommended that the band saw, when
operated at 230 volt, be connected to a
dedicated 15 amp circuit with a 15 amp circuit
breaker or time-delay fuse rated “D” Local
codes take precedence over recom-
mendations.
8.1 Grounding instructions
1. All Grounded, Cord-connected Tools:
In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric
shock. This tool is equipped with an electric cord
having anequipment-grounding conductor and a
grounding plug. The plug must be plugged into a
matching outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
Do not modify the plug provided - if it will not fit
the outlet, have the proper outlet installed by a
qualified electrician.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. The conductor with insulation
having an outer surface that is green with or
without yellow stripes is the equipment-
grounding conductor. If repair or replacement of
the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a
live terminal.
Check with a qualified
electrician or service personnel if the
grounding instructions are not completely
understood, or if in doubt as to whether the
tool is properly grounded. Failure to comply
may cause serious or fatal injury.
Use only 3-wire extension cords that have 3-
prong grounding plugs and 3-pole receptacles
that accept the tool's plug.
Repair or replace damaged or worn cord
immediately.
2. Grounded, cord-connected tools intended for
use on a supply circuit having a nominal rating
less than 150 volts:
This tool is intended for use on a circuit that has
an outlet that looks like the one illustrated in A,
Figure 11. An adapter, shown in Band C, may
be used to connect this plug to a 2-pole
receptacle as shown in Bif a properly grounded
outlet is not available. The temporary adapter
should be used only until a properly grounded
outlet can be installed by a qualified electrician.
This adapter is not permitted in Canada.
The green-colored rigid ear, lug, and the like,
extending from the adapter must be connected

12
to a permanent ground such as a properly
grounded outlet box.
3. Grounded, cord-connected tools intended for
use on a supply circuit having a nominal rating
between 150 - 250 volts, inclusive:
This tool is intended for use on a circuit that has
an outlet that looks like the one illustrated in D,
Figure 11. The tool has a grounding plug that
looks like the plug illustrated in D. Make sure the
tool is connected to an outlet having the same
configuration as the plug. No adapter is
available or should be used with this tool. If the
tool must be reconnected for use on a different
type of electric circuit, the reconnection should
be made by qualified service personnel; and
after reconnection, the tool should comply with
all local codes and ordinances.
Figure 11
8.2 Voltage conversion
1. To switch the incoming power leads for 230
volt operation, follow the wiring diagram on
the inside cover of motor junction box.
Similar diagrams are shown in Figures
12/13.
2. The plug on the end of the motor cord must
be replaced with a UL/CSA listed plug rated
for 240V.
3. Change the wiring inside the junction box of
the coolant pump, according to the diagram
found there.
Figure 12
Figure 13
8.3 Extension cords
The use of extension cords is discouraged; try to
position equipment near the power source. If an
extension cord becomes necessary, make sure
the cord rating is suitable for the amperage
listed on the machine’s motor plate. An
undersized cord will cause a drop in line voltage
resulting in loss of power and overheating.
Use Table 1 as a general guide in choosing the
correct size cord. If in doubt, use the next
heavier gauge. The smaller the gauge number,
the heavier the cord.
Ampere
Rating Volts Total length of
cord in feet
More
Than
Not
More
Than
120
240 25 50 50 100 100 200 150 300
AWG
00 06 18 16 16 14
06 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12
Not
Recommended
Extension Cord Recommendations
Table 1

13
9.0 Adjustments
The settings on your band saw, such as blade
squareness and tracking, were carefully
performed by the manufacturer. You should,
however, verify these before operating, in case
misalignment has occurred during shipping.

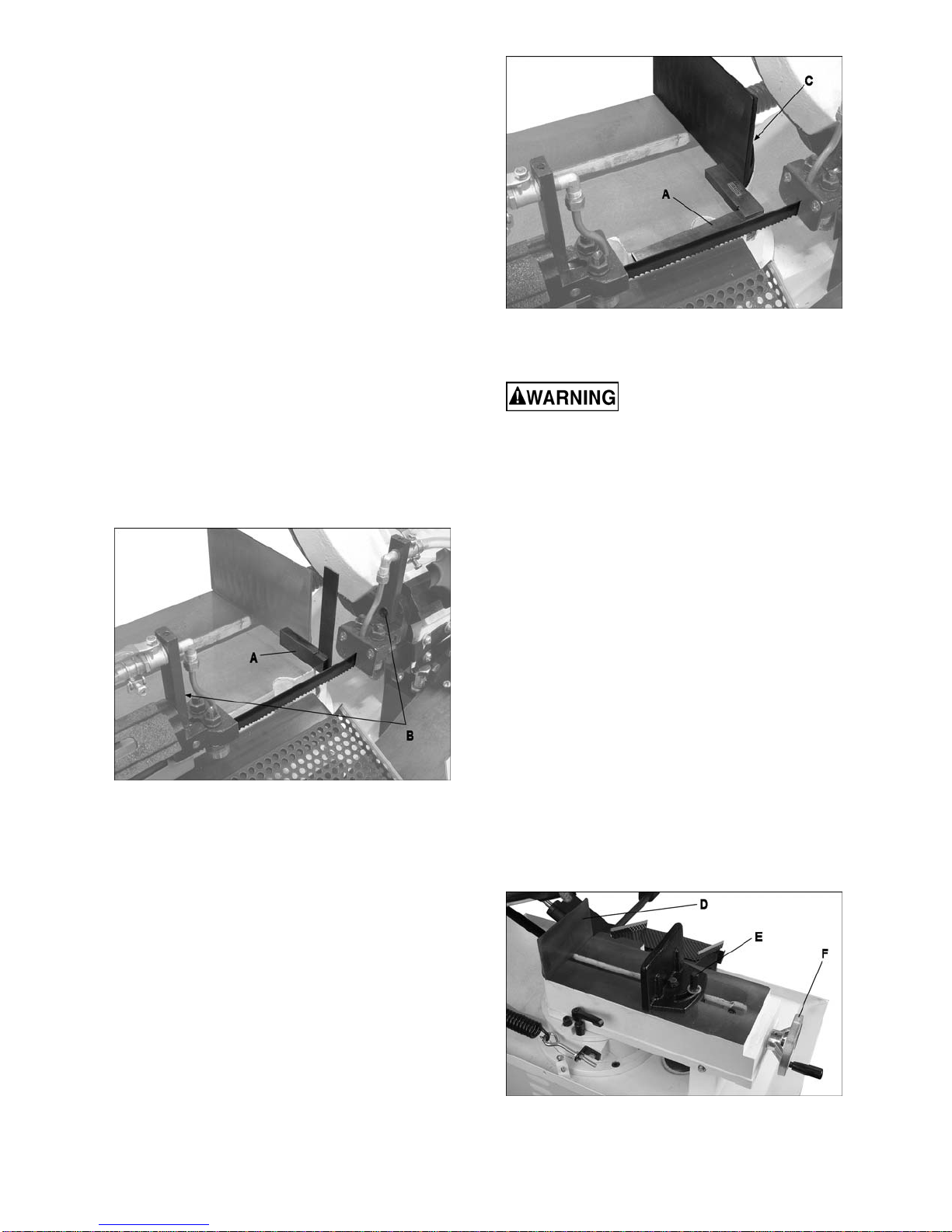

9.1 Squaring blade to table
1. Disconnect machine from power source.
2. Place machinist’s square (A, Figure 14) on
table and against blade.
3. Check to see that blade contacts the square
along entire width of blade.
4. If adjustment is needed, loosen screws (B,
Figure 14) and rotate blade guide
assemblies until blade makes contact with
square along its entire width.
5. Tighten screws (B).
NOTE: If adjustment of squaring blade to table
was necessary, re-verify all other blade
adjustments.
Figure 14
9.2 Squaring blade to vise
1. Disconnect machine from power source.
2. Place a machinist’s square (A, Figure 15) on
the bed against the blade and the fixed vise
jaw. The square should lie along entire
length of jaw and blade without a gap.
3. If adjustment is necessary, loosen screws
holding vise (C, Figure 15) and shift vise
until it aligns with square.
4. Retighten screws.
Figure 15
9.3 Vise positioning
Keep hands away from blade
while adjusting vise. Do not make any
adjustments to vise while the machine is
running.
The vise has a quick-release feature which
allows fast positioning of the floating jaw against
the workpiece, and then a final tightening with
the handwheel.
1. Make sure fixed jaw (D, Figure 16) has been
squared (section 9.2, Squaring blade to
vise).
2. Position workpiece against fixed jaw.
3. Loosen hexagonal stud (E) on floating jaw.
4. Rotate handwheel (F) slightly counter-
clockwise, then push floating jaw by hand
until it contacts workpiece and adjusts to its
shape.
5. Tighten stud (E).
6. Use handwheel to tighten the clamping
pressure.
The quick release function can also be used to
quickly disengage floating jaw when the cut is
finished.
Figure 16

14
9.4 Miter cuts
1. Loosen handle (G, Figure 17).
2. Rotate bow to desired angle up to 45-
degrees, using scale indicator on front of
base.
3. Tighten handle.
Figure 17
The angle scale is sufficient for most mitering
operations. If greater precision is needed, verify
setting with a protractor.
If handle (G) movement is obstructed, lift up on
handle and rotate it on the pin. Release handle,
making sure it seats itself properly on pin.
Bow should be returned to
90-degree cut angle before lifting into
vertical position. See section 7.5.
9.5 Setting feed rate
The feed rate of the blade into the workpiece is
important to band saw performance. Excessive
pressure of blade against the workpiece may
break the blade or stall the saw. In contrast,
insufficient pressure rapidly dulls the blade.
The hydraulic cylinder resists movement of the
bow in the downward direction. It offers no
resistance when the bow is raised upward.
To increase feed rate, turn dial (A, Figure 18)
counterclockwise. To decrease, turn clockwise.
To close hydraulic flow, turn lever (B) down,
perpendicular to cylinder, as shown in Figure 18.
To open hydraulic flow, raise lever (B) parallel to
cylinder.
Feed rate is adjusted by the operator until the
saw is operating efficiently; usually determined
by observing chip formation. See section 11.4,
Evaluating cutting efficiency.
Figure 18
9.6 Counterbalance spring
The counterbalance spring helps control the
amount of weight the saw bow puts on the
workpiece when the hydraulic control valve is
fully open. The hydraulic cylinder will not
compensate for improper counterbalance.
If the spring is not set properly, one can expect
poor performance, crooked cuts, tooth stripping,
stalling, and/or the blade running off the wheels.
Spring tension has been set by the
manufacturer, and should not require
adjustment. If future problems arise, indicating
improper counterbalance, adjust spring as
follows:
1. Disconnect machine from power source.
2. Turn ON hydraulic cylinder valve and place
saw bow in horizontal position.
3. Turn feed rate valve on hydraulic cylinder
counterclockwise until it stops.
4. Place a weigh scale (such as a spring or
hanging scale) beneath blade tension
handle, and lift saw bow. Scale should
indicate approximately 5 to 6 kg (11-13 lb).
5. If adjustment is needed, loosen one nut and
tighten the other (H, Figure 17) on the eye
bolt, until scale indicates 5 to 6 kg.
9.7 Blade installation/replacement
This band saw is designed
for use with blades that are 3/4" wide by
0.032” thick x 93” long. Use of blades with
different specification may cause inferior
performance.
A general-use variable-tooth blade is provided
with this band saw.
The choice of blade pitch is governed by the
thickness of the work to be cut: the thinner the
workpiece, the more teeth advised. A minimum
of three teeth should engage the workpiece at all
times. If the teeth of the blade are so far apart

15
that they straddle the work, severe damage to
the workpiece and to the blade can result.

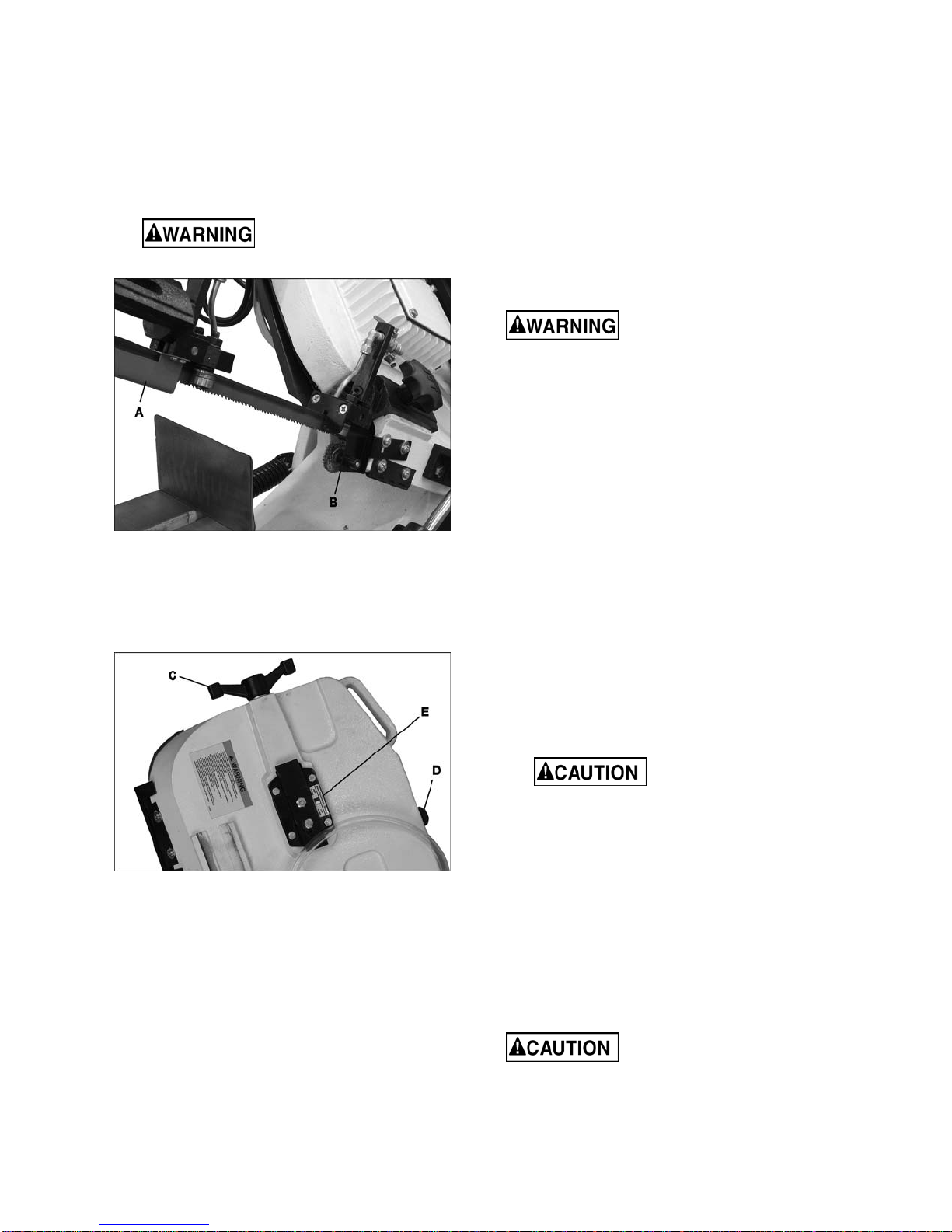

1. Disconnect machine from power source.
2. Raise bow to vertical position, and secure in
place by turning off hydraulic cylinder.
3. Remove red blade guard (A, Figure 19) by
removing two screws.
Red blade guard must be
reinstalled after new blade is fitted.
Figure 19
4. Remove brush assembly (B, Figure 19) by
removing two screws.
5. Loosen blade tension by turning handle (C,
Figure 20) counterclockwise.
Figure 20
6. Open back cover by loosening two lock
knobs (D, Figure 20).
7. Carefully remove old blade. NOTE: Leather
gloves are recommended when handling
saw blades.
8. Install new blade first between bearing
guides. Make sure blade teeth face same
direction as shown on the blade direction
label on saw. (If teeth still point in wrong
direction despite mounting blade properly,
the blade has been turned inside-out. Twist
blade right side-out and reinstall.)
9. Position blade around wheels, making sure
it rests near the flange on both wheels.
10. Tension blade using handle. Do not over-
tension. See section 9.8, Blade tension.
11. Close back cover and secure with knobs.
12. Install red blade guard, and brush assembly.
13. Connect machine to power source.
14. Run machine to verify that blade is tracking
properly. See section 9.9, Blade tracking.
9.8 Blade tension
Disconnect machine from
power source, and use caution when
working with sharp blade.
Blade tension is vital to achieving proper results
from the band saw. For shipping purposes, the
blade may not be at full tension – verify tension
before operating.
Proper blade tension is 1550 to 1760 kg/cm
2
(22000-25000 lb/in
2
) as measured on a blade
tension gauge (not provided).
To set tension without the use of a tension
gauge:
1. Disconnect machine from power source.
2. Install blade between wheels and between
bearings on blade guides.
3. Lightly tension blade to remove any sag by
turning handle (C, Figure 20) slightly
clockwise.
4. Turn tension handle (C, Figure 20) 1-3/4 to
two revolutions clockwise.
Do not overtighten blade;
this may cause it to stretch or warp.
5. Close covers, connect to power source, and
run saw for 2 to 3 minutes to allow blade to
seat properly.
6. Disconnect machine from power source.
Open cover and loosen blade until it just
begins to sag.
7. Tighten blade until it straightens between
blade wheels and all sag is eliminated.
8. Tighten blade by turning handle (C, Figure
20) two full revolutions.
Do not overtighten blade;
this may cause it to stretch or warp.
TIP: Slacken blade tension when finished with
operations, to prolong blade life. Make note of
indicator position on tension label (E, Figure 20)

16
for quickly returning tension to its previous
setting.
9.9 Blade tracking
Tracking the blade requires
that the band saw be operating while the
back cover is removed. This adjustment
should be performed by qualified persons
only.
Blade tracking has been tested at the factory.
Adjustment is rarely required when the blade is
used properly and if the blade is correctly
welded. If a tracking problem occurs, first
inspect blade condition, then adjust tracking as
follows:
1. Raise bow to vertical position and secure by
turning off hydraulic cylinder valve.
2. The blade should be properly tensioned.
Refer to section 9.8 Blade tension.
3. Open back cover.
While performing the
following steps, keep the blade from rubbing
excessively on wheel flange. Excess rubbing
will damage wheel and/or blade.
4. Start saw and observe blade movement.
Blade should run next to, but not tightly
against, wheel flange.

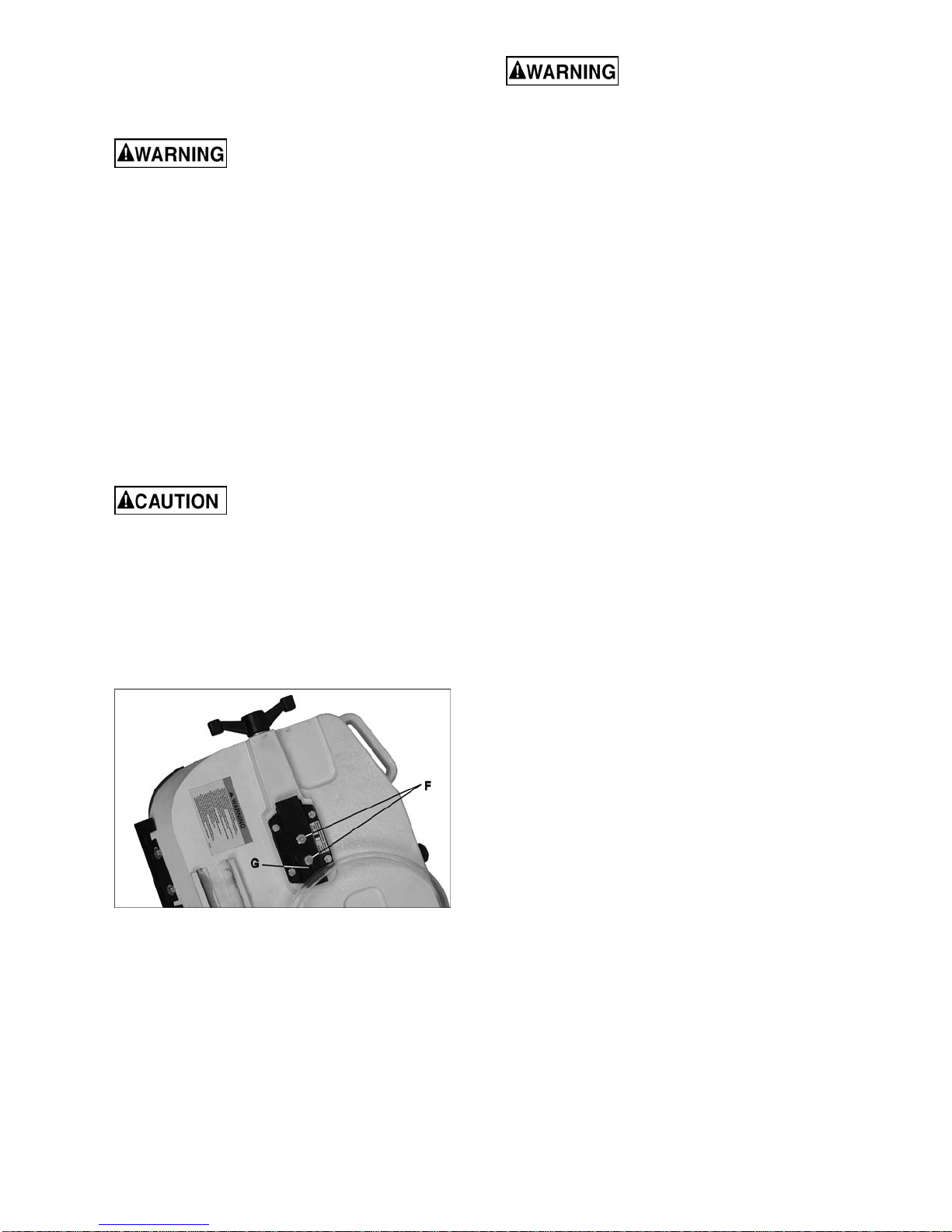

5. If blade will not track in position, loosen
screws (F, Figure 21), but do not remove.
Figure 21
6. Turn set screw (G, Figure 21) counter-
clockwise so that blade starts to move away
from the flange; then immediately turn set
screw in the other direction so that blade
stops, then moves slowly back toward
flange. NOTE: This adjustment is sensitive;
do it gradually and in small increments
allowing the wheel to respond to the
changes.
Keep fingers clear of blade
and wheel to avoid injury.
7. Turn set screw to stop shifting of blade on
the wheel as it gets closer to wheel flange.
Put a six-inch length of paper between blade
and wheel. The paper should not be cut as it
passes between wheel flange and blade.
8. Turn set screw a small amount. Repeat the
insertion of paper between wheel flange and
blade until paper is cut into two pieces.
NOTE: You may have to repeat the check
with the paper several times before the
blade and the flange cut the paper into two
pieces. Do not hurry the adjustment.
Patience and accuracy here will pay off with
better, more accurate, quieter cutting and
longer machine and blade life.
9. When the paper is cut, back off the set
screw slightly. This assures that the blade is
not touching the flange of the wheel.
10. Tighten two screws (F, Figure 21).
9.10 Test cutting to verify adjustment
Test cuts can be used to determine whether or
not you have adjusted the blade accurately. Use
2-inch round bar stock to perform these test
cuts, as follows:
1. With bar stock securely clamped in the vise,
make a cut through the bar stock. (See
Figure 22.)
2. Mark the top of the bar stock.
3. Move the bar stock about 1/4-inch past the
blade so that you can begin a second cut.
4. Rotate the bar stock 180 degrees so the
mark you made is now at the bottom of the
cut.
5. Make a cut through the bar stock.
6. Use a micrometer to measure the thickness
variation of the disk you have cut from the
bar stock. Measure at top and bottom of
disk.

17
Figure 22
The saw blade can be considered correctly
adjusted when the variation measure is no more
than 0.012 inch across the face of the disk.
If you do not have a piece of 2-inch bar stock
available for a test cut, use a larger diameter
test piece rather than a smaller one. The
maximum thickness variation on any test piece
should be no more than 0.003 inch, per side, per
inch of stock diameter.
9.11 Setting blade speed
1. Turn machine OFF.
2. Turn lever (Figure 23) to desired setting:
#1 – 150 sfpm
#2 – 210 sfpm
#3 – 250 sfpm
Do not change blade speed
during cutting operation.
Figure 23
Material chips or shavings are the best indicator
of proper blade speed and downfeed rate. See
section 11.4, Evaluating cutting efficiency.
9.12 Blade guide adjustment
1. Loosen knobs (A, Figure 24).
2. Slide guide assemblies as close to
workpiece as possible, without interfering
with the cut. This will prevent excessive
blade exposure, and deflection of blade
during cutting.
3. Retighten knobs.
Figure 24
The guide bearings come pre-adjusted from the
factory, but should be inspected frequently and
adjustments made as needed.
For most efficient operation and maximum
accuracy, provide 0.001” clearance between the
blade and the guide bearings. The bearings will
still turn freely with this clearance. If the
clearance is incorrect, the blade may track off
the drive wheel.
1. Disconnect machine from power source.
2. Raise bow to vertical and secure in place by
turning off hydraulic cylinder.
3. Loosen socket head cap screw (B, Figure
25) and adjust guide assembly until back
roller bearing (C) is slightly contacting back
edge of blade.
4. Loosen nut (D) and rotate eccentric shaft (E)
to adjust side bearing until bearing just
touches side of blade. Do not pinch the
blade.
5. Blade should still move up and down freely
when grasped as in Figure 26. Make sure
blade teeth do not interfere with guide
bearings.
Make sure power is
disconnected and hands are protected
before handling blade.

18
6. Tighten nut (C).
7. Repeat for other blade guide assembly.
Figure 25
Figure 26
9.13 Chip brush
The chip brush (B, Figure 19) must be properly
adjusted and maintained in working condition;
otherwise damage to blade can occur. Adjust
the brush so that its bristles overlap the blade.
Replace brush if it becomes worn or damaged.
9.14 Limit switch
The stop screw (F, Figure 27) activates a limit
switch to shut off the saw when it reaches down
position.
The stop screw has been set at the factory. If
future adjustment is needed, loosen the hex nut
and rotate the screw, then retighten the hex nut.
Figure 27
10.0 Operating controls
To start saw, push On button (A, Figure 28).
To stop saw before it reaches the end of cut,
push Off button (B). The saw will automatically
stop at the end of a cut.
The Emergency Stop (C) shuts down all
functions on the band saw. The machine will not
start if the emergency stop is still engaged. To
start the machine, turn the emergency stop
button until it disengages
The flow of coolant to the blade area is
controlled by the valves (D).
Figure 28
IMPORTANT: When cutting magnesium, never
use soluble oils or emulsions (oil-water mix) as
water will greatly intensify any accidental
magnesium chip fire. See your industrial coolant
supplier for specific coolant recommendations
when cutting magnesium.

19
11.0 Operation
11.1 Pre-Operation inspection
Give machine an overall inspection and verify
the following:
1. Guards and covers are in place and in
working order.
2. Blade tooth direction matches diagram on
bow.
3. Blade is properly tensioned, and tracking
correctly on wheels.
4. Side and rear blade guide bearings are
properly adjusted.
5. Coolant level is sufficient.
6. Saw is properly lubricated.
7. Do not begin cut on a sharp edge; file edge
first.
11.2 Blade break-in procedure
New blades are very sharp and, therefore, have
a tooth geometry which is easily damaged if a
careful break-in procedure is not followed.
Consult the blade manufacturer’s literature for
break-in of specific blades on specific materials.
However, the following procedure will be
adequate for break-in of JET-supplied blades on
lower alloy ferrous materials.
1. Clamp a round section workpiece in the
vise. The workpiece should be 2 inches or
larger in diameter.
2. Set the saw on low speed. Start the cut with
a very light feed rate.
3. When the saw has completed 1/3 of the cut,
increase the feed rate slightly and allow the
saw to complete the cut.
4. Keep the same hydraulic cylinder setting
and begin a second cut on the same or
similar workpiece.
5. When the blade has completed about 1/3 of
the cut, increase feed rate. Watch the chip
formation until cutting is at its most efficient
rate and allow the saw to complete the cut
(see section ---, Evaluating Blade
Efficiency).
6. The blade is now ready for regular service.
11.3 General operating procedure
1. Raise bow until it will clear workpiece by a
few inches, and close hydraulic cylinder
valve to secure it in place.
NOTE: Never start a cut with blade
contacting workpiece.
2. Place workpiece in vise and tighten vise.
The workpiece should be fitted directly
between the jaws without adding other
objects.
When workpiece to be cut is a profiled
section, flat piece or special shape, refer to
examples in Figure 29 for proper clamping
positions. The top row shows acceptable
clamping positions; the bottom row shows
unacceptable positions.
If thickness of profiled section is very thin, a
piece which duplicates the profile should be
fitted inside the workpiece itself, to prevent
workpiece being crushed between the jaws.
Figure 29
Never hold a workpiece by
hand when cutting it – the workpiece should
be firmly secured in the vise. Do not reach
into the cutting area during cutting
operations.
3. Position work stop if needed.
4. Position blade guides as close to workpiece
as possible.
5. Move speed setting handle to desired
position. Do not move speed setting
handle during a cutting operation.
6. Set a suitable downfeed rate for that
operation on the hydraulic cylinder dial.
7. Push start button to begin blade rotation.
Allow blade to reach full speed before
beginning cut.
8. Turn on coolant flow. Adjust flow valves as
needed.
9. Open valve on hydraulic cylinder to allow
bow to descend in a gradual and controlled
manner.
10. The machine will shut off at the completion
of the cut. Turn off coolant flow and remove
workpiece.
11. Return bow to raised position for next cut.

20
11.4 Evaluating cutting efficiency
Is the blade cutting efficiently? The best way to
determine this is to observe the chips formed by
the cutting blade.
If chip formation is powdery, then the feed rate is
much too light, or the blade is dull.
If chips formed are curled, but colored — that is,
either blue or straw-colored from heat generated
during the cut — then the feed rate is too high.
If chips are slightly curled and are not colored by
heat – the blade is sufficiently sharp and is
cutting at its most efficient rate.
12.0 Maintenance
Before doing maintenance
on the machine, disconnect it from the
electrical supply by pulling out the plug or
switching off the main switch! Failure to
comply may cause serious injury.
Keep all surfaces clean and free of rust, slag,
chips, and coolant build-up.
Clear metal particles with a small paint brush or
parts cleaning brush.
Clean filter screen.
Do not use compressed air, as it may force
chips into the guide bearings and other critical
areas of the saw.
Wipe saw down with a clean, dry cloth, and oil
all unpainted surfaces with light machine oil.
Keep blade guides clean and free of metal
particles.
Check guide bearings frequently to make sure
that they are properly adjusted and turning
freely.
If the power cord is worn, cut, or damaged in
any way, have it replaced immediately.
Ball bearings on blade guide assemblies and
blade wheels are permanently lubricated and
sealed. They require no further lubrication.
Grease the vise lead screw (Figure 30) as
needed, with a general purpose grease.
Place a thin coat of oil on the table surface on
which the vise jaw slides.
Figure 30
12.1 Coolant level
Maintain coolant level. Low coolant level can
cause foaming and high blade temperatures.
Replace dirty coolant; dirty or weak coolant can
clog the pump, cause crooked cuts, a low cutting
rate and/or permanent blade damage. To fill the
tank, remove the filter cup and pour coolant into
the hole to about 80% of full capacity. Full
capacity is 9 liters (2.5 gal). Follow coolant
manufacturer’s instructions for proper use and
disposal.
12.2 Gear box
To change gear box oil:
1. Disconnect machine from power source.
2. Place bow in vertical position.
3. Remove drain plug (A, Figure 31) and drain
oil. (Follow local regulations for disposal of
used oil.)
Figure 31
4. Reinstall drain plug and return bow to
horizontal position.
5. Remove vent plug (B), and fill gear box
through the hole with approximately 0.3L
(10.14 oz.) of 90W oil.
6. Reinstall vent plug (B).
