Jetson DRIFTER User manual

1
DRIFTER
ELECTRIC POWERED
360° RACER
-MANUAL-

2

3
TABLE OF CONTENTS
A. Introduction 4
B. In The Box 5
C. Features And Specs 6
D. Assembly 7
E. Charging the Battery 9
F. Operating the Drifter 10
G. Care and Maintenance 13
H. Safety Warnings 14
I. Warranty 16
J. Product Registration 17

4
Congratulations on your new Jetson Drifter Electric Powered 360°
Racer! The Drifter is an innovative and fun electric racer, ready to take
on everyday use. Before your rst ride, check whether the wheels are
damaged, or parts are loose. If there are any abnormalities, please
contact Jetson Customer Support at 1-[phone] or email us at
[e-mail].
This product manual can help you understand, use, and maintain
your Drifter. In order to avoid danger caused by collisions, falls, and
loss of control, please use caution and learn how to ride the Drifter
safely. Jetson and authorized dealers cannot be held liable for injury or
damage caused from riding the Drifter. Users ride at their own risk.
The rider is responsible for consequences caused by violating warnings
or improper operations.
If you want to return this product for any reason, be sure to rst call or
email us before taking it back to the store so we can assist you.
INTRODUCTION

5
IN THE BOX
1. Front Wheel
2. Foot Rests
3. Base
4. Headlight
5. Handlebar
6. Stem
7. Seat
8. Fork
9. Back Wheels
10. Charging Cable
11. Charger
1
2
2
4
5
7
9
6
8
Included in the box:
• Drifter (some assembly required) • 1x Large Screw
• Manual • 2x Medium Screws
• Charger • 4x Small Screws
• Charging Cable • Allen Wrench
10
11
3

6
FEATURES AND SPECS
MODEL: DRIFTER
WHEEL SIZE: FRONT: 8”
REAR: 3”
MAX SPEED: 6 MPH
MAX RANGE: 8 MILES
BATTERY TYPE: LEAD ACID
BATTERY CAPACITY: 12V, 8AH
MOTOR TYPE: CHAIN
MOTOR: 120W
CHARGER: UL AC110-240V
CHARGE TIME: 2-3 HOURS
PRODUCT WEIGHT: 24.6 LBS
WEIGHT LIMIT: 154 LBS
RECOMMENDED AGE: 8+
WATER RESISTANT: NO
CLIMBING: 10°
1. Brake
2. Brake Lever Adjuster
3. Speed Mode Switch
4. Throttle Button
5. Stem Tube
1
3
4
2
5

7
Step One: Attach the Back Wheels to the bottom of the Fork and tighten
into place using the provided Allen Wrench. Then, insert the Stem into
the Fork and attach using the two Medium Screws. Make sure the bolts
and the screws are tight and secure.
ASSEMBLY
Attach
the Back
Wheels
Insert
Stem into
Fork and
tighten
the two
Medium
Screws
Place Bolt
into the
bottom of
the Fork
and
tighten.

8
Step Three: Align the holes in the Seat with the holes in the Frame and
attach using the four Small Screws.
Four Small
Screws
Step Two: Insert the Stem Tube into the back of the Base. Properly align
the holes in the Stem Tube with the holes in the back of the Base. Secure
the two pieces together using the Large Screw.
Attach the
Stem Tube

9
Your Drifter comes with a built-in rechargeable lead acid battery. Always
use the provided charger only. The Charging Port is located below the
Stem Tube of the Drifter. Please remember to cover the Charging Port
when you are done charging the Drifter. Before your rst ride you must
fully charge the Drifter - charge for 4 hours for the rst 3 times you use
it. For every ride after, charge your Drifter until it is fully charged, and
NOT LONGER. Do not leave any chargers plugged in overnight, or
leave it plugged in past the charge time.
CHARGING THE BATTERY
1. Plug one end of the power cord into a grounded AC outlet and the
other into the Drifter’s Charging Port. The red charging light on the
charger unit will turn on.
2. The red light will turn green once fully charged. Recharge the Drifter
after each use.
(Please note: Always plug the charger into the wall rst before the
device. If the wall outlet doesn’t have power and you plug the charger
into the device rst, it will light green, even if the battery is not full. So
always plug into the wall rst to make sure there is power.)
THE CHARGER OFFERS A CHARGING STATUS ON THE TOP OF THE
CHARGER:
CHARGING LIGHT RED: Battery is charging.
CHARGING LIGHT GREEN: Charging is complete.
Don’t use the Drifter if the battery emits strange odors, overheats,
or begins leaking. If the battery does leak, do not touch any leaking
materials, as the battery contains dangerous substances. Do not open
the battery and do not insert anything into the battery.
Only use the provided charger for the Drifter. Do not charge the battery
if it has over-discharged. It should be discarded for your safety. Do not
turn on the Drifter while it is charging.
Charging
Port

10
OPERATING THE DRIFTER
TURNING THE DRIFTER ON AND OFF
To turn the Drifter on, ip the Power Switch located on the left side of
the Drifter below the Stem Tube to “I” or on.
To turn the Drifter off, rst make sure the Drifter is not in motion. Then,
ip the Power Switch to “O” or off.
SAFE RIDING
Helmet: Most serious injuries that occur while riding are head injuries.
This could be prevented by wearing a helmet.
Elbow and Knee Pads: For added protection, always wear elbow and
knee pads when riding your Drifter, to prevent any serious injuries.
Get to know the Drifter before riding it. Test your control over it. Make
your turns slowly and cautiously, and give yourself stopping distance.
Always keep your feet on the Foot Rests and both hands holding onto
the Handlebar when you ride. It is recommended you practice your rst
ride on the Drifter in an open space with no obstacles in your way.
Turns - The turns on the Drifter are commanded by the direction you
turn the Handlebar/Front Wheel in. Before turning, look both ways to
make sure your path is clear.
Power
Switch
On

11
UNFOLDING THE FOOT RESTS
Push the Foot Rests down. When riding, the Foot Rests should always be
down with both feet on the Foot Rests.
START RIDING
Place both hands on the Handlebar, choose the Speed Mode (Speed 1
is slower than Speed 2), and press the Throttle Button.
Speed Mode
Switch
Throttle
Button

12

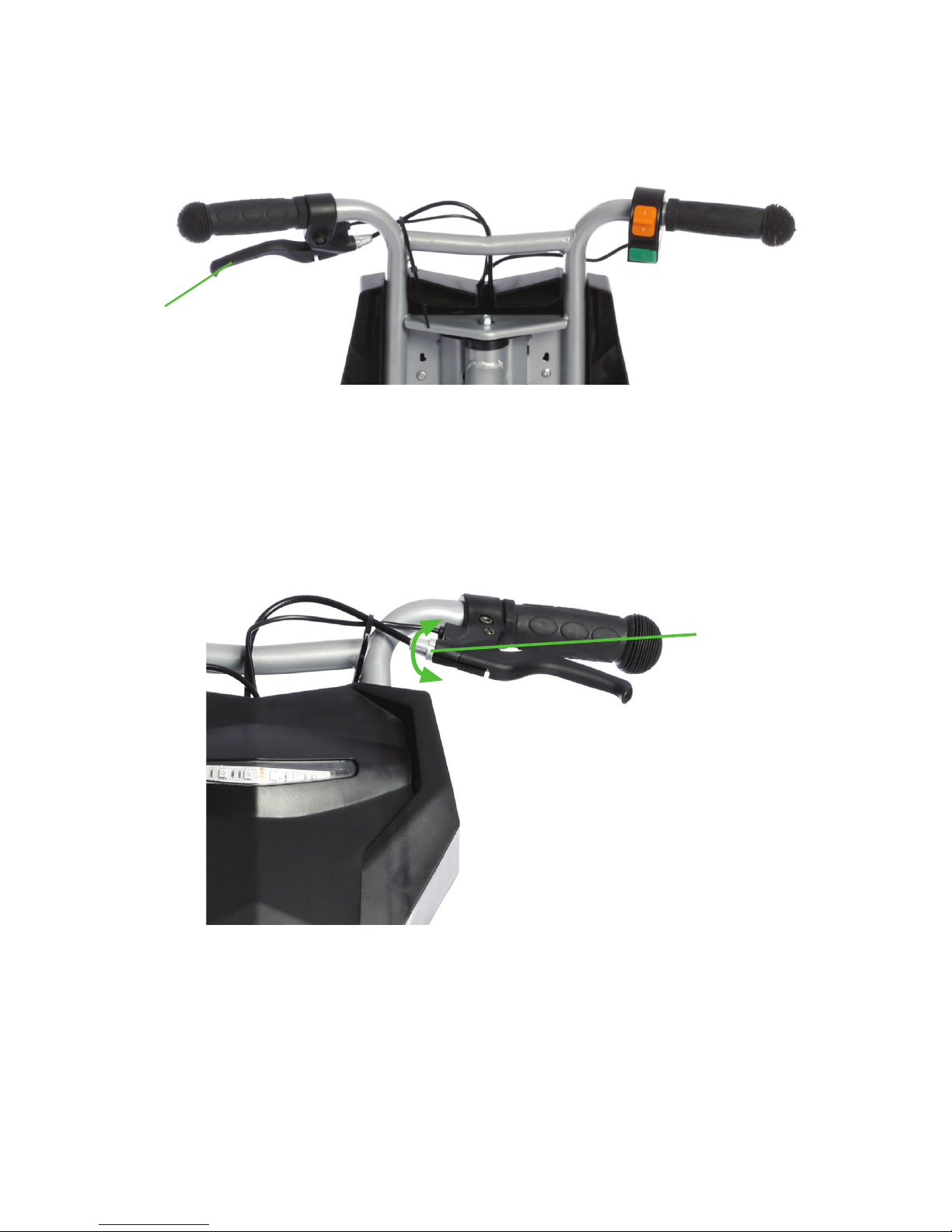

STOPPING THE DRIFTER
To stop, release the Throttle Button and apply the Brake until the Drifter
comes to a complete stop.
Apply
the
Brake
ADJUSTING THE BRAKE
To adjust the brake cable tension, turn the Brake Lever Adjuster in or out a
quarter to half turn, until the desired brake adjustment is attained.
Brake
Lever
Adjuster

13
CARE AND MAINTENANCE
DRIVING RANGE
The average range of the Drifter is 8 miles. However, a lot of factors will
affect how far you can go per charge:
• Driving surface: A smooth, at surface will increase driving
distance.
• Weight: More weight means less distance.
• Ambient temperature: Please ride and store the Drifter
under recommended temperature, which will increase its
longevity and driving distance.
• Maintenance: Timely battery charging and maintenance will
increase driving distance.
• Speed and driving style: Maintaining a moderate speed will
increase distance. Frequent starting and stopping, acceleration,
and deceleration will reduce it.
SPEED LIMIT
The top speed of the Drifter is 6 mph.
WEIGHT LIMIT
The maximum load is 154 lbs. Going above the maximum weight limit
can cause injury or damage the Drifter.
CLEANING THE DRIFTER
To clean the Drifter carefully wipe with a damp cloth, then dry with a
dry cloth. Do not use water to clean the Drifter, as the electrical and
electronic systems may get wet, resulting in personal injury or
malfunction of the Drifter.
BATTERY
• Keep the Drifter away from re and excessive heat.
• To avoid damage to the battery, never subject the Drifter to intense
physical shock, severe vibration, or impact.
• Protect the Drifter from water or moisture.
• Never disassemble the Drifter or its battery.
• If there are any issues with the battery, please contact Jetson
Customer Support at 1-[phone] or email us at
[e-mail].

14
STORAGE
• If you plan on storing the Drifter for a substantial period of time,
please make sure you fully charge the battery before storing. The
battery should be fully charged once a month after this.
• To protect against dust, cover the Drifter.
• Store the Drifter indoors, in a dry place and at a suitable temperature.
• You should bring the Drifter into a warm environment (above 50
degrees Fahrenheit) for charging.
• Do not leave the Drifter plugged into the charger for long periods of
time.
SAFETY WARNINGS
Here are some useful tips to make sure you always have a safe ride:
• Do not ride after drinking or taking prescription medication.
• Do not carry items when riding.
• Prior to each ride, inspect each part of the Drifter to ensure it has been
maintained correctly and is functioning properly.
• Always give way to pedestrians.
• Always comply with local trafc laws and regulations. Remember, the
Drifter is a motor vehicle, and is treated as such by local law enforce-
ment. You can and will be arrested for drunk driving. Many cities have
restrictions on where you can drive motor vehicles, as well as additional
restrictions on driving non-automobiles on streets and highways.
• Be alert to things in front and far away from you.
• Make sure your feet are always placed securely on the foot rests.
•The Drifter cannot be ridden by more than one person. Only one
person can ride at a time.
• When you ride the Drifter along with other riders, always keep a safe
distance to avoid a collision.
• When turning, be sure to maintain your balance.
• Do not allow distractions when riding, such as answering the phone or
engaging in any other activities.
• Avoid riding in the rain or on smooth surfaces such as snow or ice.
• Do not ride on roads with obstacles (such as litter, small stones, etc.).
• Avoid riding in narrow spaces or on steep slopes.
• Avoid riding around ammable gas, steam, liquid, or dust that could
cause re.
• Never operate the product barefooted and keep shoelaces tied.

15
CALIFORNIA WARNING
This product contains chemicals, including lead, which are known to
the state of California to cause cancer, birth defects, and other medical
conditions.
MODIFICATIONS
Do not attempt to disassemble, modify, repair, or replace the Drifter or
any components of the unit without instruction from Jetson Customer
Support. This will void any warranty, and can lead to malfunctions which
may cause injury.
ADDITIONAL OPERATION CAUTIONS
Do not lift the Drifter off the ground while it is on and the wheels are in
motion. This can result in freely spinning wheels, which may cause injury
to yourself or others nearby. Do not jump on or off the Drifter, and do
not jump while using it. Always keep your feet rmly planted on the foot
rests while in operation.

16
LIMITED 1 YEAR WARRANTY
TO QUALIFY FOR WARRANTY SERVICE:
1. You must present a copy of the sales receipt from an approved retail partner
within 90 days of purchase.
2. This product cannot be used for rental or commercial use.
3. This product cannot be used for competition.
LIMITATIONS OF LIABILITY
• This Limited 1 Year Warranty is non-transferable after the product’s initial sale.
• No unapproved modications can be made to the product, its performance
or otherwise, in order for this Limited 1 Year Warranty to remain in effect.
• No reimbursement is provided for towing, loss of time, loss of use, inconve-
nience, incidental or consequential damages.
• Warranty is void if weather related water damage is determined. Owner is
responsible for storage and protection from weather.
• Jetson® makes no warranty with respect to products or trade accessories
not made by Jetson®, including, but not limited to, motors, tires, wheels, and
batteries, such products or trade accessories, such items being subject to the
original manufacturer’s warranty, if any.
• This Limited 1 Year Warranty does not cover minor surface blemishes, rips,
tears, or other cosmetic damages due to normal use, or other intentional or
unintentional damage to the product.
• This Limited 1 Year Warranty will not cover any damage which results from the
application of improper cleaners, solvents or chemicals to the product, water
damage, smoke or soot, or from exposure to saltwater, sea breeze or salt.
• This Limited 1 Year Warranty will not cover any damage which results from
aging, such as fading of paint, deterioration of plated surfaces, deterioration of
rubber or plastics, or rusting.
• This Limited 1 Year Warranty does not cover improper repair or misdiagnoses
of problems.
• This Limited 1 Year Warranty only covers parts due to manufacturer defect.
• Damage due to misuse or neglect, use other than as specied in the Owner’s
Manual, or use under abnormal conditions are not covered by this Limited 1
Year Warranty.
OWNER’S WARRANTY RESPONSIBILITIES
As the device’s owner, you are responsible for the performance of the required
maintenance. You may be denied a warranty claim solely because of your
failure to ensure the performance of all scheduled maintenance. As the owner,
you should be aware that you may be denied your warranty coverage if your
device or a part has failed due to abuse, neglect, improper maintenance, or
unapproved modications. For any issue regarding your Jetson® product, call
toll free 1-[phone], or email [e-mail].

17
Please complete and mail this card within 10 days of purchase or go to
https://www.ridejetson.com/product-registration.
Name: _____________________________________________________________________________
Address: ____________________________________________________________________________
City
, State,
Zip: ______________________________________________________________________
Email: ______________________________________________________________________________
Home Phone: ___________________________ Gender: _____________________________
Pu
rchase Date: _________________________ Purchased Fr
om: __________________________
Serial Number: ______________________________________________________________________
Is this your first
Jetson pr
oduct? ______________________________________________________
Other similar pr
oduct owned befor
e: _________________________________________________
How did you hear about the Drifter? ______________________________________________
_____________________________________________________________________________________
Co
mplete this form and mail it to:
Attention: Product Registration
Jetson Electric Bikes
1 Rewe Street
Brooklyn, NY 11211
Why did you buy this pr
oduct?: For myself
For my child
For my grandchild
Gift for someone else (adult)
Gift for someone else (child)
PRODUCT REGISTRATION

18

19

20
DRIFTER
ELECTRIC POWERED
360° RACER
