PREFACE
This product has been designed for an environmental friendly see the
advantages and transportation. In this guide you will Its general
features are as characteristic features of the product given below.
• Highly ecient and brushless direct current motor
• Digital drive brain with indicator which protects against high and low
voltage
• Gas shut-o braking providing a safe drive
• High capacity batteries enabling longer distance and high performance
• Front and back suspensions enabling a pleasant and comfortable
journey
• Motorcycle hardware complying with European standards
- Laws have limited usage of your vehicle as per age and driving license. Users holding M
type of driving license can safely use their electrical vehicle. Please pay attention that the
people who will use it hold driving license. (In some of the European countries it is used
with private certificates).
- Do not replace, dismount or modify any part without notifying the service department.
Any changes you make without informing the service department will disrupt originality
of your product and will cause for it to go out of the scope of guarantee terms. Please
make all the changes at the authorized services.
- Modification is not something legal. Main structure and performance of modifiedvehicles
are eected from such situations. This causes to shorten lifespan of your vehicle. Besides
modified vehicles will not be considered within guarantee scope. Always use spare parts
that are approved by distributor.
- The vehicle shown in this user manual may not be the same as your vehicle.
- This guide is an integral part of your product. It is given with your purchased product.
ATTENTION
WARNING
ATTENTION
- These headings have been written to protect you from important personal
injuries or probable death incidents.
- These headings have been written to protect you from important personal
injuriesand mechanical damages.
www.volta.com.tr
4
Preface ………………………………………………………....……….……….…….….……….….….…….. S.02
1. Safe Driving …….….….…….….….…….….….…….….….…….….….…….….….…….….…..... S.04
1.1. General rules ………………………………………………………....……….……….……... S.04
1.2. Rainy weathers …….….….…….….….…….….….…….….….…….….….…….….….. S.04
1.3. Night-Driving …….….….…….….….…….….….…….….….…….….….…….….….…. S.04
2. Overview ……………………………………………………………………………………………… S.05
2.1. Dashboard ……………….……………………………………………………………………… S.17
2.2. Ignition ……………………………………………………………………………………………… S.26
3. Battery Charging ………………………………………………………………………………………. S.27
3.1. Battery Charging On Vehicle ....…………………………………………………… S.29
4. Driving Instruction ……………………………………………………………………………………. S.30
4.1. Please Check Below Parts Before Use ……………..............…………… S.30
4.2. Driving Instructions…………………………………………………………………………. S.30
4.3. Standing Positions ………………………………………………………………………… S.30
4.4. Stand ………...………………………………………………………………………………………. S.30
4.5. Seat .....………………………………………………………………………………………………. S.30
4.6. Front and Rear Brake ……………………………………………………………………… S.30
5. Troubleshooting ……………………………………………………………………………………….. S.31
6. Maintenance and Settings………………………………………………………………………… S.32
6.1. Battery ……………..………………………………………………………………………………… S.32
6.2. Charger.…………………………………………………………………………………………..… S.32
6.3. Cleaning .………………………………………………………………………………………….. S.32
6.4. Brake Inspection …………………………………………………………………………….. S.33
6.5. Vehicle and Driver Brain Care .……………………………………………………… S.34
6.6. Regular Care …………...…………………………………………………………………… S.34-35
6.7. Maintenance Records …………………………………………………………………….. S.36
6.8. Transport…………………………………………………………………………………………….. S.36
7. Authorized Services …………………………………………………………….……………………... S.37
8.Vehicle Registration Information……………………………………………………............ S.38
TABLE OF CONTENTS
www.volta.com.tr 5
1. SAFE DRIVING
1.1 General Rules
1.1.1 Always use a helmet while you use your electrical motorcycle. Besides pay
attention that your helmet is used in accordance with usage and maintenance
instructions and that it completely fits your head.
1.1.2 While you use it, comply with all trac rules such as stopping at red light,
giving signals while turning, and allowing for pedestrians to walk by just like all
other road vehicles are complying.
1.1.3 While you are using the vehicle, use it along a straight line. Adopt a defensive
usage style considering that it can be dicult for other road vehicles to see you.
1.1.4 Concentrate on the road in front of you. Keep away from the hollows,
accumulated water and oil, culverts, pebbles, and all other obstacles on the road.
1.1.5 Use it by considering that vehicle doors can open suddenly and that some
parts can fall down from vehicles. Be very careful at the intersection points and as
you overtake a vehicle.
1.1.6 Do not enter the trac before you get used to the usage of features such as
signals, brakes and horn.
1.1.7 Do not take packages or passengers on your vehicle if they can make it
dicult for you to use the vehicle and see the road. Besides keep away from
earphones which can avoid your hearing as you use the vehicle.
1.1.8 Keep your safe brake distance with vehicles, pedestrians and all other objects.
Safe brake distance varies as per weather conditions.
1.1.9 Use your vehicle slowly when weather conditions are bad.
1.1.10 Please do not exceed maximum carrying capacity. If you exceed it, the
specified distance will be shortened. Furthermore, exceeding maximum carriage
capacity can cause for permanent damages to occur on the vehicle.
1.2 Rainy Weathers
1.2.1 Pay more attention on wet grounds.
1.2.2 Brake earlier on wet grounds. Consider that your distance for stopping can
be extended.
1.2.3 Lower your speed, avoid sudden brakes, and pay more attention at the
bends.
1.2.4 Wear cloths that will enable you to be seen more easily.
1.2.5 Wear reflectors and use security lights.
1.2.6 Holes, culverts, painted areas, level crossings that are used on ground
become more dangerous in rainy weathers so pay attention for this.
1.3 Night Driving
1.3.1 Make sure that your headlamp is open.
1.3.2 Wear light colored clothing having reflectors.
1.3.3 Use only when required in the night times. If possible use the roads which
you know and that are illuminated.
www.volta.com.tr
6
2. GENERAL VIEW
VSm
1- Front headlight
2- Brake bar
3- Dashboard
4- Throttle
5- Ignition
6- Locked battery box
7- Saddle
8- Basket
9- Front wheel
10- Pedal system
11- Rear wheel
12- Main stand
13- Motor
14- Rear carrier
1
2
3
47
8
9
5
6
11 12
13
10
14
www.volta.com.tr 7
2. GENERAL VIEW
VSC
1- Front headlight
2- Throttle
3- Brake bar
4- Dashboard
5 - Ignition
6 - Saddle
7- Passenger seat
8- Passenger seat support
9- Basket
10- Front wheel
11- Windshield pocket
12- Pedal system
13- Motor
14- Main stand
15- Rear light
1
2
3
4
5
6
7
9
10
11
15
12
13 14
8
www.volta.com.tr
8

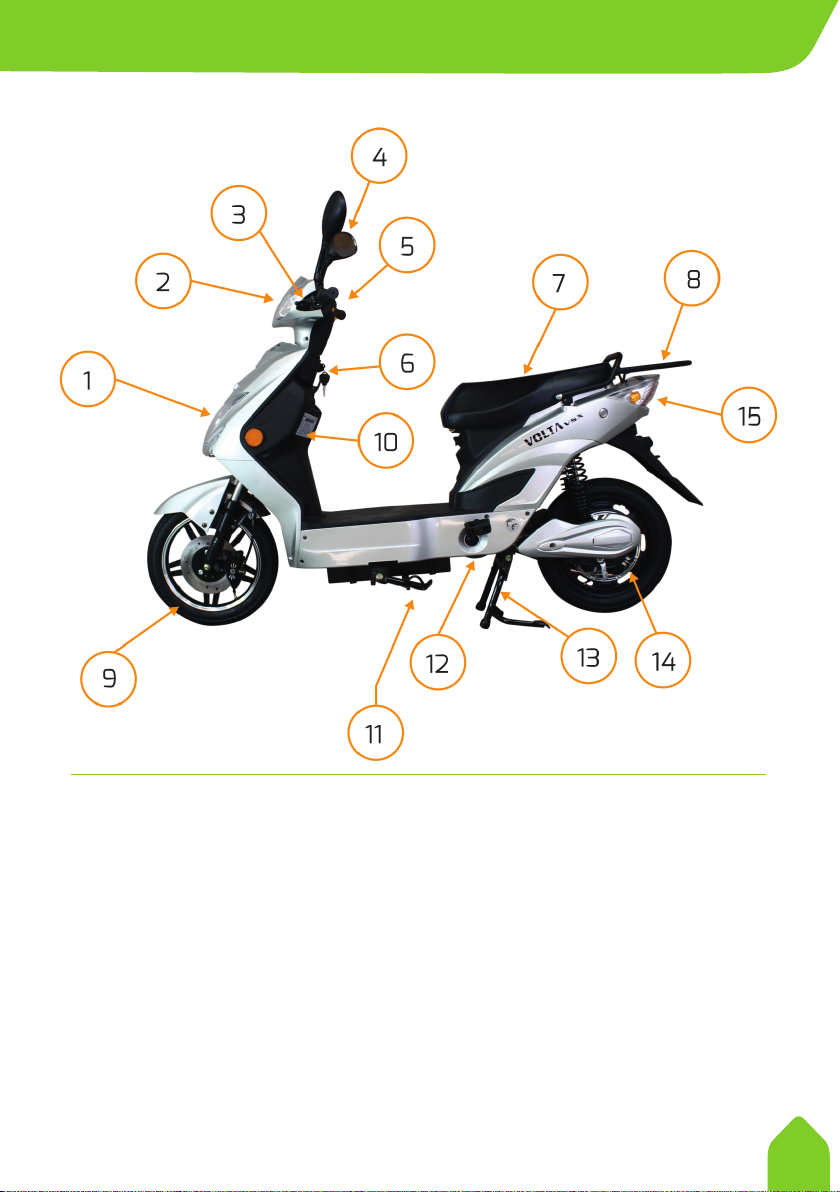

VSxP
1- Front headlight
2- Front turning light
3- Brake bar
4- Mirror set
5- Dashboard
6- Ignition
7- Saddle
8- Rear box
9- Front wheel
10- Windshield pocket
11- Protective pipe
12- Side stand
13- Pedal system
14- Main stand
15- Motor
16- Rear light and turning lights
2. GENERAL VIEW
www.volta.com.tr 9

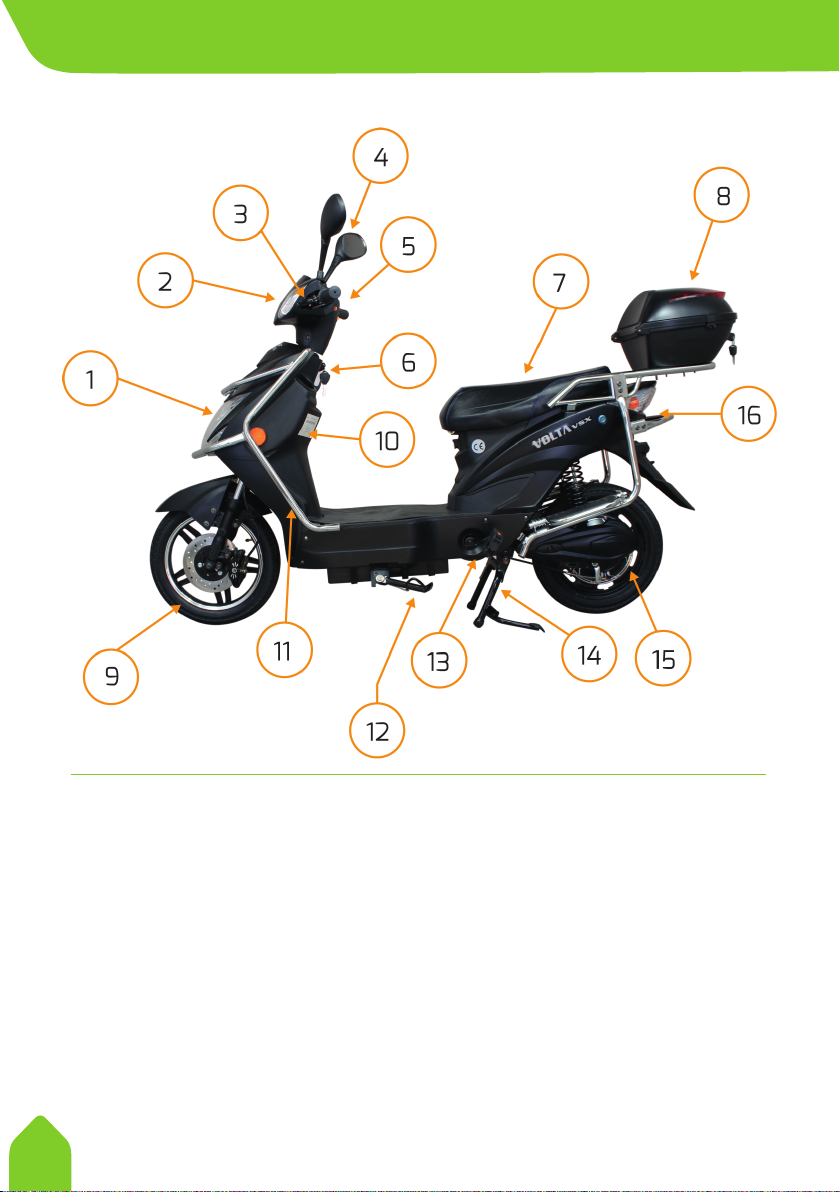

VSx
1- Front headlight
2- Front turning light
3- Brake bar
4- Mirror set
5- Dashboard
6- Ignition
7- Saddle
8- Rear carrier
9- Front wheel
10- Windshield pocket
11- Side stand
12- Pedal system
13- Main stand
14- Motor
15- Rear light and turning lights
2. GENERAL VIEW
www.volta.com.tr
10

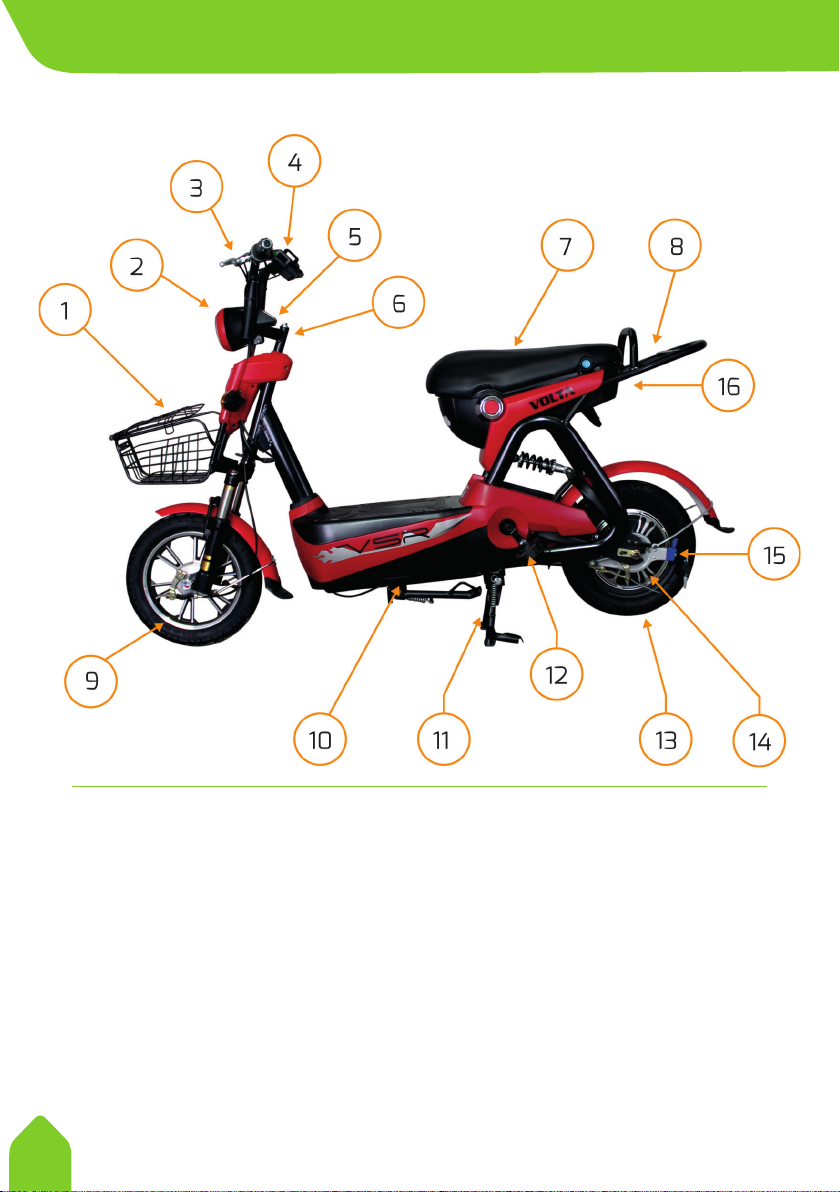

VSr
1- Basket
2- Front headlight
3- Brake bar
4- Phone holder
5- Dashboard
6- Ignition
7- Saddle
8- Rear carrier
9- Front wheel
10- Side stand
11- Main stand
12- Pedal system
13- Rear tire
14- Motor
15- Motor lock
16- Rear light
2. GENERAL VIEW
www.volta.com.tr 11
VSn - VSnL
1- Front headlight
2- Brake bar
3- Mirror set
4- Throttle
5- Dashboard
6- Ignition
7- Saddle
8- Rear carrier
9- Front wheel
10- Windshield pocket
11- Foldable pedal system
12- Side stand
13- Passenger pedal
14- Main stand
15- Motor
16- Rear light and turning lights
2. GENERAL VIEW
www.volta.com.tr
12
VS4
1- Front headlight
2- Brake bar
3- Mirror set
4- Throttle
5- Dashboard
6- Ignition
7- Saddle
8- Rear light
9- Turning lights
10- Front tire
11- Side stand
12- Main stand
13- Rear tire
14- Motor
2. GENERAL VIEW
www.volta.com.tr 13
VS8
1- Turning lights
2- Front headlight
3- Brake bar
4- Mirror set
5- Dashboard
6- Throttle
7- Ignition
8- Saddle
9- Rear carrier
10- Front tire
11- Passenger pedal
12- Side stand
13- Main stand
14- Rear tire
15- Motor
16- Rear light and turning lights
2. GENERAL VIEW
www.volta.com.tr
14
VT3
1- Front basket
2- Dashboard and headlamp panel
3- Throttle
4- Ignition
5- Saddle
6- Motor
7- Rear tire
8- Balance wheel
2. GENERAL VIEW
www.volta.com.tr 15
Vm1A
1- joystick
2- Armrest
3- Carrying handle
4- Backrest adjustment clip
5- Food plate
6- Front wheel
7- Battery
8- Motor
9- Rear wheel
10- Balance wheel
2. GENERAL VIEW
www.volta.com.tr
16
Vm4
1- Front headlight
2- Mirror set
3- Brake bar
4- Dashboard
5- Ignition
6- Seat
7- Rear light and turning lights
8- Turning lights
9- Front tire
10- Windshield pocket
11- Motor
12- Rear tire
13- Balance wheel
2. GENERAL VIEW
www.volta.com.tr 17
Vm4+
1- Front headlight
2- Mirror set
3- Dashboard
4- Brake bar
5- Ignition
6- Front seat
7- Rear seat
8- Turning lights
9- Front tire
10- Windshield pocket
11- Motor
12- Rear tire
13- Rear light and turning lights
2. GENERAL VIEW
www.volta.com.tr
18
VT5
1- Front headlight
2- Dashboard
3- Throttle
4- Seat
5- Backrest
6- Carry box
7- Front tire
8- Foot brake
9- Hand brake
10- Gear handle
11- Motor
12 - Rear tire
13- Rear light and turning lights
2. GENERAL VIEW
www.volta.com.tr 19

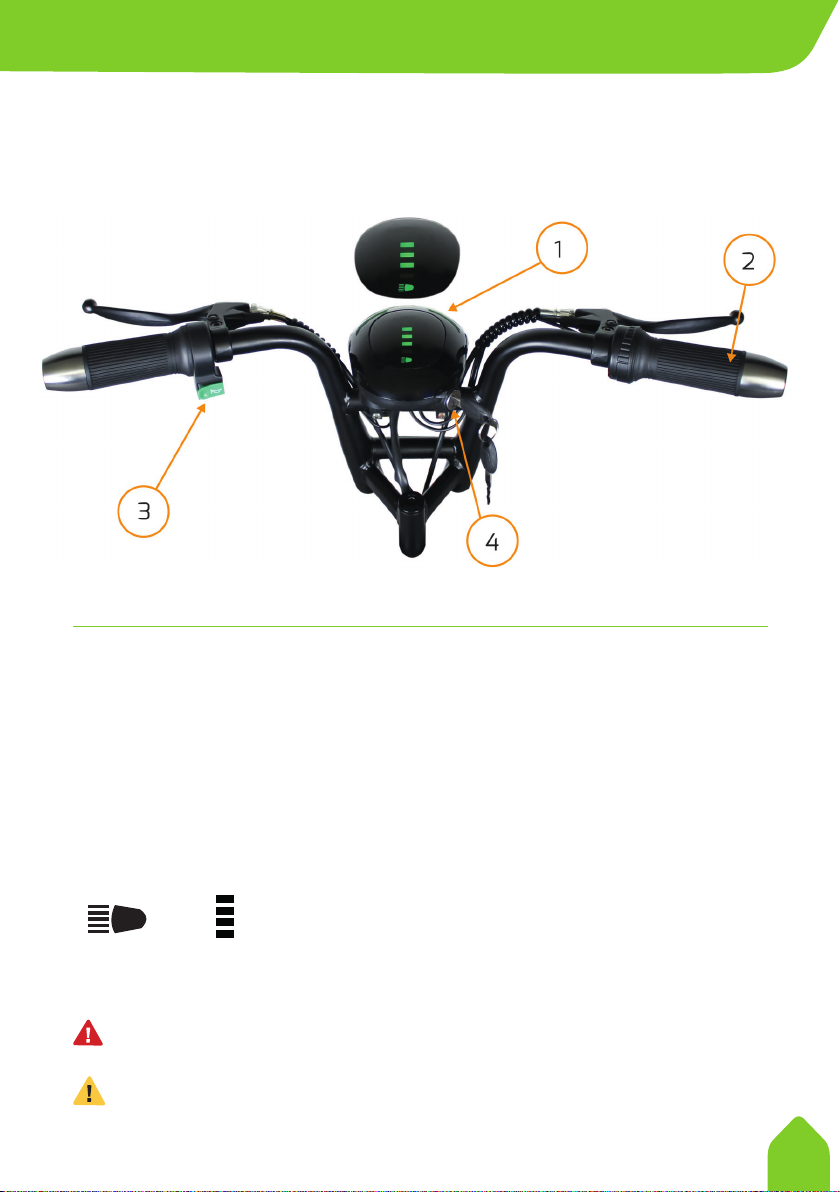

VSm
1- Dashboard
2-If you turn the throttle lever
counter clockwise with the ignition
on, this accelerate the speed.Your
speed is related to the angle of the
throttle.
3-Horn
4- Ignition
a- Switch on ignition on first dial
b- Headlights Turns on in the
second dial
DASHBOARD SIGNS
Headlight Remaining
Energy
WARNING
ATTENTIONS
- All parts listed in this manual are given for reference. The manufacturer
can make changes without notice
- Do not use your horn in areas where horning are prohibited.
2.1 DASHBOARD
www.volta.com.tr
20
2.1 DASHBOARD
VSC
1- Front Headlight on / o button
2- Signal Button “◄” symbol shows
left, “►” symbol shows right turn
3- 10% 30% 50% 100% shows the
battery charge level status.
4- If you turn the throttle lever
counterclockwise with the ignition
on, this accelerate the speed..Your
speed is related to the angle of the
throttle.
5- Horn
6- Battery indicator : “POWER’’
the power is on, “LIGHT“ the lights
are on “LOW“ symbolizes drained
battery.
WARNING
ATTENTIONS
- All parts listed in this manual are given for reference. The manufacturer
can make changes without notice
- Do not use your horn in areas where horning are prohibited.
This manual suits for next models
13
Table of contents
