JETStream VERSABOOM QSG-201 User manual

VERSABOOM™ | EXPLODED VIEW (ASSY PN 67901)
Jetstream of Houston LLP • 5905 Thomas Road Houston, TX 77041
www.waterblast.com • 832-590-1300
VERSABOOM™ | PARTS LIST (ASSY PN 67901)
QSG-201_VERSABOOM_Rev01/22
VERSABOOM™
QSG-201
QUICK START GUIDE
Item Qty Part Number Description
1 1 25296 Lock Nut
2 1 26065 Bushing
3 1 27091 Capscrew
4 2 67908 Coupler
5 1 67919 Coupling, Anchor
6 1 67920 1” Ball Pipe
7 1 67921 Elbow
8 1 67922 Collet. 13mm
9 1 67923 Collet, 1/2” NPT
10 167924 Nipple
11 167925 Outlet Fitting
12 167926 Gland
13 167927 Retaining Ring
14 167928 Gland Wrench
15 167929 Tube Extension, 2’
16 167930 Tube Extension, 4’
17 167931 Tube Extension, 6’
18 167936 Base Plate Assy
NOTE: Part numbers & descriptions subject to change without notice.
The VersaBoom™ is a positioning device
designed to hold a 3D waterblast tool in a
desired location inside tanks and vessels
with limited access. The VersaBoom can be
easily adjusted to a variety of angles and
insertion depths which allow the operator
to maneuver the tool into the necessary
position for optimal cleaning.

DANGER
!!
THIS PRODUCT CAN BE DANGEROUS IF NOT USED PROPERLY! Always wear
appropriate Personal Protective Equipment (PPE). Detailed PPE information can be found
at: www.fsesgsafety.com and clicking on the JETSTREAM name or by referring to the
yellow JETSTREAM SAFETY WARNING pamphlet (PI-082).
This product is sold with the understanding that the purchaser agrees to
thoroughly train all operators and maintenance personnel in the correct and
safe installation, operation, and maintenance of the product and to provide
adequate supervision of personnel at all times. JETSTREAM urges customers to
make complete instructions available to all personnel and ensure they are read
thoroughly before installing, connecting or using the Versaboom. Retain these
instructions for future reference. If this product is resold or otherwise conveyed,
the purchaser must pass on these instructions to the new user. If any questions
remain, or to request additional copies, call JETSTREAM at [phone] or
[phone].
Read the yellow JETSTREAM SAFETY WARNING pamphlet (PI-082) included with
the shipment of the product.
OPERATION
As per the WJTA-IMCA Recommended Practices, all operators shall follow the
OSHA regulations for personal protective equipment. (OSHA guidelines for
Personal Protective Equipment are available in document number 3151-12R 2004,
which can be obtained from www.osha.gov.) All operators shall be issued suitable
head protection, eye protection, hearing protection, body protection, hand and
foot protection and respiratory protection (if needed). For detailed specications
on all protections required, refer to the WJTA-IMCA ‘Recommended Practices
for the Use of High Pressure Waterjetting Equipment’ Section 6, Protective
Equipment For Personnel.
SETUP/OPERATION
The VersaBoom is designed to hold and position a 3D waterblast tool on the
end of a ½” or 13mm waterblast hose. With the use of extension tubes, offset
distances of up to 10 feet from the manway can be achieved.
The length of the extension tube above the ball pipe (Item 6) should allow
for anchoring to a nearby structure and a safe position for the operator when
adjusting the device. The length of the extension tube below the positioning ball
will be determined by the desired cleaning nozzle position inside the vessel. The
baseplate (8) should be securely attached to the manway using bolts or clamps.
1. Pass hose end through the gland (Item 12), nipple (10), anchor coupling (5), 2’
extension tube (16), coupler (4), and ball pipe (6)
2. Hose enters split end of elbow (7) and through lower extension tube (16/17)
and outlet tting (11)
3. Install collet (8 or 9 depending on hose size) between nipple (10) and gland
(12).
4. Connect all 1-1/2” NPT pipe connections together securely
5. Align lower extension tube with lower slot in ball pipe and tighten the bolt (3)
in the split end of elbow.
6. Attach waterblast tool to hose end.
The operator can adjust the position by loosening the cap (6), pivoting the
assembly into the desired position and tightening the cap. Use the anchor
loops on the anchor coupling (5) to hold the position of the ball. The hose can be
extended or retracted in the vessel by loosening the collet (8/9) with the gland
wrench (12). Make sure all clamps and joints are securely tightened and the hatch
is secured before operation. An aluminum hatchway is provided to view the tool
location within the vessel and to check on the cleaning process.
!!CAUTION
1. Securely attach baseplate to vessel manway ange with bolts or clamps.
2. Anchor upper extension tube to nearby structure with chain or similar
restraint using loops on anchor coupling.
3. To maximize stability, keep upper and lower extension tubes and anchor
attachment in the same plane.
4. When collet is loosened, hose will slide freely through the ball. It must be
supported by hand.
5. Make sure all clamps and joints are securely tightened and the hatch is
secured before operation.
6. Always shut down pump before the cleaning head is repositioned.
!!CAUTION
DO NOT use the Versaboom™ if it has not been cleaned and inspected prior to starting
the working shift.
FOR FURTHER INFORMATION SEE:
https://www.youtube.com/user/JetstreamWaterblast
and the
Jetstream Safety Manual
Jetstream of Houston LLP • 5905 Thomas Road Houston, TX 77041 www.waterblast.com • 1-832-590-1300
VERSABOOM™ | QUICK START GUIDE QSG-201

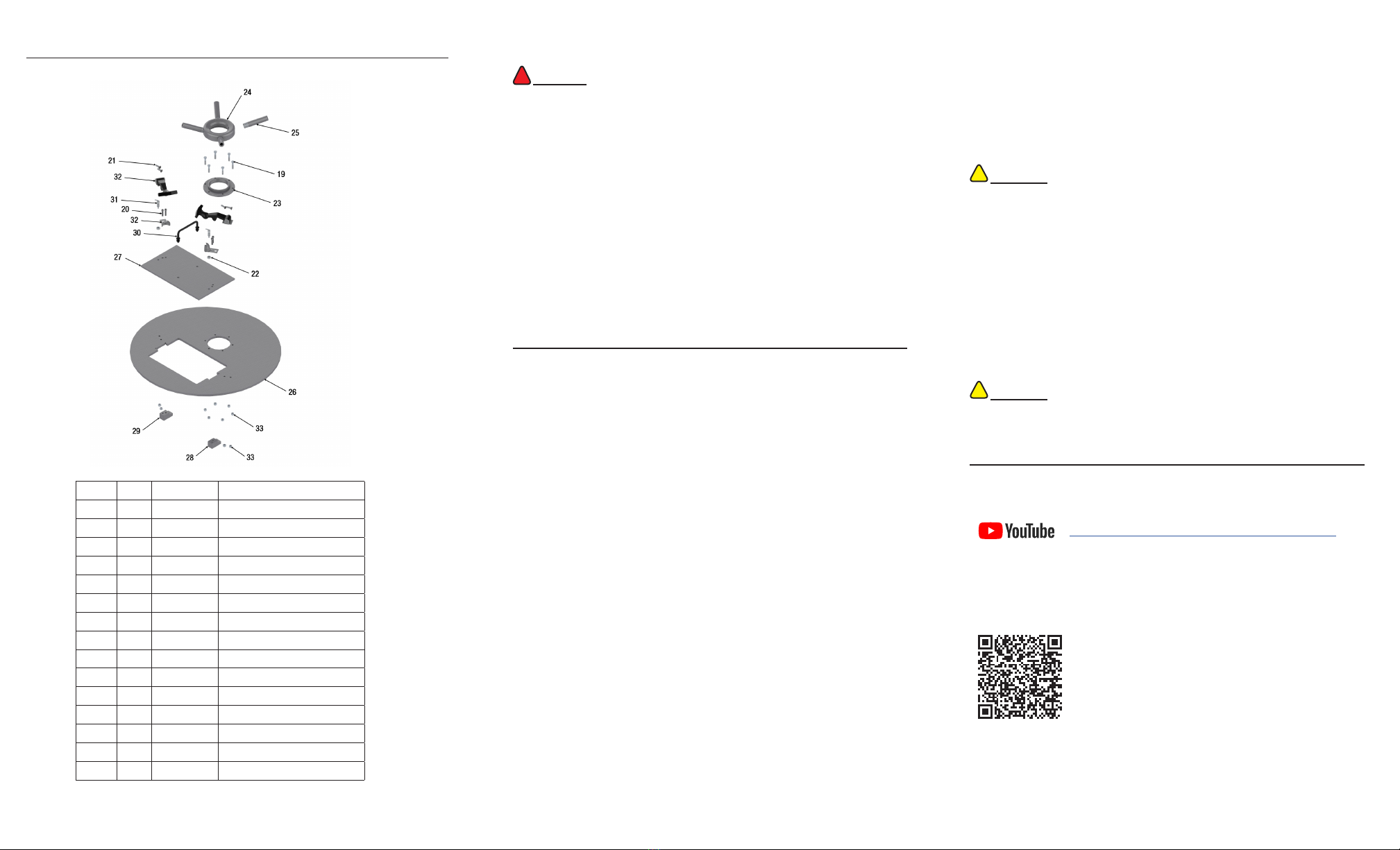

PART BREAKDOWN - BASE PLATE ASSY (PN 67936)
Item Qty Part Number Description
19 626565 Capscrew
20 462778 Socket Head
21 464382 Capscrew
22 267906 Hex Nut
23 167909 Base Ring
24 167910 Cap
25 467911 Pipe Handle
26 167912 Base Plate
27 167913 Hatch
28 167914 Hatch Ramp, Left
29 167915 Hatch Ramp, Right
30 167917 Hatch Handle
31 267918 Plunger, Hatch Lock
32 267993 Hatch Latch Assy
33 10 71391 Nut
NOTE: Part numbers & descriptions subject to change without notice.
