JETWAY G03-NF9C-F User manual

Technical Manual
Of
Intel Cedar Trail Series CPU
& NM10 Chipset
Based
Mini-ITX M/B
NO.G03-NF9C-F
Revision: 2.0
Release date: December, 2011
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

ii
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

iii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iv
USER’S NOTICE .......................................................................................................................v
MANUAL REVISION INFORMATION.......................................................................................v
ITEM CHECKLIST.....................................................................................................................v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................8
2-2 CONNECTORS AND HEADERS................................................................................17
2-2-1 CONNECTORS .............................................................................................17
2-2-2 HEADERS .....................................................................................................19
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................28
3-2 BIOS MENU SCREEN ................................................................................................29
3-3 FUNCTION KEYS .......................................................................................................29
3-4 GETTING HELP ..........................................................................................................30
3-5 MENU BAR..................................................................................................................31
3-6 MAIN MENU................................................................................................................31
3-7 ADVANCED MENU.....................................................................................................33
3-8 CHIPSET MENU..........................................................................................................40
3-9 BOOT MENU...............................................................................................................43
3-10 SECURITY MENU.......................................................................................................44
3-11 SAVE & EXIT MENU...................................................................................................45
TABLE OF CONTENT

iv
Environmental Safety Instruction
zAvoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
zGenerally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
zThe increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
zAttention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

v
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
2.0 Second Edition December, 2011
Item Checklist
5Motherboard
5Motherboard User’s Manual
5DVD for motherboard utilities
5Cable(s)
5Back panel

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
zIntel
®Cedar Trail series CPU and NM10 Chipset, with low power consumption never
denies high performance
zSupport DDRIII 800/1066 MHz SO-DIMM (N2600 series only support 800 MHz)
zOnboard Realtek RTL 8111E Gigabit Ethernet LAN
zIntegrated ALC662 2-channel HD audio CODEC
zSupport DirectX 9 Graphics
zIntegrated LVDS
zSupport RS232/422/485
zSupport Watch dog Technology
zSupport Smart Fan function
zCompliance with ErP standard
zSlim & fanless design, within 2cm height

2
1-2 Specification
Spec Description
Design zMini-ITX form factor 6 layers ; PCB size: 17.0 x17.0cm
Chipset zIntel®NM10 Express chipset
Embedded CPU zIntel®Cedar Trail series CPU
Memory Slot
z2 * SO-DIMM DDRIII slots supports DDRIII 800/1066 MHz
SO-DIMM , total maximum to 4GB
Note:
–N2600 series are with1 * SO-DIMM DDRIII slot for DDRIII 800
MHz SO-DIMM , total maximum to 2GB
–Support Small Outline DIMMs Raw Cards RC-B(1Rx8), and
RC-F (2Rx8). Does not support RC-A (2Rx16), RC-C (1Rx16),
RC-D (2Rx16 dual die), and RC-E(2Rx16)
Storage z1 * Serial ATAII (3Gb/s) connector
z2 * Serial ATAIII (6Gb/s) connectors
Expansion Slot
z1 * 32-bit PCI slot
z1 * Mini-PCI E slot
z1 * CFast Storage card slot
LAN
zIntegrated Realtek RTL8111E PCI-E Gigabit LAN
zSupport Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Audio zALC 662 2-channel Audio Codec integrated
zAudio driver and utility included
BIOS z16MB DIP Flash ROM
Multi I/O zHDMI port connector x1
zSerial port connector x1
zUSB 2.0 connector x3 and USB 2.0 header x2
zRJ-45 LAN connector x1
zLine out/Optical SPDIF_out connector
zFront audio header x1

3
zCDIN header x1
zHDMI_SPDIF header x1
zParallel port header x1
zVGA port header x1
zLVDS1 header x 1 and INVERTER1 x 1 (Optional)
zLVDS2 header x1 and INVERTER2 x 1
zSerial port header x 3
zRS422/RS485 header x1
zGPIO header x1
zFront panel header x1
z3-pin Power LED header x1
zSpeaker header x1
zPS/2 Keyboard & mouse header x1
1-3 Layout Diagram

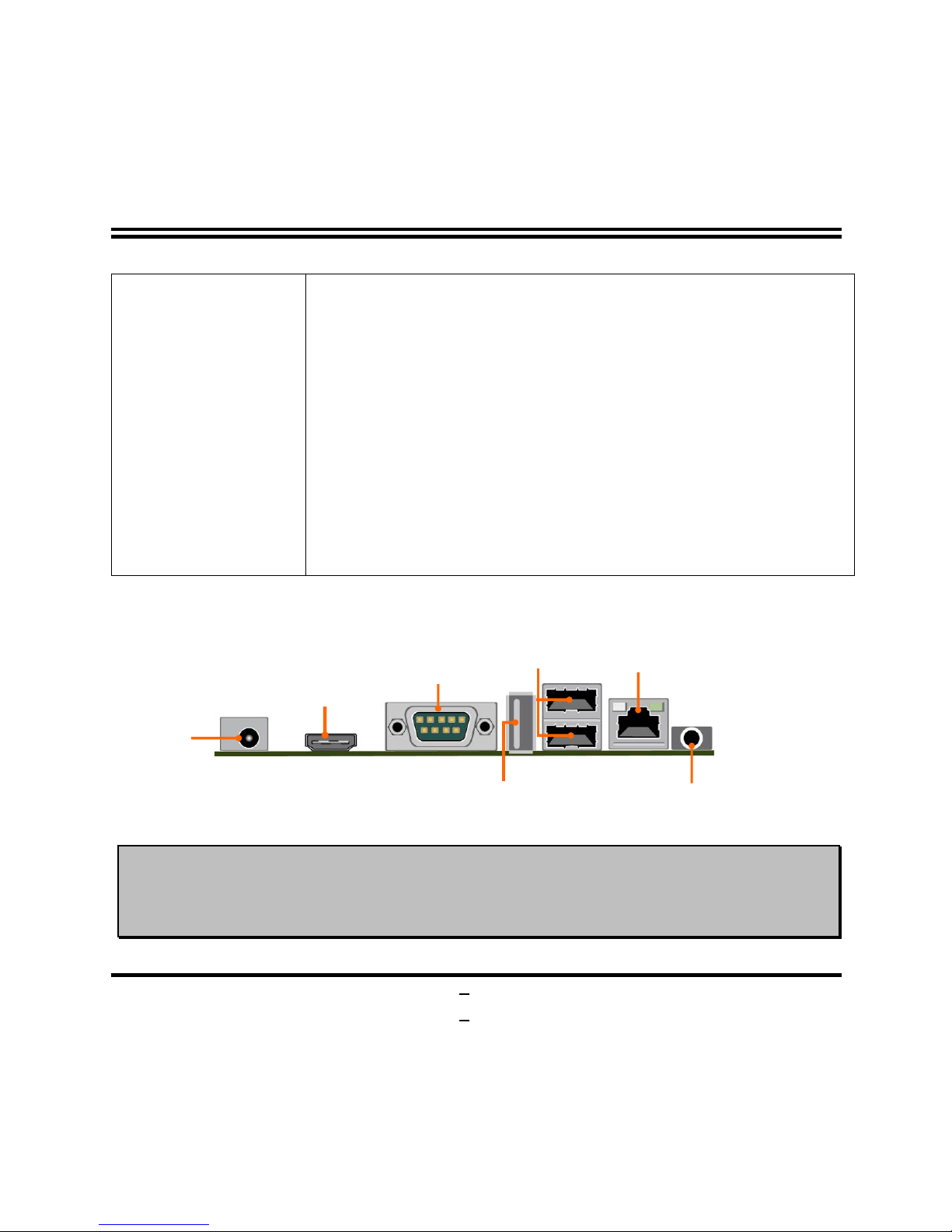

Rear IO Diagram
Warning!
The board has a DC 12V power connector in I/O back panel and an internal
ATX12V power connector. User can only connect power supply to one of them.
HDMI
Connector
COM
Connector
DC12V
Power
Connector
USB
Connectors
USB
Connector Line Out/
Optical SPDIF_Out Connector
RJ-45 LAN Port

4
Motherboard Internal Diagram
Note! When installing only one SODIMM to the board, please always install it in SODIMM2 slot,
otherwise system won’t start.
DC12V Power
Connector
(J1)
HDMI
Connecto
r
COM
Connecto
r
USB
Connectors
RJ-45 LAN
Connecto
r
Line Out/Optical
SPDIF
_
out Connecto
r
Parallel Header
Front Panel Header
SATAIII Ports
(SATA3/SATA4)
KB/MS Header
CPU FAN Header
L
VD
S
Heade
r
(LVDS1)
GPIO Heade
r
A
udio Chi
p
Gigabit LAN Chip
Intel CPU
Intel NM10
Chi
p
set
Mini PCI-E Slot
TX-RXCOM1
USB Headers
INVERTER 2
Serial Port Headers
VGA Header
CDIN Heade
r
LVDS Heade
r
(LVDS2)
SYSFAN1 Header
SYSFAN2 Header
INVERTER1
CFast Card Slot
SATAII Port
(SATA1)
Speaker Header Power LED Header
PCI Slot
Font Panel
Audio Header
SPDIF out Header
SO-DIMM2 Slot
SO-DIMM1 Slot
(
O
p
tional
)

5

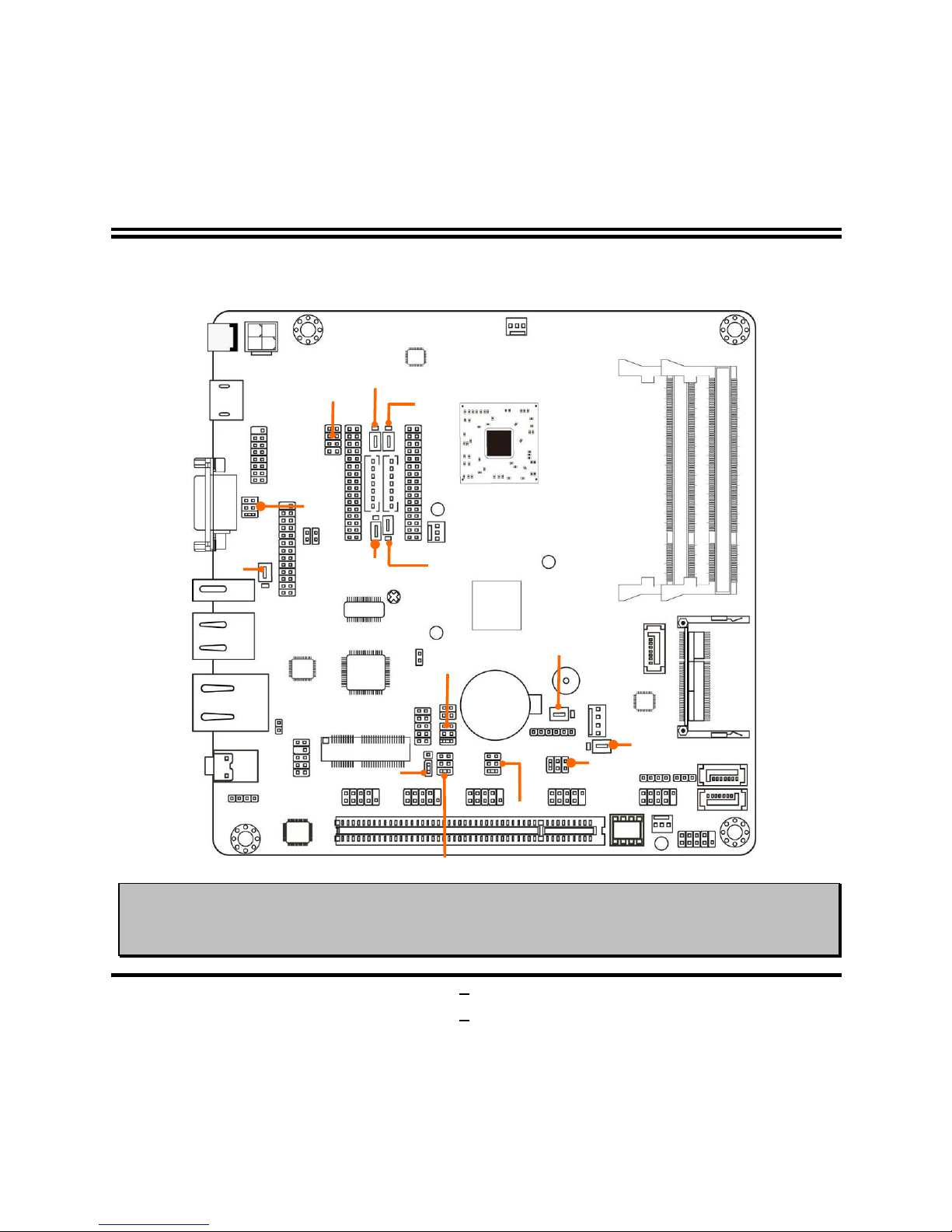

Motherboard Jumper Position
Note: The diagrams in the manual serve illustration purpose only. SODIMM1, LVDS1 header,
INVERTER2 and Jumper JP2 ,JP3 & JP9 are only optional with specific modesl. Please refer to
the product purchased for actual specification.
JP1
JP14
J
P2
(
O
p
tional
)
JP13
J
P3
(Optional) JP12
JBAT
JP5
JP16
JP15
JP7
JP6
JP17
J
P9
(Optional)

6
Jumper
Jumper Name Description
JBAT CMOS RAM Clear Function Setting 3-Pin Block
JP1 USB 1/2 Power On Function Setting 3-Pin Block
JP5 USB 3/4 Power On Function Setting 3-Pin Block
JP2 (Optional) LVDS1 VCC 5V/3.3V Select 3-Pin Block
JP3 (Optional) INVERTER1 VCC 12V/5V Select 3-Pin Block
JP13 LVDS2 VCC 5V/3.3V Select 3-Pin Block
JP12 INVERTER2 VCC 12V/5V Select 3-Pin Block
JP14 COM1 Header Pin9 Function Select 6-Pin Block
JP7 COM2 Header Pin9 Function Select 6-Pin Block
JP15 COM3 Header Pin9 Function Select 6-Pin Block
JP16 COM4 Header Pin9 Function Select 6-Pin Block
JP17 COM4 RS232/485/422 Function Select 6-Pin Block
COPEN Case Open Message Display Function 2-Pin Block
JP6 MINIPCIE POWER SB3.3V/3.3V Select 3-Pin Block
JP9 (Optional) LVDS1 Panel Resolution Type Select 8-Pin Block
Connectors
Connector Name Description
J1 DC12V In Power Connector 1-DC Jack
J2 ATX 12V Type Power Connector 4-Pin Block
HDMI High-Definition Multimedia Interface 10-pin Connector
COM1 Serial Port Connector 9-Pin Male
USB1 USB Port Connector 4-Pin Connector
USB2 USB Port Connector x2 4-Pin Connector
LAN1 RJ-45 LAN Connector 8-Pin Connector
HP_SPDIF1 Line Out /Optical SPDIF Out Connector 1-Phone Jack
PWOUT2 Power Out Connector 4-Pin Connector
SATA1 SATAII Connector 7-Pin Connector
SATA3/SATA4 Serial ATAIII Connector 7-Pin Connector

7
Headers
Header Name Description
FP_AUDIO1 Front Panel Audio Header 9-Pin Block
CDIN1 CD Audio-In Header 4-pin Block
SPDIF SPDIF Out header 2-pin Block
PARALLEL Parallel Header 25-Pin Block
VGA1 Video Graphic Attach Header 15-Pin Block
LVDS1(optional)/
LVDS2 LVDS Header 32-Pin Block
INVERTER1(optional)/
INVERTER2 LVDS Inverter 7-Pin Block
SPEAK Speaker Header 4-pin Block
PWRLED Power LED 3-pin Block
JW_FP Front Panel Header(PWR LED/
HD LED/ /Power Button /Reset) 9-Pin Block
KBMS PS/2 Keyboard/Mouse Header 6-Pin Block
COM2, COM3, COM4 Serial Port Header 9-Pin Block
TX-RX RS 232/422/485 port header 4-Pin Block
USB3; USB4 UBS Headers 9-Pin Block
CPUFAN,SYSFAN1,S
YSFAN2 Fan Speed Headers 3-Pin Block
GPIO_CON GPIO Header 10-Pin

8
Chapter 2
Hardware Installation

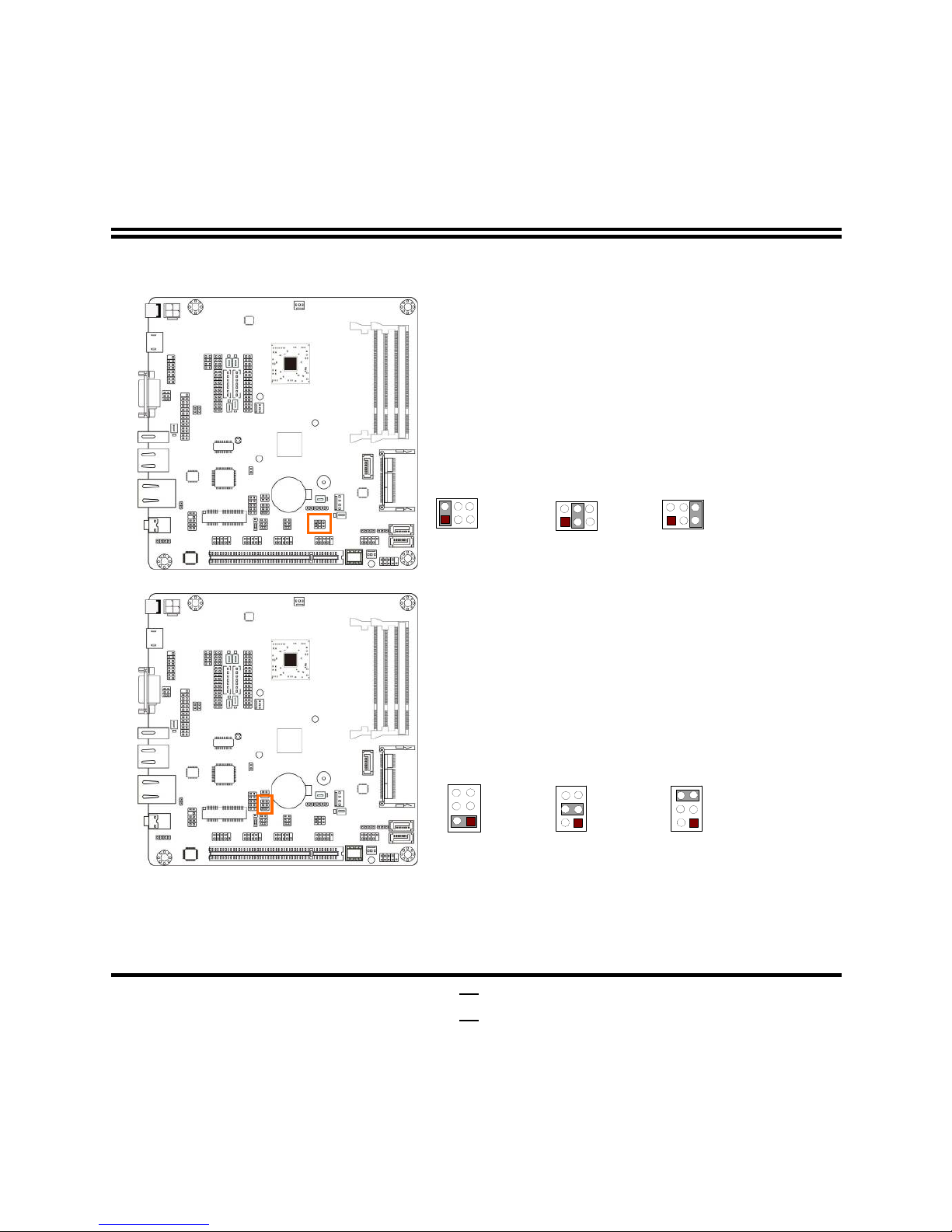

2-1 Jumper Setting
(1) JBAT (3-pin): Clear CMOS
2-3 closed : Clear CMOS
JBAT
JBAT
13
1-2 closed: Normal
1 3

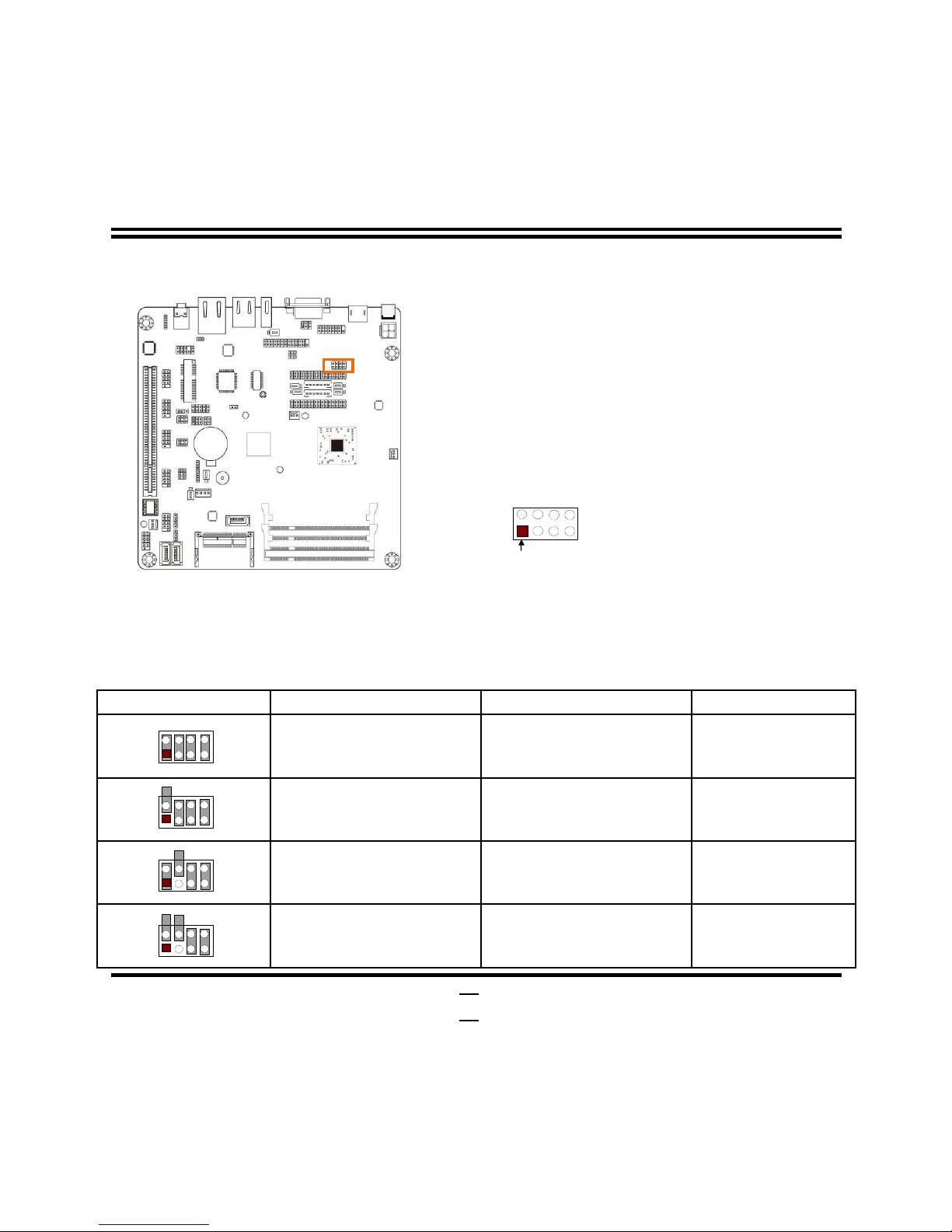

(2) JP1 (3-pin): USB 1/2 Power On Function Setting
2-3 closed: USB 1/2 Power on Enabled(default)
JP1
JP1
1-2 closed : USB 1/2 Power on Disabled
1
3
1
3

9
(3) JP5 (3-pin): USB 3/4 Power On Function Setting
2-3 closed: USB 3/4 Power on Enabled(default)
JP5
JP5
1-2 closed : USB 3/4 Power on Disabled
1
3
13
(4) JP2 (3-pin): LVDS1 VCC 5V/3.3V Function Setting
2-3 closed : LVDS1 VCC 3.3V
JP2
1-2 closed: LVDS1 VCC 5V(default)
1
3
1
3
JP2
* Note: Jumper JP2 is only optional for model with LVDS1 header.

10
(5) JP3 (3-pin): INVERTER1 VCC 12V/5V Select
1-2 closed：Inverter1 VCC=12V (default) 2-3 closed：Inverter1 VCC
=
JP3
JP3
1
3
1
3
* Note: Jumper JP3 is only optional for model with INVERTER1 header.
(6) JP13 (3-pin): LVDS2 VCC 5V/3.3V Function Setting
2-3 closed : LVDS2 VCC 3.3V
JP13
1-2 closed: LVDS2 VCC 5V(default)
1
3
1
3
JP13

11
(7) JP12 (3-pin): INVERTER2 VCC 12V/5V Select
1-2 closed：Inverter2 VCC=12V (default) 2-3 closed：Inverter2 VCC=5V
JP12
JP12
1
3
1
3
(8) JP14 (6-pin): COM1 Pin9 Function Select
3-4 closed : +12V
JP14
1
1-2 closed: RS232
1
1
5-6 closed : +5V

12
(9) JP7 (6-pin): COM2 Pin9 Function Select
3-4 closed : +12V
JP7
1
1-2 closed: RS232
1
1
5-6 closed : +5V
(10) JP15 (6-pin): COM3 Pin9 Function Select
3-4 closed : +12V
JP15
1
1-2 closed: RS232
1
1
5-6 closed : +5V

13
(11) JP16 (6-pin): COM4 Pin9 Function Select
3-4 closed : +12V
JP16
1-2 closed: RS232
1
5-6 closed : +5V
(12) JP17 (6-pin): COM4 RS232/485/422 Function Select
3-4 closed : RS485
JP17
1
1-2 closed: RS232
1
1
5-6 closed : RS422

14
(13)COPEN (2-pin): Case Open Message Display function select
Case Open Display Function
1-2 Short：Case Open
COPEN
1-2 Open：Normal
Pin 1-2 shorted: Case open display function enabled. In this case if you case is
removed, next time when you restart your computer a message will be displayed
onscreen to inform you of this.
(14) JP6 (3-pin): Mini PCI-E Power SB 3.3V/3.3V Function Select
2-3 closed：
MINI PCI-E Power=3VSB
JP6
1-2 closed：
MINI PCI-E Power= VCC 3.3V
3
1
JP6 3
1

15
(15) JP9 (8-pin): LVDS1 Panel Resolution Select
Pin1
2 8
7
User can select Panel resolution by jumper settings. There are two basic setting
modes:
zShort: in which user can close pin 1-pin2, pin3-pin4, pin5-pin6, pin7-pin8
respectively;
zOpen: in which user leave jumper hat just in pin 2, pin4, pin6 or pin8.
Jumper Setting Description Panel Resolution Color Depth
1
2
Pin 1-2: Short
Pin 3-4: Short
Pin 5-6: Short
Pin 7-8: Short 640 x 480 @ 60Hz 18-bit
1
2
Pin 1-2: Open
Pin 3-4: Short
Pin 5-6: Short
Pin 7-8: Short 800 x 600 @ 60Hz 18-bit
1
2
Pin 1-2: Short
Pin 3-4: Open
Pin 5-6: Short
Pin 7-8: Short 1024 x 600 @ 60Hz 18-bit
1
2
Pin 1-2: Open
Pin 3-4: Open
Pin 5-6: Short
Pin 7-8: Short 1024 x 768 @ 60Hz 24-bit
