JETWAY NAF95-Q87 User manual

USER'S MANUAL
Of
Intel Q87 Express Chipset
Based
M/B for LGA 1150 Quad Core Ready
Intel Core Processor
No. G03-NAF95-F
Rev: 1.0
Release date: July 25, 2013
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

ii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iii
ENVIRONMENTAL PROTECTION ANNOUCEMENT..............................................................iii
USER’S NOTICE .......................................................................................................................iv
MANUAL REVISION INFORMATION.......................................................................................iv
ITEM CHECKLIST.....................................................................................................................iv
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 SPECIFICATION.........................................................................................................1
1-2 LAYOUT DIAGRAM....................................................................................................2
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................5
2-2 CONNECTORS AND HEADERS................................................................................10
2-2-1 REAR I/O BACK PANEL CONNECTORS....................................................10
2-2-2 MOTHERBOARD INTERNAL CONNECTORS............................................11
2-2-3 HEADER PIN DEFINITION ...........................................................................13
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................18
3-2 BIOS MENU SCREEN ................................................................................................18
3-3 FUNCTION KEYS .......................................................................................................19
3-4 GETTING HELP ..........................................................................................................19
3-5 MENU BARS...............................................................................................................20
3-6 MAIN MENU................................................................................................................20
3-7 ADVANCED MENU.....................................................................................................21
3-8 CHIPSET MENU..........................................................................................................28
3-9 BOOT MENU...............................................................................................................30
3-10 SECURITY MENU.......................................................................................................31
3-11 SAVE & EXIT MENU...................................................................................................32
TABLE OF CONTENT

iii
Environmental Safety Instruction
zAvoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z0 to 40 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
zGenerally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
zThe increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
zAttention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition July 25, 2013
Item Checklist
5Motherboard
5User’s Manual
5DVD for motherboard utilities
5Cable(s)
5I/O Back panel shield

1
Chapter 1
Introduction of the Motherboard
1-1 Specification
Spec Description
Design zATX form factor; PCB size: 30.5 x24.5 cm
Chipset zIntel®Q87 Express Chipset
LGA1155
CPU Socket
zSupports Intel®Core™ i7, Core™ i5, Core™ i3 series, Pentium®
processor in LAG1150 Package
* for detailed CPU support information please visit our website
Memory Slot
zDDRIII RAM module slot x 4
zSupporting four DDRIII 1600/1333/1066MHz RAM Module
expandable to 32 GB (Maximum)
zSupport dual-channel function
Expansion Slots
z1 pcs* PCI-Express x16 slot (PE1)
z1 pcs* PCI-Express x4 slot (PE2)
z1 pcs* PCI-Express x1 slot (PE3)
z4 pcs *32-bit PCI slot
z1 pcs* Full-size Mini-PCIE slot (PE4)
z1 pcs* Full-size MSATA slot
Storage z6 * SATAIII 6Gb/s ports support RAID 0, 1, 5, 10 function
Dual LAN Chips
zIntegrated Intel®82574L and i217-LM Gigabit Ethernet LAN chip
that supports Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
HD Audio Chip zRealtek ALC662 6-channel Audio Codec integrated
zAudio driver and utility included
BIOS z64M Bit DIP Flash ROM
Multi I/O
Rear Panel I/O:
zSerial port connector x1
zDisplay port connector x1
zHDMI port connector x1
zDVI-D port connector x1
zVGA port connector x1
zUSB 3.0 port connector x2
zUSB 2.0 port connector x4
zRJ-45 LAN connector x2
zAudio connector x3 (Line-in, Line-out, MIC)
Internal I/O Connectors& Headers:
z1 *24-pin main power connector
z1 *8-pin 12V Power connector
zFront panel audio header x1
zCDIN header x1
zHDMI-SPDIF header x1
zPS/2 KB & MS header x1
zGPIO header x1
zCIR header x1
zTPM 1.2 header x1
zUSB 3.0 header x1 (support two expansion USB 3.0 ports)
zUSB 2.0 header x2 (support four expansion USB 2.0 ports)
zFront panel header x1
zPOWER LED1+Speaker header x1
zCOM port header x 9
zSM_BUS header x1
zLANLED header x2
zFan header x 3

2
1-2 Layout Diagram

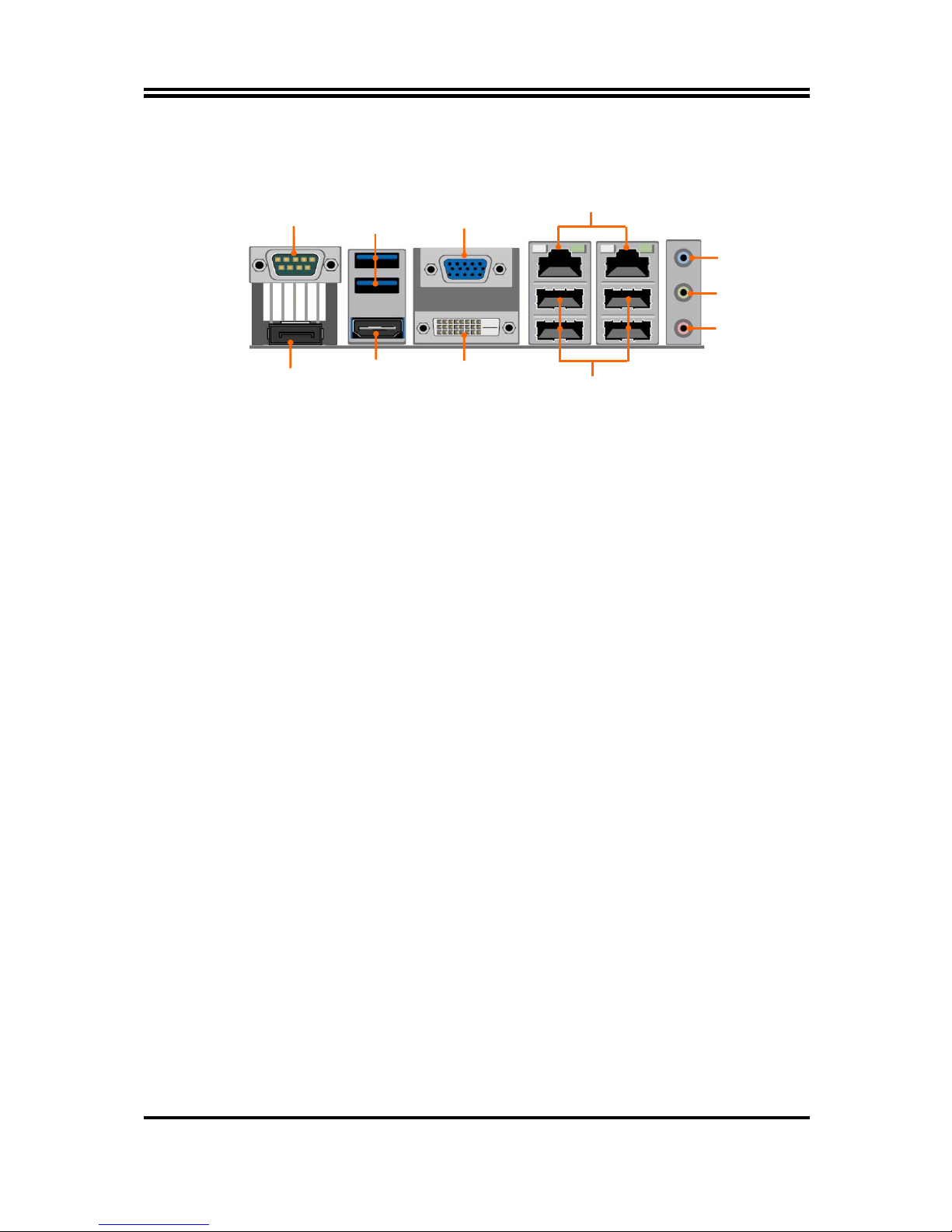

Rear IO Diagram
Motherboard Internal Diagram
*Notice: 1. PE4 slot functions as full-size Mini-PCIE slot and shares function with PE3, i.e. only
one can function at a time.2. MSATA slot shares function with SATA6 port; user can only choose
one to use at one time.
RJ-45 LAN Ports
USB 3.0 Ports
Line-IN/
Optical SPDIF OUT
Line-OUT
MIC-IN
USB 2.0 Ports
VGA Port
ATX 12V
Power Connector
ATX Powe
r
Connector
LGA 1150
CPU Socket
DVI-D PortHDMI Port
Serial Port
Audio Connectors
USB 3.0 Ports
over HDMI Port
VGA Port over
DVI–D Port
RJ-45 LAN Ports
Over USB 2.0 Ports
RJ-45 LAN Ports
Over USB 2.0 Ports
USB 3.0 Header
PCI Express x16 Slot (PE1)
PCI Express 2.0 x 4 Slot (PE2)
P
CI Ex
p
ress 2.0 x1
S
lot
(
P
E3
)
32-bit
P
CI Slo
t
s
Front Panel
Audio Heade
r
CDIN Header TPM Header
Intel Q87
Chipset
USB 2.0 Headers Front Panel Header
DDRIII
DIMM Slot x 4
Full-size
Mini-PCIE Slot
(PE4) *
SYS FAN1 Heade
r
GPIO Header
SYS FAN2 Heade
r
KBMS Header
CPUFAN Header
SM_BUS Header
CIR Header
Serial Ports
(COM2/3/4/5/6/7/8/9/10)
SATAIII Ports
HDMI S/PDIF Header
PWR LED +Speaker
Header
(
JP15
)
Display Port
Serial Port over
Display Port
NICLED Headers
Full-size MSATA Slot (MSATA)

3

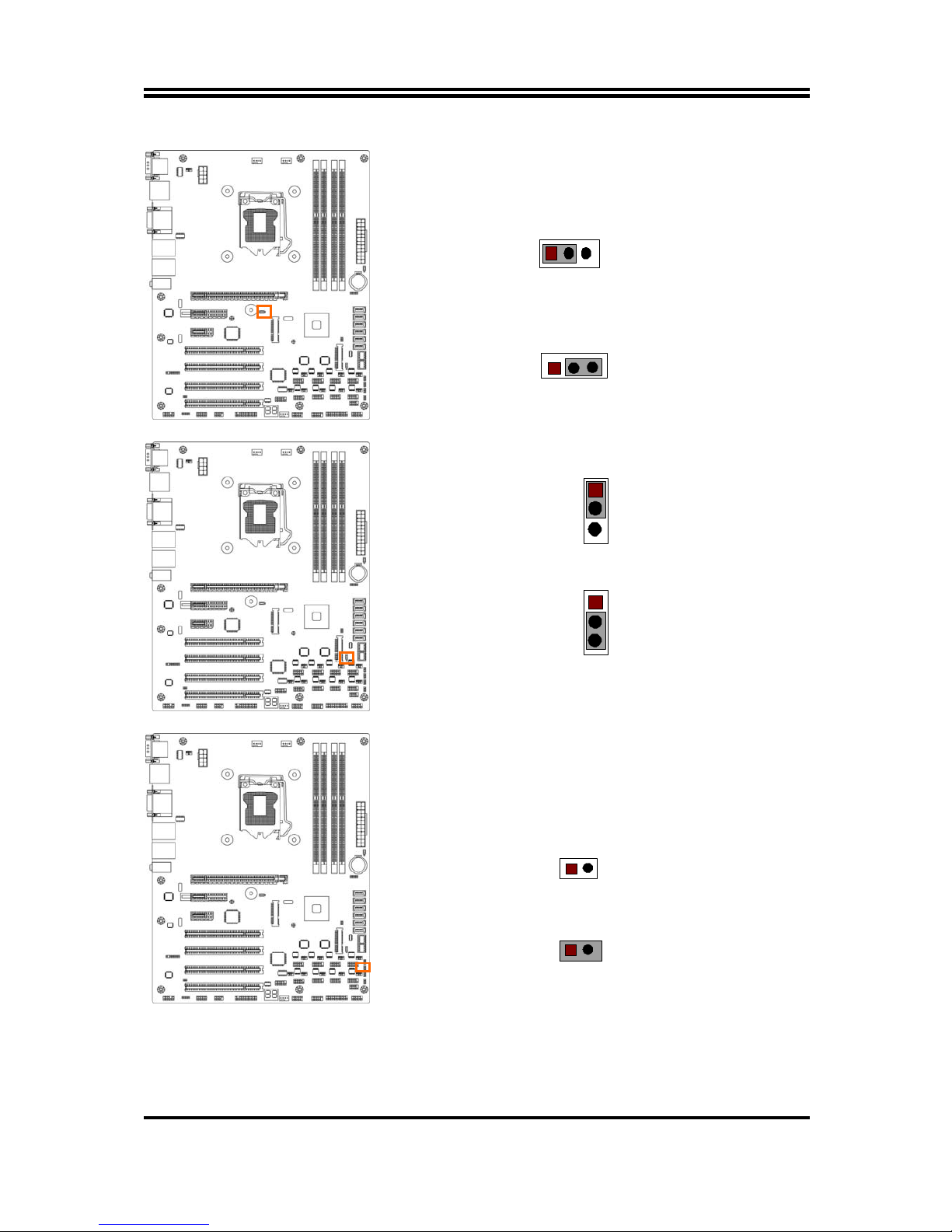

Motherboard Jumper Position
Jumper
Jumper Name Description
JP1 COM1 Port Pin9 Function Select 4-pin Block
JP9 COM2 Header Pin9 Function Select 4-pin Block
JP5 COM3 Header Pin9 Function Select 4-pin Block
JP6 COM5 Header Pin9 Function Select 4-pin Block
JP7 COM7 Header Pin9 Function Select 4-pin Block
JP8 COM9 Header Pin9 Function Select 4-pin Block
JP10 COM4 Header Pin9 Function Select 4-pin Block
JP11 COM6 Header Pin9 Function Select 4-pin Block
JP12 COM8 Header Pin9 Function Select 6-pin Block
JP13 COM10 Header Pin9 Function Select 6-pin Block
JP14 ME_Features Select 2-pin Block
JBAT CMOS RAM Clear Function Setting 3-pin Block
JP2 Mini PCI-E Slot (PE4)VCC3.3V/3.3VSB Select 3-pin Block
JP4 MSATA Slot (MSATA)VCC3.3V/3.3VSB Select 3-pin Block
Case_OPEN Case Open Message Display Function Select 2-pin Block
JP2
CASE_OPEN
J
P1
J
BA
T
J
P12
J
P5
J
P11
J
P10
J
P9
J
P
6
JP14
JP4
J
P
7
JP
8
J
P13

4
Connectors
Connector Name
ATXPWR ATX Power Connector
ATX12V ATX 12V Power Connector
COM1 Serial Port COM Connector
DP Display Port
USB1 USB 3.0 Connector X2
HDMI High-Definition Multimedia Interface
CRT Video Graphic Attach Connector
DVI1 DVI-D Port Connector
UL1(Top)/UL2(Top) RJ-45 LAN Connector X2
UL1(Middle & Bottom)/UL2(Middle & Bottom) USB 2.0 Port Connector X4
AUDIO Line Out /Line In /MIC
Audio Connector
SATA1/2/3/4/5/6 SATAIII Connector X6
Headers
Header Name Description
FP_AUDIO Front Panel Audio Header 9-pin Block
CD_IN CD Audio-In Header 4-pin Block
HDMI_SPDIF HDMI_SPDIF Out Header 2-pin Block
KBMS PS/2 Keyboard & Mouse Header 6-pin Block
GPIO_CON GPIO Header 10-pin Block
CIR_CON CIR Header 7-pin Block
TPM TPM Header 19-pin Block
USB2 USB 3.0 Header 19-pin Block
USB3/USB4 USB 2.0 Header 9-pin Block
JW_FP
(Front Panel Header) PWR LED/ HD LED/ /Power Button /Reset 9-pin Block
JP15 Power LED+ Speaker Header 7-pin Block
COM 2/3/4/5/6/7/8/9/10 Serial Port Header 9-pin Block
SM_BUS SMBUS Header 4-pin Block
NIC_LED1/ NIC_LED2 LANLED Activity Header 2-pin Block
SYSFAN1/SYSFAN2/CPUFAN FAN Header 4-pin Block

5
Chapter 2
Hardware Installation

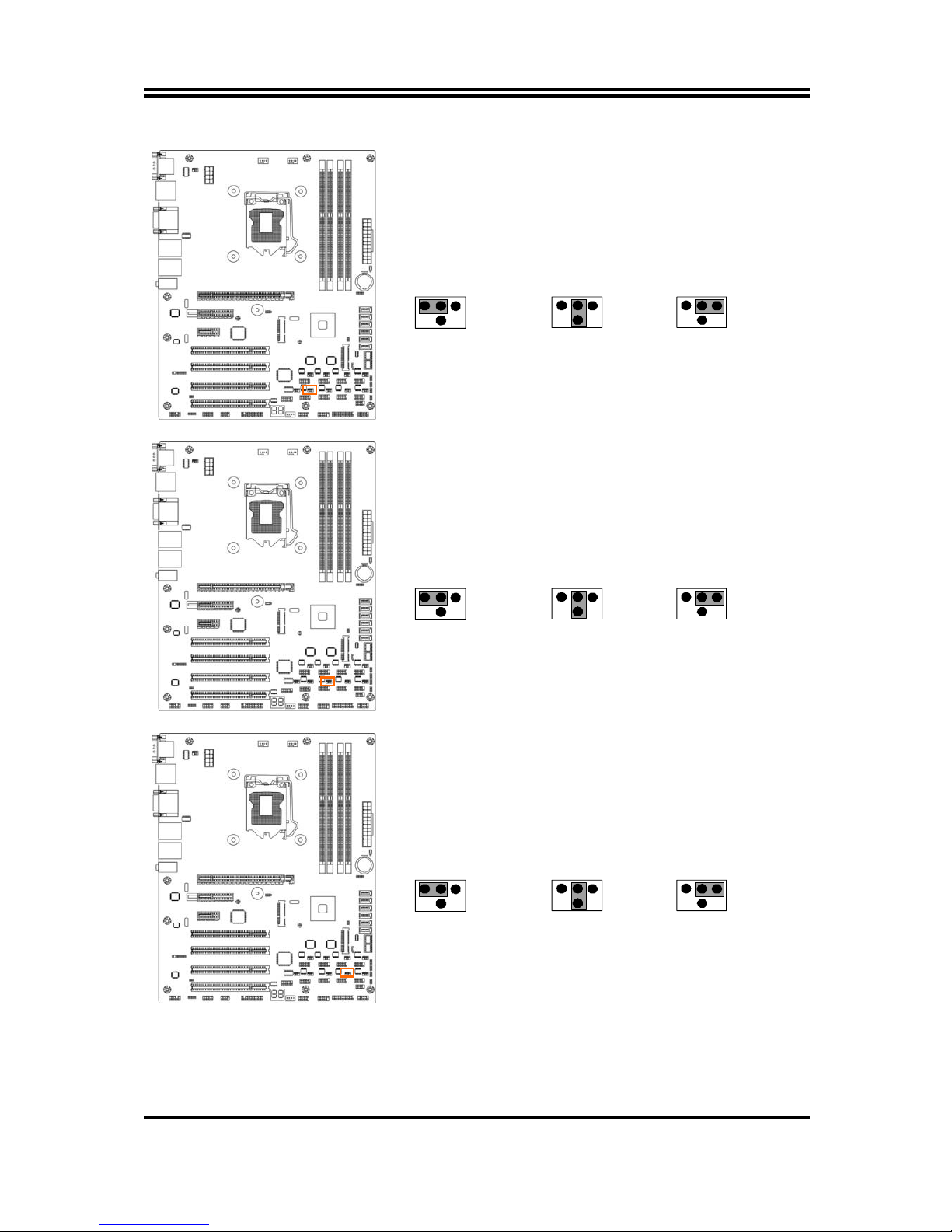

2-1 Jumper Setting

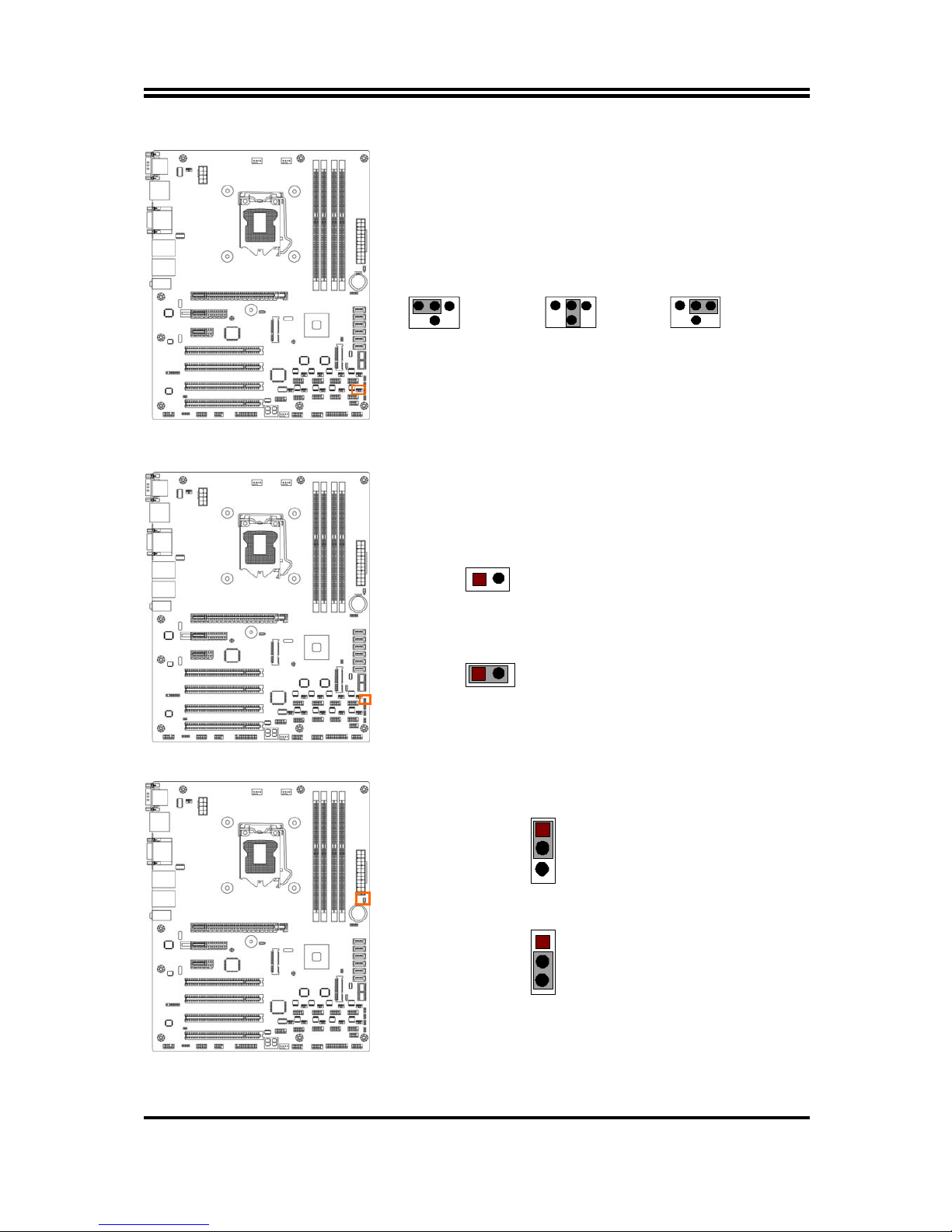

JP1 (4-pin): COM1 Port Pin9 Function Select
JP1→COM1 Port
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6
JP9 (4-pin): COM2 Header Pin9 Function Select
JP9→COM2 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6
JP5 (4-pin): COM3 Header Pin9 Function Select
JP5→COM3 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6

6
JP6 (4-pin): COM5 Header Pin9 Function Select
JP6→COM5 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6
JP7 (4-pin): COM7 Header Pin9 Function Select
JP7→COM7 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6
JP8 (4-pin): COM9 Header Pin9 Function Select
JP8→COM9 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6

7
JP10 (4-pin): COM4 Header Pin9 Function Select
JP10→COM4 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6
JP11 (4-pin): COM6 Header Pin9 Function Select
JP11→COM6 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6
JP12 (4-pin): COM8 Port Pin9 Function Select
JP12→COM8 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6

8
JP13 (4-pin): COM10 Port Pin9 Function Select
JP13→COM10 Header
4-6 Closed:
RI= 12V;
642
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232
3
15135
246
1 3 5
2 4 6
JP14 (2-pin): ME Features Select
1-2 Closed:ME Features Disabled.
JP14
12
1-2 Open:ME Features Enabled;
12
JBAT (3-pin): Clear CMOS Function Settings
2-3 Closed: Clear CMOS.
JBAT
1-2 Closed: Normal；
1
3
1
3

9
JP2 (3-pin): Mini PCI-E (PE4) Slot VCC 3.3V/3.3 VSB Select
2-3 Closed ：MINI PCI-E VCC= 3.3VSB
JP2→PE4 Slot
1-2 Closed ：MINI PCI-E VCC= 3.3V;
1
3
13
JP4 (3-pin): MSATA Slot VCC 3.3V/3.3 VSB Select
2-3 Closed: MSATA VCC= 3.3VSB
JP4→MSATA
1-2 Closed: MSATA VCC= 3.3V;
1
3
1
3
CASE_ OPEN (2-pin): Case Open Message Display Function Select
1-2 Closed : Case Open Function Selected.
CASE_OPEN
12
1-2 Open: Normal;
12
Pin 1-2 Closed: Case open display function enabled.
Use needs to enter BIOS and enable ‘Case Open Detect’function. In this case if you
case is removed, next time when you restart your computer a message will be
displayed onscreen to inform you of this.

10
2-2 Connectors and Headers
2-2-1 Rear I/O Back Panel Connectors
(1) Serial port Connector: COM1
These two serial ports are for user to connect compatible mouse, modern or
other peripherals.
(2) Display Port: DP
Display port can support a maximum screen resolution of 2560 x 1600 (actual
resolution depending on the monitor used) and high-quality audio playback.
Please connect it to your monitor with DP cable if your monitor support display
port.
(3) USB 3.0 Port Connector: USB1
These USB 3.0 connectors are for user to connect USB 3.0 compatible devices
to the system board.
(4) High-Definition Multimedia Interface: HDMI
This point-to-point interface is for audio and video signals designed as a
single-cable solution for home theater and consumer electronics equipment.
(5) D-Sub 15-pin VGA Connector: CRT
VGA connector is the 15-pin D-subminiature female connector; it is for the
display devices, such as the CRT monitor, LCD monitor and so on.
(6) Digital Visual Interface: DVI1
This interface standard designed to maximize the visual quality of digital display
devices such as flat panel LCD computer displays and digital projectors.
(7) USB 2.0 Port Connector: UL1(Middle & Bottom)/ UL2(Middle & Bottom)
The connectors are 4-pin connector that connects USB devices to the system
board.
(8) RJ-45 LAN Port Connectors: UL1(Top)/UL2(Top)
The connectors are standard RJ-45 connectors for Network.
(9) Line-In(SPDIF Out), Lin-Out, MIC Audio connectors: AUDIO1
These Connectors are 3 Phone-Jack for LINE-OUT, LINE-IN, MIC audio
connections.
Color Name Function
Blue Line-in/SPDIF Out Audio input to sound chip/SPDIF Out Connector
Green Line-out Audio output to speaker
Pink MIC Microphone Connector
RJ-45 LAN Ports
USB 3.0 Ports
Line-IN/
Optical SPDIF OUT
Line-OUT
MIC-IN
USB 2.0 Ports
VGA Port
DVI-D Port
HDMI Port
Serial Port
Display Port

11
2-2-2 Motherboard Internal Connectors

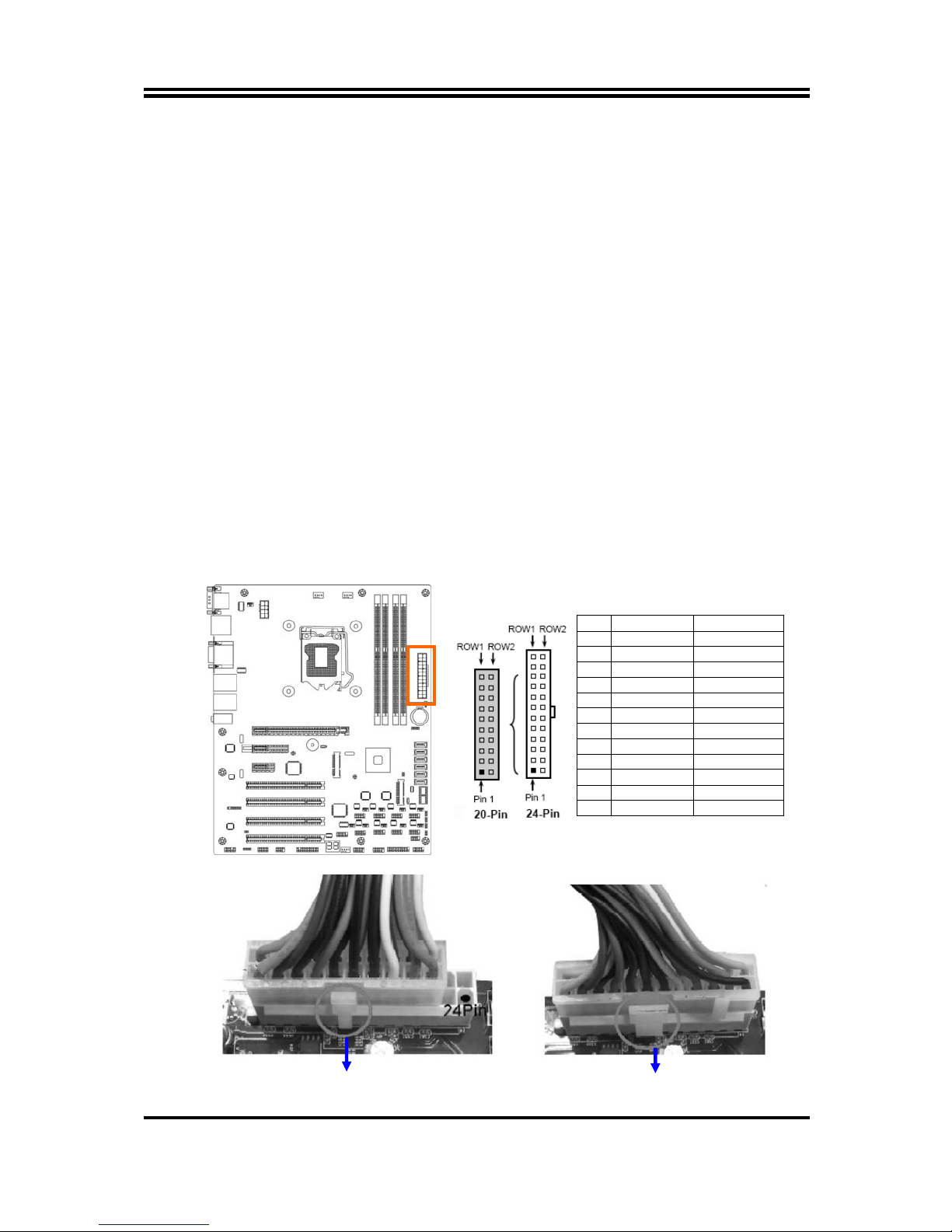

(1) ATXPWR (24-pin block): Main Power Connector
ATX Power Supply connector: This is a new defined 24-pins connector that
usually comes with ATX case. The ATX Power Supply allows using soft power
on momentary switch that connect from the front panel switch to 2-pins Power
On jumper pole on the motherboard. When the power switch on the back of the
ATX power supply turned on, the full power will not come into the system board
until the front panel switch is momentarily pressed. Press this switch again will
turn off the power to the system board.
** We recommend that you use an ATX 12V Specification 2.0-compliant power
supply unit (PSU) with a minimum of 350W power rating. This type has 24-pin
and 4-pin power plugs.
** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the
20-pin power plug can provide at least 15A on +12V and the power supply unit
has a minimum power rating of 350W. The system may become unstable or may
not boot up if the power is inadequate.
** If you are using a 20-pin power plug, please refer to Figure1 for power supply
connection. Power plug form power supply and power connectors from
motherboard both adopt key design to avoid mistake installation. You can insert
the power plug into the connector with ease only in the right direction. If the
direction is wrong it is hard to fit in and if you make the connection by force if is
possible.
PIN ROW1 ROW2
1 +3.3V +3.3V
2 +3.3V -12V
3 GND GND
4 +5V Soft Power on
5 GND GND
6 +5V GND
7 GND GND
8 Power OK -5V
9 +5V Stand by +5V
10 +12V +5V
11 +12V +5V
12 +3.3V GND
24-
p
in Main Power Connector
Figure1：20-pinpowerplug Figure2：24-pin power plug

12

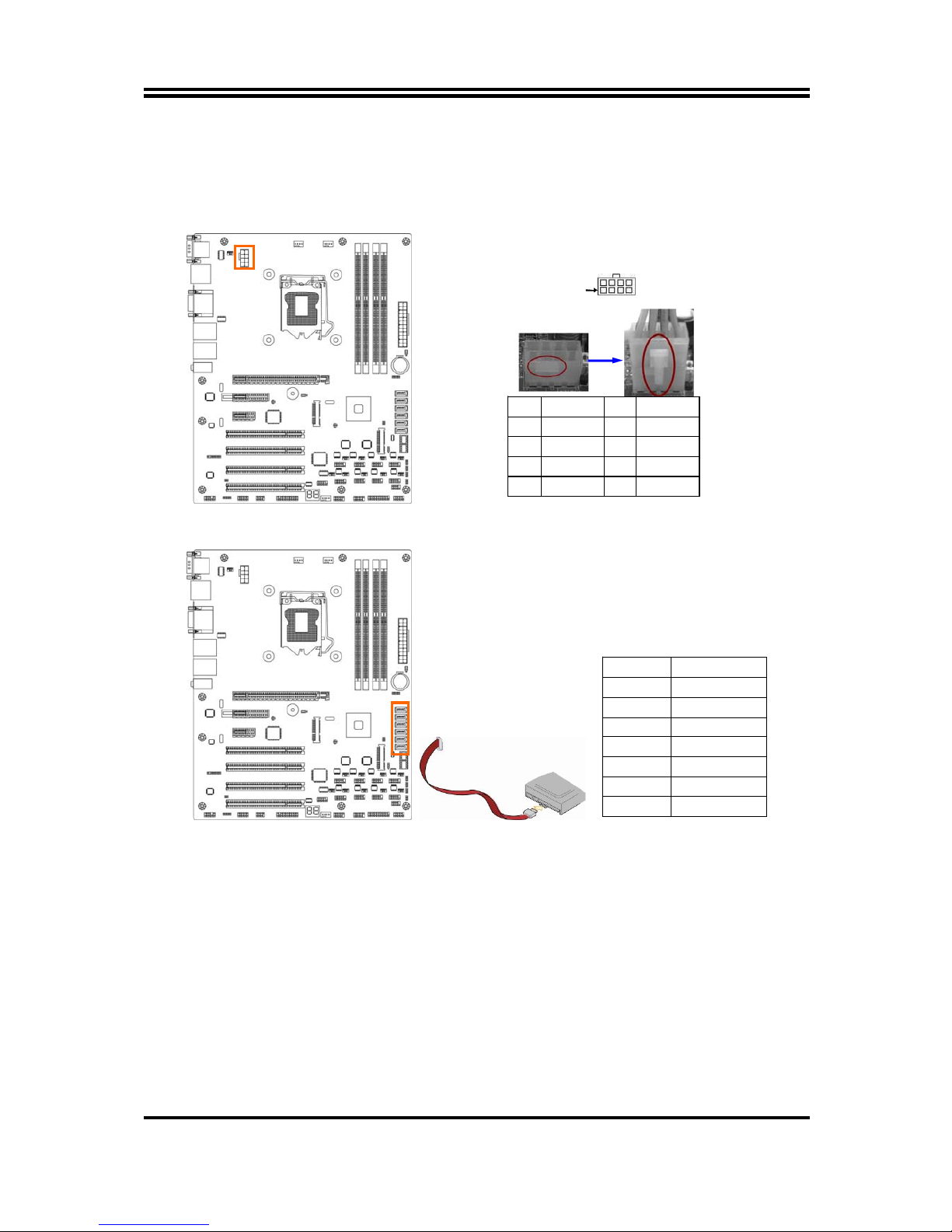

(2) ATX12V (8-pin block): 12V Power Connector
This is a new defined 8-pin connector that usually comes with ATX Power
Supply that supports extra 12V voltage to maintain system power consumption.
Without this connector might cause system unstable because the power supply
can not provide sufficient current for system.
Pin1 4
Pin Definition No. Definition
1 GND 5 +12V
2 GND 6 +12V
3 GND 7 +12V
4 GND 8 +12V
(3) SATA1/2/3/4/5/6: SATAIII Port connector
These connectors are high-speed SATAIII ports that support 6 GB/s transfer rate.
Pin No. Defnition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

13
2-2-3 Header Pin Definition

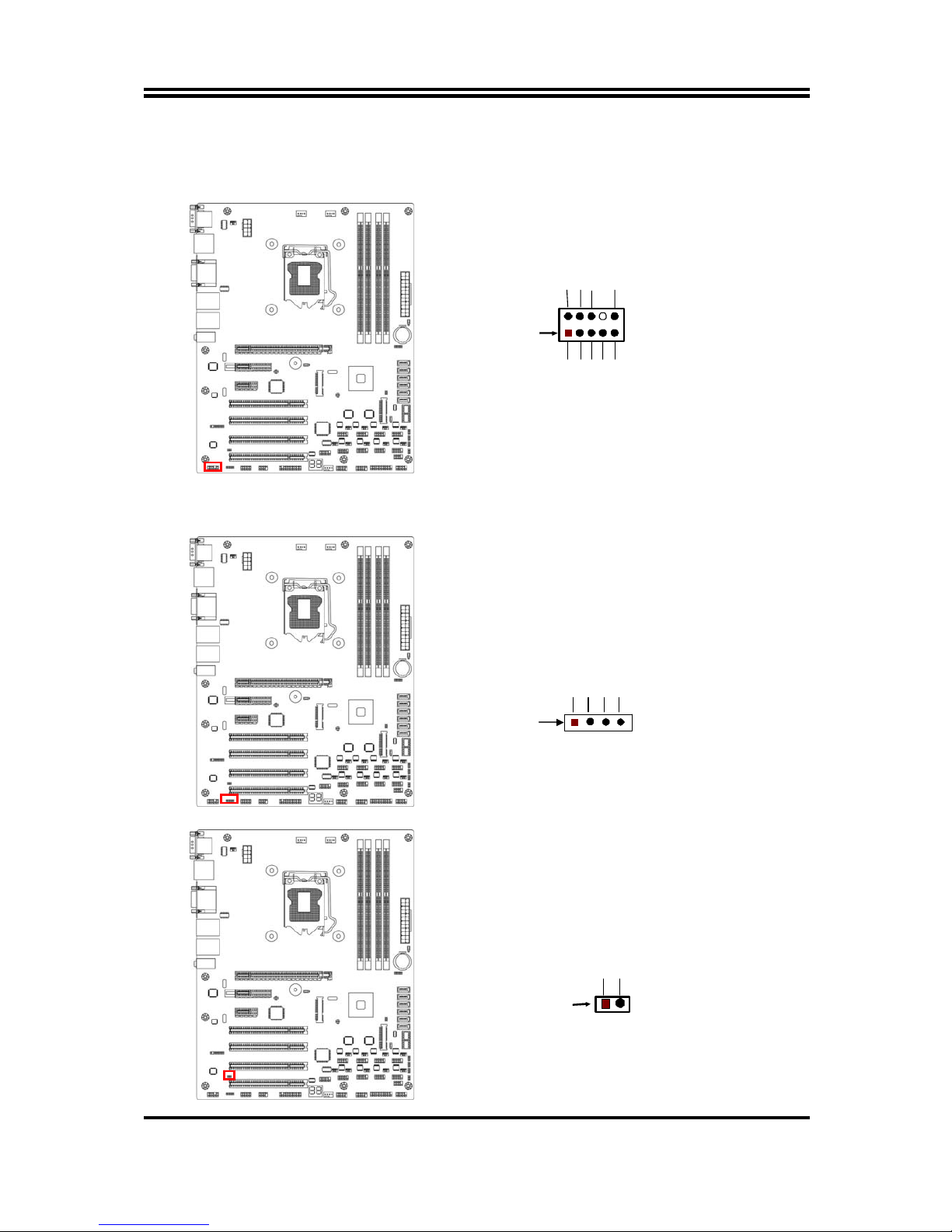

(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header is connected to Front Panel Line-out, MIC connector with cable.
Line-Out, MIC Header
FP_AUDIO
Pin1
MIC1-R
LINE OUT-L
MIC1-L LINE OUT-R NC
GND
NC
NC NC
2
(2) CD_IN (4-pin): CD AUDIO-In Header
CDIN header is for CD-Audio Input signal. Please connect it to CD-ROM
CD-Audio output connector.
Pin1
GND CD-R
CD-L GND
(3) HDMI_SPDIF (2-pin): HDMI-SPDIF Out header
HDMI_SPDIF Header
Pin1
SPDIF
GND

14
(4) KBMS (6-pin): PS/2 Keyboard & Mouse Header
GND
KB_CLK
KB_DATA
Pin1
MS_DATA
VCC
MS_CLK
(5) GPIO_CON (10-pin): GPIO Header
9
GPIO
GND
GPIO GPIO GPIO
GPIO
GPIO
2
Pin 1 10
VCC
GPIO GPIO
(6) CIR_CON (7-Pin): CIR Header
CIR Header
GND NC ATX 5VSB
CIR LED
V
CC
CIR _WB
2
Pin 1
CIR RX

15
(7) TPM (19-pin): TPM Header
CLK VCC3.3
LFRAME- RESET
LAD3
GND
VCC5V
KEY/NC
2
Pin 1
LAD2
LAD1 LAD0
SMB_CLK SB 3.3V
GND
GND
SMB_DATA
SERIRQ
NC/GND
GPIO LPC_PD-
(8) USB 3.0 Port Header (19-pin): USB2
SSRX1- SSRX1+
GND1
SSTX1-
SSTX1+
GND0
D1-
D1+
VBUS
Pin 1
NCD2+
D2-
GND2
SSTX2+
SSTX2-
GND3
SSRX2+
SSRX2-
VBUS2
10
11
(9) USB 2.0 Port Headers (9-pin): USB3/USB4
Pin 1
V
CC
-DATA
GND
+DATA
V
CC
NC
-DATA
GND
+DATA

16
(10) JW-FP (9-pin): Front Panel Header
HDLED RESET
HDDLED+
GND
PWRLED+
PWRBTN GND
PWRLED- HDDLED-
RSTSW
V
CC
PWRBT
Pin 1
2
PWR LED
(11) JP15 (7-pin): PWR LED Header & Speaker Header
SPEAK+ NC SPEAK-
PWRLED+
Pin 1
NC
PWRLED-
PWRLED-
(12) COM2/3/4/5/6/7/8/9/10 (9-Pin): Serial Port Header
DCD
Pin1
Pin6 Pin5
SIN
SOUT DTR
GND
DSR
RTS CTS
RI
