JETWAY NF3AE Series User manual

NF3AE Series User Manual
NO. G03-NF3AE-F
Revision: 1.0
Release date: June 28, 2017
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

ii
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

iii
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iv
USER’S NOTICE .......................................................................................................................v
MANUAL REVISION INFORMATION.......................................................................................v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING .....................................................................................................9
2-2 CONNECTORS AND HEADERS................................................................................15
2-2-1 CONNECTORS .............................................................................................15
2-2-2 HEADERS .....................................................................................................17
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP .....................................................................................................24
3-2 BIOS MENU SCREEN ................................................................................................25
3-3 FUNCTION KEYS .......................................................................................................26
3-4 GETTING HELP ..........................................................................................................26
3-5 MEMU BARS...............................................................................................................27
3-6 MAIN MENU................................................................................................................28
3-7 ADVANCED MENU.....................................................................................................29
3-8 CHIPSET MENU..........................................................................................................40
3-9 SECURITY MENU.......................................................................................................43
3-10 BOOT MENU...............................................................................................................44
3-11 SAVE & EXIT MENU...................................................................................................45
TABLE OF CONTENT

iv
Environmental Safety Instruction
Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

v
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition June 28, 2017

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
Onboard Intel®Bay Trail Series Processor, with low power consumption never
denies high performance
Support single channel DDR3L 1333 MHz SODIMM, up to 8GB
Support 1 * SATAII device
Onboard one full-size mSATA/ Mini-PCIE slot
Onboard one half-size Mini-PCIE slot
Onboard 2 * RJ-45 gigabit Ethernet LAN port
Integrated with 1 * 24-bit dual channel LVDS header
Integrated with 4-Lane eDP header
Support VGA output
Support USB 3.0 data transport demand
Support CPU Smart FAN
Compliance with ErP standard
Support Watchdog function

2
1-2 Specification
Spec
Description
Design

3.5”SBC; 6 layers; PCB size: 14.8x 10.2 cm
Embedded
CPU

Intel®Bay Trail-D/M/I series CPU
*CPU model varies from different IPC options. Please consult your dealer for
more information of onboard CPU.
Memory Slot 
1 * DDRIIIL SODIMM Slot for un-buffered Single Channel
DDRIIIL 1333 MHz SDRAM, up to 8GB
Expansion
Slot

Full-size Mini-PCIE/mSATA slot x1
Half-size Mini-PCIE slot x1
LAN Chip

Integrated with dual Realtek RTL8111G PCI-E Gigabit LAN
chips
Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
BIOS

AMI 64MB Flash ROM
Rear I/O
3* USB 2.0 port
2* RJ-45 LAN port
1* VGA port
1* USB 3.0 port
Audio Line Out port x1
9V~24V DC Jack
Internal I/O
1* SATAII 3Gb/s port
1* SATA Power connector
1* CPU FAN header
1* LVDS inverter
1* Front panel audio header

1* SPDIF Out header

3
4* Serial port header
2* 9-pin USB 2.0 header (Expansible to 4* USB 2.0 ports)
1* GPIO header
1* SM_BUS header
1* PS2KBMS header
1* Front panel header
2* LAN LED activity header
1* LVDS header
1* 4-Lane eDP header
1-3 Layout Diagram

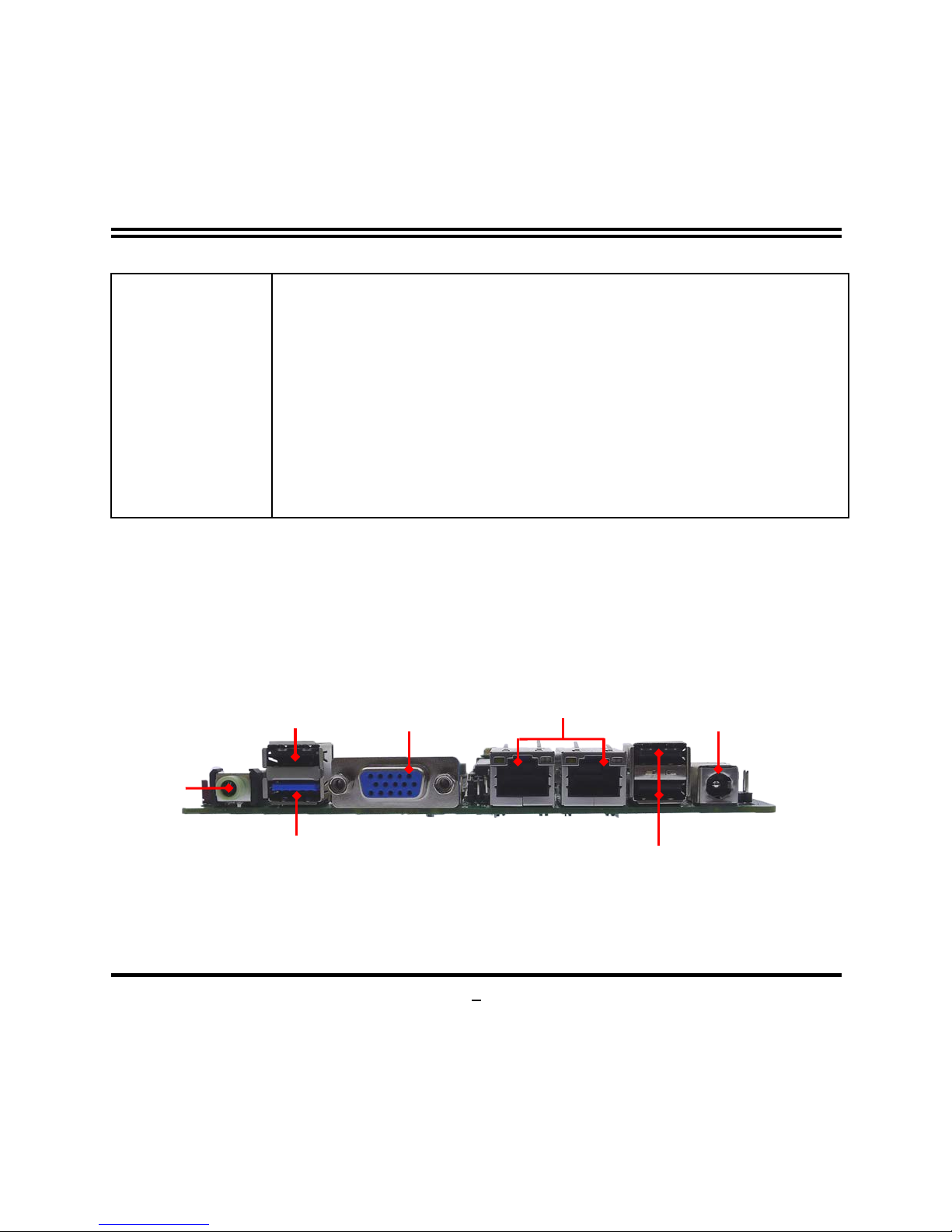

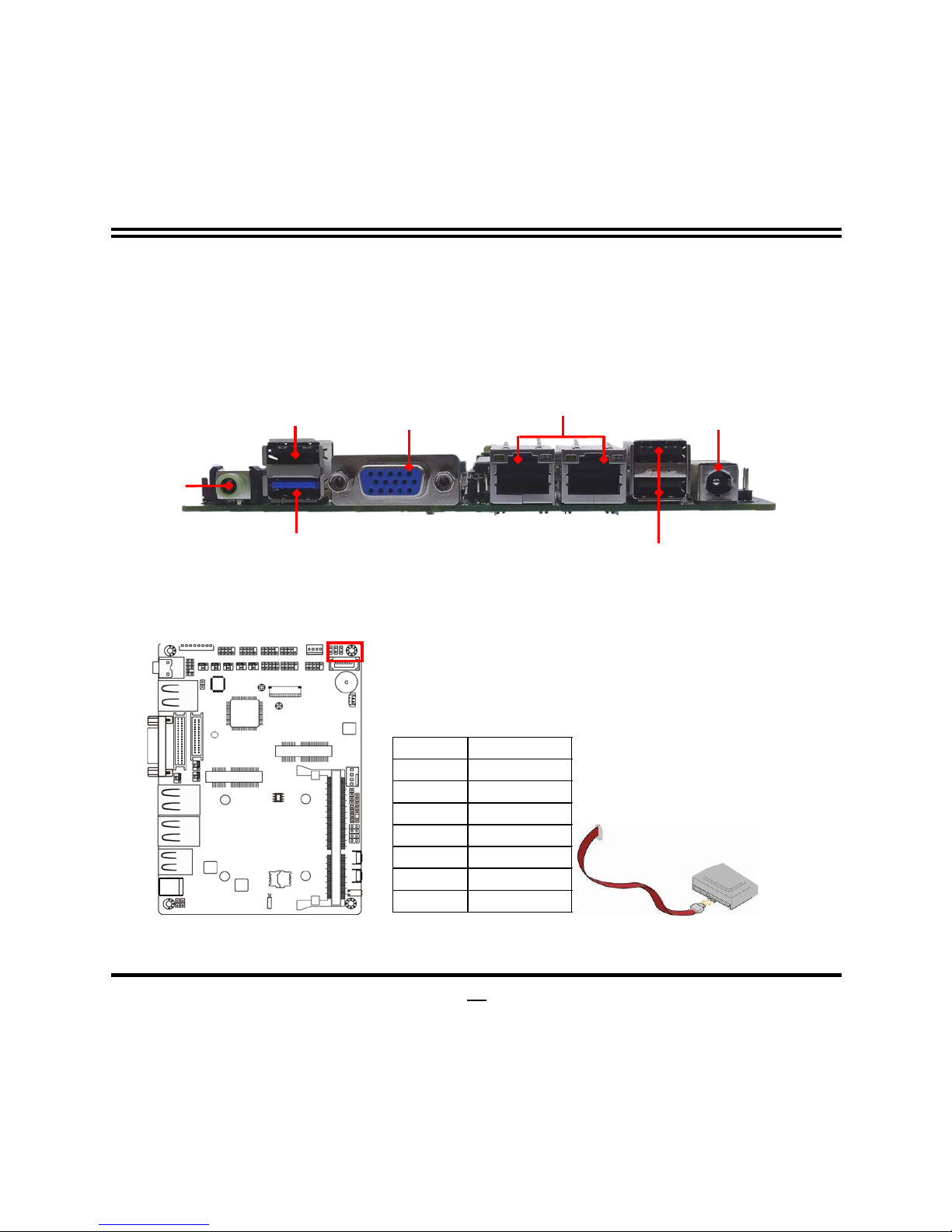

Rear IO Panel Diagram:
Line-Out
Port
USB 3.0 Port
USB 2.0 Port
VGA Port
RJ-45 LAN Ports
USB 2.0 Ports
DC Jack

4

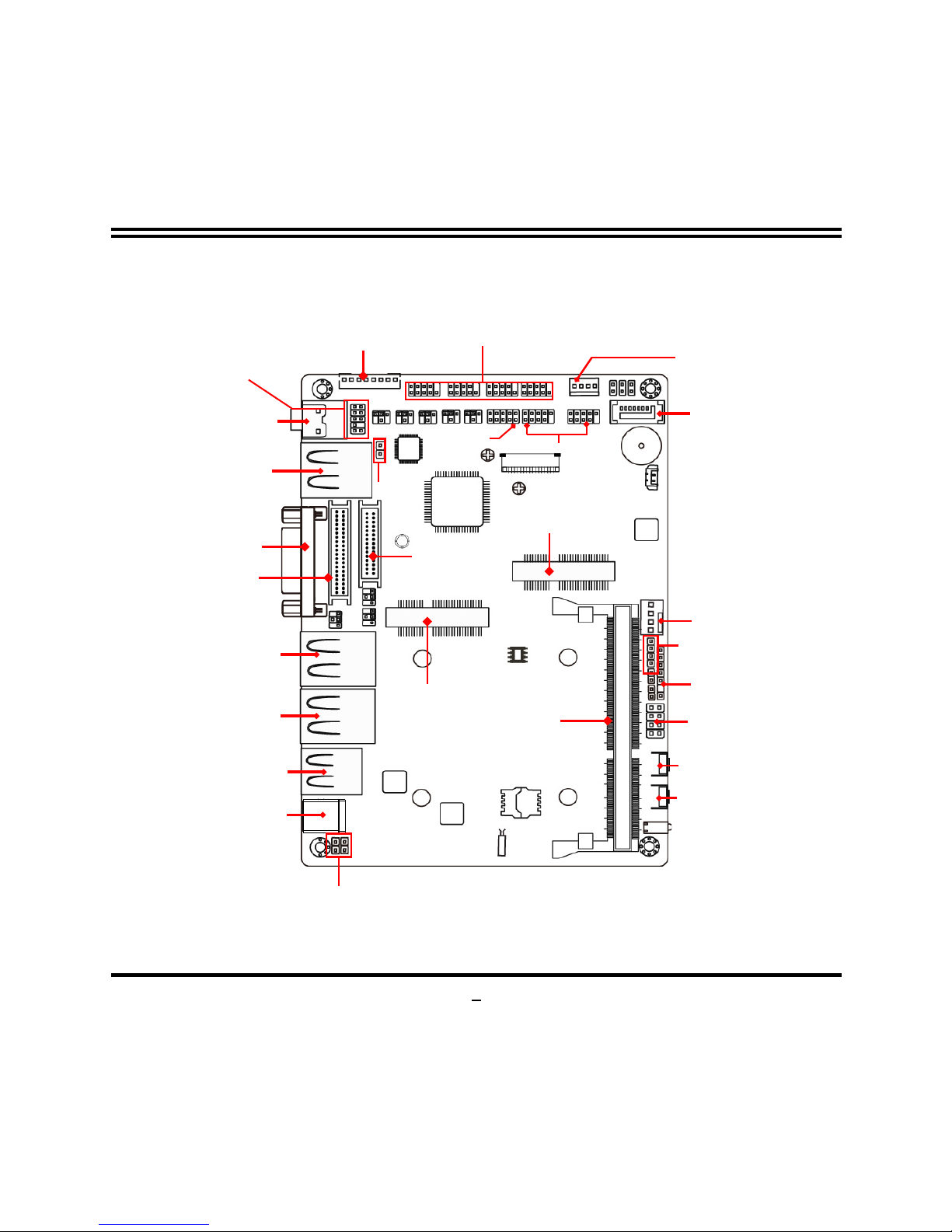

Internal Diagram-Front Side:
LANLED Headers
SATAII Port
CPUFAN Header
Front Panel Header
DDR3L
SODIMM Slot
Reset Button
Power Switch Button
USB 3.0 Port
Over USB 2.0 Port
VGA Port
SMBUS Header
INVERTER
LVDS Header
Full-size
Mini-PCIE/mSATA Slot
USB 2.0 Ports
Line-Out Port
RJ-45 LAN Port
RJ-45 LAN Port
Serial Port Header
(COM4/3/2/1)
GPIO Header
USB 2.0 Header
Front Panel
Audio Header
SATA
Power Connector
SPDIF Out
Header
PS2KBMS Header
Half-size
Mini-PCIE Slot
EDP Header
9V ~24V
DC Jack

5

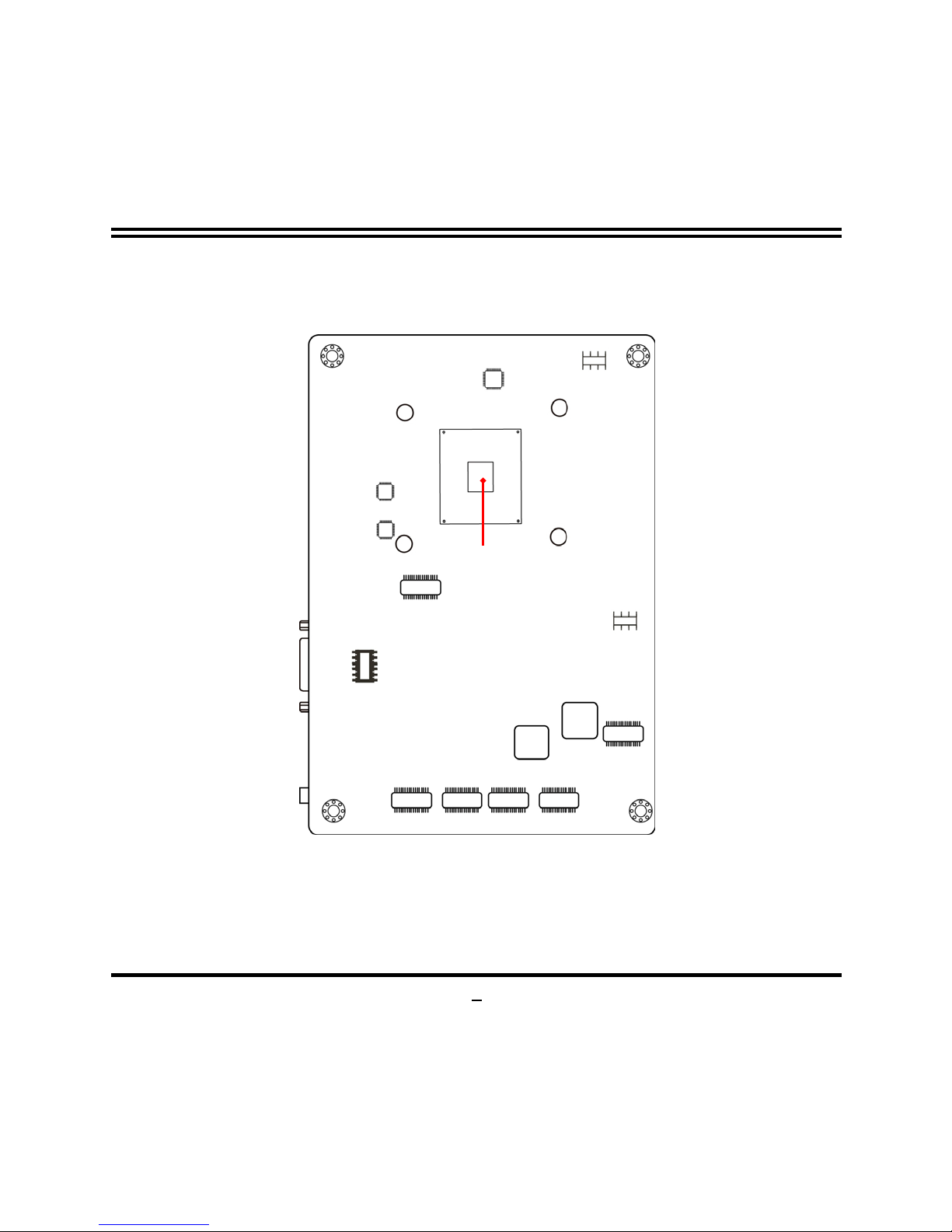

Internal Diagram-Back Side:
Intel CPU

6

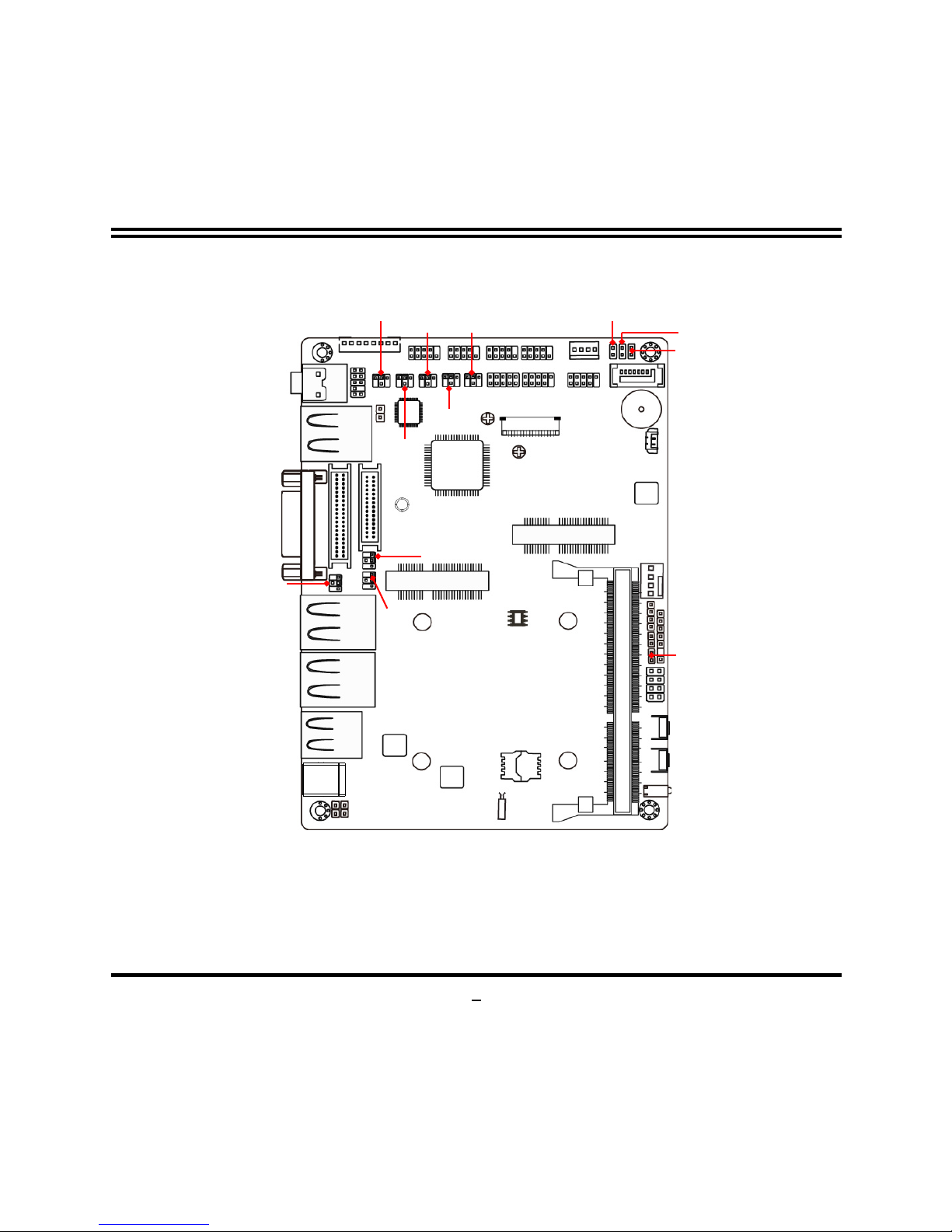

Jumper Position:
JP8
JP3
JP2
JP4
JP5
JP6
JBAT
COPEN
AT-MODE
JP7
JP1
JP9

7
Jumper
Jumper
Name
Description
JP1
LVDS LCD VCC 3.3V/5V/12V Select
4-Pin Block
JP2
LVDS INVERTER VCC 5V/12V/Adapter
VCC Select
4-Pin Block
JP8
eDP LCD VCC 3.3V/5V/12V Select
4-Pin Block
JP9
eDP Backlight VCC 5V/12V/ Adapter VCC
Select
4-Pin Block
JP3
COM4 Header Pin9 Function Select
4-Pin Block
JP4
COM3 Header Pin9 Function Select
4-Pin Block
JP5
COM2 Header Pin9 Function Select
4-Pin Block
JP6
COM1 Header Pin9 Function Select
4-Pin Block
JBAT
CMOS RAM Clear Function Setting
2-Pin Block
COPEN
Case Open Message Display Function
2-Pin Block
AT_MODE
AT Mode Function Select
2-Pin Block
JP7
Security Measure Function Select
2-Pin Block
Connectors
Connector
Name
SATA1
SATAII Port Connector
PWOUT1
SATA Power out Connector
CPUFAN
CPUFAN Connector
INVERTER
LVDS Inverter Connector
USB1/USB3(Top)
USB 2.0 Port Connector X3
USB3(Bottom)
USB 3.0 Port Connectors X1
LAN1/2
RJ-45 LAN Port Connector X2
VGA
VGA Port Connector
AUDIO
Audio Line Out Connector

8
Headers
Header
Name
Description
FP_AUDIO
Front Panel Audio Header
9-pin Block
SPDIFOUT
SPDIF Out Header
2-pin Block
COM1/2/3/4
Serial Port Header X4
9-pin Block
GPIO
GPIO Header
10-pin Block
USB3/ USB4
USB 2.0 Header
9-pin Block
SMBUS
SMBUS Header
4-pin Block
PS2KBMS
PS2KBMS Header
6-pin Block
FP
Front Panel Header(PWR LED/
HDD LED/Power Button /Reset)
8-pin Block
LAN1LED/LAN2LED
LAN Activity LED Headers
2-pin Block
LVDS
24-bit LVDS Header
30-pin Block
EDP
4-Lane eDP Header
40-pin Block

9
Chapter 2
Hardware Installation
2-1 Jumper Setting

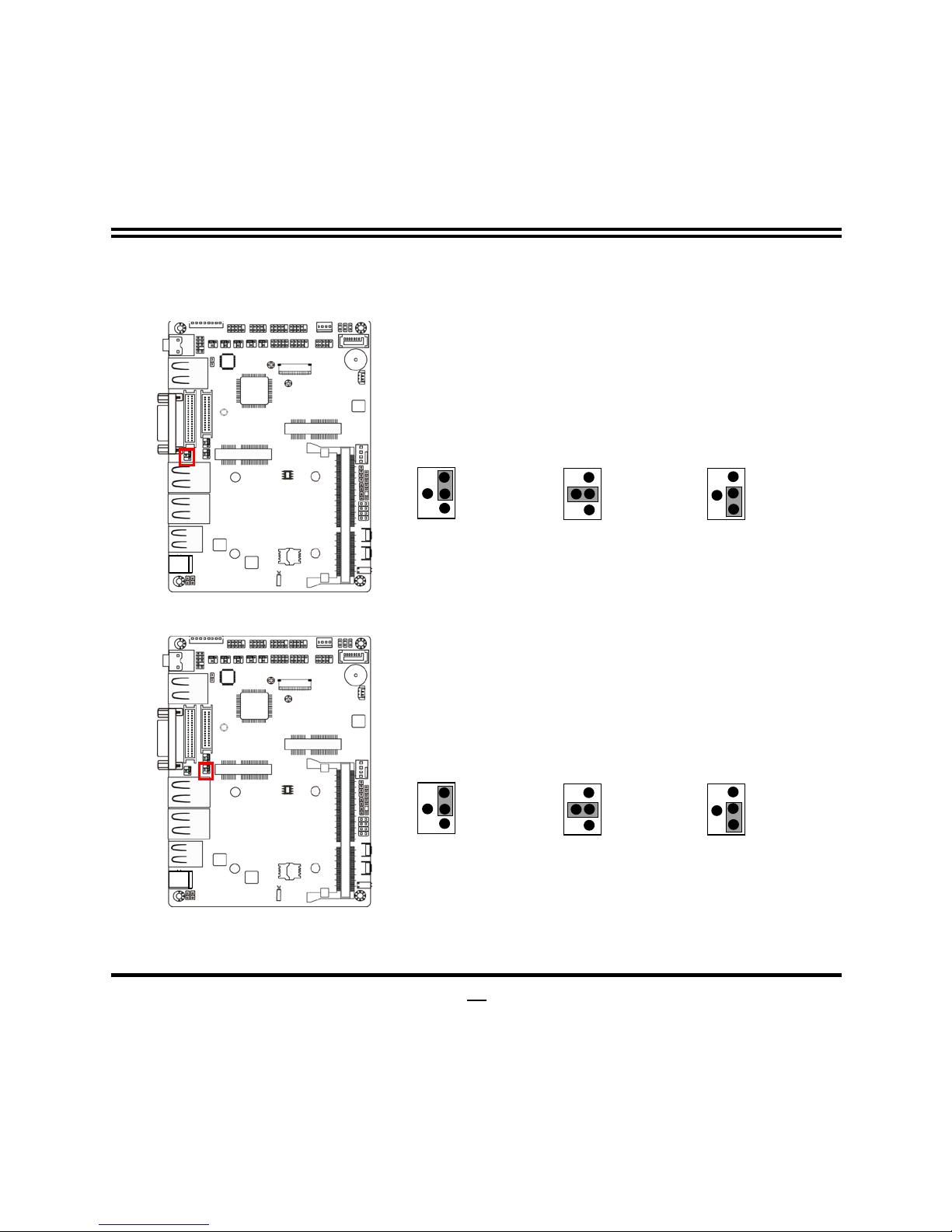

(1) JP1 (4-pin): LVDS LCD VCC 3.3V/5V/12V Select
JP1→LVDS LCD VCC
4-6 Closed: LVDS
LCD VCC= 12V.
2
4
6
3-4 Closed: LVDS
LCD VCC= 5V;
2-4 Closed: LVDS
LCD VCC= 3.3V;
3
5
1
5
6
4
2
3
1
6
4
2
5
3
1
(2) JP2 (4-pin): LVDS INVERTER VCC 5V/12V/Adapter VCC Select
JP2→LVDS Inverter VCC
3-4 Closed:
Inverter VCC
=Adapter VCC.
6
4
2
3-4 Closed:
Inverter VCC =12V;
2-4 Closed:
Inverter VCC =5V;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6

10
(3) JP8 (4-pin): eDP LCD VCC 3.3V/5V/12V Select
JP8→eDP LCD VCC
4-6 Closed: eDP
LCD VCC= 12V.
2
4
6
3-4 Closed: eDP
LCD VCC= 5V;
2-4 Closed: eDP
LCD VCC= 3.3V;
3
5
1
5
6
4
2
3
1
6
4
2
5
3
1
(4) JP9 (4-pin): eDP Backlight VCC 3.3V/5V/Adapter VCC Select
JP9→eDP Backlight VCC
4-6 Closed:
eDP Backlight VCC
= Adapter VCC.
2
4
6
3-4 Closed: eDP
Backlight VCC= 12V;
2-4 Closed: eDP
Backlight VCC= 5V;
3
5
1
5
6
4
2
3
1
6
4
2
5
3
1

11

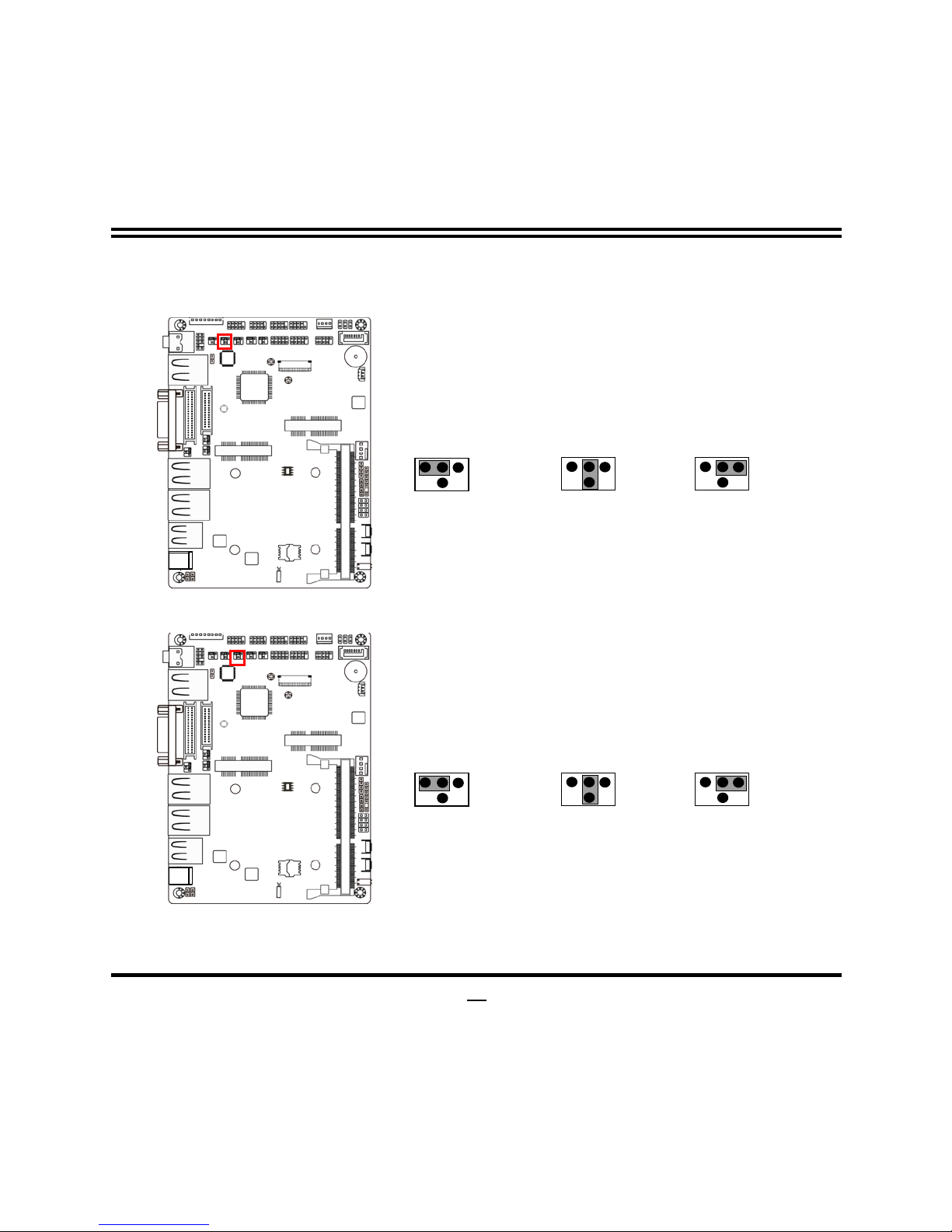

(5) JP3 (4-pin): COM4 Header Pin9 Function Select
JP3→COM4
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
(6) JP4 (4-pin): COM3 Header Pin9 Function Select
JP4→COM3
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6

12
(7) JP5 (4-pin): COM2 Header Pin9 Function Select
JP5→COM2
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6
(8) JP6 (4-pin): COM1 Header Pin9 Function Select
JP6→COM1
4-6 Closed:
RI= 12V.
6
4
2
3-4 Closed:
RI= 5V;
2-4 Closed:
RI=RS232;
3
1
5
1
3
5
2
4
6
1
3
5
2
4
6

13

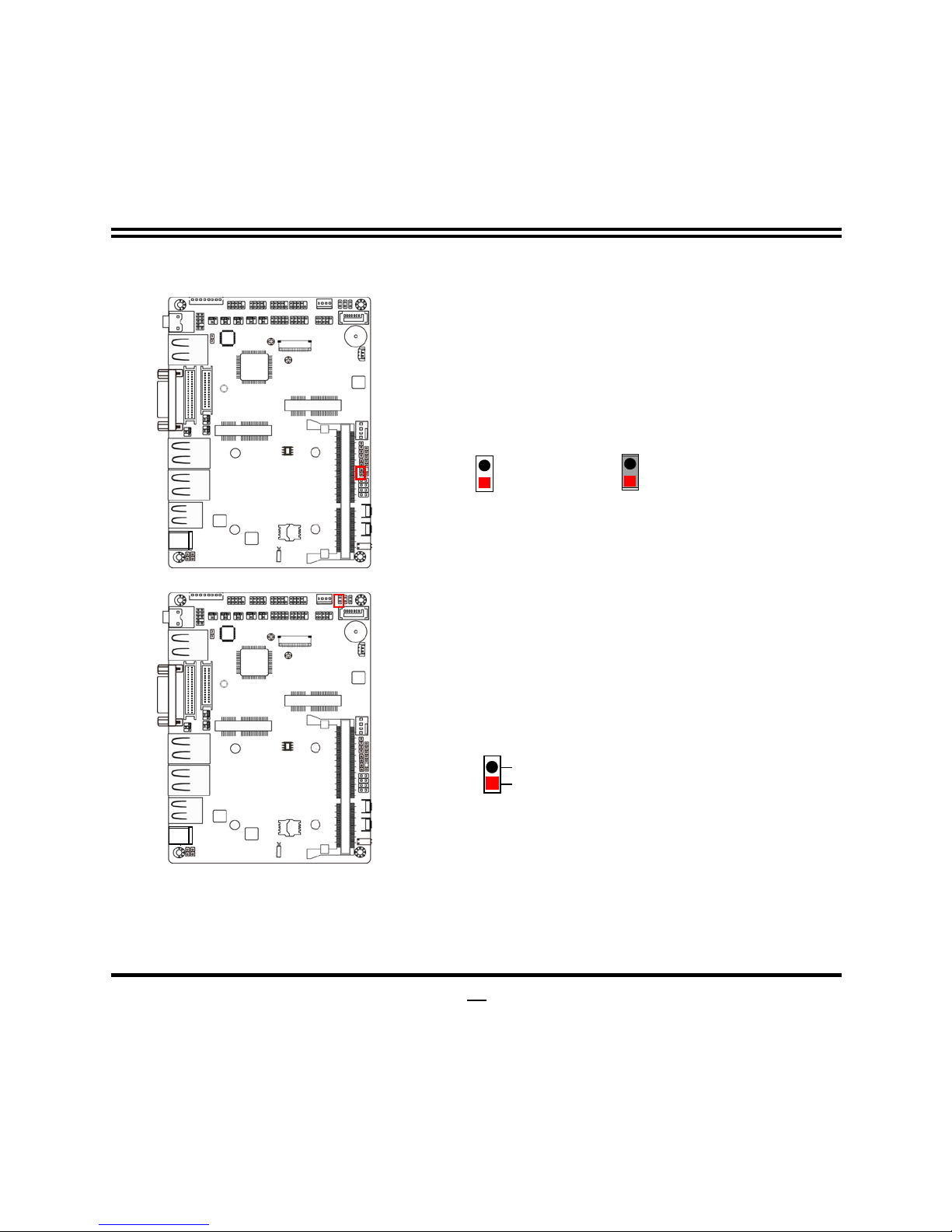

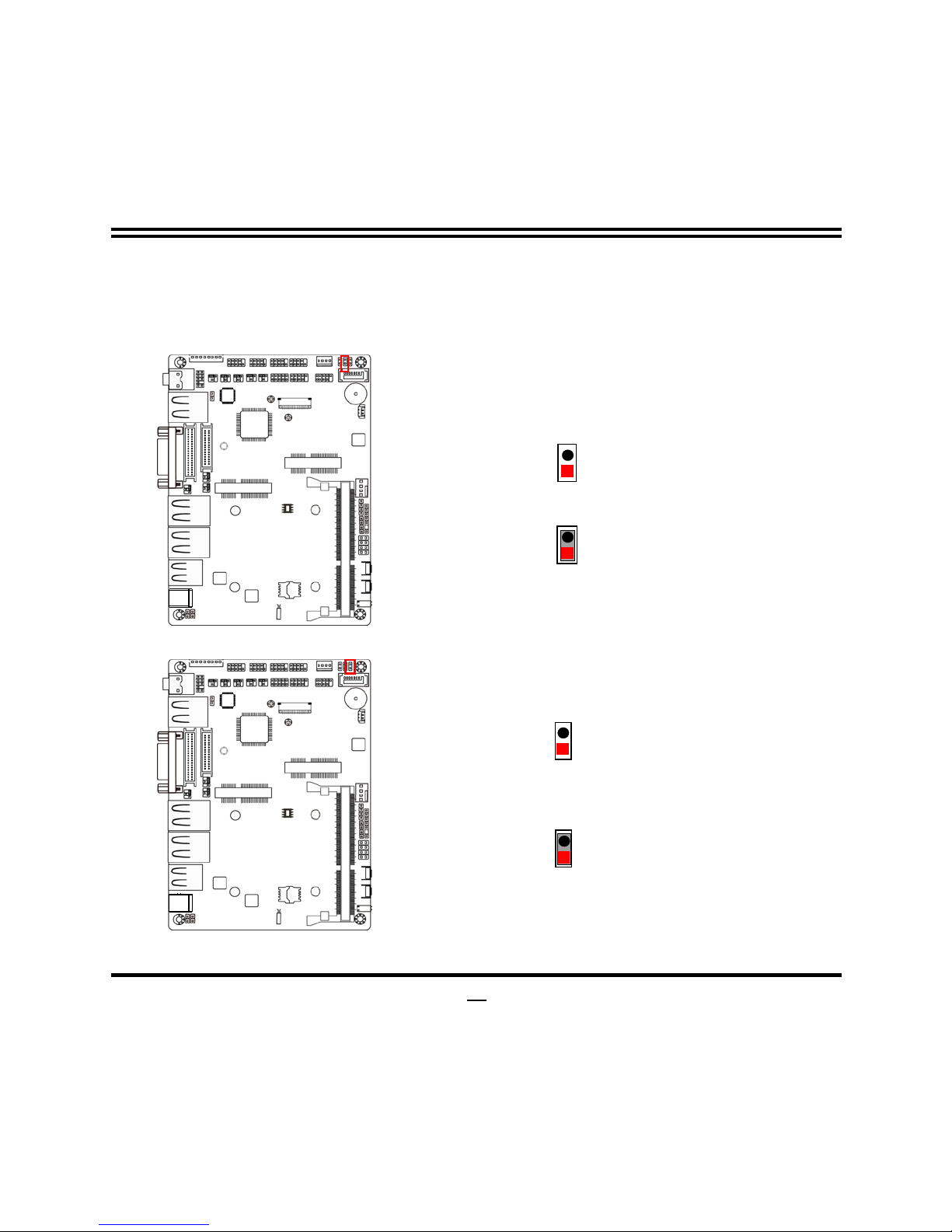

(9) JBAT (2-pin): Clear CMOS
CMOS Clear Setting
1-2 Closed：Clear CMOS
JBAT
1-2 Open: Normal；
1
(10)COPEN (2-pin): Case Open Message Display Function Select
COPEN
1
Case open function
GND
Pin 1-2 Closed: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’
function. In this case if your case is removed, next time when you restart your computer,
a message will be displayed on screen to inform you of this.

14
(11)AT_MODE (2-pin): AT Mode Function Select
Pin 1-2 closed: AT_MODE function is enabled. In this case your computer will
automatically turns on after a sudden power failure when power supply resumes.
1-2 Closed: AT Mode Selected
AT_MODE
1
2
1-2 Open: ATX Mode Selected;
1
2
(12)JP7 (2-pin): Security Measure Function Select
1-2 Closed: Disable Security Measures
in the Flash Descriptor(Override).
JP7
1
1-2 Open:Enable Security Measures
in the Flash Descriptor(Default);
1

15
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear I/O Connectors
(2) SATA1(7-pin): SATAII Port connector
SATA1 port is a high-speed SATAII port that supports 3GB/s transfer rate.
Pin No.
Definition
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
Line-Out
Port
USB 3.0 Port
USB 2.0 Port
VGA Port
RJ-45 LAN Ports
USB 2.0 Ports
DC Jack
